Default Thank you BEGi (Installed Intake Manifold Pics)

Thanks a ton to Steph for helping me with my boost addiction. Big props to Tim for welding this up for me over there. Also like to give a shout out to Splitime, Cjernigan and Y8s for their help as well in the process.

I have some days I need to burn up, so hopefully I'll have this on soon, gotta fire up the kerosene heater!

Name:  CIMG1842.jpg
Views: 6
Size:  148.3 KB

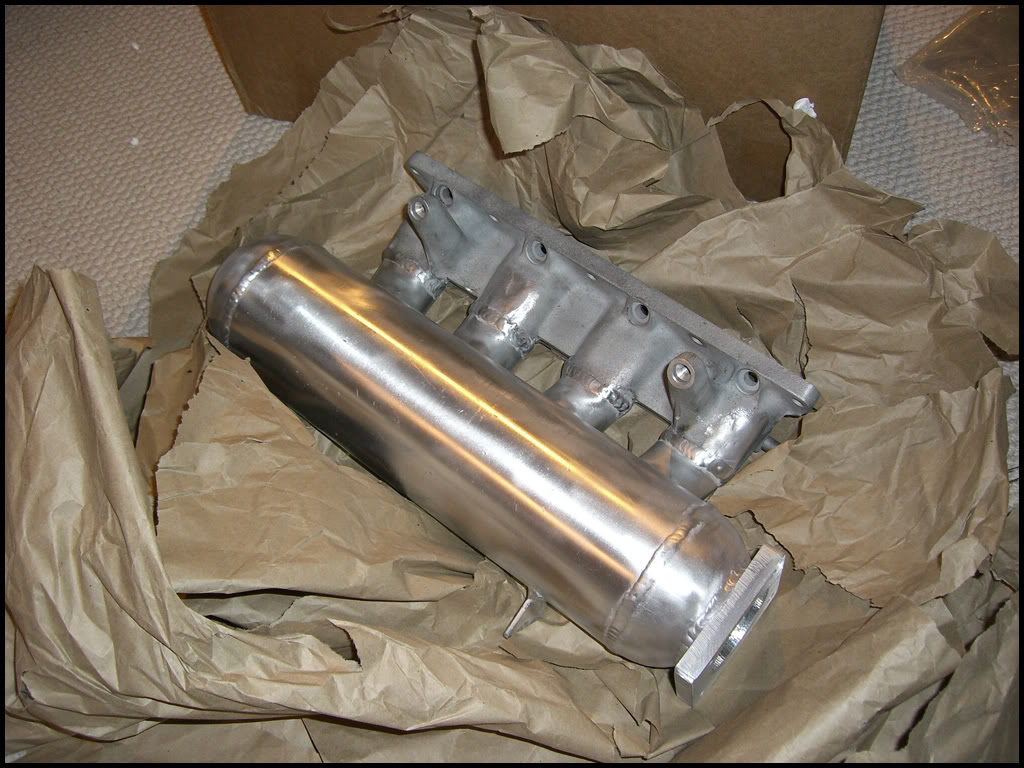

Name:  CIMG1843.jpg
Views: 6
Size:  158.3 KB

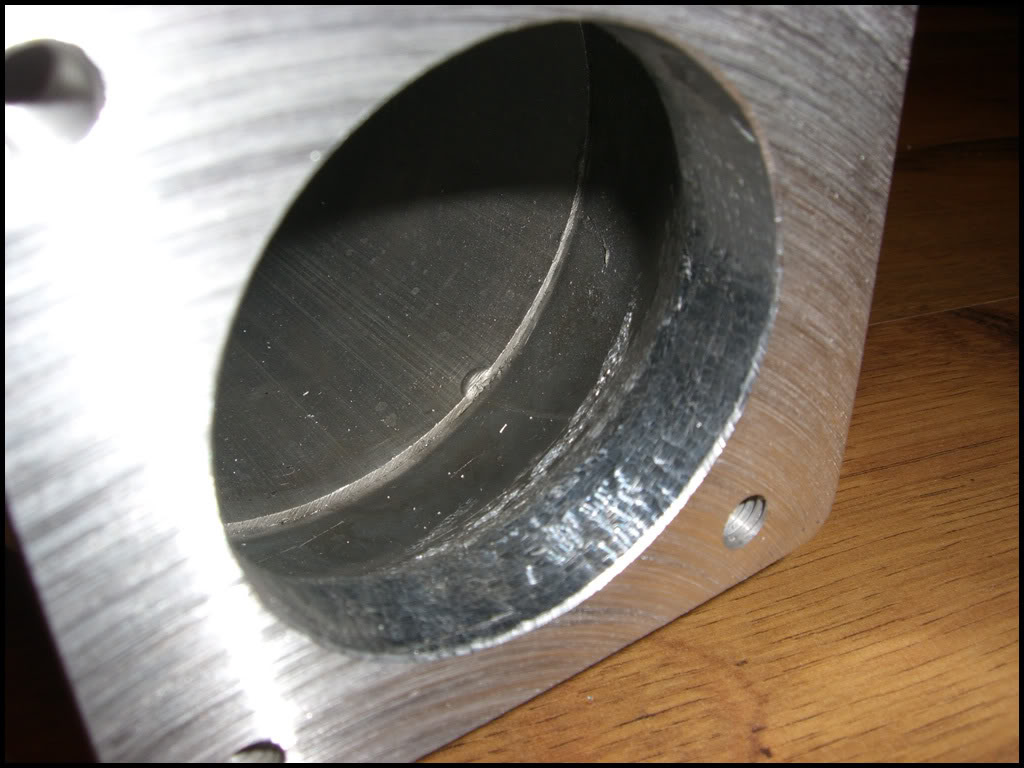

Name:  CIMG1848.jpg
Views: 6
Size:  103.8 KB

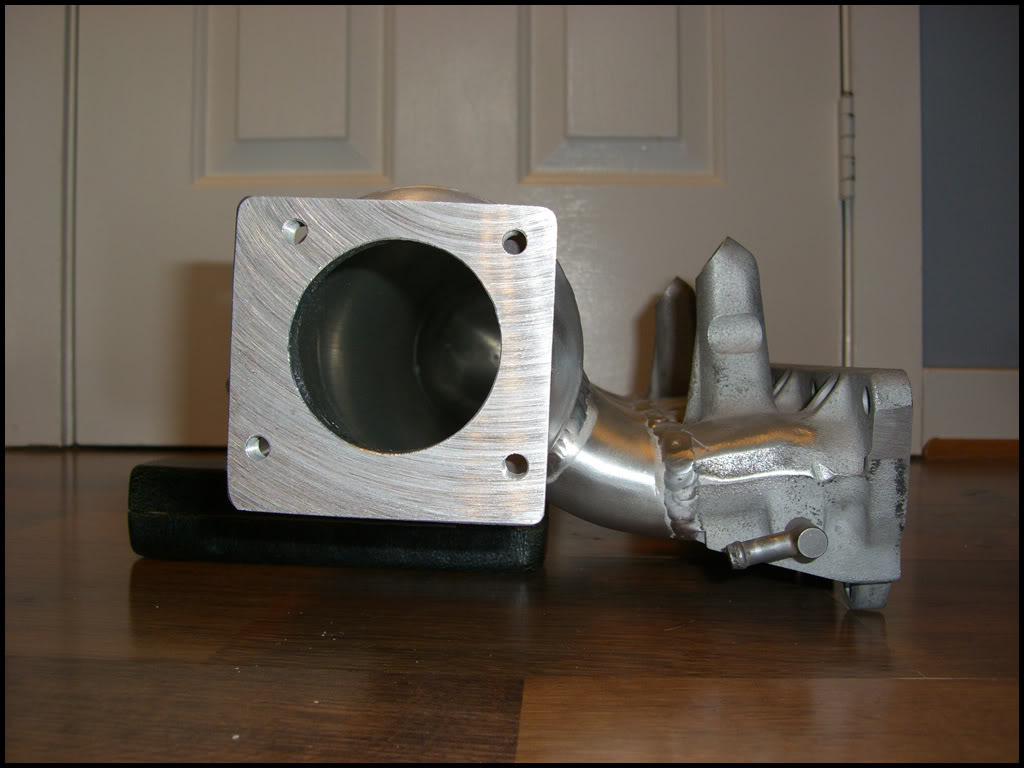

Name:  CIMG1850.jpg
Views: 6
Size:  90.2 KB

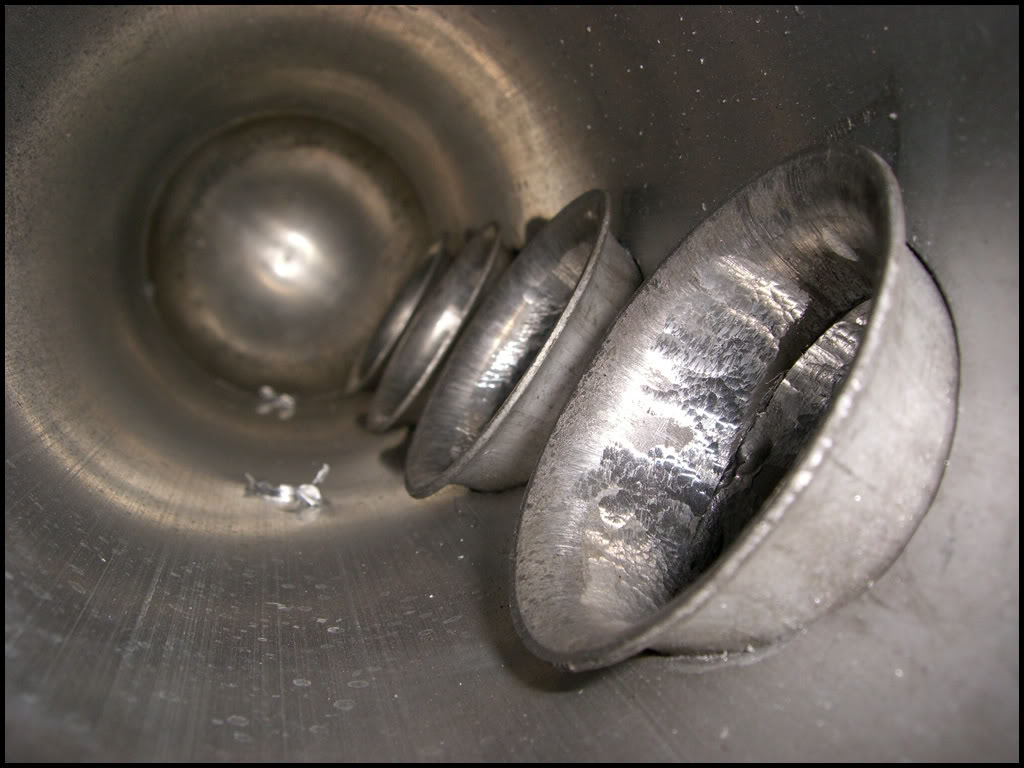

Name:  CIMG1851.jpg
Views: 17
Size:  109.0 KB

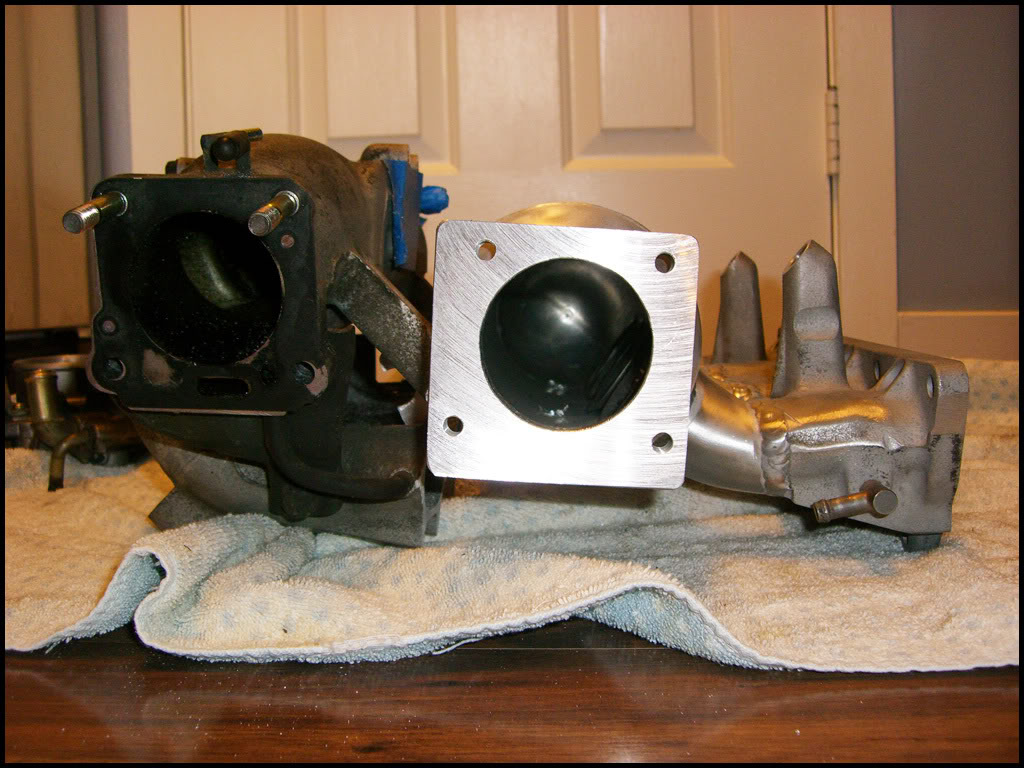

Name:  CIMG1853.jpg
Views: 8
Size:  149.5 KB

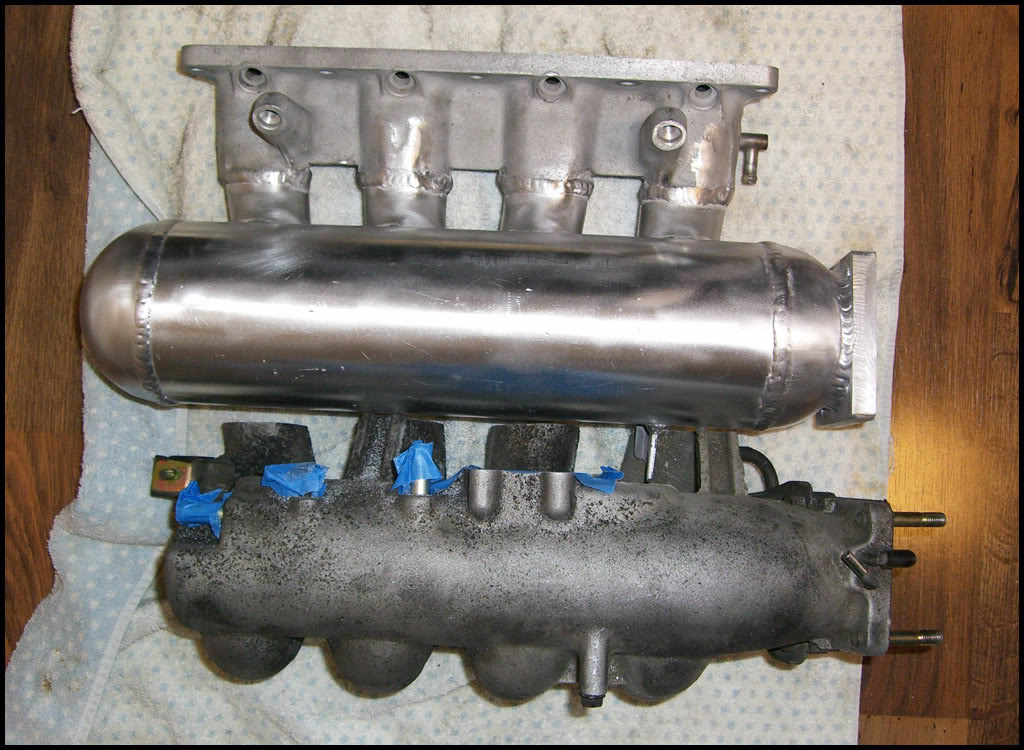

Name:  CIMG1854.jpg
Views: 7
Size:  178.3 KB

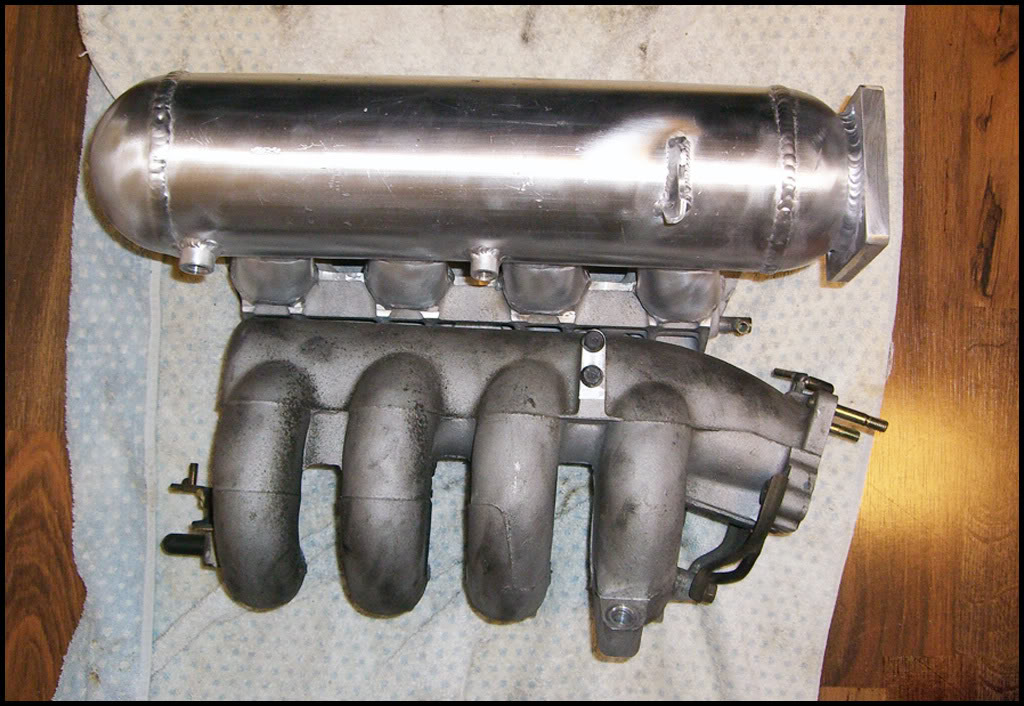

Name:  CIMG1855.jpg
Views: 9
Size:  144.8 KB

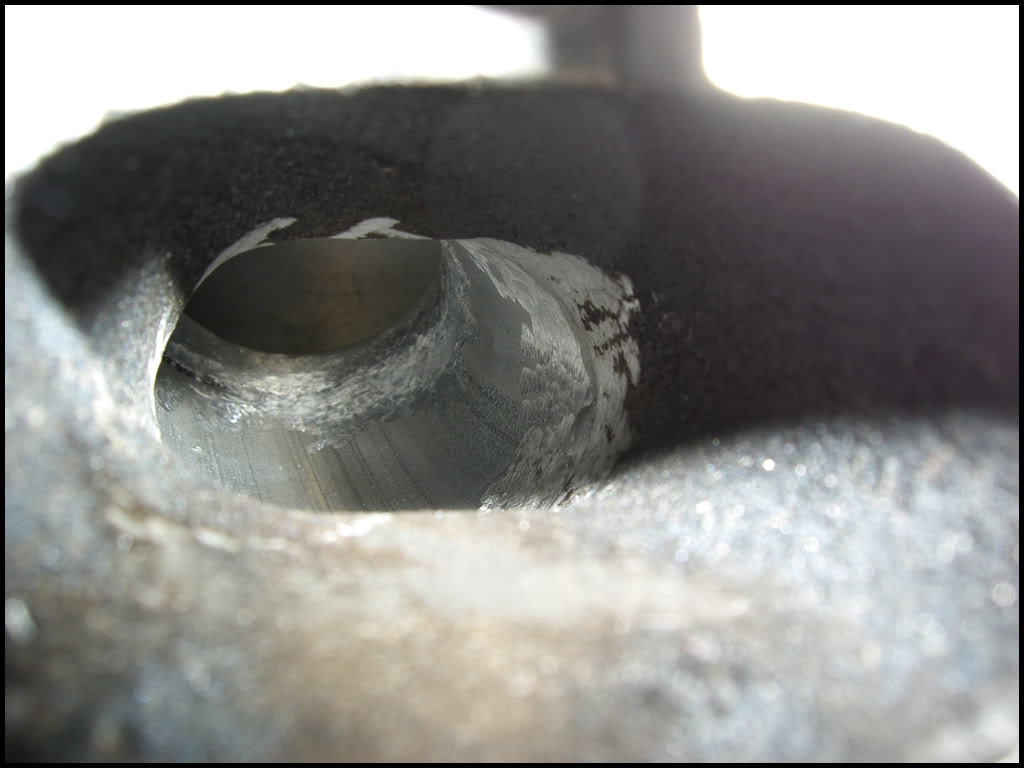

Name:  CIMG1857.jpg
Views: 8
Size:  72.6 KB
Braineack is offline   Reply With Quote
Old 11-21-2008, 12:52 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They blended that great, you weren't kidding. I say clear it now before it oxidizes.
cjernigan is offline   Reply With Quote
Old 11-21-2008, 12:54 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Cant wait to see the results.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-21-2008, 01:33 PM   #4
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

very, very cool. now what happend to the one they were making for the 1.8?
leatherface24 is offline   Reply With Quote
Old 11-21-2008, 01:41 PM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by leatherface24 View Post
very, very cool. now what happend to the one they were making for the 1.8?

Still working on it I think. This one is Scott's creation.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-21-2008, 02:00 PM   #6
Newb

Join Date: Oct 2007
Location: San Luis Obispo
Posts: 19
Total Cats: 0
Default

So we went from

to that?

What did they discover that warrented such a major change?
Stitches is offline   Reply With Quote
Old 11-21-2008, 02:05 PM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

The above design is Brains own thought process and pieces. They finished the fabwork and welded it up for him.

It isnt one of the pieces they've been working on and will be testing.
Splitime is offline   Reply With Quote
Old 11-21-2008, 02:16 PM   #8
Newb

Join Date: Oct 2007
Location: San Luis Obispo
Posts: 19
Total Cats: 0
Default

That makes sense. Well sweet deal bro. I hope it goes well and I'm sure you'll be posting results.
Stitches is offline   Reply With Quote
Old 11-21-2008, 02:37 PM   #9
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Still working on it I think. This one is Scott's creation.
^
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-21-2008, 02:37 PM   #10
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

like everyone said, I came up with this design and BEGi was kinda enough to do they hard work for me. I have a 1.6L so the fuel bungs are intergrated into the IM, so I cut off the stock runners and had them weld it up to the stock piece.
Braineack is offline   Reply With Quote
Old 11-21-2008, 02:39 PM   #11
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

We are we gonna get the plans for this so we can get them made ourselves? I know of a guy locally who can weld his *** off.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-21-2008, 02:43 PM   #12
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by levnubhin View Post
We are we gonna get the plans for this so we can get them made ourselves? I know of a guy locally who can weld his *** off.
uncertain if BEGi wants to replicate these for the 1.6L or not....let's see what Steph has to say. I already know a few people that want a duplicate, or at least a IM for a 1.6L in general.
Braineack is offline   Reply With Quote
Old 11-21-2008, 02:49 PM   #13
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 11-21-2008, 03:11 PM   #14
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

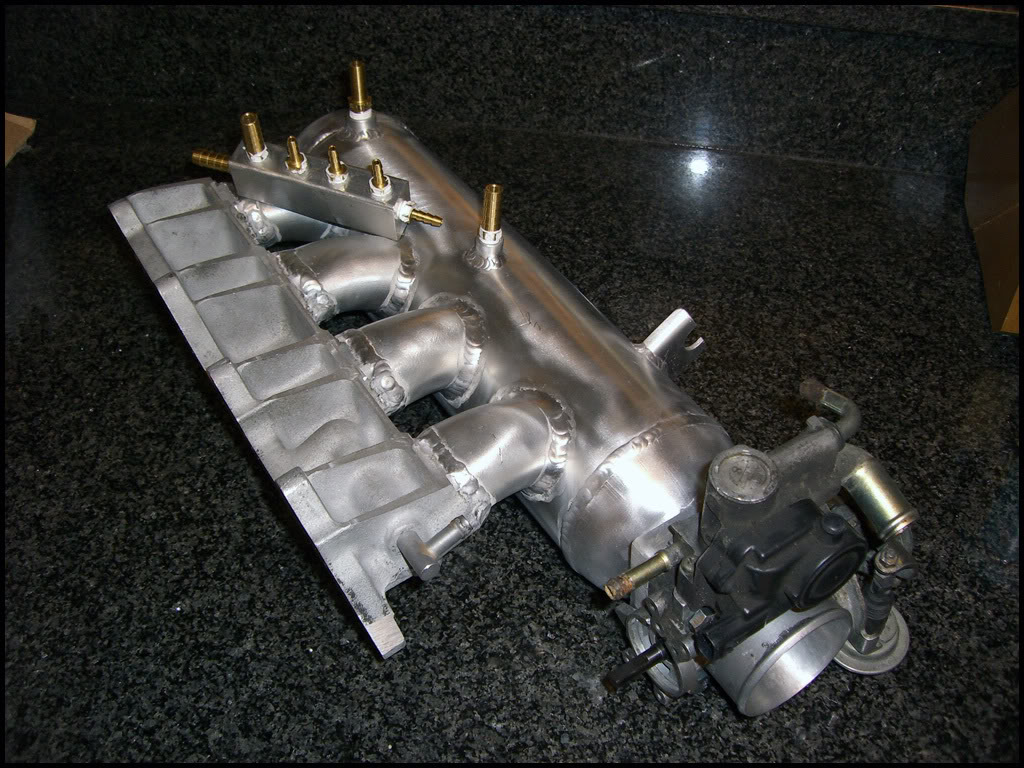

Name:  CIMG1859.jpg
Views: 7
Size:  191.0 KB

I'm ready to install, just needs less snowfall!
Braineack is offline   Reply With Quote
Old 11-21-2008, 03:15 PM   #15
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Dude, that is $$money$$. The guys at HMT would love that ****!
Scott, the cylinder, what was it originally?

For the mani that Stiches linked... how much money is in material there? I assume it's aluminum, but how much does the metal itself cost?
samnavy is offline   Reply With Quote
Old 11-21-2008, 03:25 PM   #16
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

The stock plenum is 3" OD...it's probably 2.5" ID, it's not very large. I'll try to take a shot of the inside, but the opposite wall from #3 and #4 gets very tight. The reason I really wanted to do an IM manifold is because it's very apparent that there's a major restriction when trying to breach 200rwtq after 5K. If I run 12psi my torque is flat from 4K to 6.5K, if I run 14psi only flat from 4K to 5.5K, where it drops off. You see it on almost every dyno, and don't see it on ones with better flowing IMs.

I chose to go 4" OD, should be 3.87 ID. When I do that math that's close to 1.5X the displacement of the motor, and what the "rule of thumb" is for sizing a turbo manifold. That and shorter runners; I only have about 5" worth of runner now.

There's a few things I would probably change, like maybe not bother with the 45* bends and use a shallow domed end cap instead of the hemisphere, but I'm still expecting a 10-15% power increase above 5K

The manifold Stitches linked is BEGi's concept for their new manifolds...see the BEGi manifold thread or their website. Your new NB can have one soon
Braineack is offline   Reply With Quote
Old 11-21-2008, 04:22 PM   #17
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by samnavy View Post
Scott, the cylinder, what was it originally?
Tennis ball can.
Saml01 is offline   Reply With Quote
Old 11-21-2008, 05:01 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that thing is so money, it could fix the economy.
y8s is offline   Reply With Quote
Old 11-21-2008, 05:10 PM   #19
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Tennis ball can.
Fleshlight tube.
jayc72 is offline   Reply With Quote
Old 11-21-2008, 05:12 PM   #20
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Looks cool, nice welds and fab work. Good job Scott on the idea. I hope it works great! I'll keep my fingers crossed, seems relatively simple to reproduce if it does work out.
