Old 11-21-2008, 05:18 PM   #21
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Badass. Looks like getting to the top bolts on the flange will be a bit harder than a stock manifold now. Question though: Would just welding a piece of metal over the back, essentially no dome at all, just a corner, hurt anything performance wise? IE-is that hemisphere thing for looks, structural integrity, performance, or all of that? I've been contemplating intake manifold designs forever. I'm gonna end up building one similar to a ford manifold for their I4 turbo mustang engine most likely.
patsmx5 is offline   Reply With Quote
Old 11-21-2008, 05:25 PM   #22
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Dunno about the bolts...well see, but that's what universal joints are for!

Look at Begi's manifold, they use a shallow dome, I should have done that...less volume behind #4, creates an area for air to circle around and ****. A better design would be to taper down into #4, but I dunno if I would have wanted to use a straight wall. When I ran this design through floworks, the trajectory plots that don't shoot straight into #3 and #4, follow the edge around the hemisphere and circle back into those ports. With a straight wall they bounced around all over the freaking place. With a taper all paths went straight into the runners.

here:

Braineack is offline   Reply With Quote
Old 11-21-2008, 05:27 PM   #23
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah, I bought a snap on 12mm socket with the built in swivel just for intake manifold nuts. If I ever come up with a design for an intake manifold, you wanna model it with your fancy software skillz and see if it sucks or works well?
patsmx5 is offline   Reply With Quote
Old 11-21-2008, 05:41 PM   #24
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

sure....

this was my favorite design:



Basically a 45 angle on the TB inlet tapering out to a D-shaped plenum with a taper at #4.
Braineack is offline   Reply With Quote
Old 11-21-2008, 07:33 PM   #25
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 345
Total Cats: 0
Default

cool vacuum distribution block. I almost bought the crap at lowes last night to make one until I found the cost of materials would be about as much as the premade ones.
tronik is offline   Reply With Quote
Old 11-21-2008, 09:00 PM   #26
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Will be interesting to see what it does for you. Get that baby mounted and on the Dyno so I can start planning my next parts to save for. Intake like that or 99' head. Hmmm....
cueball1 is offline   Reply With Quote
Old 11-21-2008, 09:08 PM   #27
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

What TB are you using with that?
johndoe is offline   Reply With Quote
Old 11-21-2008, 09:15 PM   #28
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Pretty sure he's gonna be using the stock one.
cjernigan is offline   Reply With Quote
Old 11-21-2008, 10:29 PM   #29
Newb

Join Date: Oct 2008
Location: Charlotte nc
Posts: 18
Total Cats: 0
Default

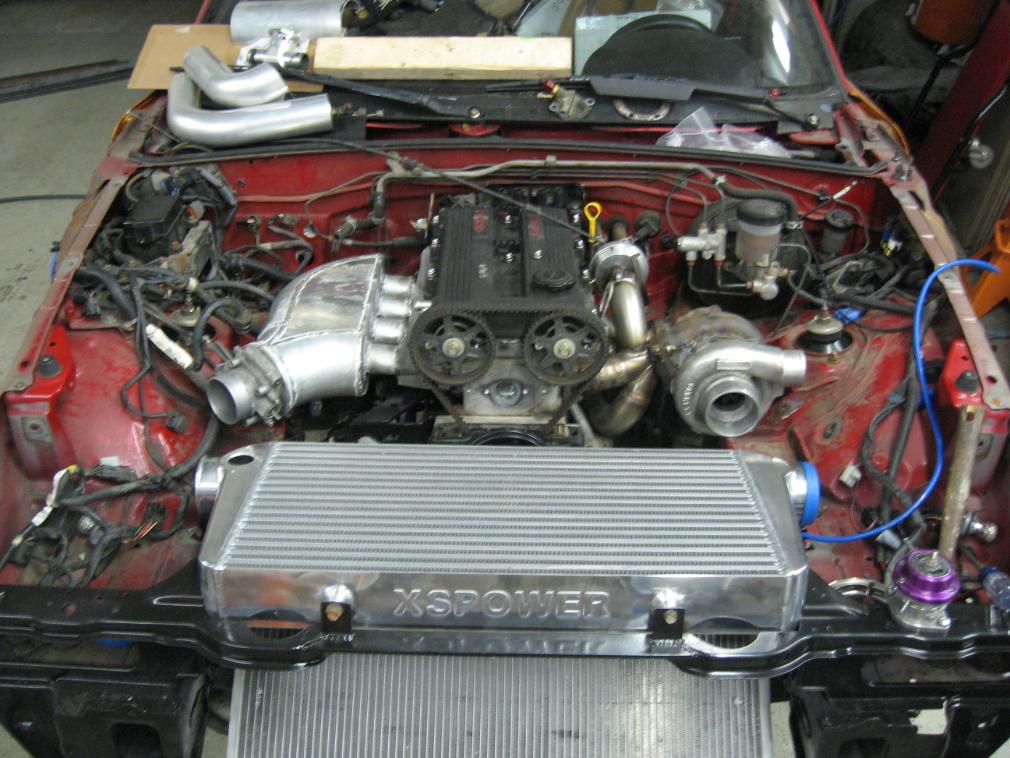

Got flow
Attached Thumbnails
Thank you BEGi (Installed Intake Manifold Pics)-img_0520-1.jpg
Frunza is offline   Reply With Quote
Old 11-21-2008, 11:16 PM   #30
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Looks awesome.

Should've gotten em to etch in a TM for you:


Or is it the other Brain?

Chris
Miatamaniac92 is offline   Reply With Quote
Old 11-22-2008, 01:19 AM   #31
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by Frunza View Post
Got flow
That is freaking sick.



Looks nice brain, where is the dyno slacker?
TravisR is offline   Reply With Quote
Old 11-22-2008, 01:30 AM   #32
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

He's a panzy, its too cold for him <limp wrist>. All the global warming in the world wouldn't make it warm enough for him to put it on in the winter.
neogenesis2004 is offline   Reply With Quote
Old 11-22-2008, 07:49 AM   #33
Junior Member
iTrader: (2)

Join Date: Jul 2006
Posts: 482
Total Cats: 0
Default

wanna race?
rappadan is offline   Reply With Quote
Old 11-22-2008, 10:50 AM   #34
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Frunza View Post
Got flow
Ahhh! I love this setup. V mount...horray!

Hood gonna close?
TurboTim is offline   Reply With Quote
Old 11-22-2008, 11:00 AM   #35
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by Frunza View Post
Got flow

isn't that design gonna flow an awful lot more air into #1 than 2,3,&4? It's basically a straight shot from TB to #1.
paul is offline   Reply With Quote
Old 11-22-2008, 11:11 AM   #36
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

splitime's car?
y8s is offline   Reply With Quote
Old 11-22-2008, 11:12 AM   #37
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by paul View Post
isn't that design gonna flow an awful lot more air into #1 than 2,3,&4? It's basically a straight shot from TB to #1.

nah, the teardrop shape is a good design, the airflow follows the edges and distributes the air fairly evenly.
Braineack is offline   Reply With Quote
Old 11-22-2008, 11:41 AM   #38
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

i need to get my car running today so i can drop it off at BEGi next week and get one made for my car.
hustler is offline   Reply With Quote
Old 11-22-2008, 12:37 PM   #39
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

Cannot wait for updates, remember talking to my mother and she said it was snowing in her area.
JDMAflac is offline   Reply With Quote
Old 11-22-2008, 01:33 PM   #40
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by JDMAflac View Post
Cannot wait for updates, remember talking to my mother and she said it was snowing in her area.

yeah, it was yesterday. right now it's 32*F out and I'm a big ***** when it comes to working in the cold. I don't even have a garage right now to work in. I suspect it will be a few weeks before it goes on, then expect a dyno run soon after.
Braineack is offline   Reply With Quote
