Old 01-14-2009, 04:46 PM   #81
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
It's like you dont know me.

I promise, one day between Dec 26th & Jan 4th, it will be installed and dynoed.
Too easy to pass up
Chris Swearingen is offline   Reply With Quote
Old 01-14-2009, 05:07 PM   #82
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

It was installed but i ran into two issues. First off was an ongoing issue with my MS. I had fried a circuit and when I rebuilt the tach input circuit I put a 10k resistor in place of tha 1K. Suffice to say, that made my new redline 4300k. That set me back a week and a half in itself.

Second issue is some vacuum leak I'm having a hard time tracing. I went over everything over a few hours time. Exhausted an entire can of brake cleaner all over all the flanges and welds and vacuum lines, replaced the ISC valve, pulled each vacuum line and blocked each source, etc.

Got it installed and after warmup it ran at 1900RPM or so; 1300RPM when I blocked the ISC valve from bypassing air around the TB. It's more than likely a leak at the TB to IM flange, I just haven't had a good day to go back out and work on it. I was going to Sunday but it's supposed to be 32F high, and it's parked outside this winter (with no garage space) and I'm a *****.

There's a local dyno day on the 30th that I want to make, so i didn't rush to get it dynoed after I installed it. $35 for 3 pulls with WB and Boost.

Otherwise the day I did drive it around (didn't have my laptop to tune) it felt like there was for sure an increase in spool speed as well as top end.

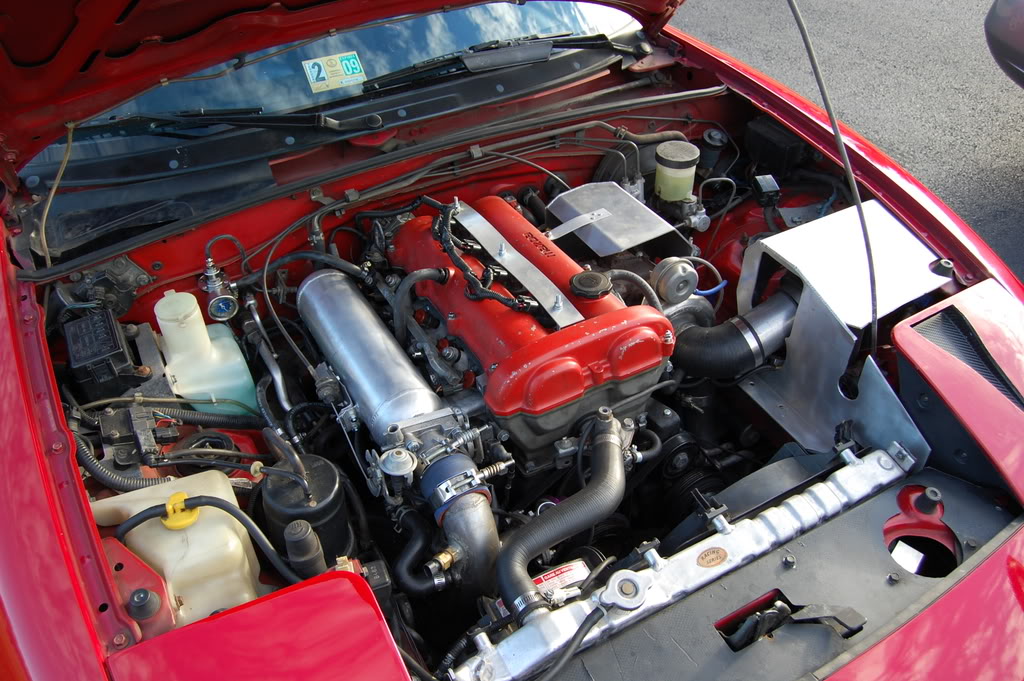

Name:  IntakeManifold001.jpg
Views: 72
Size:  164.6 KB

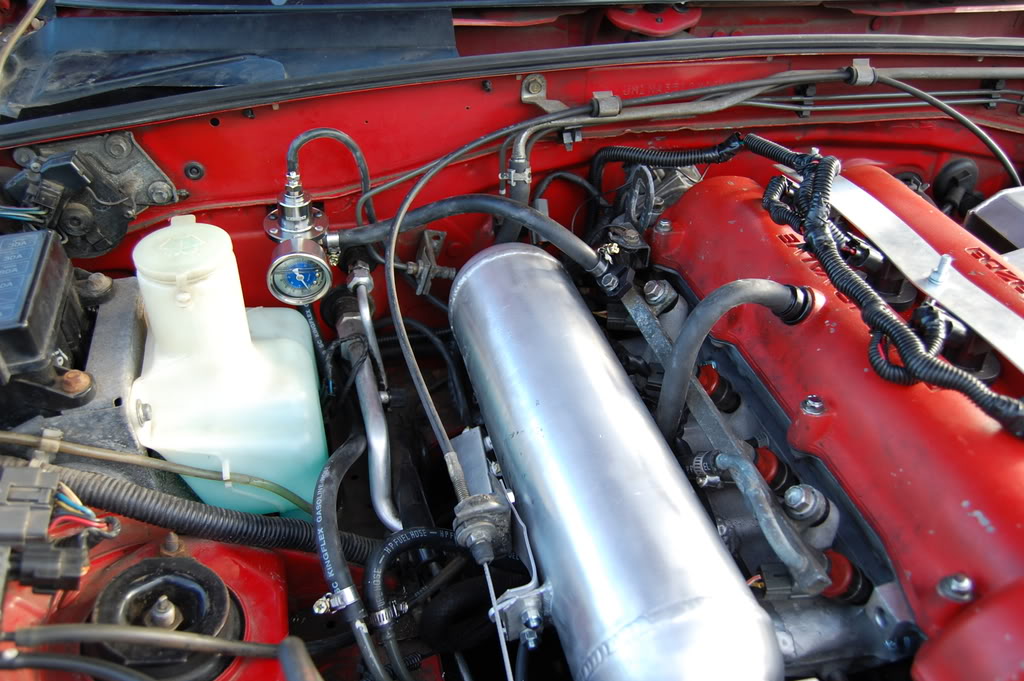

Name:  IntakeManifold002.jpg
Views: 22
Size:  135.0 KB

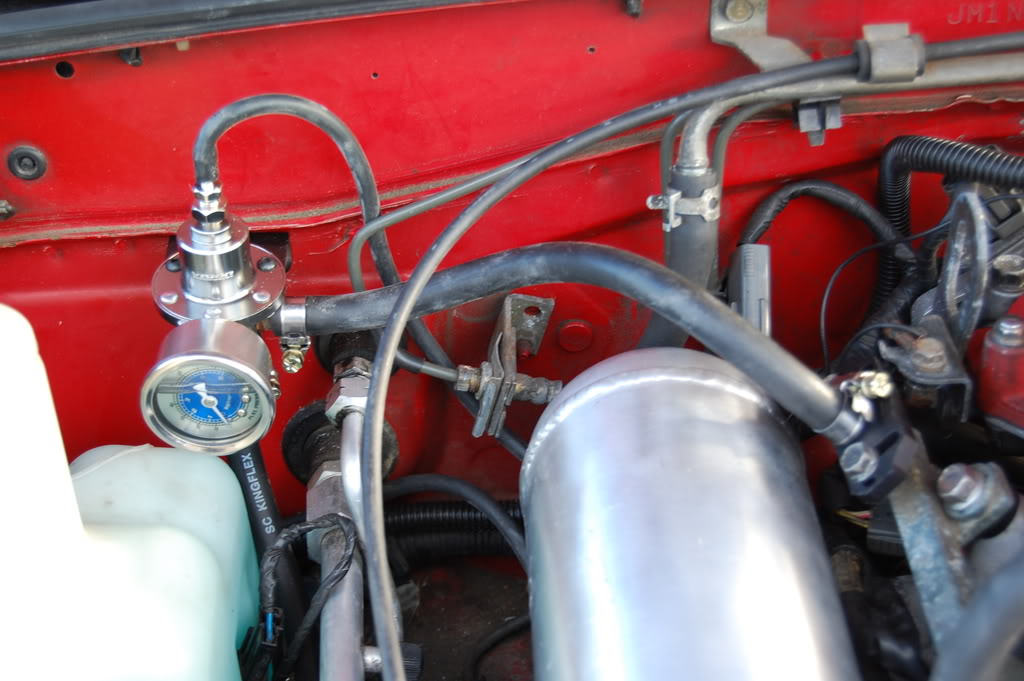

Name:  IntakeManifold003.jpg
Views: 19
Size:  92.0 KB
Braineack is offline   Reply With Quote
Old 01-14-2009, 05:14 PM   #83
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

nice
leatherface24 is offline   Reply With Quote
Old 01-14-2009, 05:23 PM   #84
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

I was just giving you a hard time. Looks like a great build.

I have had a MS in my desk drawer since mid August and haven't installed it yet, so I am no one to pick on you for scheduling delays.
Chris Swearingen is offline   Reply With Quote
Old 02-09-2009, 11:10 PM   #85
Junior Member
iTrader: (2)

Join Date: Jan 2009
Location: Houston
Posts: 194
Total Cats: 0
Default

Where did you order the FPR from? Have you been able to find the vacuum leak?
ChuckyZ is offline   Reply With Quote
Old 02-10-2009, 01:56 AM   #86
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

i got it off ebay. not too certain about it, I may swap it out for an aeroquip unit, I don;t like how it's measuring at idle with/without vacuum.

I narrowed the leak to a broken stud on the head and I need to remove it all and replace the stud.
Braineack is offline   Reply With Quote
Old 02-10-2009, 03:06 AM   #87
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

just curious. how much do you think it would cost for an average person to replicate your manifold?

The Begi ones turned out to be a little more expensive then i gad thought.
viperormiata is offline   Reply With Quote
Old 02-10-2009, 08:15 AM   #88
Junior Member
iTrader: (5)

Join Date: Jun 2007
Location: Brunswick, Maryland
Posts: 262
Total Cats: 0
Default

Seeing as how you are in Arlington...and I work in DC...I think I need to come see this in person
boardboy330 is offline   Reply With Quote
Old 02-10-2009, 09:54 AM   #89
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

Quote:
Originally Posted by viperormiata View Post
just curious. how much do you think it would cost for an average person to replicate your manifold?

The Begi ones turned out to be a little more expensive then i gad thought.
The parts weren't that expensive, it's just finding someone to weld it. Like I said, if I had used straight runners there would have been less work involved.
Braineack is offline   Reply With Quote
Old 02-10-2009, 10:01 AM   #90
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by boardboy330 View Post
Seeing as how you are in Arlington...and I work in DC...I think I need to come see this in person
We don't let you dirty marylanders into our state
Newbsauce is offline   Reply With Quote
Old 02-10-2009, 10:03 AM   #91
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
The parts weren't that expensive, it's just finding someone to weld it. Like I said, if I had used straight runners there would have been less work involved.

Where did you get the parts?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-10-2009, 10:53 AM   #92
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
Why is there liquid in your gauge?
Saml01 is offline   Reply With Quote
Old 02-10-2009, 11:13 AM   #93
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Saml01 View Post
Why is there liquid in your gauge?
liquid filled gauges > non-liquid filled gauges is why
y8s is offline   Reply With Quote
Old 02-10-2009, 11:37 AM   #94
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Why is there liquid in your gauge?
helps stabilize the needle I believe, signs of a quality gauge (well more quality)
mazda/nissan is offline   Reply With Quote
Old 02-26-2009, 07:36 PM   #95
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

Fixed:

Braineack is offline   Reply With Quote
Old 02-26-2009, 09:45 PM   #96
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

yes!! onwards
JDMAflac is offline   Reply With Quote
Old 02-26-2009, 09:47 PM   #97
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Now you'll break the fastener before you stripP the threads.
patsmx5 is offline   Reply With Quote
Old 02-26-2009, 09:51 PM   #98
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

I also replaced the other two studs, just in case :P
Braineack is offline   Reply With Quote
Old 03-26-2009, 03:31 PM   #99
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Any results yet?? if it turns out good Ill build one this weekend, I think I have plenty of aluminum laying around.
Gotpsi? is offline   Reply With Quote
Old 03-26-2009, 03:41 PM   #100
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

im just waiting to dyno, probably next weekend.
Braineack is offline   Reply With Quote
