Another thing to mention is that it weights 8lbs less than the factory IM with the cut flange (seen in the pics). I guess the flange weights 3 lbs alone, so that's a total weight savings of +/- 11lbs.
Braineack is offline   Reply With Quote
Old 11-22-2008, 02:01 PM   #42
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I'm going to guess that the manifold that BEGI is going to be testing is close to 2 lbs lighter than your with the cast section compared to the flatstock flange.
cjernigan is offline   Reply With Quote
Old 11-22-2008, 03:32 PM   #43
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Is the stock intake manifold high-pressure die cast? If so the welding job is phenomenal, if not unbelievable. Even if the stock piece is low-pressure or gravity cast it still must have been a huge pain in the *** to weld.
Efini~FC3S is offline   Reply With Quote
Old 11-22-2008, 04:16 PM   #44
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

Braineak,
I prefer your design over your favorite that is based on the flow animations. You could be right about having a bit less volume behind #4, but having a rolling ball of air behind #4 looks like a good thing. It seems to straighten the flow into the air horn and the flow is more even across the cylinders than the tapered design.

If you wanted to taper your design, you could use the outside part of an elbow so it wouldn't be flat.
99mx5 is offline   Reply With Quote
Old 11-25-2008, 05:50 PM   #45
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Brain's IM was actually fairly complicated to make due to the bends in the runners. The BEGI 1.6L intake manifold will look just like the 1.8L one with straight runners.

I bet he gets his manifold installed before I do. Sad. Very sad. I need my Xede back on first.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 11-25-2008, 07:56 PM   #46
Junior Member
iTrader: (3)

Join Date: Sep 2005
Location: las vegas
Posts: 203
Total Cats: 0
Default

not bad like to see some flow numbers
blue turbo mx5 is offline   Reply With Quote
Old 11-28-2008, 09:08 AM   #47
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Off to go install this thing!
Braineack is offline   Reply With Quote
Old 11-28-2008, 11:31 AM   #48
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

teaser pics:












Braineack is offline   Reply With Quote
Old 11-28-2008, 12:05 PM   #49
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

Looks good. now get that put back together and find out if it does anything
posidon42 is offline   Reply With Quote
Old 11-28-2008, 02:08 PM   #50
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Two issues:

I need to get a new FPR. Plenum needs to be an extra .25" outward. I'll get an adapter, run a hose to a new FPR...easy fix.

The throttle cable bracket is too close to the TB so I need to figure out a solution to remove the slack.


Pics of it installed are updated. Putting the winter car cover on it and it'll stay parked for a while till I have a solution.













Braineack is offline   Reply With Quote
Old 11-28-2008, 02:17 PM   #51
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

That sucks. Just give up turboing your car and part it out. That's what leatherface24 is doing.

Would a 1/4" dent in the plenum solve the clearance issue?
patsmx5 is offline   Reply With Quote
Old 11-28-2008, 02:33 PM   #52
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I'm just going to get a hose barb adapter and run a fuel line to a new FPR, easy enough. I might just fit the fuel hose over the OEM fpr and clamp down hard and call it a day....

Bracket sucks, but I think I can fab something simple to fix it. Unless there's an easy way to shorten the cable length....I'm trying to remember what I would do with my bicycle.
Braineack is offline   Reply With Quote
Old 11-28-2008, 02:46 PM   #53
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

You can buy ferrels at Lowes. You may can find one there that would snap in the TB. Worth a look.

Or JB weld the bracket in the right place. That's what I would do for reliability. You know it would work. Be careful rigging up fuel lines. I watched a friend do that and light there Jaguar on fire.
patsmx5 is offline   Reply With Quote
Old 11-28-2008, 03:32 PM   #54
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by patsmx5 View Post
Be careful rigging up fuel lines. I watched a friend do that and light there Jaguar on fire.
things like that are my specialty!


ask y8s:

Braineack is offline   Reply With Quote
Old 11-28-2008, 04:10 PM   #55
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

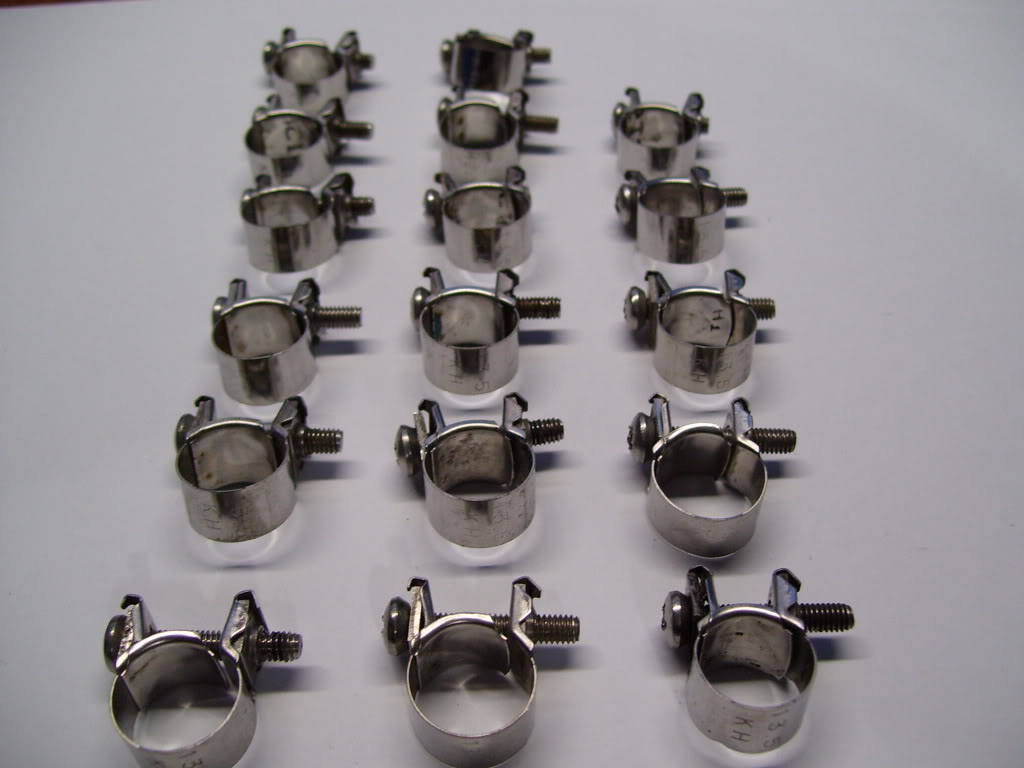

Figure out what you need and get it from Summit Racing. You can buy stainless braided line from them cheaper then you can buy actual Fuel Injection fuel line from Napa, Autozone, etc. Go to a junkyard and get hose clamps off of any Nissan. They have the best hose clamps for fuel injection hoses in the world, short of using the fancy AN stuff. Five finger discount FTW....

From Nissan's. These are 10x better than the shitty ones Autozone sells that just fall apart when you tighten them.
Name:  100_1339.jpg
Views: 3
Size:  72.1 KB
patsmx5 is offline   Reply With Quote
Old 11-28-2008, 04:12 PM   #56
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

looks like a simple $1.00 wire stop should work for the cable.



I'll more than likely buy a new FPR just because I'll be able to raise my fuel pressure up a tad, I saw 85% DC with my 460s at 232rwhp, if i run 60psi that give me a little wiggle room.


You can buy a pack of those clamps at advanced auto. I have a few of them on my coolant lines.
Braineack is offline   Reply With Quote
Old 11-28-2008, 04:25 PM   #57
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah you can buy them at the auto parts stores, but they're cheaper/not as strong. A couple years ago they were good. But this summer when I went to buy some I realized the new ones they sell are junk. Tighten them up and the nut strips out or the band breaks. The nissan ones have more threads on the nut. Sounds dumb, but I don't cheap out of fuel stuff.

I bought a Mallory 30-100 PSI regulator from Summit for 100 bucks. It's got a 1:1 boost reference too. Basically just like the Aeromotive but a different color and cheaper.
patsmx5 is offline   Reply With Quote
Old 11-29-2008, 12:20 AM   #58
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

awesome pic brain lol
disturbedfan121 is offline   Reply With Quote
Old 11-30-2008, 06:26 PM   #59
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I found this one:



$75 shipped and it has the adapter I need and a liquid filled gauge. Seems to be one of the better ones found on ebay.
Braineack is offline   Reply With Quote
Old 12-01-2008, 12:12 AM   #60
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Hope you come up with a solution soon, Brain.

Quote:
Originally Posted by Braineack View Post
Is that coolant in #4?
kotomile is offline   Reply With Quote
