Old 02-03-2012, 01:15 PM   #61
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

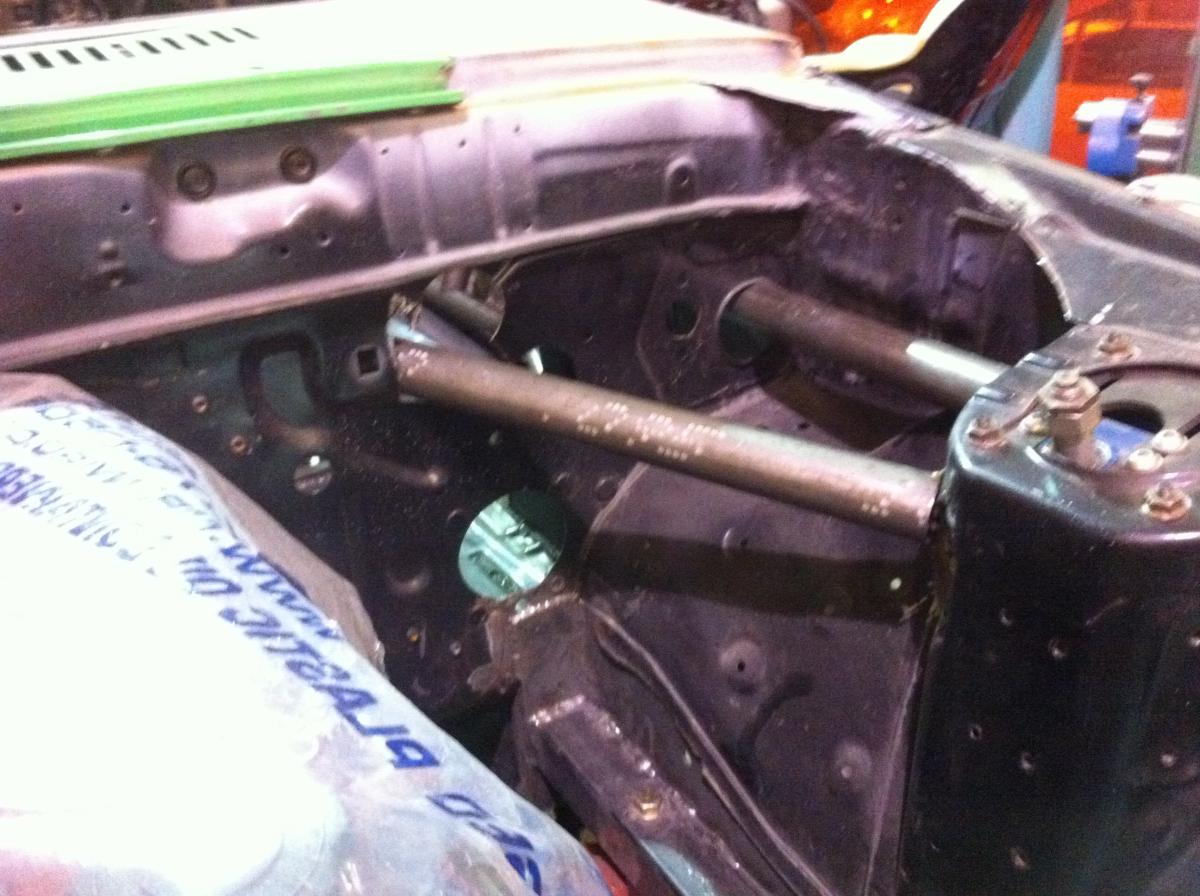

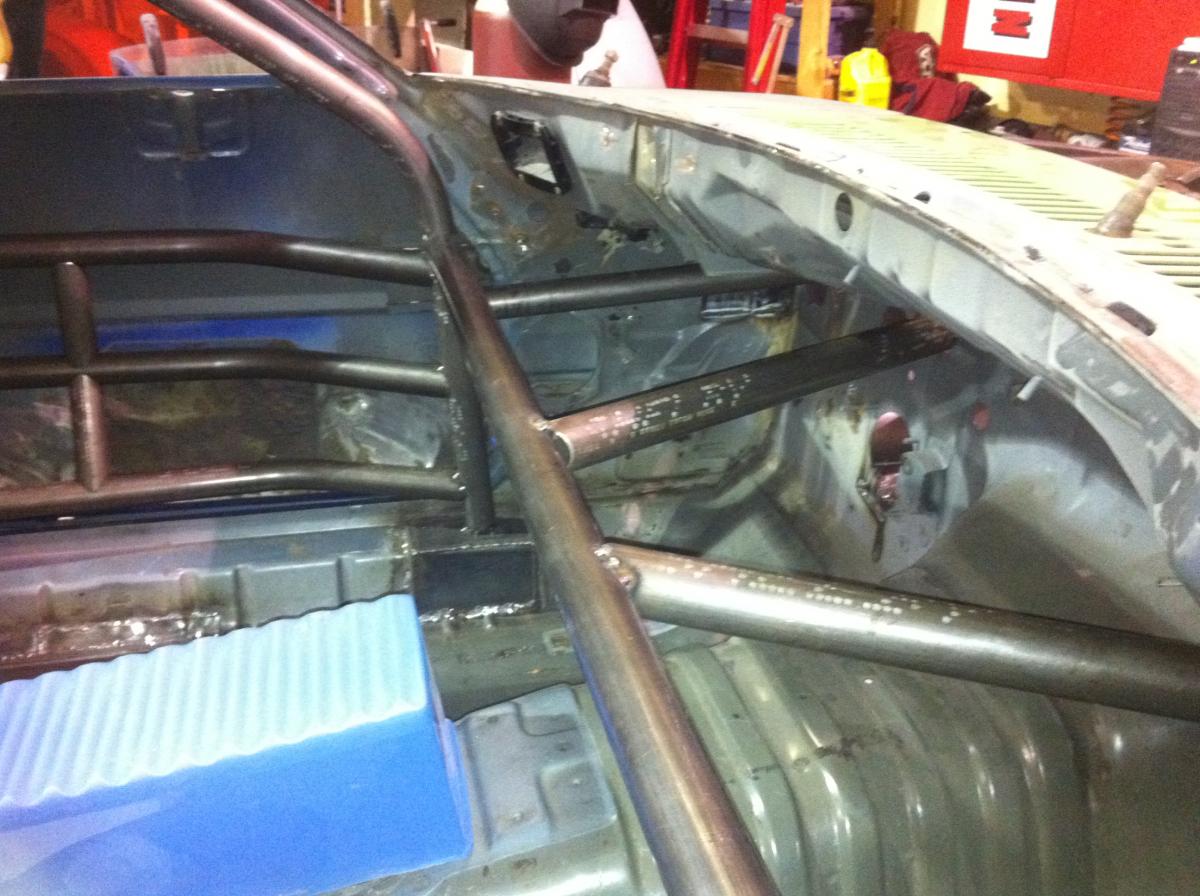

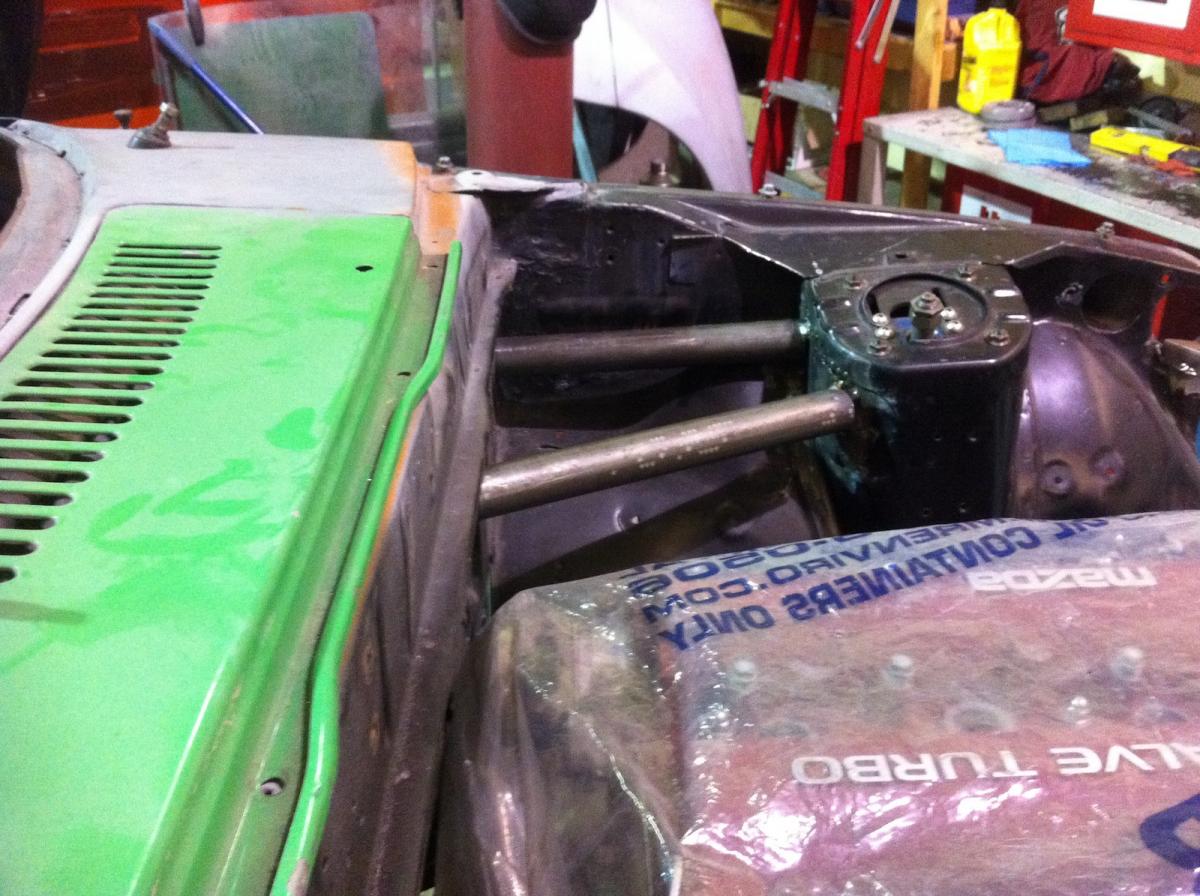

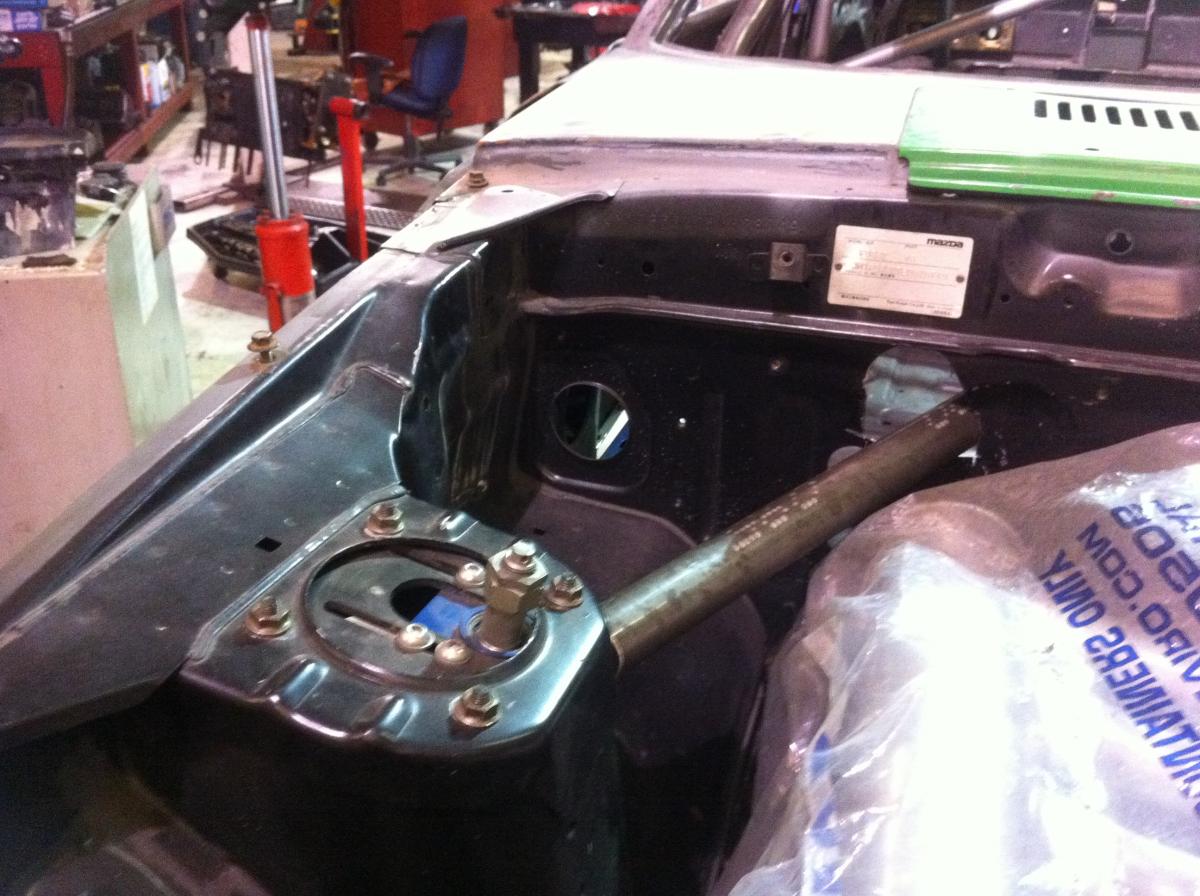

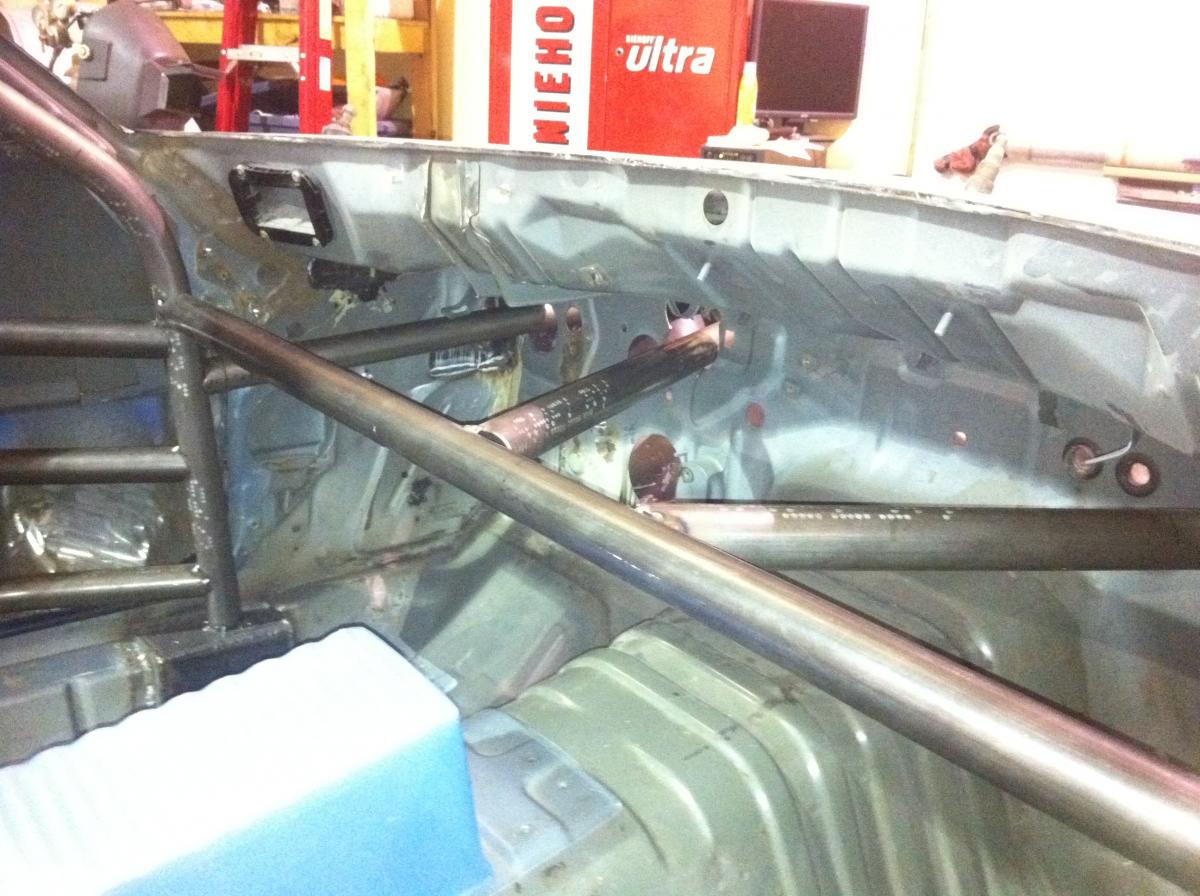

I have been busy with training and work last couple of weeks. But finally back working on the car. Got 3 of the 4 front bars done. Hopefully will get some bars connected to the front bumper tonight.









Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0295.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0296.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0299.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0300.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0297.jpg


Last edited by bcrx7; 02-17-2012 at 12:59 PM.
bcrx7 is offline   Reply With Quote
Old 02-11-2012, 10:45 PM   #62
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

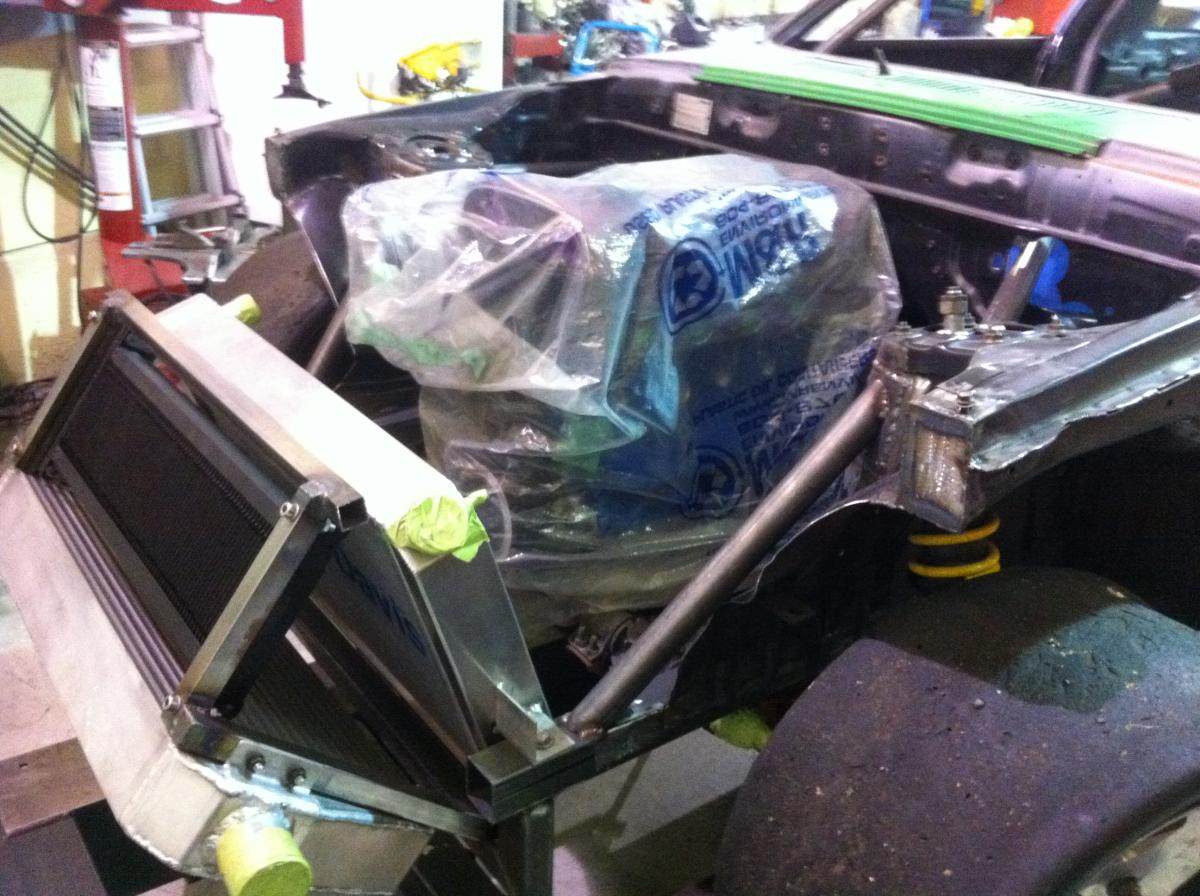

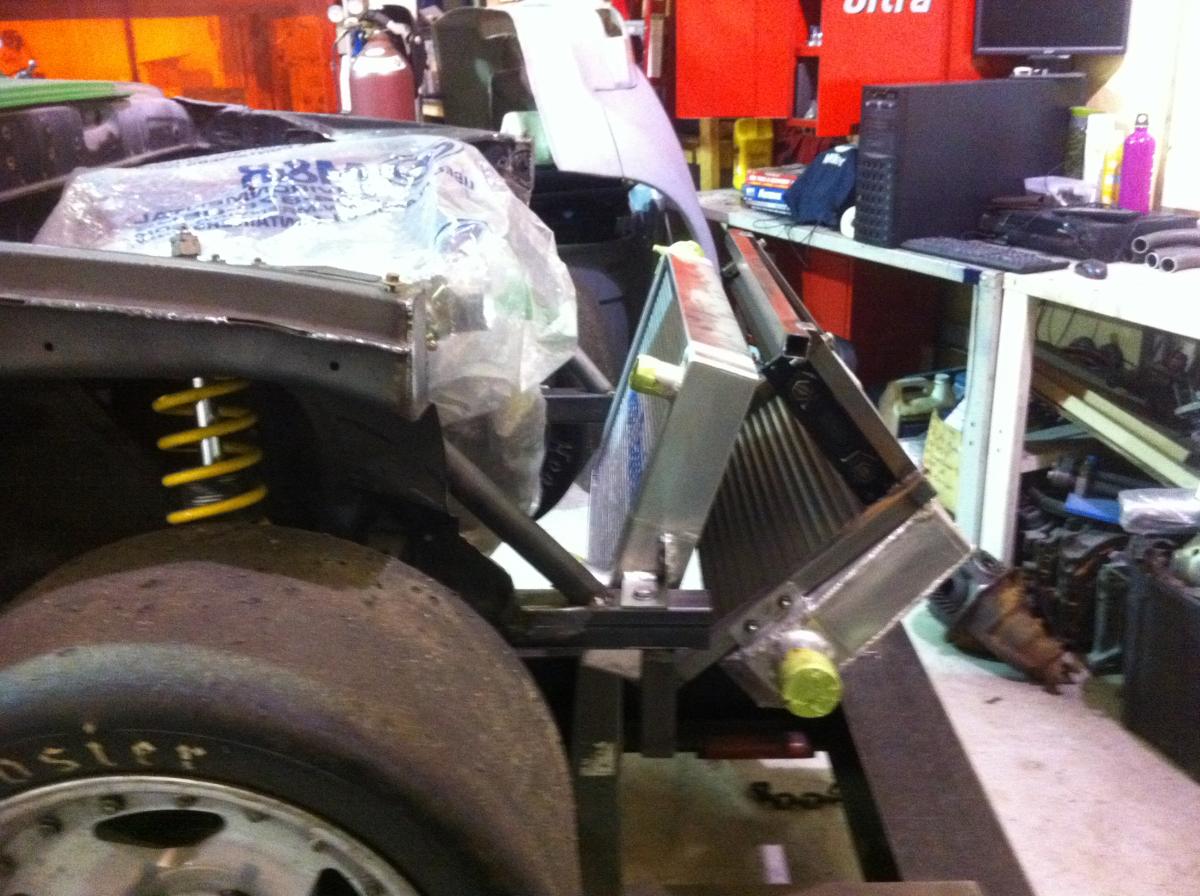

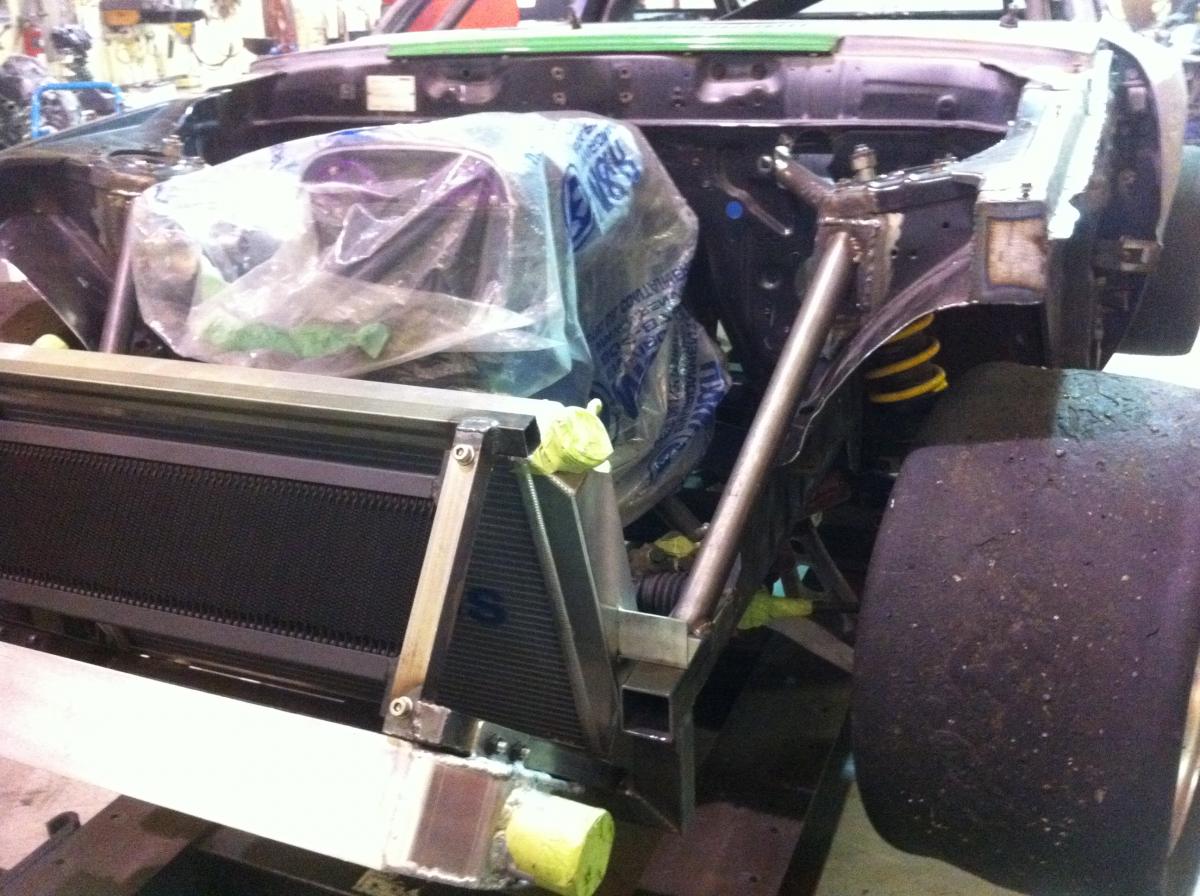

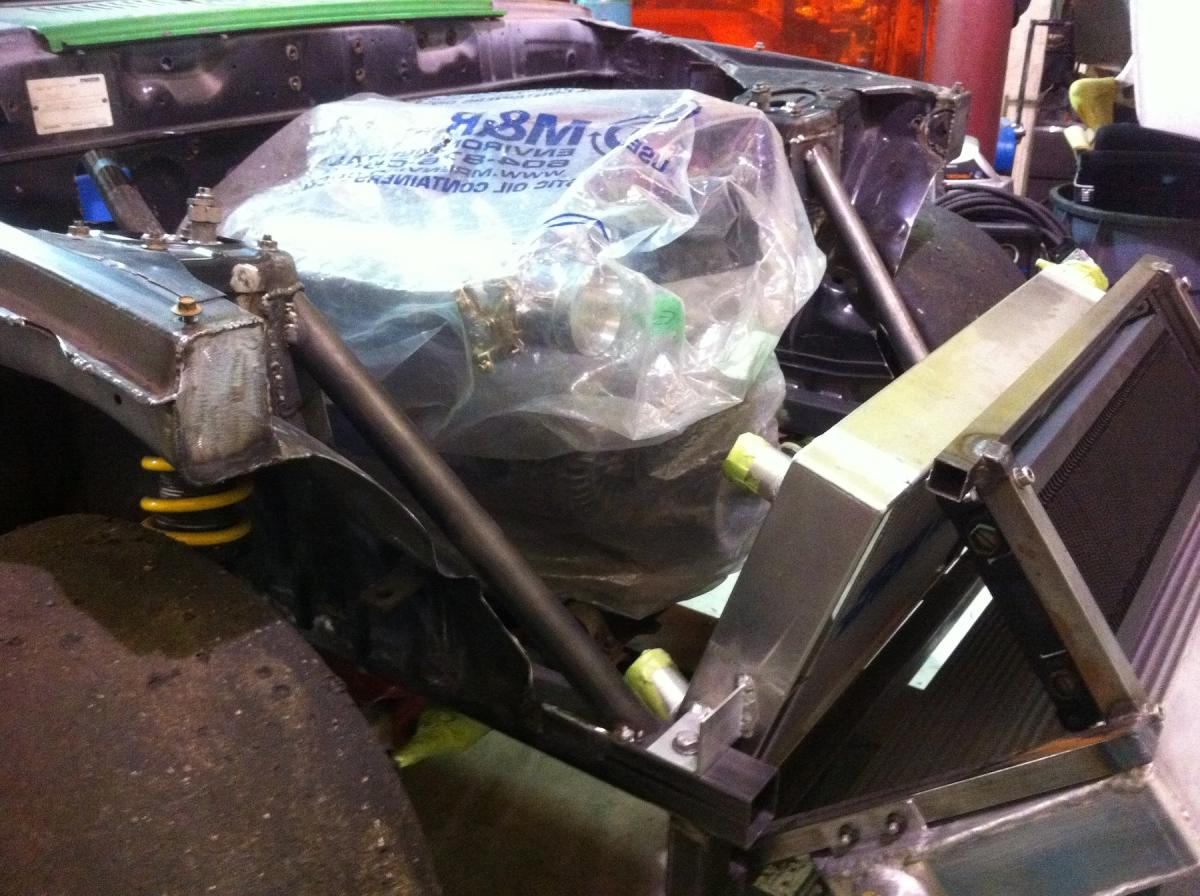

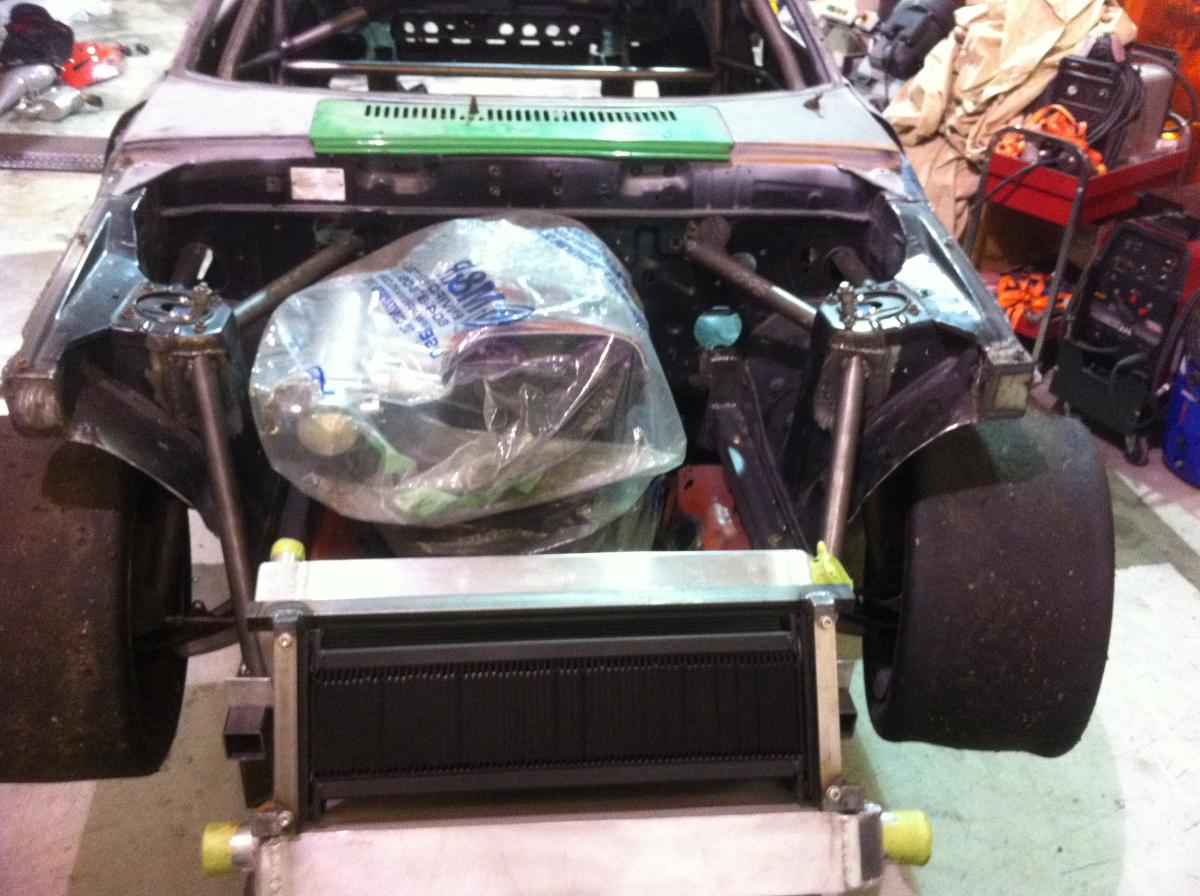

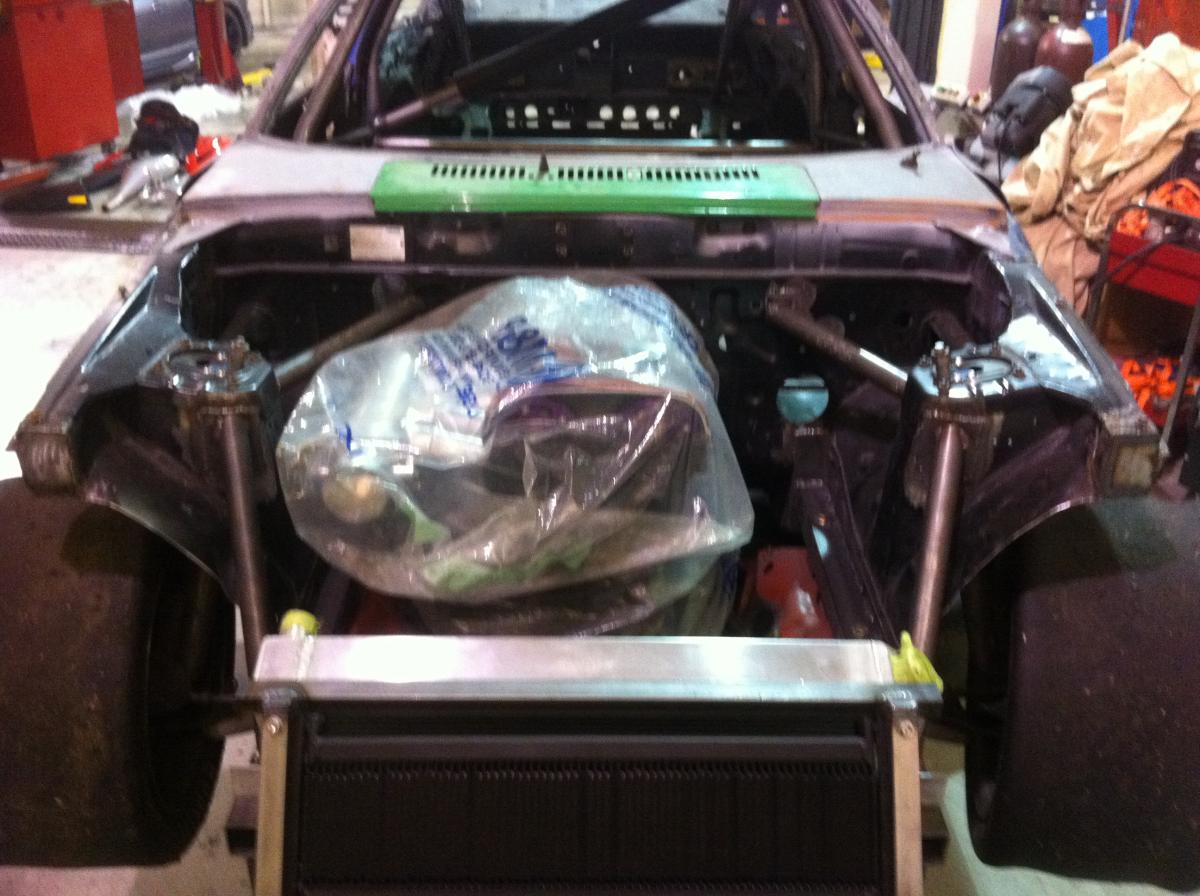

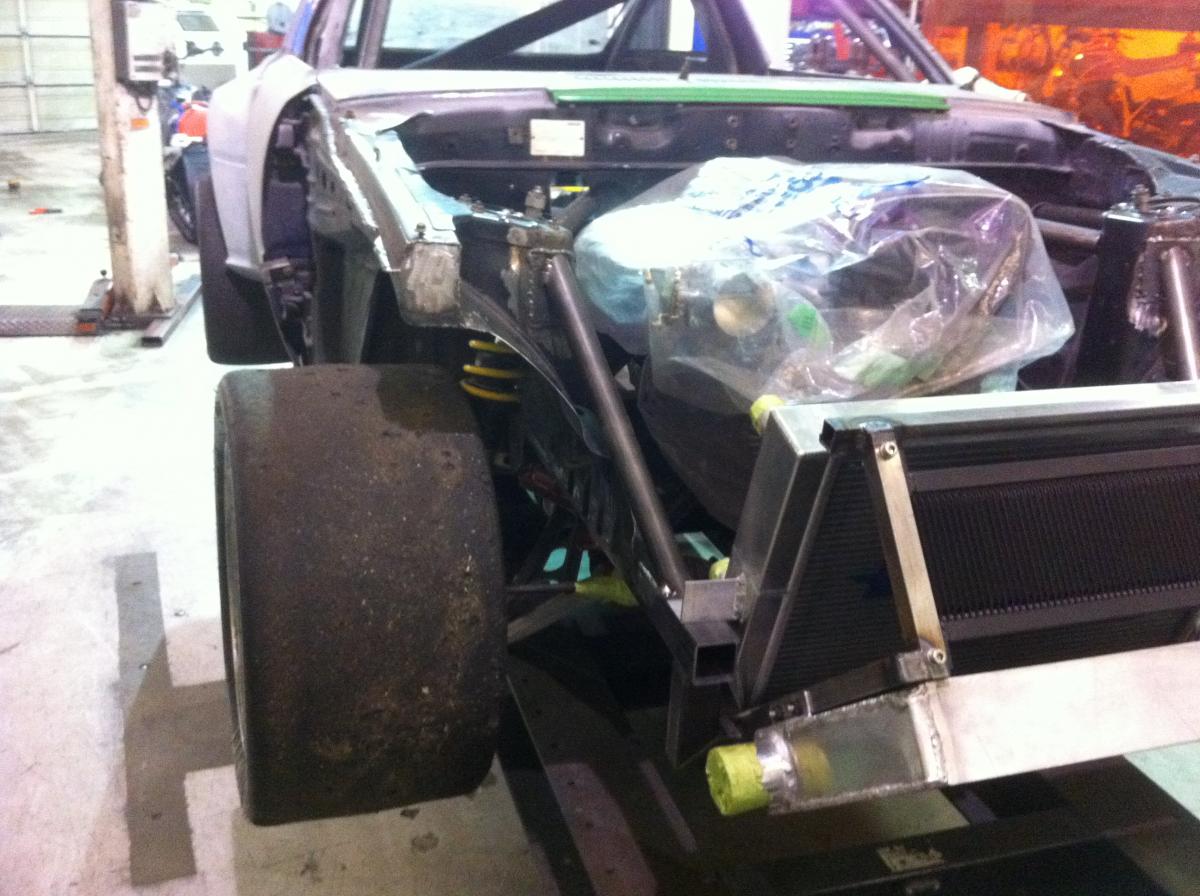

Got the front done. Cut a bit more from the outer frame and boxed it. Connected to frame rails for the shock towers and got rid of the extra metal holding the top of the cooler!













Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0303.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0304.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0305.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0307.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0306.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0308.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0309.jpg

Last edited by bcrx7; 02-17-2012 at 12:58 PM.
bcrx7 is offline   Reply With Quote
Old 02-12-2012, 09:15 AM   #63
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,593
Total Cats: 15
Default

Get this man some props!
rccote is offline   Reply With Quote
Old 02-13-2012, 01:53 AM   #64
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thank you!
bcrx7 is offline   Reply With Quote
Old 02-13-2012, 03:29 AM   #65
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,212
Total Cats: 1,229
Default

Quote:
Originally Posted by bcrx7 View Post
That is my plan. That would be great and save me time!
450whp and an NA CAS? Do yourself a favor and get some NB cam/crank sensors and one of our 12-tooth wheels. Way less timing scatter, way safer.
Savington is offline   Reply With Quote
Old 02-13-2012, 10:24 AM   #66
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Savington View Post
450whp and an NA CAS? Do yourself a favor and get some NB cam/crank sensors and one of our 12-tooth wheels. Way less timing scatter, way safer.
I have been thinking about that. Or some kind of a 36-1 with the cam sensor!
bcrx7 is offline   Reply With Quote
Old 02-17-2012, 01:10 AM   #67
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

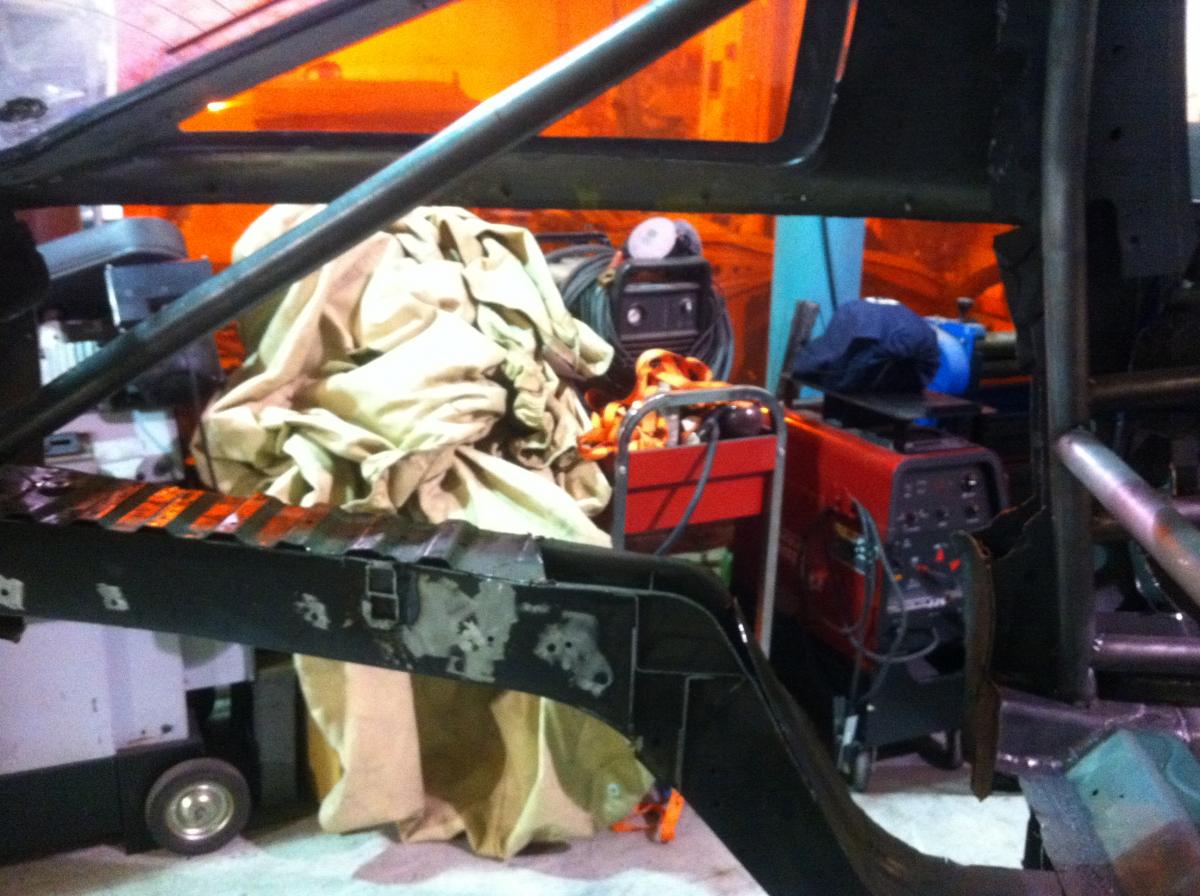

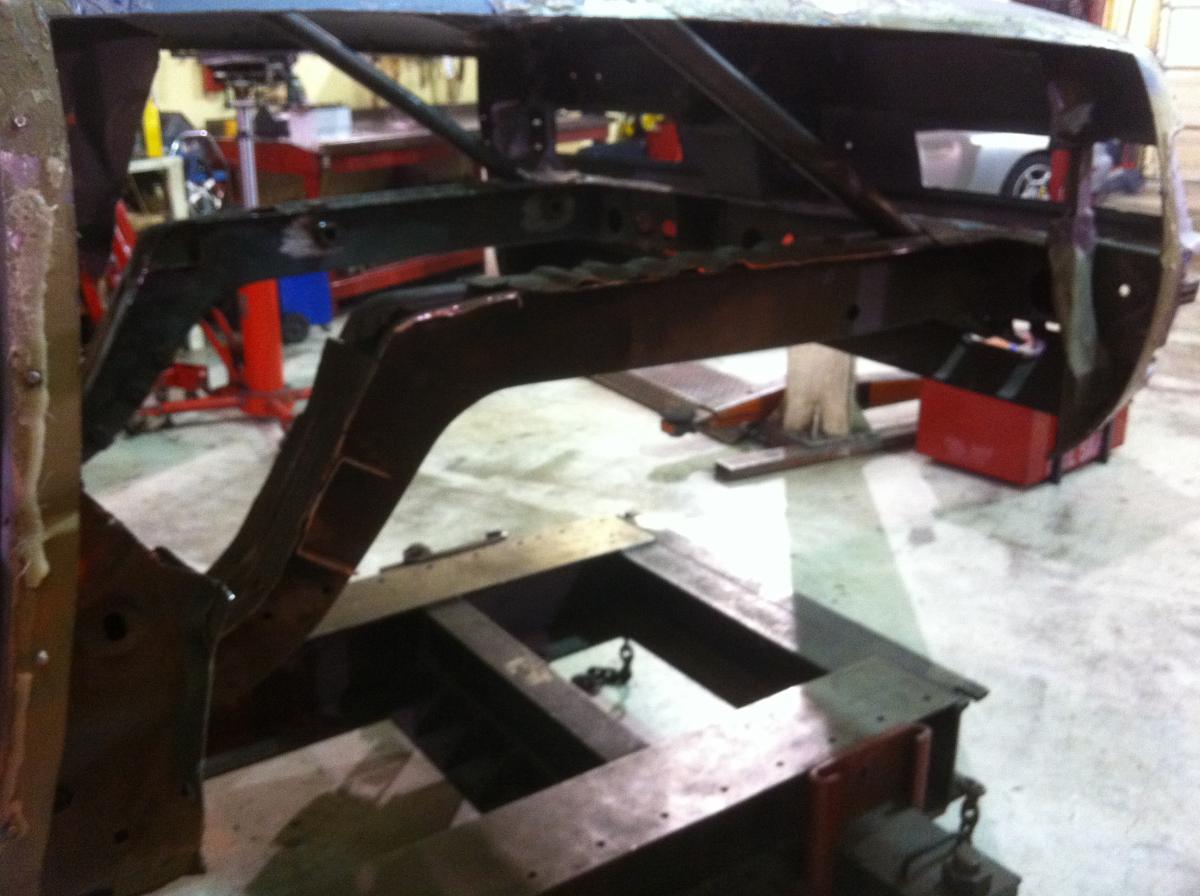

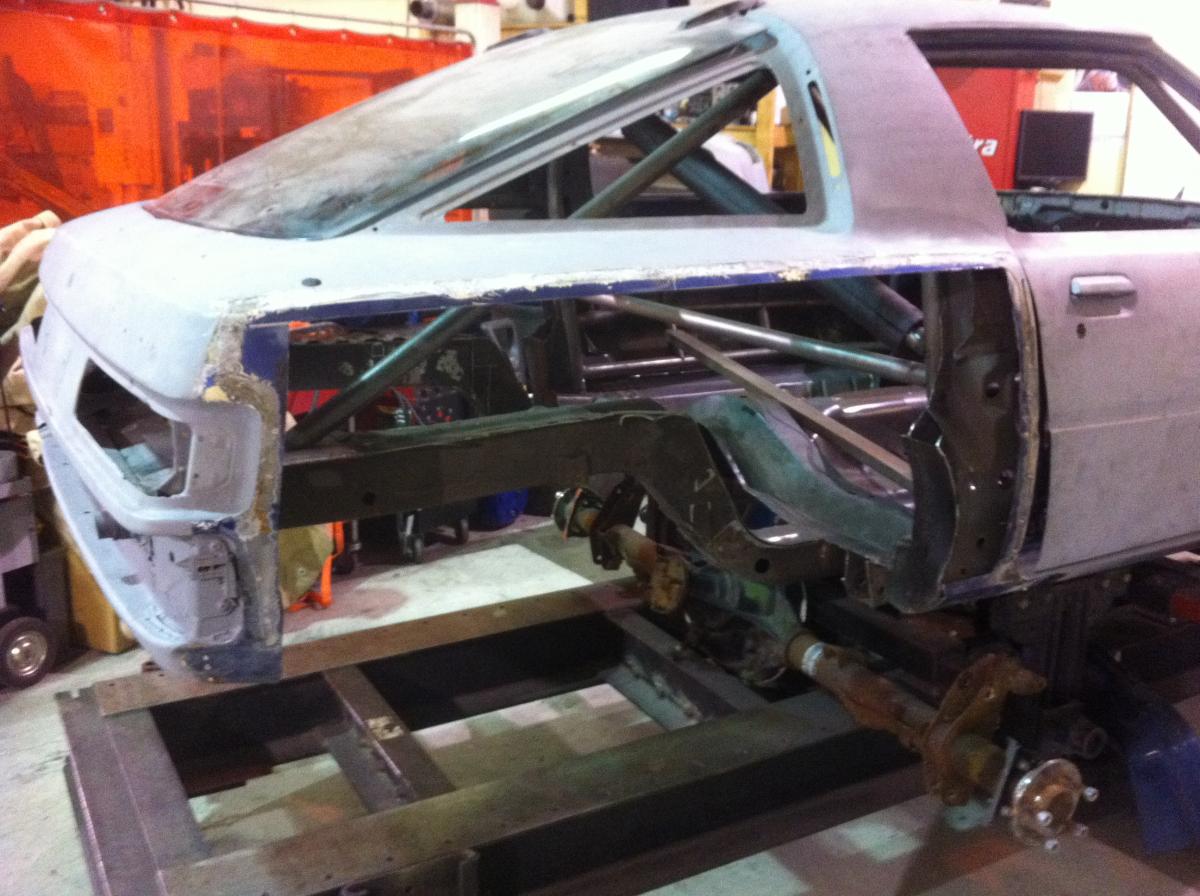

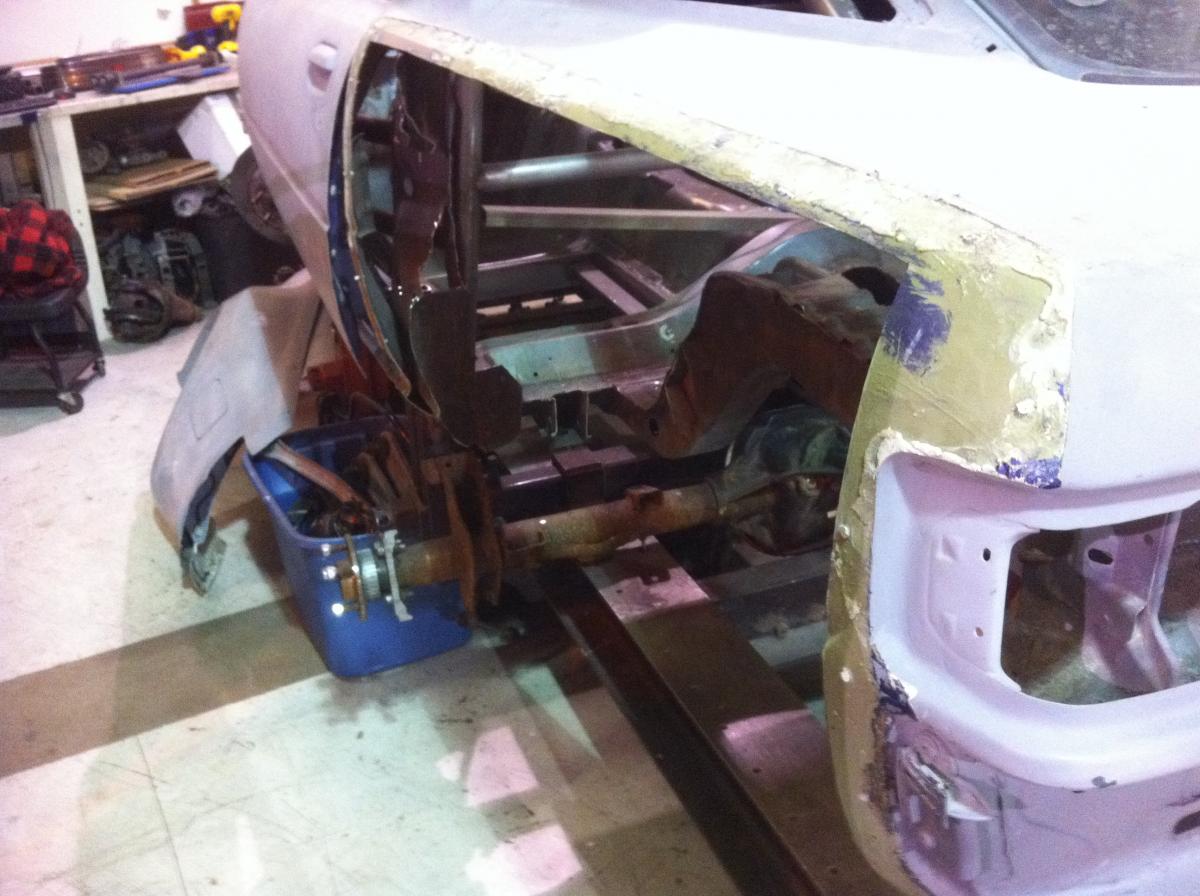

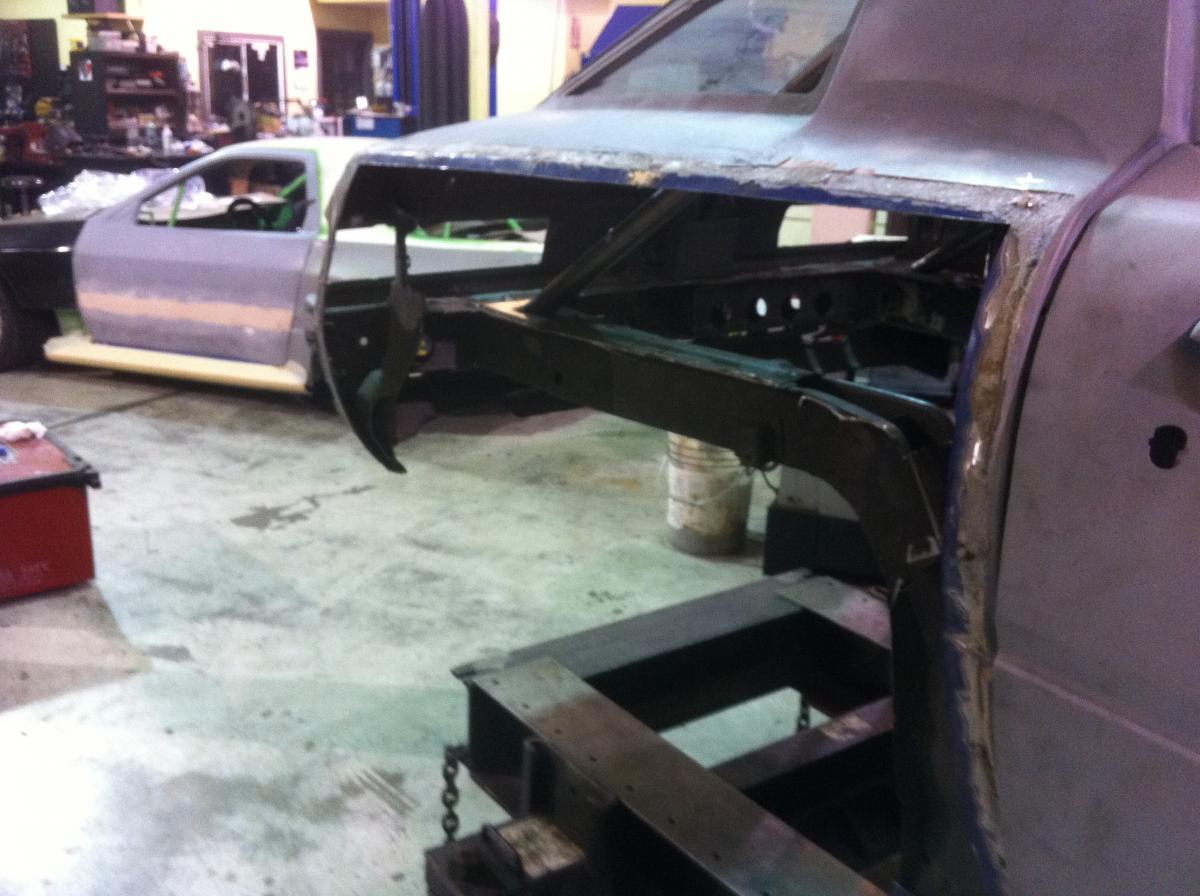

Took the rear fenders off and cut some useless metal out!









Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0315.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0316.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0317.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0318.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0319.jpg


Last edited by bcrx7; 02-17-2012 at 12:56 PM.
bcrx7 is offline   Reply With Quote
Old 02-17-2012, 09:26 AM   #68
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 50
Default

you gotta embedd your pictures man:

right click the picture link after you attach it and copy the link, then put in the image tags (click the button with a yellow background and a mountain in it).
Seefo is offline   Reply With Quote
Old 02-17-2012, 11:12 AM   #69
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Track View Post
you gotta embedd your pictures man:

right click the picture link after you attach it and copy the link, then put in the image tags (click the button with a yellow background and a mountain in it).
Still used to people complaining about 56k issues from back in the days. Old habits... Will do

Cheers
bcrx7 is offline   Reply With Quote
Old 02-18-2012, 07:54 AM   #70
I'm Miserable!
iTrader: (1)

Join Date: Aug 2011
Location: SWFloriduh
Posts: 114
Total Cats: 9
Default

Great work.

Make sure you post an update on the 20B project as well. Love them rotors.
Boris is offline   Reply With Quote
Old 03-14-2012, 01:07 PM   #71
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

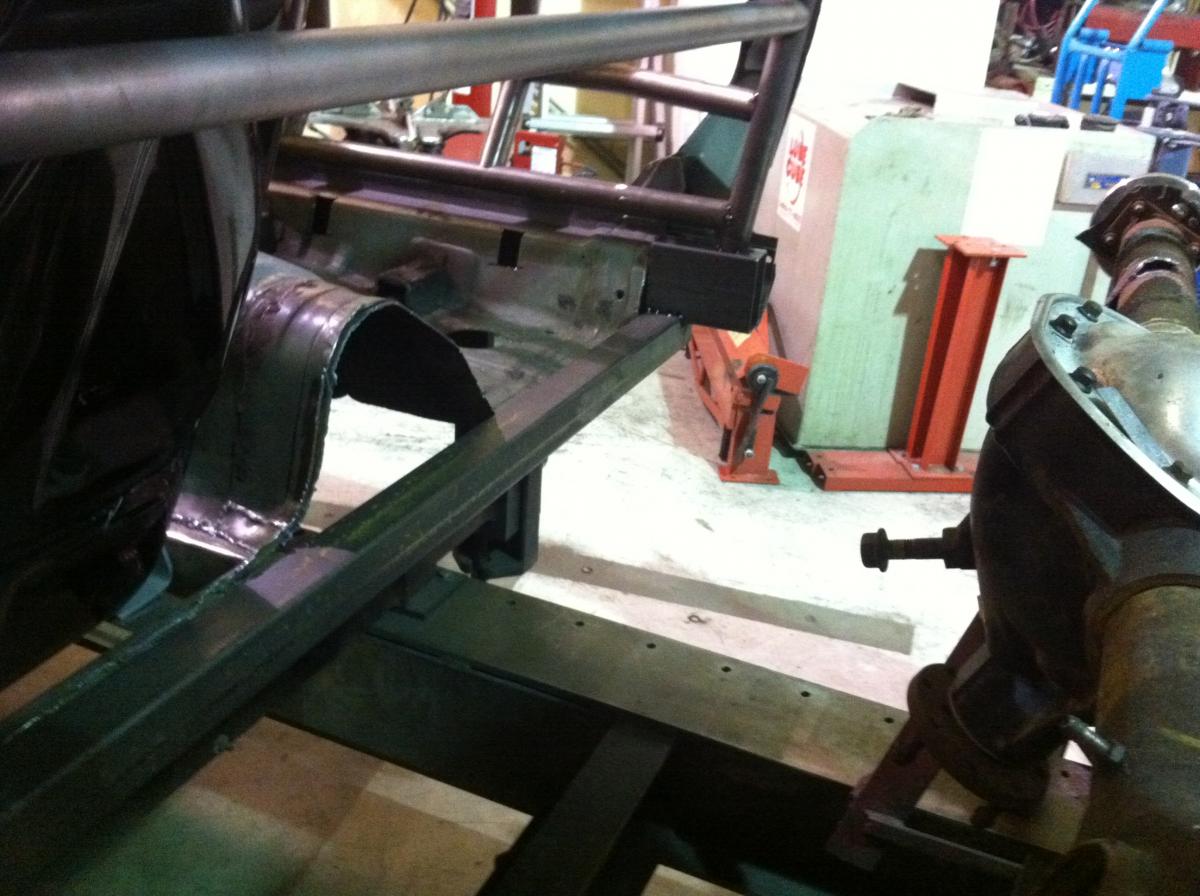

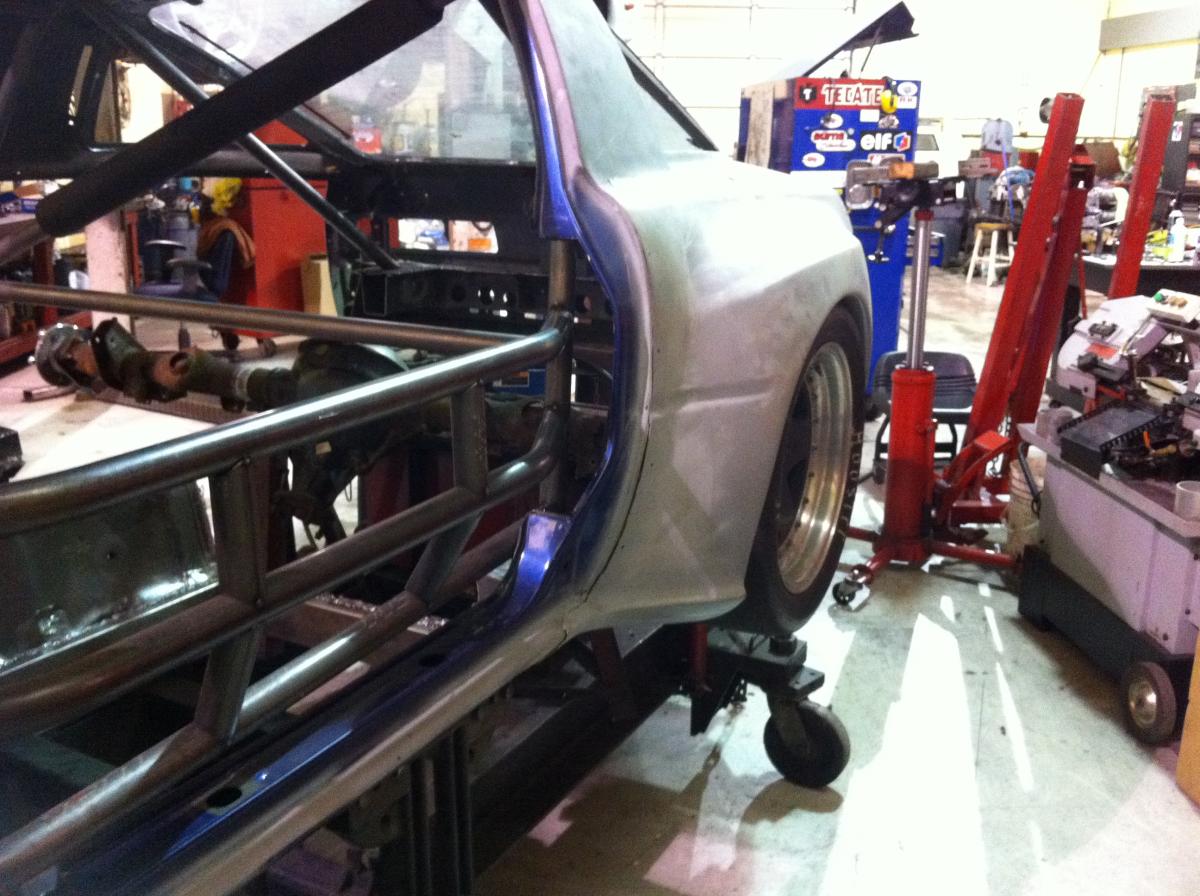

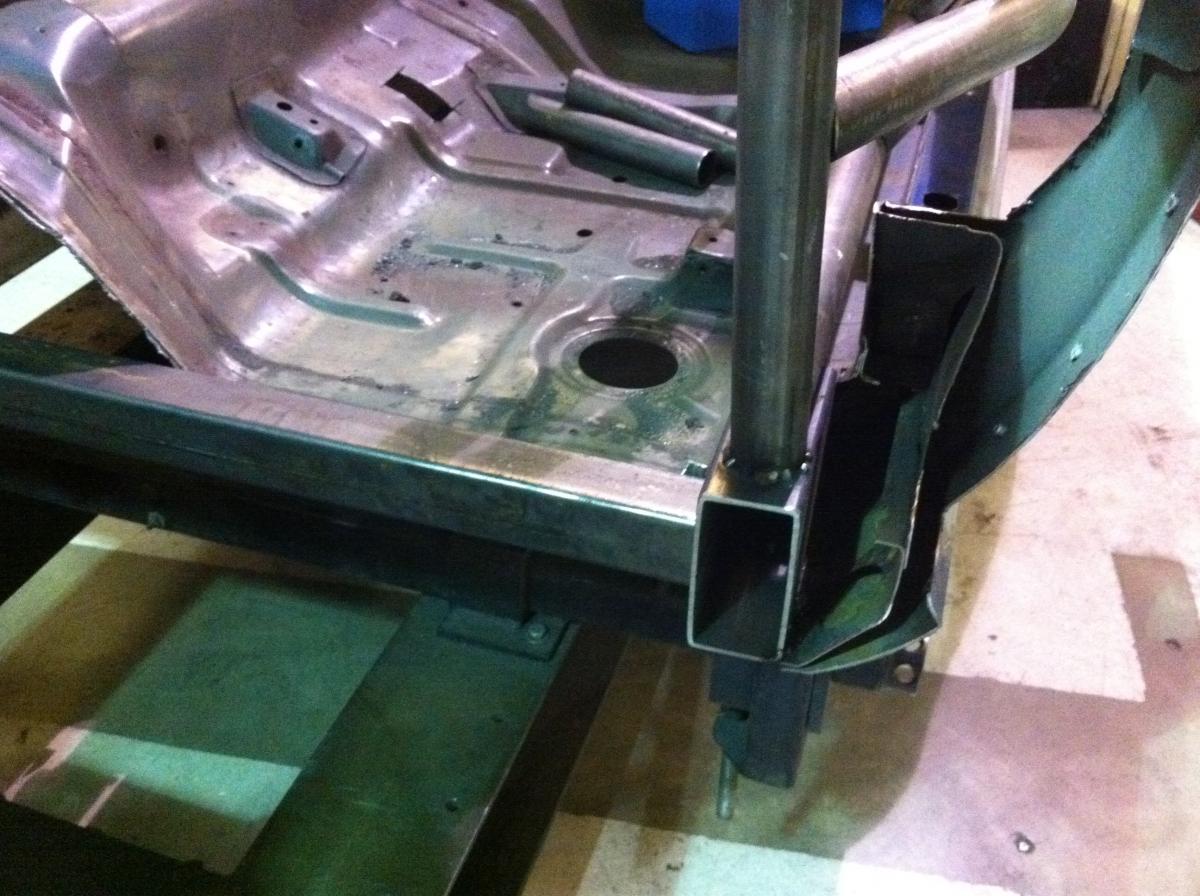

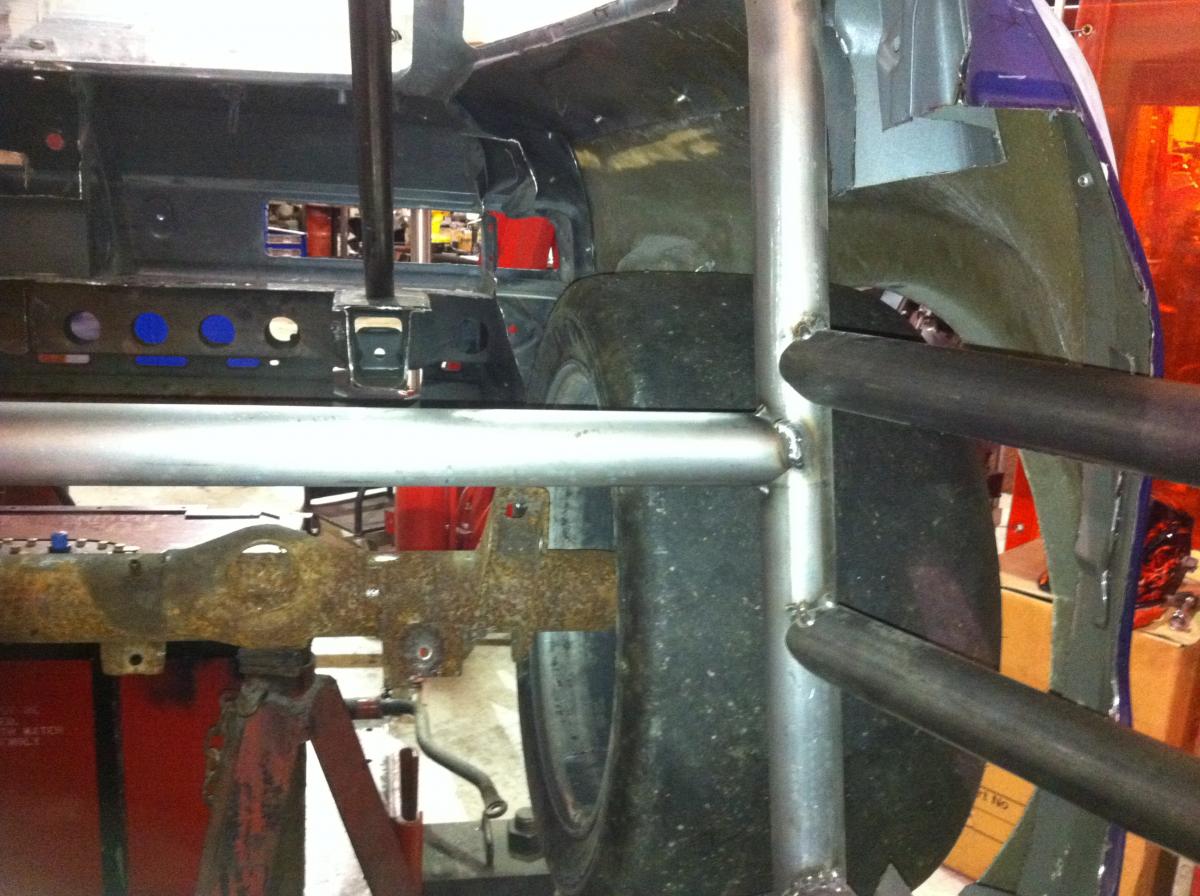

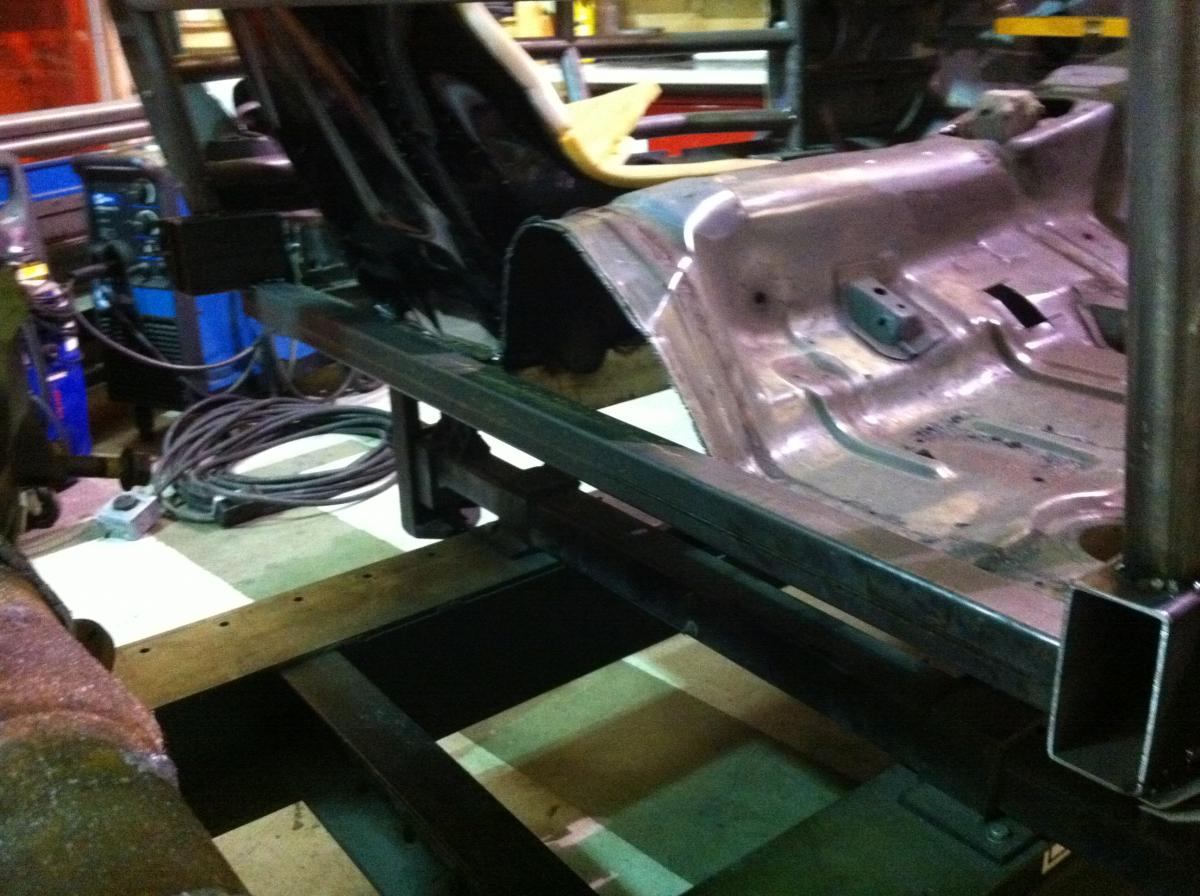

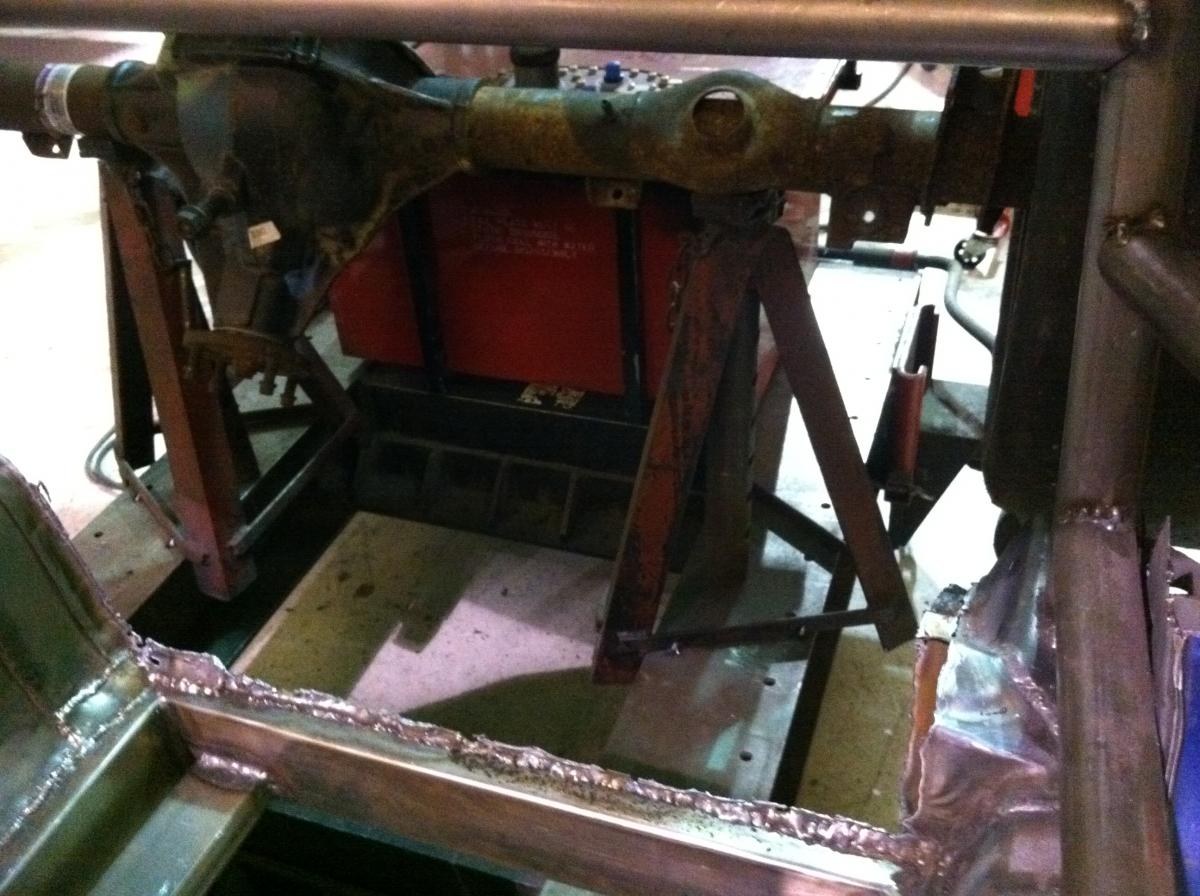

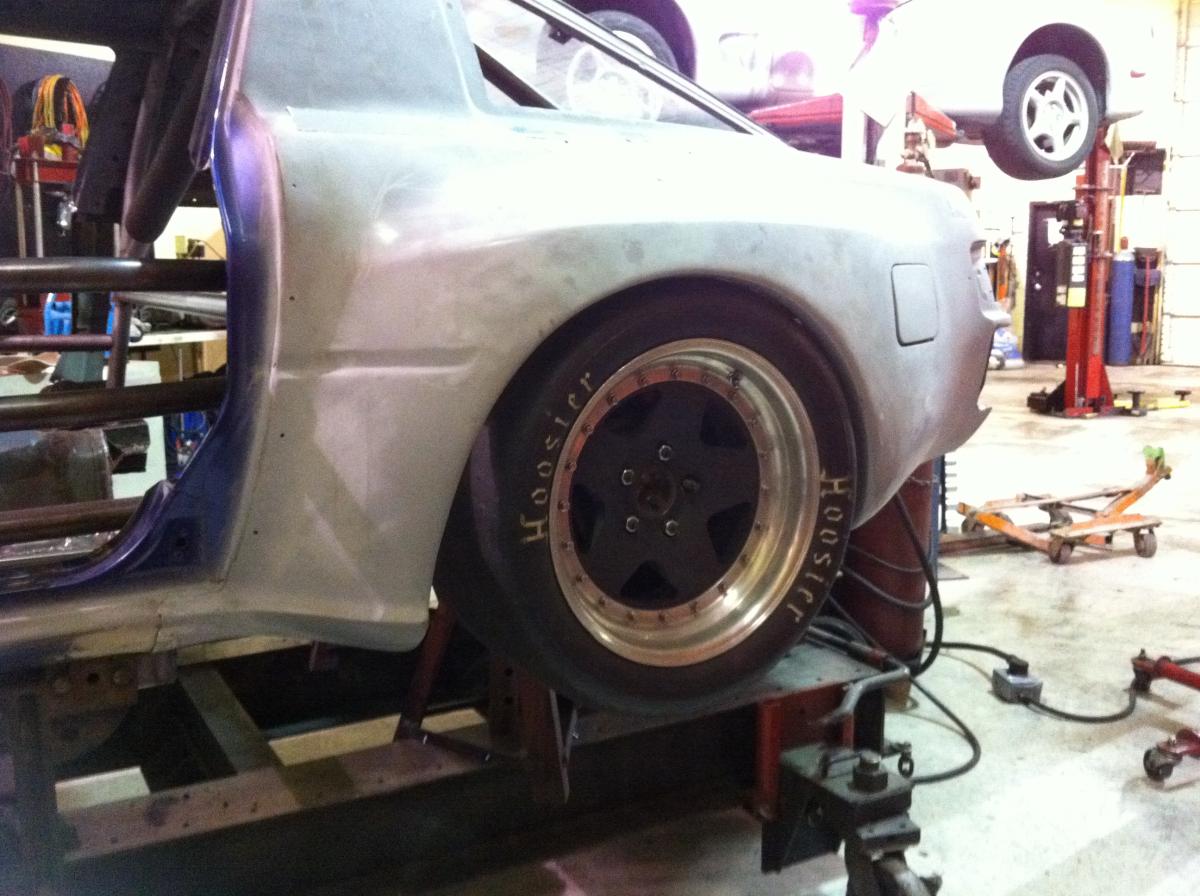

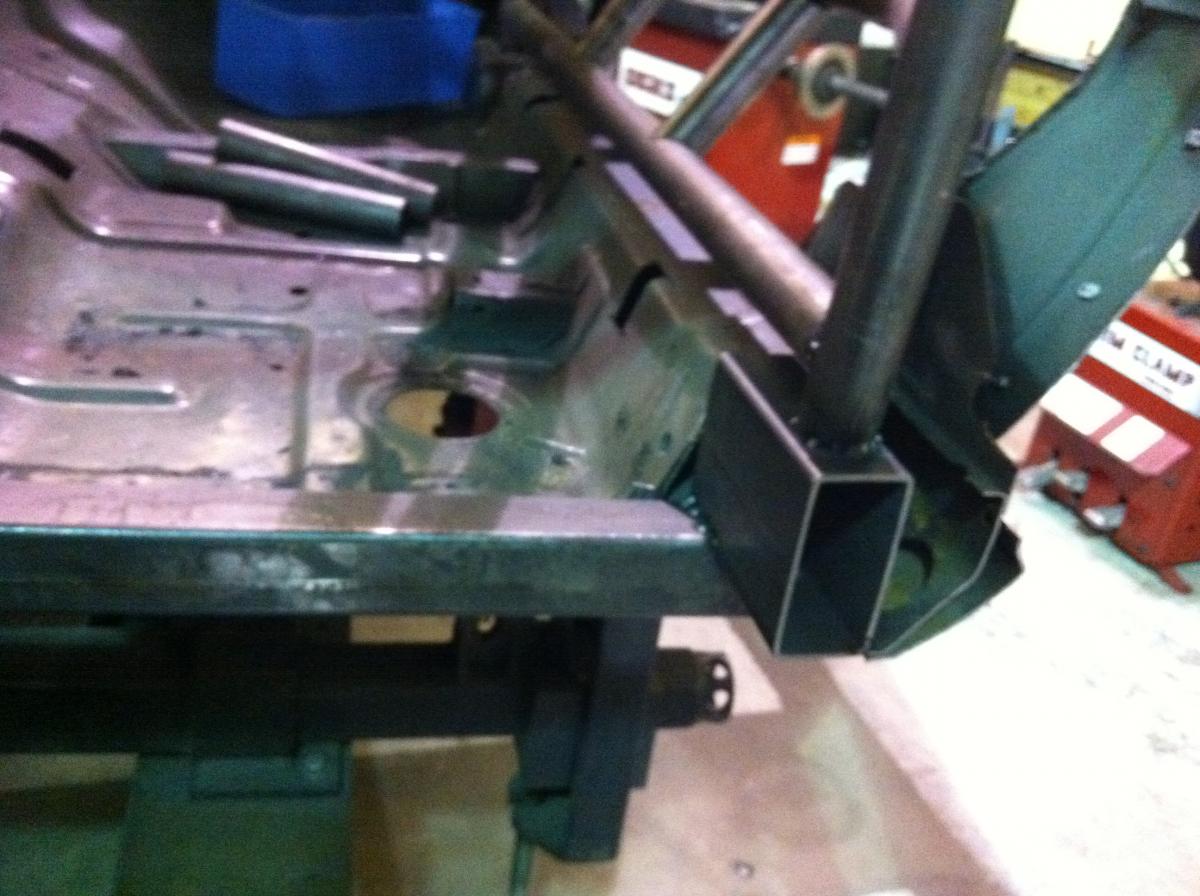

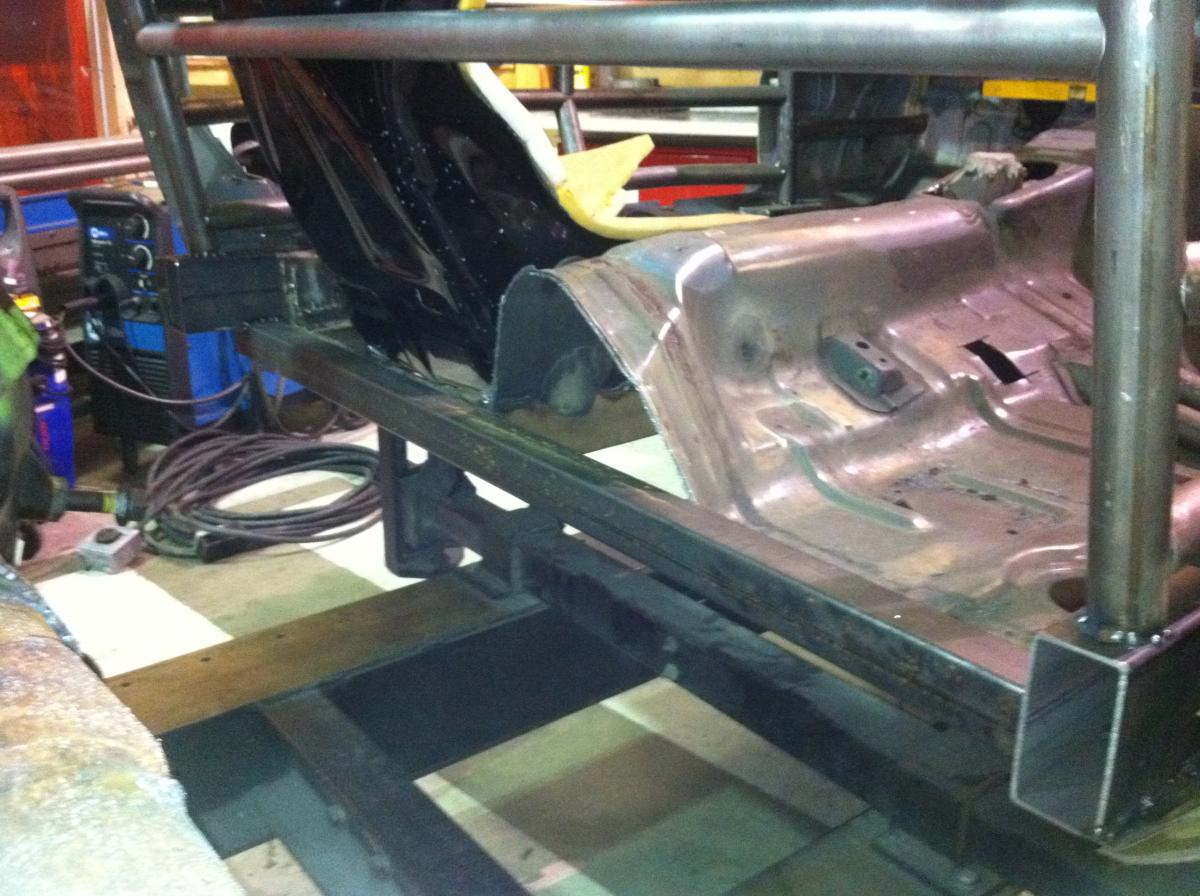

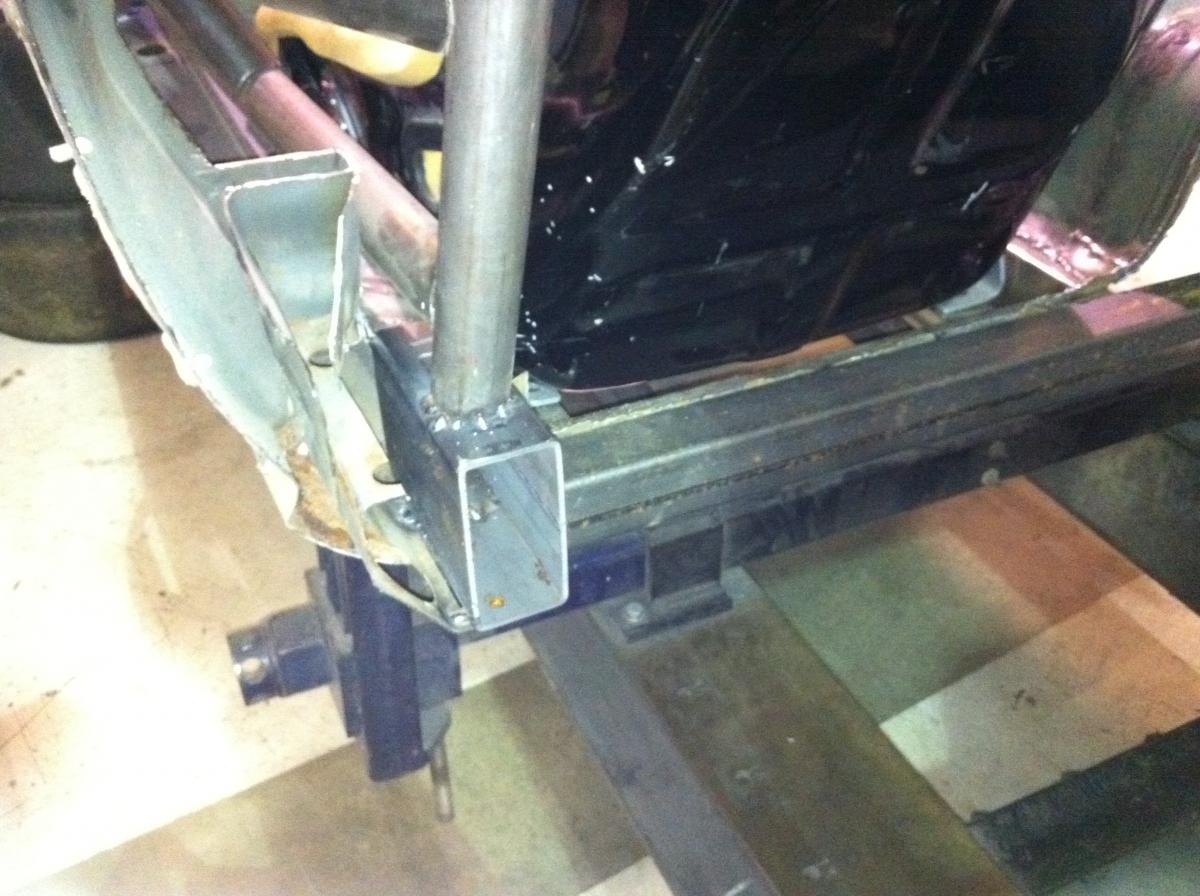

Well it has been a while since I have posted an update. I haven't been online much, however I have been working on the car. This week I have finally started putting the rear back in.



















Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0352.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0354.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0355.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0356.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0362.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0363.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0364.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0365.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0366.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0367.jpg

bcrx7 is offline   Reply With Quote
Old 03-15-2012, 10:08 PM   #72
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

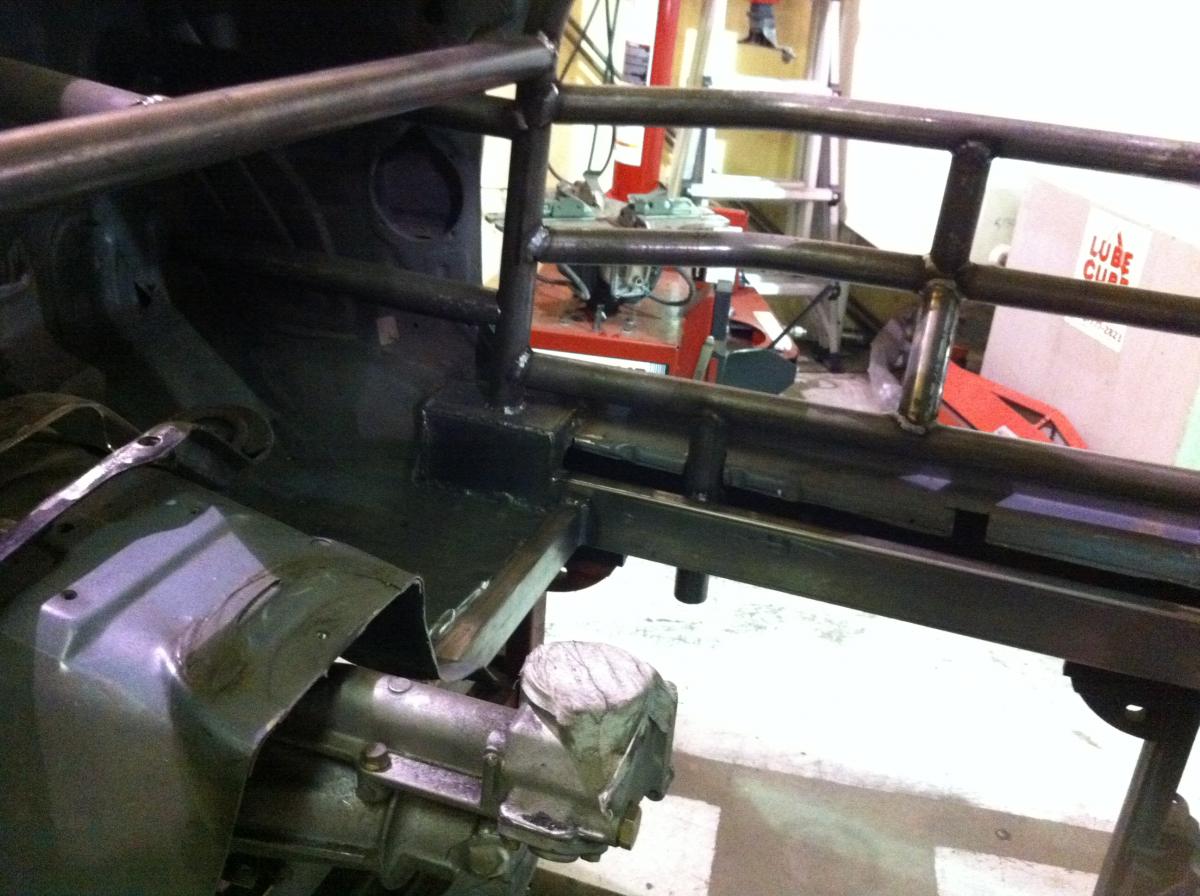

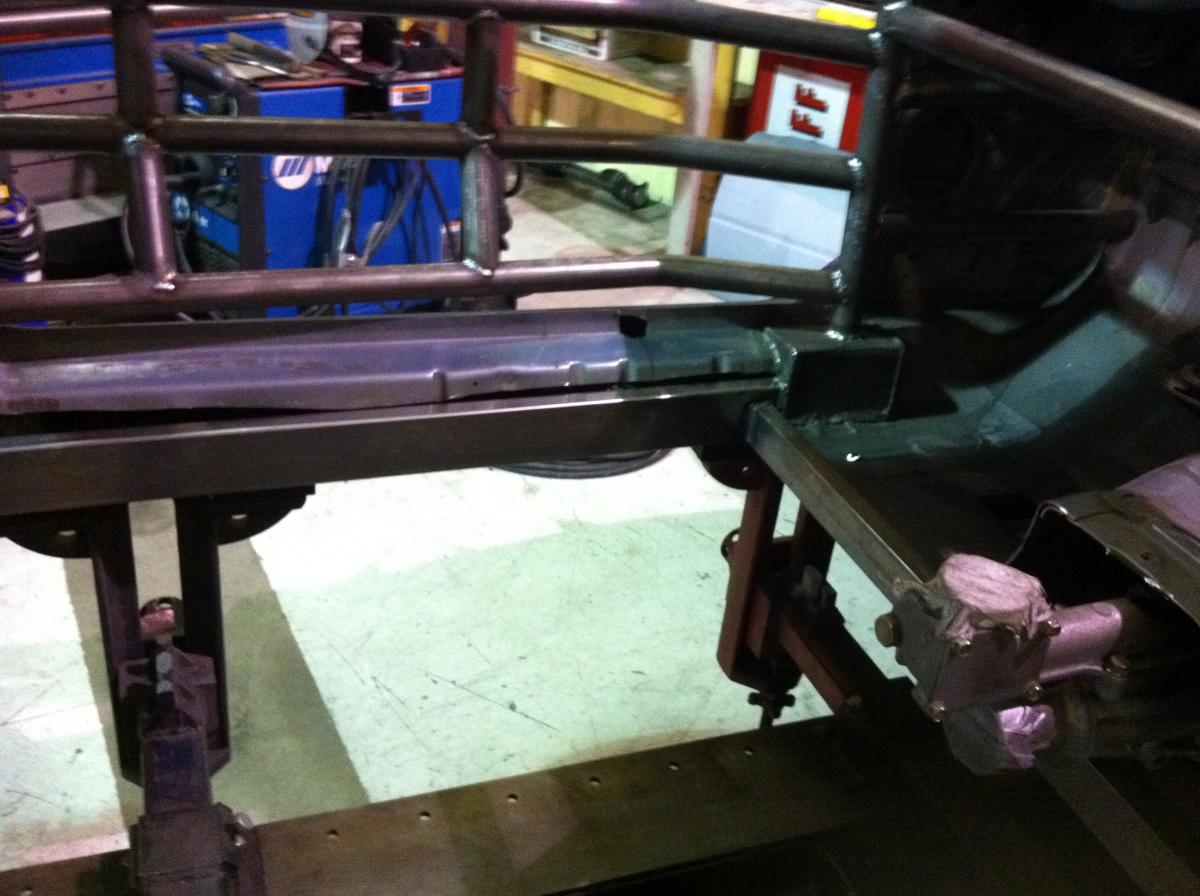

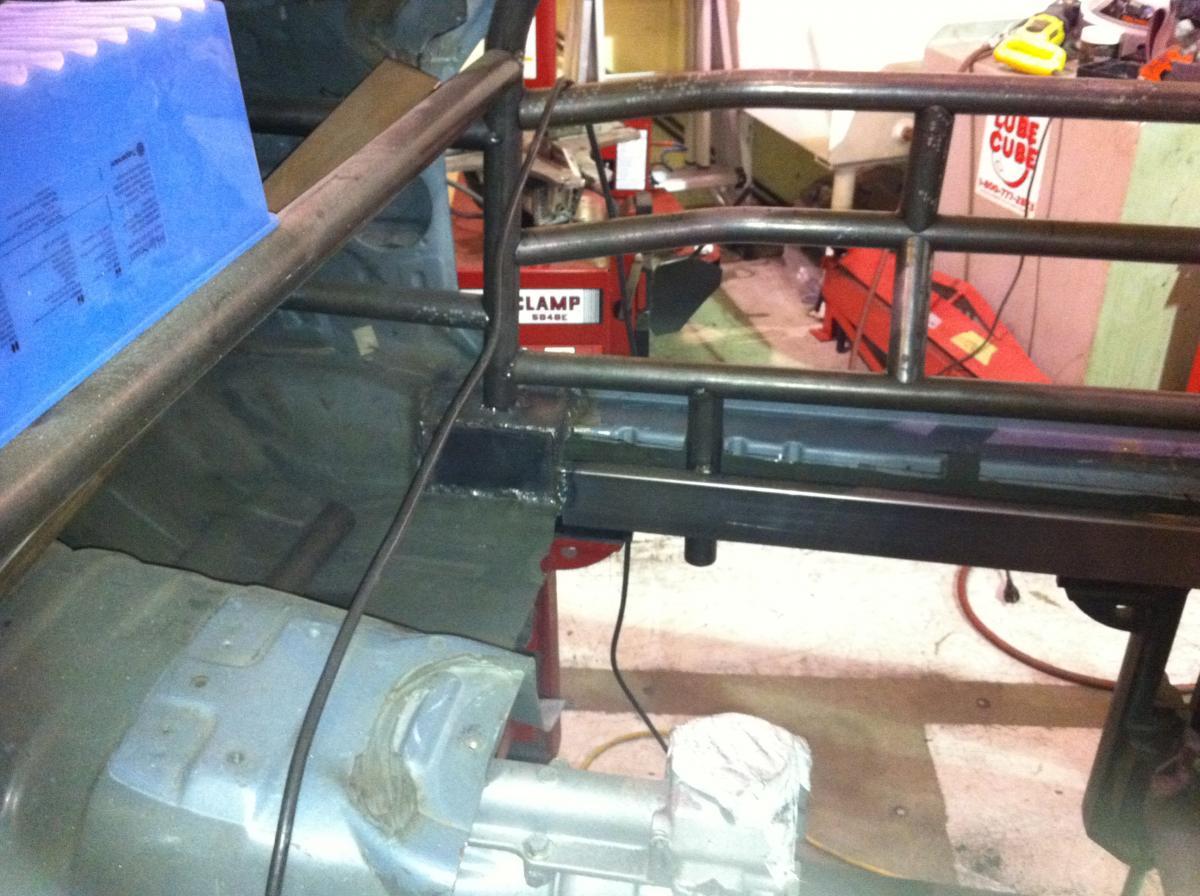

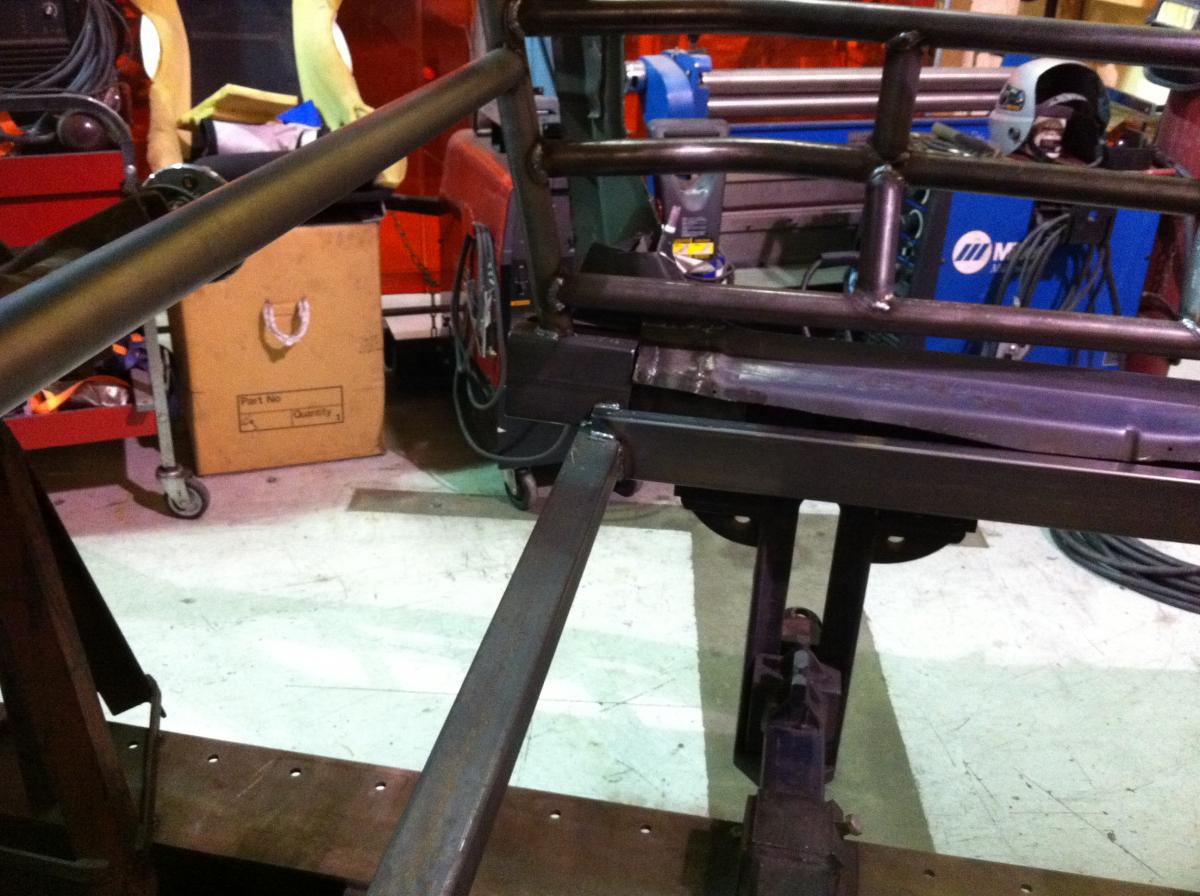

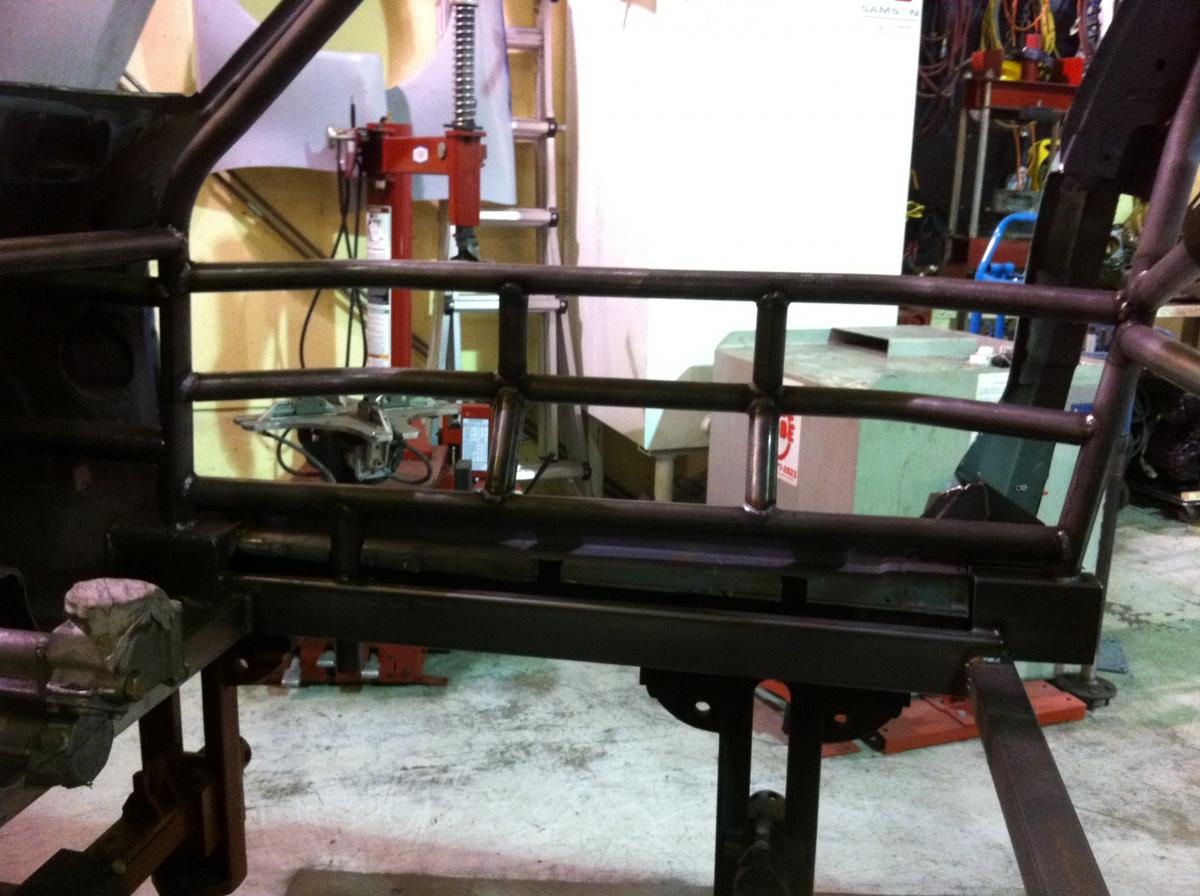

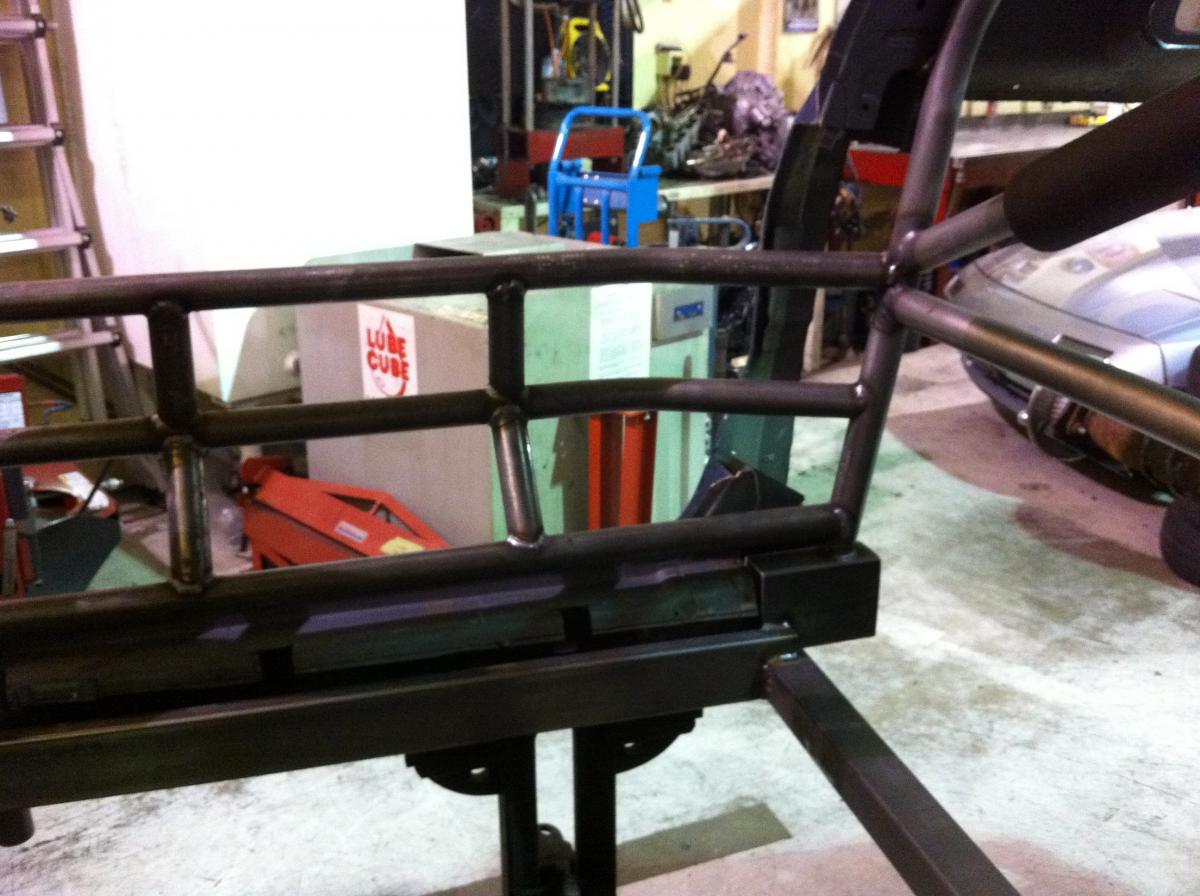

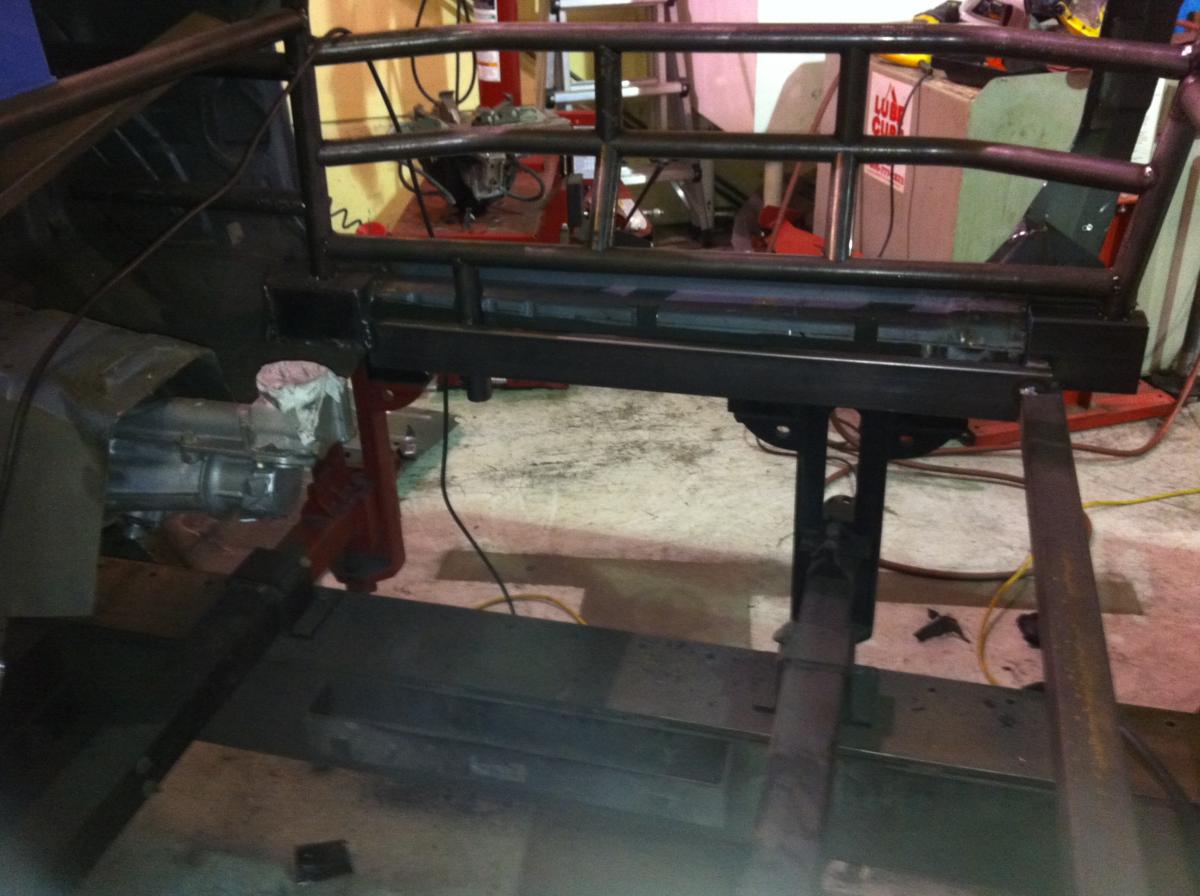

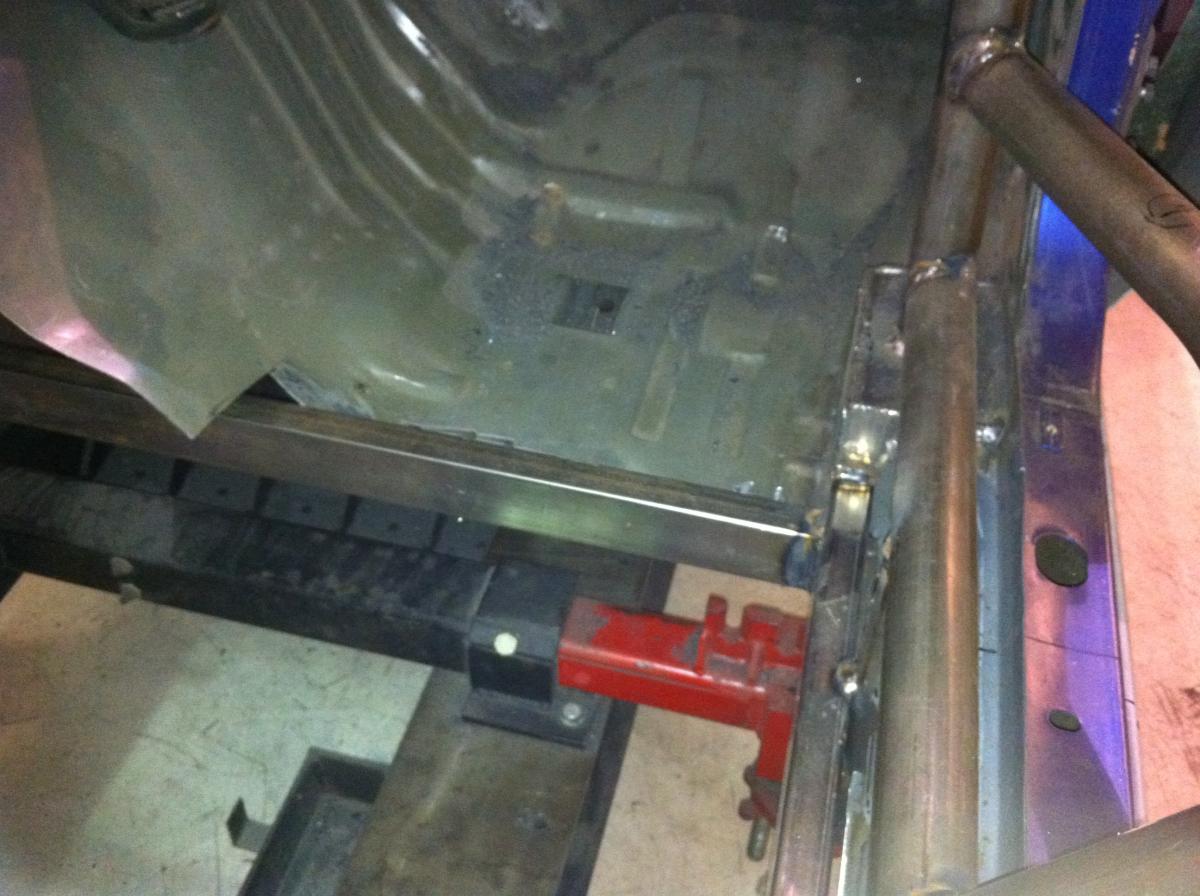

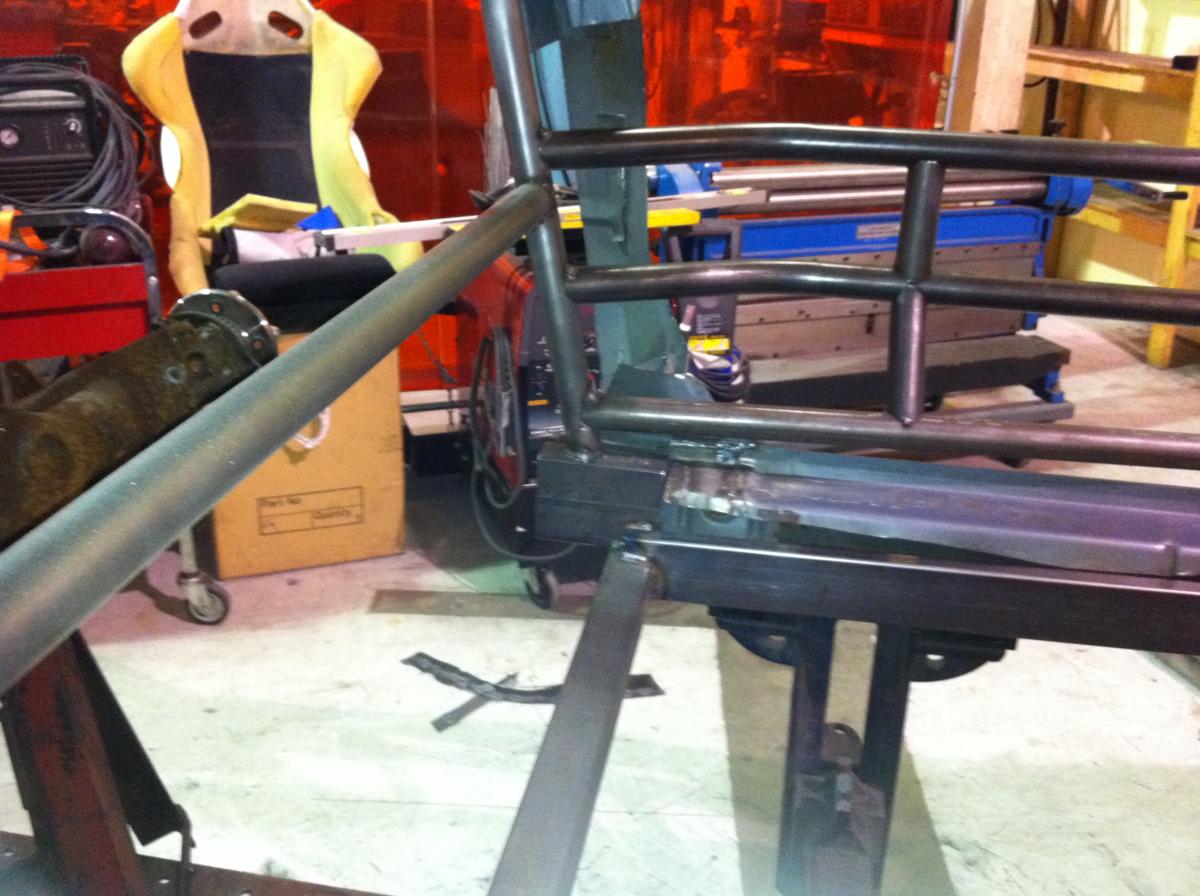

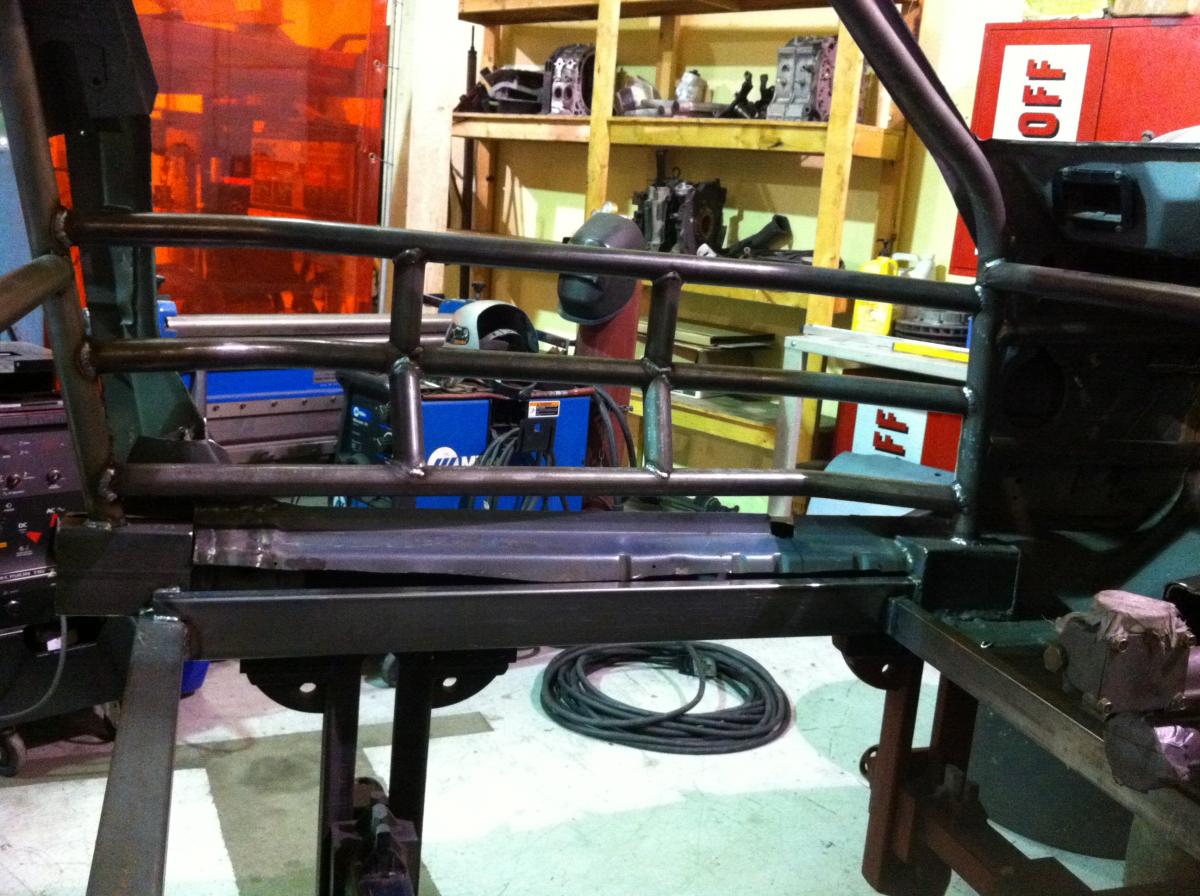

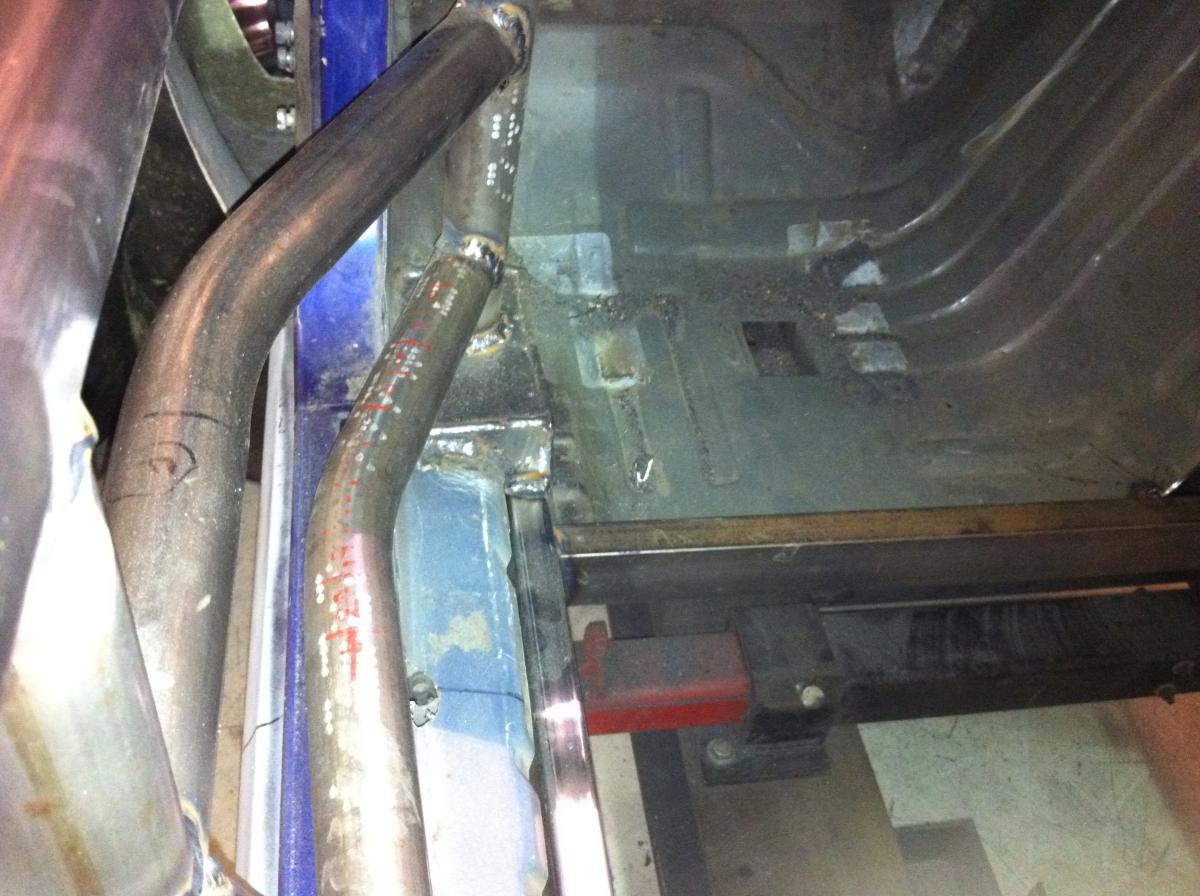

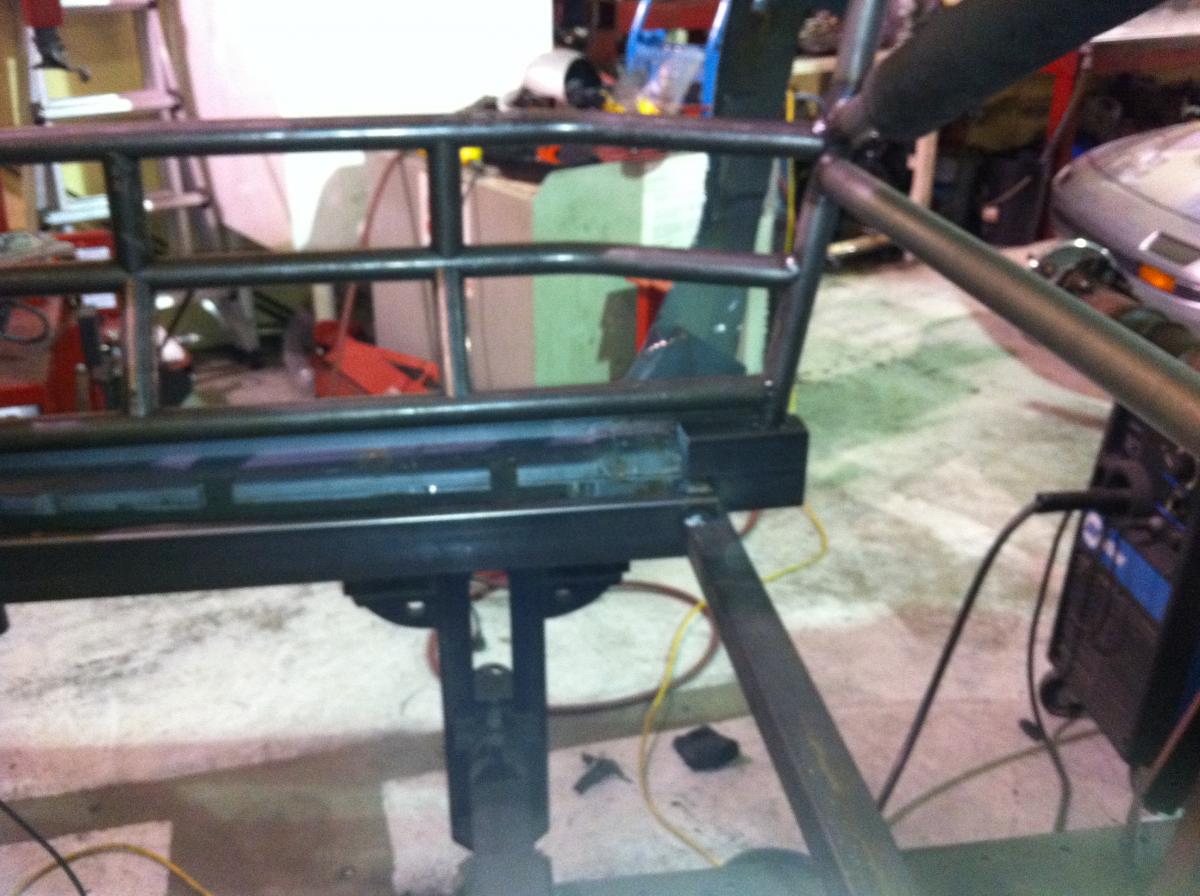

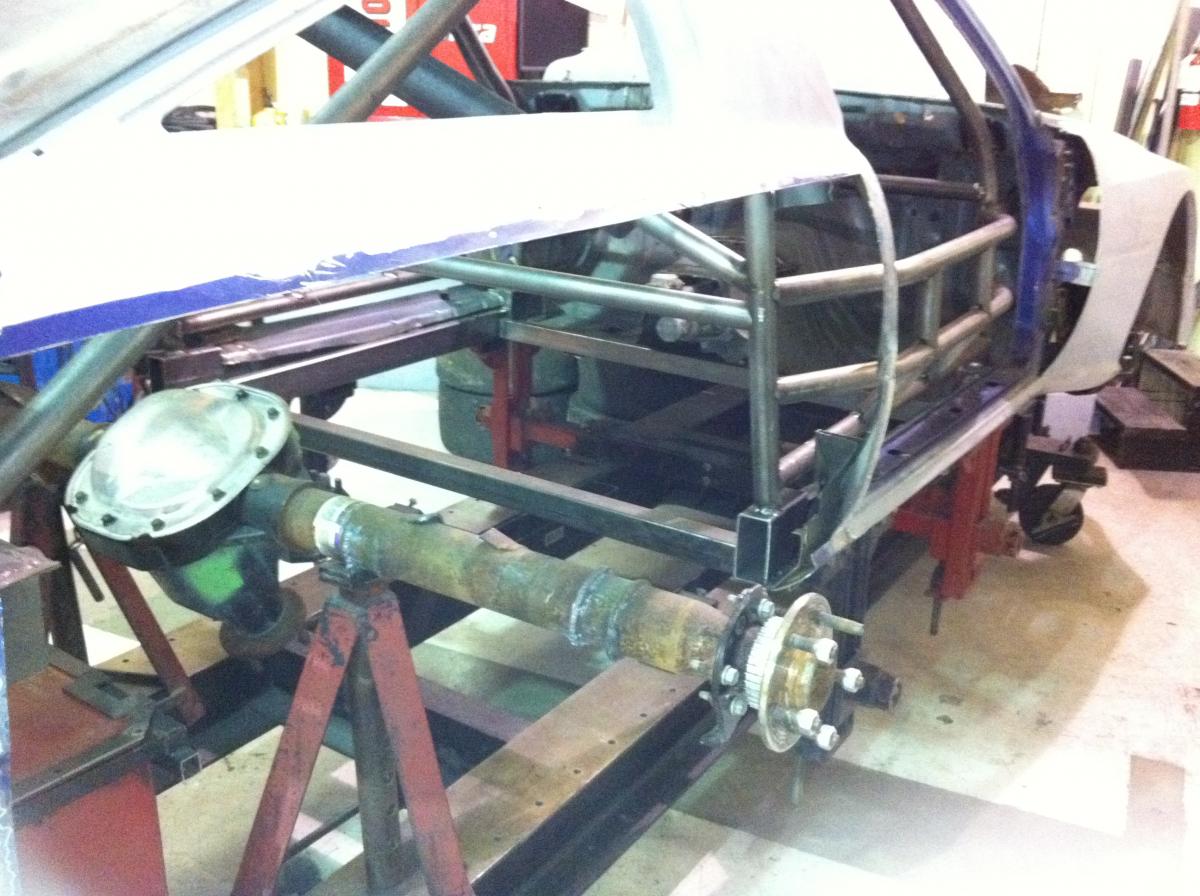

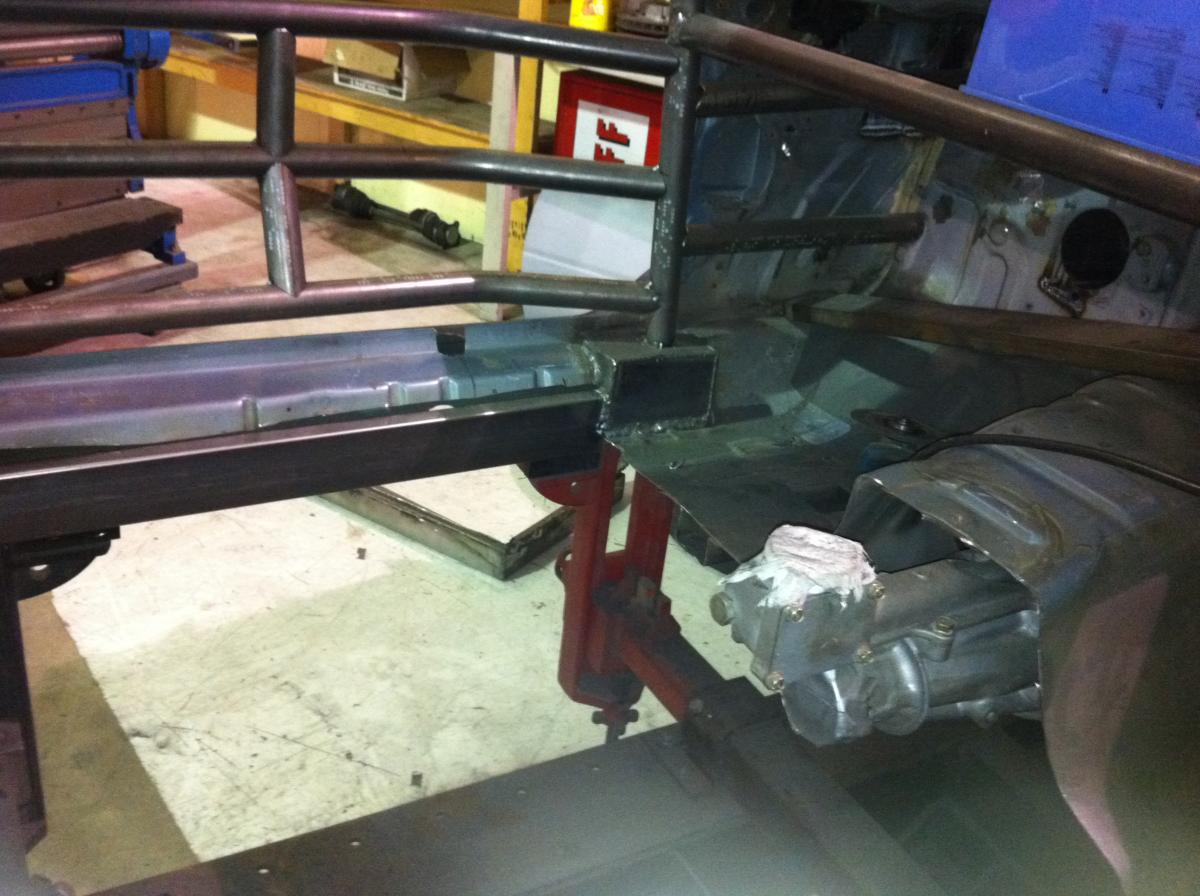

The process of framing the passenger compartment and taking the floor out is done. Now I will start framing the driver seat, exhaust box and fuel cell.



























Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0371.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0372.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0373.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0374.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0375.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0376.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0377.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0378.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0379.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0380.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0381.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0382.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0383.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0384.jpg
bcrx7 is offline   Reply With Quote
Old 03-21-2012, 12:17 AM   #73
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

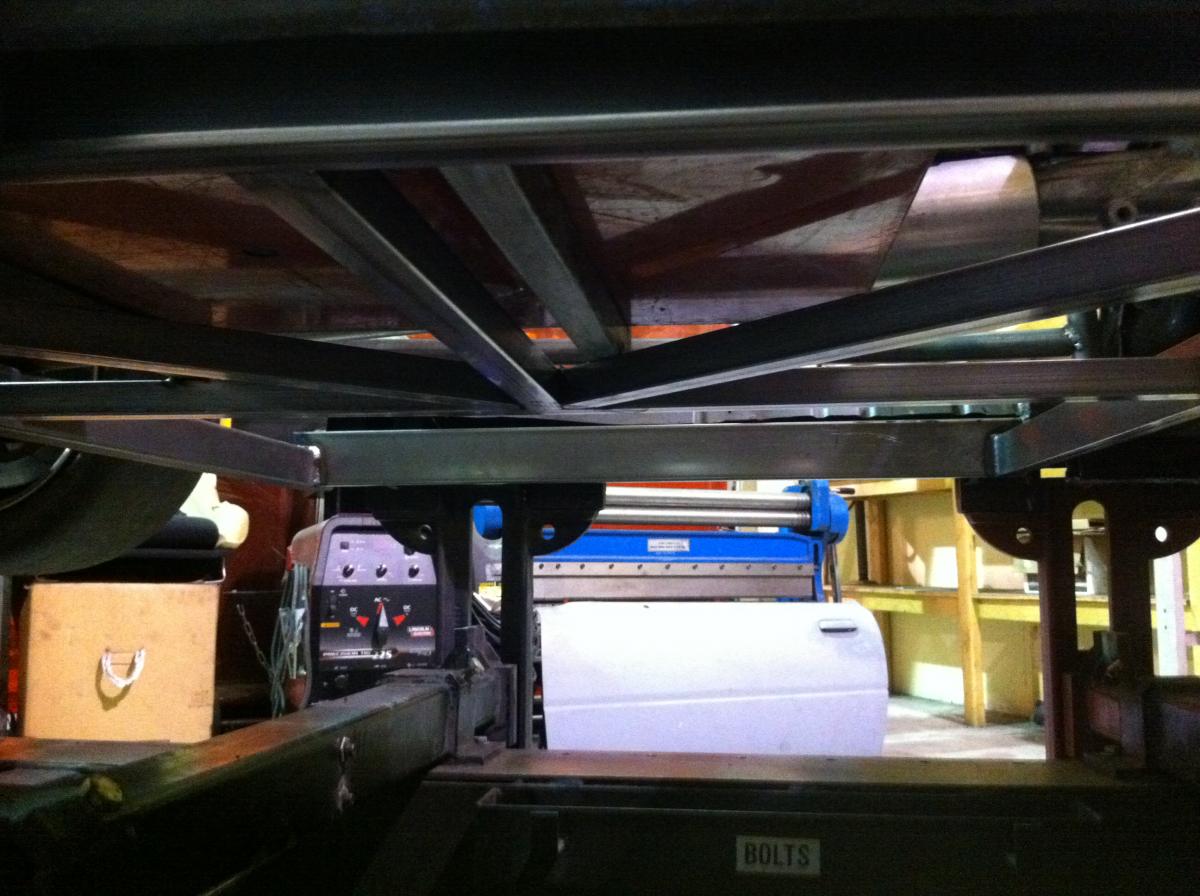

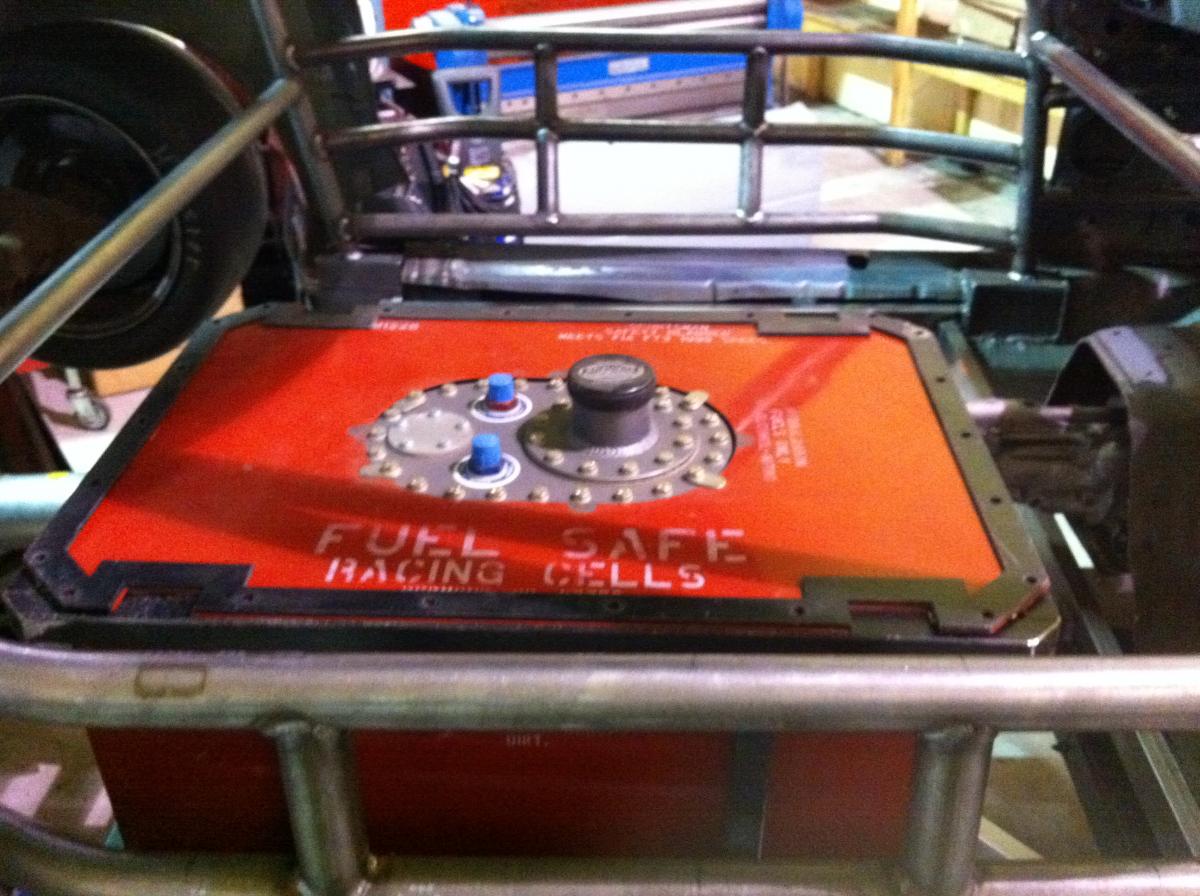

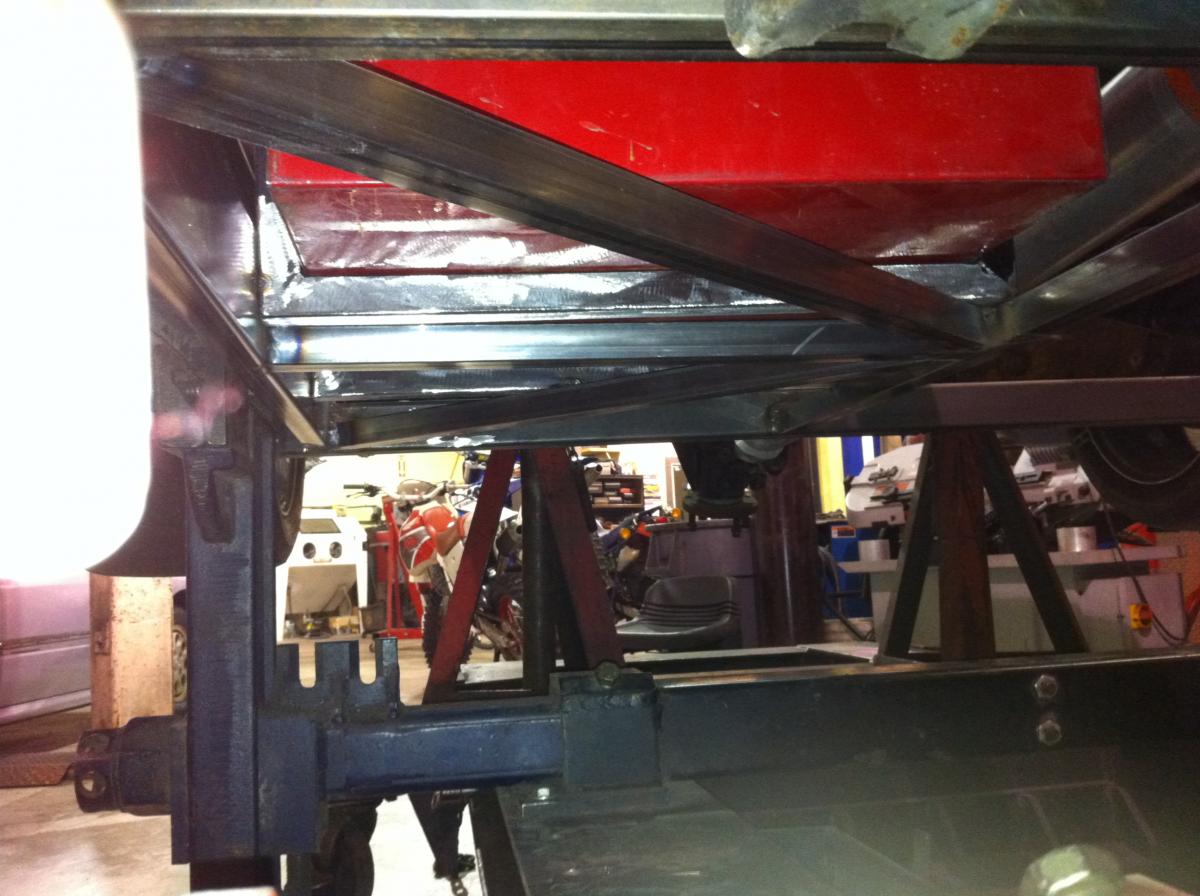

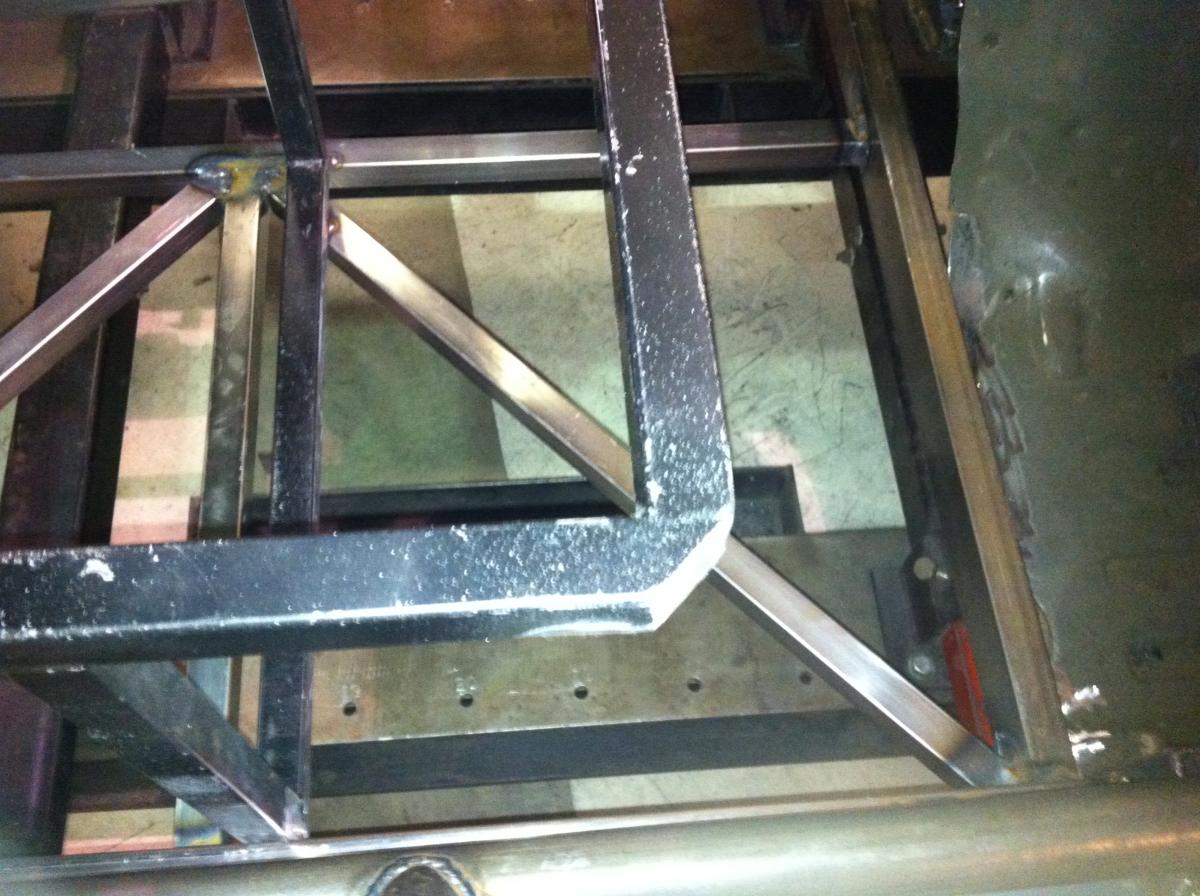

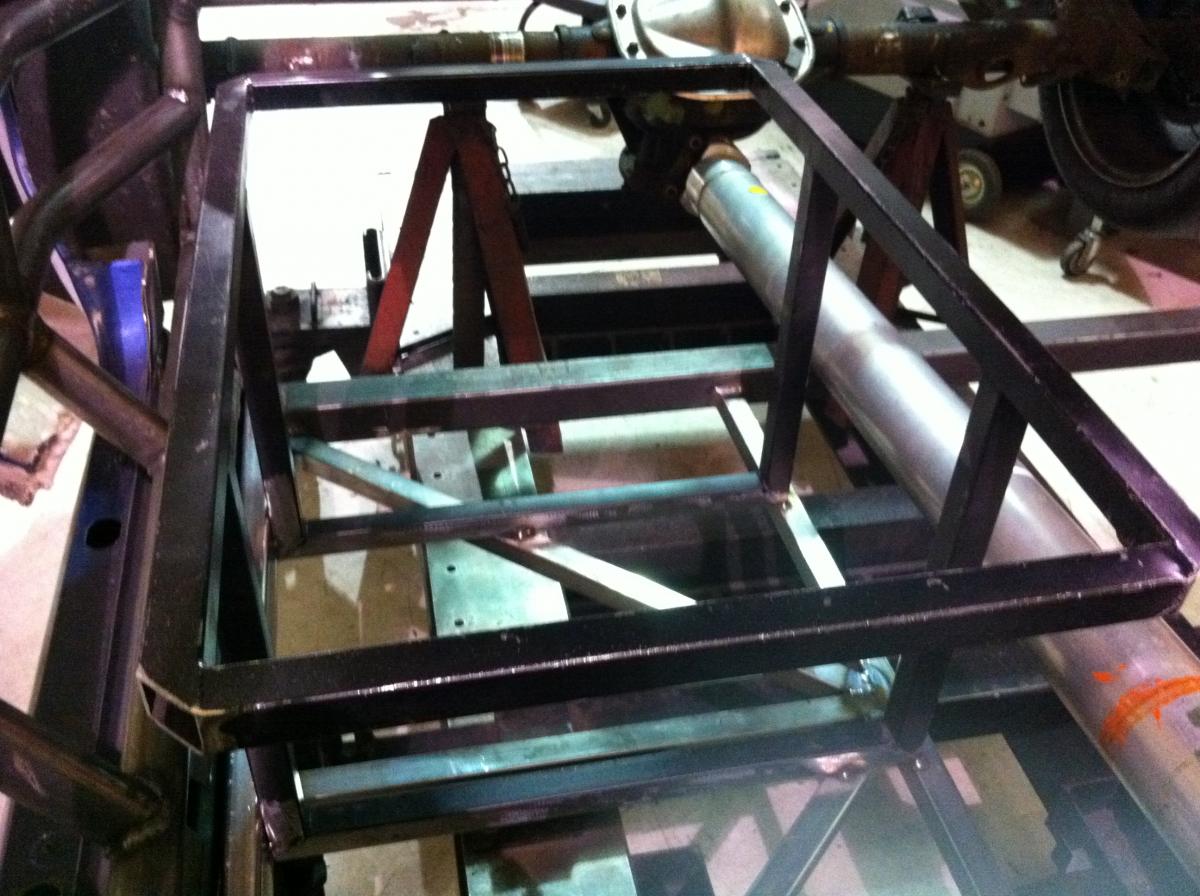

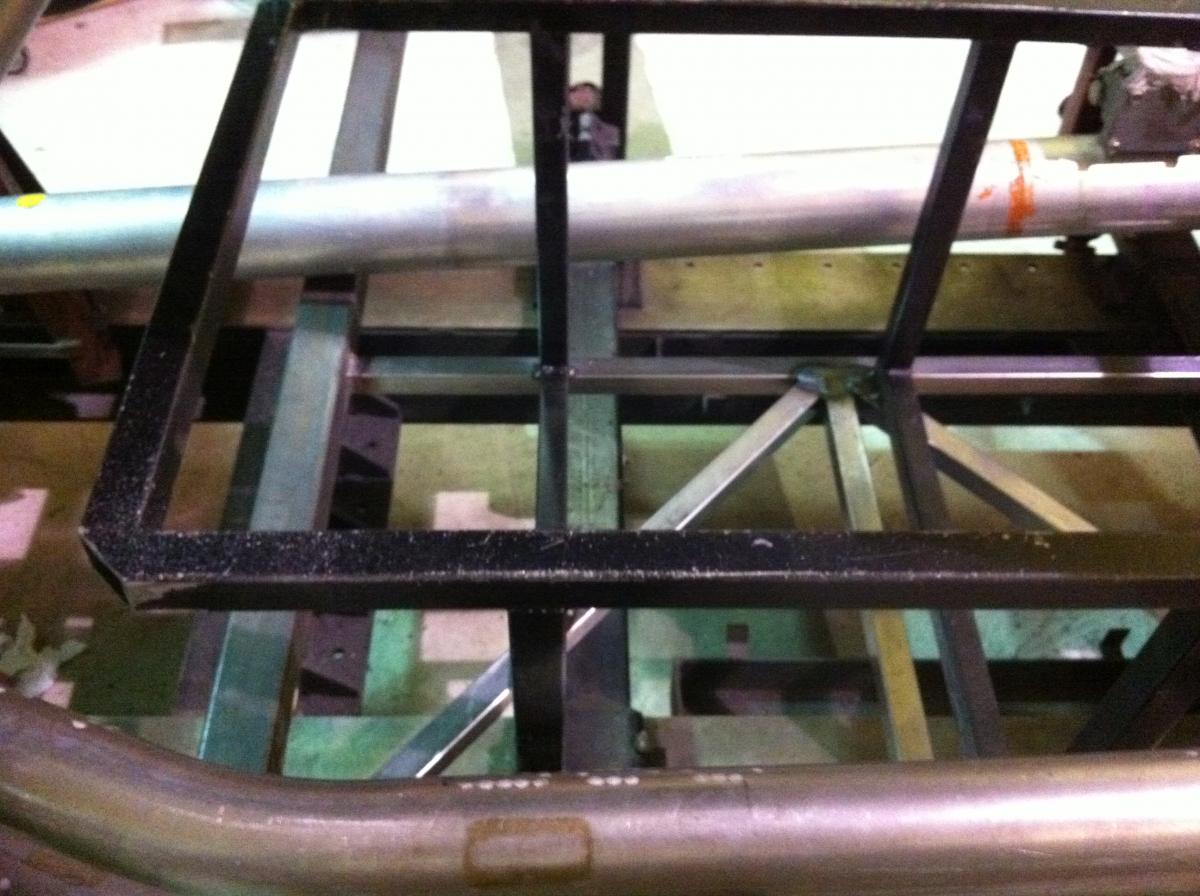

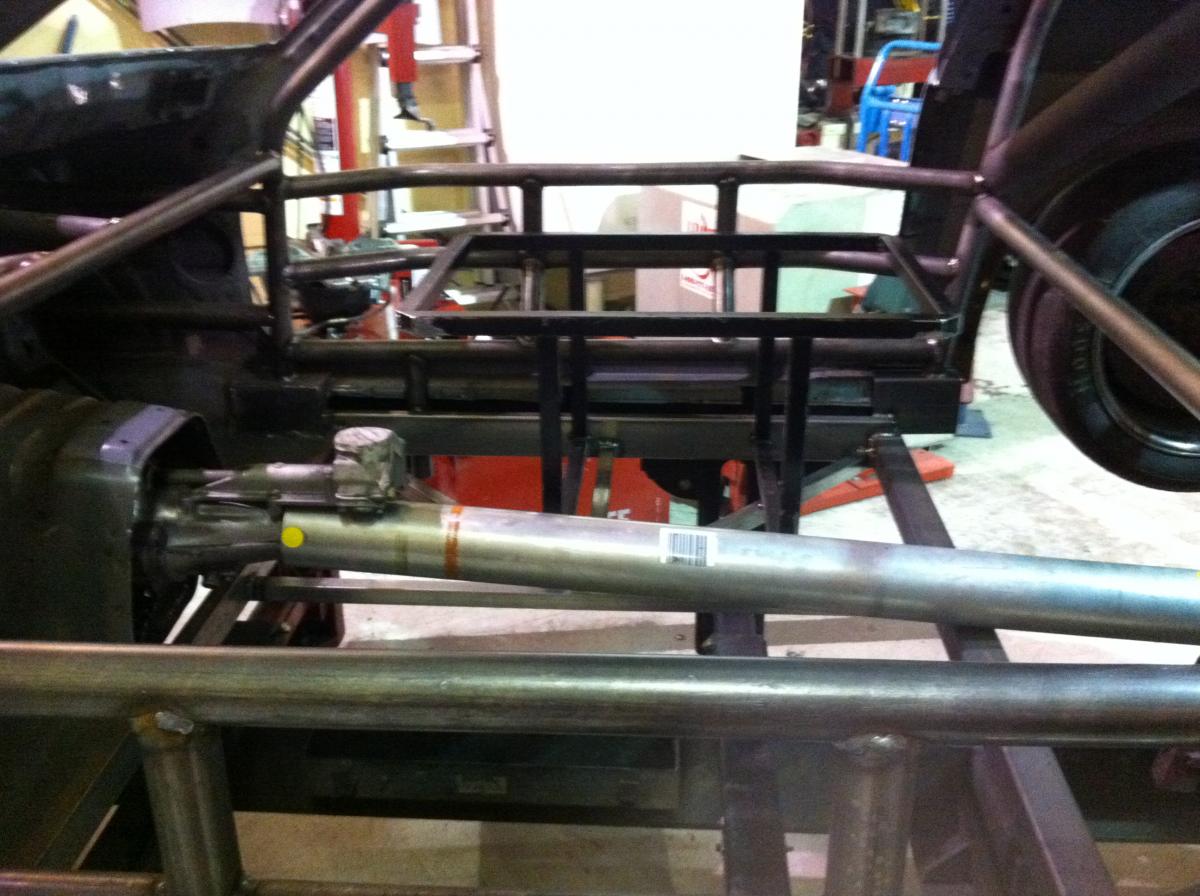

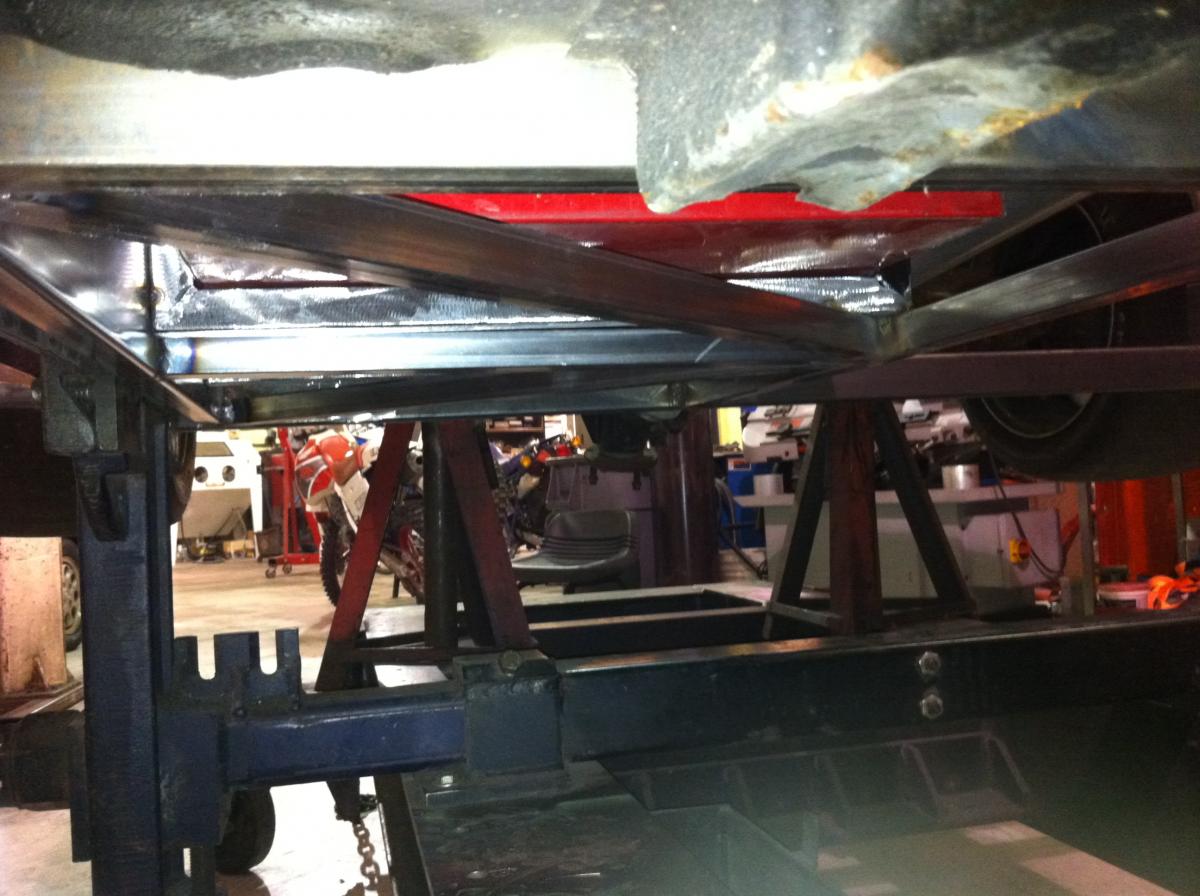

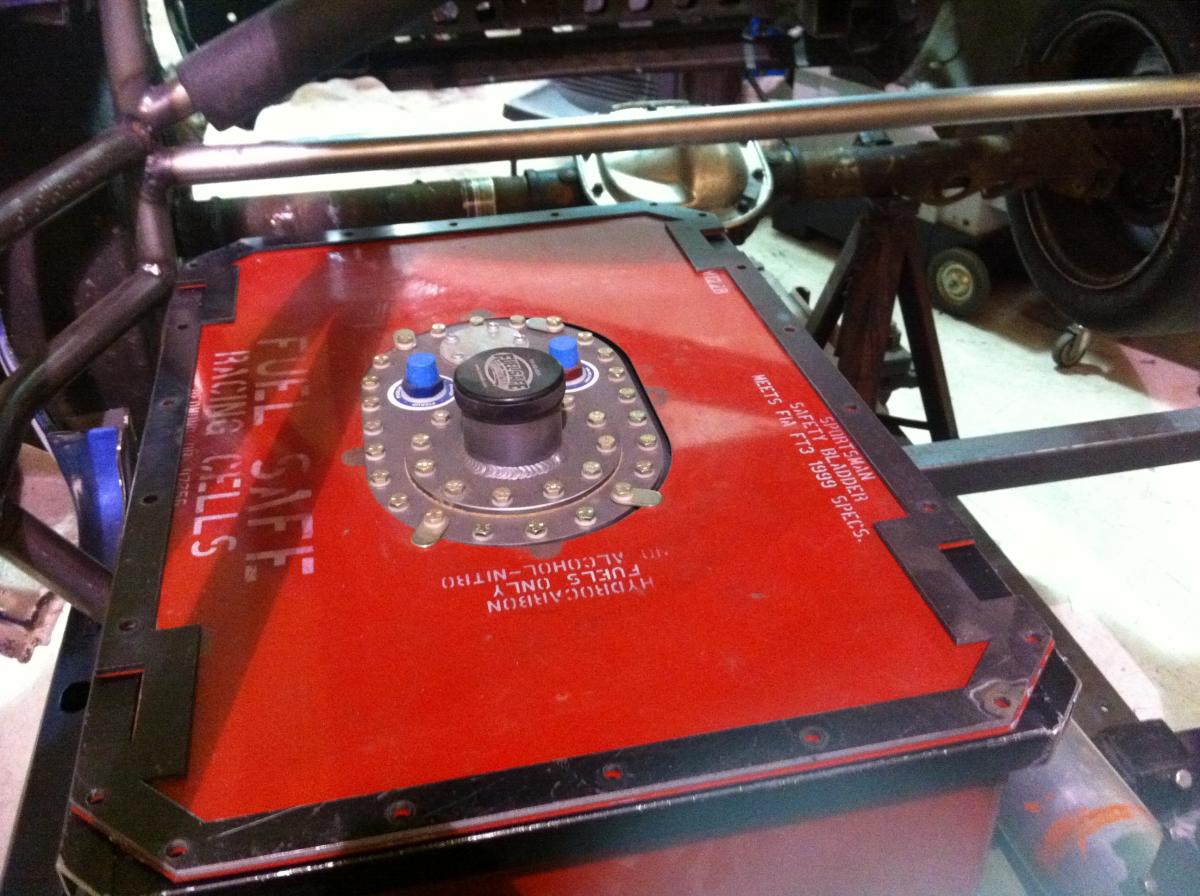

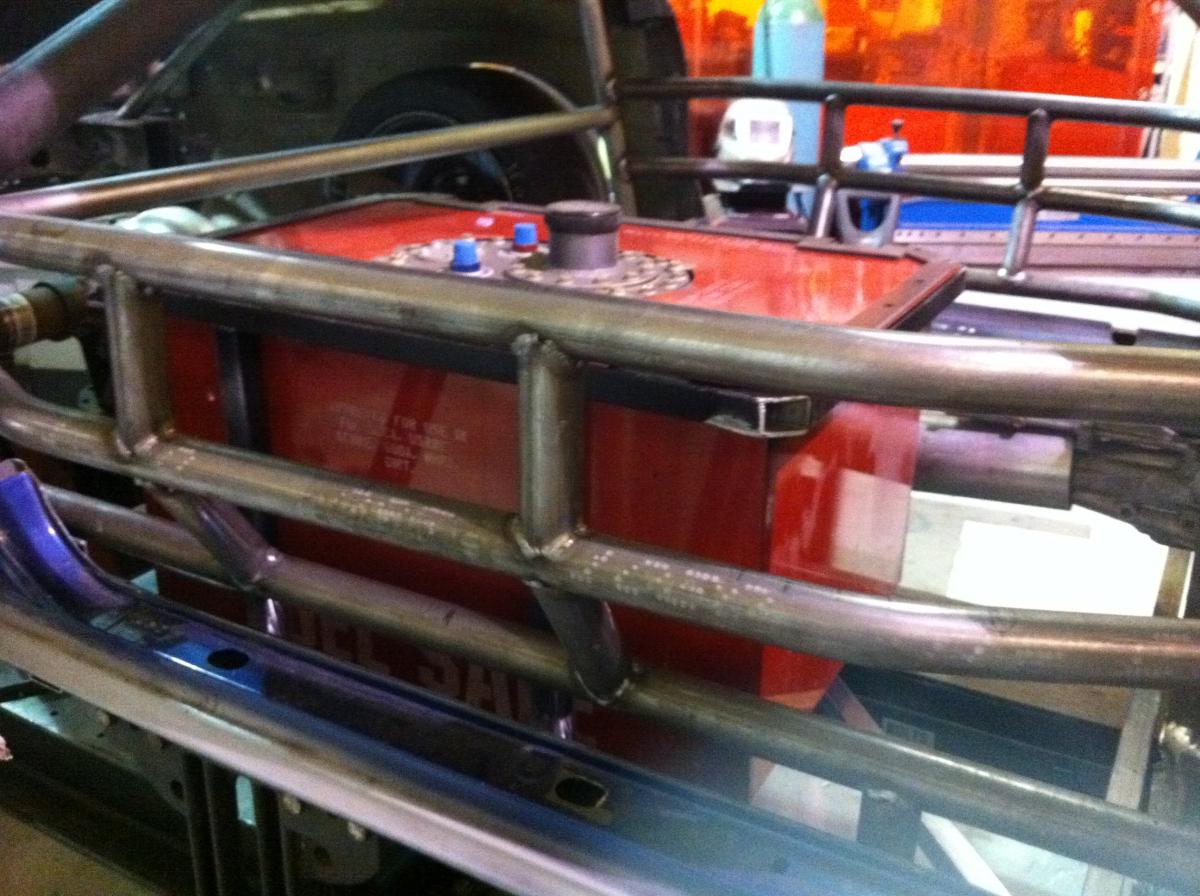

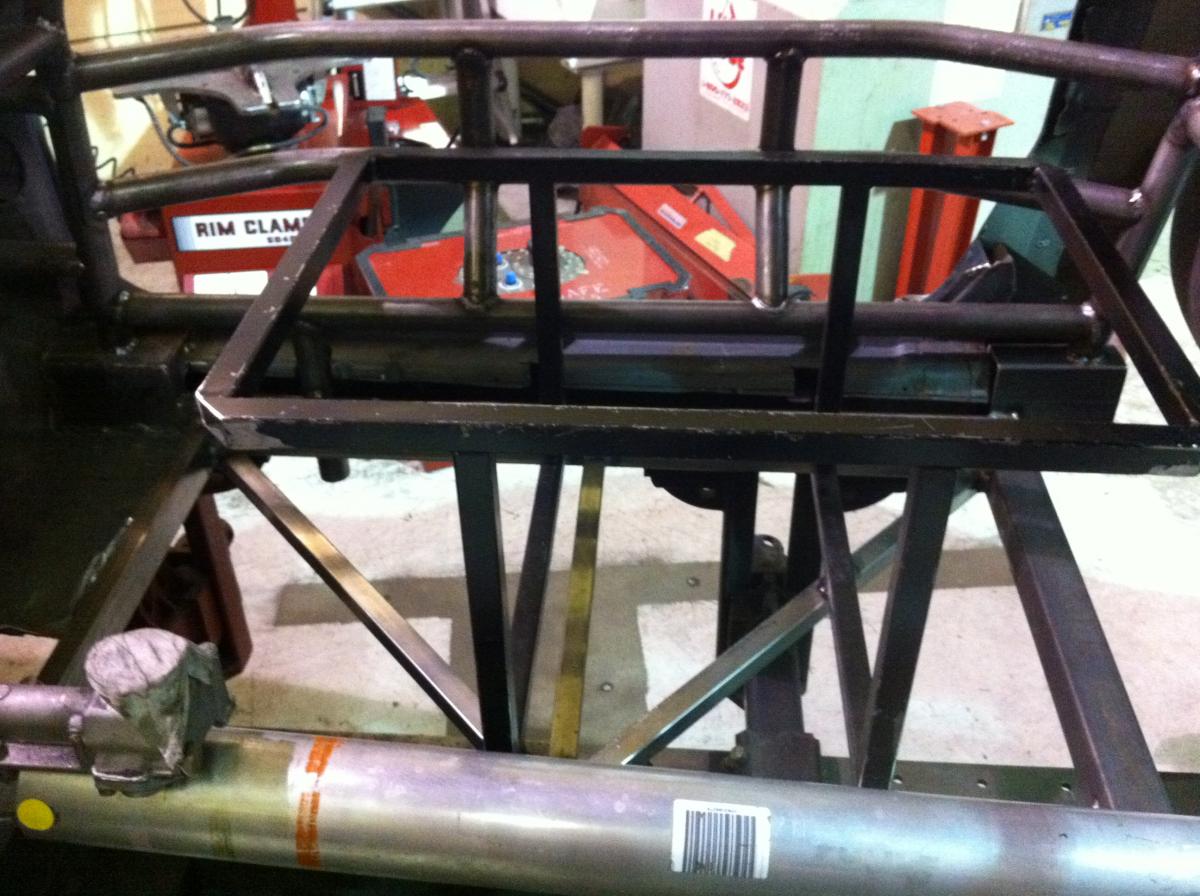

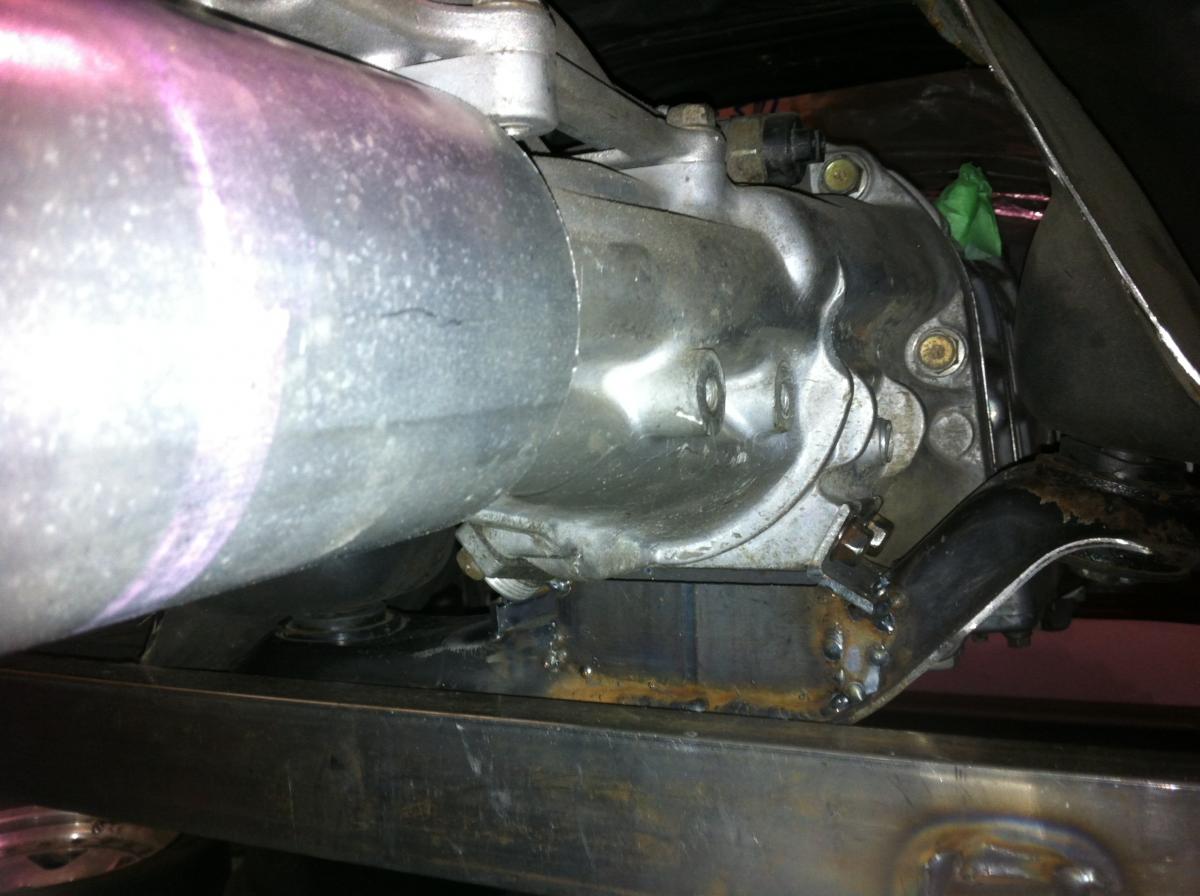

Passenger floor is done and fuel cell cage is mounted in. As well the transmission mount is done.























Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0386.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0387.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0388.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0389.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0390.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0391.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0392.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0393.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0394.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0395.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0396.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0397.jpg
bcrx7 is offline   Reply With Quote
Old 03-23-2012, 01:15 AM   #74
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

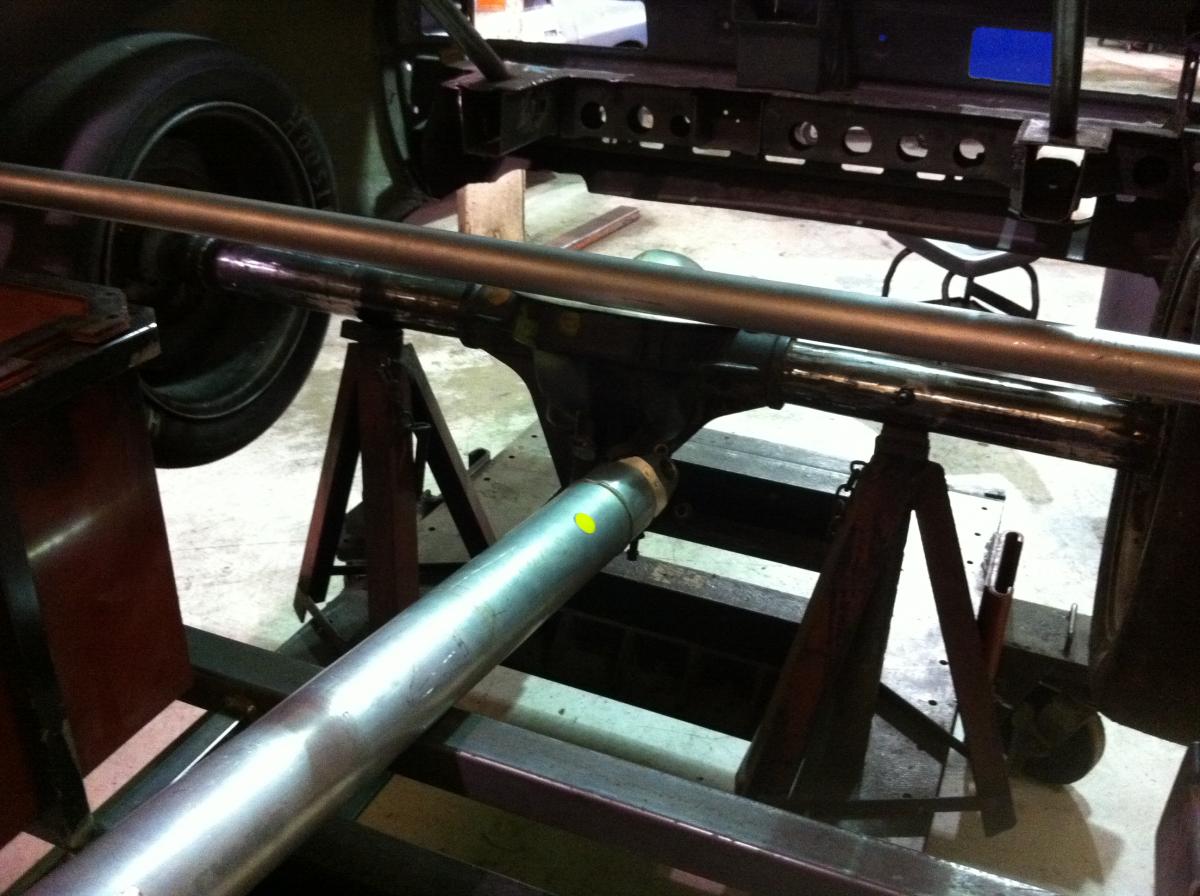

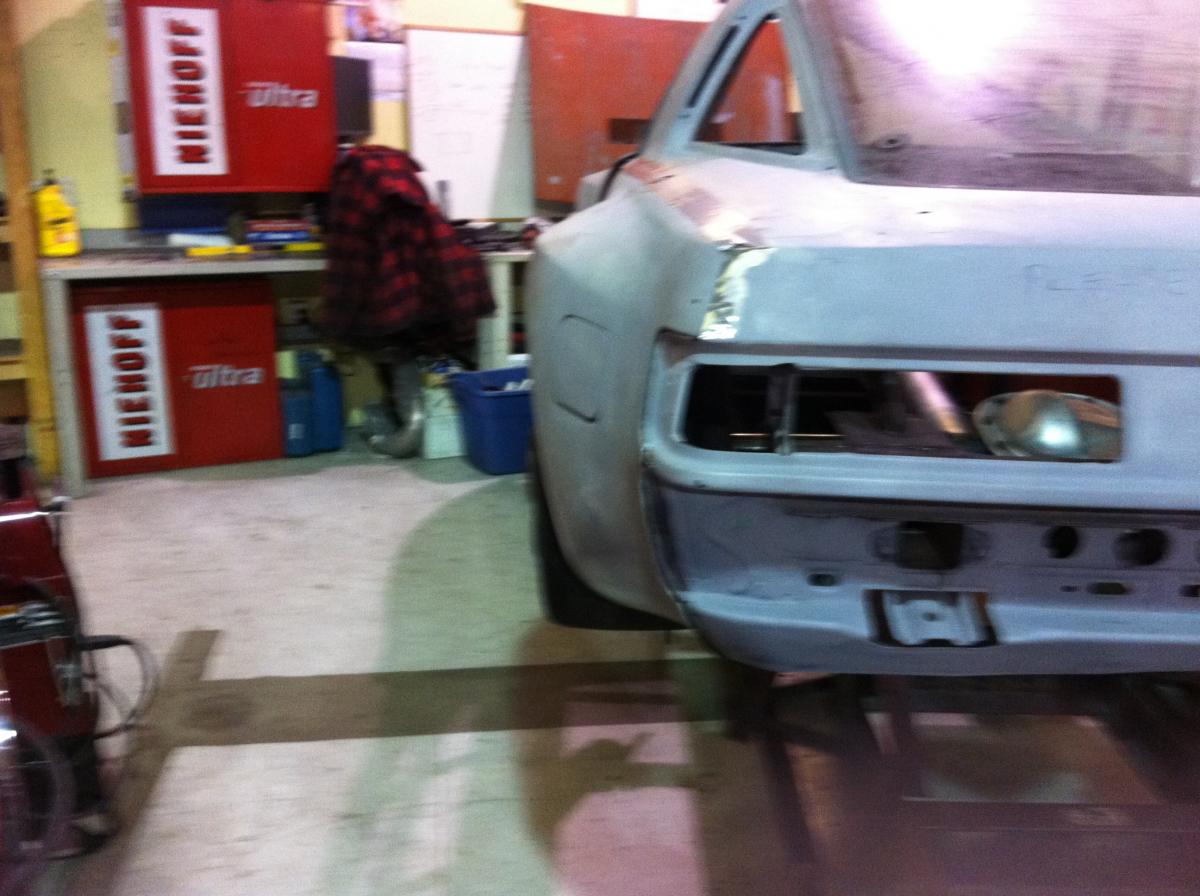

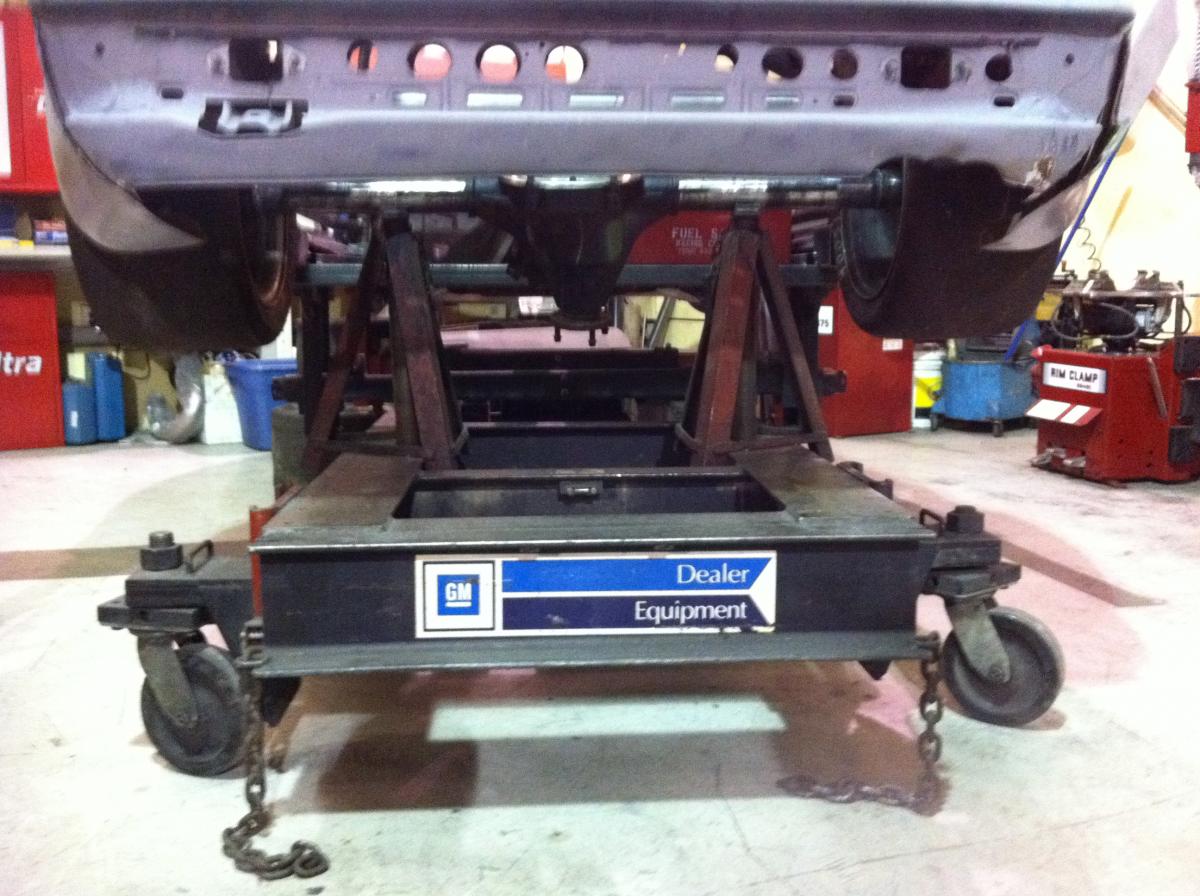

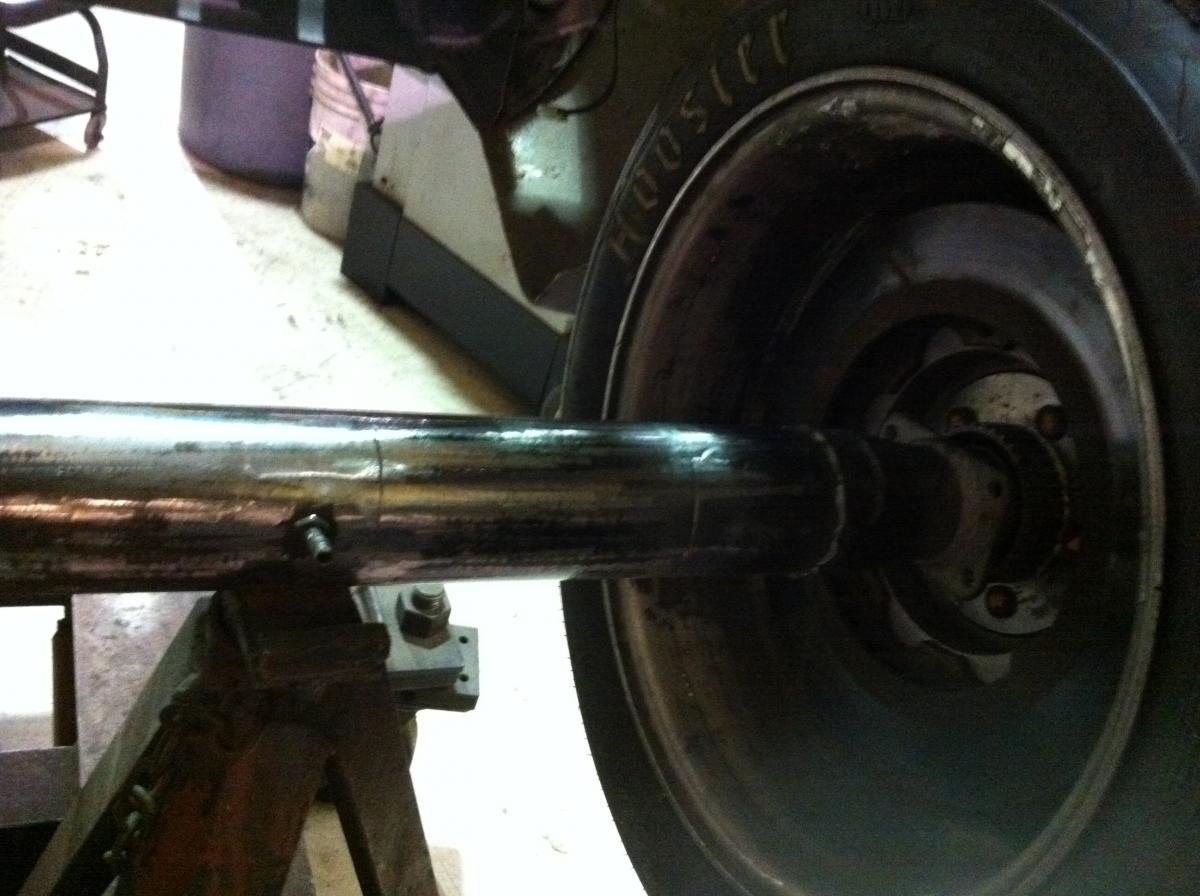

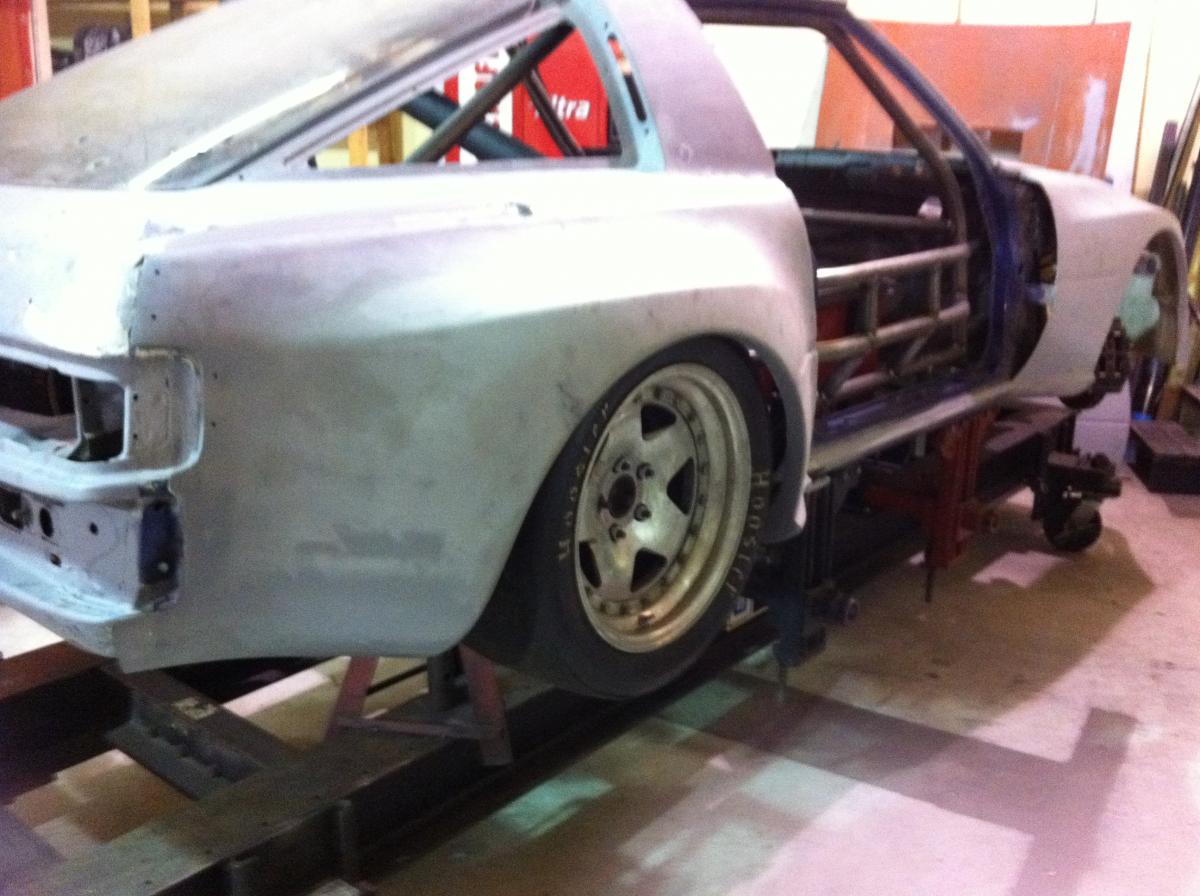

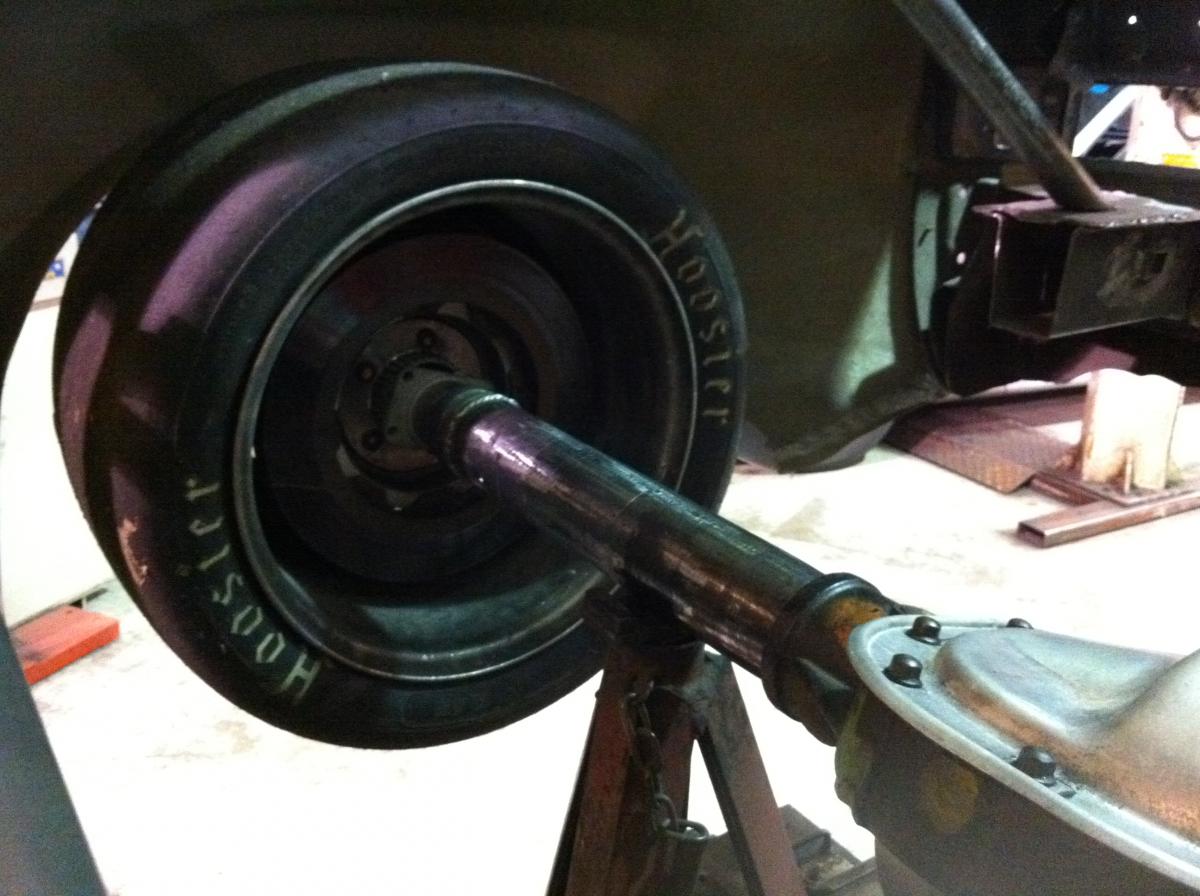

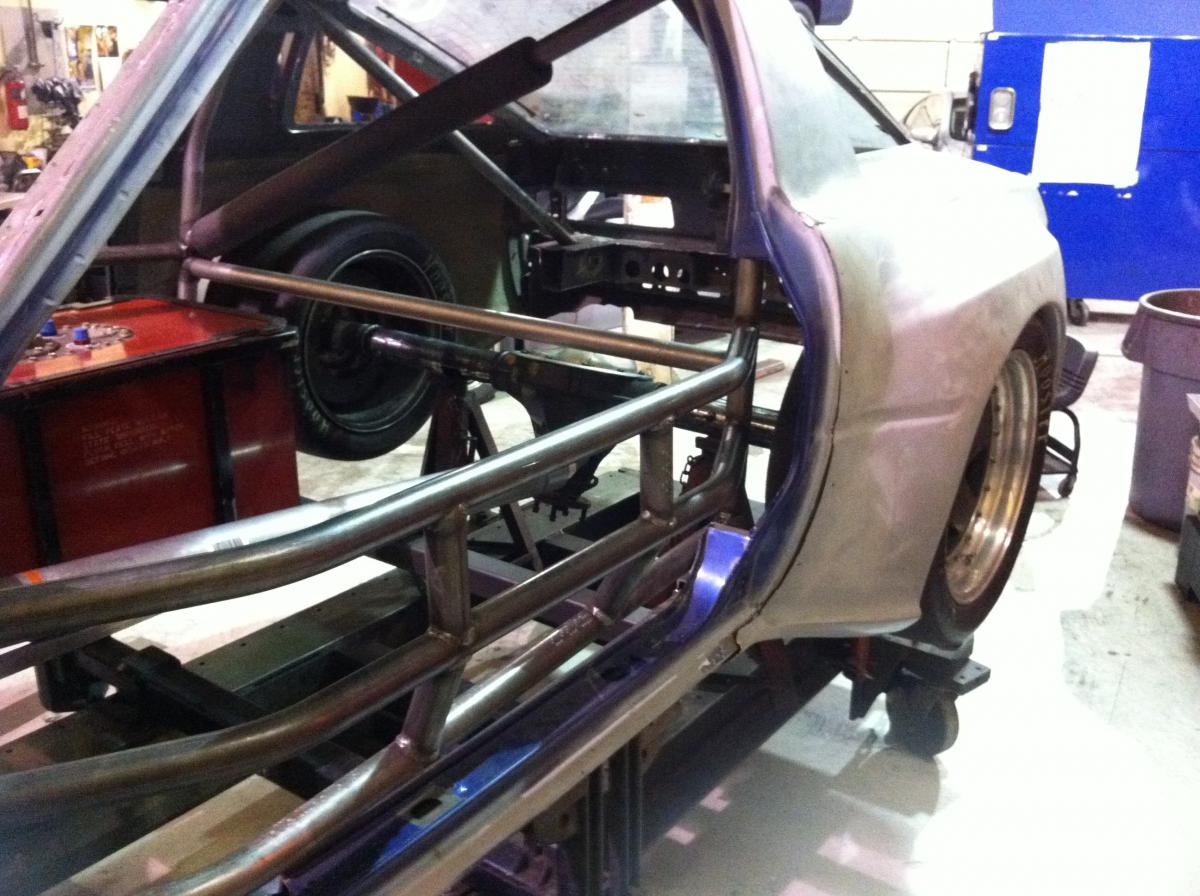

Rear diff housing is narrowed now and it fits all under the body work. Starting to make the rear linkage and suspension points!













Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0399.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0400.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0401.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0402.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0403.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0404.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0405.jpg
bcrx7 is offline   Reply With Quote
Old 03-24-2012, 03:42 AM   #75
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

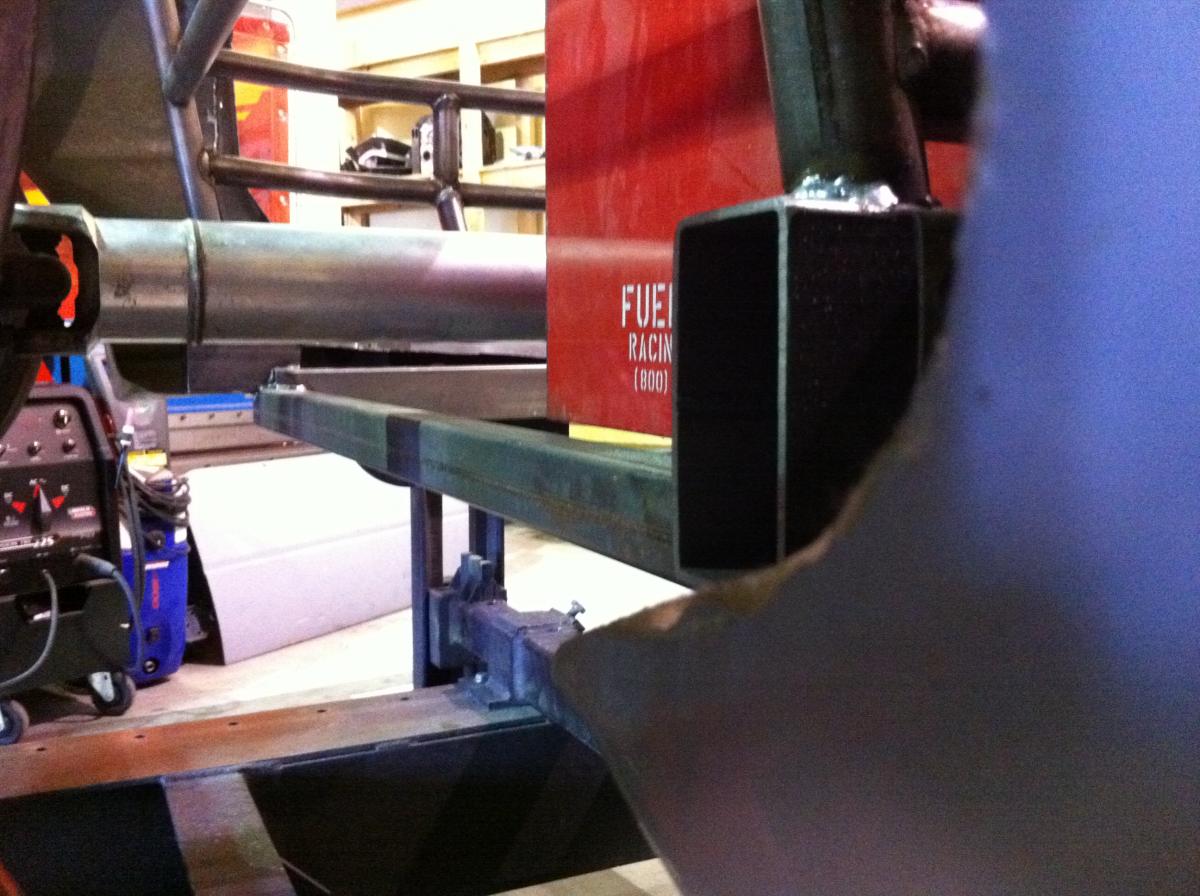

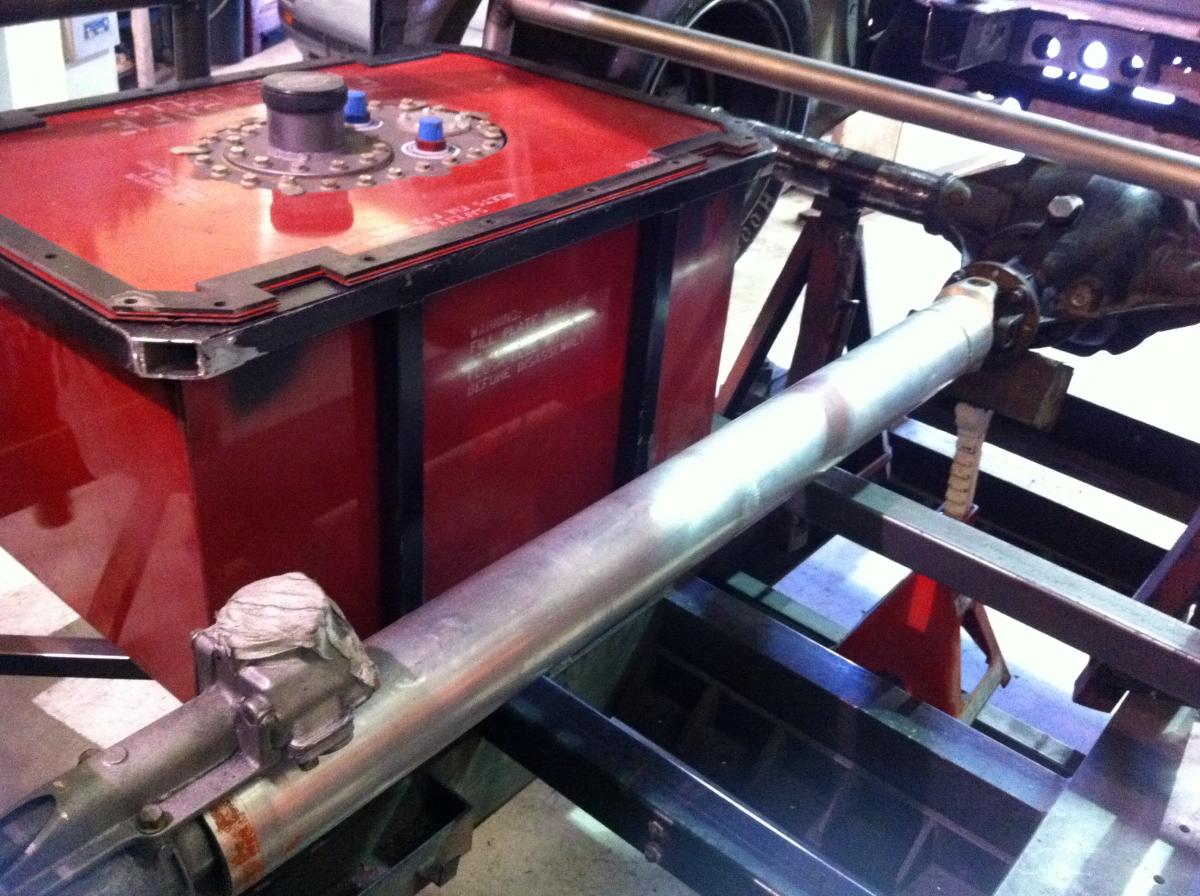

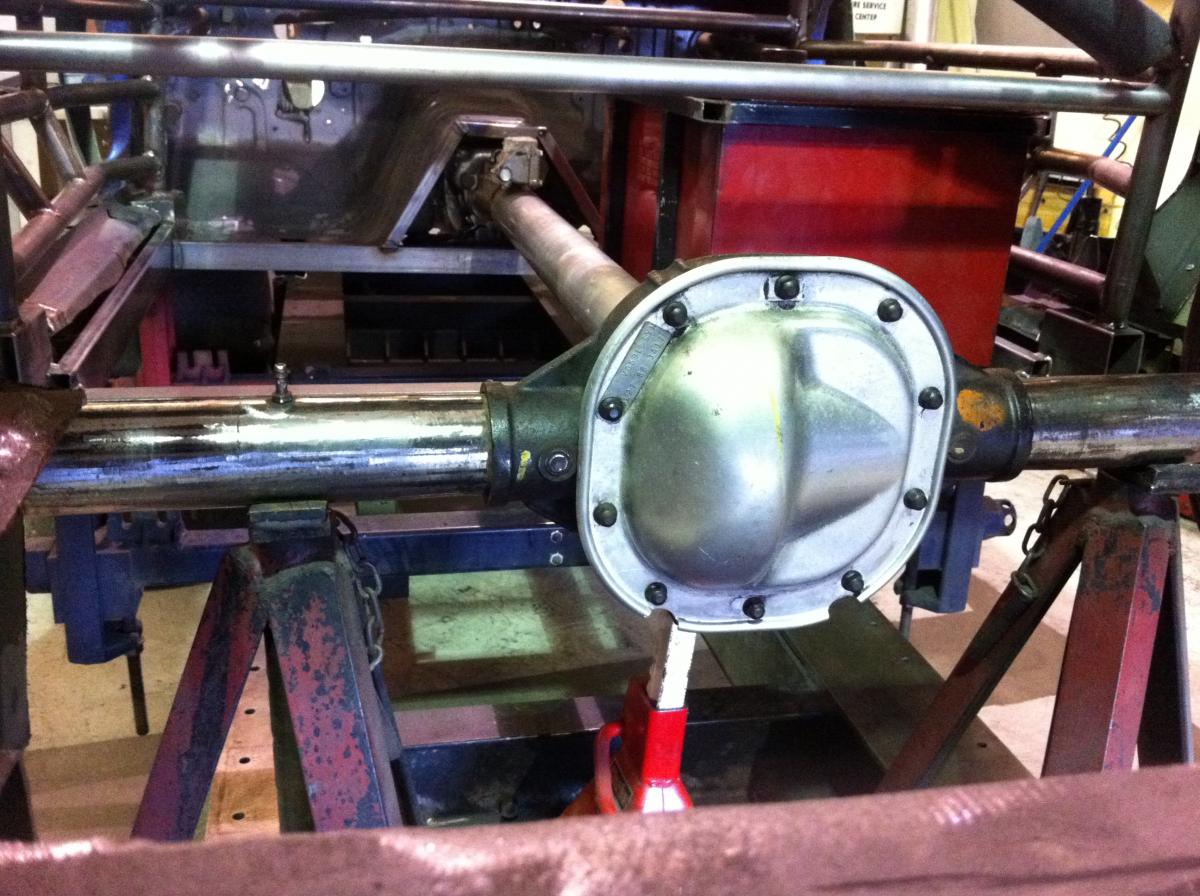

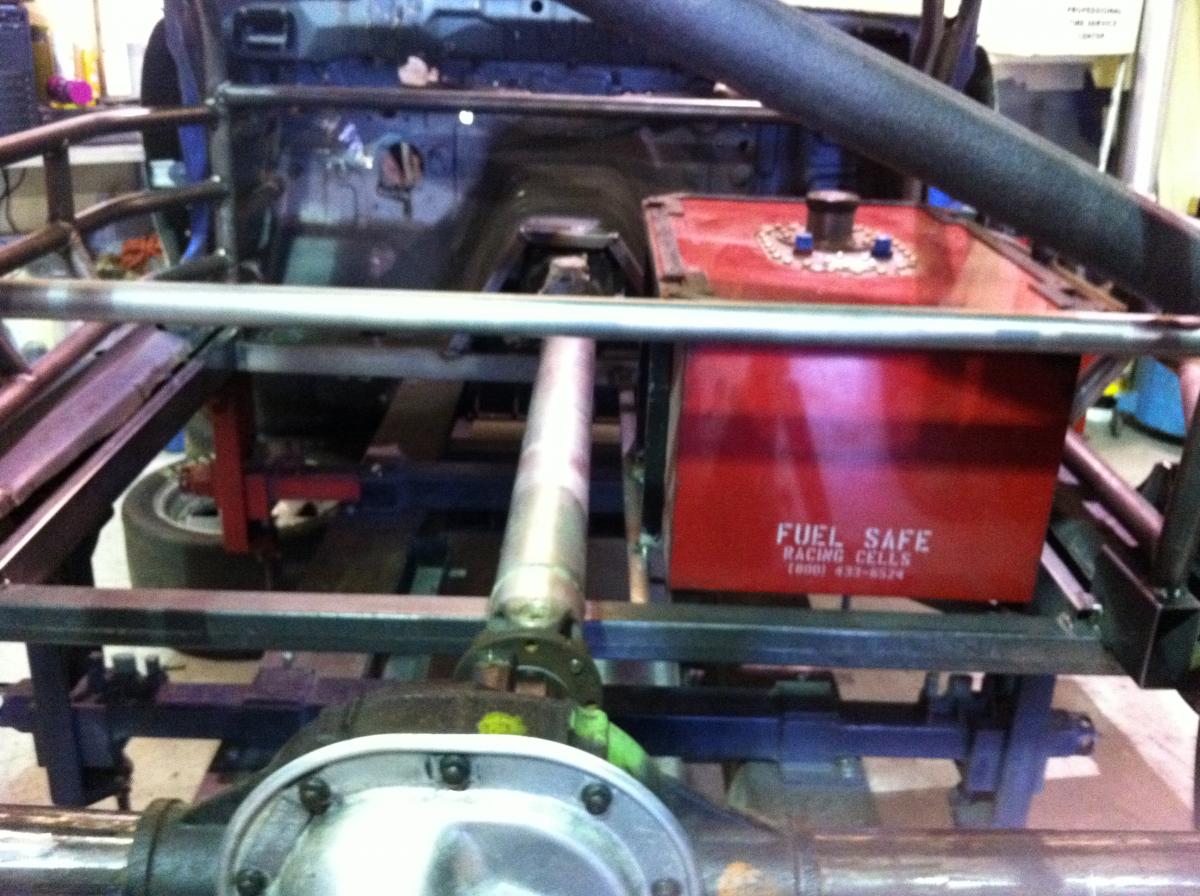

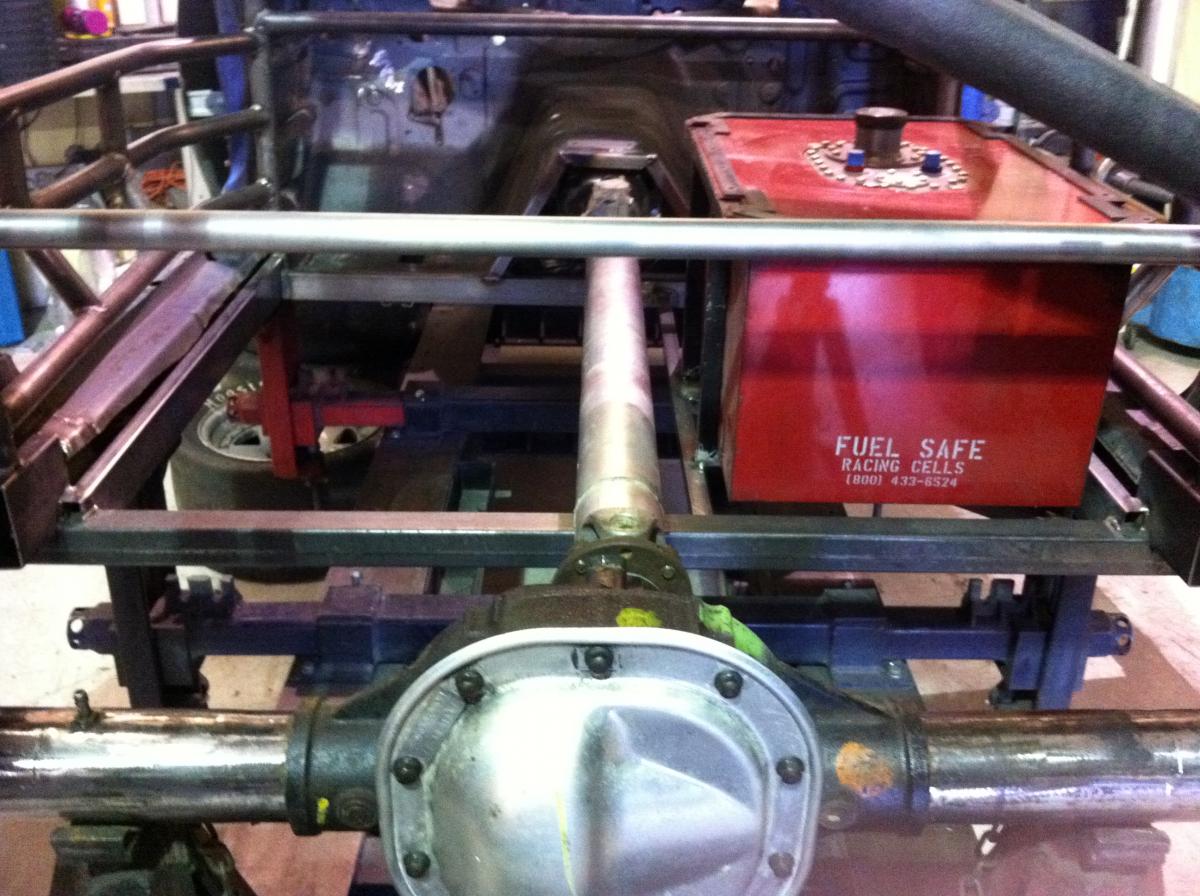

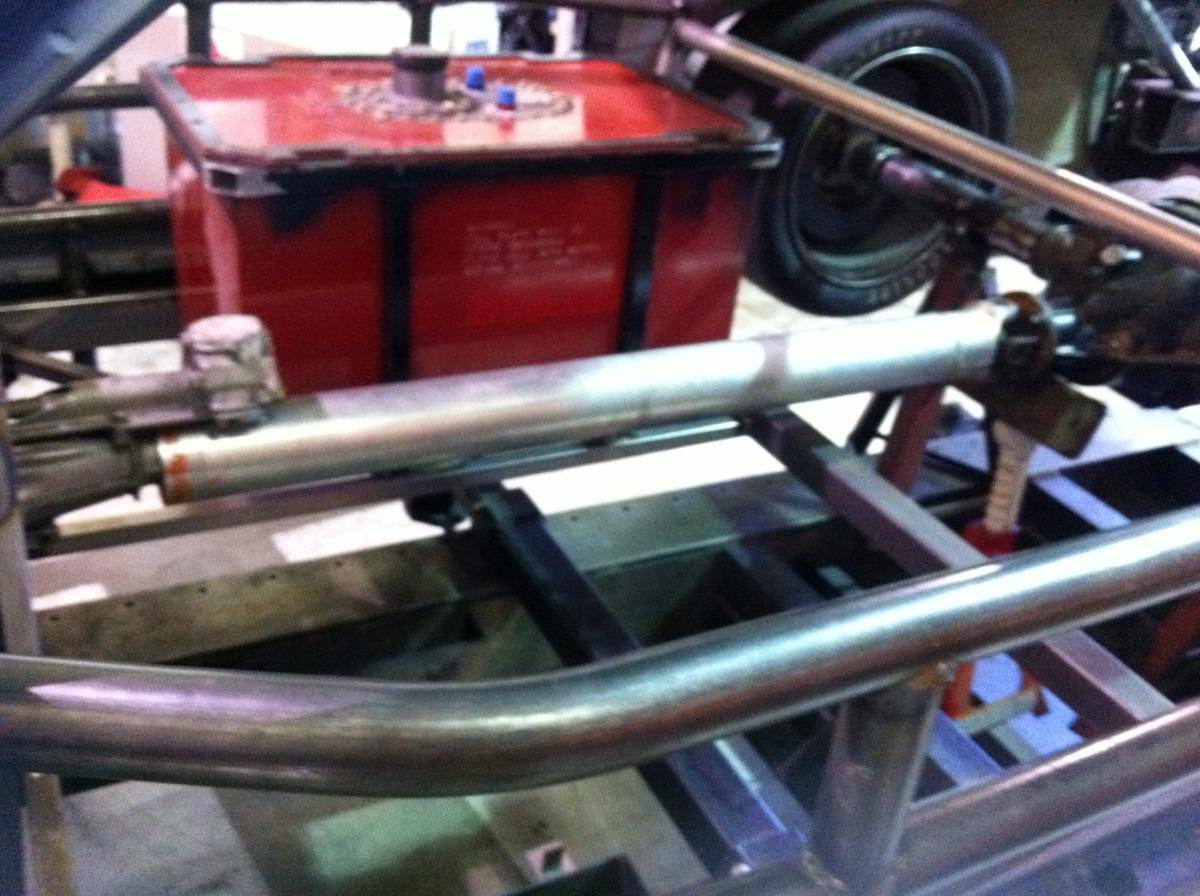

It turns out the diff and transmission align perfectly for the driveshaft at the ride height. The car should be a roller again soon!











Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0409.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0410.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0411.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0412.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0413.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0414.jpg
bcrx7 is offline   Reply With Quote
Old 03-28-2012, 02:26 AM   #76
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

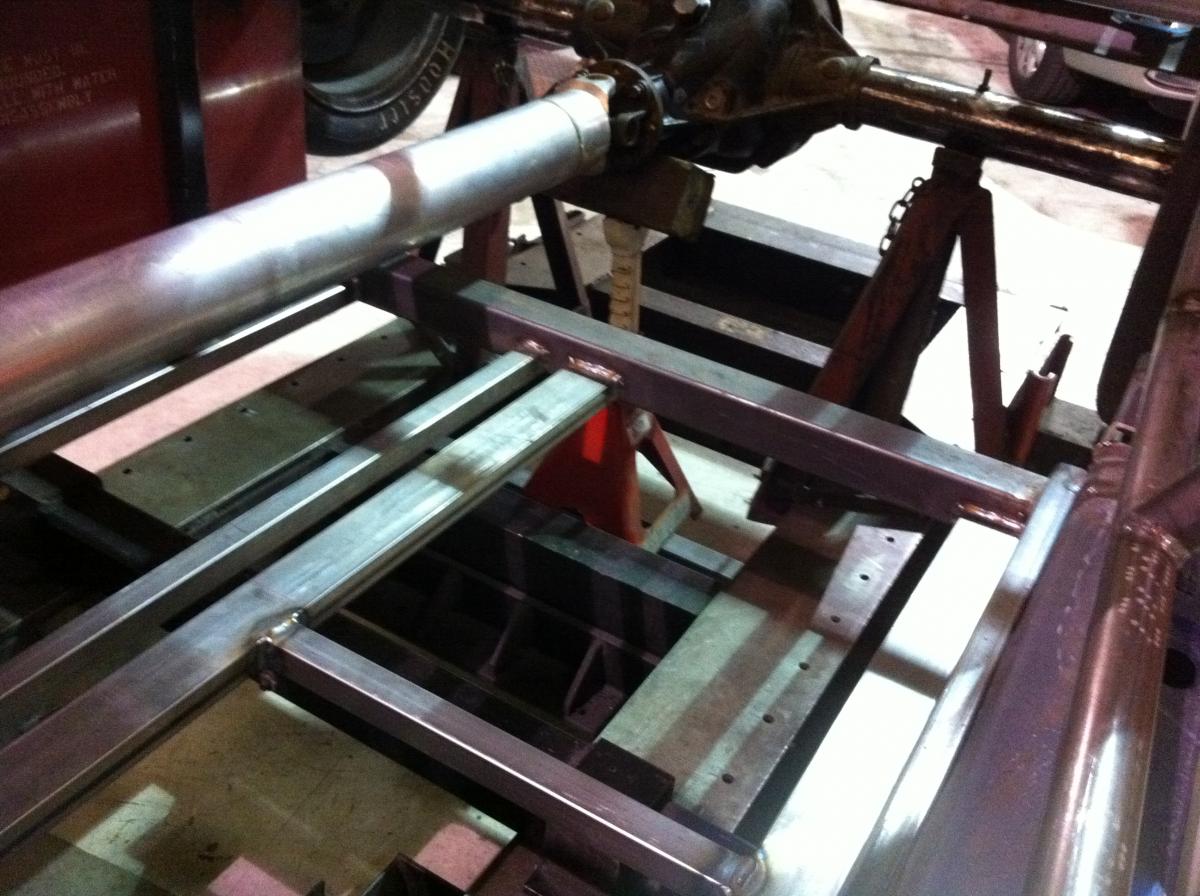

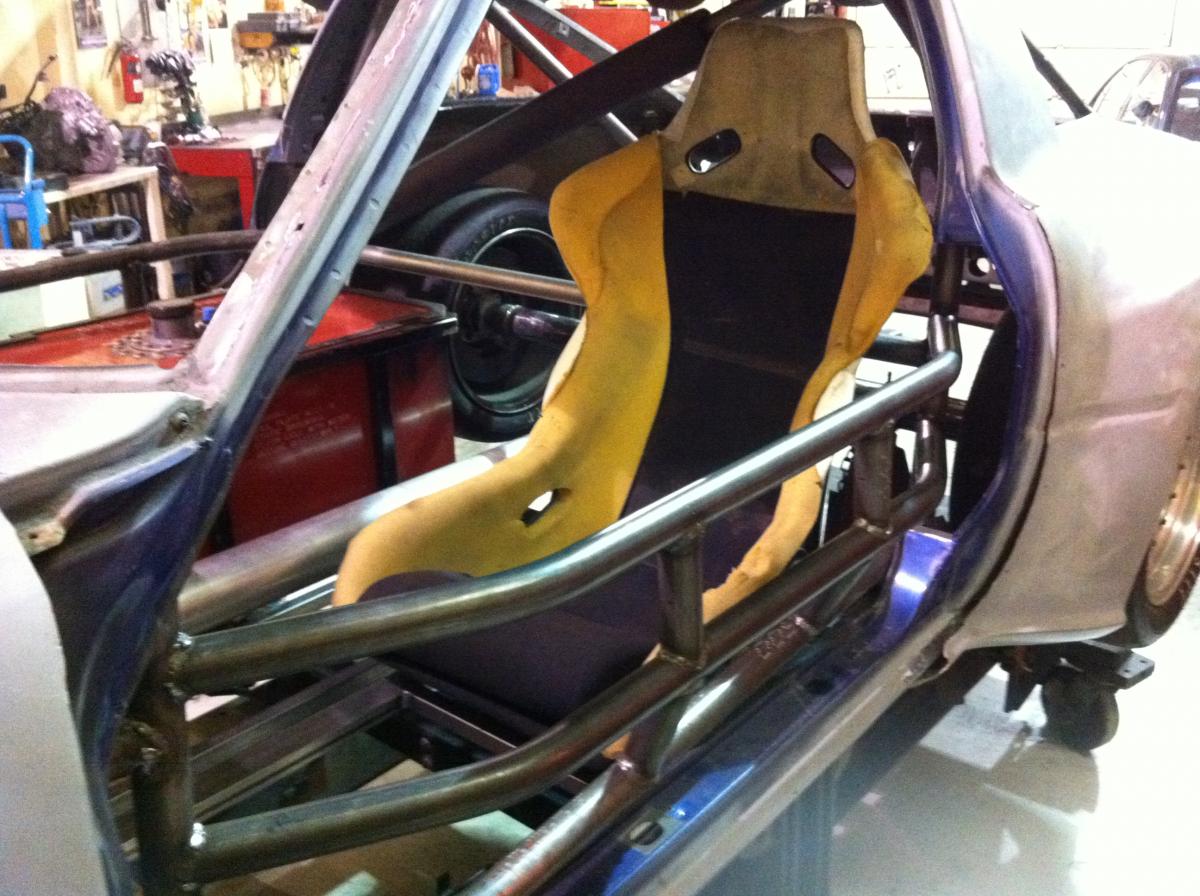

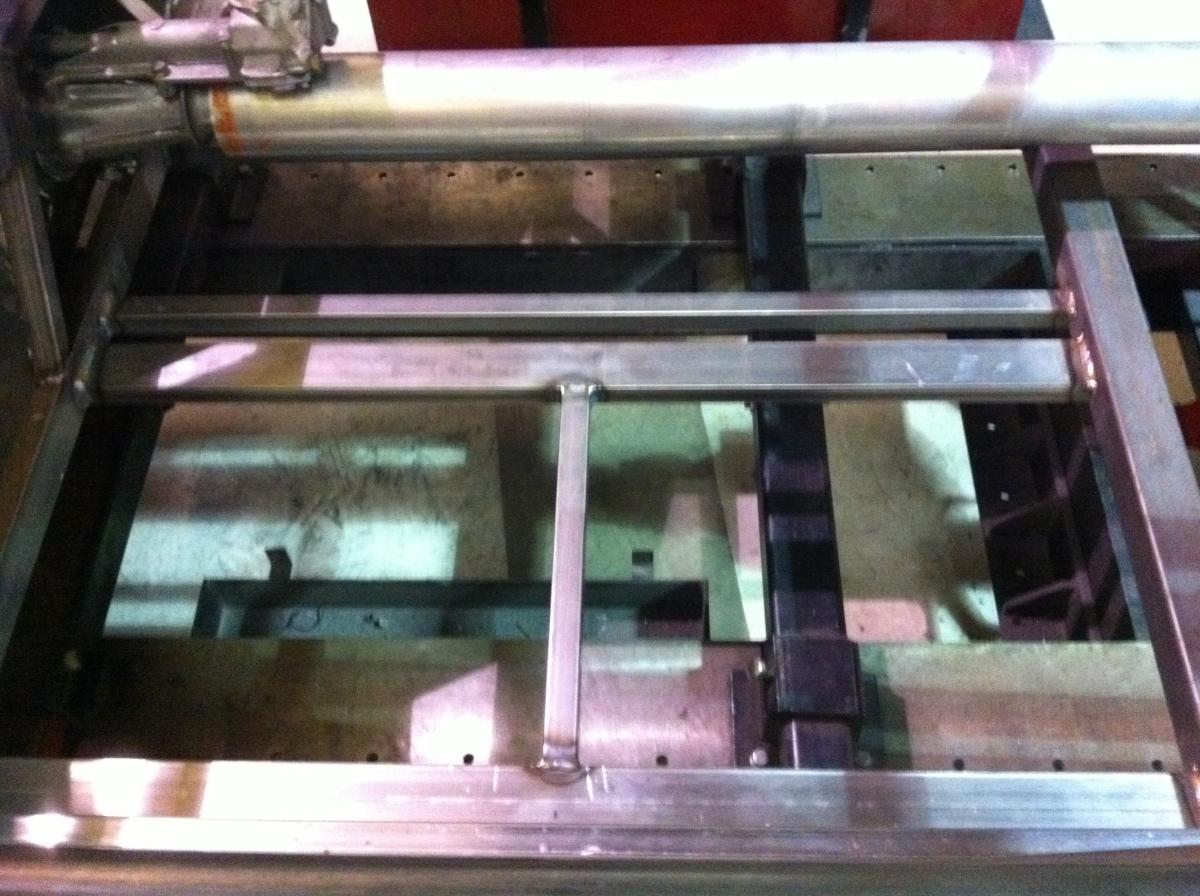

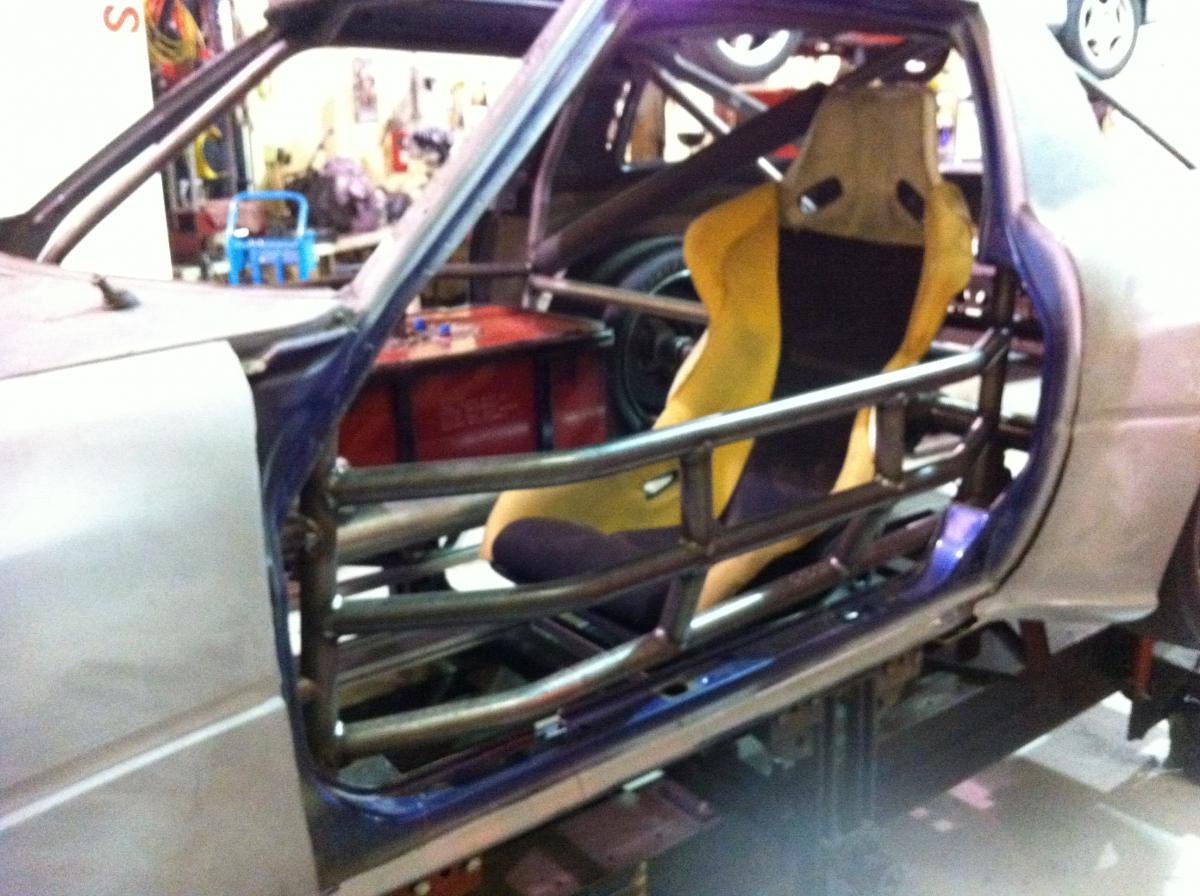

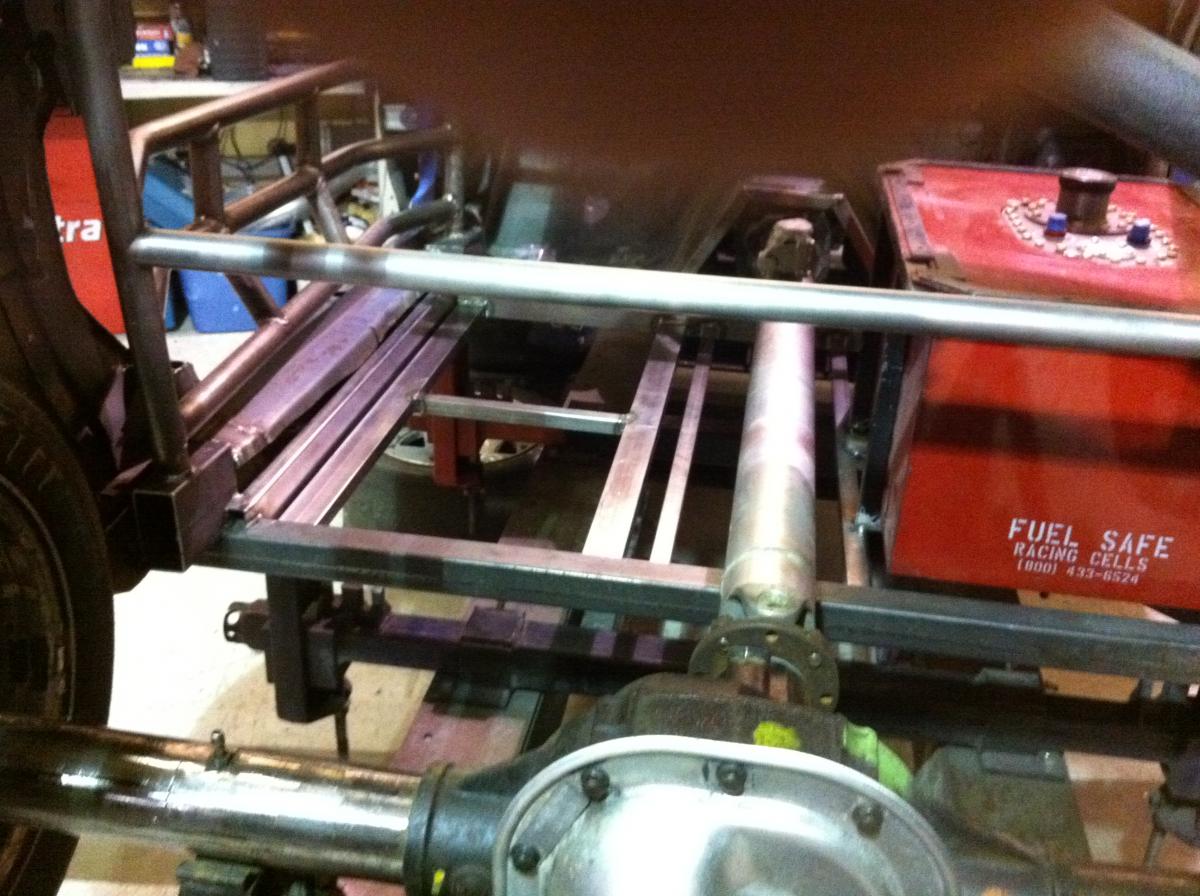

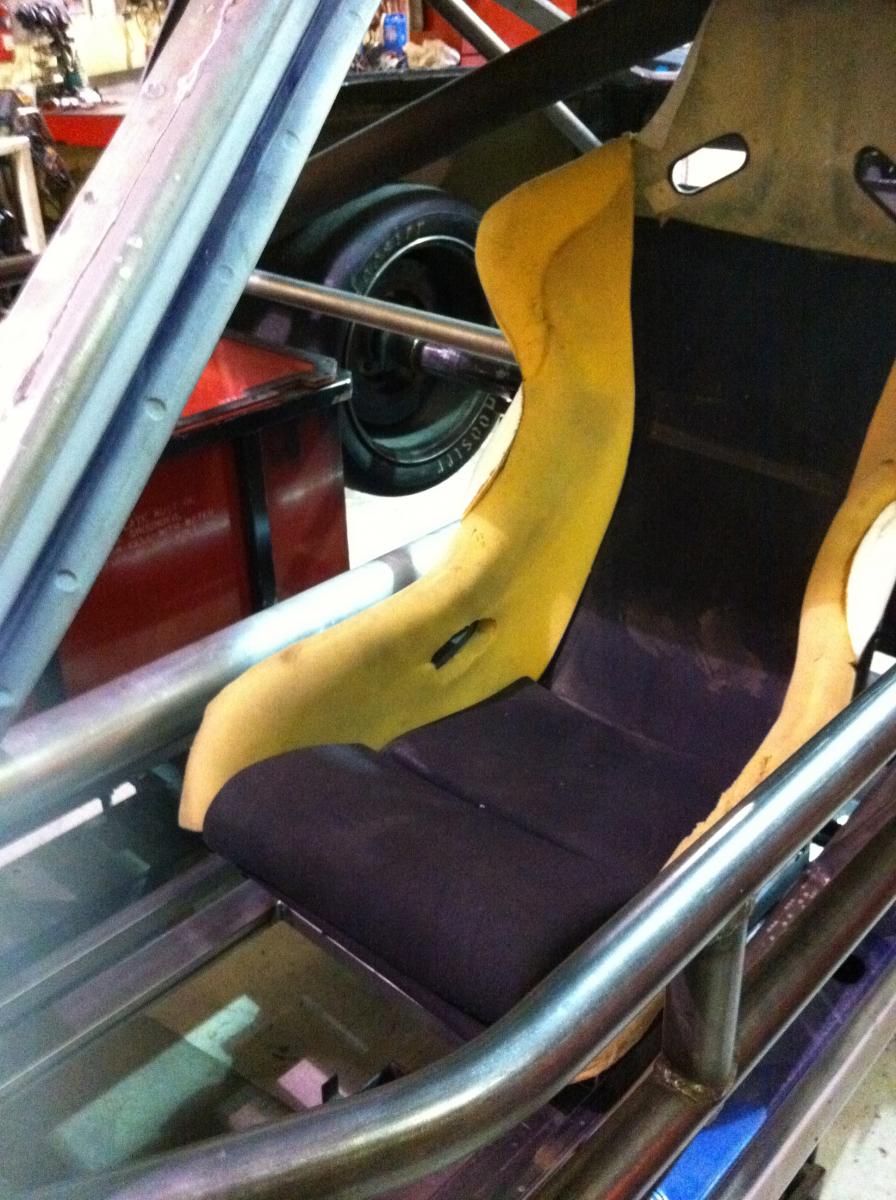

The driver side floor is almost all done. The seat rails are mounted. The center drive shaft bars are next!











Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0415.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0416.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0417.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0418.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0419.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0420.jpg
bcrx7 is offline   Reply With Quote
Old 03-28-2012, 04:50 AM   #77
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Nice work!
Techsalvager is offline   Reply With Quote
Old 03-28-2012, 12:17 PM   #78
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,032
Total Cats: 240
Default

cheeses rice, this thread makes me want to stop working on cars. Seriously.
viperormiata is offline   Reply With Quote
Old 03-28-2012, 01:25 PM   #79
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by viperormiata View Post
cheeses rice, this thread makes me want to stop working on cars. Seriously.
Thanks for you input!
bcrx7 is offline   Reply With Quote
Old 04-15-2012, 01:30 AM   #80
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

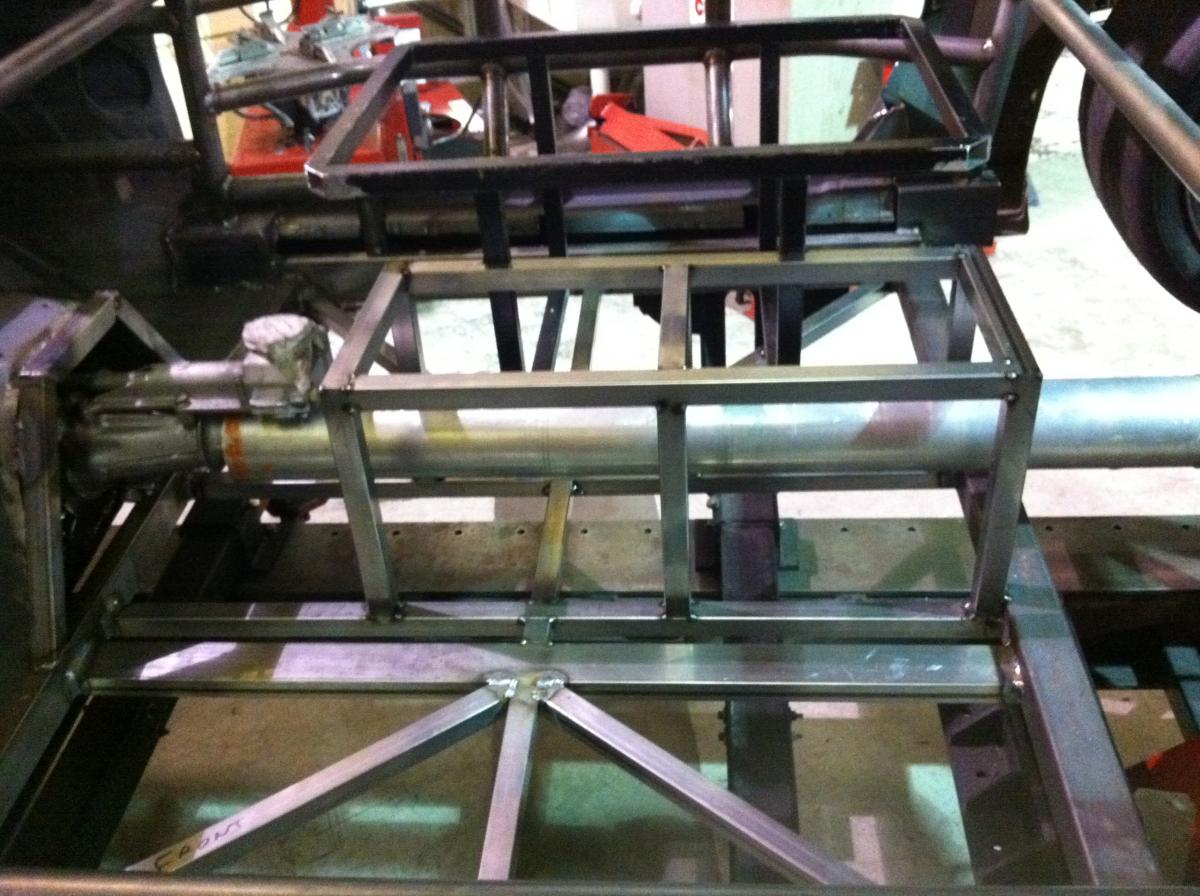

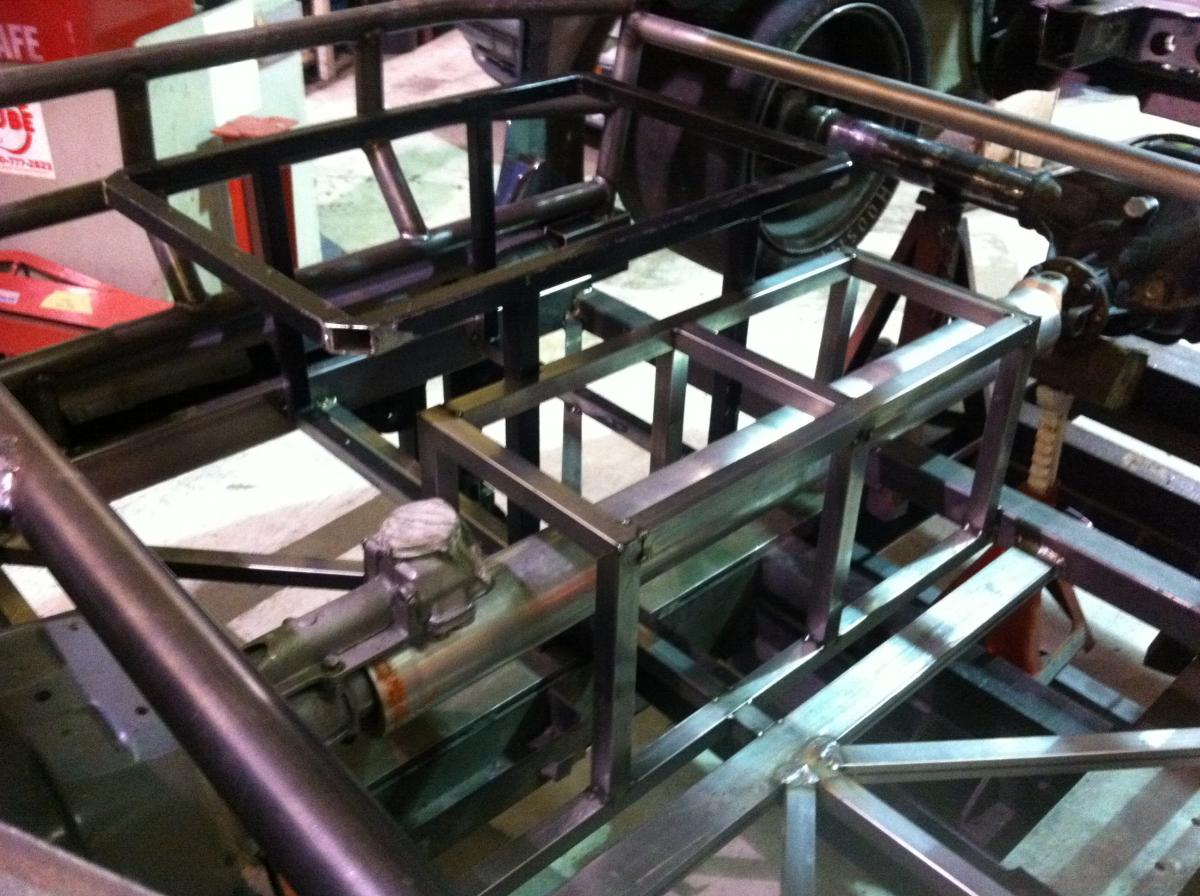

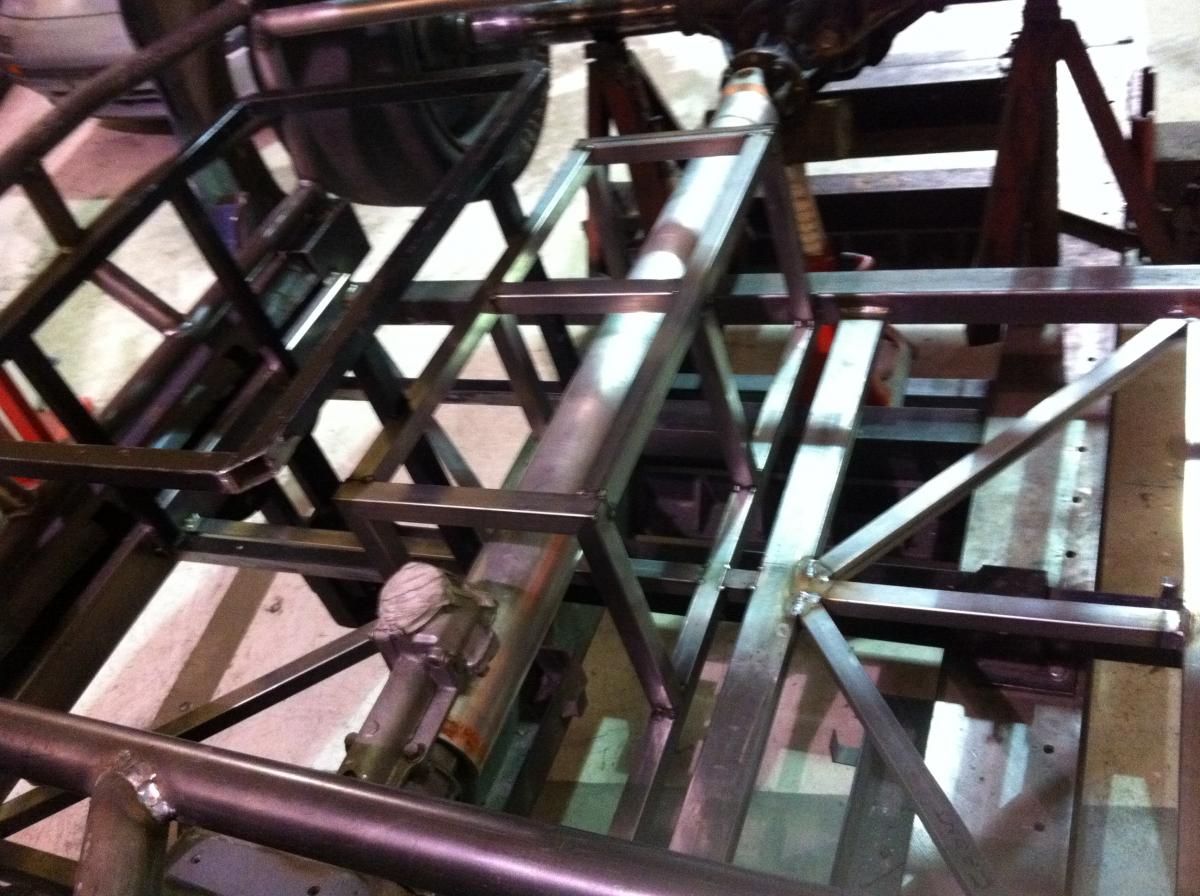

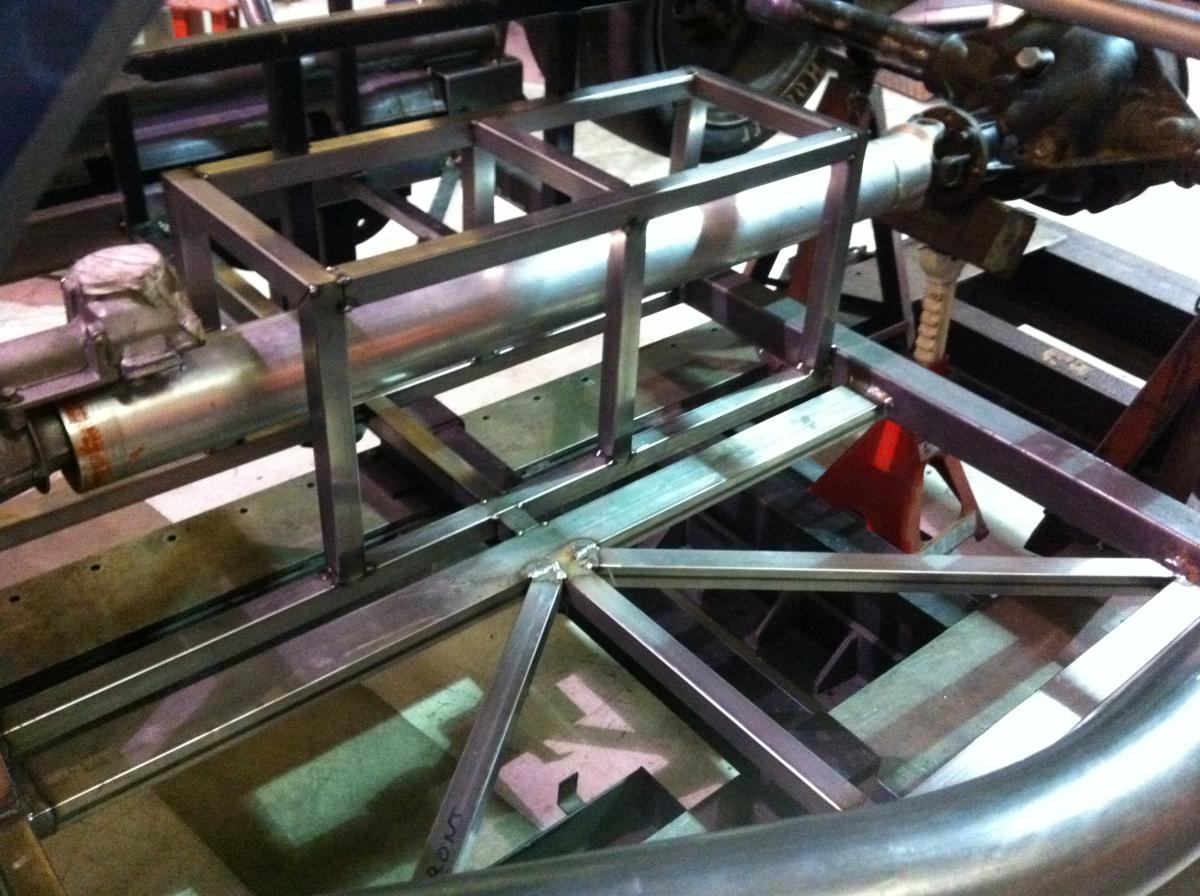

Have posted any updates for a couple of weeks! I got more of the interior framing done and I finished the suspension links today. Will get the rear end mounted this week!

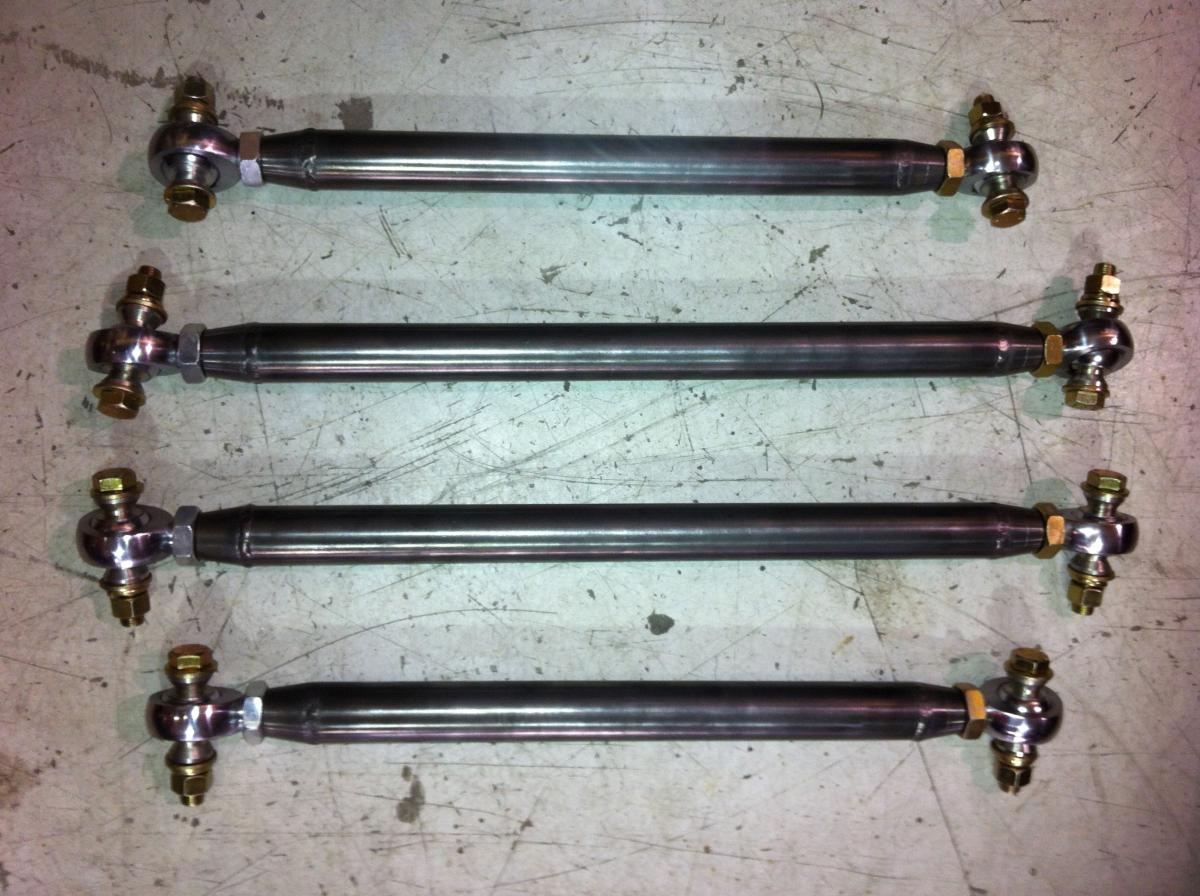

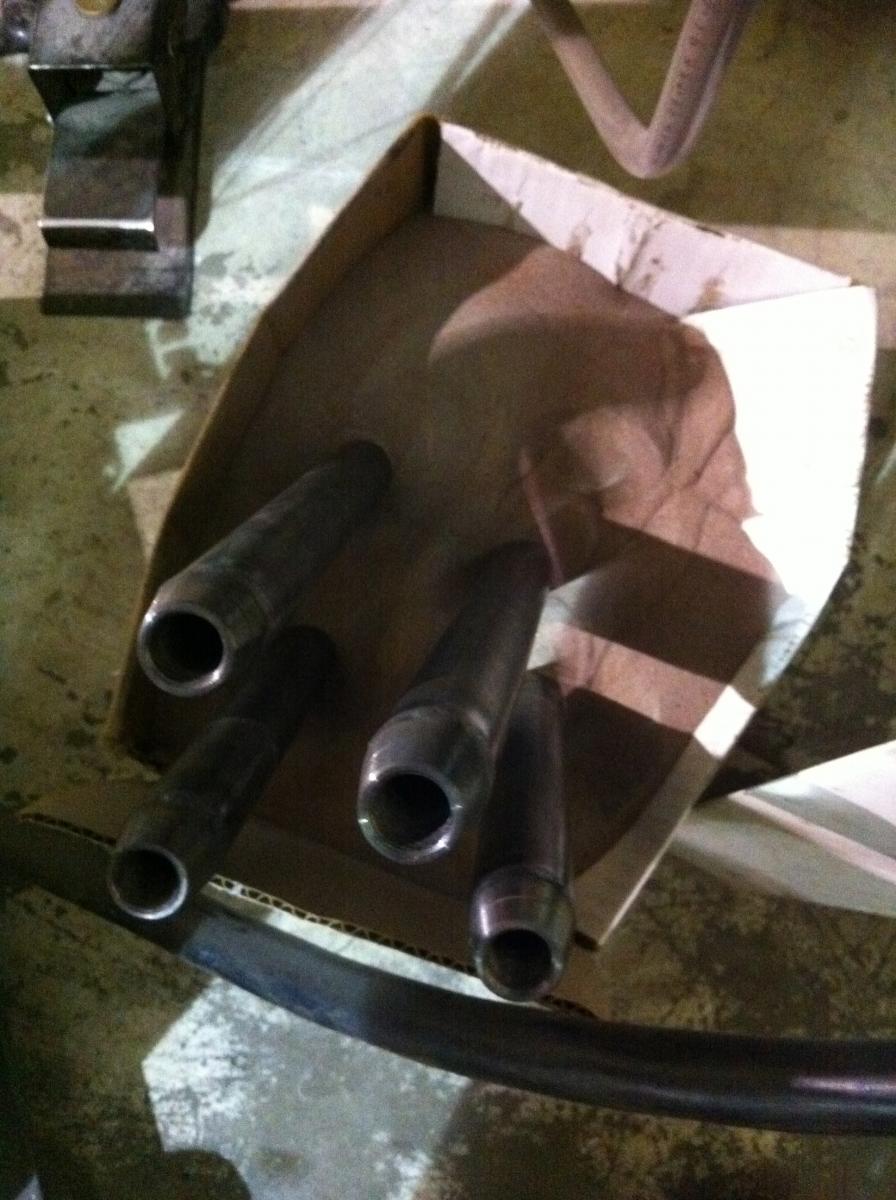

The one picture with the sand and the 4 links is to cool the welds down slowly with in the sand. This way the 4130N keeps its properties a bit better!











Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0424.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0425.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0426.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0427.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0458.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_0462.jpg
bcrx7 is offline   Reply With Quote
