Old 03-04-2013, 12:38 PM   #161
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yeah, I think I meant too light for the downforce balance! The front will have downforce, but there is no point of sucking the power for that much downforce. Since there is no fuel cell or exhaust in the back, the car will have a full rear diffuser as well. Too much downforce can kill speed. As well the GTC-500 would put me really close or outside the specs of the car needing to be 72" wide. I think the GTC-300 is 71.5" after it is all done!

But yes, the too light for that much downforce is not technically correct!
bcrx7 is offline   Reply With Quote
Old 03-16-2013, 01:39 PM   #162
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

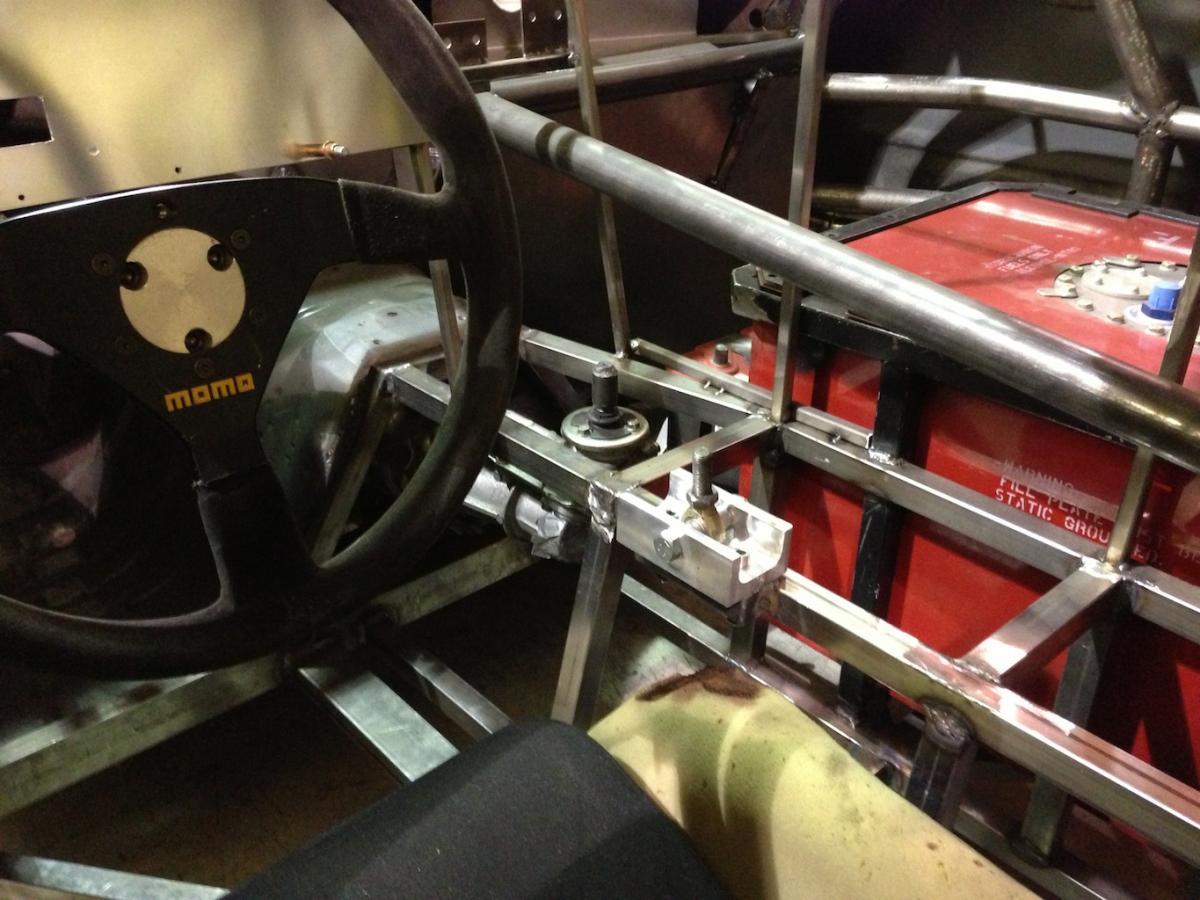

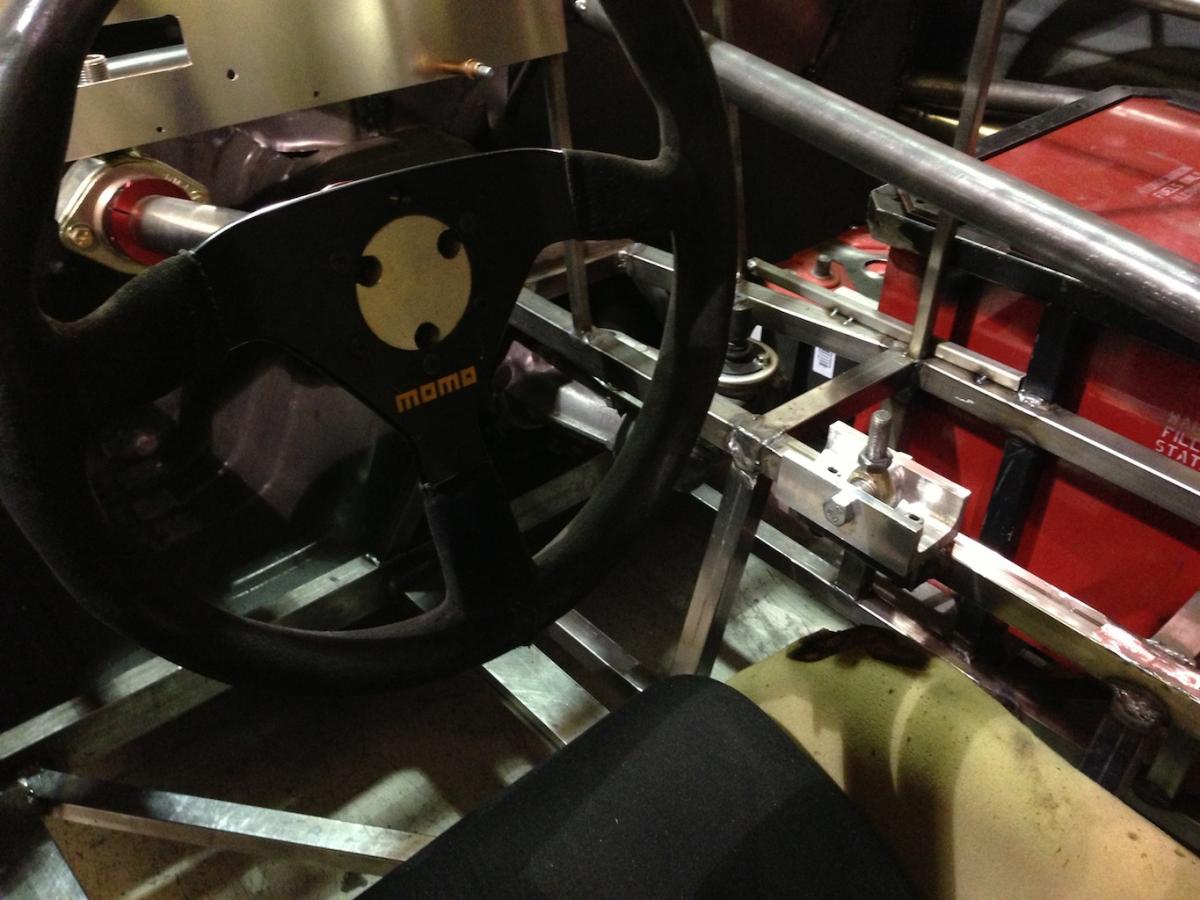

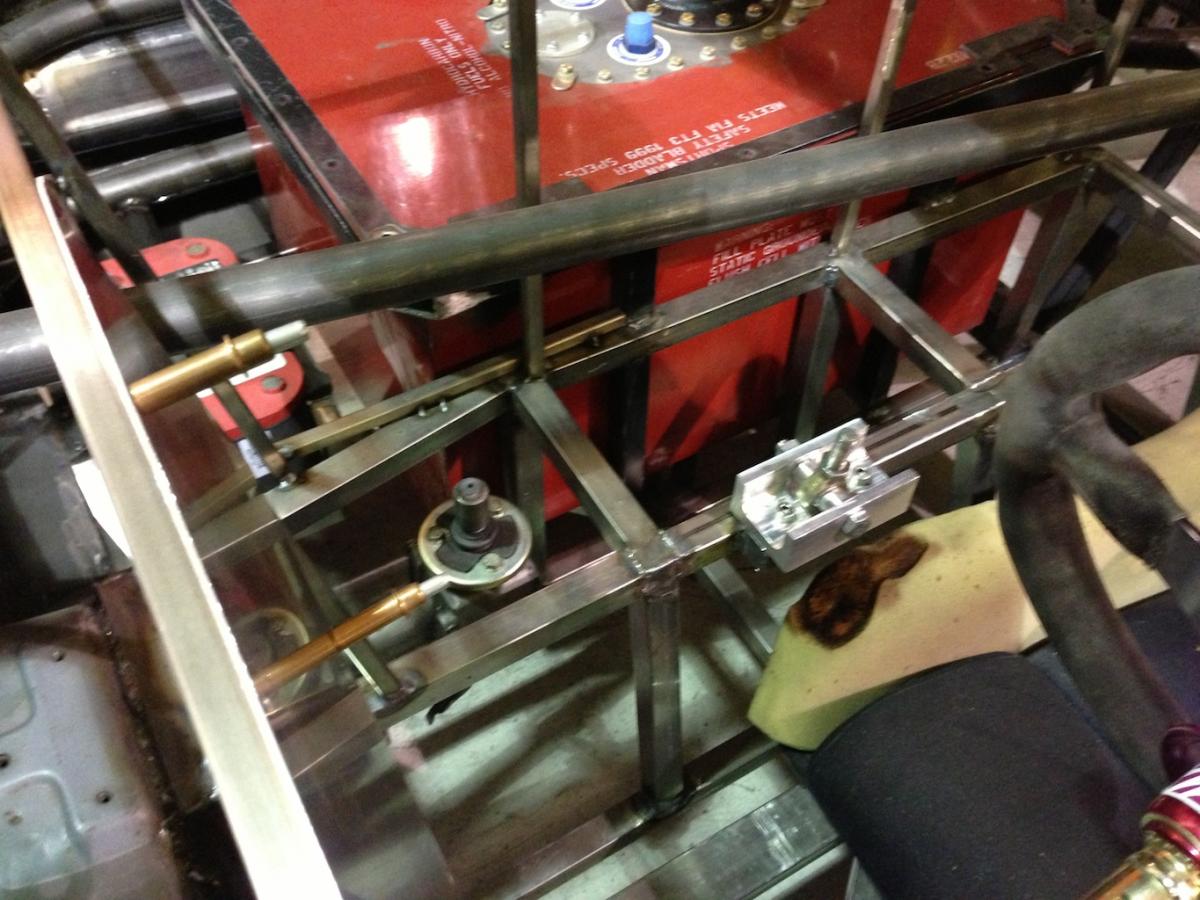

I have been working on a remote shifter to get the shifter closer to the steering wheel. Machined the base last night and mounted it. Today will work on the linkage.





Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0858.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0859.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0860.jpg
bcrx7 is offline   Reply With Quote
Old 03-17-2013, 01:23 PM   #163
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

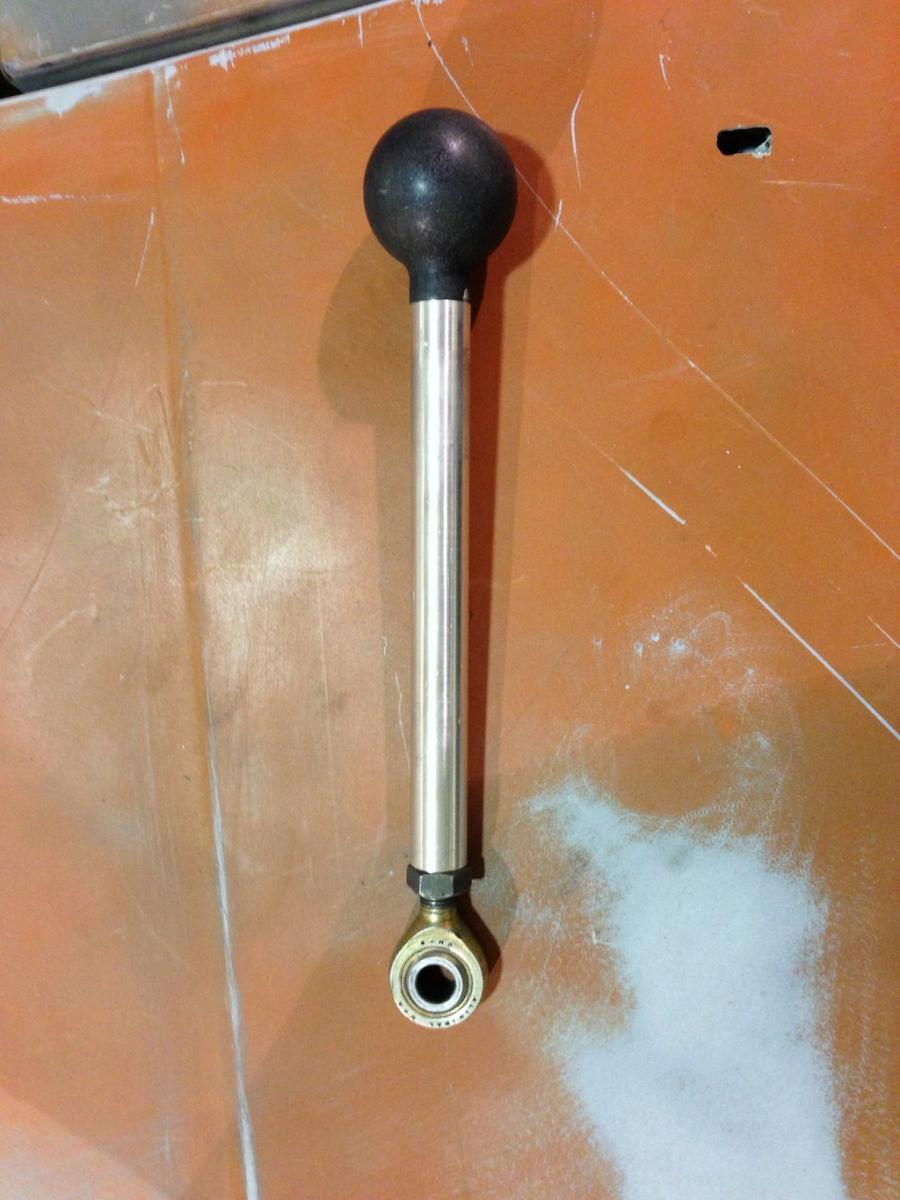

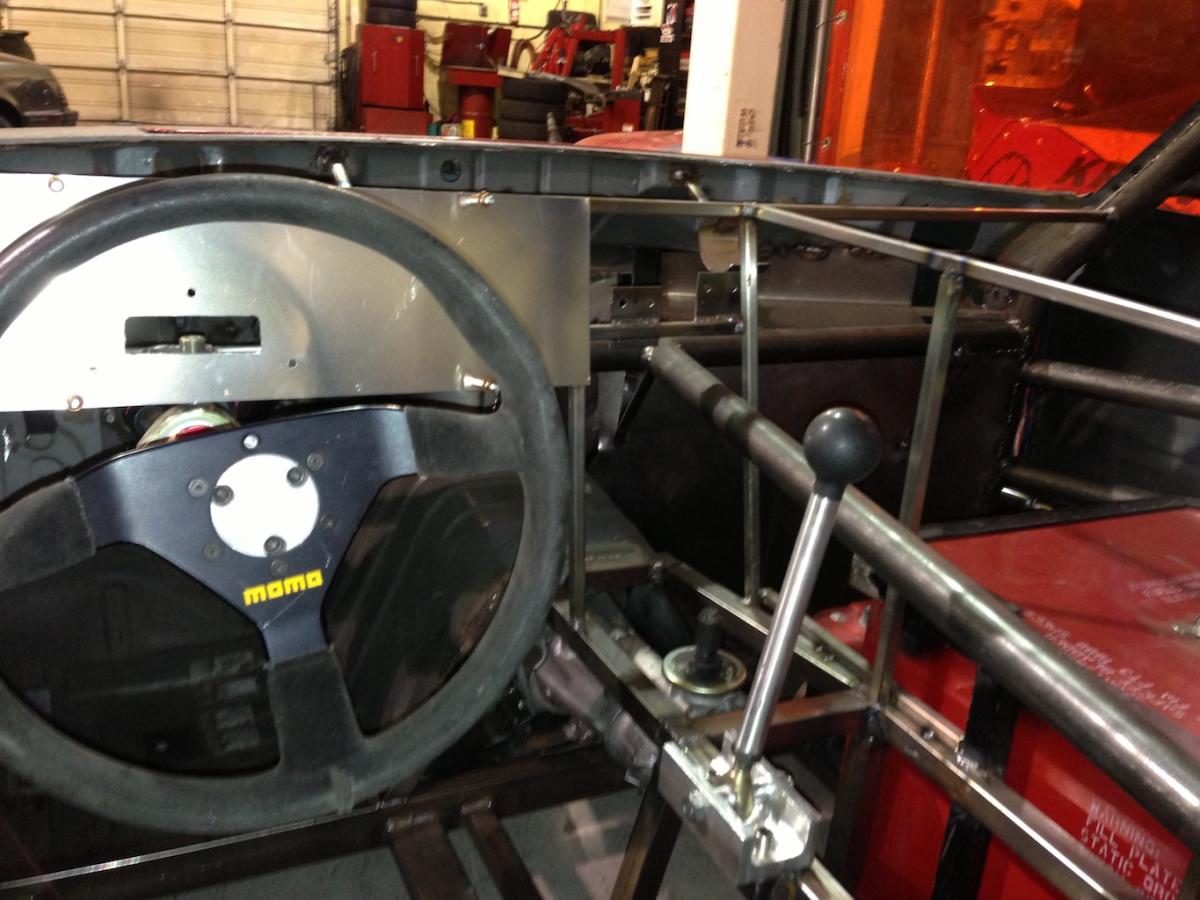

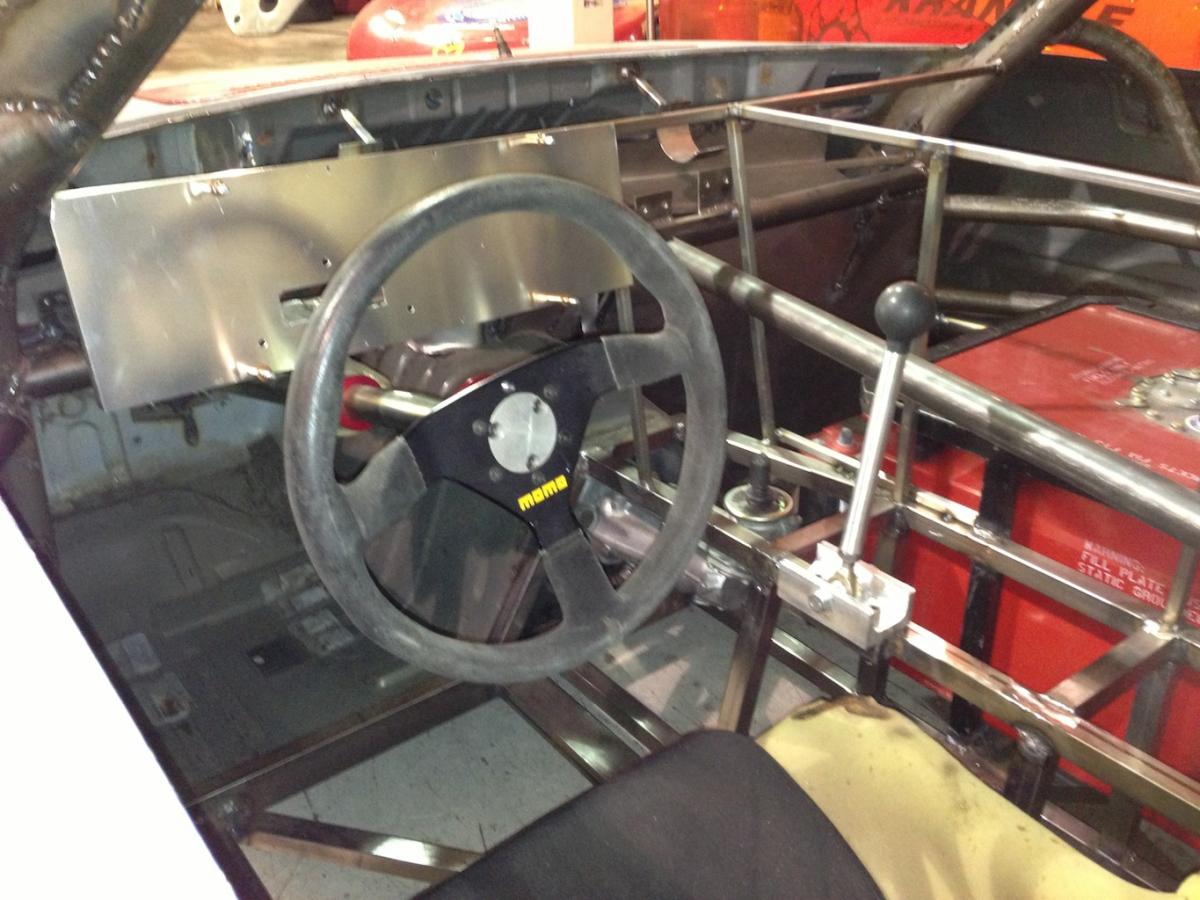

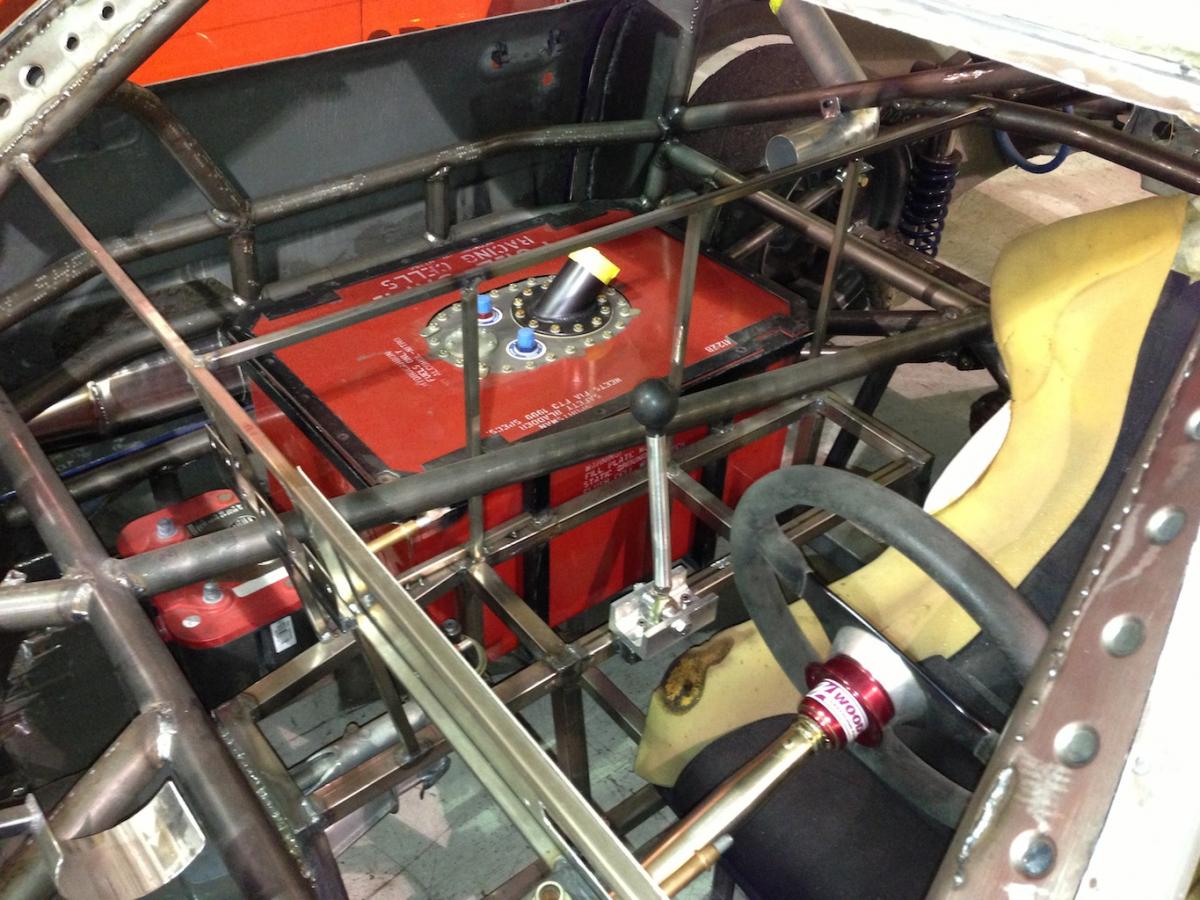

And got the shifter done yesterday. Will work on the linkage today! Left the hard part for last.







Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0862.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0864.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0865.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0867.jpg
bcrx7 is offline   Reply With Quote
Old 03-25-2013, 04:22 PM   #164
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

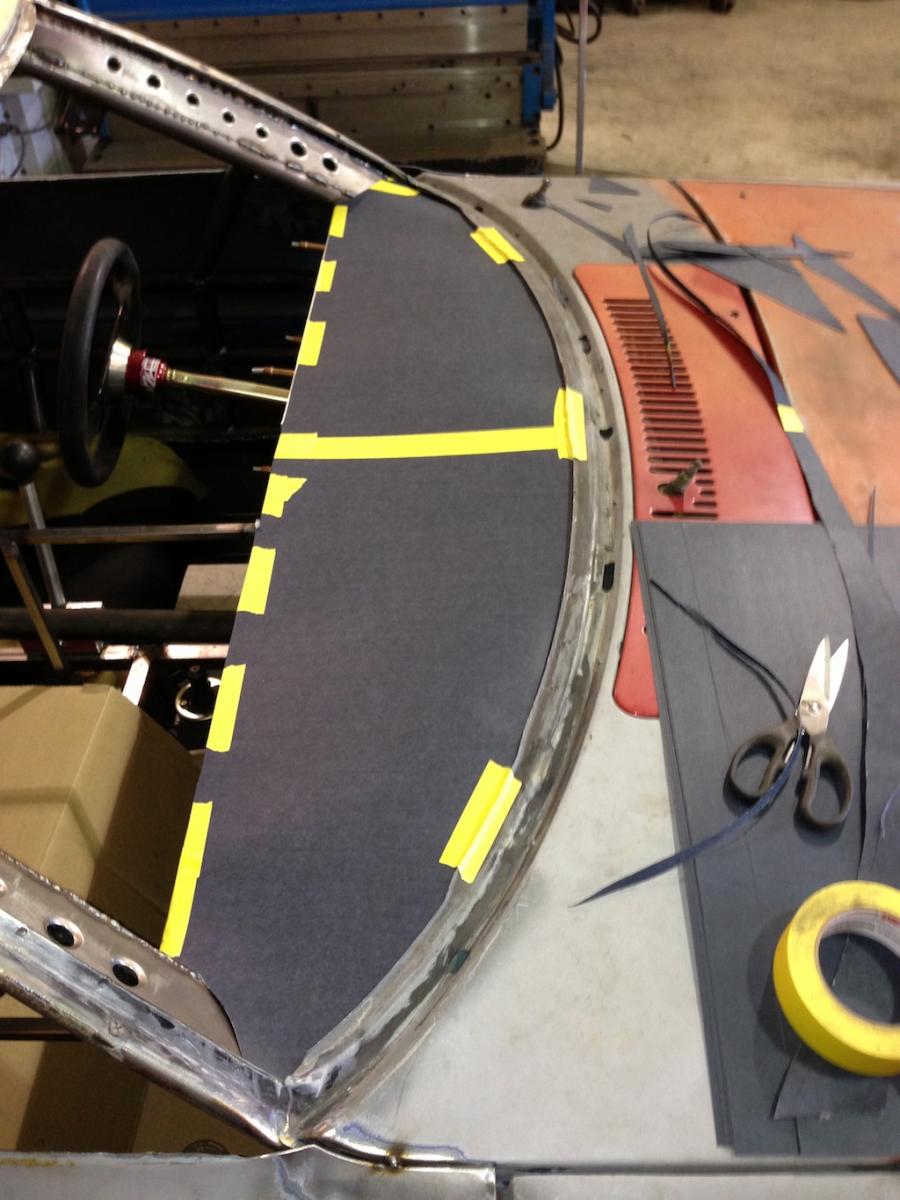

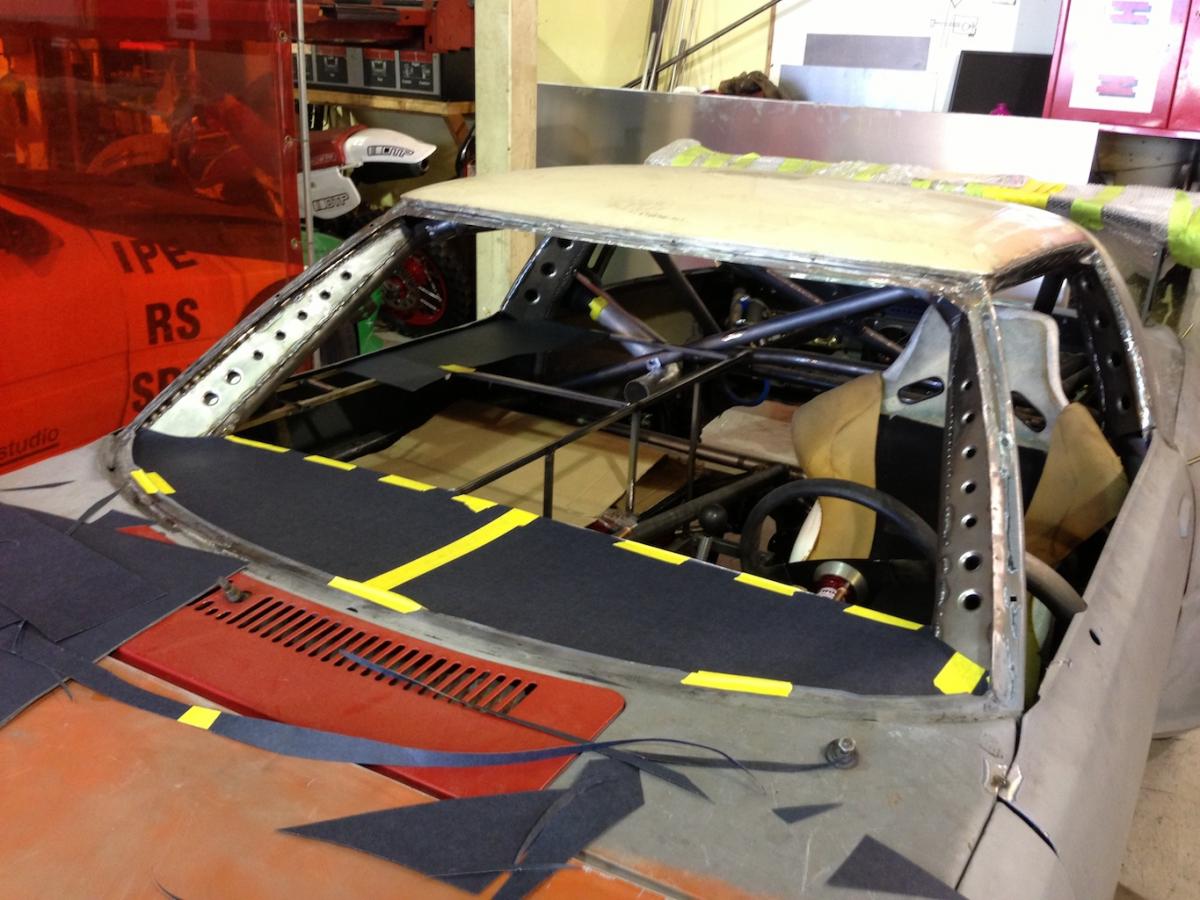

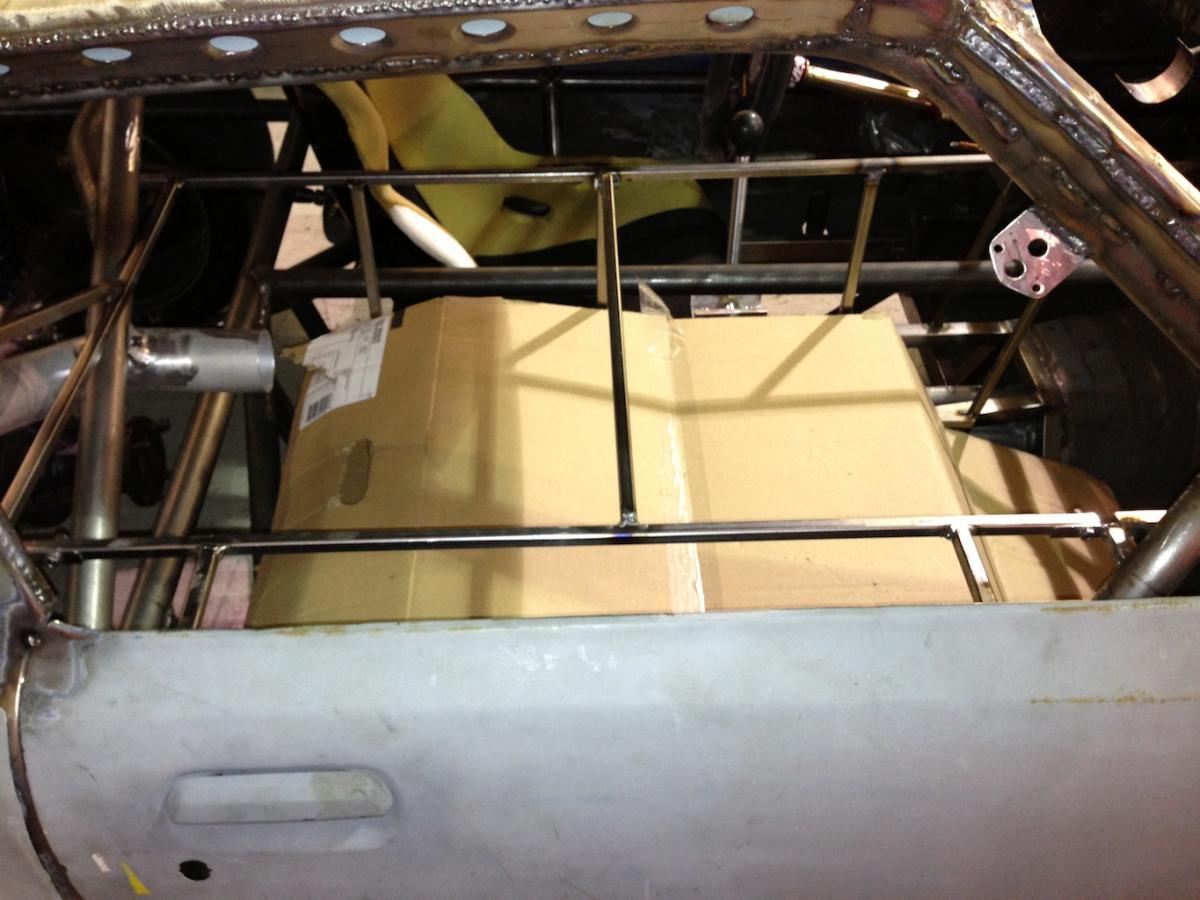

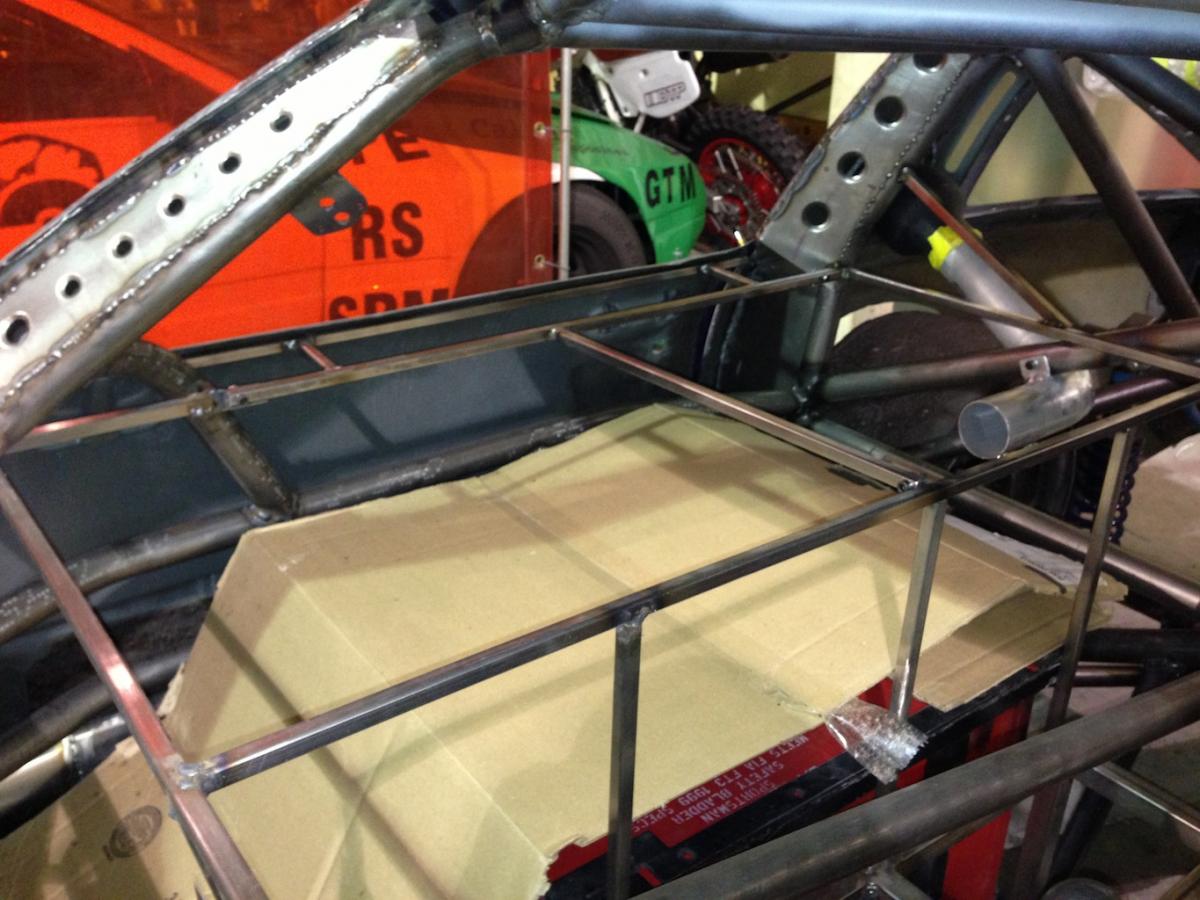

After getting sidetracked with the small projects, I am finally back working on the interior panels!







Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0873.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0874.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0877.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0879.jpg
bcrx7 is offline   Reply With Quote
Old 04-07-2013, 12:03 PM   #165
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

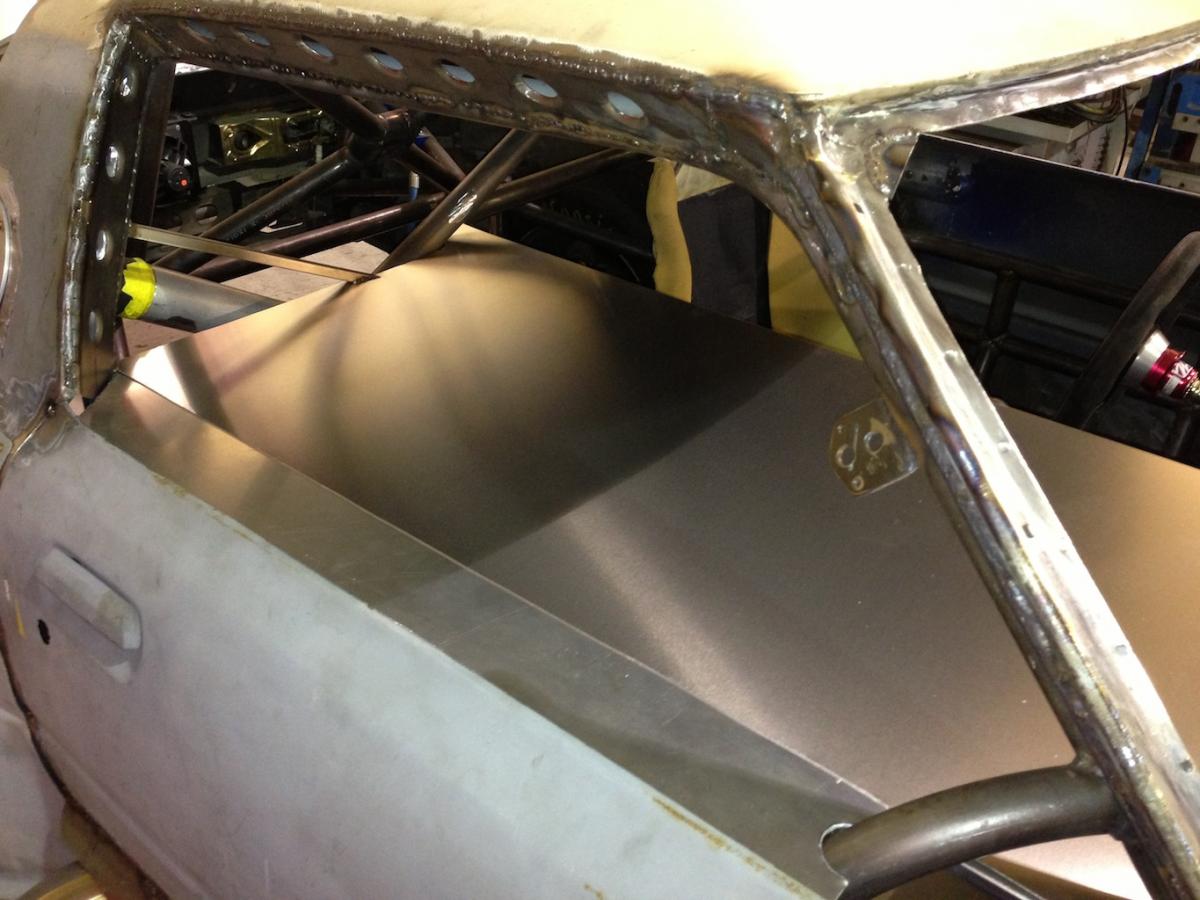

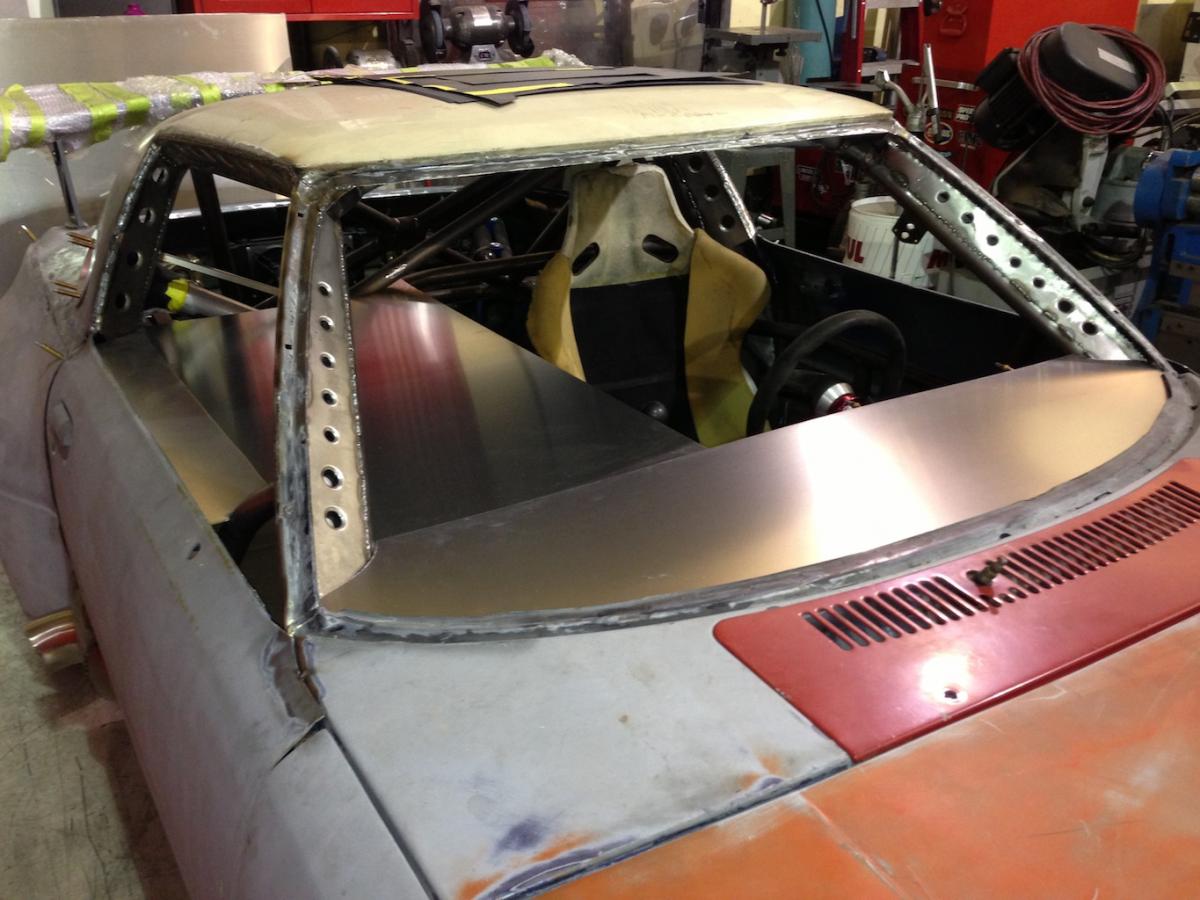

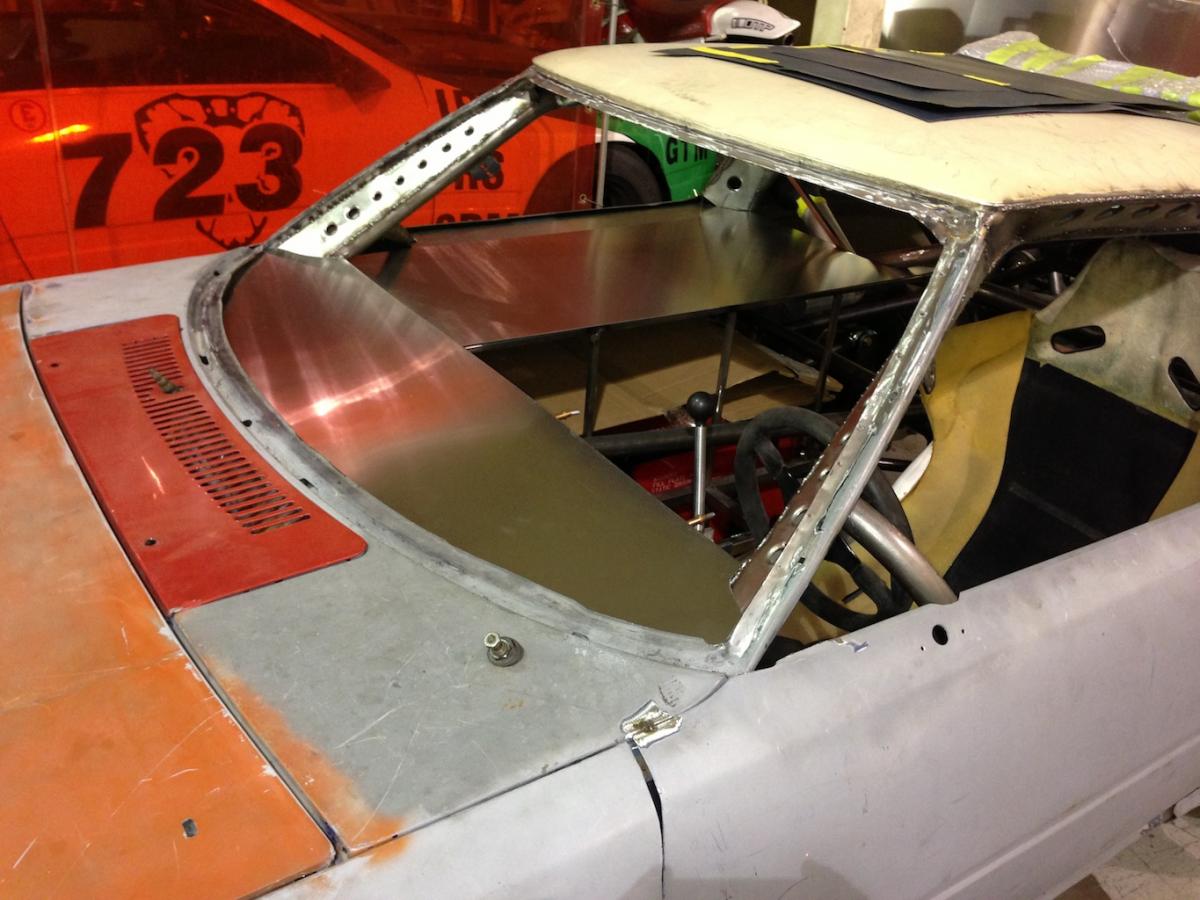

Got tired of the awesome looking cardboard and cut some aluminum!





Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0906.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0907.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0908.jpg
bcrx7 is offline   Reply With Quote
Old 04-15-2013, 01:54 PM   #166
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

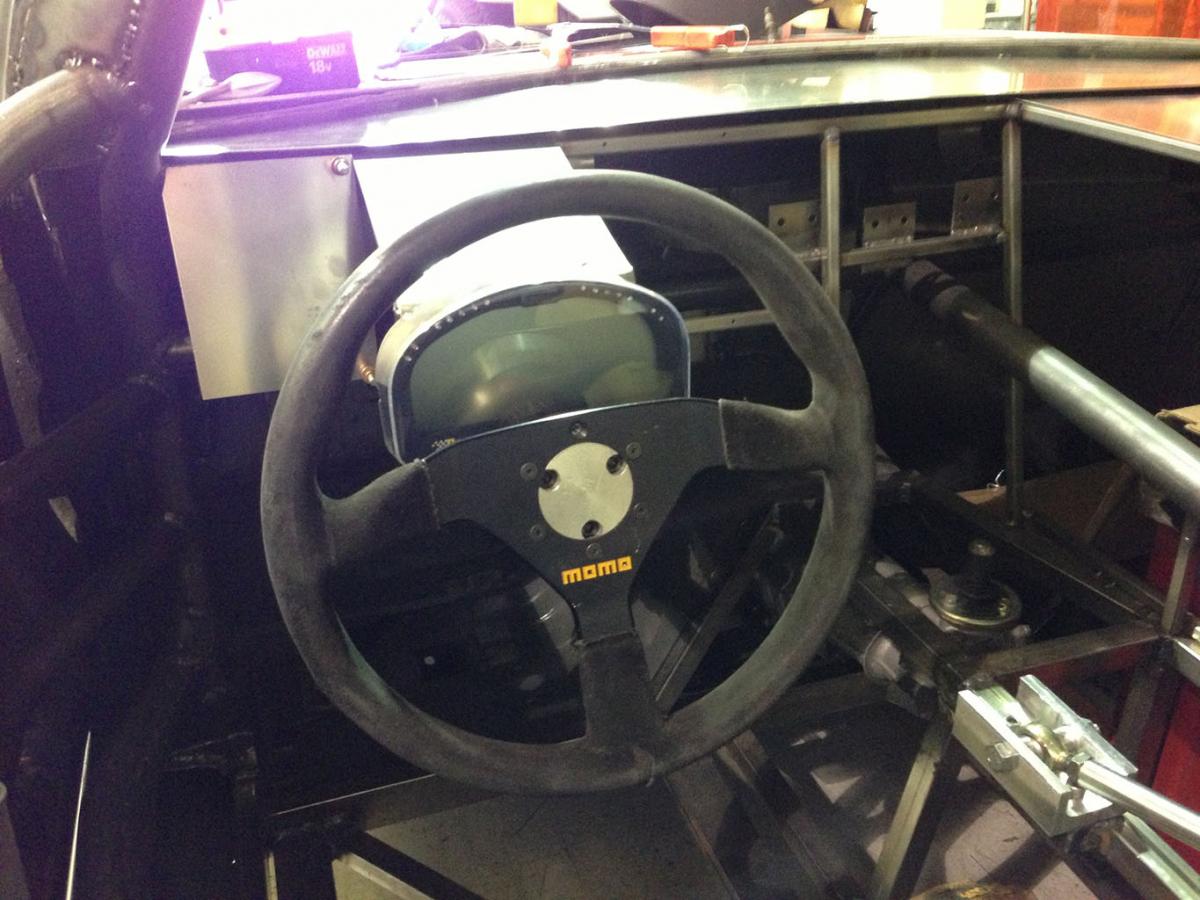

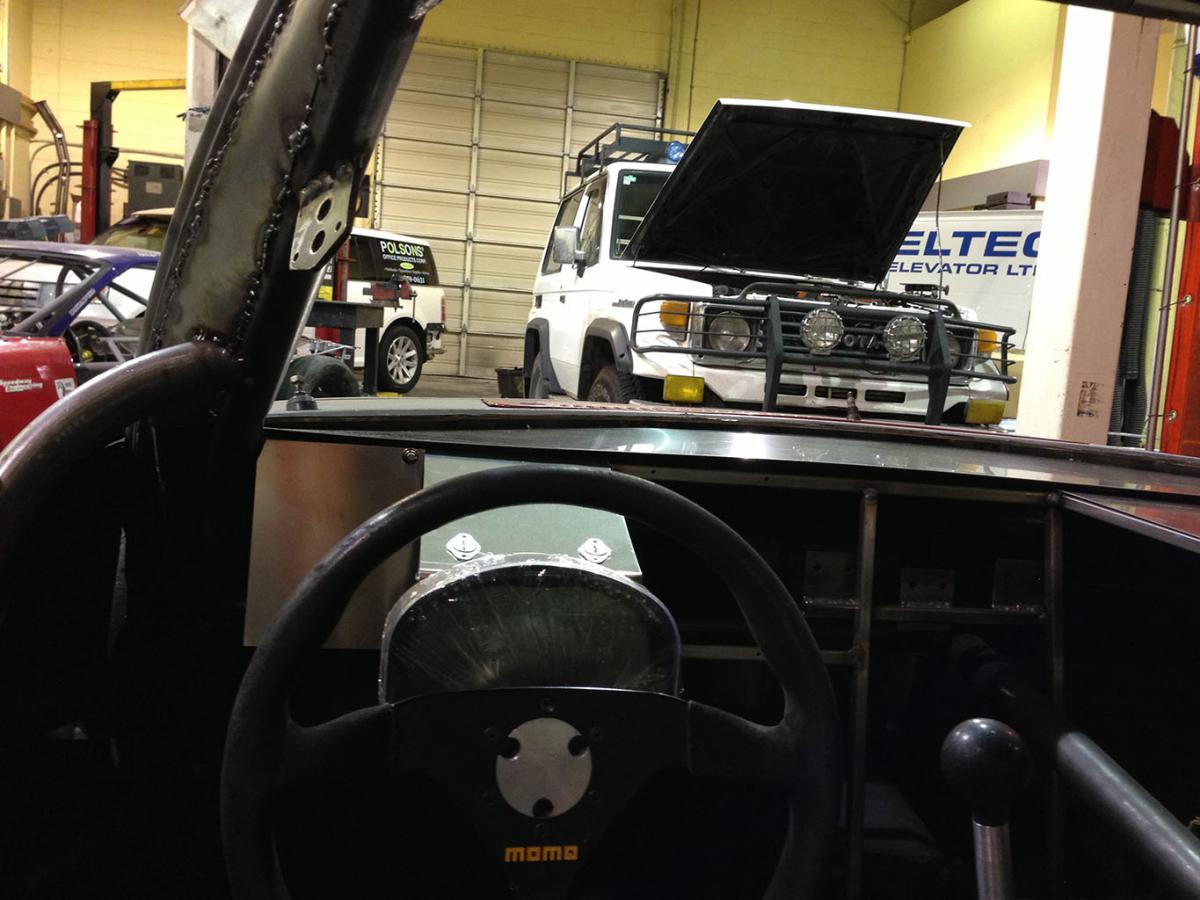

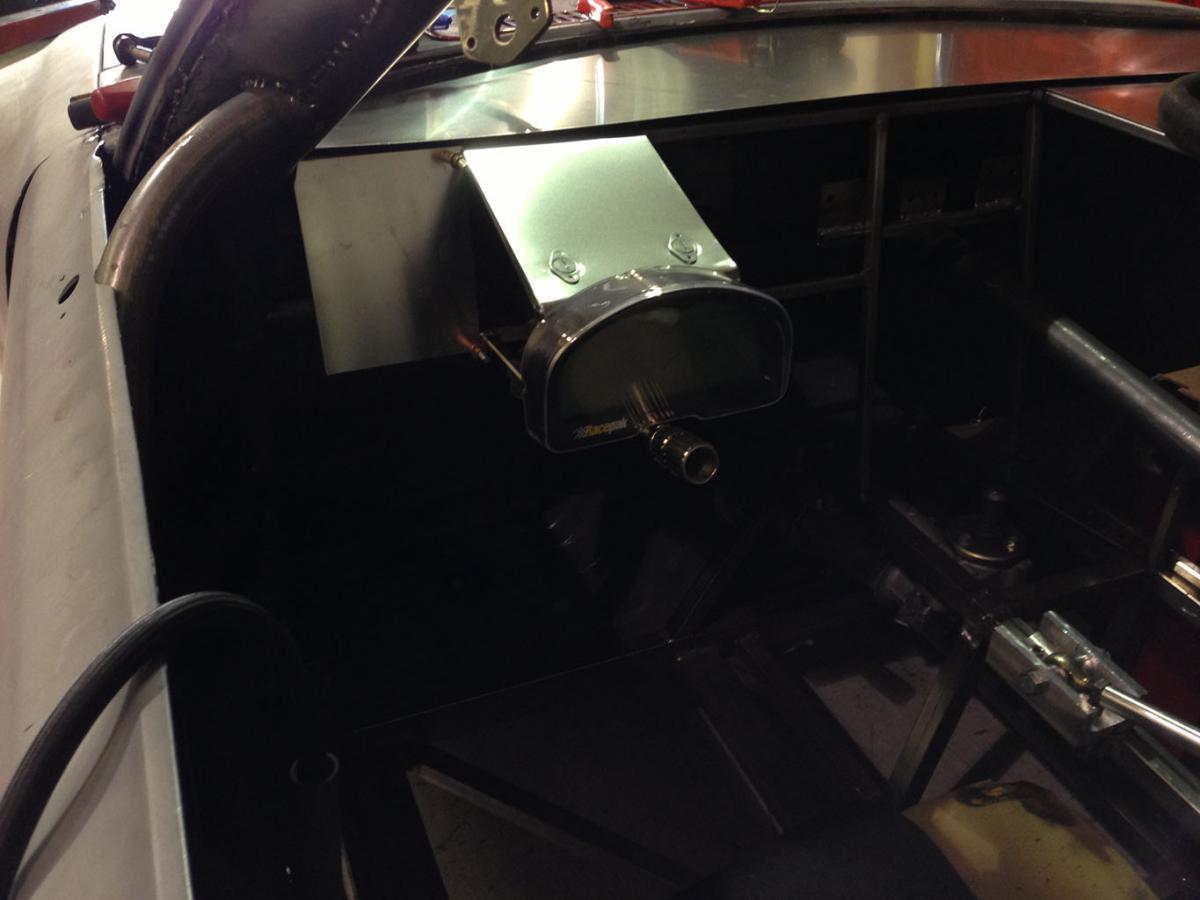

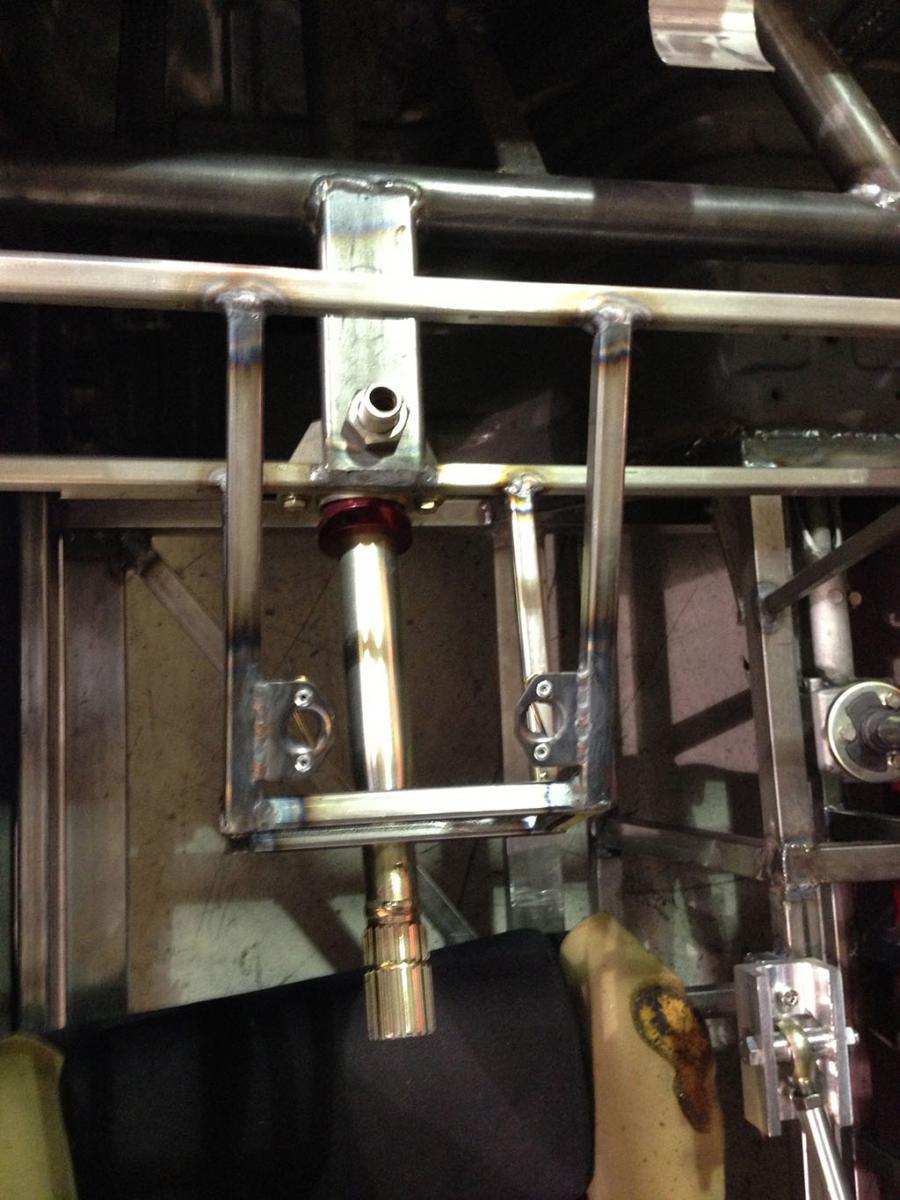

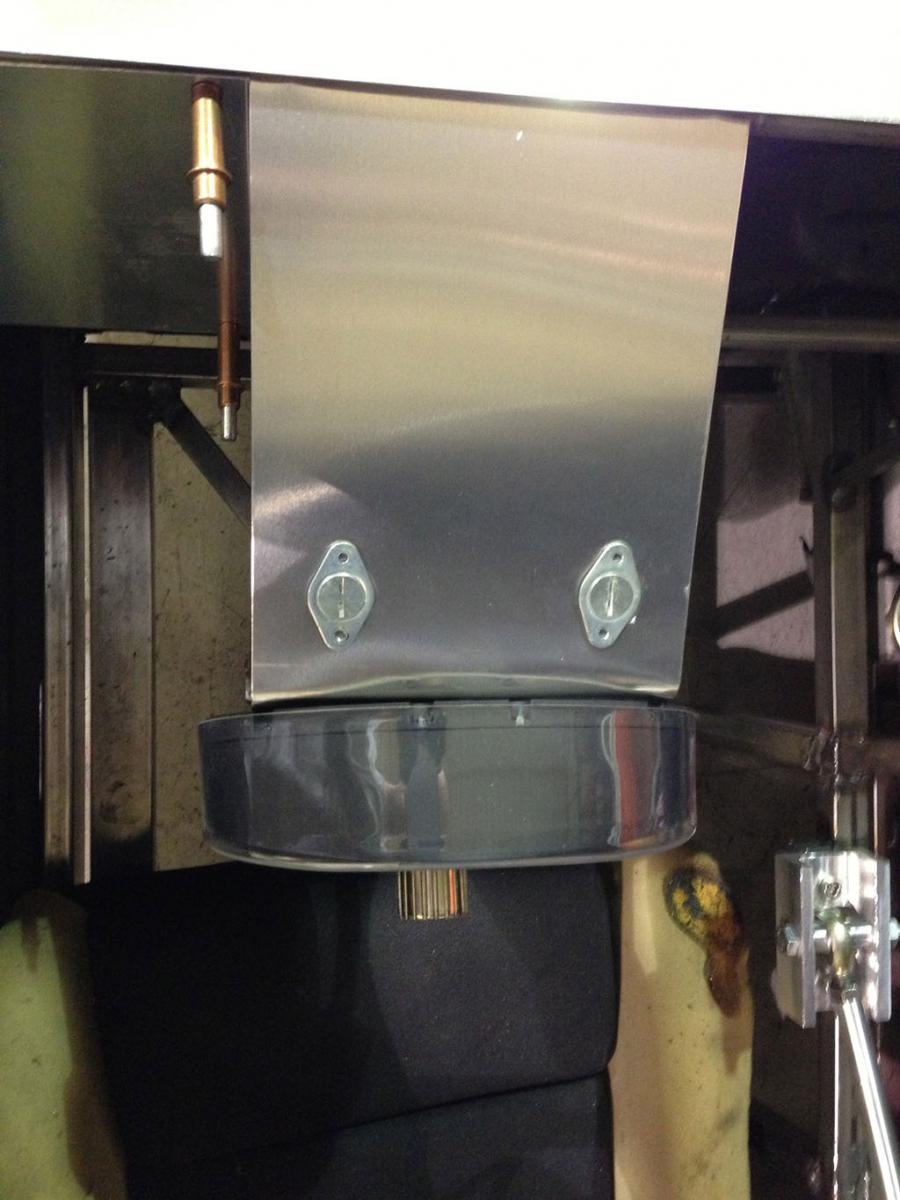

Remounted the RacePak IQ3 so it is closer to the steering wheel and easily visible from the drive seat. As well the first dzus fasteners were mounted!









Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0936.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0937.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0939.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0940.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0941.jpg

bcrx7 is offline   Reply With Quote
Old 04-22-2013, 01:15 PM   #167
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

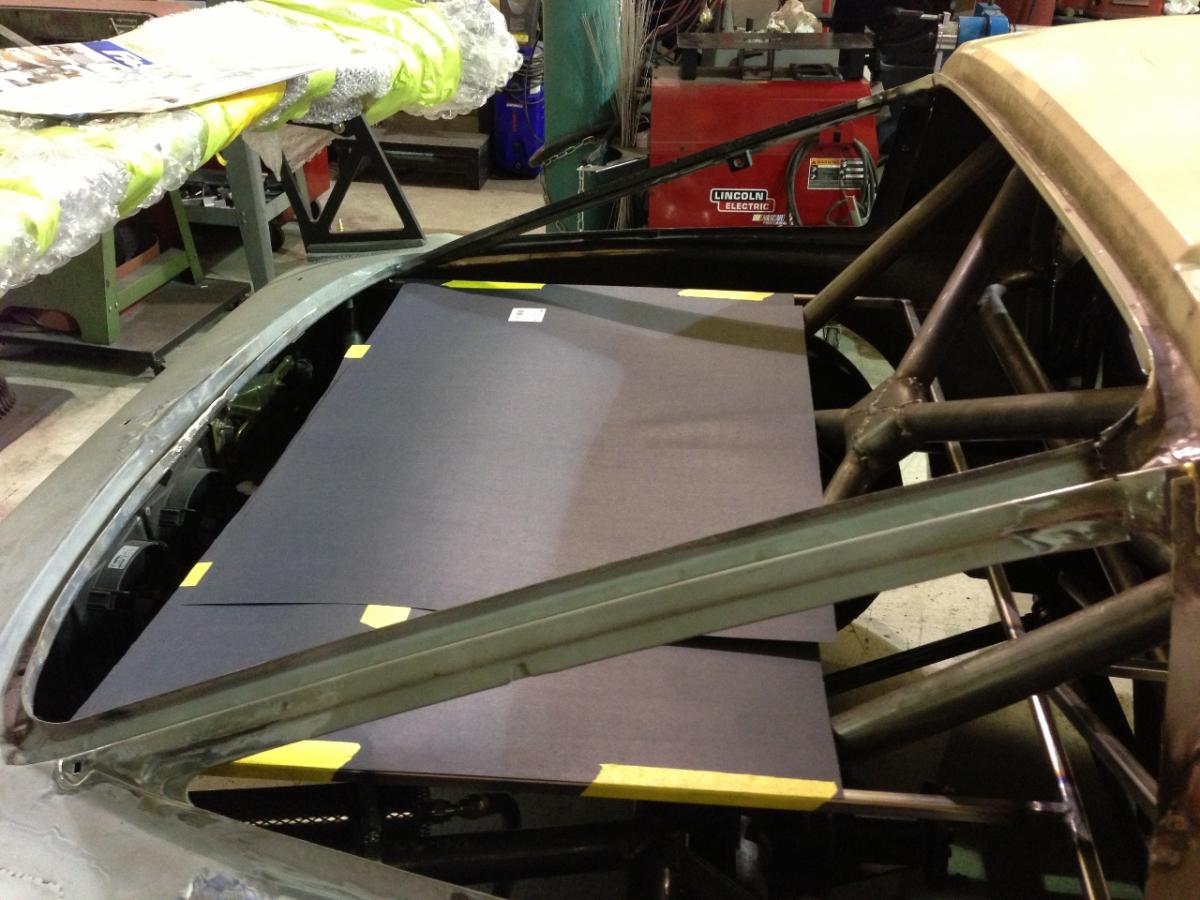

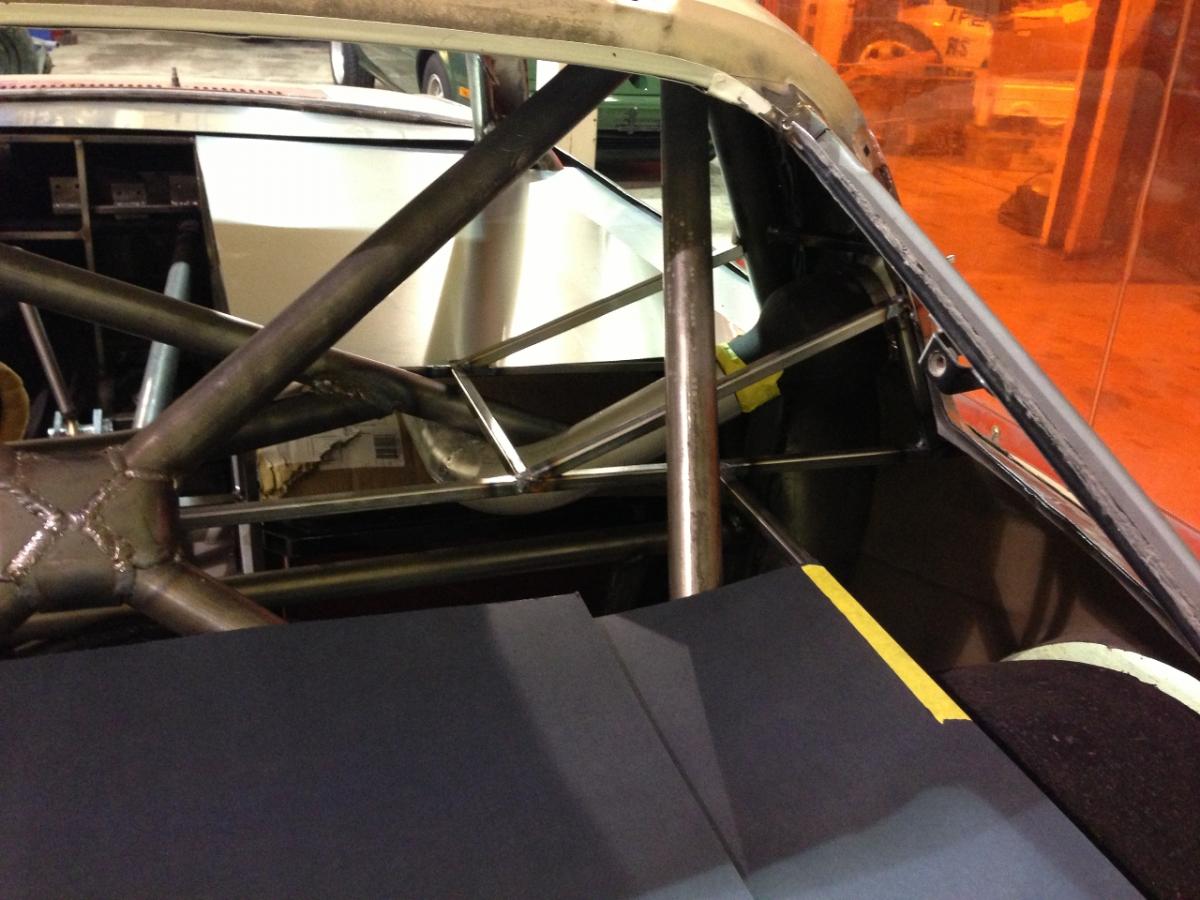

Getting some work done on the rear bulk-head!



Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0950.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0949.jpg
bcrx7 is offline   Reply With Quote
Old 04-22-2013, 01:17 PM
bcrx7
This message has been deleted by curly. Reason: double posts
Old 04-22-2013, 01:55 PM   #168
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Jesus christ, good work man! What a crazy machine you are building.
Fireindc is offline   Reply With Quote
Old 04-23-2013, 12:31 AM   #169
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thank man! It will look better on the track!
bcrx7 is offline   Reply With Quote
Old 05-04-2013, 12:18 AM   #170
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

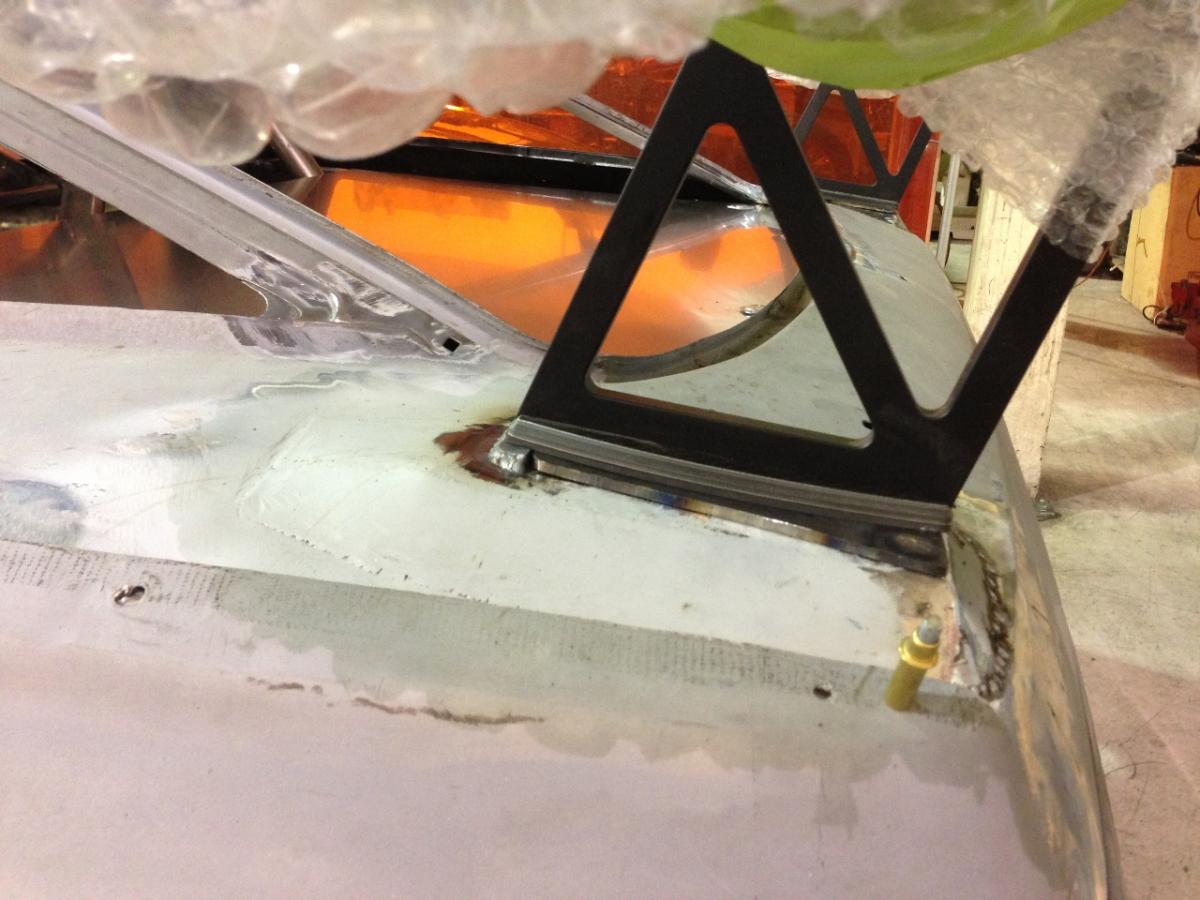

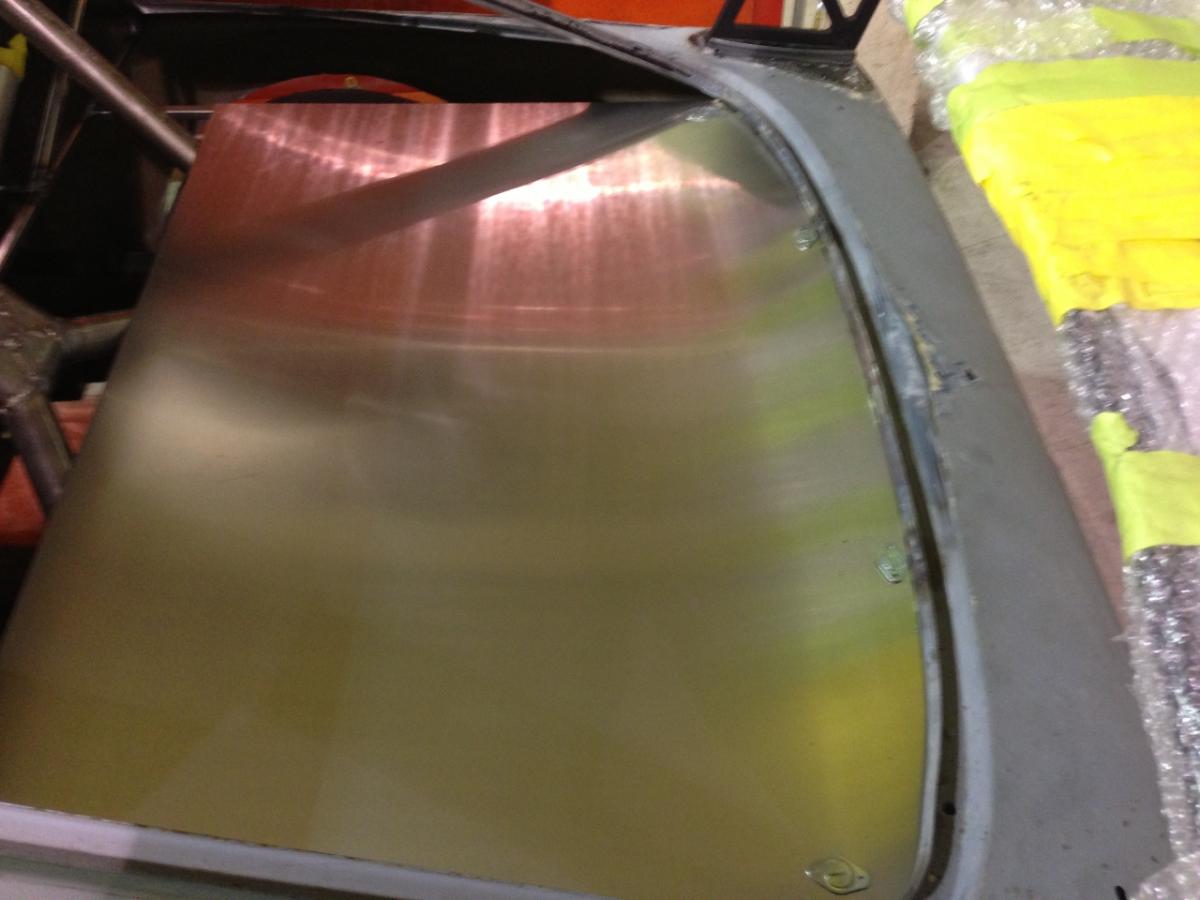

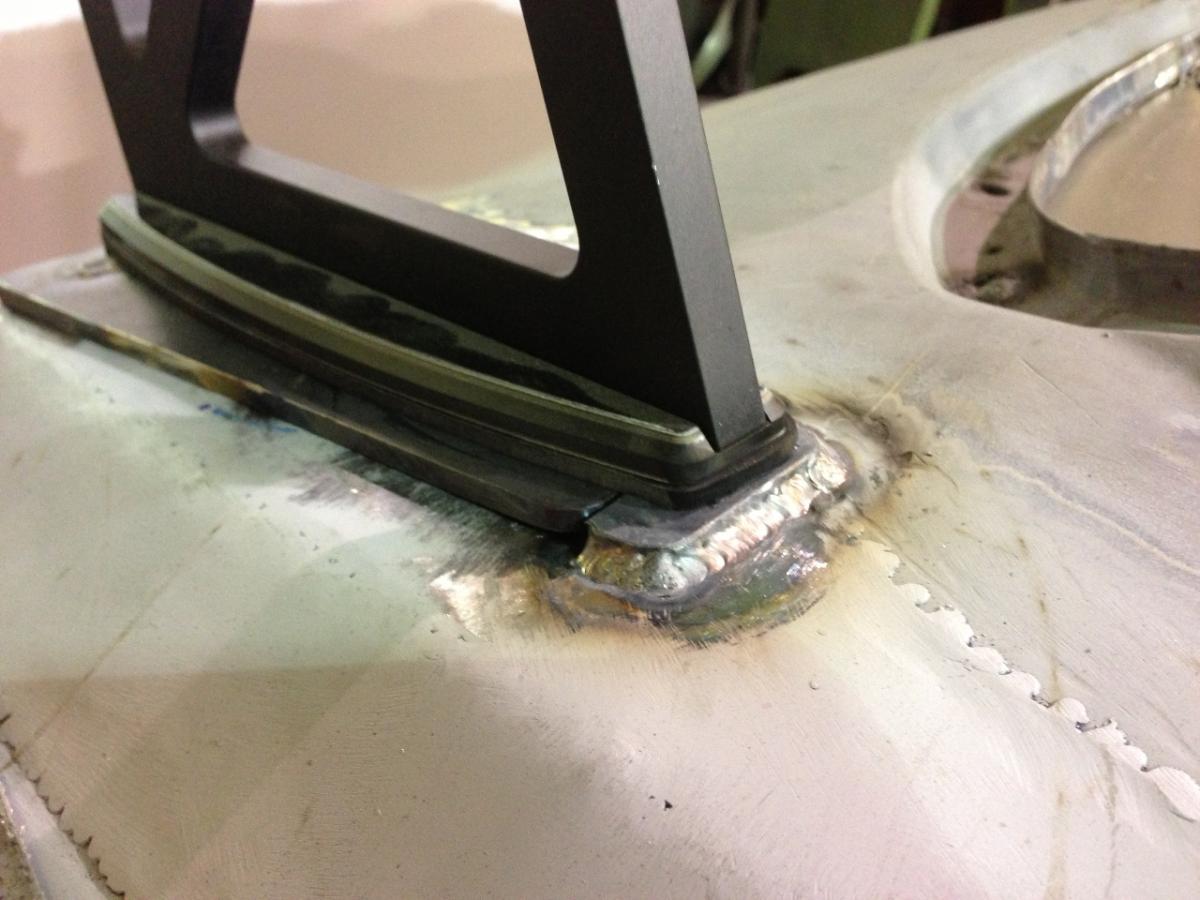

More sheet metal work and mounted the rear wing on a piece so it can be removed easier if needed to.





Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_0980.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0983.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_0987.jpg
bcrx7 is offline   Reply With Quote
Old 08-15-2013, 12:34 PM   #171
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Holy cow it has been a while since I posted an update here! I have been busy training for Ironman and was moving too which didn't help.

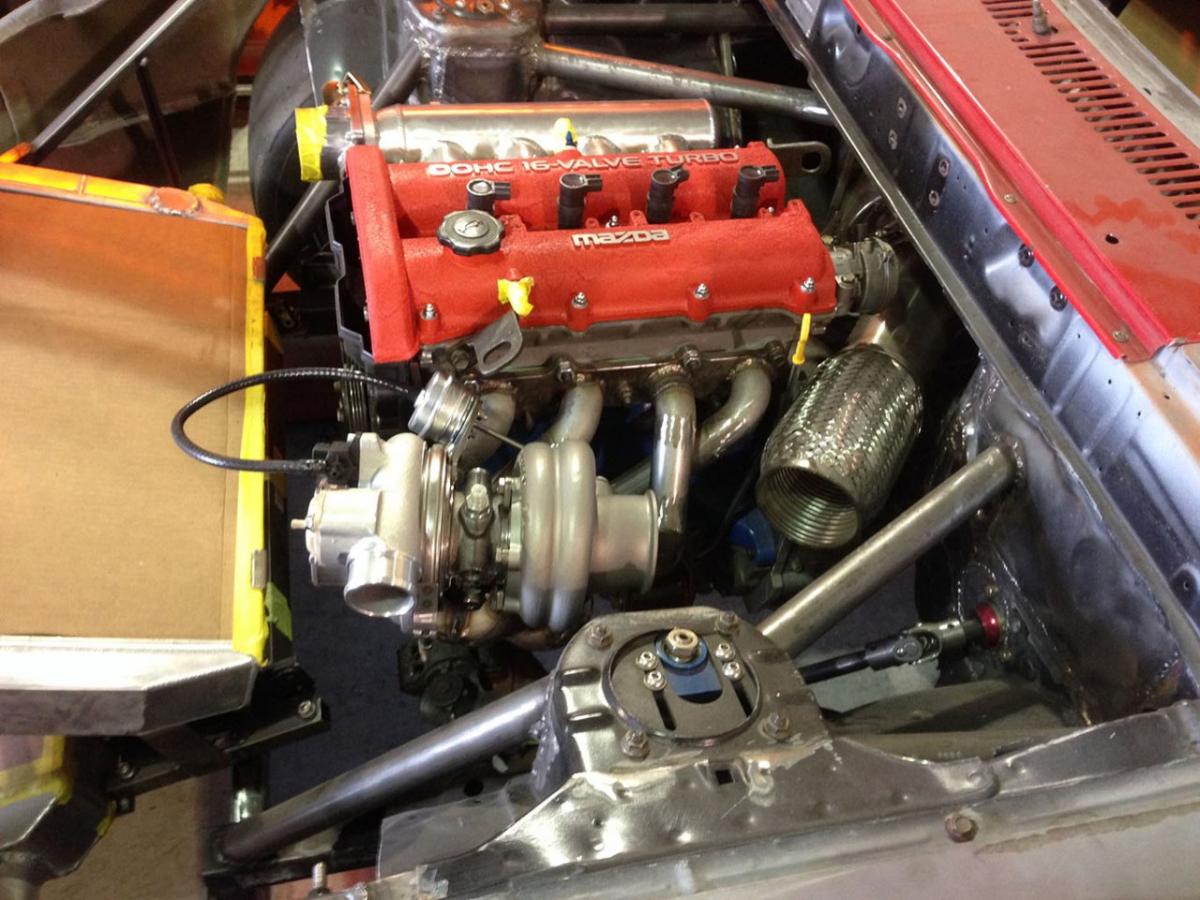

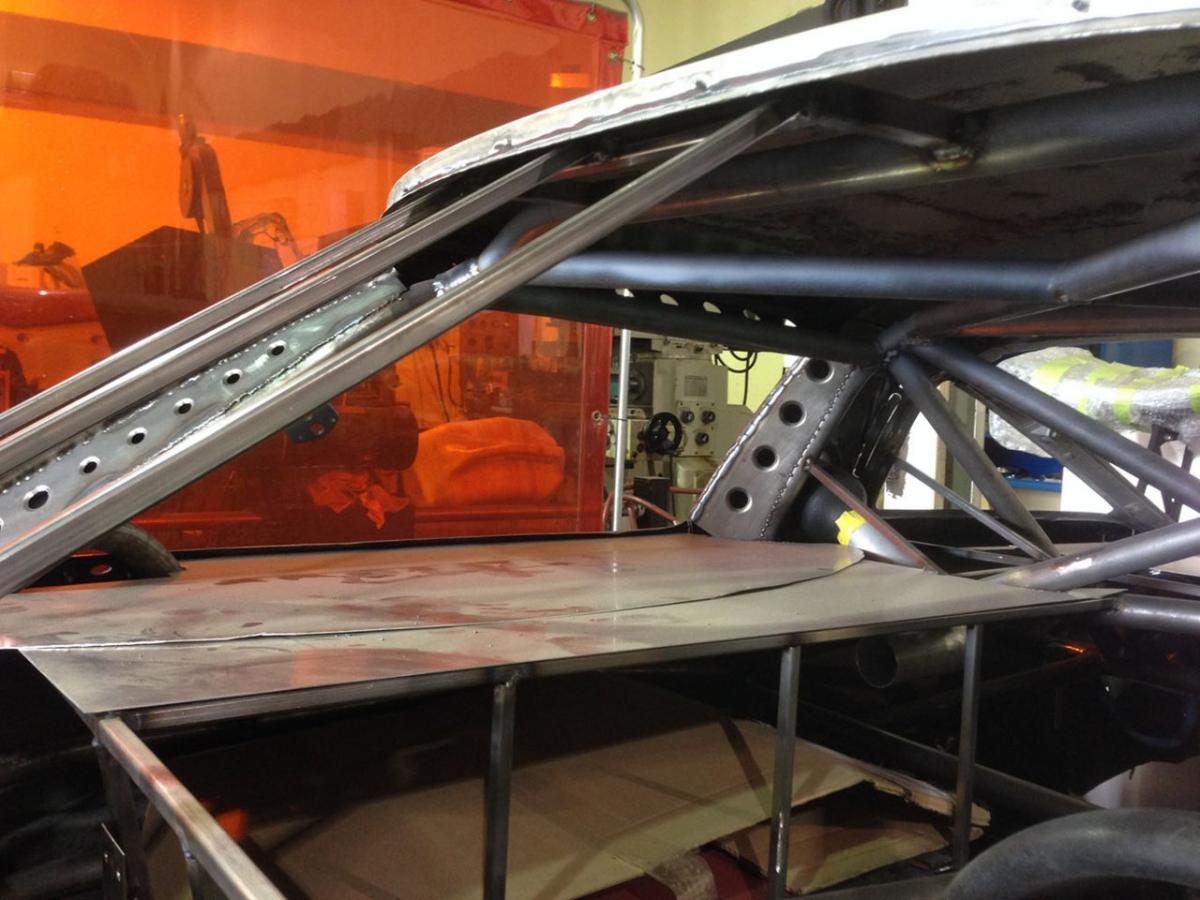

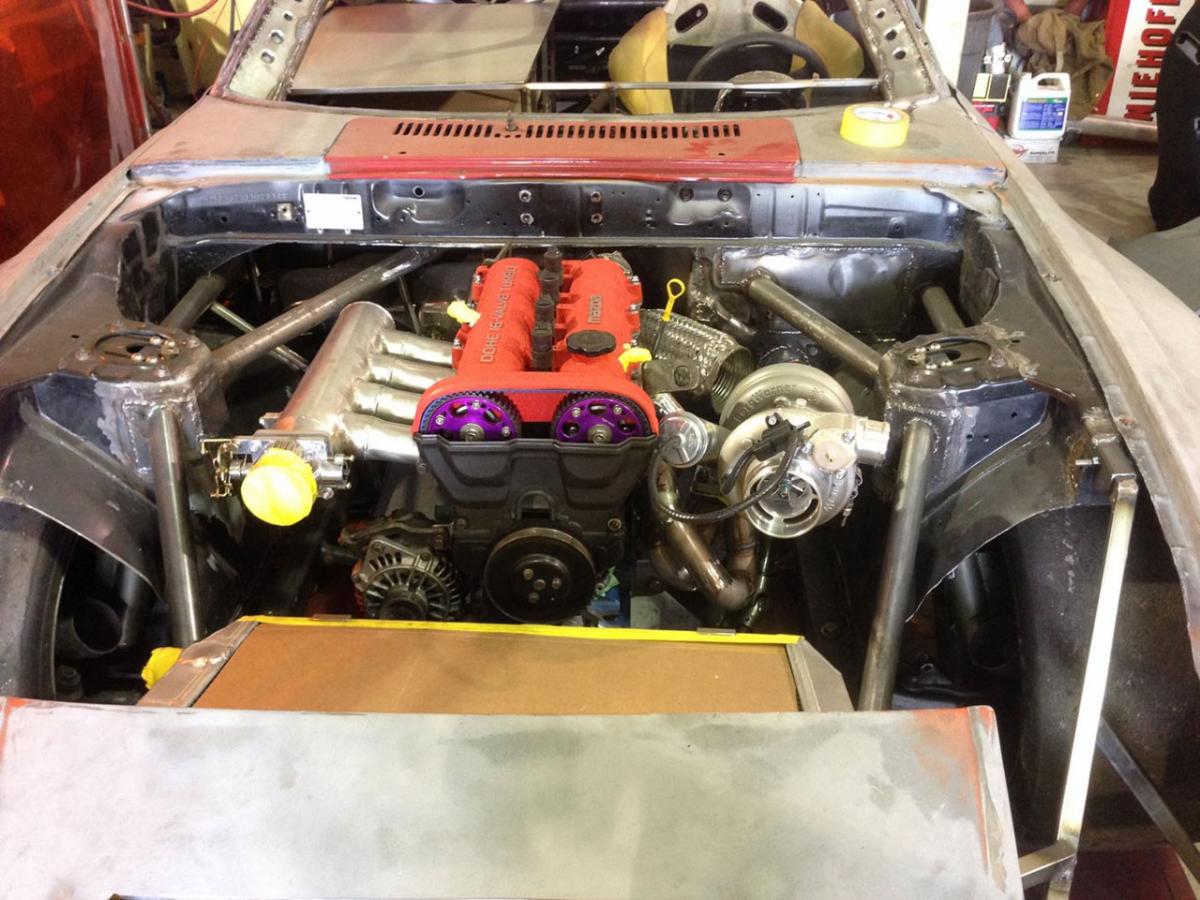

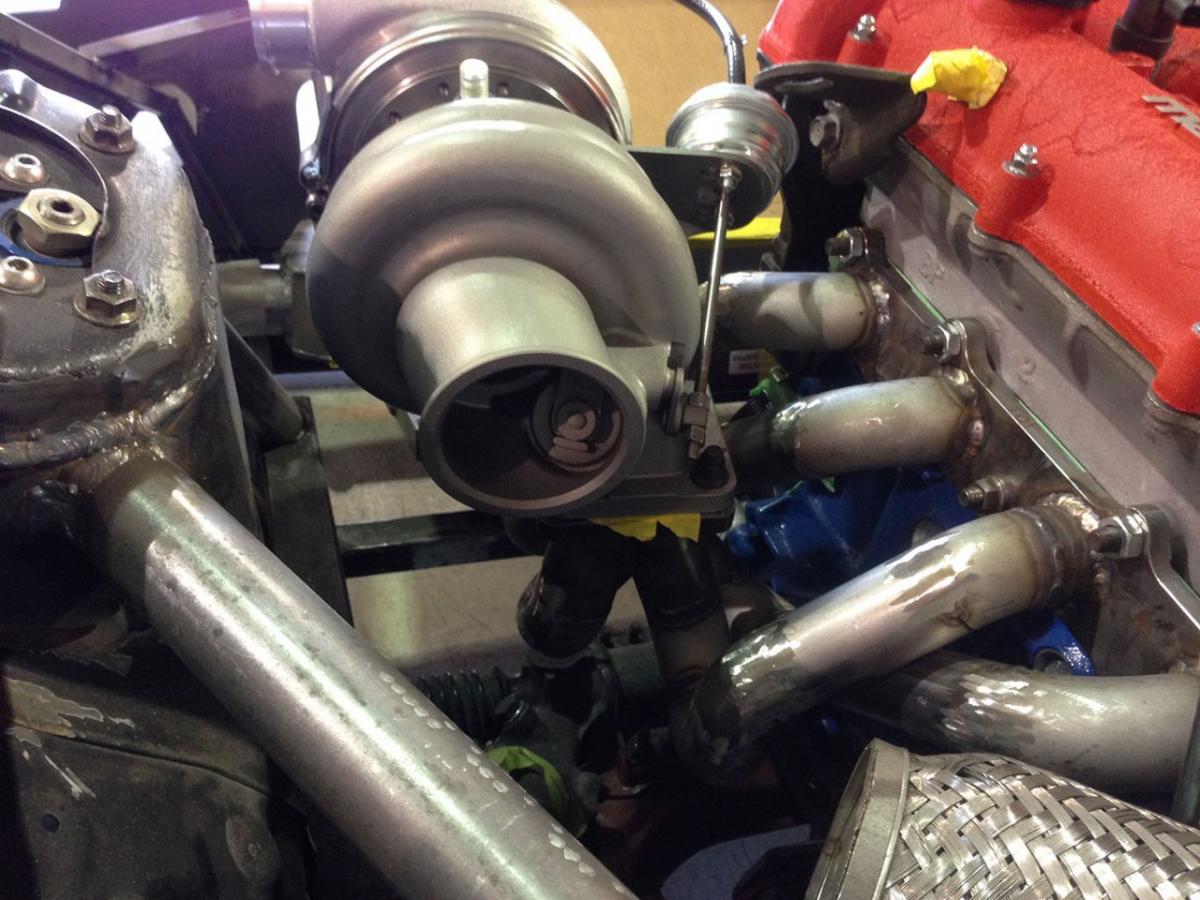

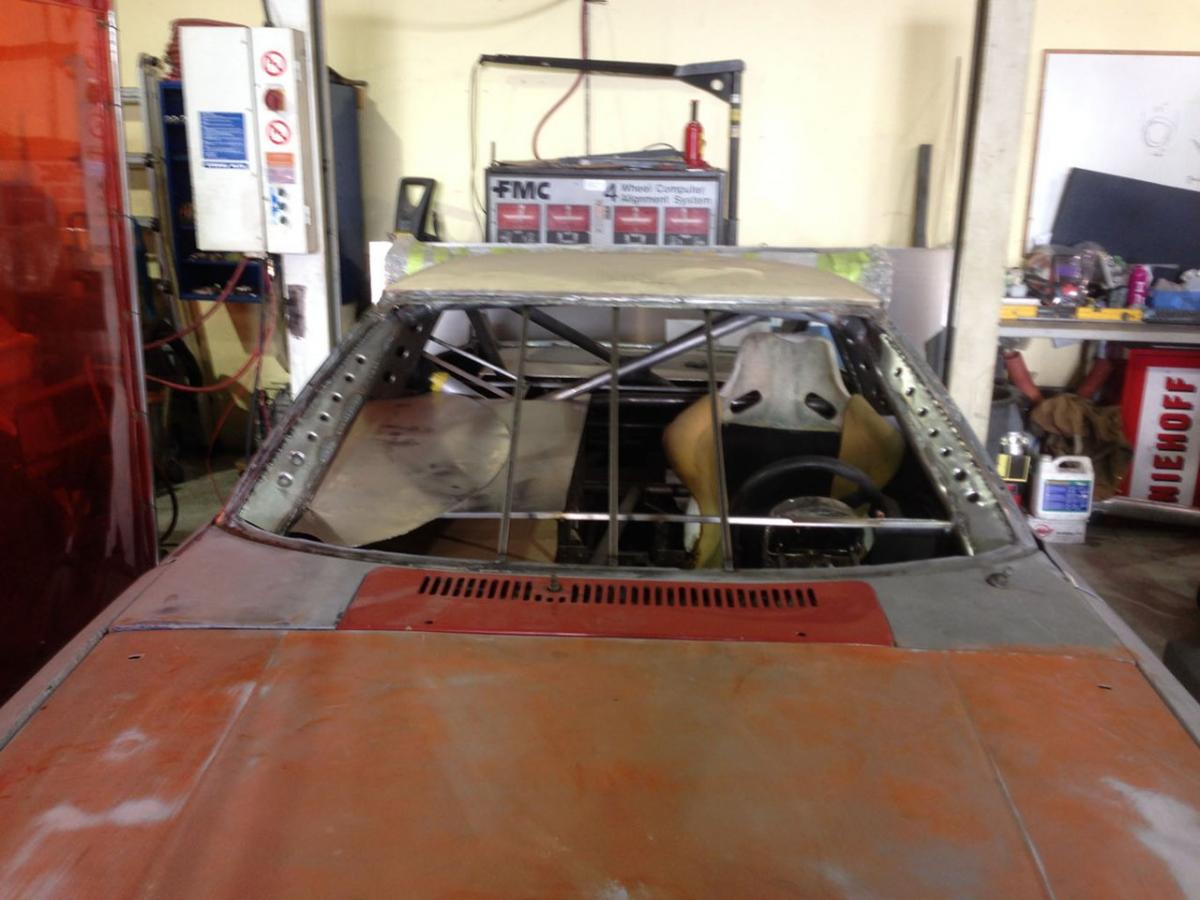

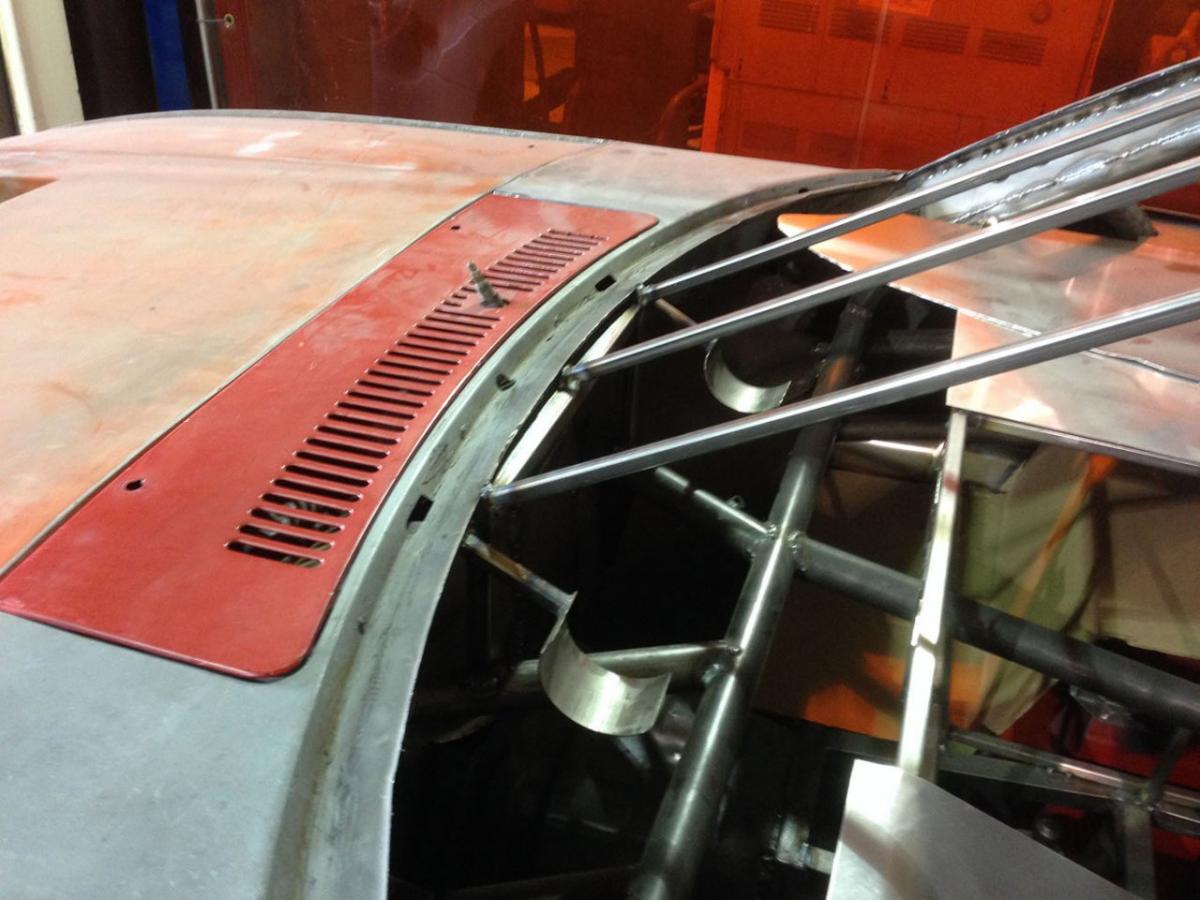

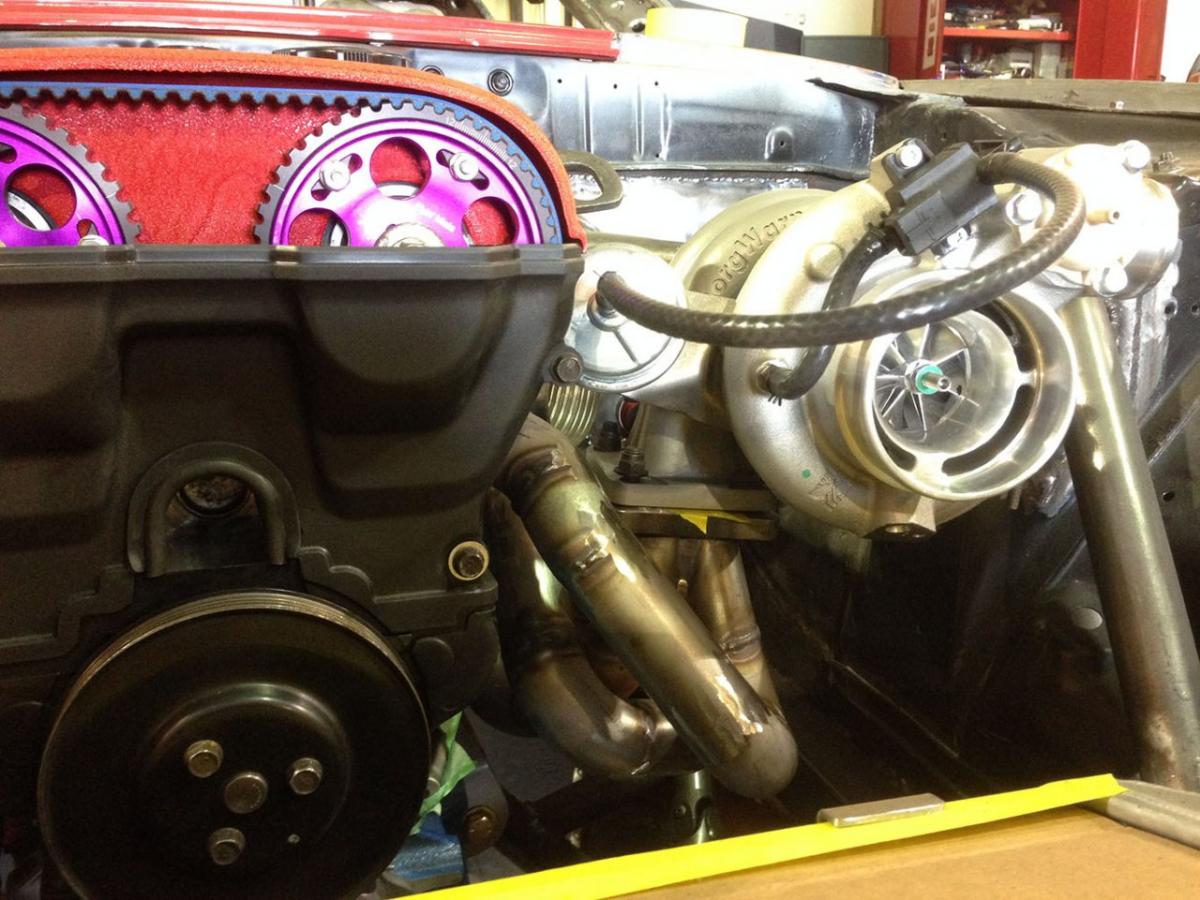

Anyways, I have the 8374 on its way, but we had a smaller 7064 with the same turbine housing that I figured put on to take some photos with. In addition I added the windshield support so the car is GT legal and can run lexan/poly windshield as well!

Ironman is next weekend and I will be back on this guy full time to get it done quick! The chassis is going for powder coating mid to end of September, so I have some long days of work coming for sure!













Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_1270.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1271.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1274.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1275.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1279.jpg

1984 RX-7 Race Car with BP! (almost a Miata)-img_1281.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1282.jpg
bcrx7 is offline   Reply With Quote
Old 08-15-2013, 01:42 PM   #172
Junior Member
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

I love this build, can't wait to see it finished!
1BAD96 is offline   Reply With Quote
Old 08-15-2013, 02:02 PM   #173
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thank you! You and I both... The chassis will be powder coated for sure next month. That's one deadline I am sticking to!
bcrx7 is offline   Reply With Quote
Old 10-03-2013, 06:07 PM   #174
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

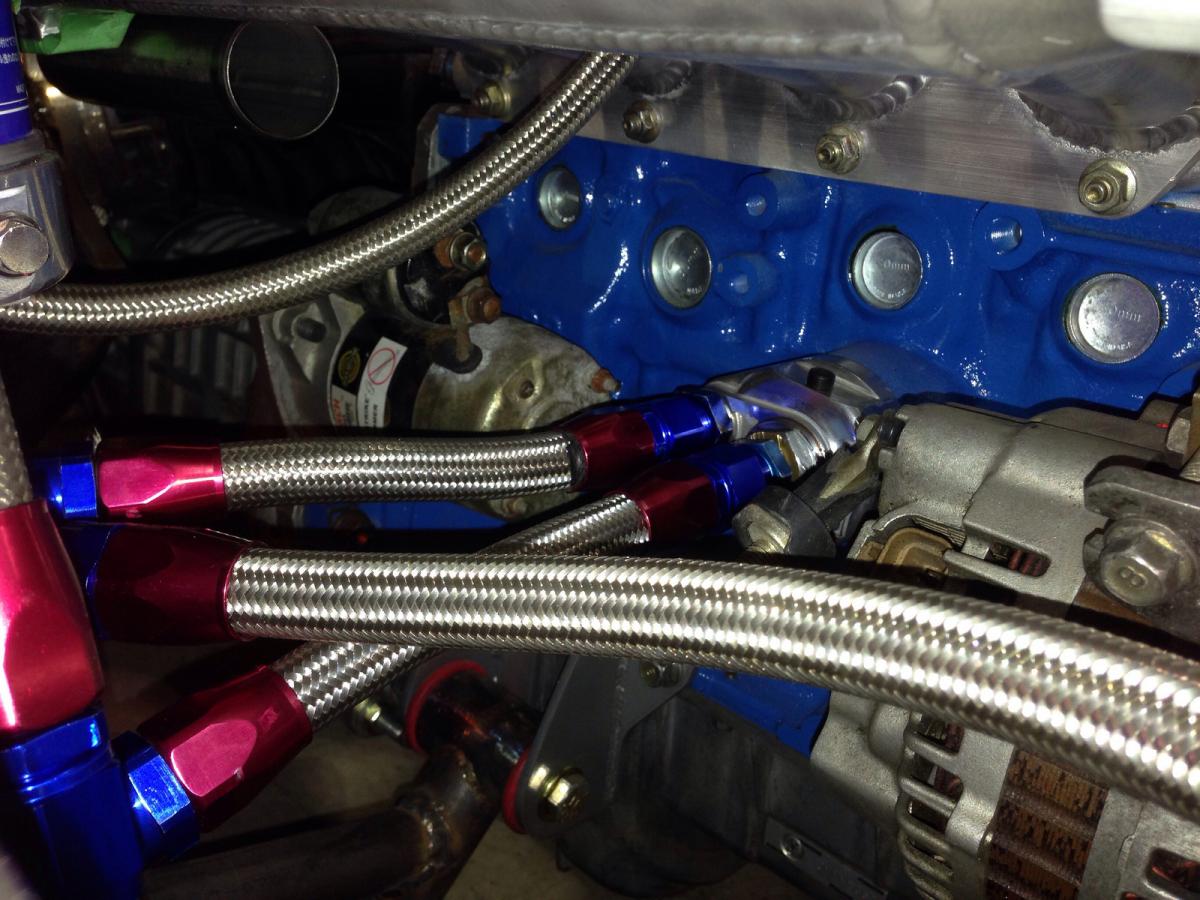

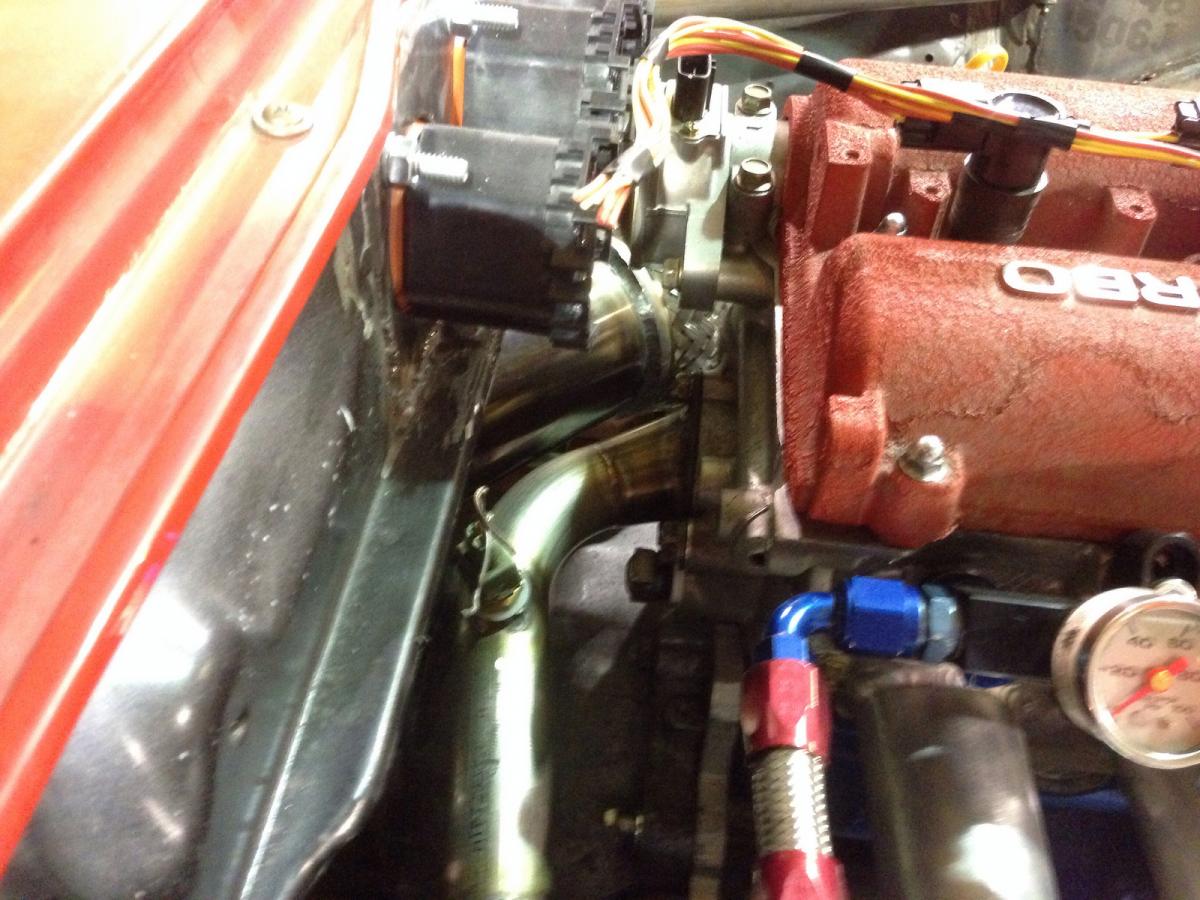

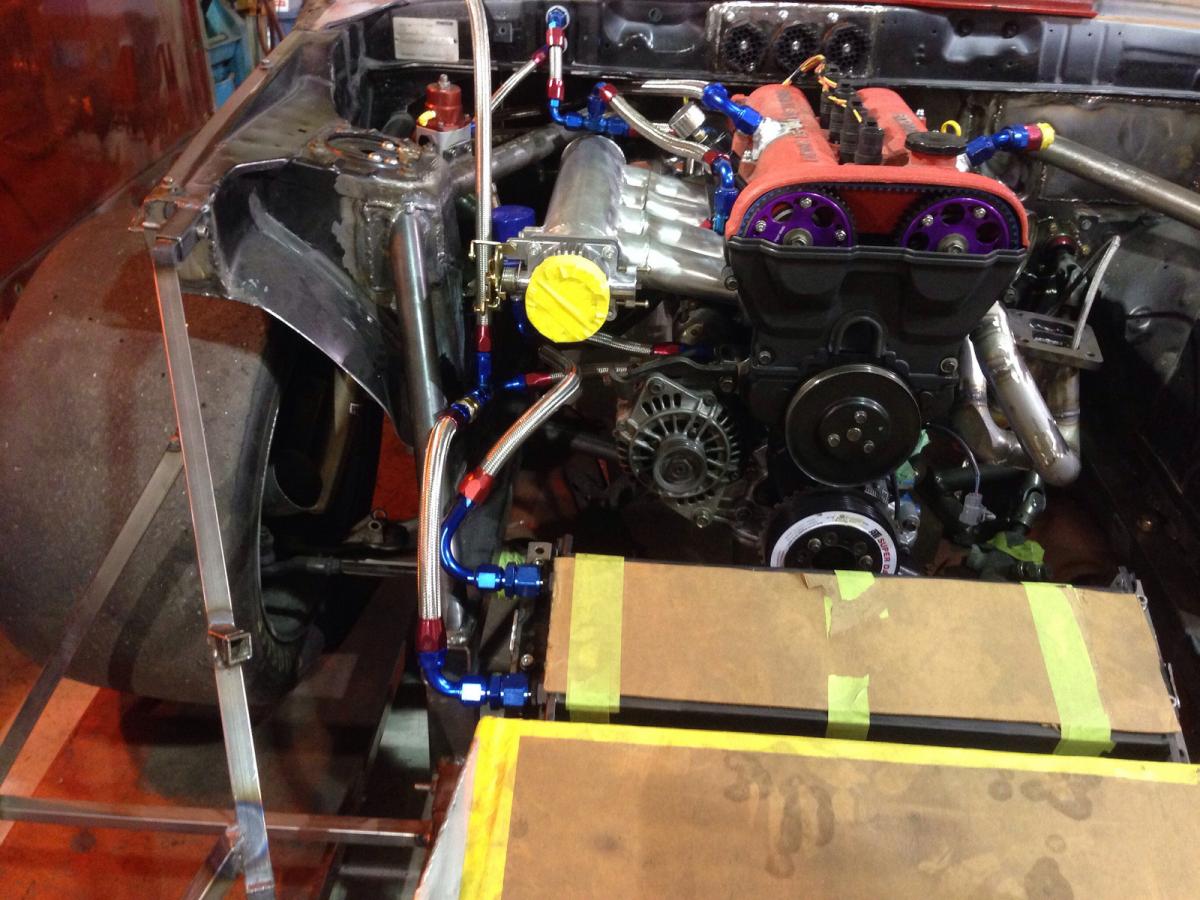

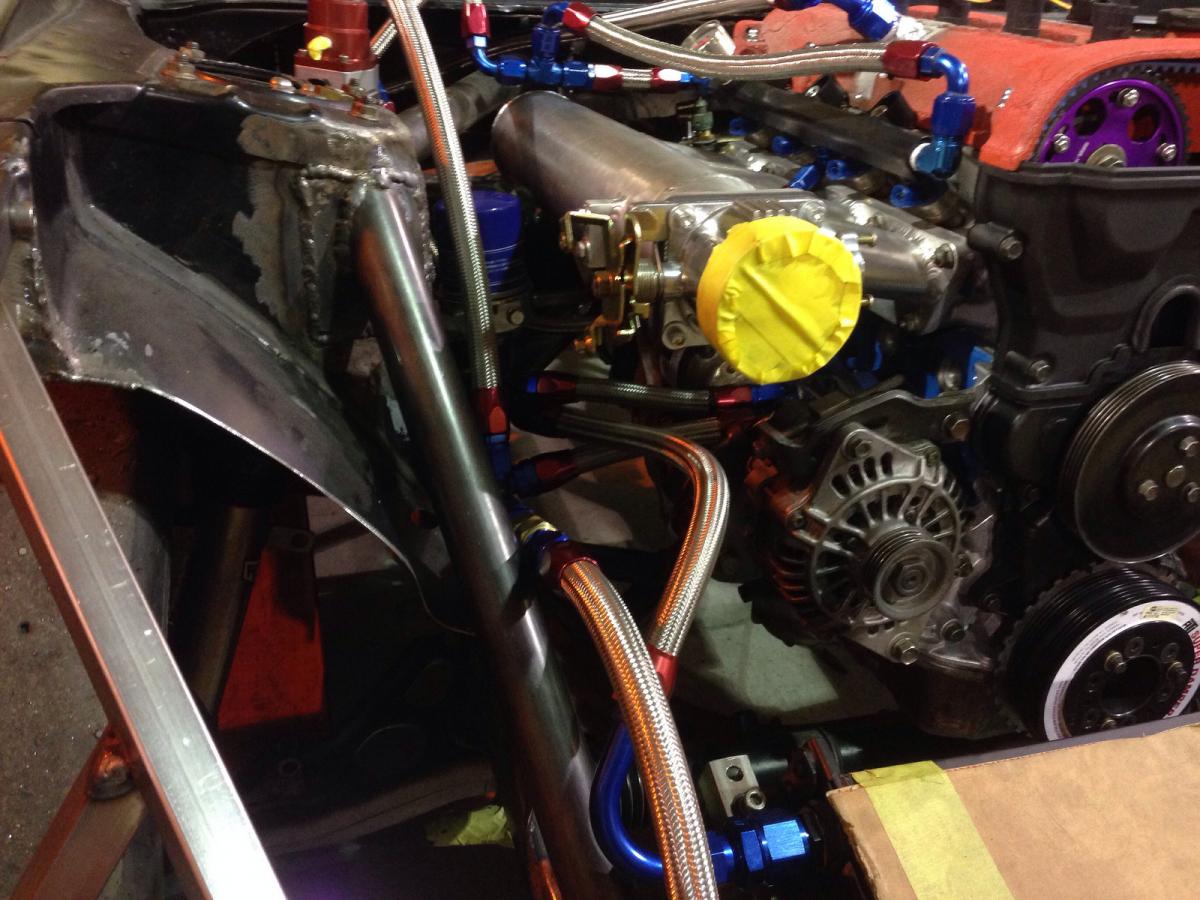

Well have been working on a few different projects and my race car mixed in there too. Finished all the oil and fuel lines and have run the rear coolant passage through the side to the front which needs to be completed to connect to the rad or water pump. I have not decided if I will do a reverse flow or not yet!







Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-coolant.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-oil1.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-oil2.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-oil3.jpg
bcrx7 is offline   Reply With Quote
Old 10-03-2013, 07:38 PM   #175
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

so hardcore I love it
18psi is offline   Reply With Quote
Old 10-03-2013, 07:39 PM   #176
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yeah except I need to find a bigger filter that fits on that oil filter mount. This thing fits in my pocket and definitely not hardcore... might as well paint the filter pink with a kitty on it...
bcrx7 is offline   Reply With Quote
Old 10-03-2013, 07:57 PM   #177
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 99
Default

If your oil filter is dimensionally capable of being inhaled through your throttle body, it is not big enough.
miata2fast is offline   Reply With Quote
Old 10-03-2013, 08:02 PM   #178
Junior Member

Join Date: May 2013
Location: wisconsin
Posts: 58
Total Cats: 0
Default

good god man, this is EPIC. love it!
lieske is offline   Reply With Quote
Old 10-04-2013, 08:52 AM   #179
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 1,986
Total Cats: 142
Default

Will be good to see how our 7064s compare
GeneSplicer is offline   Reply With Quote
Old 10-04-2013, 05:01 PM   #180
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by miata2fast View Post
If your oil filter is dimensionally capable of being inhaled through your throttle body, it is not big enough.
I know, right? have to head over to local store and find a bigger filter for it!
bcrx7 is offline   Reply With Quote
