Old 11-20-2013, 12:50 PM   #201
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

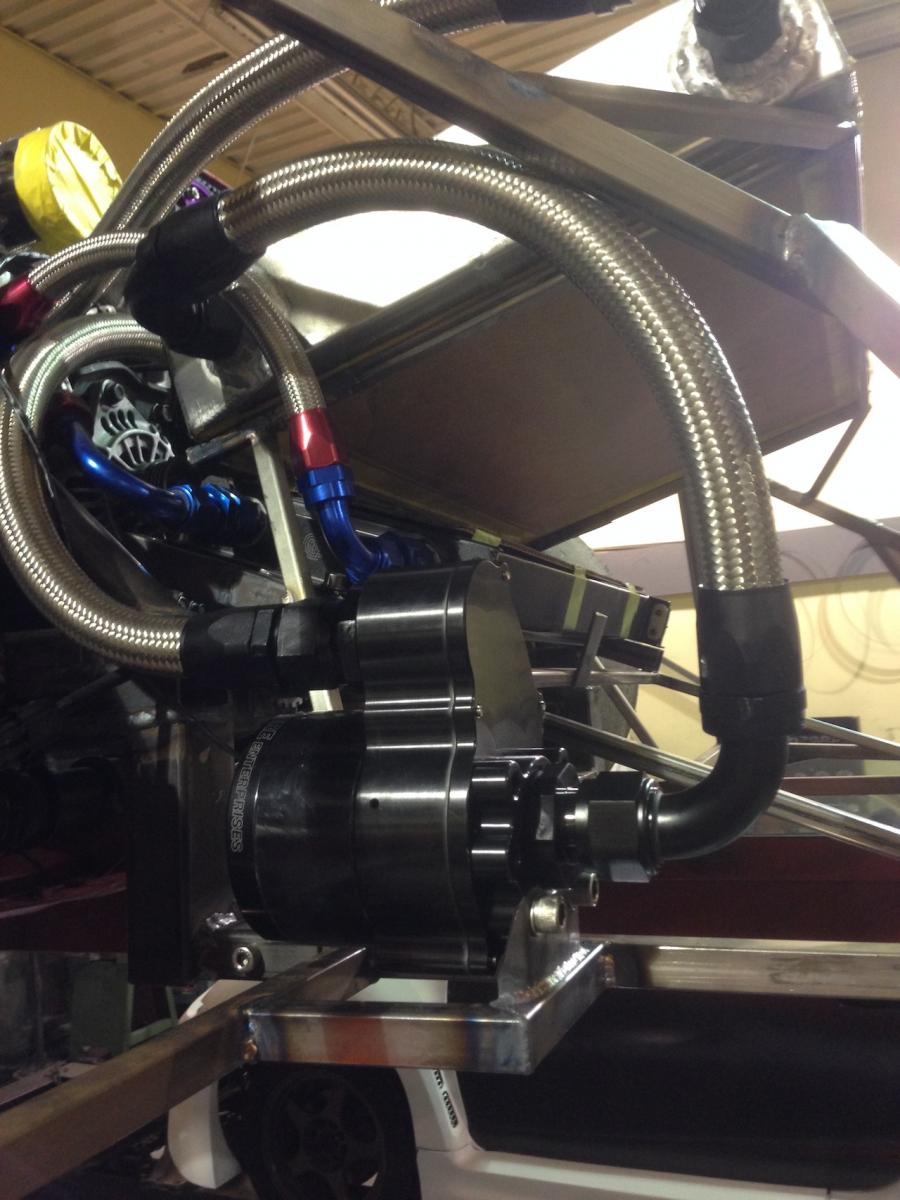

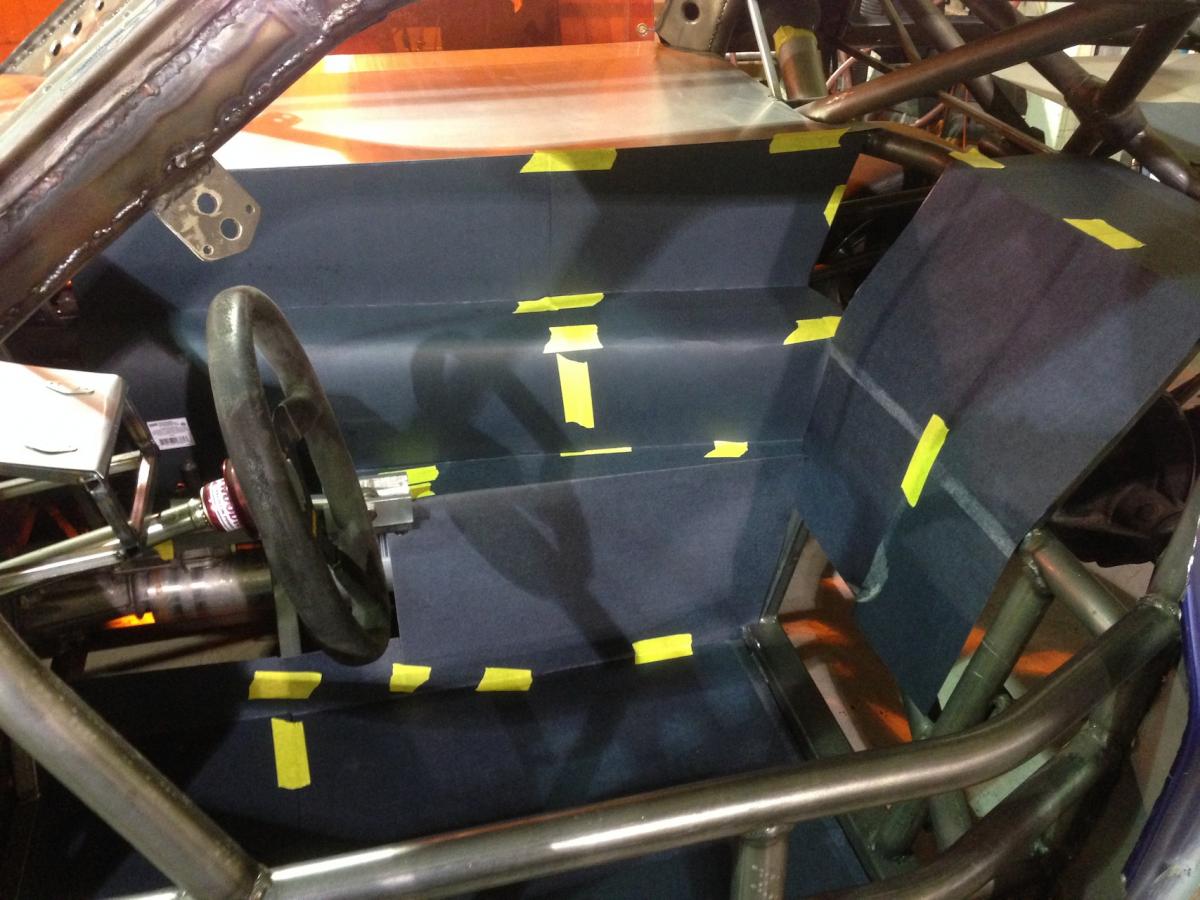

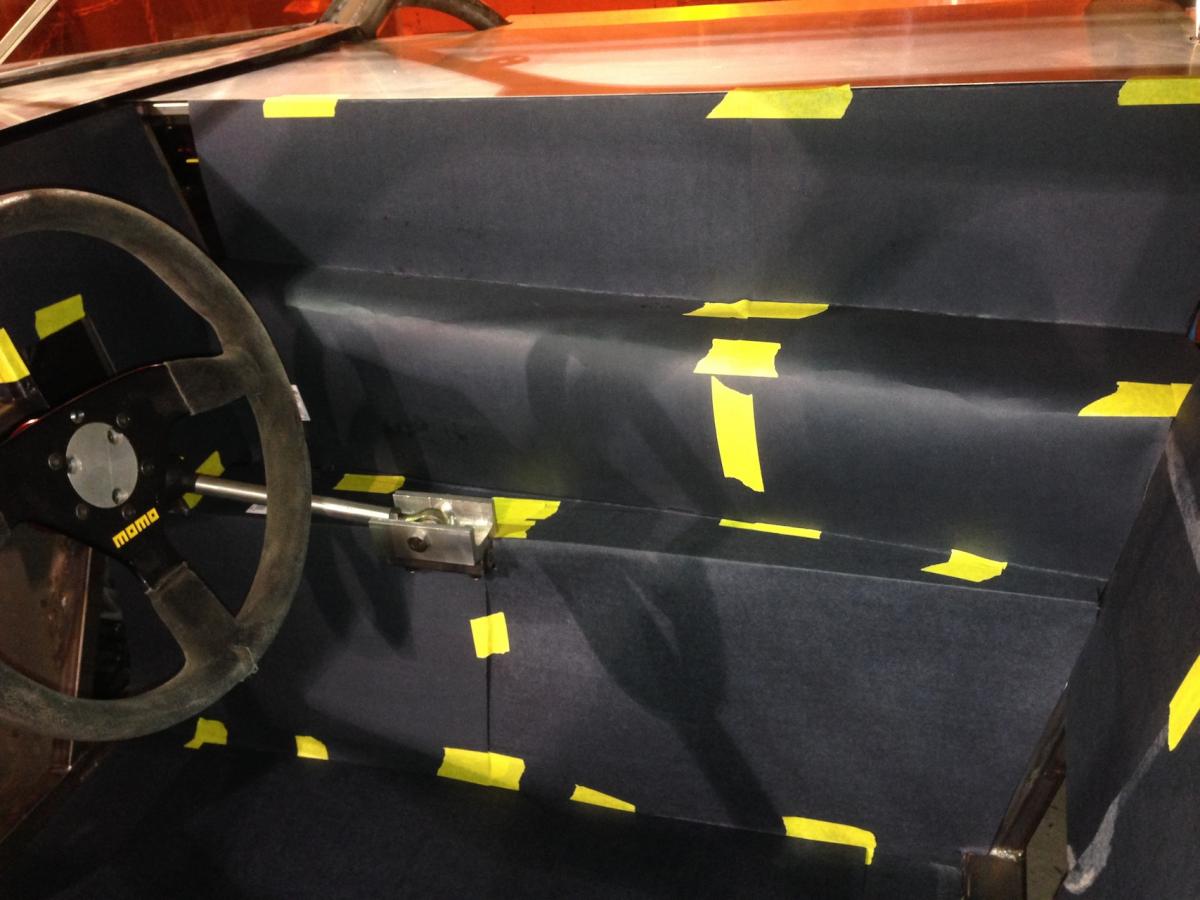

Pump is mounted and cooling system is done. Working on making templates for the rest of the interior sheet-metal.





Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_1846.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1849.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1864.jpg
bcrx7 is offline   Reply With Quote
Old 12-04-2013, 01:27 PM   #202
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

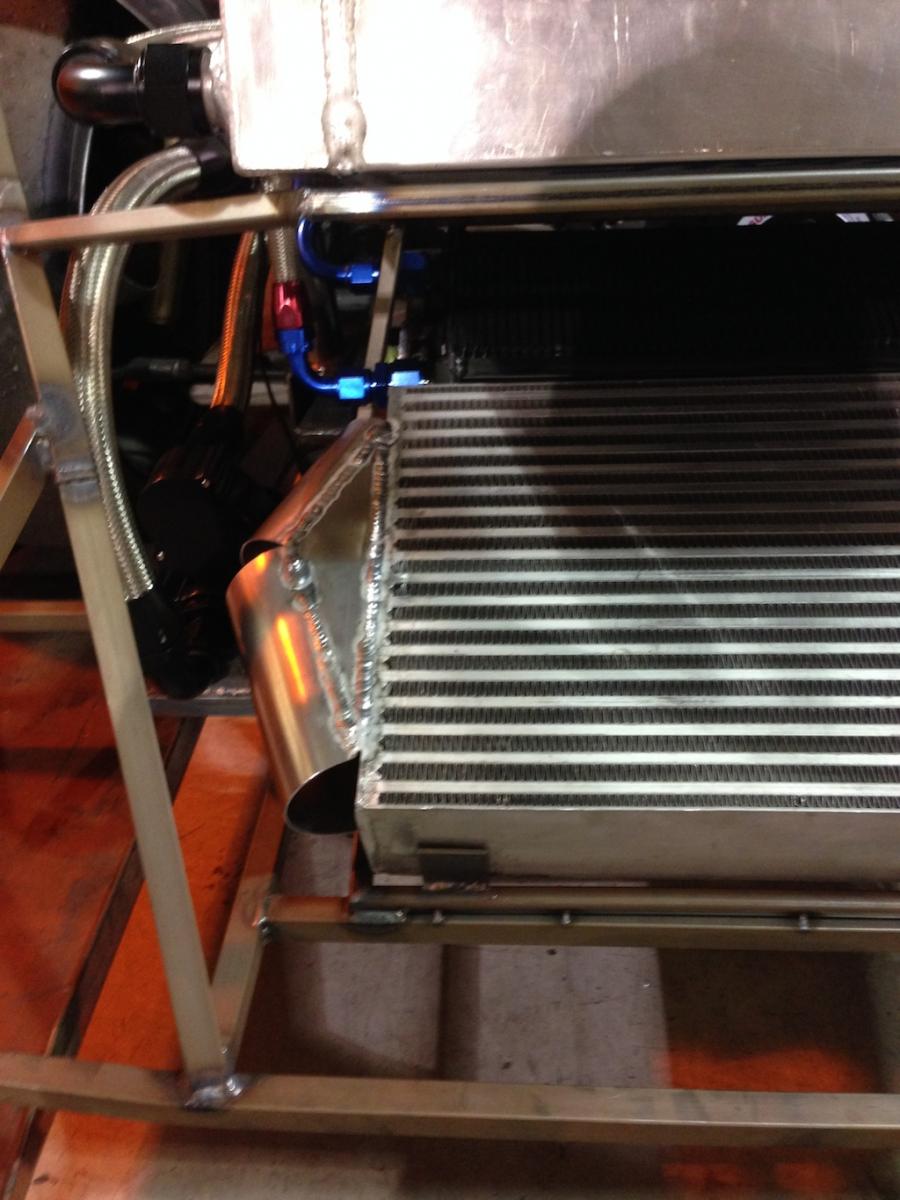

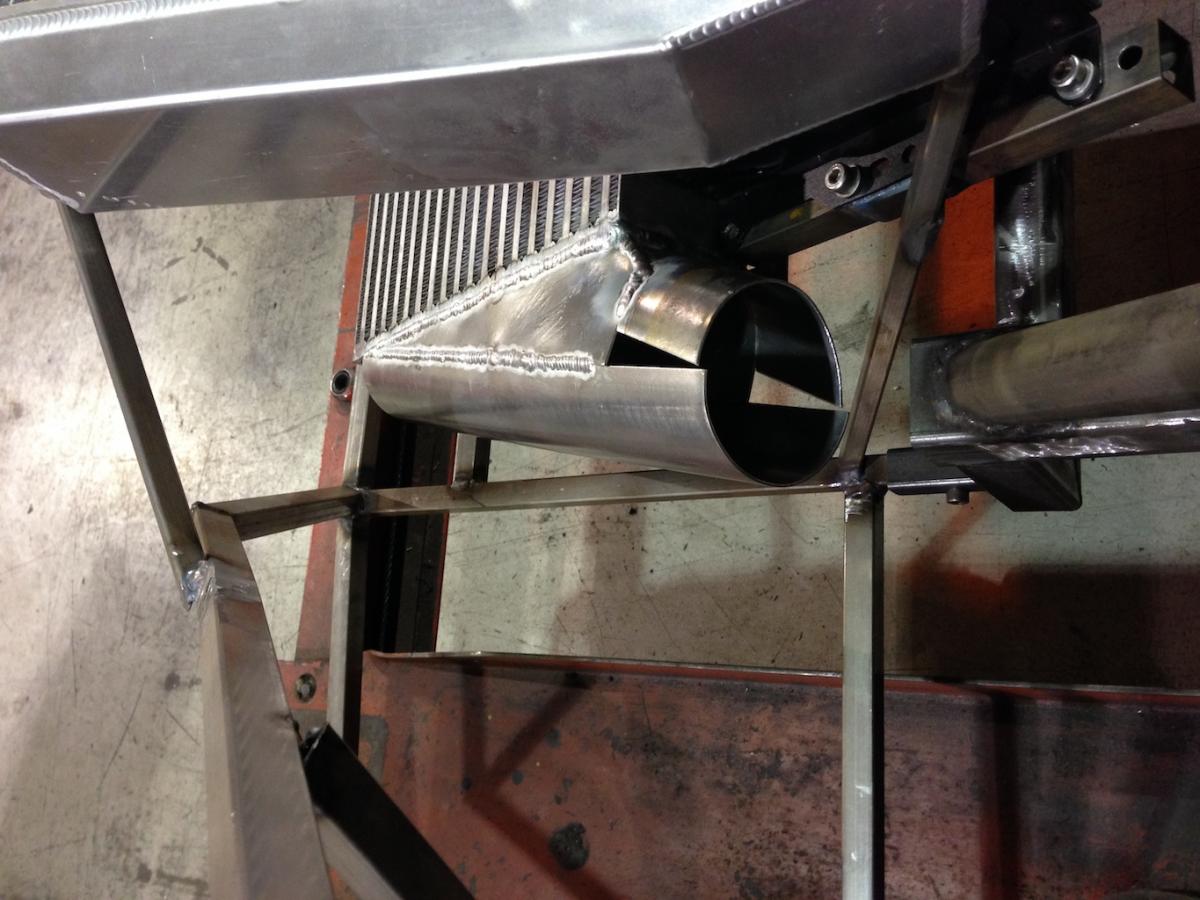

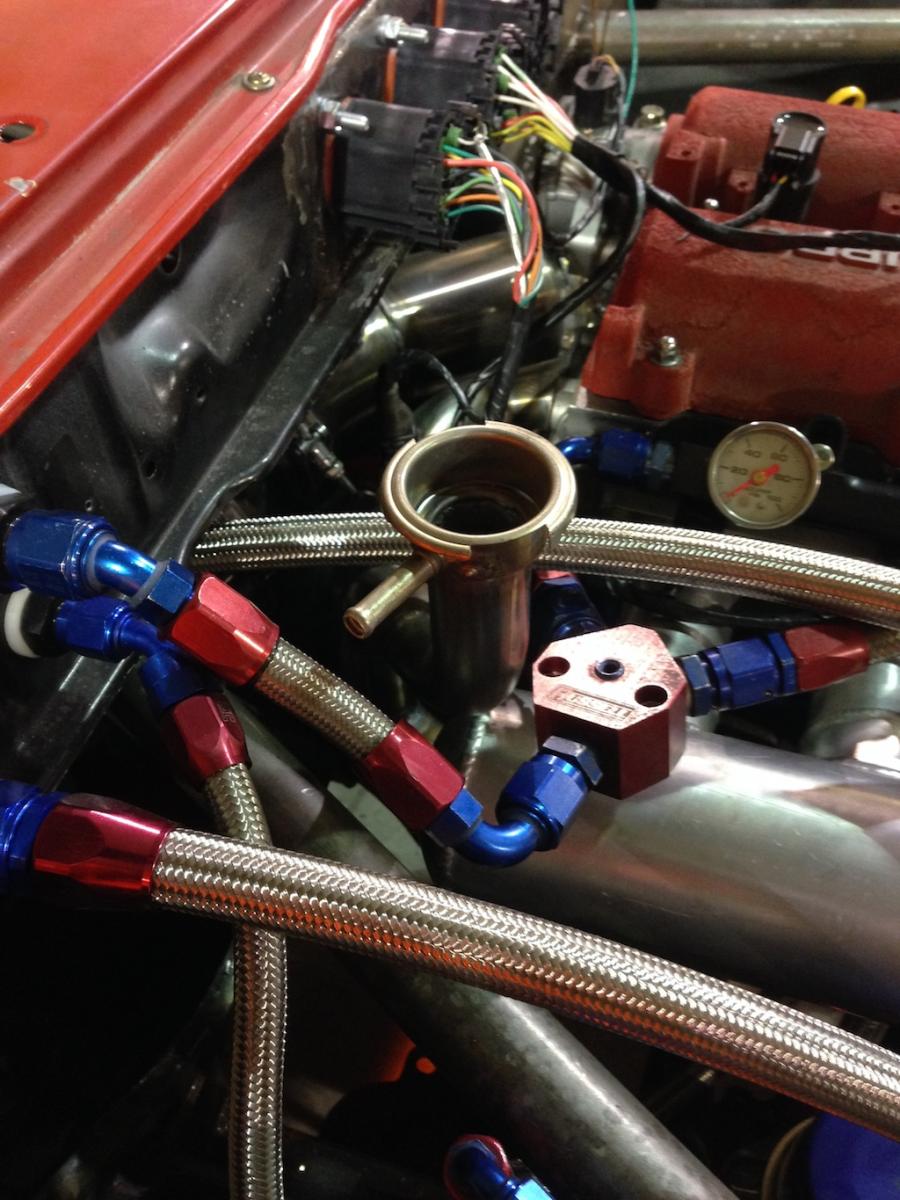

Getting the intercooler ready for the arrival of the turbo! Oh and added a coolant filler neck since it probably is required





Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_1912.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1913.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1914.jpg
bcrx7 is offline   Reply With Quote
Old 12-04-2013, 09:12 PM   #203
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Looks badass! Can't wait to see videos of this beast
RyanRaduechel is offline   Reply With Quote
Old 12-06-2013, 01:28 PM   #204
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Thanks Ryan!

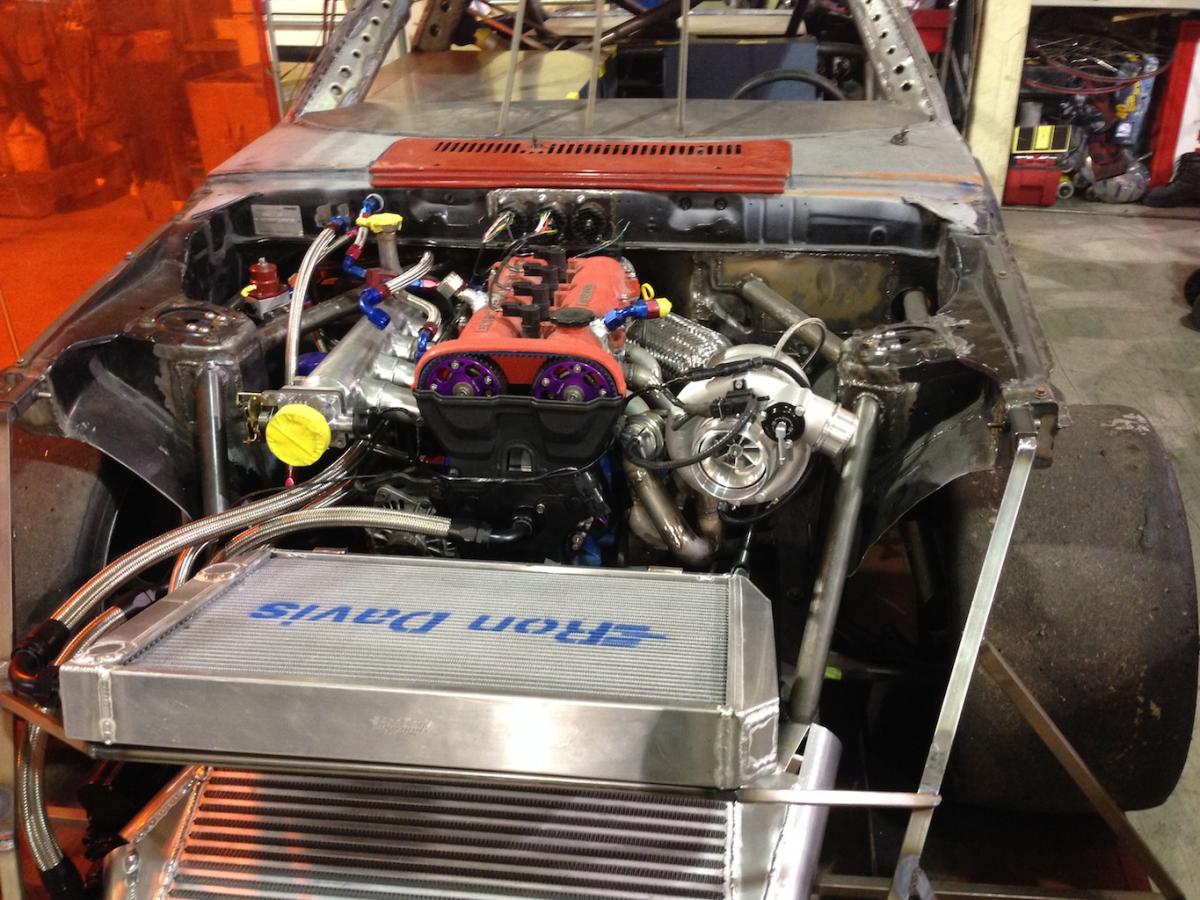

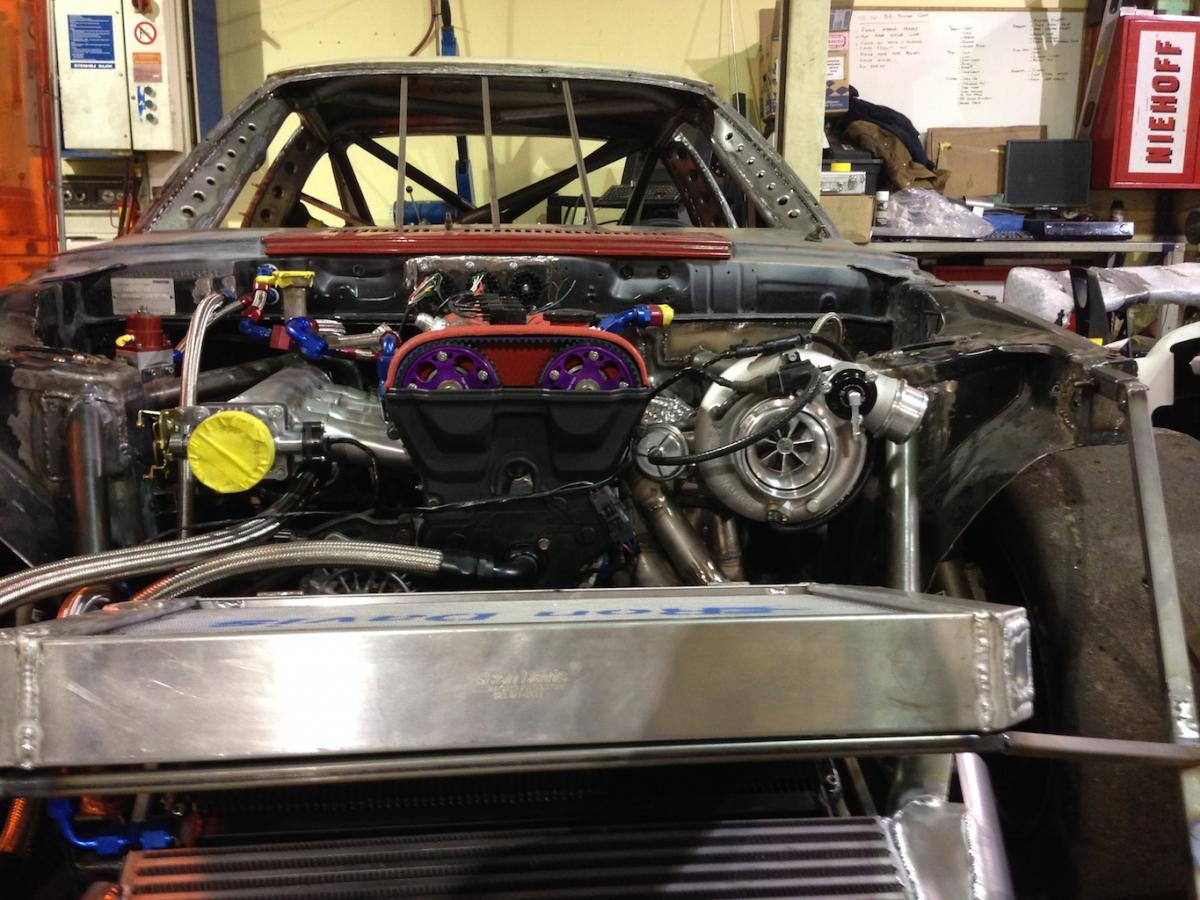

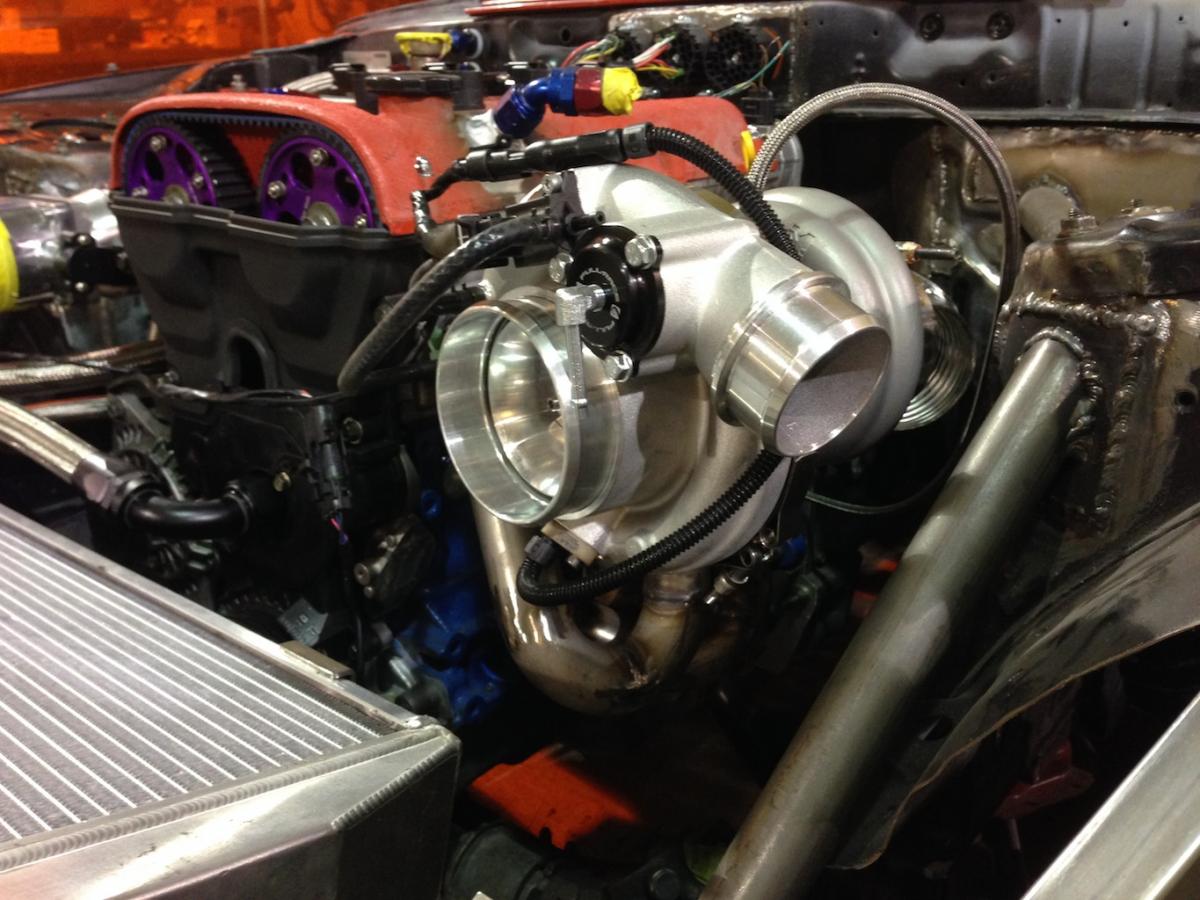

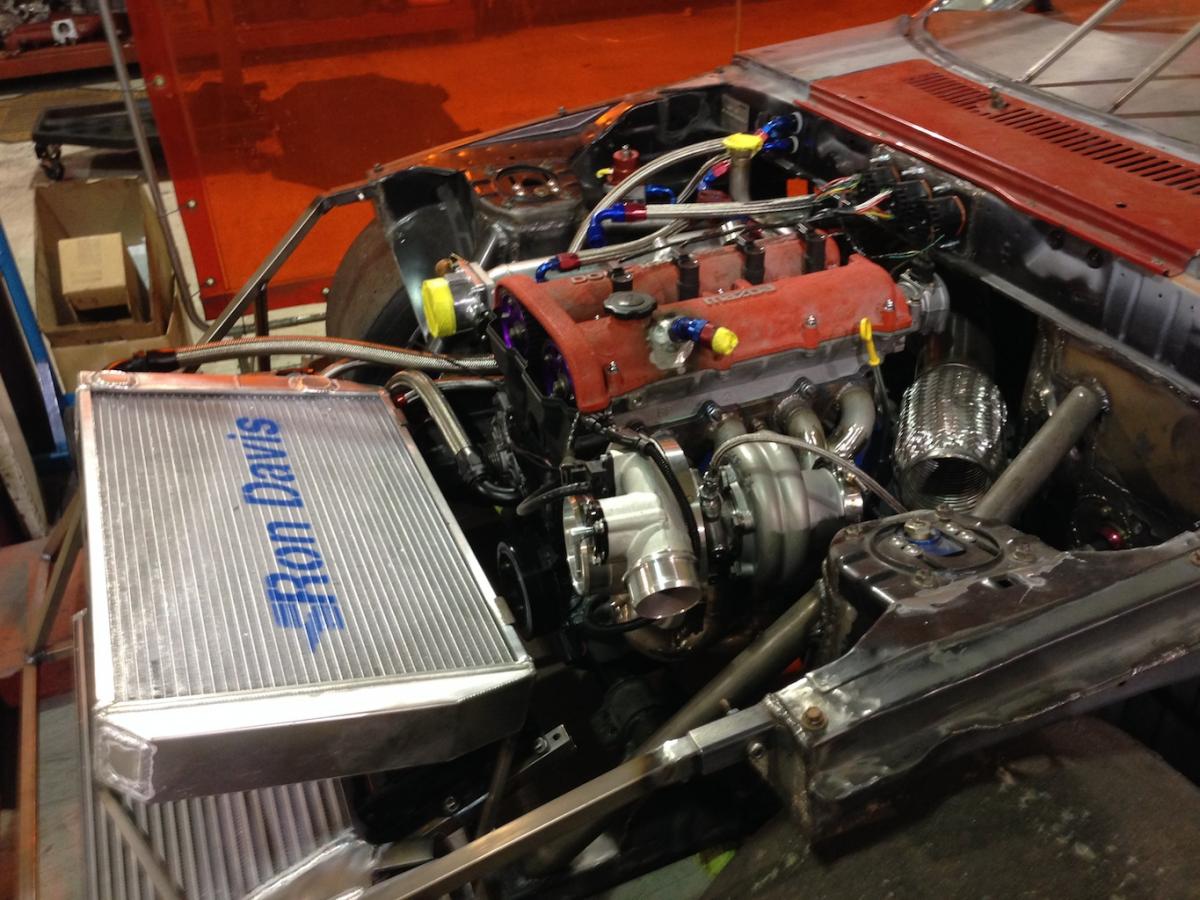

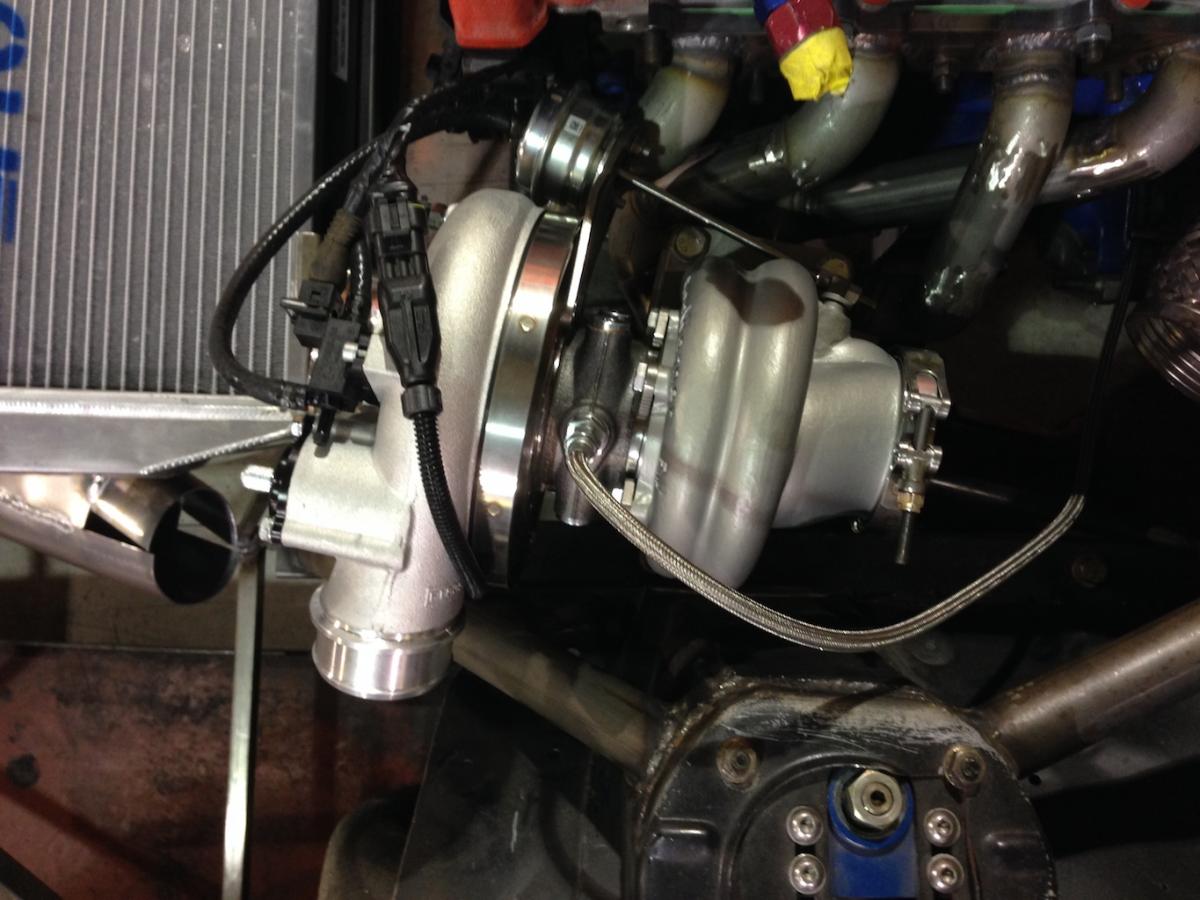

Look what showed up yesterday! BorgWarner EFR 8374 big boy is finally here! This thing is massive!!!









Attached Thumbnails
1984 RX-7 Race Car with BP! (almost a Miata)-img_1940.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1941.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1943.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1947.jpg   1984 RX-7 Race Car with BP! (almost a Miata)-img_1948.jpg


Last edited by bcrx7; 12-06-2013 at 01:42 PM.
bcrx7 is offline   Reply With Quote
Old 12-06-2013, 01:50 PM   #205
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,927
Total Cats: 0
Default

I'd keep small children, squirrels, cats, and birds away from that...
Efini~FC3S is offline   Reply With Quote
Old 12-06-2013, 01:52 PM   #206
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,251
Default

EHHHHHHMERRRGERRRRRRRR

18psi is offline   Reply With Quote
Old 12-06-2013, 02:01 PM   #207
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by Efini~FC3S View Post
I'd keep small children, squirrels, cats, and birds away from that...
Shop cat is already missing... better check in there!
bcrx7 is offline   Reply With Quote
Old 12-06-2013, 02:13 PM   #208
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Sweet jesus.
Impuls is offline   Reply With Quote
Old 12-06-2013, 02:24 PM   #209
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,017
Total Cats: 111
Default

Good lord, you don't **** around do you? Great car.
Oscar is offline   Reply With Quote
Old 12-06-2013, 02:32 PM   #210
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

No ******* around! Originally I had thought about 7670, but after talking to the boys at Full-Race, they said just go for it!

When I saw the box and compared to the box the 7064 came in, I was a bit worried if it would fit! I have had to clock the turbo about 5deg (allowed up to 20deg) so the waste gate had enough clearance from Cylinder 1 pipe!

This thing is freaking huge and we have a 9180 at the shop too for a 850-900 HP project (Not BP unfortunately).

The late night working of getting this thing to start before the new years continues. I am waiting on a few aluminum v-band flanges for the intercooler piping and a 3"-4" transition for the turbo down pipe and we should be good to go!
bcrx7 is offline   Reply With Quote
Old 12-06-2013, 03:45 PM   #211
Newb

Join Date: Aug 2009
Posts: 21
Total Cats: 0
Default

They are big. I used to run a 7064 TS on my wrx. Turbo is massive. You'll have fun with the 8374...
thefoos is offline   Reply With Quote
Old 12-06-2013, 04:10 PM   #212
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I have no doubt I will!
bcrx7 is offline   Reply With Quote
Old 12-06-2013, 10:12 PM   #213
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,251
Default

this thing is going to need some serious fuel and some serious spark
18psi is offline   Reply With Quote
Old 12-06-2013, 10:45 PM
harry.s
This message has been deleted by shuiend.
Old 12-06-2013, 10:52 PM
18psi
This message has been deleted by sixshooter. Reason: clean up
Old 12-06-2013, 10:56 PM
Leafy
This message has been deleted by sixshooter. Reason: clean up
Old 12-06-2013, 11:08 PM
Joe Perez
This message has been deleted by sixshooter. Reason: clean up
Old 12-06-2013, 11:09 PM
18psi
This message has been deleted by sixshooter. Reason: clean up
Old 12-07-2013, 11:23 AM   #214
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Quote:
Originally Posted by 18psi View Post
this thing is going to need some serious fuel and some serious spark
I might go the E85 route, too bad we don't have any up here. So the races up here will be C108 and C116 race gas. When i head down south of the border to Seattle and Portland, will get E85. By the way what is the shelf life of that stuff? As bad as gas? Maybe I can go buy a 55gal drum and bring it up.

As for spark, have the WeaponX coils, we shall see how they hold up. And have a A1000 fuel pump which should be more than enough.
bcrx7 is offline   Reply With Quote
Old 12-07-2013, 11:23 AM
bcrx7
This message has been deleted by sixshooter. Reason: clean up
Old 12-07-2013, 01:04 PM   #215
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,421
Total Cats: 2,251
Default

its very sensitive to temperature/weather. gotta store it properly or you'll have a bad time.
18psi is offline   Reply With Quote
Old 12-07-2013, 04:46 PM   #216
Newb

Join Date: Aug 2009
Posts: 21
Total Cats: 0
Default

Quote:
Originally Posted by bcrx7 View Post
I might go the E85 route, too bad we don't have any up here. So the races up here will be C108 and C116 race gas. When i head down south of the border to Seattle and Portland, will get E85. By the way what is the shelf life of that stuff? As bad as gas? Maybe I can go buy a 55gal drum and bring it up.

As for spark, have the WeaponX coils, we shall see how they hold up. And have a A1000 fuel pump which should be more than enough.
If you don't have E85 available at the pump (and its good), and you are going to need to special order anyway, get a 55 gal drum of E100. You'd need to come up with a starting solution for cold weather, but that wouldn't be bad if this is pure racecar.

Shelf life depends on environment and storage. You want to keep it dry for sure. It will absorb water straight out of the air.
thefoos is offline   Reply With Quote
Old 12-08-2013, 10:09 AM   #217
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Yes, this is dedicated race car, so cold weather starting is not an issue! I will need to look into it. The local Evans coolant guy said he might be looking into bringing in some race gas. Shall see what he is thinking of.
bcrx7 is offline   Reply With Quote
Old 12-08-2013, 10:21 AM   #218
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,372
Total Cats: 57
Default

Quote:
Originally Posted by thefoos View Post
Shelf life depends on environment and storage. You want to keep it dry for sure. It will absorb water straight out of the air.
5gal jugs can be a better vessels (if available, or transfer yourself) since you break the seals closer to use. The last 5gals in the larger drum will always be different than the first 5.

Getting dry ethanol to mix your own is probably out of the question (costly anyway)?
I have not seen anything about drying the E85 with Calcium Chloride or other primitive drying agents (as water content must be the biggest varying factor, besides degradation of the gas component).
Experimenting with a race engine running on the edge can be expensive (or dumb depending on view).
NiklasFalk is offline   Reply With Quote
Old 12-08-2013, 08:04 PM   #219
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,920
Total Cats: 93
Default

Quote:
Originally Posted by NiklasFalk View Post
5gal jugs can be a better vessels (if available, or transfer yourself) since you break the seals closer to use. The last 5gals in the larger drum will always be different than the first 5.

Getting dry ethanol to mix your own is probably out of the question (costly anyway)?
I have not seen anything about drying the E85 with Calcium Chloride or other primitive drying agents (as water content must be the biggest varying factor, besides degradation of the gas component).
Experimenting with a race engine running on the edge can be expensive (or dumb depending on view).
At least water in the e85 wont harm the engine.

You also cant get e100, only e98. Well I guess you can get e100 but you'll be paying the liquor tax on it because it wont be denatured.
Leafy is offline   Reply With Quote
Old 12-08-2013, 08:48 PM   #220
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Alright! I might just get some E85 to make a tune on the dyno so I can just show up at the track down in the US and switch the map.
bcrx7 is offline   Reply With Quote
