Thanks everyone,

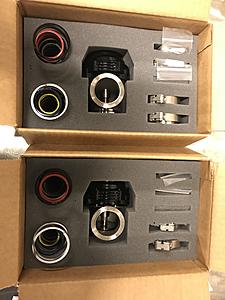

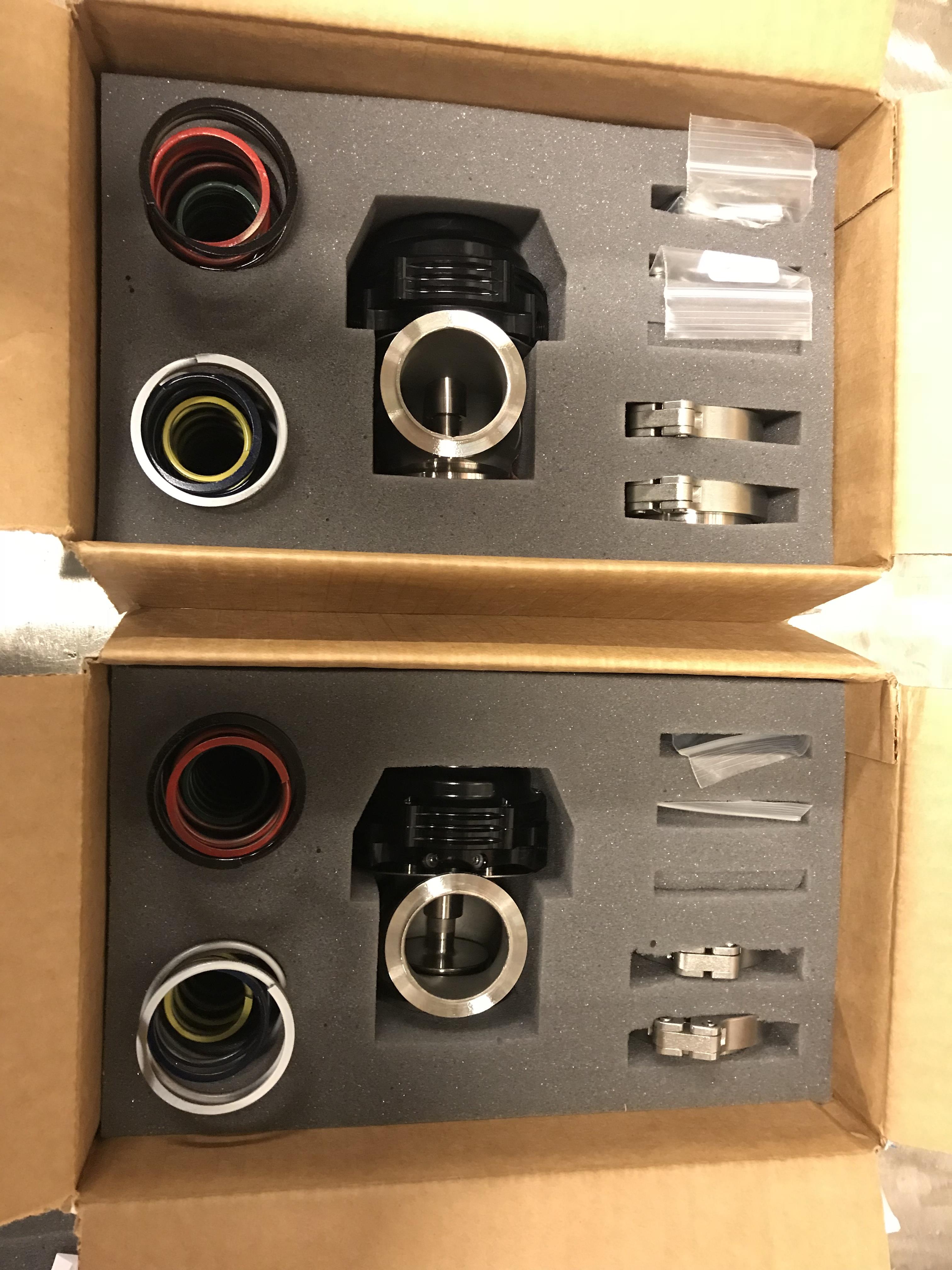

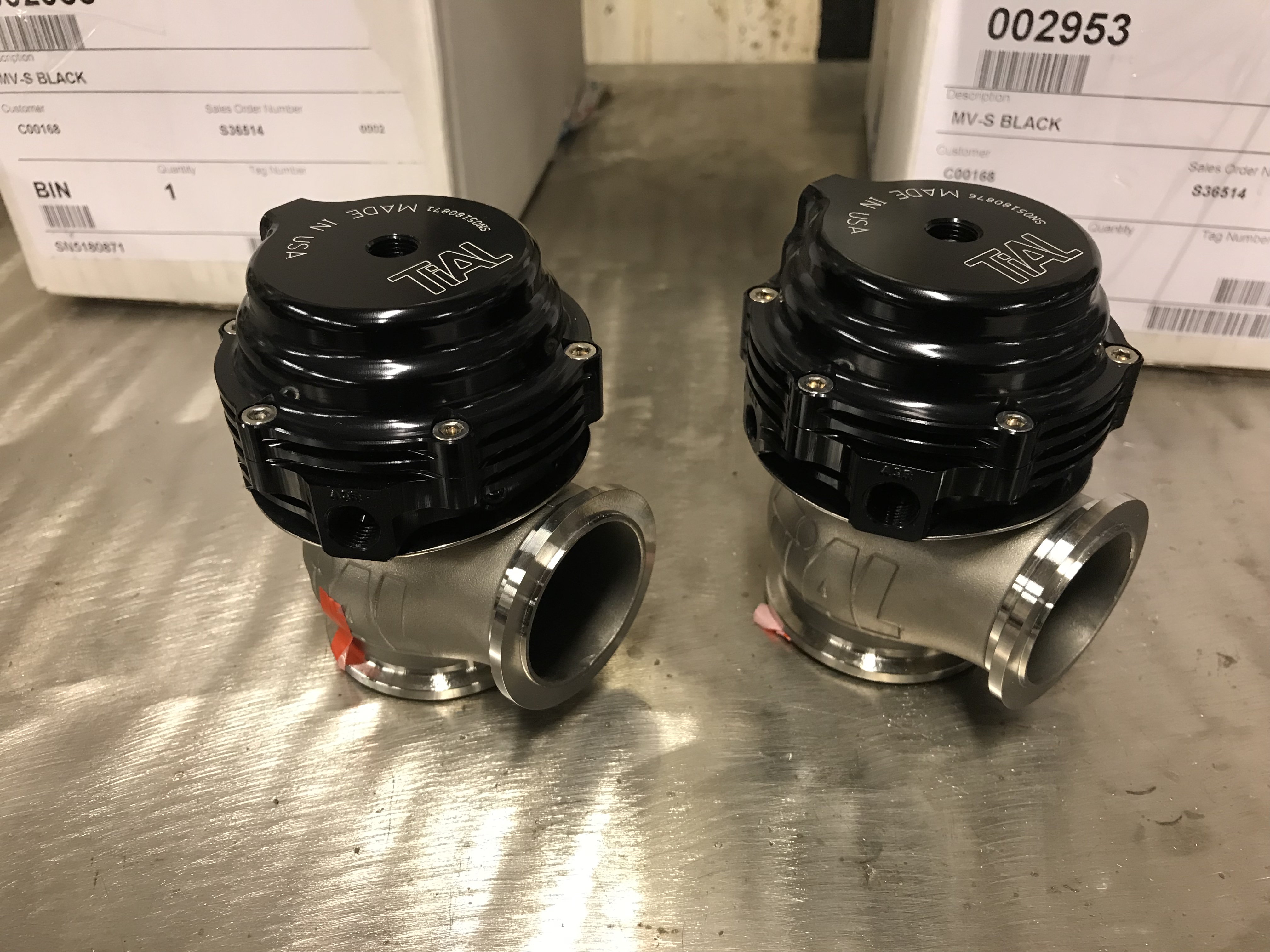

Don't have a very exiting update today, but got my new wastegates, two Tial mvs 38mm.

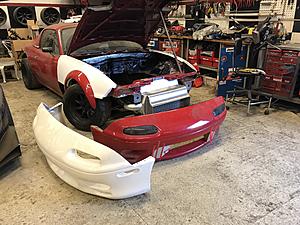

And picked up another Racingbeat front bumper, mine is in bad condition, and i need both to easier make the front bumper i want.
Don't have a very exiting update today, but got my new wastegates, two Tial mvs 38mm.
And picked up another Racingbeat front bumper, mine is in bad condition, and i need both to easier make the front bumper i want.
Reply
3
3
06-12-2018, 07:53 AM
#105
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Oslo
Posts: 123
Total Cats: 354
Have been busy helping hf-mx5t lately with some welding on his miata, but got a little bit more work done on my car.

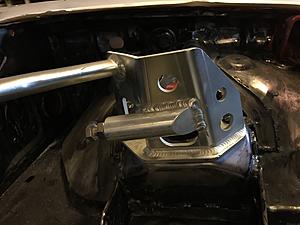

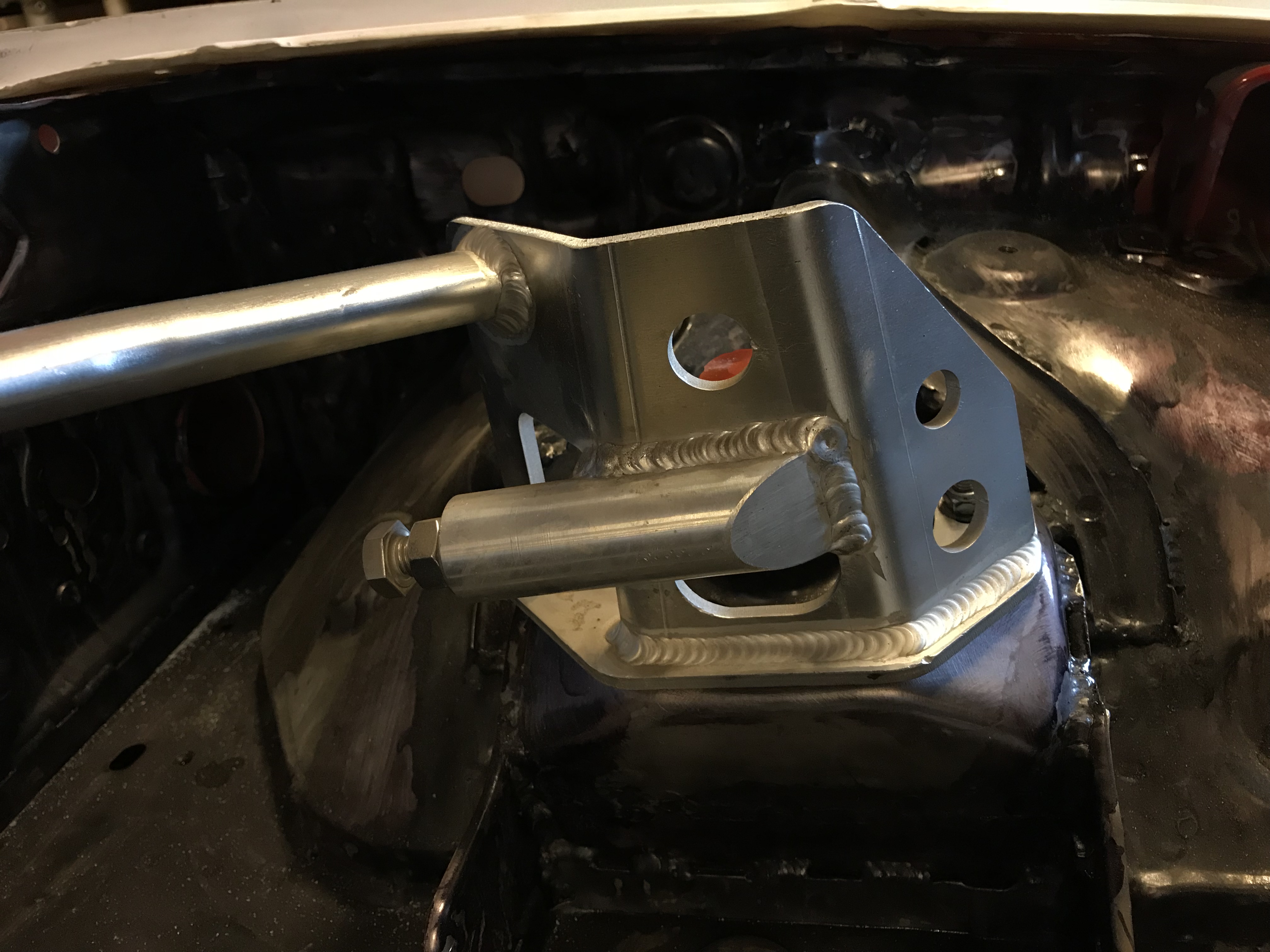

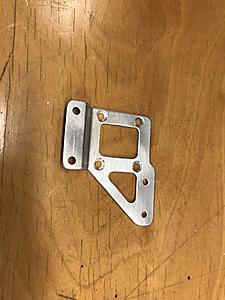

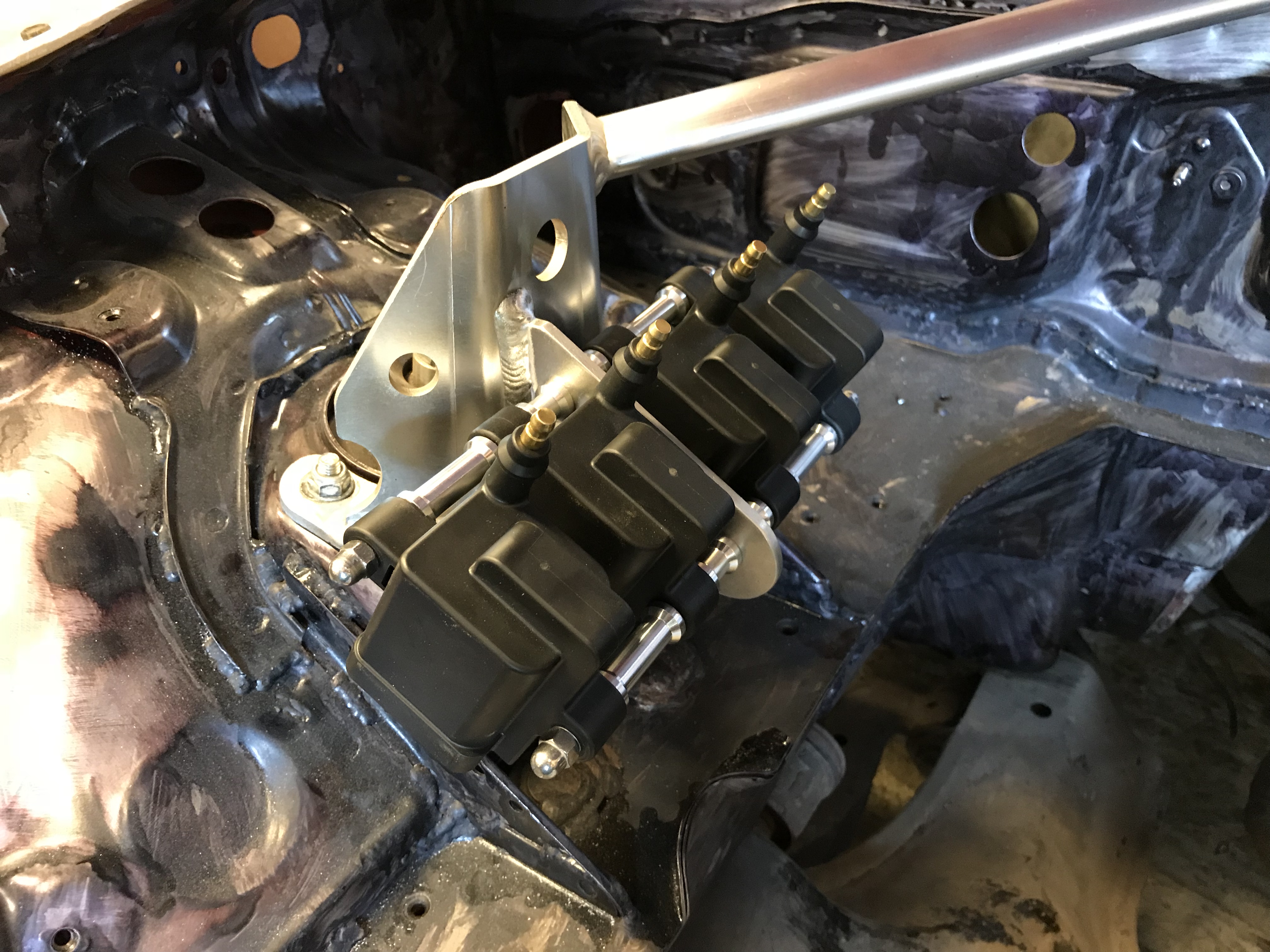

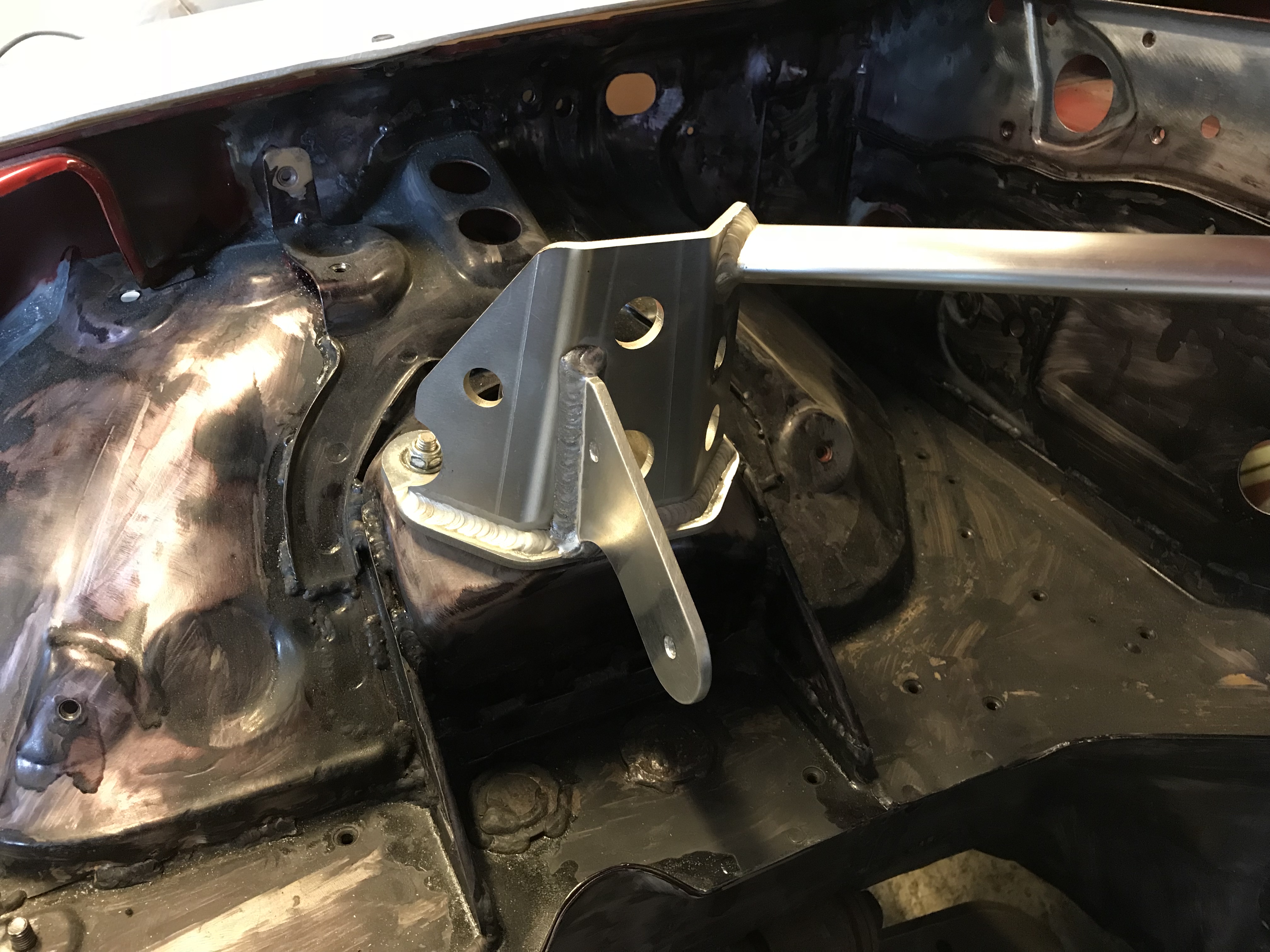

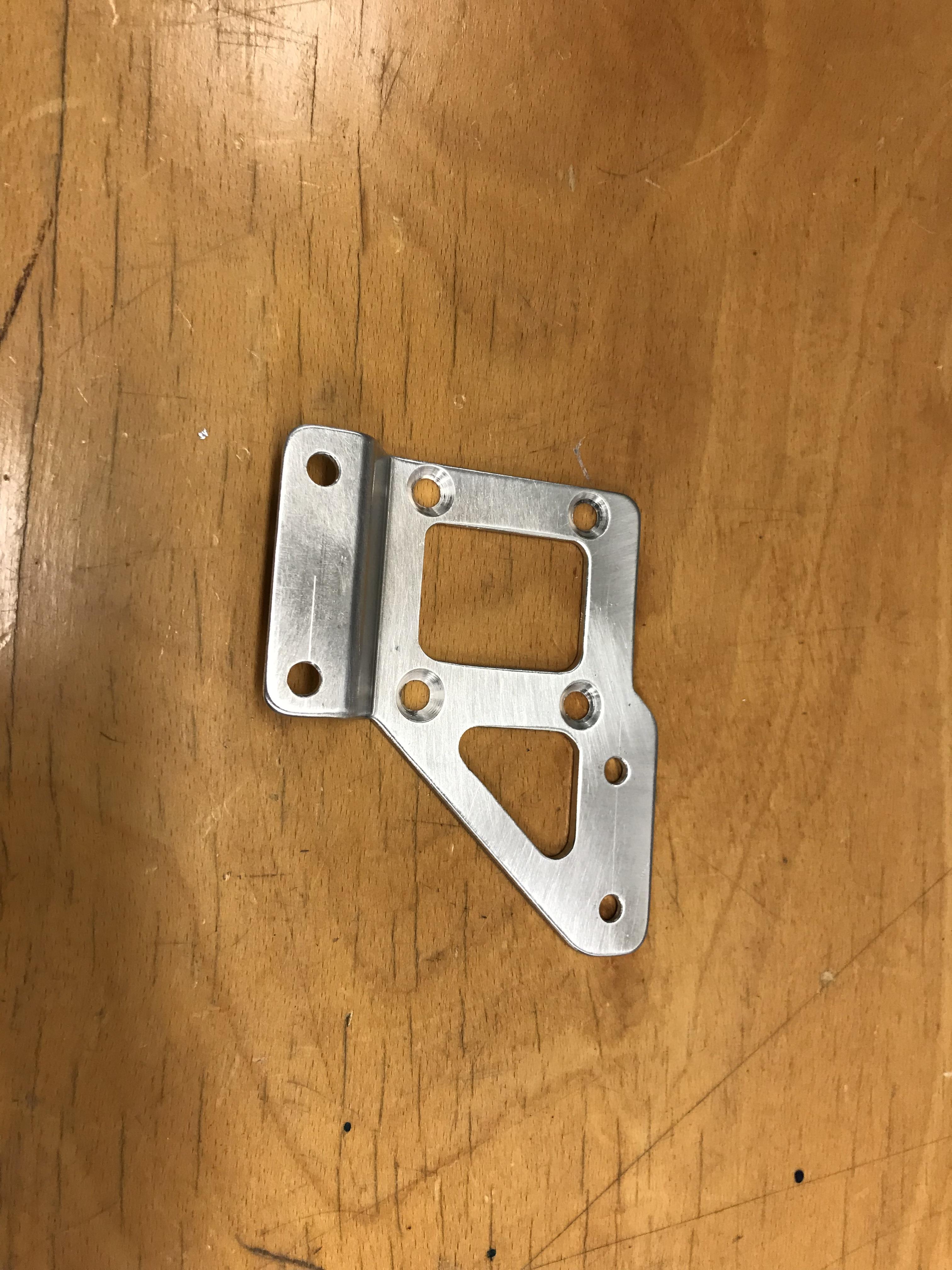

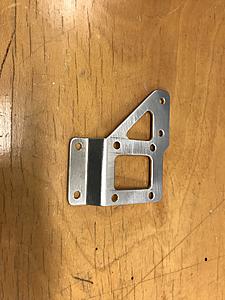

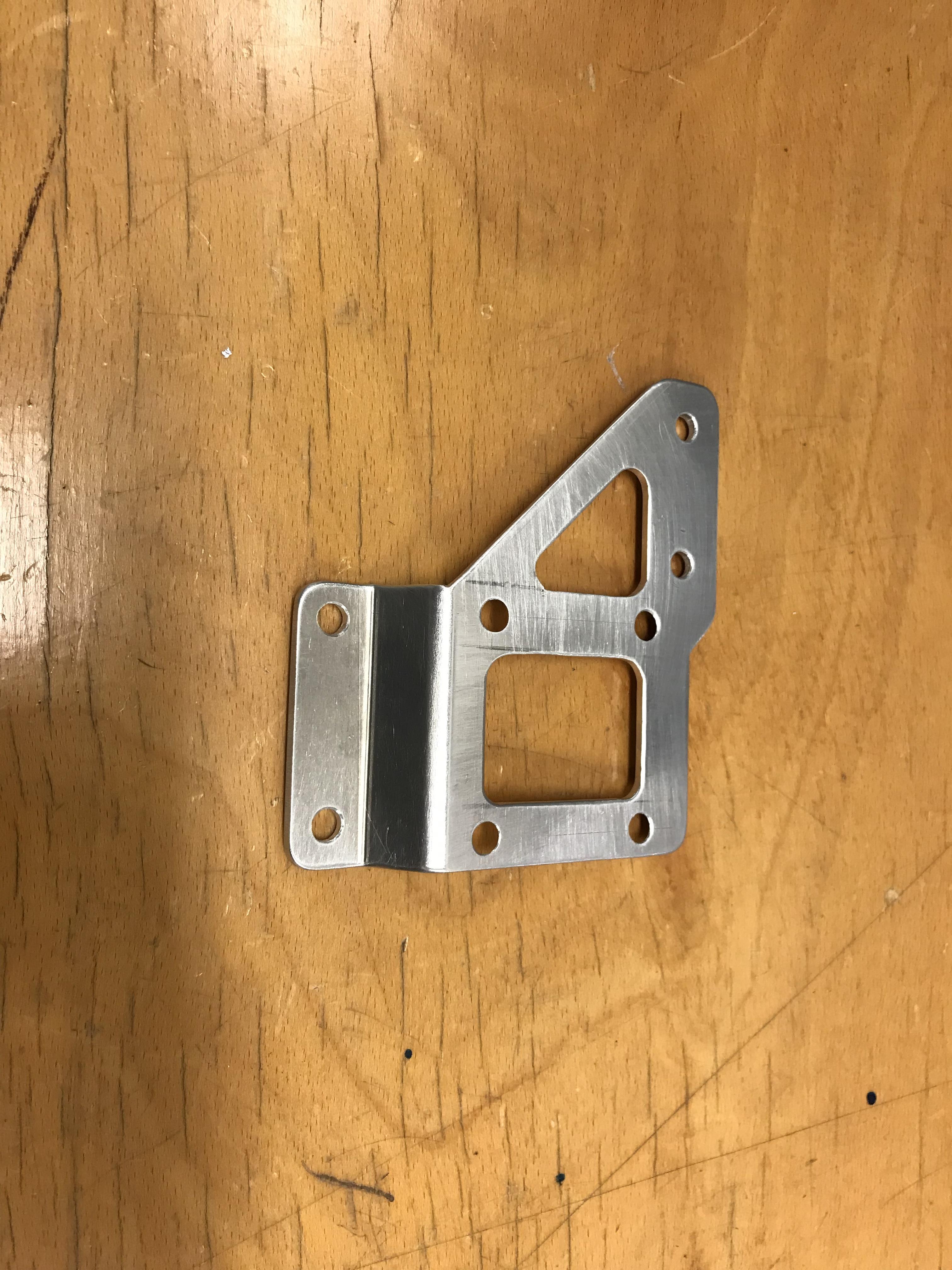

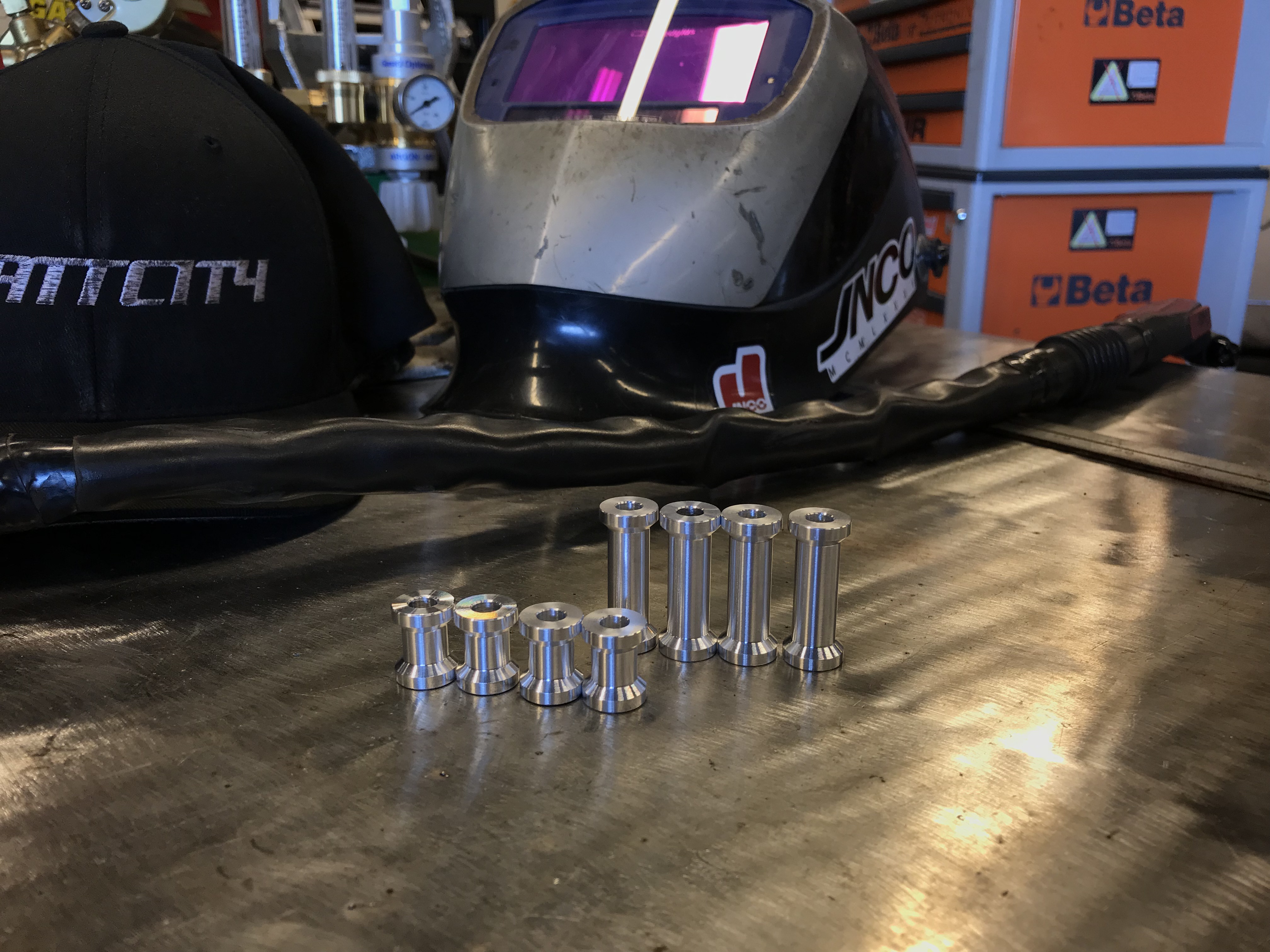

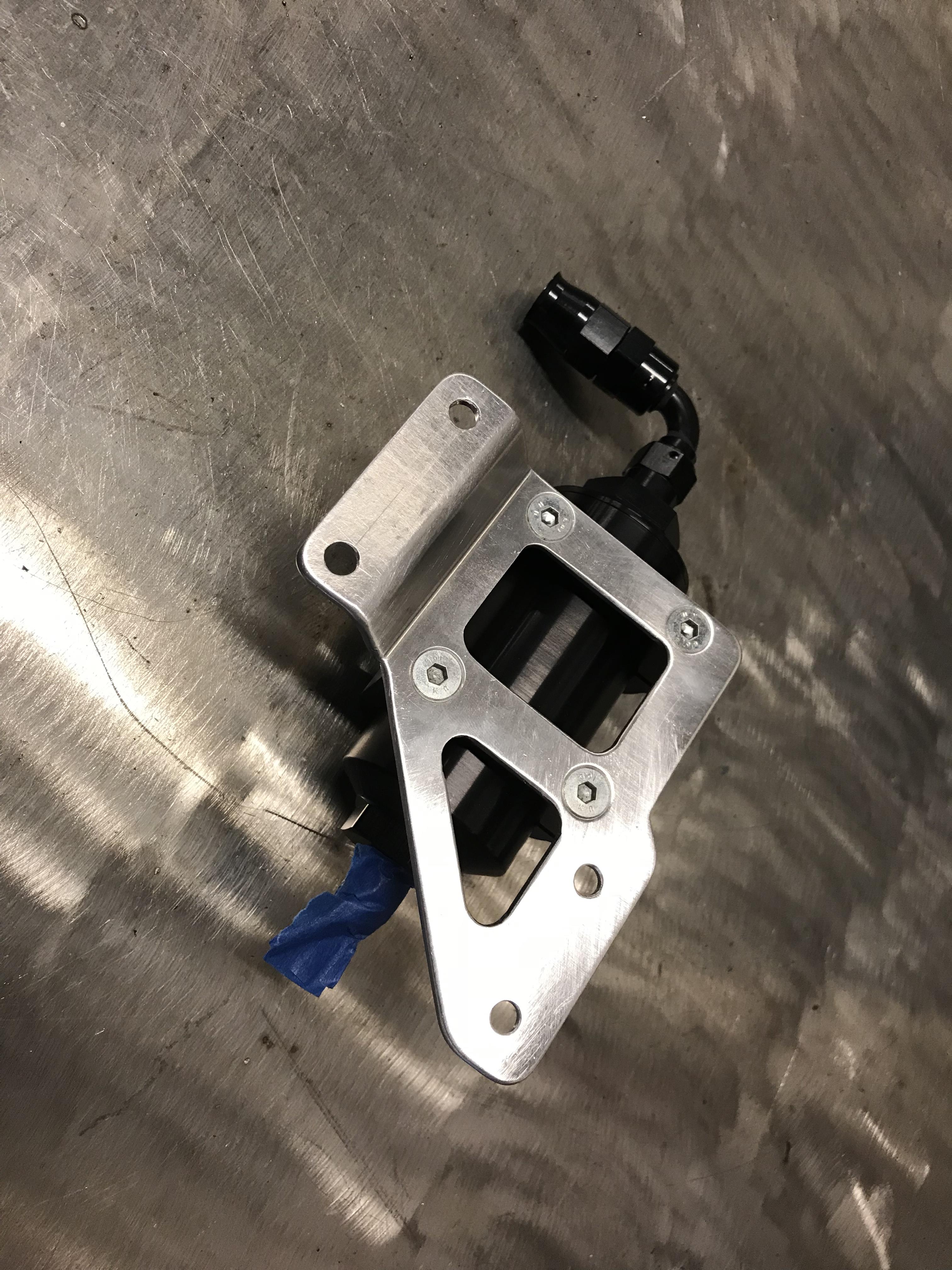

Made a bracket on the (tower brace) for the AEM smart coils, got some spacers made and a support for the brake master.
Made a bracket on the (tower brace) for the AEM smart coils, got some spacers made and a support for the brake master.
Last edited by shifti; 06-12-2018 at 08:57 AM.
Reply
2
2
06-15-2018, 02:15 PM
#106
Junior Member
Join Date: Jun 2005
Posts: 286
Total Cats: 235
(one Einar power and no gears)also testing a modified e30 m3 shocktower brace beeing added to the one already in the car
Last edited by hf-mx5t; 06-15-2018 at 02:18 PM. Reason: Edit
Reply
1
1
08-20-2018, 07:45 AM
#107
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Oslo
Posts: 123
Total Cats: 354
So after a long summer holiday and some other builds, i finally have some time for the Miata again.

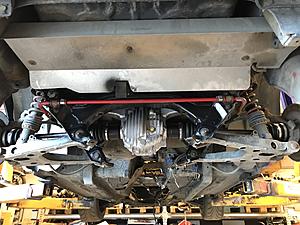

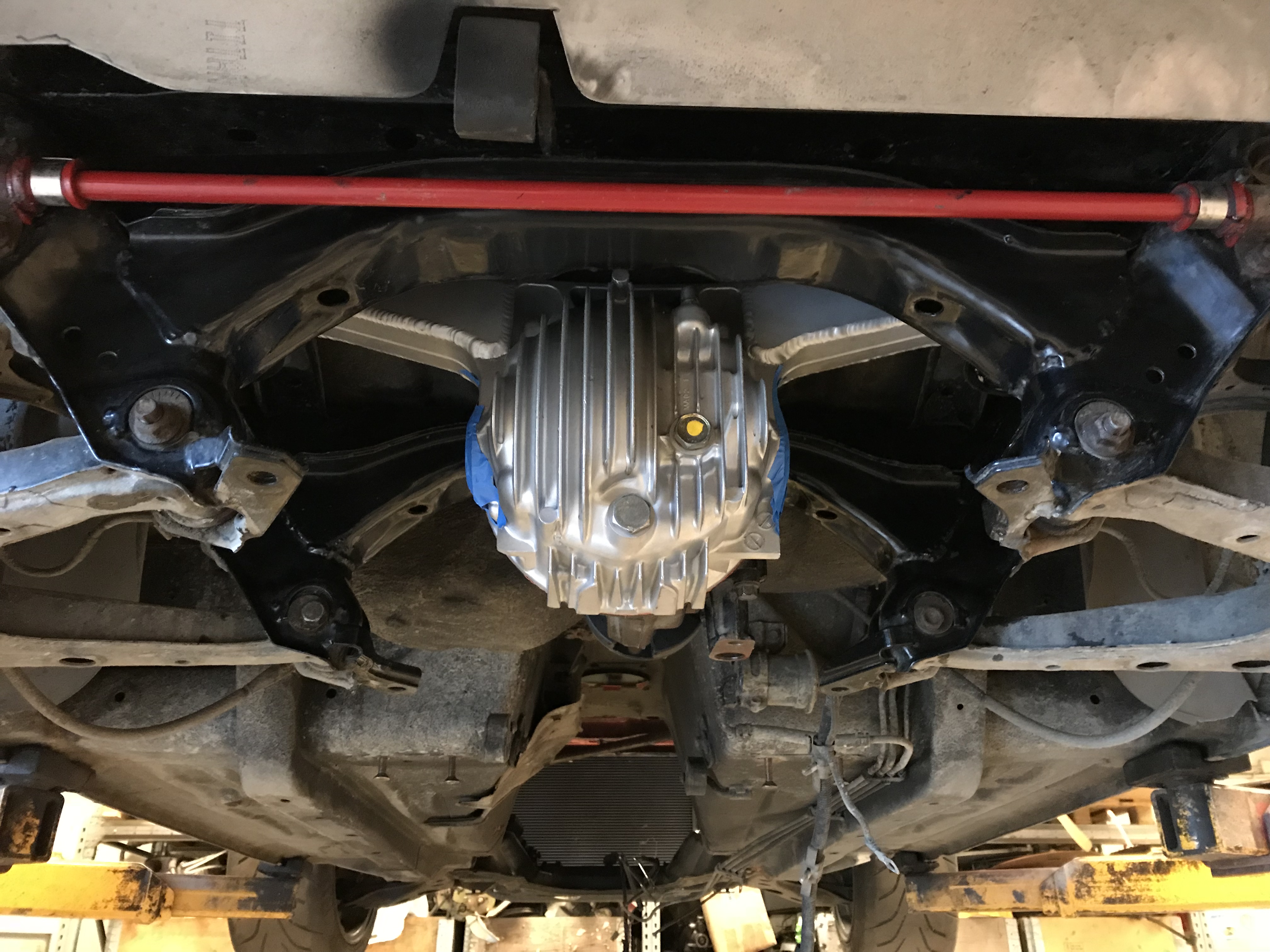

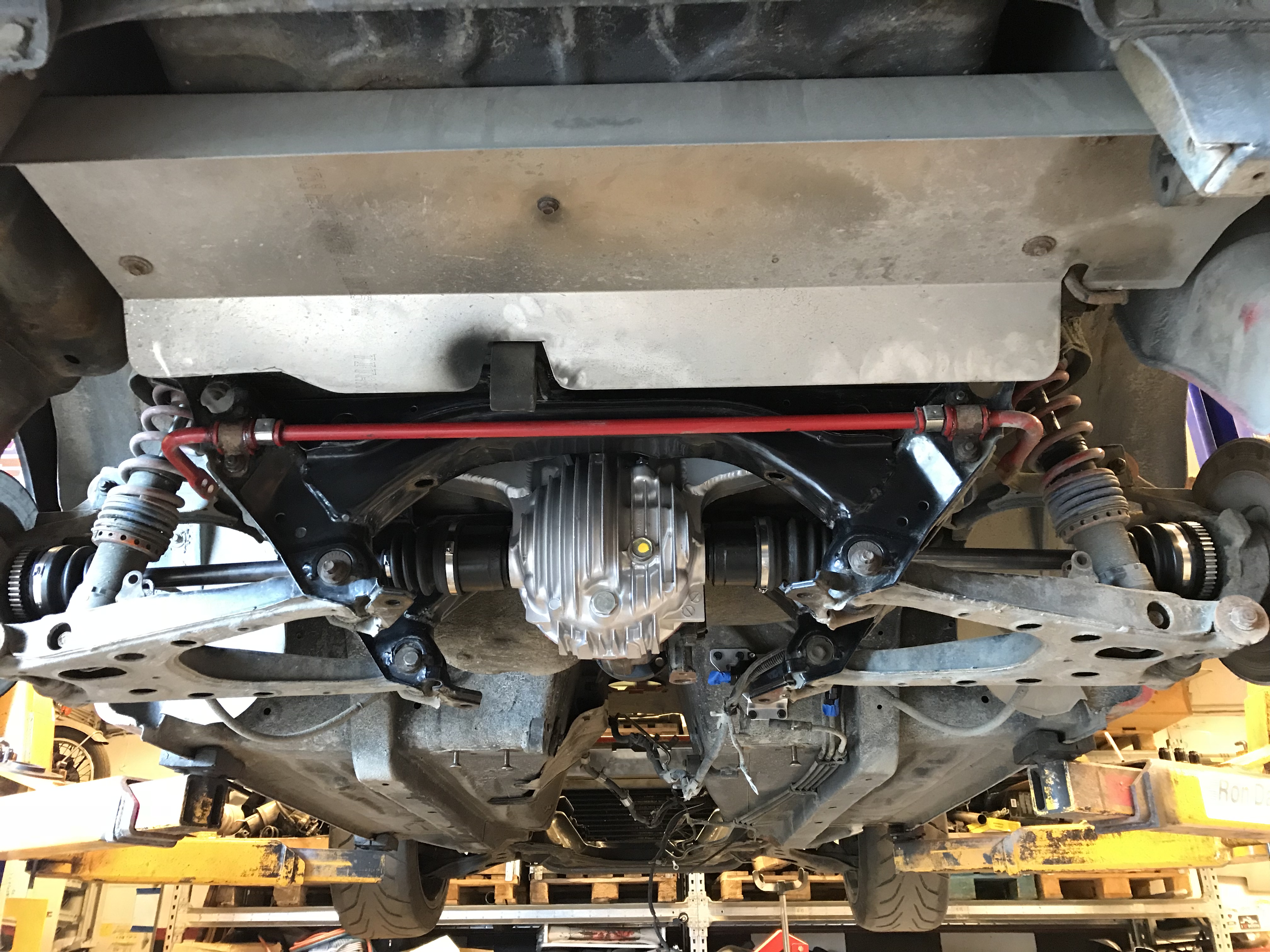

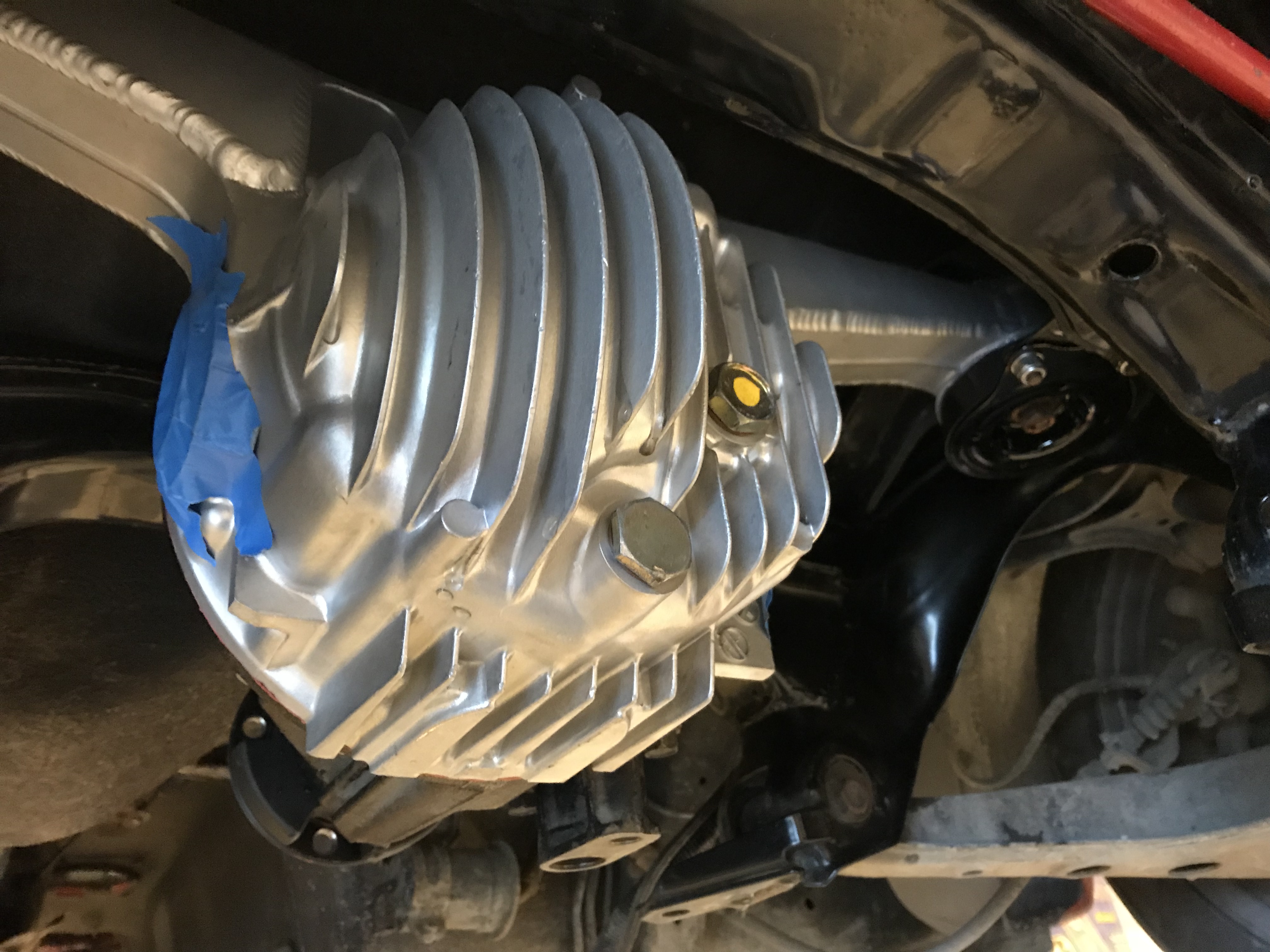

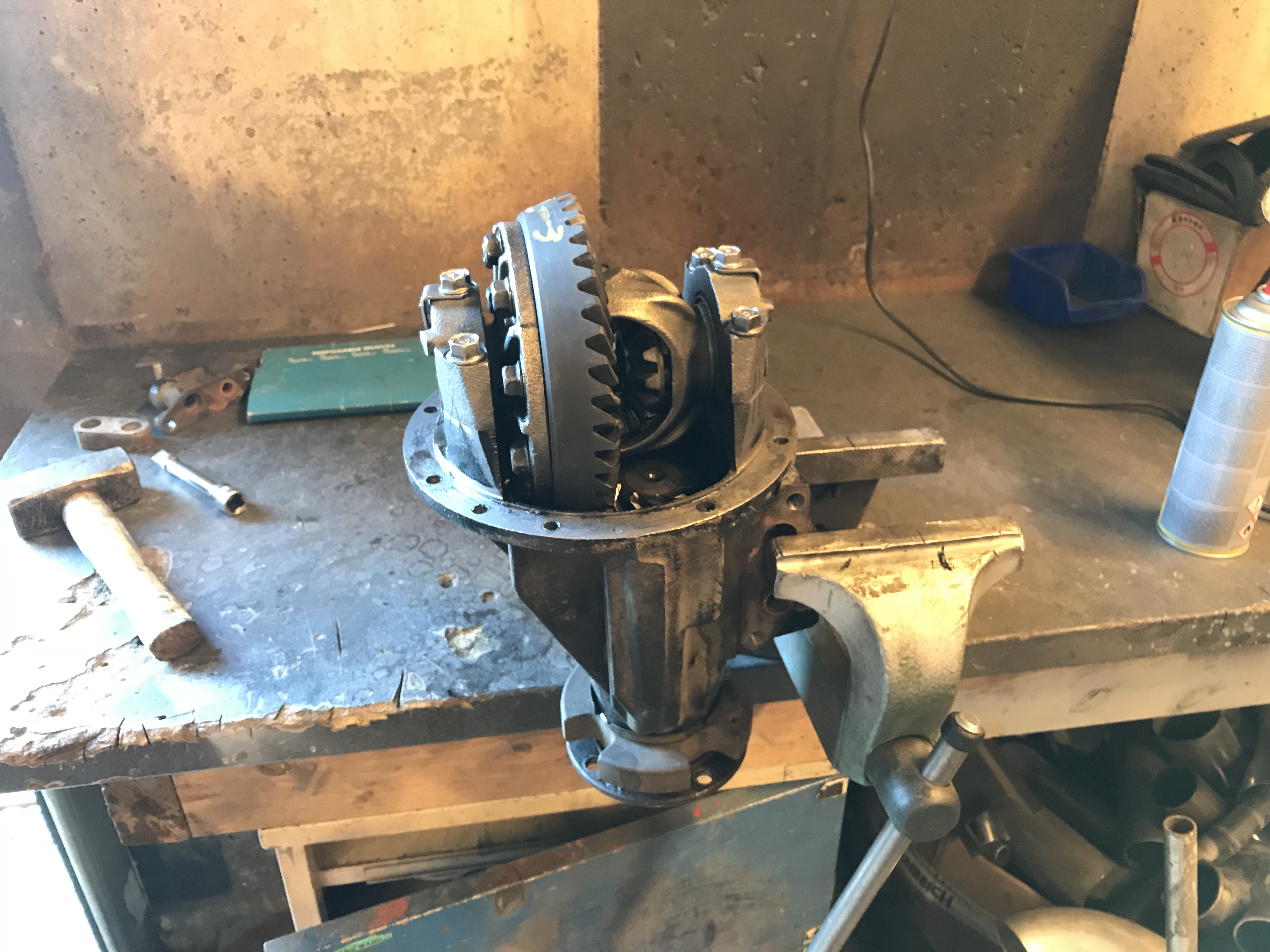

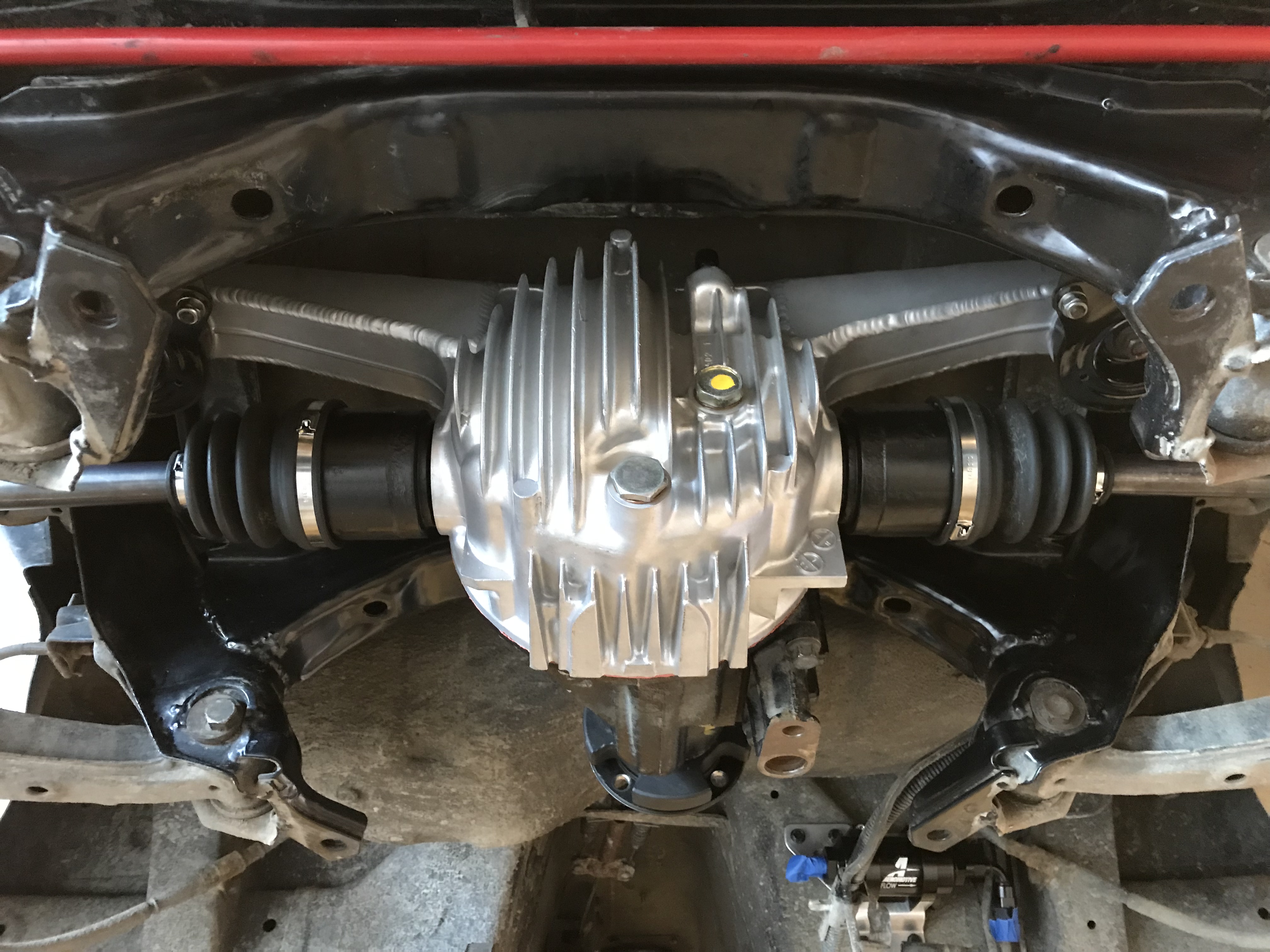

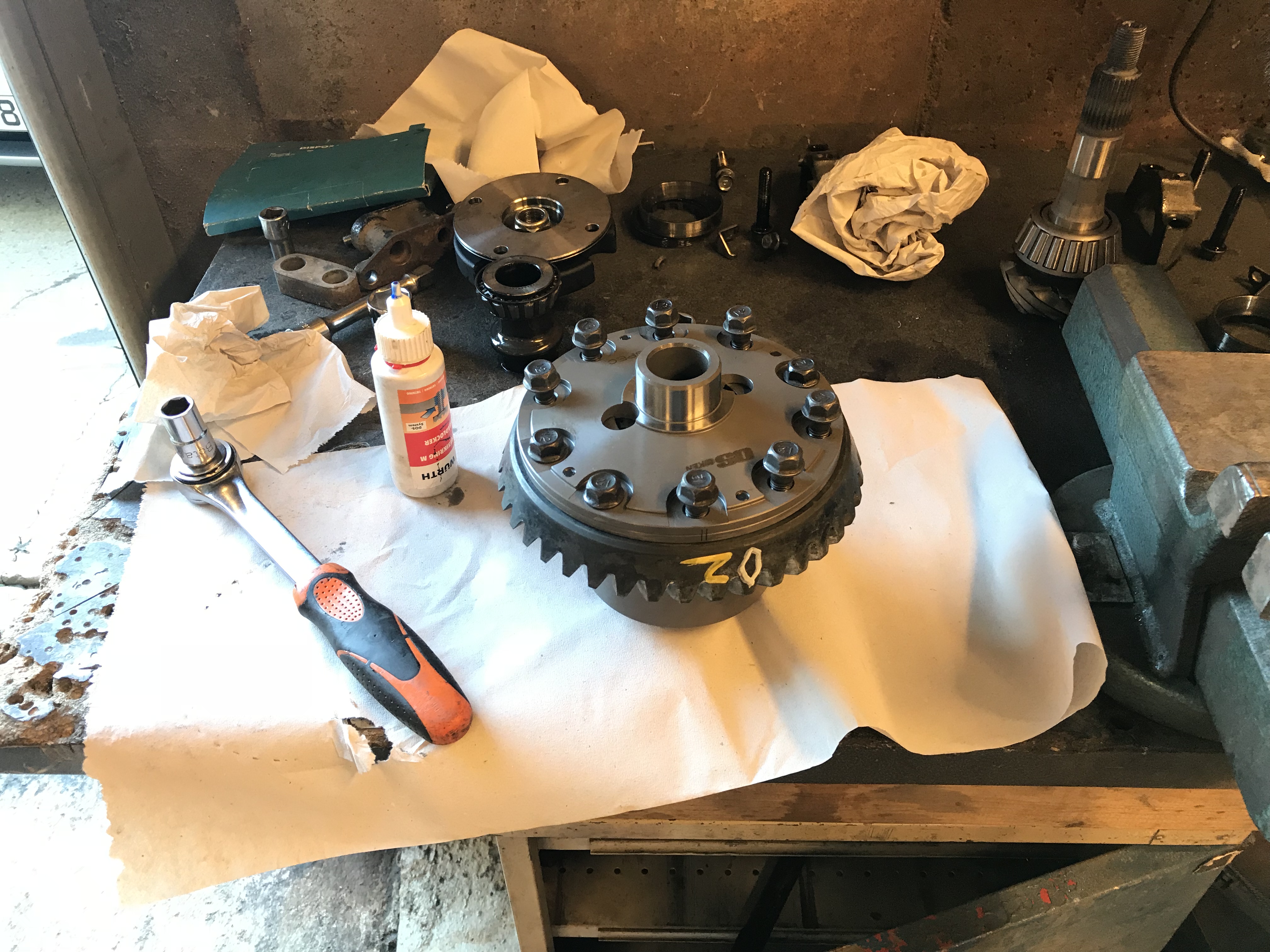

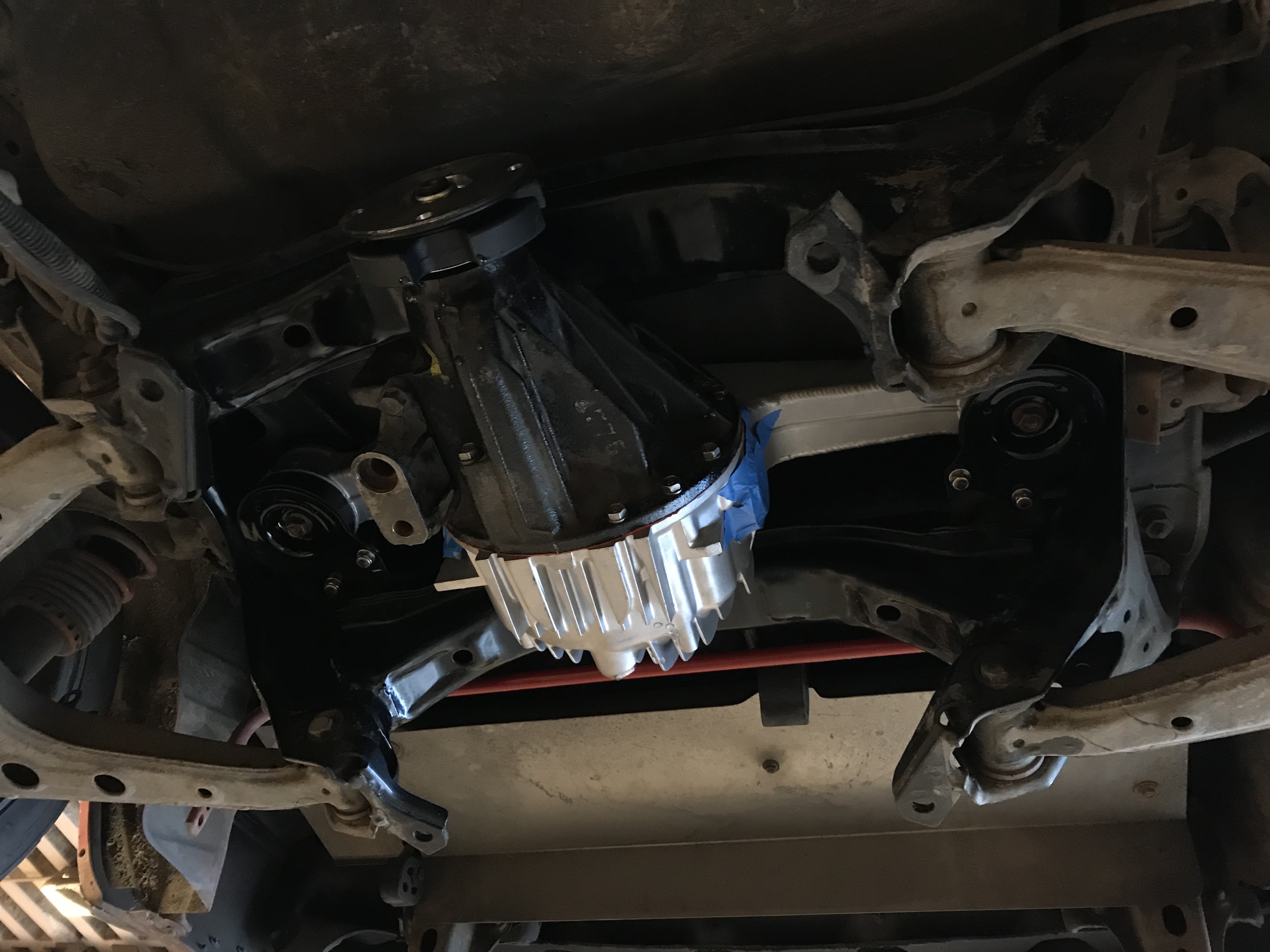

the differential is now back in the car with a Supermiata spec OS-giken lsd,
3.636 final drive, new bearings, new seals, new pinion damper, Weir performance solid pinion spacer,

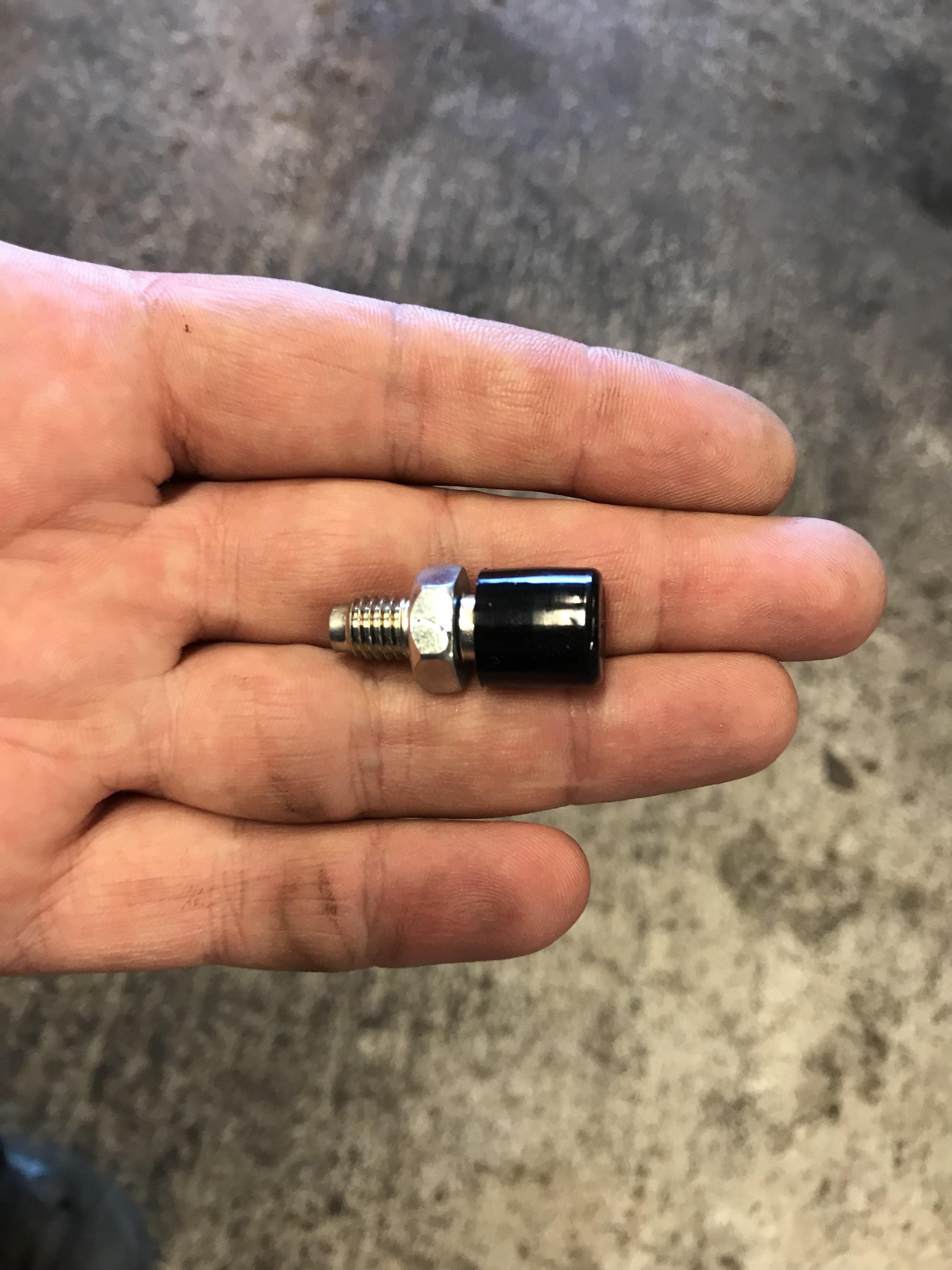

Miataroadster lower differential mount brackets and a new breather, the new one from mazda had a plastic hood instead of metal like the old rusty one.
I Hope my new hollow Motorsport drive axels turn up next week so i can get them mounted as well.
the differential is now back in the car with a Supermiata spec OS-giken lsd,
3.636 final drive, new bearings, new seals, new pinion damper, Weir performance solid pinion spacer,
Miataroadster lower differential mount brackets and a new breather, the new one from mazda had a plastic hood instead of metal like the old rusty one.
I Hope my new hollow Motorsport drive axels turn up next week so i can get them mounted as well.
Reply
0
0
08-20-2018, 09:10 AM
#109
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Oslo
Posts: 123
Total Cats: 354
but if it comes loose after a while, i will of course take it off.
But we will see how long a new pinion flange damper holds up.
Reply
1
1
08-31-2018, 09:47 AM
#111
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Oslo
Posts: 123
Total Cats: 354

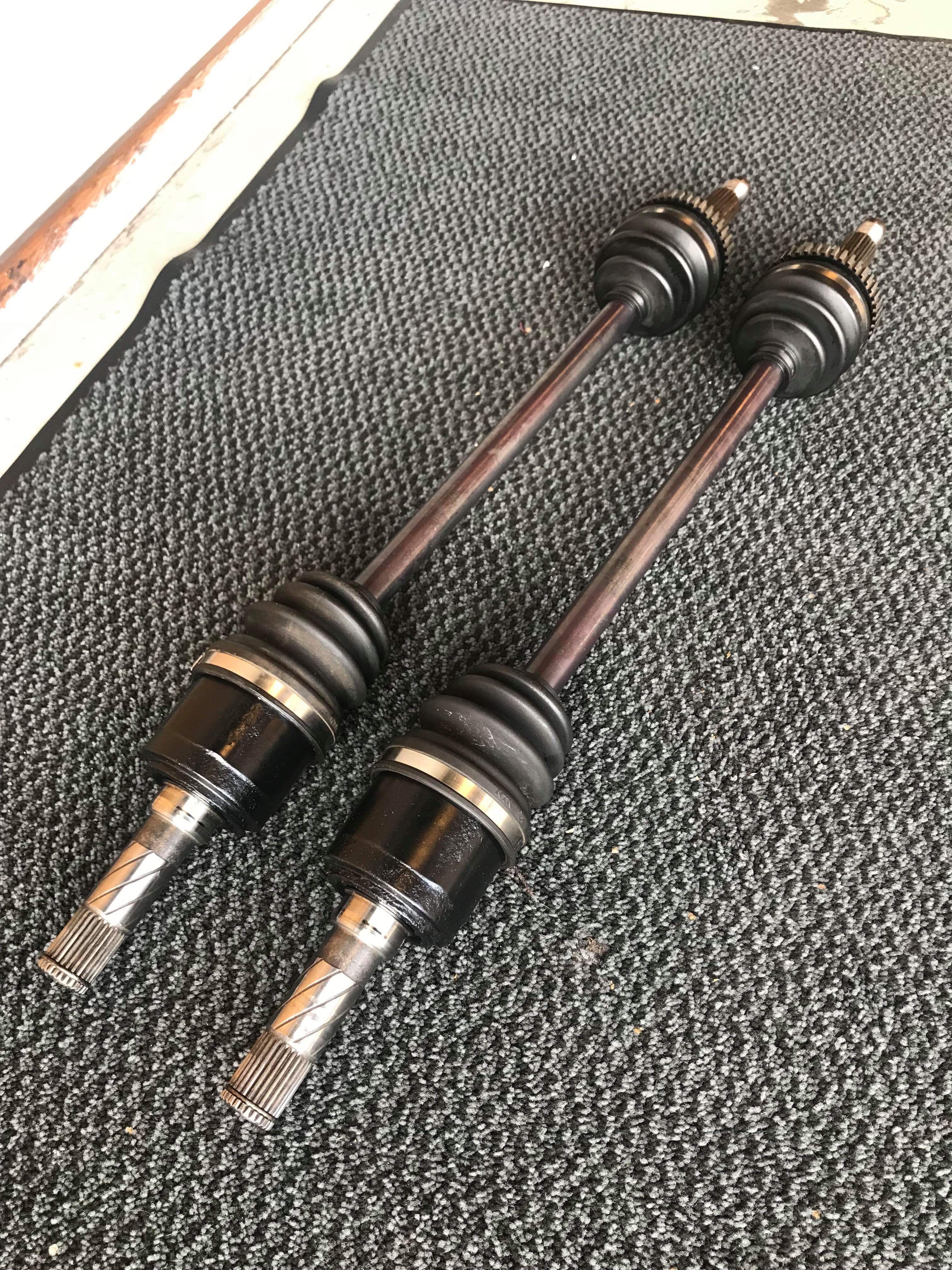

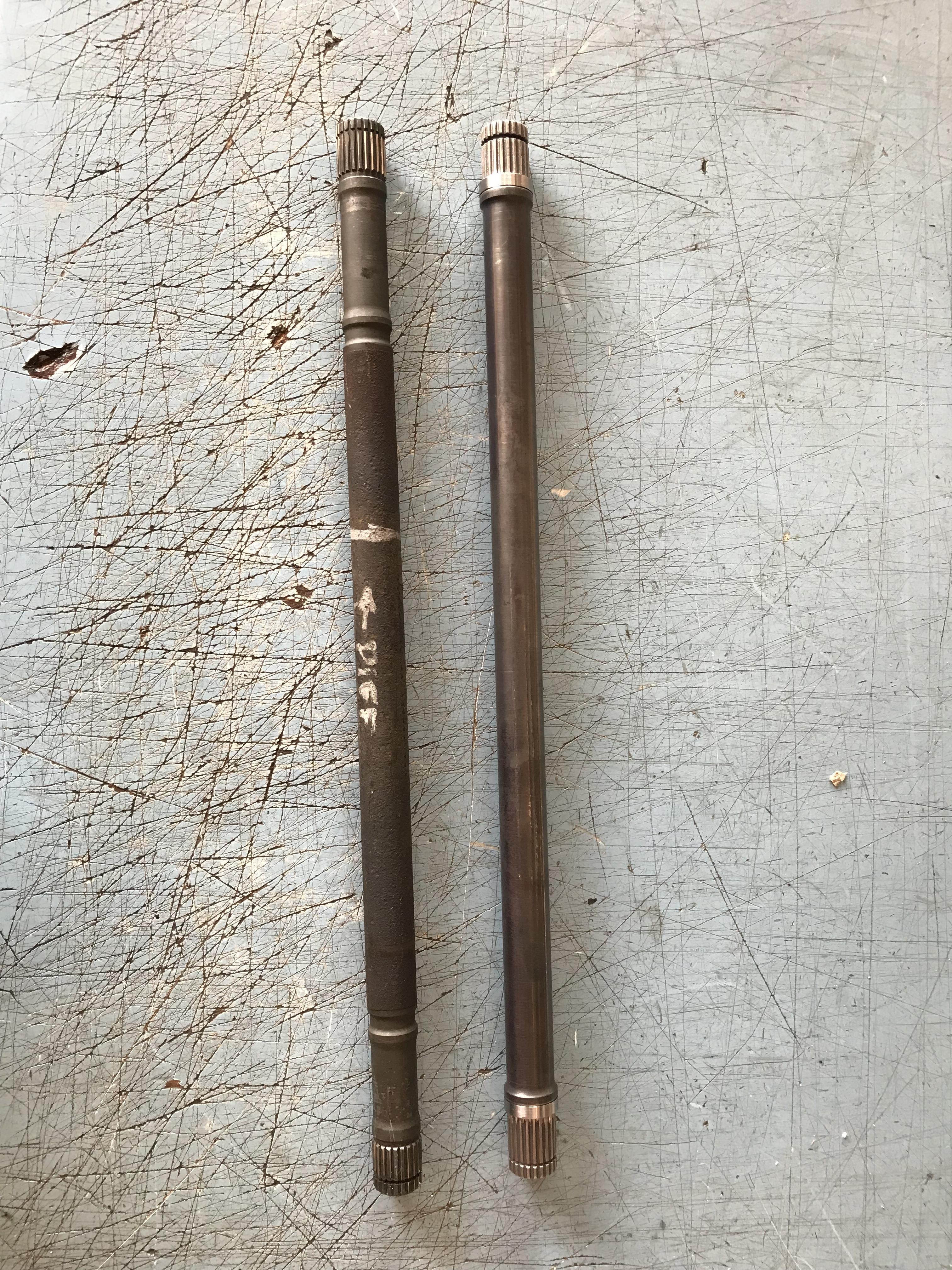

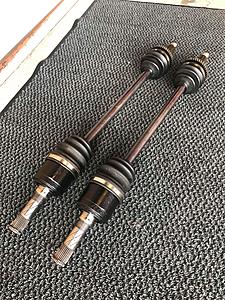

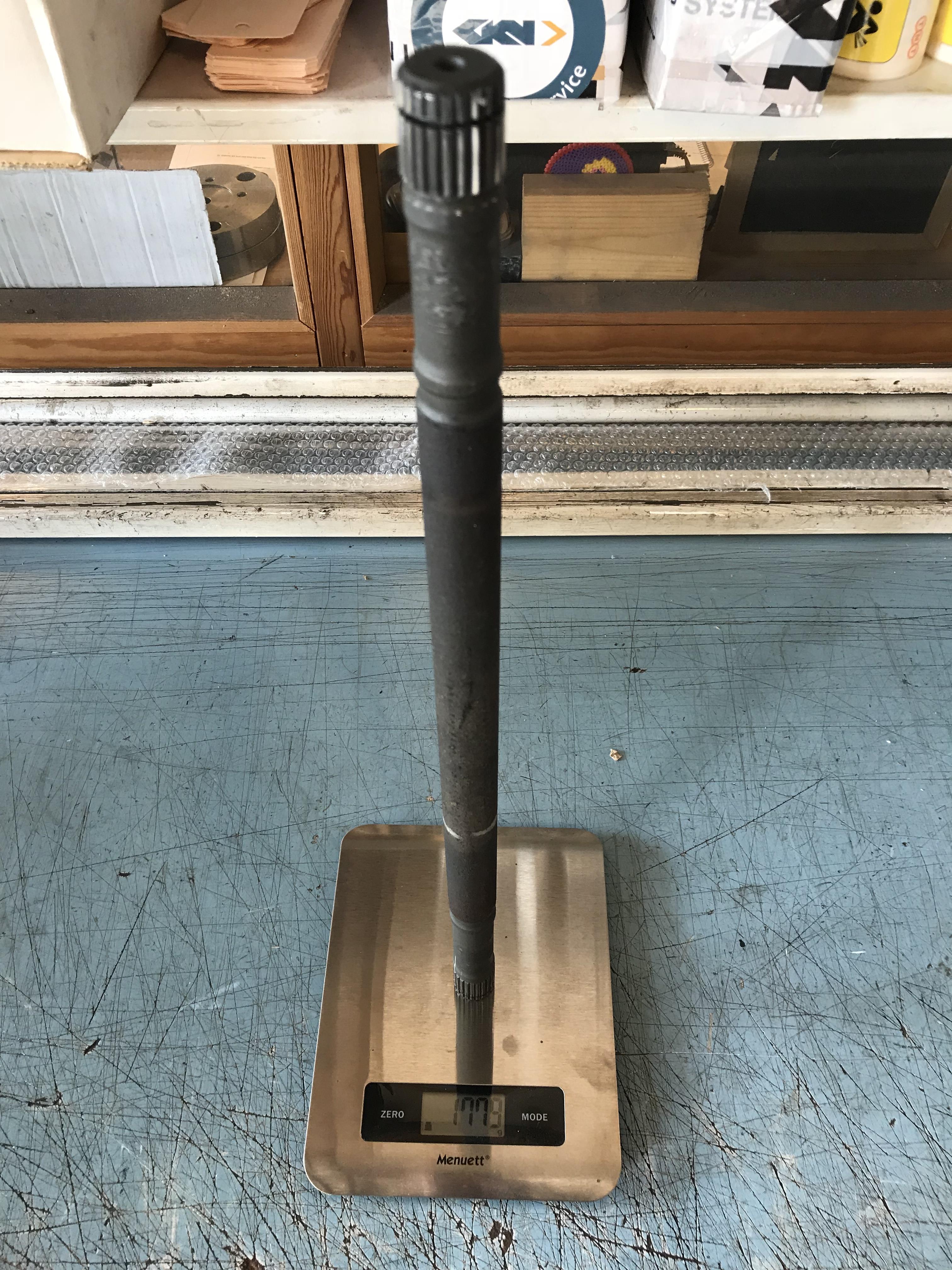

The new Motorsport axel shafts are finally done.

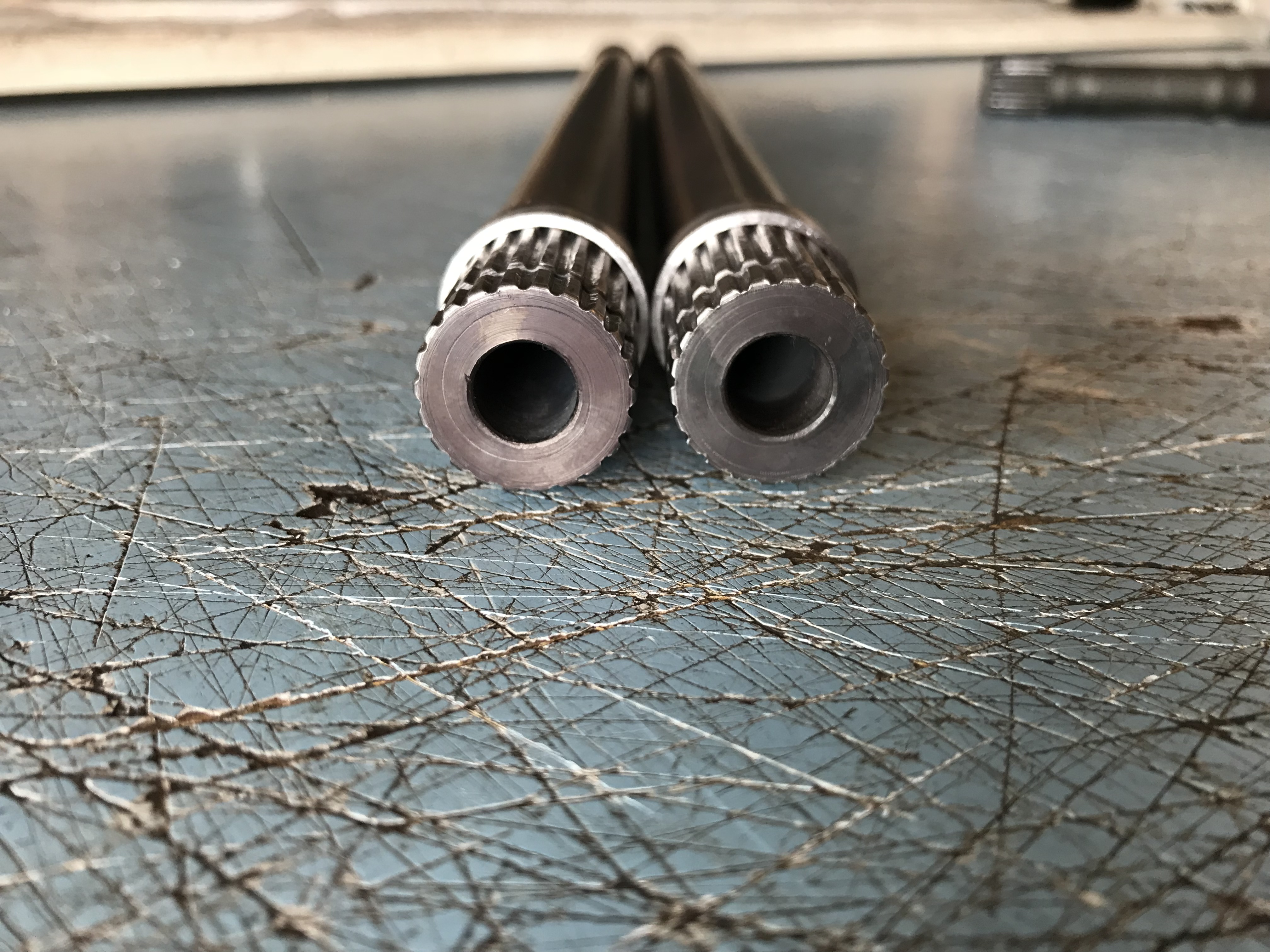

they are hollow (gun drilled) shafts that can twist up to 360 degrees and still turn back to true.
24mm outside dia with a 11mm hole.
And these axels are rated to 800 whp.

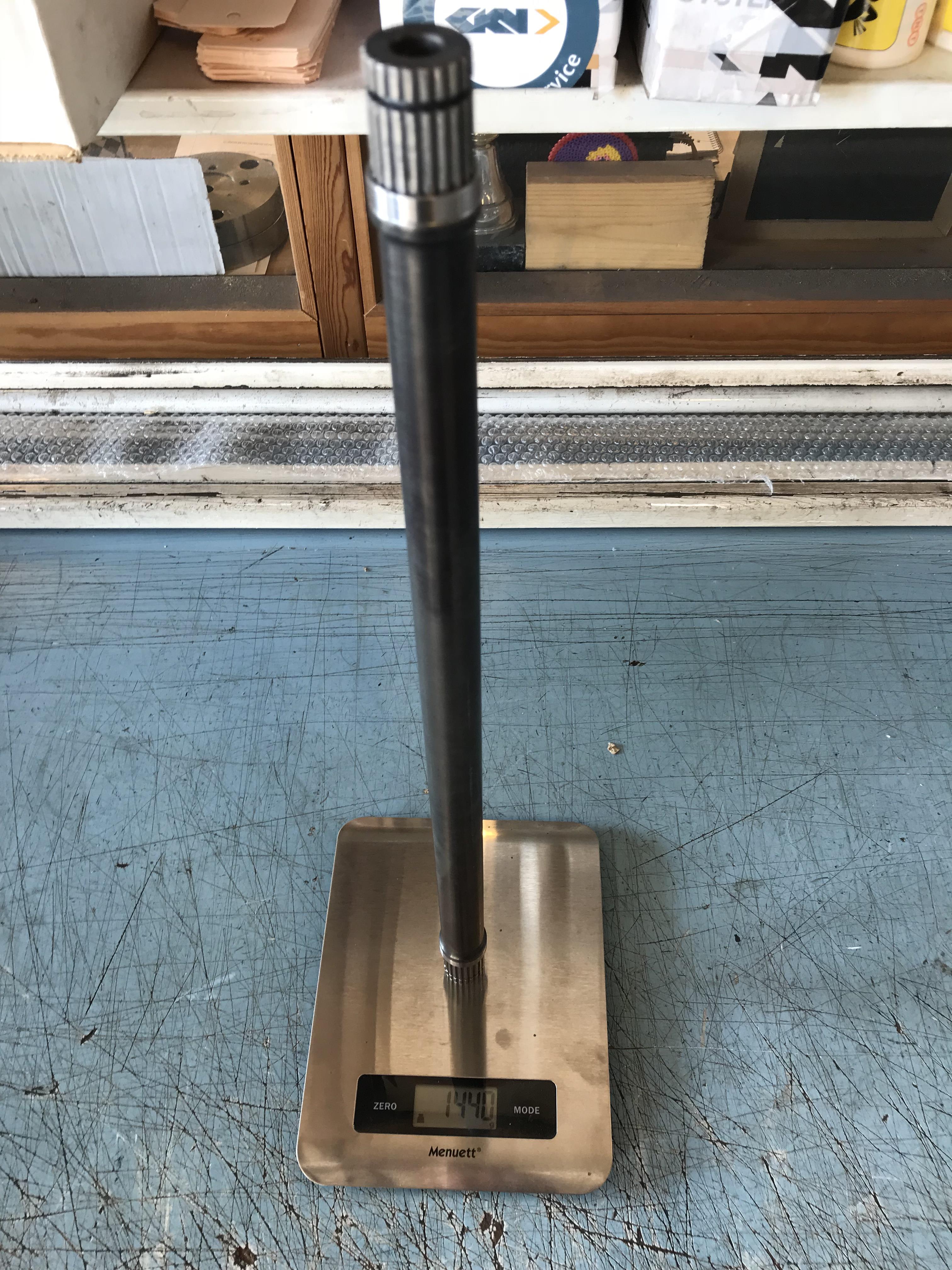

And the funny part is that they are 339 grams lighter than the stock axel.
So total weight saving comes in at 678 gram. almost 1.5 pounds.
The design was originally developed for rallycross back when the cars had up to 1000 whp and AWD.
The thing about these axels is that they twist like a torsion bar, so they take up the shocks the drivetrain gets from the wheels.
they are hollow (gun drilled) shafts that can twist up to 360 degrees and still turn back to true.
24mm outside dia with a 11mm hole.
And these axels are rated to 800 whp.
And the funny part is that they are 339 grams lighter than the stock axel.
So total weight saving comes in at 678 gram. almost 1.5 pounds.
The design was originally developed for rallycross back when the cars had up to 1000 whp and AWD.
The thing about these axels is that they twist like a torsion bar, so they take up the shocks the drivetrain gets from the wheels.
Reply
7
7
09-03-2018, 05:39 AM
#116
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Oslo
Posts: 123
Total Cats: 354

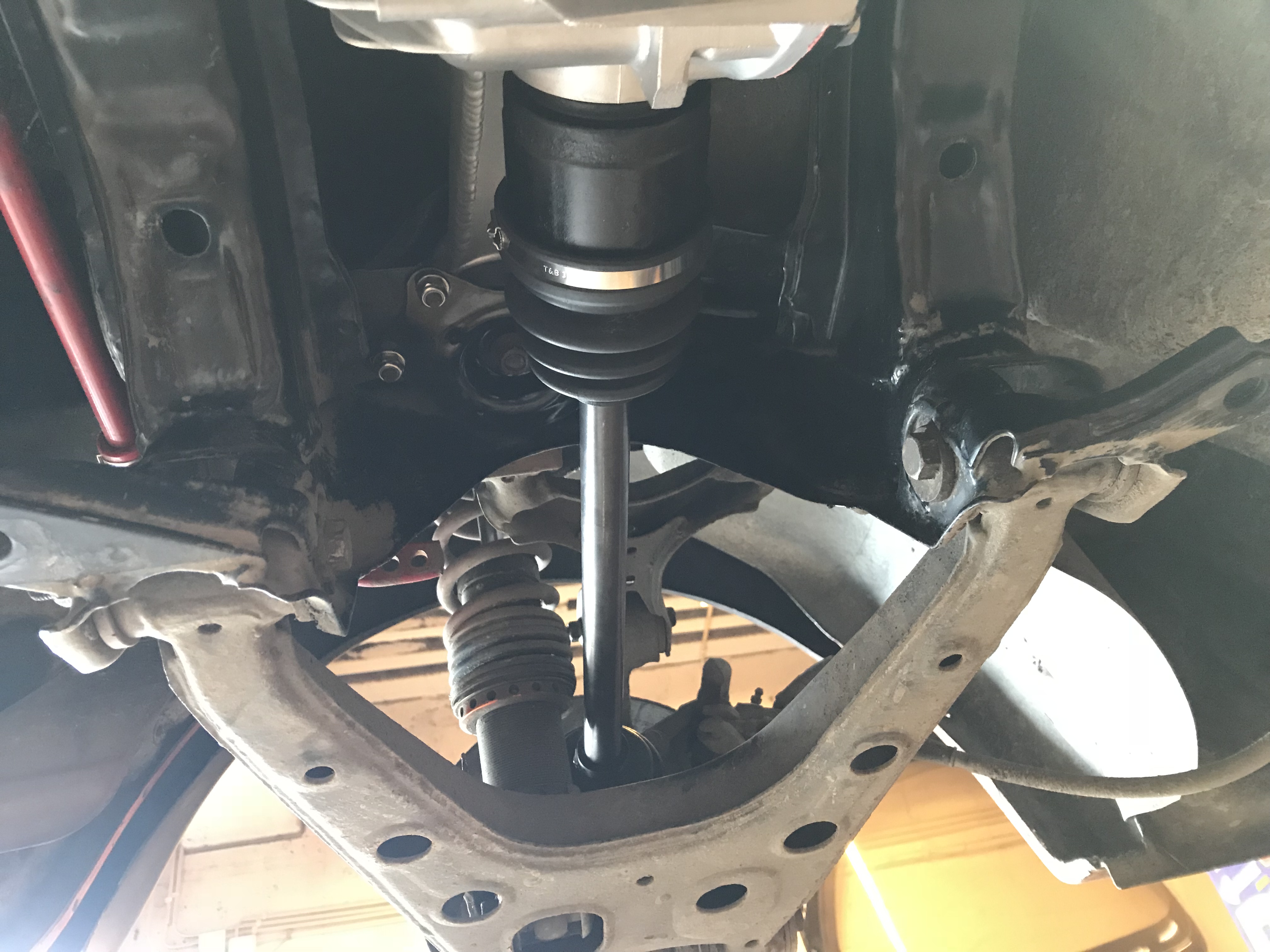

Got the new axelshafts on the car today.

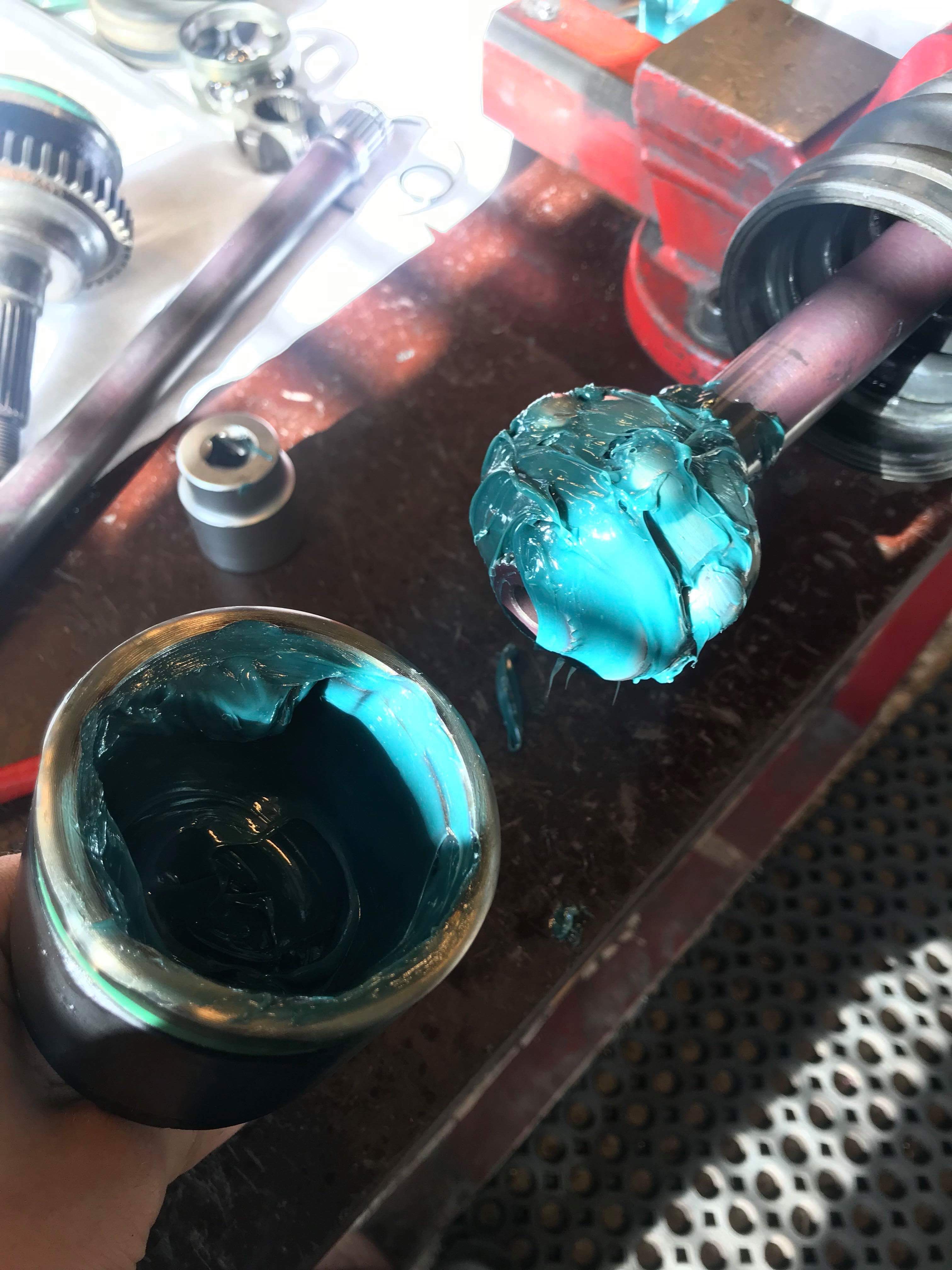

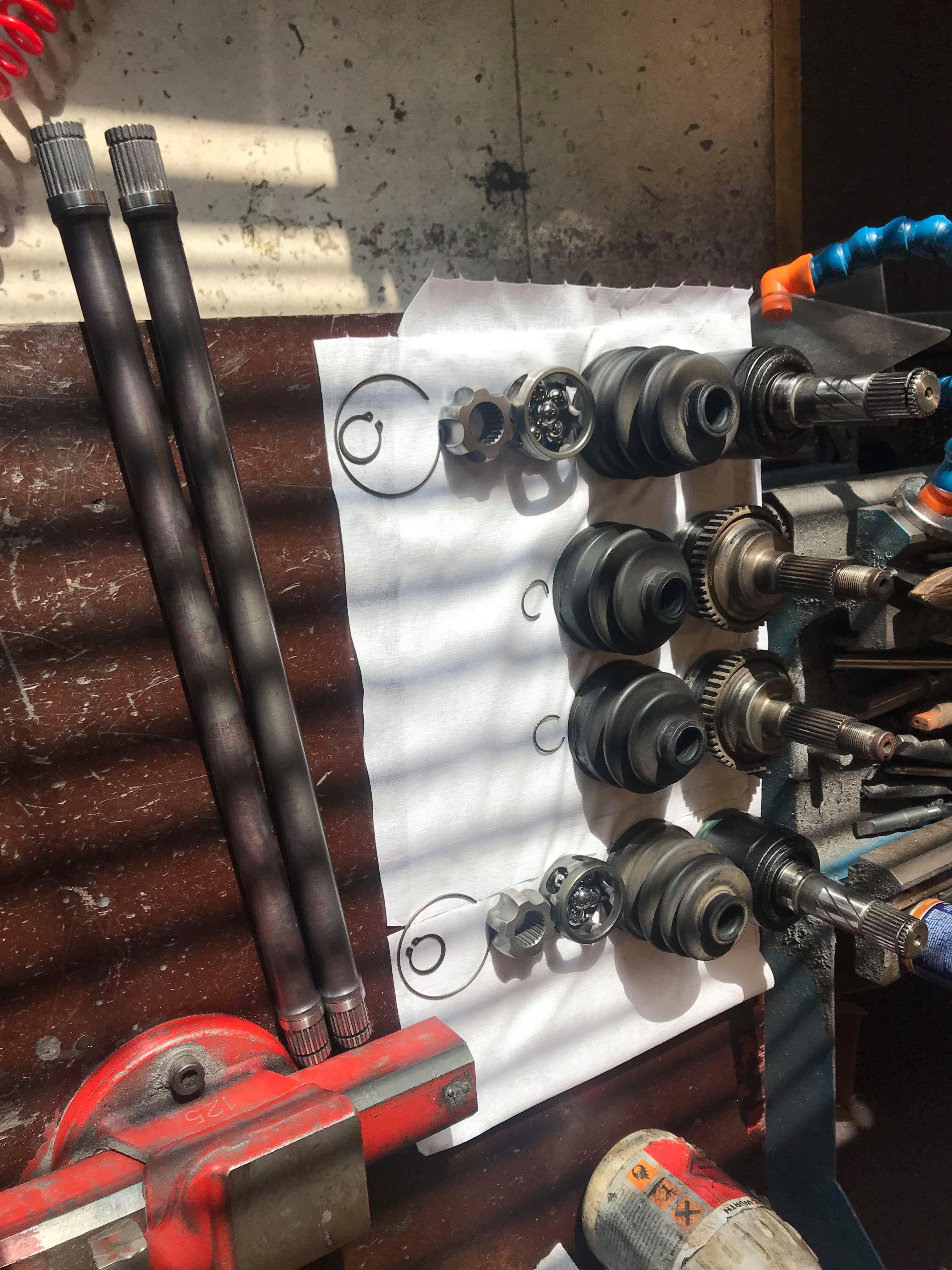

Also got GKN to take a few pics during assembly of the axelshafts, the high temp/high shock resistant motorsport axel grease has a funny blue/green colour.
Also got GKN to take a few pics during assembly of the axelshafts, the high temp/high shock resistant motorsport axel grease has a funny blue/green colour.
