Old 09-21-2014, 09:05 AM   #2941
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Nice! Sounds like she's purring.
Fireindc is offline   Reply With Quote
Old 09-21-2014, 10:07 AM   #2942
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Looking good Jeff. The car looks nice too. Sounds like a nice solid idle.

Quote:
Originally Posted by Jeffbucc View Post
I ain't no *****...unless I'm driving my Jetta, then I demand comfort.
This has got to be a thing. I know first hand 4 people who own a Miata and daily a Jetta...
FAB is online now   Reply With Quote
Old 09-21-2014, 11:41 AM   #2943
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

That is a nice idle, especially for a first start. Well done!

I've been gazing at your engine bay shot for a while. It's so clean and lovely.
revlimiter is offline   Reply With Quote
Old 09-21-2014, 03:18 PM   #2944
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by FAB View Post
This has got to be a thing. I know first hand 4 people who own a Miata and daily a Jetta...
It's gotta be the 40+mpg...at least for me. Gotta love the torque of a diesel. I love the Miata, but it would make me go broke in fill up costs if it was my daily. At least, with how I drive it! I get about 600 miles a tank on the Jetta. I'm lucky if I get 300 on the Miata.

Quote:
Originally Posted by revlimiter View Post
That is a nice idle, especially for a first start. Well done!

I've been gazing at your engine bay shot for a while. It's so clean and lovely.
It really has turned out well. I have some thoughts on making it better, but it would be either too time consuming for the benefits of appearance, or too expensive(relays instead of fuses, vacuum block, pretty Moroso overflow tank).
Jeffbucc is offline   Reply With Quote
Old 09-21-2014, 04:00 PM   #2945
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Quote:
Originally Posted by Jeffbucc View Post
It's gotta be the 40+mpg...at least for me. Gotta love the torque of a diesel. I love the Miata, but it would make me go broke in fill up costs if it was my daily. At least, with how I drive it! I get about 600 miles a tank on the Jetta. I'm lucky if I get 300 on the Miata.
Mine is the VR6 (torque ) and it does alright on fuel consumption but it's no 600 to the tank and I have to put premium in it.

My Miata is probably getting 180 miles to the tank....
FAB is online now   Reply With Quote
Old 09-21-2014, 04:28 PM   #2946
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by FAB View Post
Mine is the VR6 (torque ) and it does alright on fuel consumption but it's no 600 to the tank and I have to put premium in it.

My Miata is probably getting 180 miles to the tank....
Nice, I love that VR6 sound. With these injectors and the pump I'm probably going to be facepalming soon as well.

Luckily I'm going to be towing the Miata to events soon once I get my tow hitch welded onto the Jetta. No more pain and suffering in my lats from sitting in race seats for 2 hours straight.

That drive to MRLS and back destroyed my body. I love the seats...just not for long periods of time.
Jeffbucc is offline   Reply With Quote
Old 09-21-2014, 04:33 PM   #2947
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,739
Total Cats: 2,481
Default

You realize that the EV14's should actually get BETTER mileage than those crappy ancient rc's you had right?
It always confuses me when people associate injector size with gas mileage, like its 1998.
Big congrats on making the switch. You'll enjoy them every day, and thank yourself for doing it.
18psi is offline   Reply With Quote
Old 09-21-2014, 04:36 PM   #2948
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I guess that old stigma was associated with injectors in my head. Makes sense after watching a comparison video of the RCs and the IDs. Glad I did it. Just want to go for a drive but I'm still waiting on the plastic to do my cowling project.

I won't get pulled over with no front bumper...right?
Jeffbucc is offline   Reply With Quote
Old 09-21-2014, 08:54 PM   #2949
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

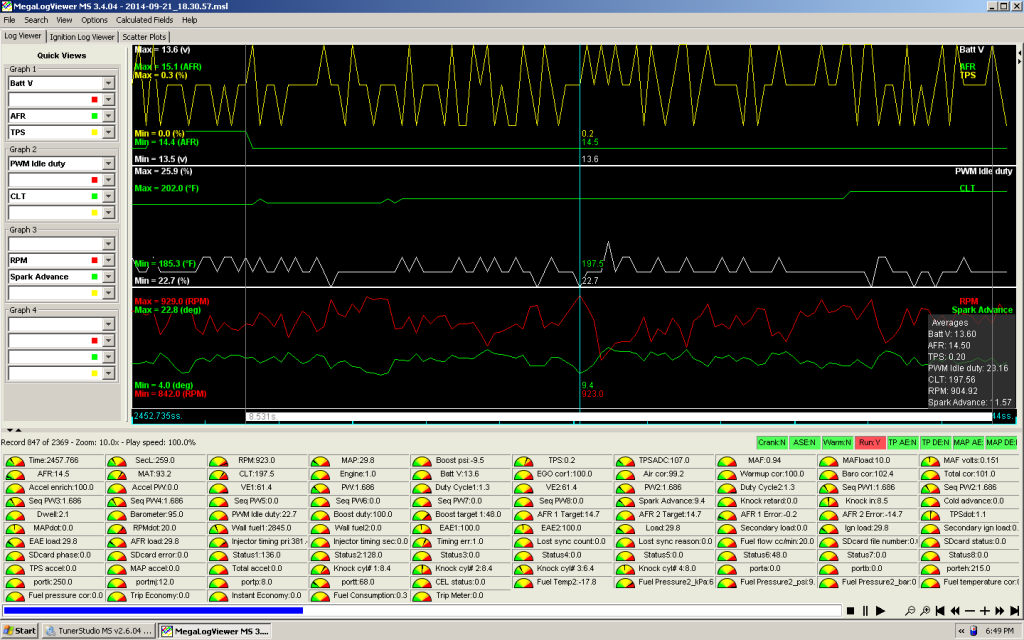

over a 9 second window. Pretty flat afr but the engine rpm oscillation is being annoying. It isn't much, only 20 or so rpmdot, but you can still "hear it". Getting some oscillation in timing and pwm as well. Well, not a lot, but 1 degree and roughly 1% of pwm oscillation. My PWM table is flat in that area so I'm not sure what is causing it. Maybe too sensitive on my closed loop setting for these injectors?

Attached Thumbnails
93' Miata stolen and flipped build thread-parallelspicture14.png
Jeffbucc is offline   Reply With Quote
Old 09-21-2014, 11:10 PM   #2950
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Quote:
Originally Posted by Jeffbucc View Post
over a 9 second window. Pretty flat afr but the engine rpm oscillation is being annoying. It isn't much, only 20 or so rpmdot, but you can still "hear it". Getting some oscillation in timing and pwm as well. Well, not a lot, but 1 degree and roughly 1% of pwm oscillation. My PWM table is flat in that area so I'm not sure what is causing it. Maybe too sensitive on my closed loop setting for these injectors?

Yeah it just looks like the closed loop settings are causing some overshoot. Not real familiar with the latest MS software/tuner studio but I'd guess a bit too much I and not enough P.
FAB is online now   Reply With Quote
Old 09-21-2014, 11:39 PM   #2951
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

It would help you if you kept spark advance flat in the idle area (or maybe bump it up a little a low RPM to provide an automatic correction).

I always got best idle quality with a richer mixture than that (maybe 13.5). What mixture gives highest vacuum with your IDs?
hornetball is offline   Reply With Quote
Old 09-21-2014, 11:48 PM   #2952
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,739
Total Cats: 2,481
Default

ID's can for sure idle at 14.7
18psi is offline   Reply With Quote
Old 09-22-2014, 03:48 AM   #2953
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 18psi View Post
ID's can for sure idle at 14.7
Very true. The odd thing is that I barely had to play with my idle VEAL to get close to stoich.

When I start autotuning, I believe I'm going to increase my VEAL map by about 5%. Just puttering around the neighborhood I saw it try to adjust +4 on certain cells. Don't want to enter boost lean to enrich later, just seems like a recipe for disaster....actually it not only seems but it would be.

Vlad, I think the rich fuel smell we were smelling at MRLS was due to that O-ring leak. I think it only was noticeable under high boost, and when I removed the FPR, it was the icing on the proverbial bad seal cake.

I haven't smelled fuel since I did the install so it makes me think that is the culprit. At least I hope it is. Messing with injectors and fuel pumps is not my cup of tea. When I was doing the fuel pump and was soldering in the new connectors, I think I used about 3 times as much heat shrink as I would normally. On that first key on, I was scared the car was going to blow up.
Jeffbucc is offline   Reply With Quote
Old 09-22-2014, 08:40 AM   #2954
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

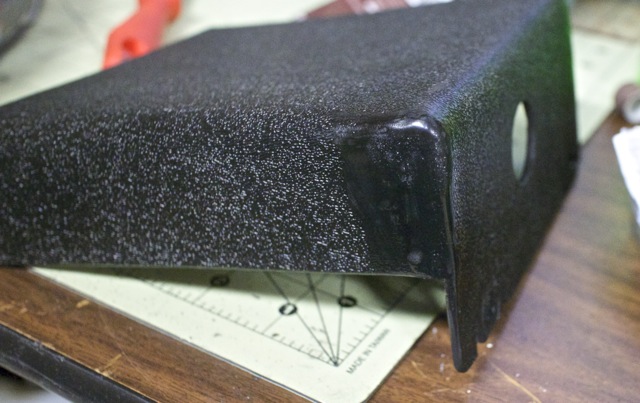

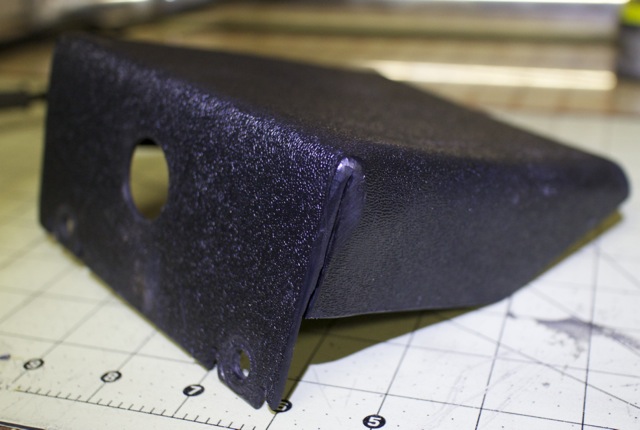

Also, here is some crappy plastic welding pictures. The bastards on youtube make this look way too easy. I think, if I make pieces that people/me can see, I'll use a rubber dough scraper from work to smooth the still hot plastic more uniformly flat. Doesn't help that this was textured, and it would be hard to recreate the texture(sponge?).

Still, for a first attempt, and not having sanded it, not bad.

If you are wondering what it is, it's the cover I made for the headlight relays to help protect them from the elements a little better. I couldn't bend the corners without cutting it so I used a little filler rod on the inside joint, and then melted the exterior plastic to smooth the joint over. It is solid, I yanked on it pretty hard and it didn't budge. Should be great for the cowling project,especially since I don't care about how perfect it looks, just strength.



Looks worse in the photo than it is in real life, camera picks up a lot of light reflection that you don't see. *He says, rationalizing*

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2857.jpg   93' Miata stolen and flipped build thread-img_2861.jpg
Jeffbucc is offline   Reply With Quote
Old 09-22-2014, 09:20 AM   #2955
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,739
Total Cats: 2,481
Default

Quote:
Originally Posted by Jeffbucc View Post
Very true. The odd thing is that I barely had to play with my idle VEAL to get close to stoich.

When I start autotuning, I believe I'm going to increase my VEAL map by about 5%. Just puttering around the neighborhood I saw it try to adjust +4 on certain cells. Don't want to enter boost lean to enrich later, just seems like a recipe for disaster....actually it not only seems but it would be.

Vlad, I think the rich fuel smell we were smelling at MRLS was due to that O-ring leak. I think it only was noticeable under high boost, and when I removed the FPR, it was the icing on the proverbial bad seal cake.

I haven't smelled fuel since I did the install so it makes me think that is the culprit. At least I hope it is. Messing with injectors and fuel pumps is not my cup of tea. When I was doing the fuel pump and was soldering in the new connectors, I think I used about 3 times as much heat shrink as I would normally. On that first key on, I was scared the car was going to blow up.
Yeah, not a bad strategy. You always want it to trim down.
Makes sense on the o-ring, since you obviously have no other leaks.
You might want to look into getting a AFPR in the future - cause bumping it up closer to 70 will get you better spray patterns/atomization and efficiency
18psi is offline   Reply With Quote
Old 09-22-2014, 10:23 AM   #2956
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 18psi View Post
Yeah, not a bad strategy. You always want it to trim down.
Makes sense on the o-ring, since you obviously have no other leaks.
You might want to look into getting a AFPR in the future - cause bumping it up closer to 70 will get you better spray patterns/atomization and efficiency
You and I think alike. Seems, after much reading, they like being at least 60psi fuel pressure, 70-80 ideal.


Just one more damn thing to add to the list of inevitable purchases.

question on a fuel pressure gauge. Wouldn't it be easier(read cheaper) to wire in a sender to megasquirt rather than a physical gauge? Can't imagine there to be a lot of variance in fuel pressure with a AFPR, except in a "you idiot you are out of gas" moment.
Jeffbucc is offline   Reply With Quote
Old 09-22-2014, 10:43 AM   #2957
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,739
Total Cats: 2,481
Default

its up to you. many fpr's that I've seen have a gauge right on them, so maybe you can get one of those just cause its so easy/simple.
18psi is offline   Reply With Quote
Old 09-22-2014, 10:57 AM   #2958
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Quote:
Originally Posted by 18psi View Post
its up to you. many fpr's that I've seen have a gauge right on them, so maybe you can get one of those just cause its so easy/simple.
This may be a stupid question, but what exactly do you do with the stock FPR when you convert to an AFPR? Down the road I'm looking to do this, and I assume you will just remove it entirely.. but then what goes on the end of my fuel rail? I guess a custom fitting or something.
Fireindc is offline   Reply With Quote
Old 09-22-2014, 10:58 AM   #2959
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,739
Total Cats: 2,481
Default

yeah you just block off the spot if mounting in different from oem spot
18psi is offline   Reply With Quote
Old 09-22-2014, 11:43 AM   #2960
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Cool, thanks for the info.

So going back to my slight, tiny idle oscillation issue. Crazy how a tiny amount of timing change, makes things purr. I added 1/2 degree of timing advance and it is like buttah. It will only occasionally oscillate <10 rpms. It is beautiful.



I do need to stop driving it with my bumper off. I think I almost caused a couple accidents this morning due to people rubber necking. Sadly I bet people think, "that damn juvenile delinquent has been drifting his car and tore off his front bumper!" ala Turbofan style.
Attached Thumbnails
93' Miata stolen and flipped build thread-65402-dear-god-its-beautiful-mugatu-zmxe.gif
Jeffbucc is offline   Reply With Quote
