Old 09-14-2015, 07:04 PM   #4241
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,871
Total Cats: 1,263
Default

<p><img src="http://cimg9.ibsrv.net/gimg/www.miataturbo.net-vbulletin/720x540/80-13469_401738279023_596899023_426224_1_57efcf12c769 1b22fbec0e5e6f25e04bb25e474b.jpg" title="" /><br /><br />&nbsp;</p>
aidandj is offline   Reply With Quote
Old 09-14-2015, 07:08 PM   #4242
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Pretty. The engine paint I used when I first had the block out looks fabulous still so I'm not going to waste time/money on sandblasting/powdercoating.
Jeffbucc is offline   Reply With Quote
Old 09-14-2015, 07:42 PM   #4243
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,440
Total Cats: 417
Default

Dammit! You still haven't found out what those pieces were from. It is going to drive me crazy until I know.
rleete is offline   Reply With Quote
Old 09-14-2015, 07:52 PM   #4244
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I haven't a damn clue rleete. I've gone over every piece of anything connected to the engine trying to figure out if it could have come from that or not and nothing makes sense, or at least nothing has a ball bearing type "surround/cage" that it could have come from.

Trust me, it is driving me nuts as well. I hate mysteries.

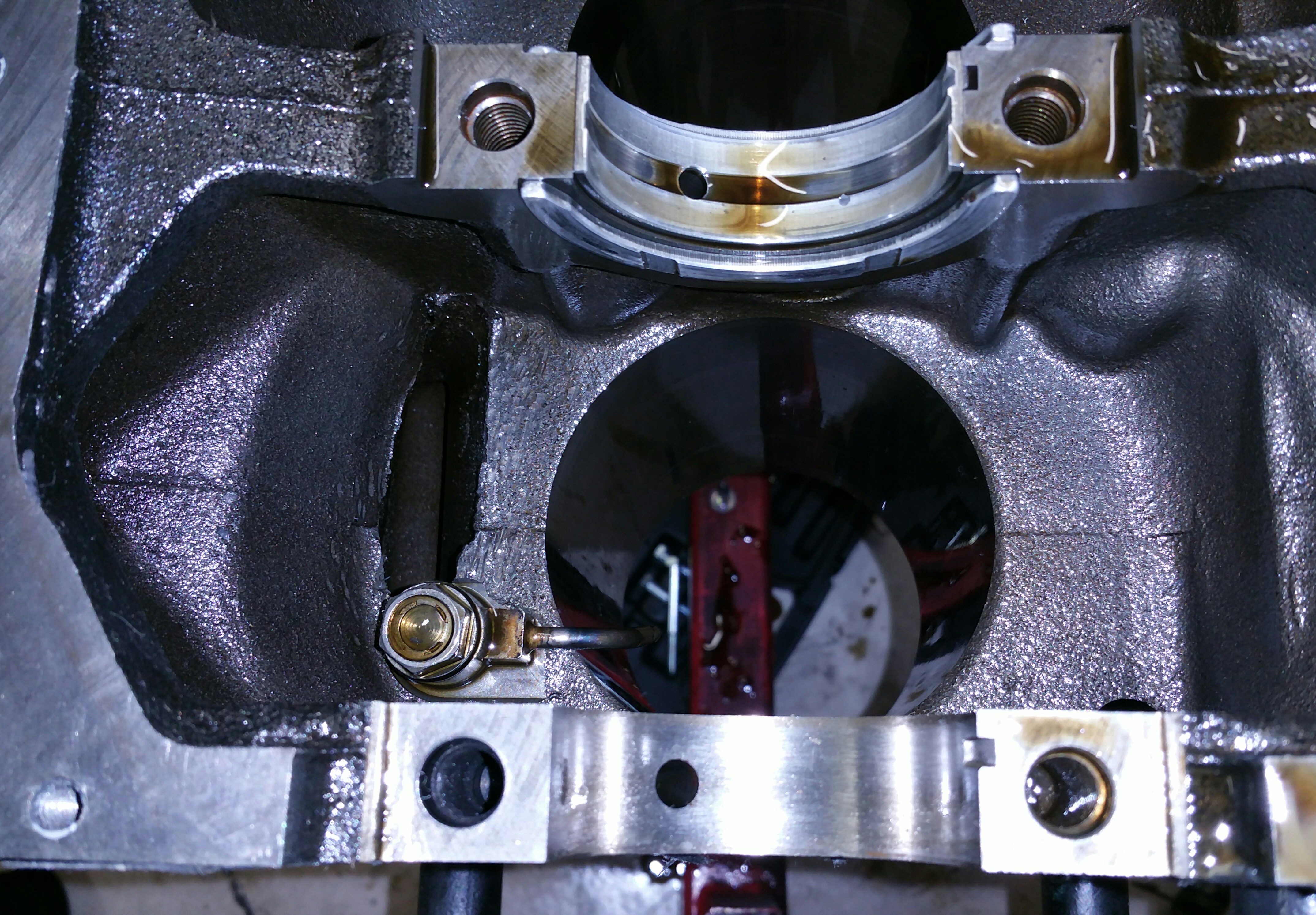

Tell me this is normal...please, it has all the irregularities of something not designed to be there...

Attached Thumbnails
93' Miata stolen and flipped build thread-zcfy01y.jpg
Jeffbucc is offline   Reply With Quote
Old 09-14-2015, 07:54 PM   #4245
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,871
Total Cats: 1,263
Default

<p>Yes, that is normal. Threads about it pop up every once in a while with people freaking out.</p>
aidandj is offline   Reply With Quote
Old 09-14-2015, 07:55 PM   #4246
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by aidandj View Post
<p>Yes, that is normal. Threads about it pop up every once in a while with people freaking out.</p>
I about lost my **** for a second there. Seems like they could have made that hole a little smoother
Jeffbucc is offline   Reply With Quote
Old 09-14-2015, 07:56 PM   #4247
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,871
Total Cats: 1,263
Default

<p>I think its funny. &quot;Lets scare the **** out of everyone who opens this engine for the first time&quot;</p><p>I would totally do **** like that.</p>
aidandj is offline   Reply With Quote
Old 09-14-2015, 07:59 PM   #4248
Junior Member

Join Date: Jun 2008
Location: Senatobia, MS
Posts: 126
Total Cats: 7
Default

Man, I love this build... Read every page. What about going with the "left in" theory on the mysterious parts?
fivehundredton is offline   Reply With Quote
Old 09-14-2015, 08:09 PM   #4249
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,440
Total Cats: 417
Default

Ha. That hole has freaked out dozens of people over the years. I can just imagine the engineer doing it on purpose, and giggling every time he thought about it.
rleete is offline   Reply With Quote
Old 09-14-2015, 08:16 PM   #4250
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I'm guessing it is just an oil return hole? My dremmel hand is getting itchy haha.

So I have ARP head studs and ARP2000 bolts for the rods. Any reason to get ARP Main studs as well? Looks like they didn't see a point when they originally built the motor but maybe they didn't want to line bore the block?
Jeffbucc is offline   Reply With Quote
Old 09-14-2015, 08:20 PM   #4251
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 660
Total Cats: 36
Default

Quote:
Originally Posted by Jeffbucc View Post
While I'm trying to figure out my next move, which I believe to be the following:
1. obtain running stock junkyard motor
2. dump it in
3. turn down boost
4. drive car without problems
5. give curly 6 months to rebuild the 'nice' engine
6. swap back when curly is done

bummer about the car- hopefully it gets up and running again soon
dcamp2 is offline   Reply With Quote
Old 09-14-2015, 08:37 PM   #4252
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

More like wire wastegate open. Even on 7psi springs the EFR has made very pretty ventilation carnage.

Was it 99MX5 that blew his block on startup?

And now that I know the block and crank have no wear, and are easily reconditioned, a rebuild will suffice.
Jeffbucc is offline   Reply With Quote
Old 09-14-2015, 09:24 PM   #4253
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,871
Total Cats: 1,263
Default

<p>Ship to TSE for build?&nbsp;</p>
aidandj is offline   Reply With Quote
Old 09-14-2015, 10:14 PM   #4254
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

You don't need a line bore for ARP main studs. I put them in with drill set to 5 ft/lbs with a tiny bit of the ARP ultra-lube, then torque the nuts to 60 ft/lbs, with the lube on either side of the washer and on the threads.

Generally if you put the lube on the stud, it'll get on the bottom of the washer when you slide it on, then a tiny bit more will get the top of the washer, and there's plenty left to lube the threads for the nut. This is also why you do an oil change after ~20 miles of driving.

To give you an idea of how much lube I use, ARP sends 2 packages with any of their stud kits. 2 packages will do the entire engine, which includes the cam bolts, head studs, main studs, and MBSP bolts. Which is everything (I think) I use the stuff on.
curly is offline   Reply With Quote
Old 09-15-2015, 12:23 AM   #4255
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Amazon had a really good deal on their Ultratorque lube a couple months back and I got a 10oz container of it for like $15. Figured it can't hurt when I need it, and can when I don't have it.

Trying to get a lot of this crap done so that when I do get the block back I can just slot it all in and get it ready to assemble.

Looking for some of these gaskets on the oil pump to rebuild it/change the seals/gaskets. Until I can find them, I won't go to crazy on the oil pump.

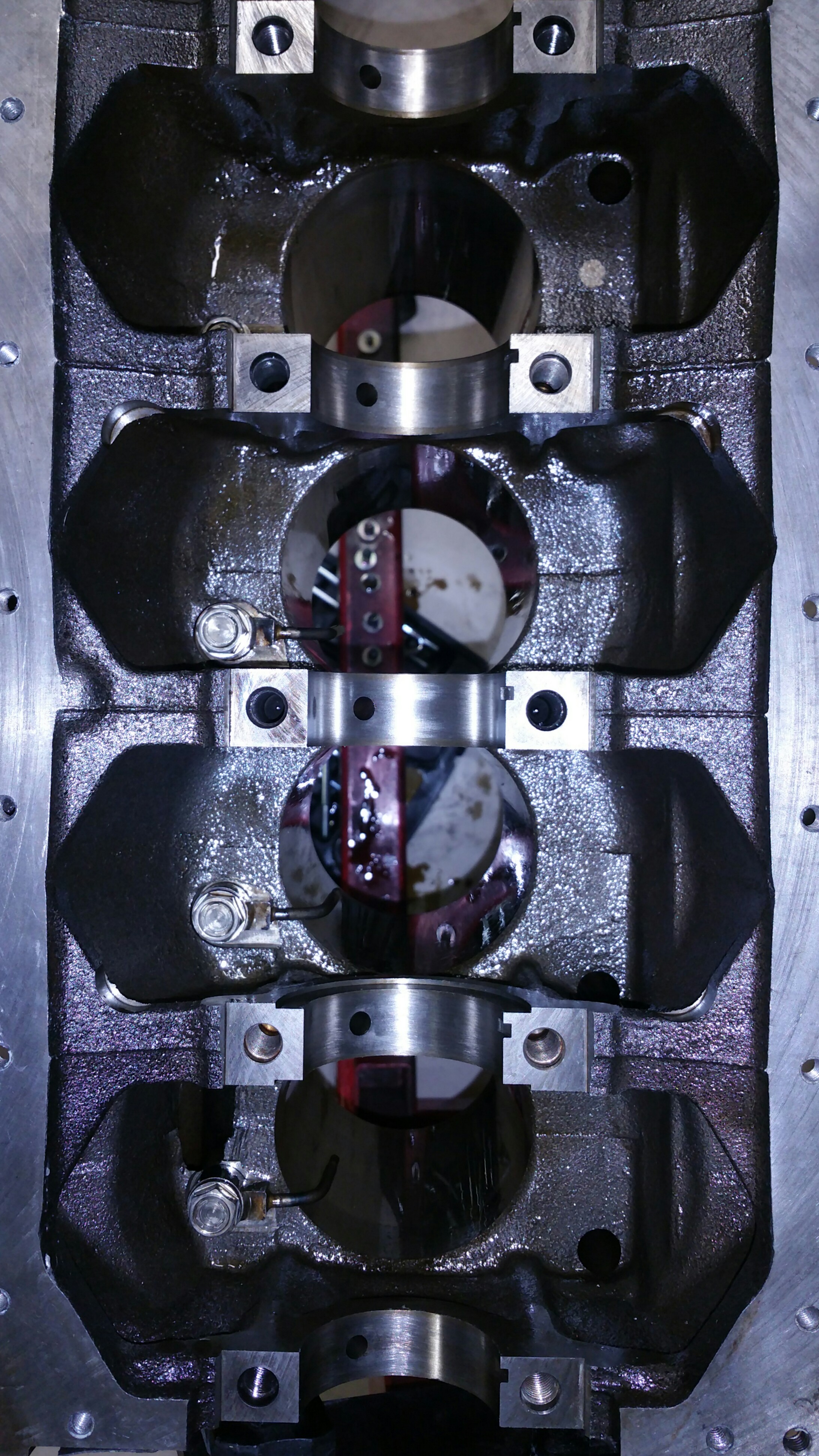

Block in real good shape

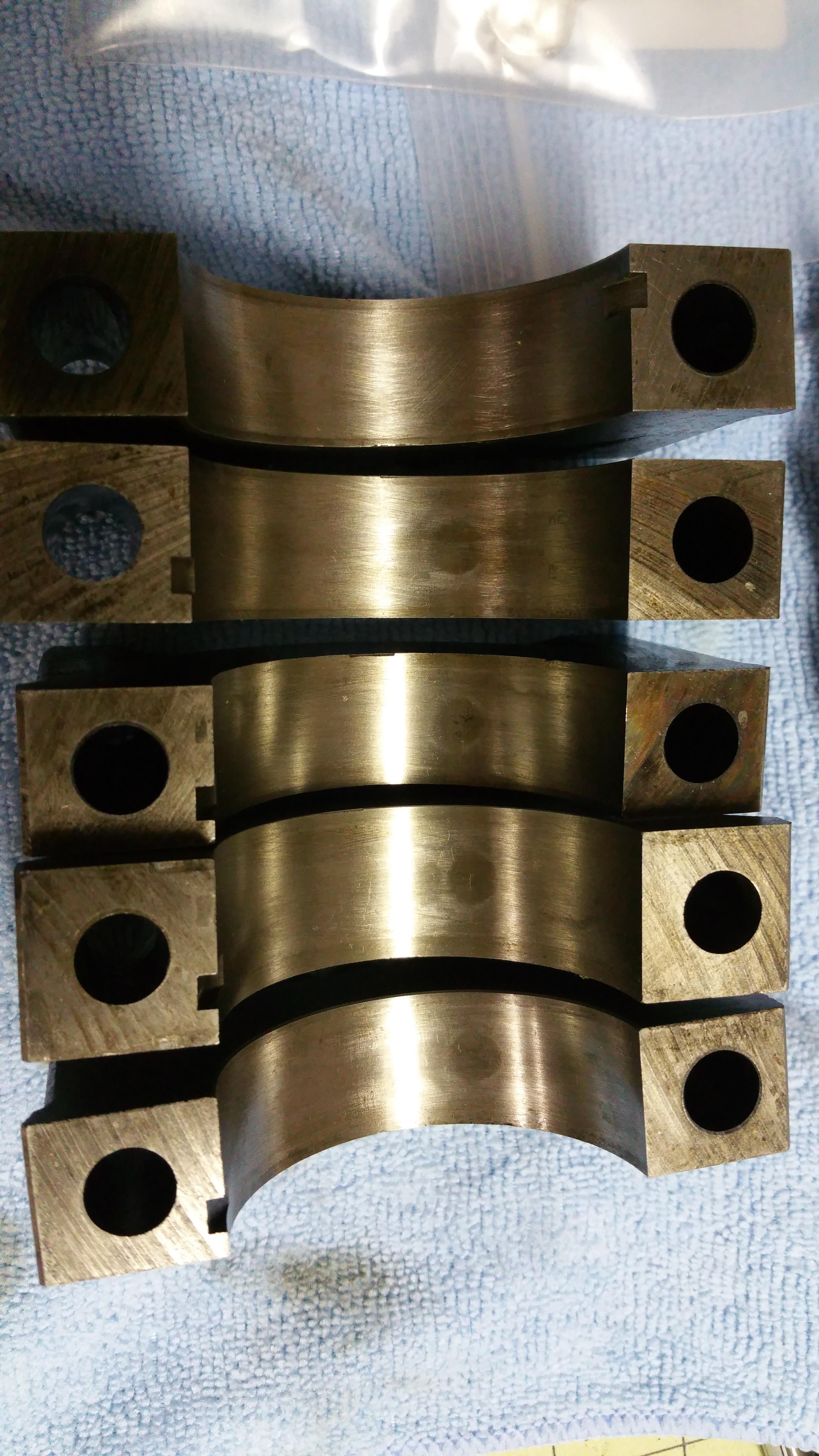

as are the crankshaft bearing caps

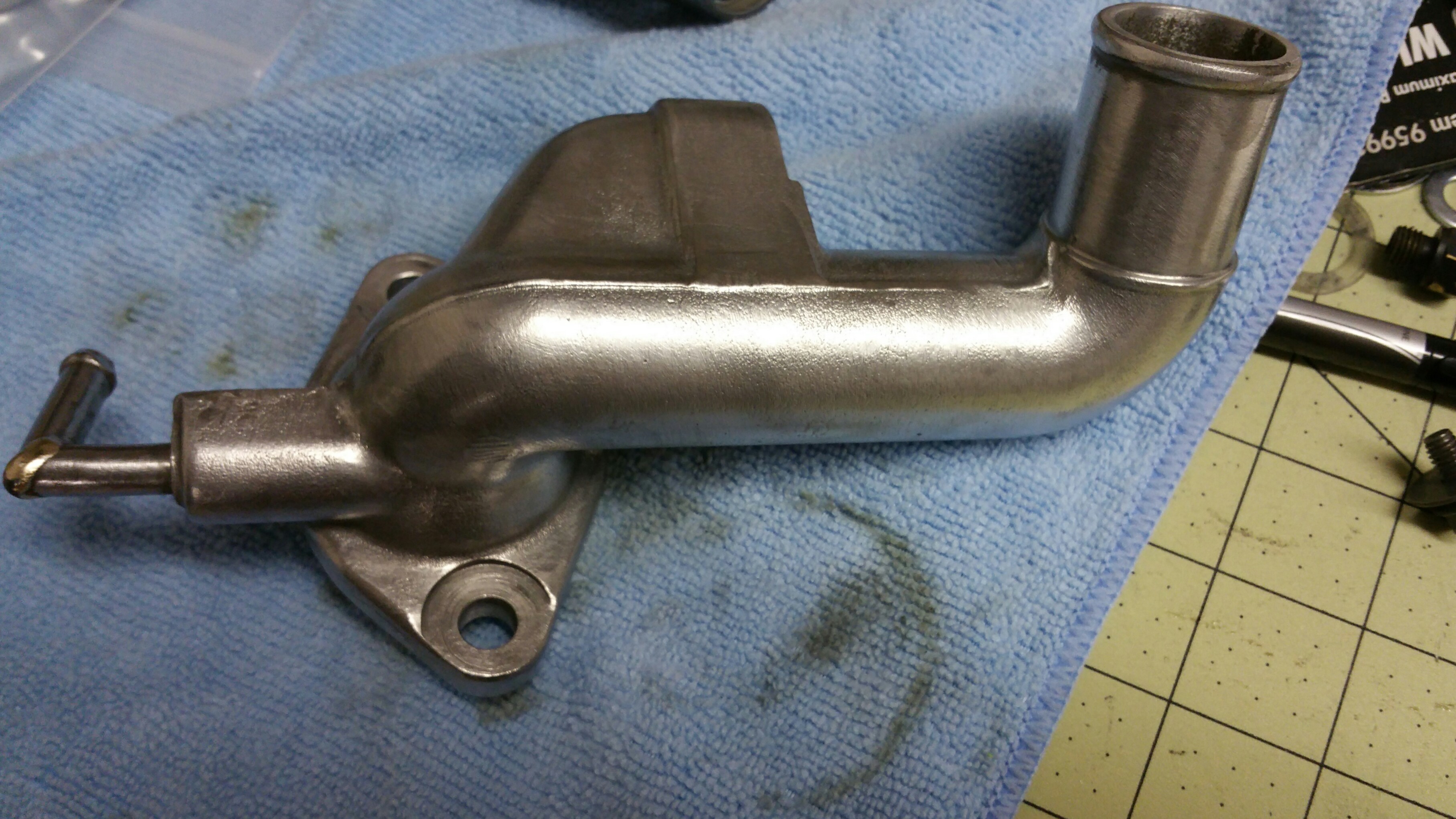

Finally got the water return all cleaned up and the rust off the nipple

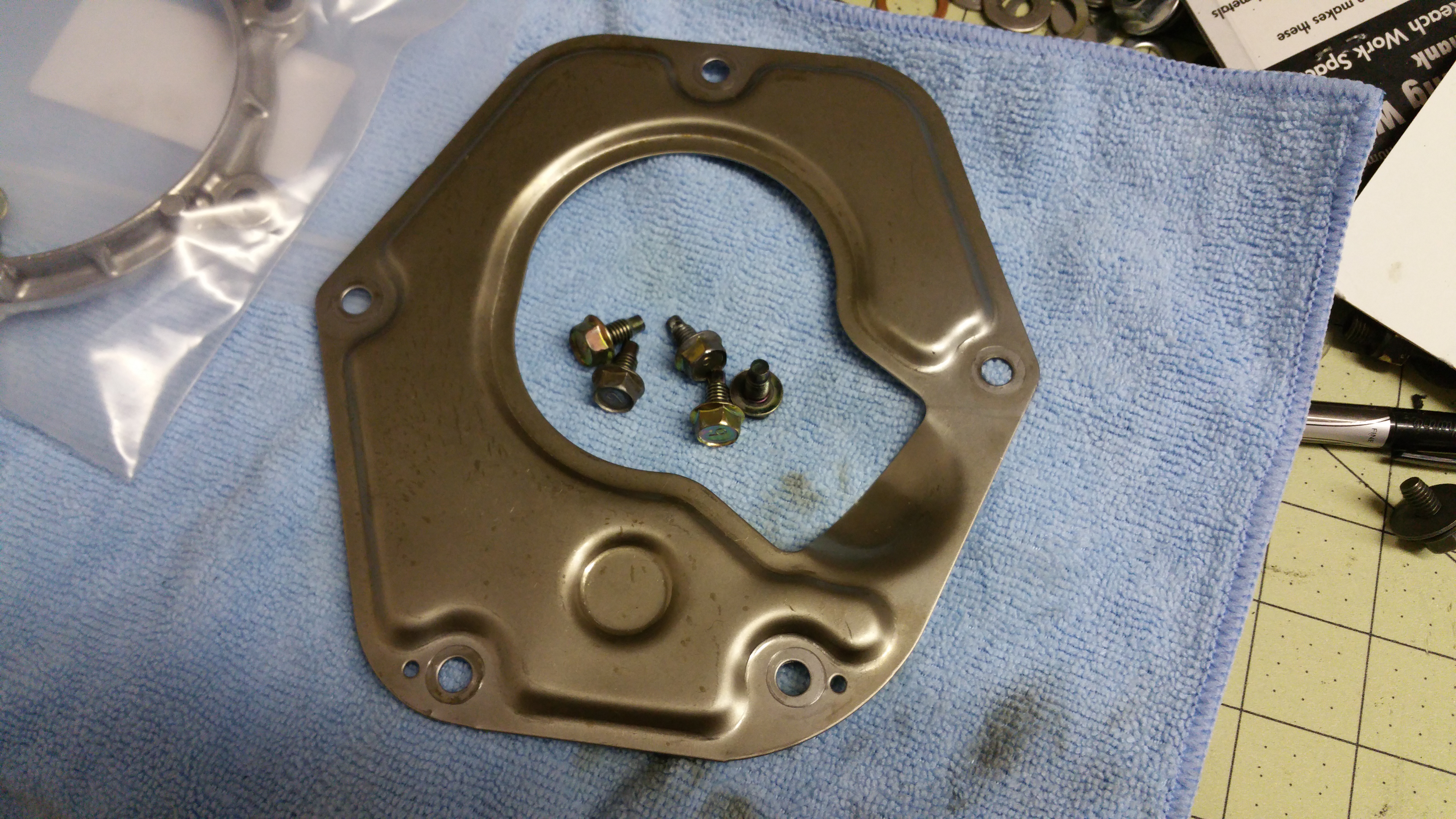

Oil intake pipe cover thingy and bolts

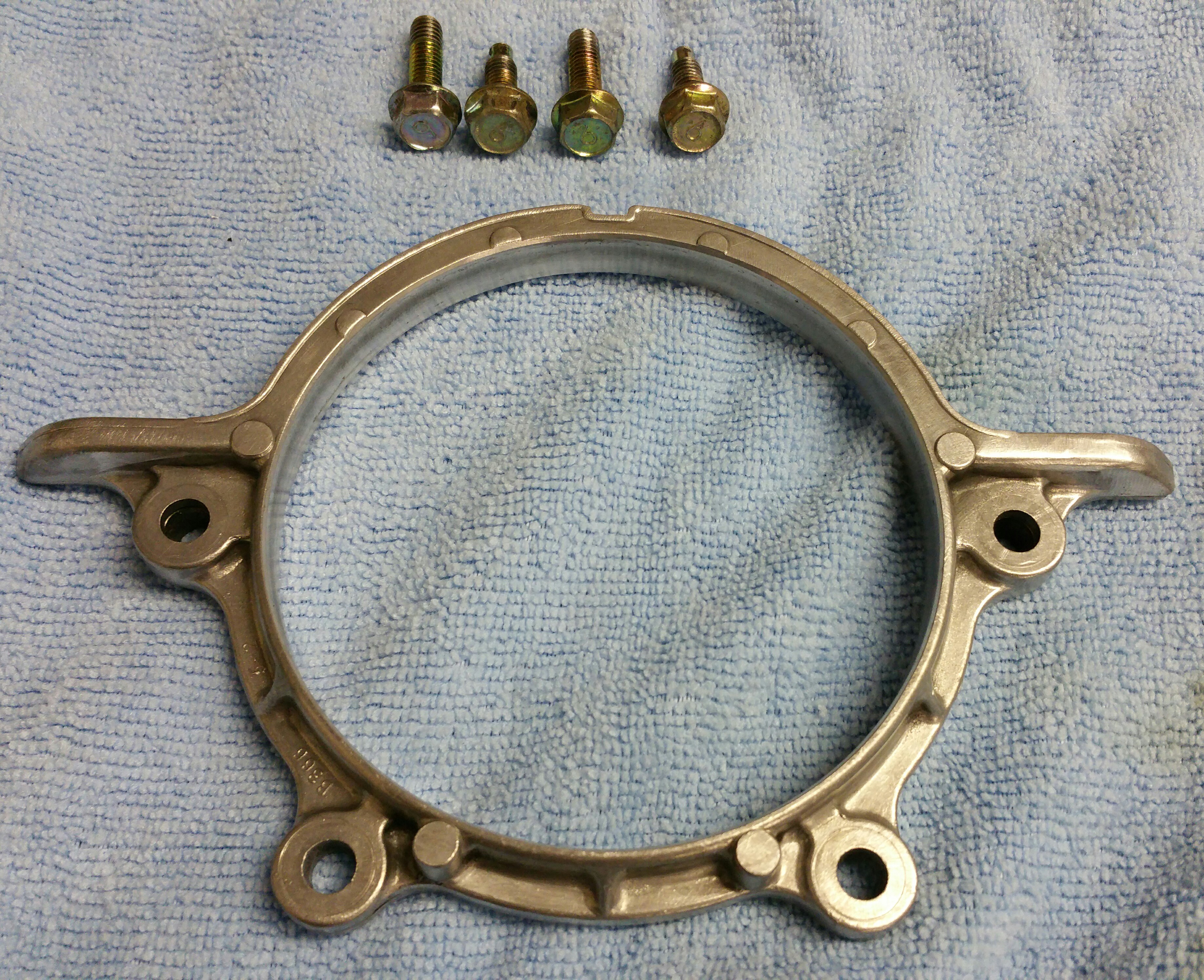

Rear main seal seriously degunked(it was bad)

Attached Thumbnails
93' Miata stolen and flipped build thread-zkvhkvd.jpg   93' Miata stolen and flipped build thread-wojn6bn.jpg   93' Miata stolen and flipped build thread-yhwepch.jpg   93' Miata stolen and flipped build thread-6gf70hy.jpg   93' Miata stolen and flipped build thread-fta8b4j.jpg

Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 12:42 AM   #4256
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

Mixing manifold nipple is pressed in steel. Paint it!

Also make sure you mic the crank and plasti gauge the oil clearances.
curly is offline   Reply With Quote
Old 09-15-2015, 12:50 AM   #4257
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by curly View Post
Mixing manifold nipple is pressed in steel. Paint it!

Also make sure you mic the crank and plasti gauge the oil clearances.
I had the head machinist mic the crank for me to make sure I was ok using standard sized bearings

1.9663" on the main bearings
1.7691" on the rod bearings.

but yeah when I get everything I'll figure out how to use the plastigauge
Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 10:07 AM   #4258
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by rleete View Post
Looks like a grind mark from balancing.

Those pieces have been bugging the crap out of me. I've been scouring exploded diagrams and parts lists, and I just don't see where it's a part of anything that should be inside an engine. The best I can come up with is something that got injested.
Quote:
Originally Posted by EO2K View Post
Seriously, I'm at a loss as to what that might be. It DOES look like a plastic cage for a set of ball bearings but there are not ball bearings in a BP. There are however ball bearings inside an EFR...

Plastic or metal, ferrous or not (stick a magnet to it) will also help with identification. I mean, if its plastic that's not going to help, but you get the idea. in4answers.
Quote:
Originally Posted by curly View Post
The pieces of metal are probably bearing material, they look horrible.

It almost looks like those three other pieces could fit together to create some trianglular shape with a beveled circle in it, maybe you'd recognize it if you put the pieces together. That's going to slowly kill me until I know what it is.




Hnnnnggghhhh oh god that felt good to figure out.

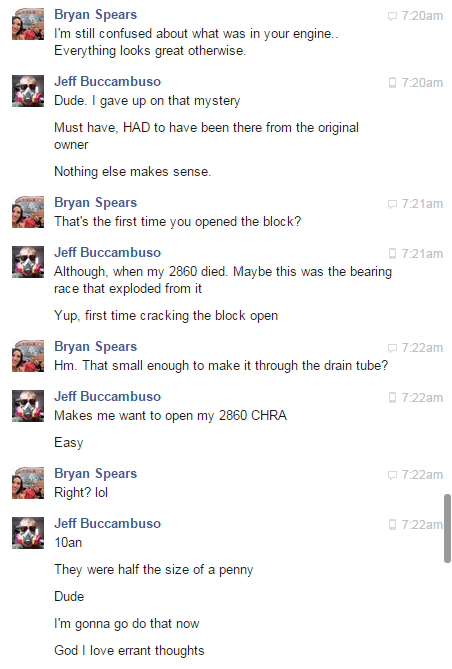

Thank Bryan, no, he didn't figure it out, but he gave cause to an errant thought path that brought me to the conclusion.



After cracking the 2860 CHRA (holy **** ***** that C clip was a challenge)

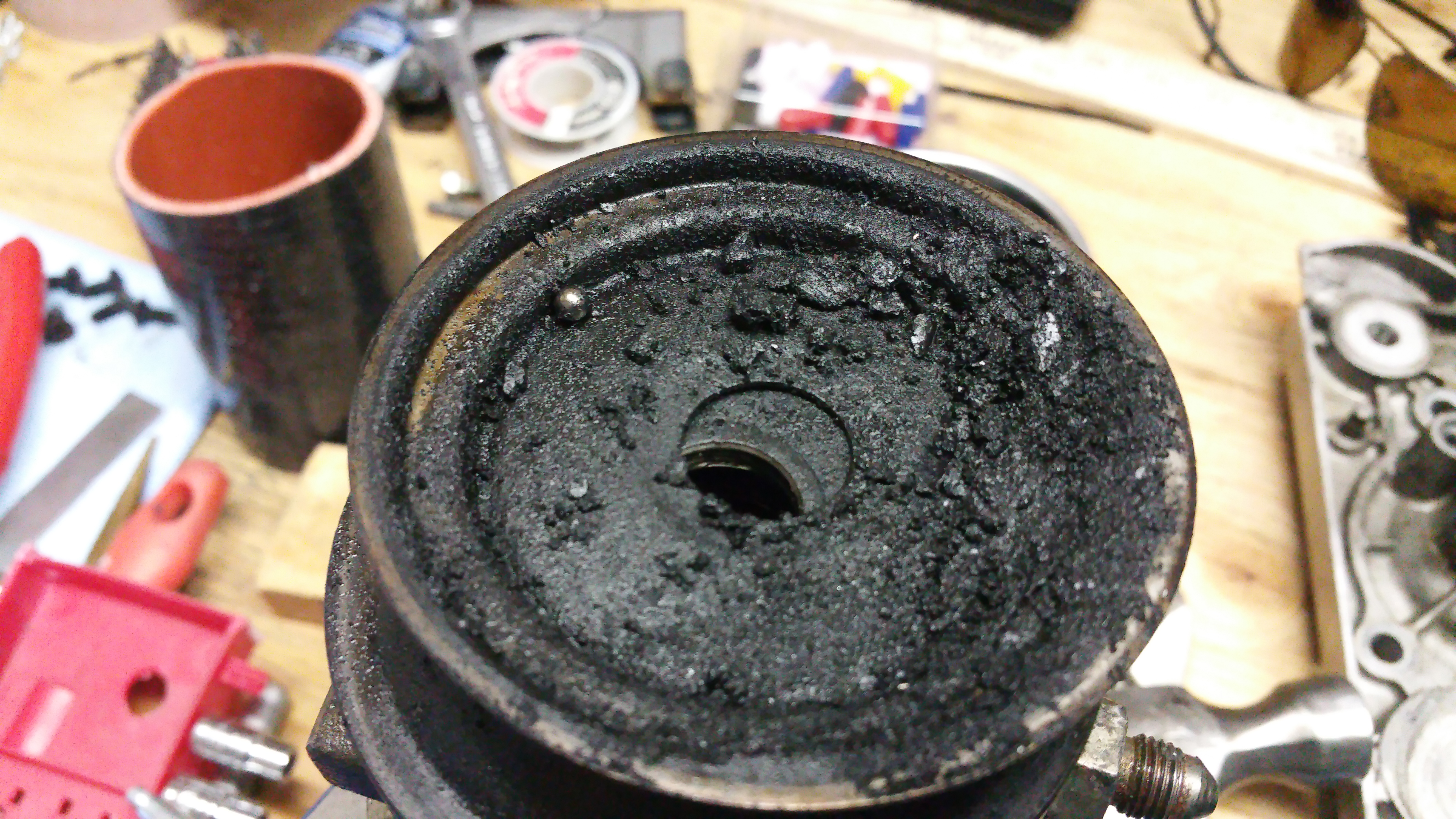

And parsing the volcanic ash that was my turbo...hello Mr. random ball bearing, what are you doing out there!

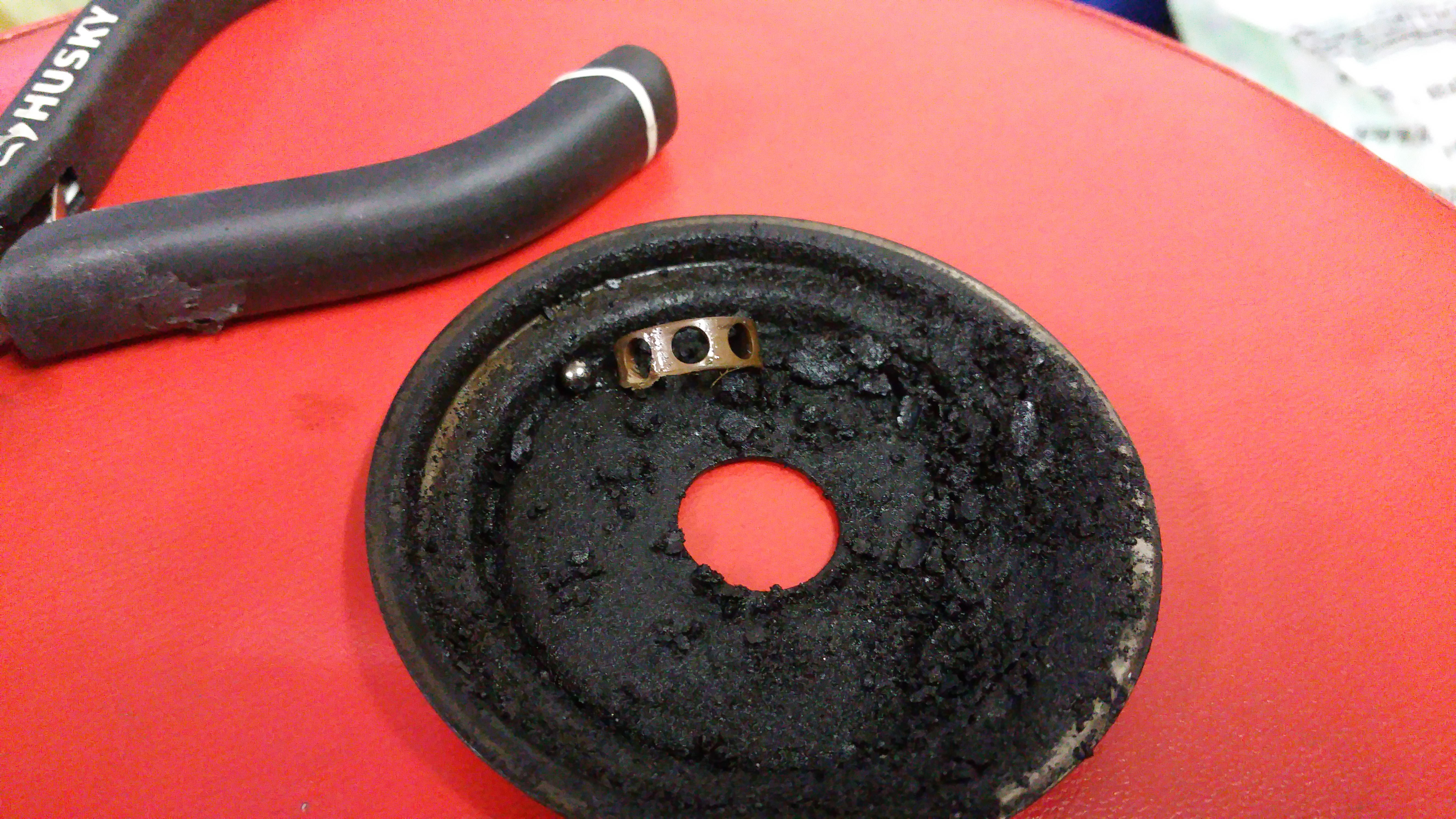

Opening it up further I found the bearing races in pieces. Sitting in the oil pan for who knows how long must have turned them black.



I'm gonna go out to eat dinner tonight in solving this mystery.
Attached Thumbnails
93' Miata stolen and flipped build thread-80-giphy_f8e30fd162002362e6dc15db322af4478a31cf8d.gif   93' Miata stolen and flipped build thread-wqa5u2l.png   93' Miata stolen and flipped build thread-w1hg94k.jpg
Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 10:12 AM   #4259
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

WOW !!

I think every single one of us would have wondered about this for the rest of our lives otherwise.

Very cool (and disturbing that all that crap made it into your engine)
18psi is offline   Reply With Quote
Old 09-15-2015, 10:15 AM   #4260
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 18psi View Post
Very cool (and disturbing that all that crap made it into your engine)
Which leads me to believe this was the cause to all my engine issues since getting the EFR setup.

Although, where the bearings are, the only path they could make it to the pan is through the oil drain line. So maybe all that **** didn't touch anything in the engine.
Jeffbucc is offline   Reply With Quote
