Old 09-15-2015, 12:49 PM   #4281
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,447
Total Cats: 2,264
Default

I don't think rust = toast, i've even seen people polish them, but the rust is REALLY weird IMO. That's an area that not only should see oil regularly, but also see contact w/ the bucket regularly. sometimes ther'es rust on the sides, but that one looks like it's got junk on the whole tip (I know, I know, lol)
18psi is offline   Reply With Quote
Old 09-15-2015, 02:05 PM   #4282
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

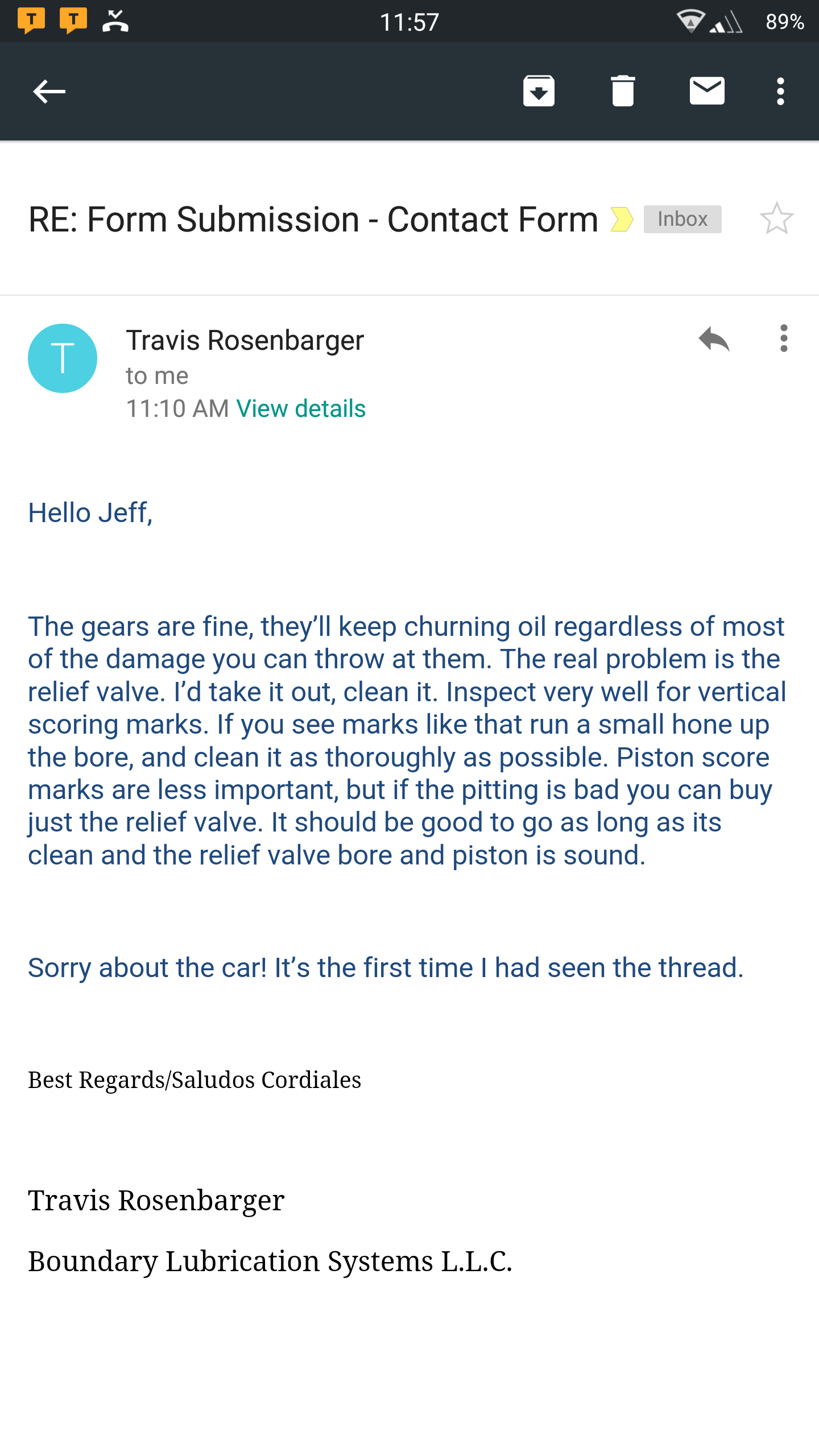

LA LA LA not listening...for now... but I did hear back from BE regarding the OP.

Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 03:59 PM   #4283
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by turbofan View Post
<p>WTF... why did it take Jeff's normal size picture and make it gargantuan, and how do I fix it?</p>
I dunno but I had to use adblocker to block the element, it was driving me nuts.

Quote:
Originally Posted by codrus View Post

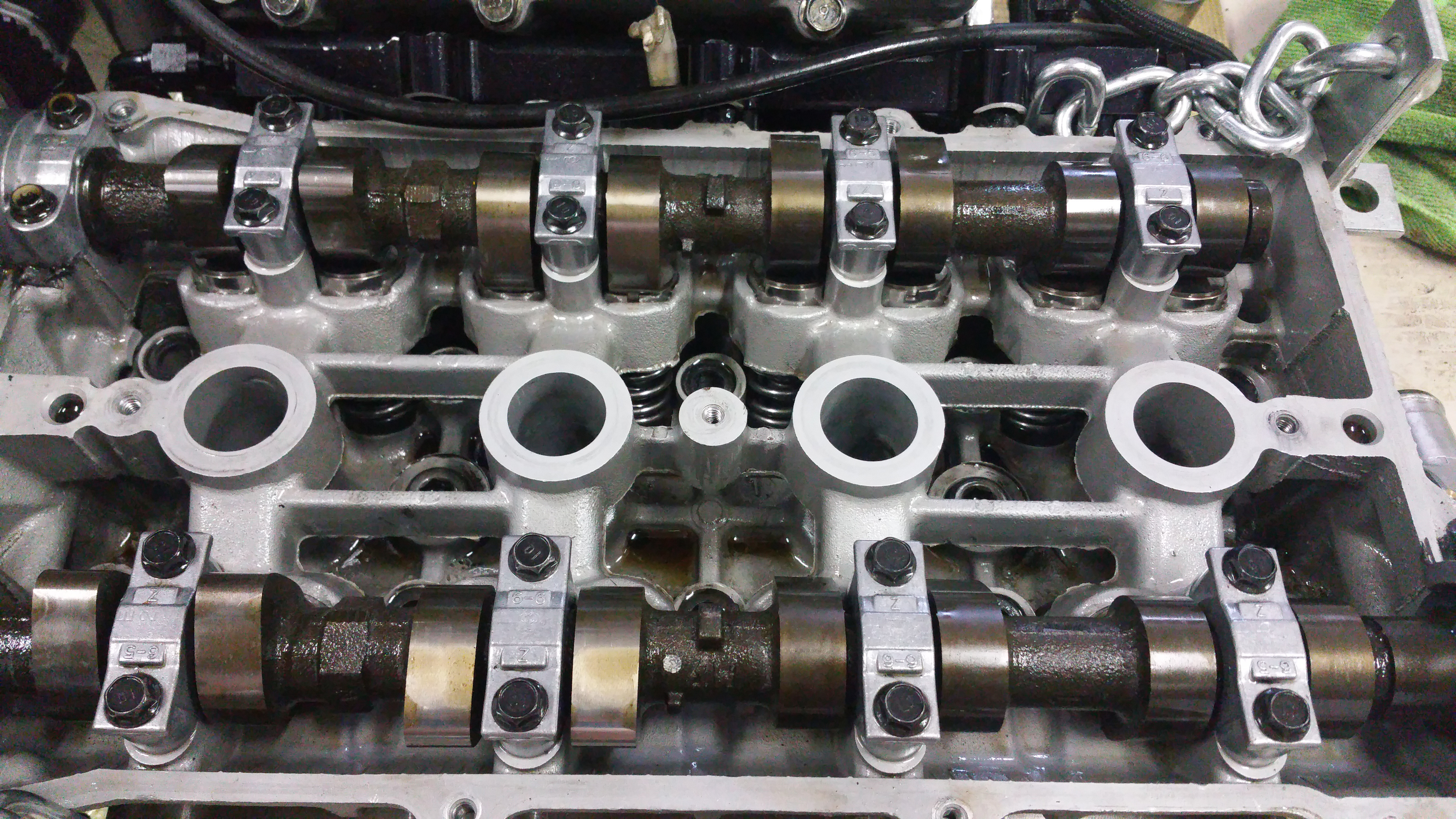

Ugh. I hate to ask, but have you pulled the cams to look at those journal surfaces yet?

--Ian
Here you go

All that rust was just surface rust, a little wd-40 and it wiped right off. I think my camera just made it look a lot worse than it was in reality.

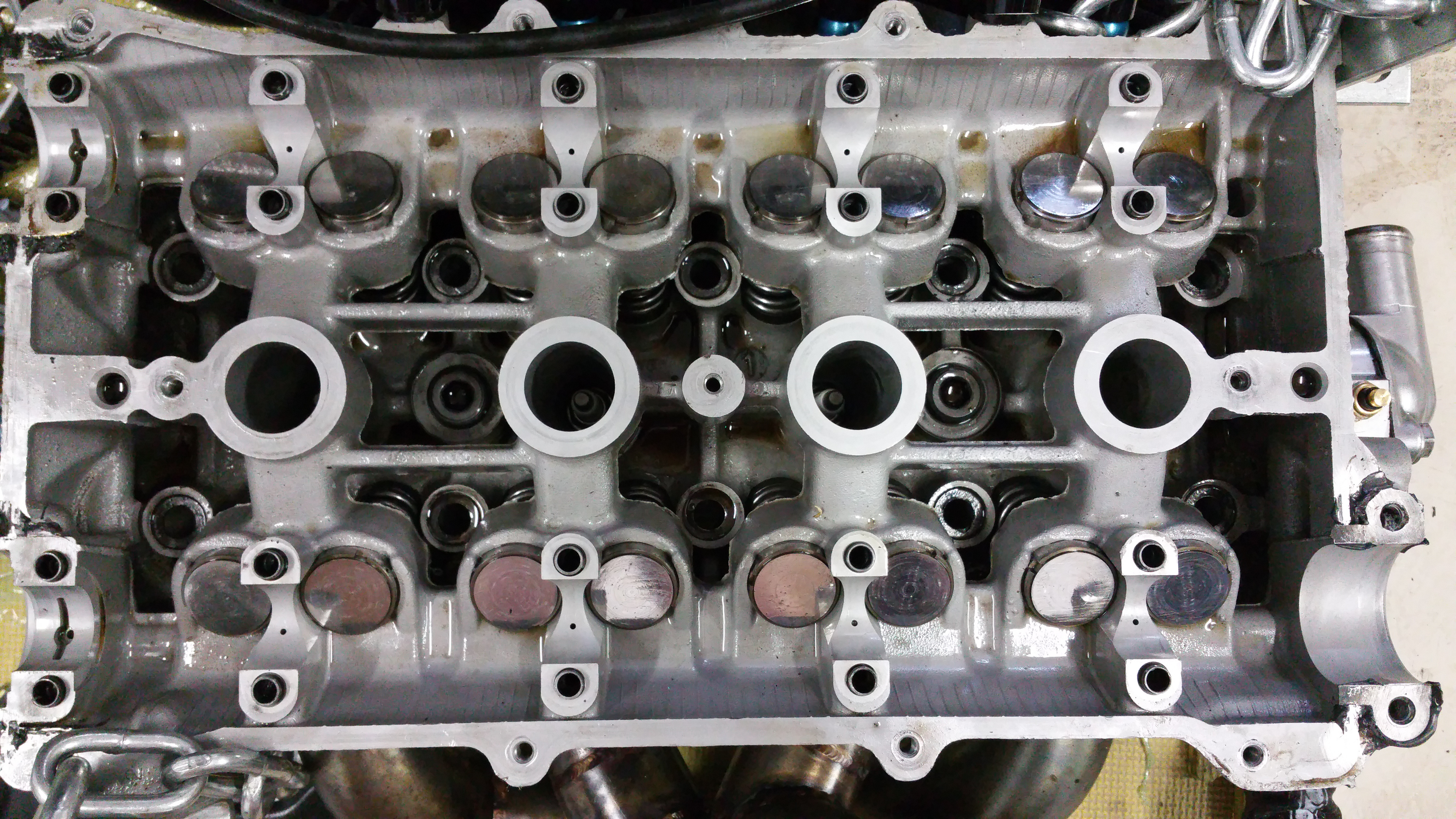

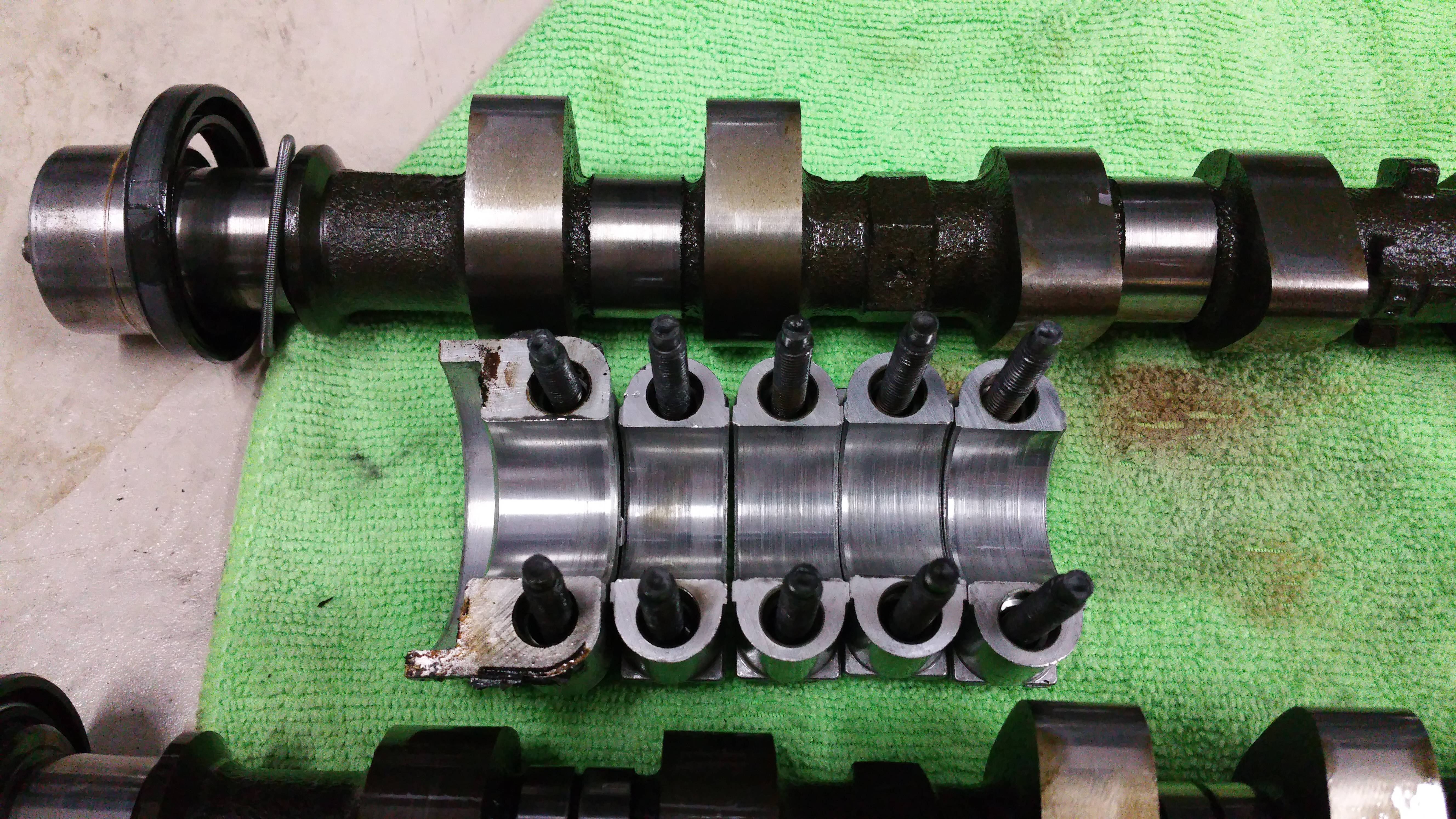

Head bearings



Can't get a fingernail on any of the bearing surfaces so I think, again, my camera is over defining the lines.

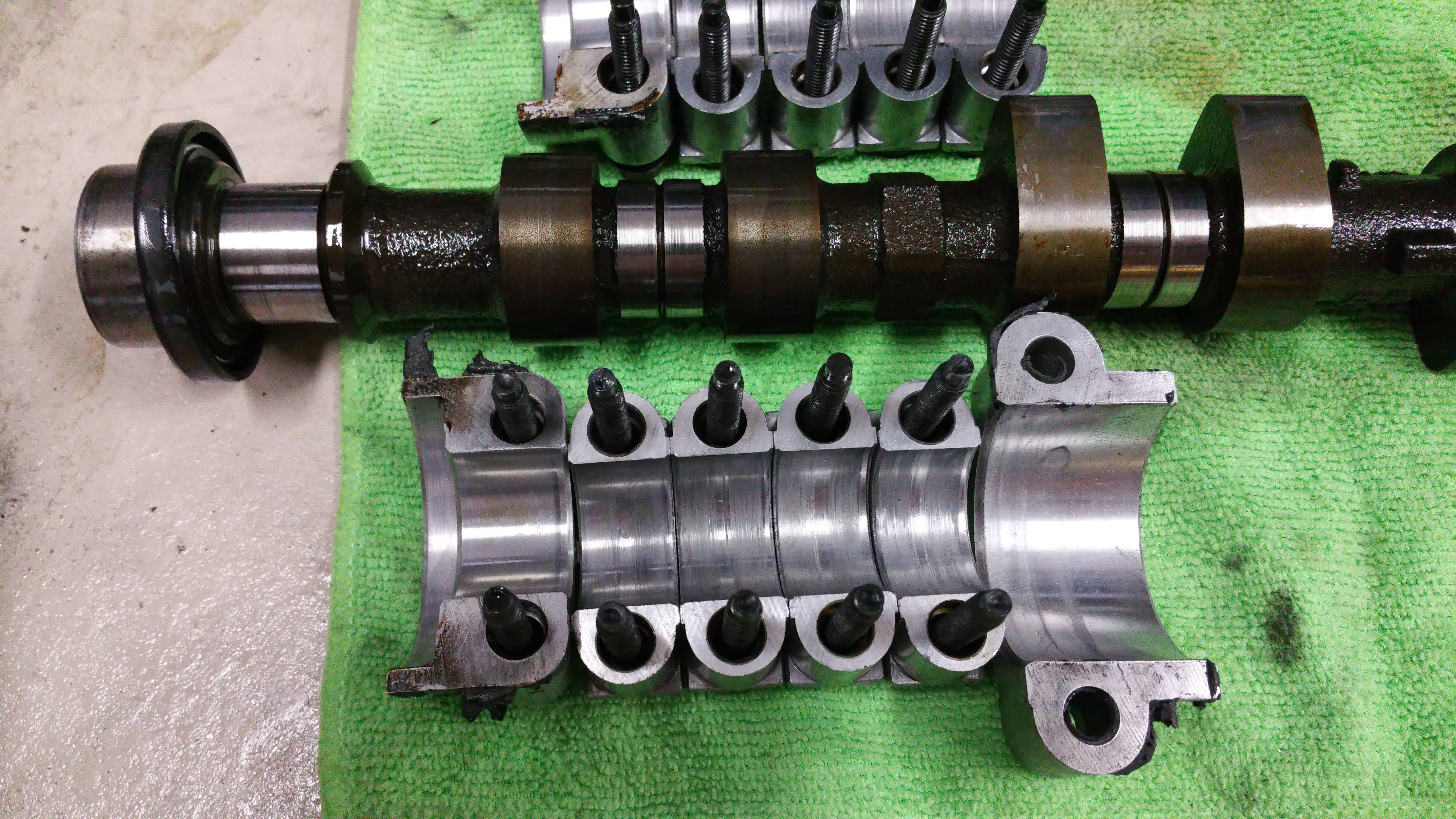

Exhaust Cam



Intake Cam

Attached Thumbnails
93' Miata stolen and flipped build thread-lsxtvpj.jpg   93' Miata stolen and flipped build thread-9p1mnby.jpg   93' Miata stolen and flipped build thread-rec9wvb.jpg
Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 04:28 PM   #4284
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,447
Total Cats: 2,264
Default

it's fine. use it
18psi is offline   Reply With Quote
Old 09-15-2015, 05:08 PM   #4285
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,869
Total Cats: 45
Default

The location of that rust is really weird. If it wiped right off I wouldn't sweat it, though.

Also, I would expect wear between the aluminum oil pump housing and the hardened steel gear. All that pitting on the gears, though looks like the oil pump ate a LOT of trash. Have you split open any oil filters?
vehicular is offline   Reply With Quote
Old 09-15-2015, 05:14 PM   #4286
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,930
Total Cats: 0
Default

Most shocking post in the last ~30 posts? The fact that Travis @ Boundary had never seen this thread...

R u fur realz!?!
Efini~FC3S is offline   Reply With Quote
Old 09-15-2015, 05:38 PM   #4287
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Efini~FC3S View Post

R u fur realz!?!


Attached Thumbnails
93' Miata stolen and flipped build thread-8dx4ltl.gif
Jeffbucc is offline   Reply With Quote
Old 09-15-2015, 05:42 PM   #4288
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,874
Total Cats: 1,267
Default

<p>I haven't seen him around much. Found old posts from him in my searching but nothing lately</p>
aidandj is offline   Reply With Quote
Old 09-15-2015, 10:07 PM   #4289
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Well Jeff, when you get it back together, you'll really know what you have. You're right. Glass was definitely half-full on this one.

The adult in me would recommend turning the boost down a bit and enjoying the car.

AND GET TO THE TRACK, (dang it!).
hornetball is offline   Reply With Quote
Old 09-15-2015, 10:44 PM   #4290
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Funny you said that about being an adult about turning the boost down. I'm changed the EBC settings to 10 psi(EWG spring pressure) and calling it a day at that.

For a tiny bit less enjoyment, everything will last much much longer. Honestly, and I speak personally on this. I don't find 350 HP fun. It isn't terrifying or anything, it just is too much and overwhelms your connection to the car. But that could be simple inexperience talking.
Jeffbucc is offline   Reply With Quote
Old 09-16-2015, 02:33 PM   #4291
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

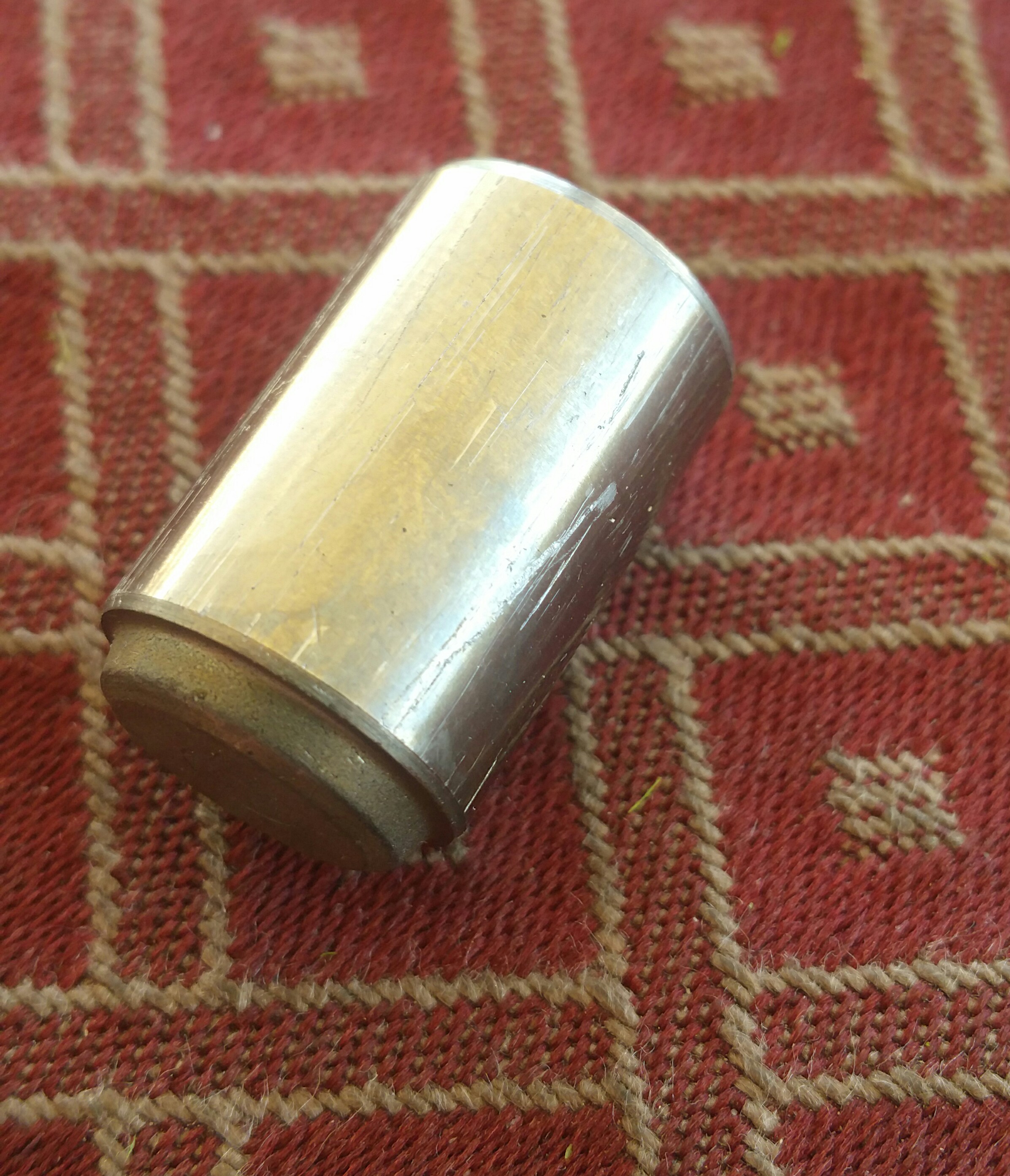

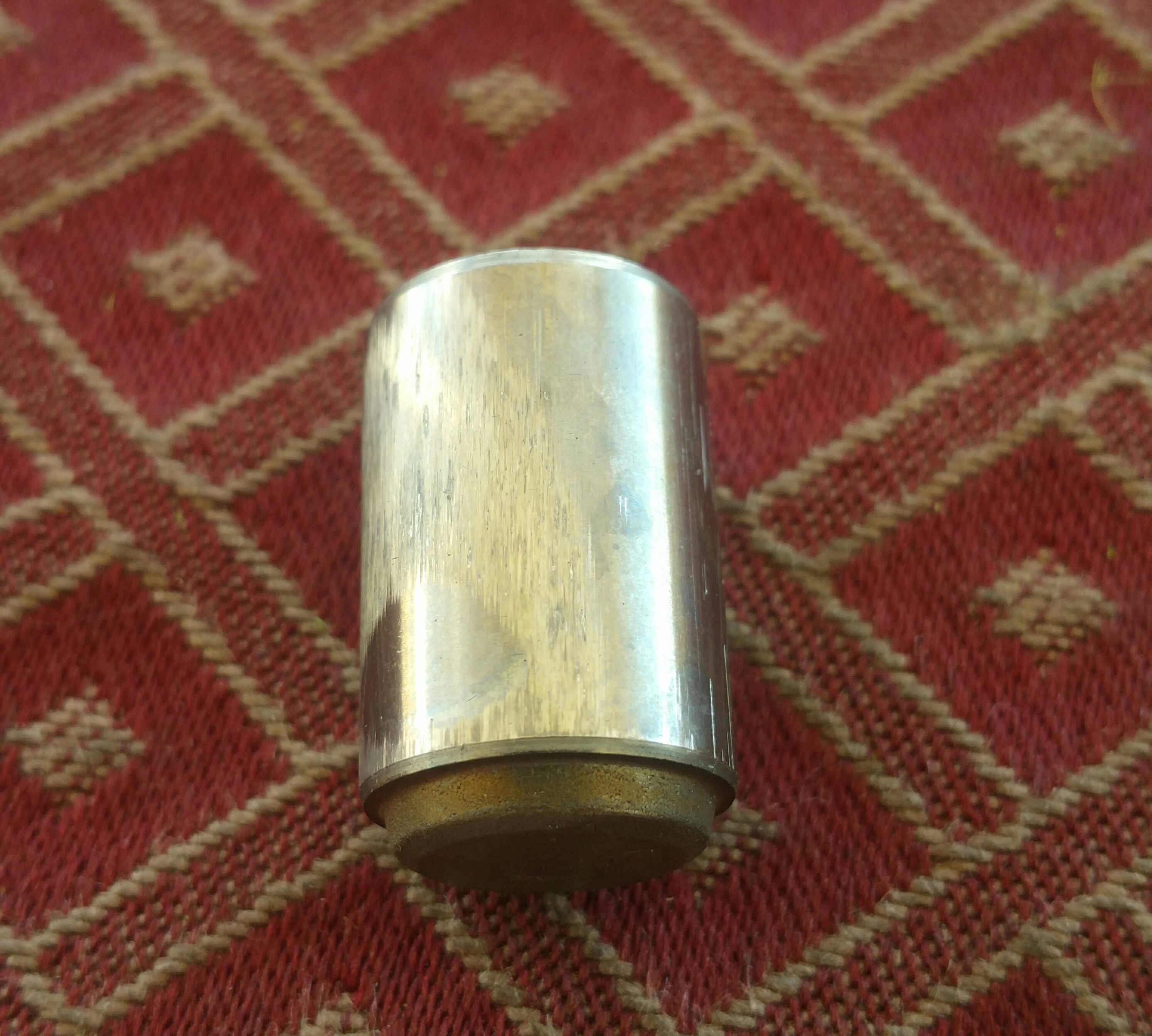

yup definitely going to need a new relief valve. Pretty gnarly scores down the relief valve hole and a definite a hot spot.



Attached Thumbnails
93' Miata stolen and flipped build thread-my0ivhn.jpg   93' Miata stolen and flipped build thread-p61sgwp.jpg
Jeffbucc is offline   Reply With Quote
Old 09-16-2015, 02:36 PM   #4292
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,447
Total Cats: 2,264
Default

ouch

sadface :(
18psi is offline   Reply With Quote
Old 09-16-2015, 03:04 PM   #4293
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Happy face . . . because you needed it and it didn't destroy your engine like it could have!
hornetball is offline   Reply With Quote
Old 09-19-2015, 02:40 AM   #4294
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

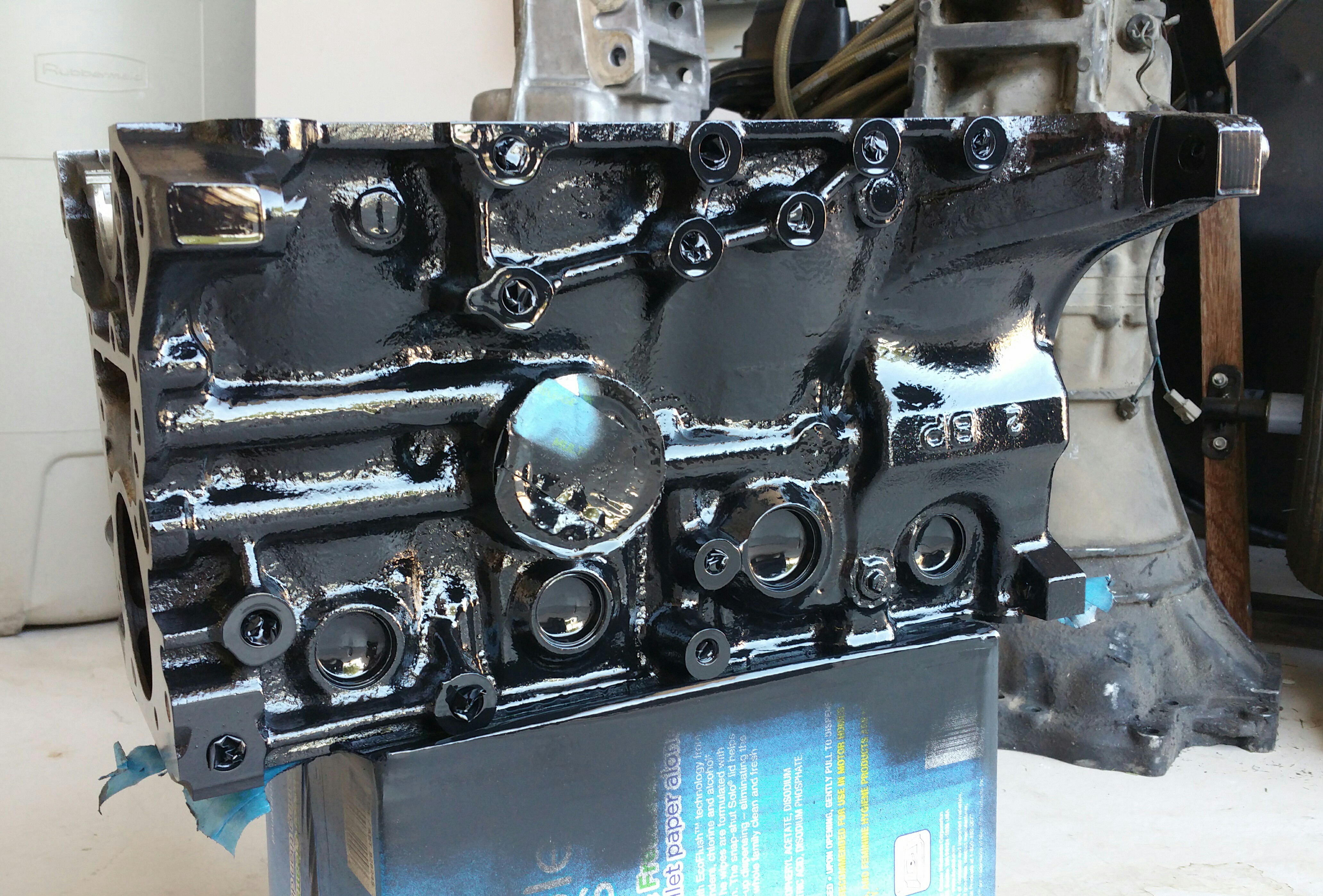

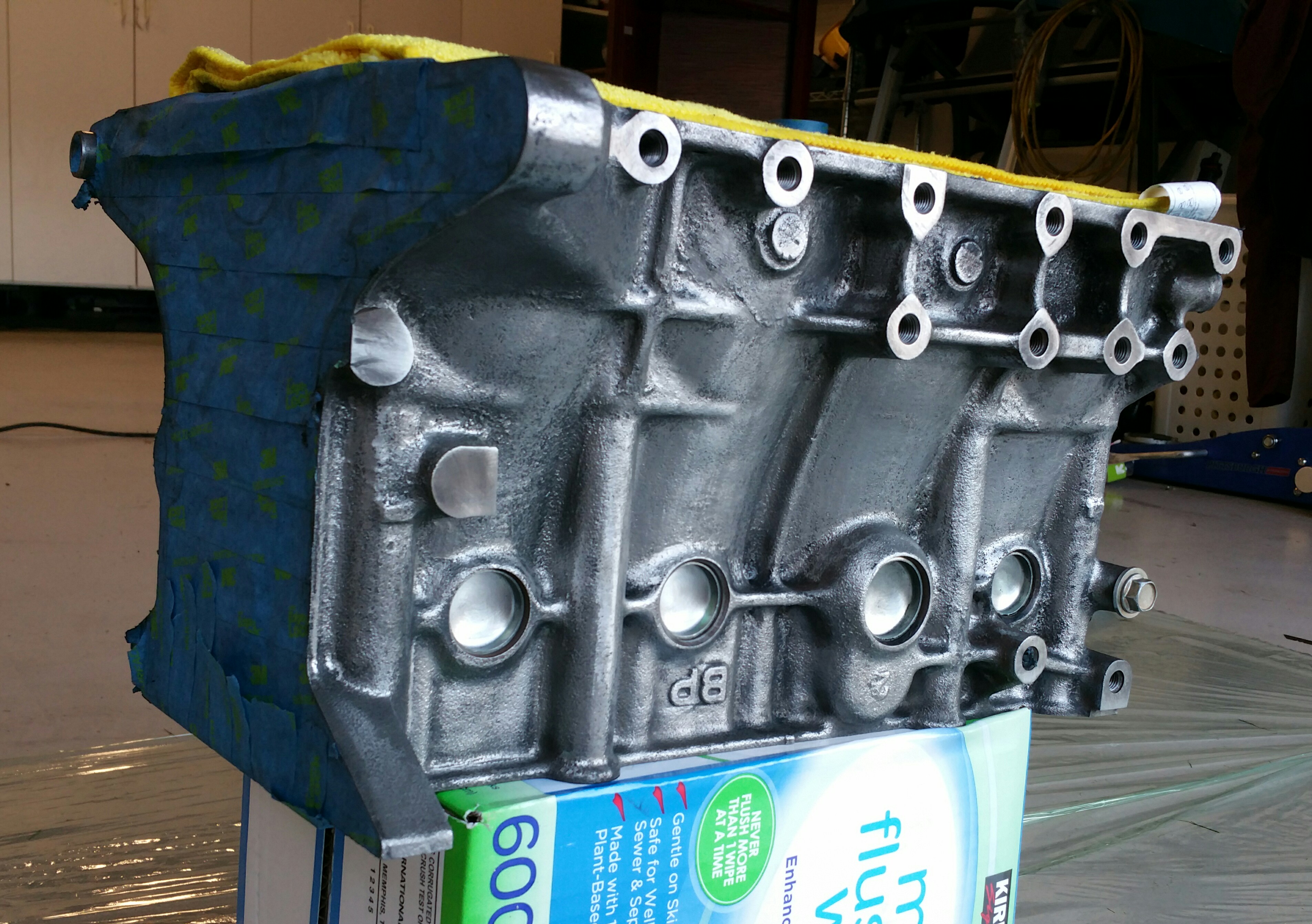

Went a little nuts cleaning up the block to paint it. Used a burr grinder bit to pull a lot of the casting irregularities. Not all of them, I'm not that insane, but after spending 9 hours getting the bulk of it off, I decided to throw in the towel and paint.



Filled all the bolt holes with tape so I don't have to chase the threads...again.

Attached Thumbnails
93' Miata stolen and flipped build thread-5fhrjuf.jpg   93' Miata stolen and flipped build thread-jhkqv6f.jpg
Jeffbucc is offline   Reply With Quote
Old 09-19-2015, 07:39 AM   #4295
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,930
Total Cats: 0
Default

Dude, I wish I had 9 hours to work on my car...period.
Efini~FC3S is offline   Reply With Quote
Old 09-19-2015, 10:17 AM   #4296
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,897
Total Cats: 487
Default

Sorry I never got back to you, but your bearings are on their way.
curly is offline   Reply With Quote
Old 09-19-2015, 12:50 PM   #4297
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by Jeffbucc View Post
Went a little nuts cleaning up the block to paint it.
Really? You did?
EO2K is offline   Reply With Quote
Old 09-19-2015, 01:15 PM   #4298
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Cleaning?!?! I, for one, am shocked and surprised.
revlimiter is offline   Reply With Quote
Old 09-19-2015, 03:20 PM   #4299
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,651
Total Cats: 62
Default

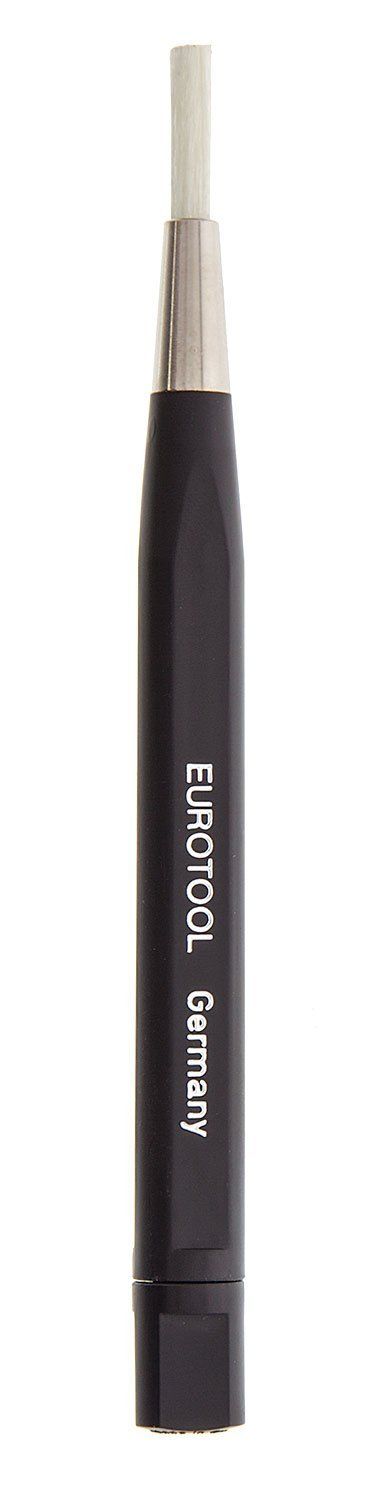

If you really want to kill time you can clean off most of the cam lobe rust off with one of these.
Amazon.com: Scratch Brush, Fiberglass (Colors may vary): Home Improvement Amazon.com: Scratch Brush, Fiberglass (Colors may vary): Home Improvement


Attached Thumbnails
93' Miata stolen and flipped build thread-80-51rkzmjagul_sl1500__1e36dfac5a92e9f7ab6d2330a984e17fae225f85.jpg
TorqueZombie is offline   Reply With Quote
Old 09-20-2015, 03:08 AM   #4300
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by EO2K View Post
Really? You did?
Quote:
Originally Posted by revlimiter View Post
Cleaning?!?! I, for one, am shocked and surprised.
Yeah that was pretty redundant even for me...

Quote:
Originally Posted by TorqueZombie View Post
If you really want to kill time you can clean off most of the cam lobe rust off with one of these. Amazon.com: Scratch Brush, Fiberglass (Colors may vary): Home Improvement
Huh, maybe I don't completely understand the product. How is it better that a good quality boars hair brush and/or 1k/2k sandpaper? Just the ability to get in small voids?
Jeffbucc is offline   Reply With Quote
