Old 04-26-2014, 11:13 PM   #2281
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

w00t! w00t!

Grats man! Feels good, don't it?
EO2K is offline   Reply With Quote
Old 04-26-2014, 11:29 PM   #2282
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

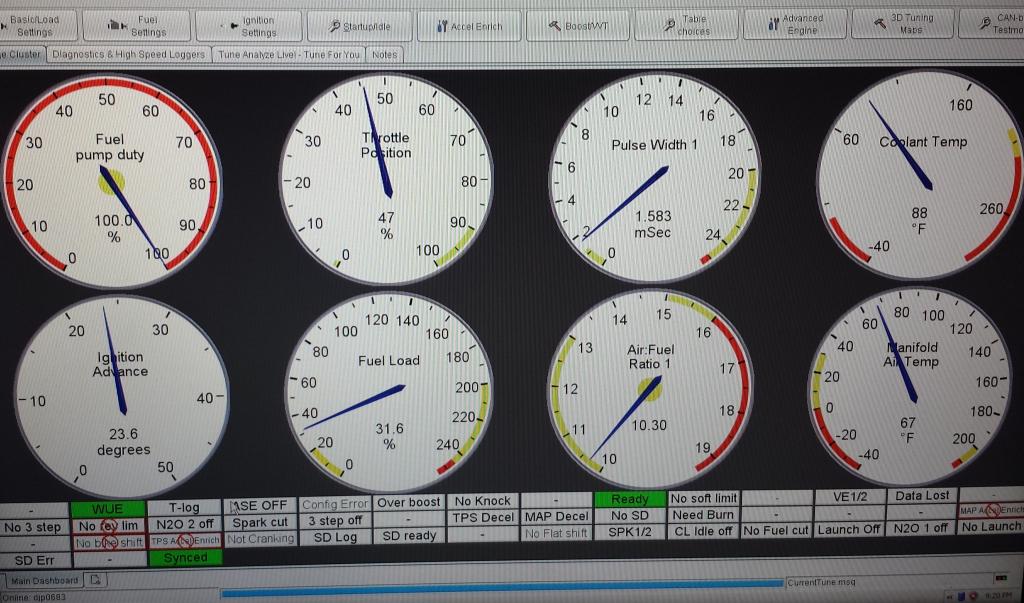

and a quick shot of tunerstudio gauges.

It is running pretty rich! Also the 511 hz change on the TPS took care of the loping idle.

Edit Also the AFR gauge and TS don't match. Gauge shows it running 14-15 AFR while TS is reading 10, odd considering I wired it how everyone suggested so that the ecu and afr share a common ground.

Attached Thumbnails
93' Miata stolen and flipped build thread-f1c05f96-33f2-4dfd-9150-f174f439ee68.jpg
Jeffbucc is offline   Reply With Quote
Old 04-26-2014, 11:32 PM   #2283
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by EO2K View Post
w00t! w00t!

Grats man! Feels good, don't it?
Seriously, weight off my damn shoulders.
Jeffbucc is offline   Reply With Quote
Old 04-26-2014, 11:36 PM   #2284
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

Should run pretty rich, you're still in warm up enrichments. Wait for it to warm up, then start tuning AFRs. You also have autotune warm up enrichments. Must be done daily for a few days on a stone cold engine.
curly is offline   Reply With Quote
Old 04-26-2014, 11:48 PM   #2285
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

I also probably need to adjust the timing by 5 (from what I have read) for 91 octane(**** you Utah!). Currently adjusted for 93 octane in the original tune.

Throttle input is pretty shaky still, but I'm putting that down to the 450 idle I have in the calibration menu.

Still slightly worried about oil pressure since my gauge still won't respond very accurately. Forgot to move the needle to 90 PSI once the engine was running.

I'm glad my air temp is responding correctly, just need to find a better way to start the fuel pump rather than jumping F/P to ground on the diagnostic box. And yes the ST-SIG fuse is removed from the engine fuse box so I'm not hurting the MS3x.
Jeffbucc is offline   Reply With Quote
Old 04-26-2014, 11:53 PM   #2286
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 512
Total Cats: 86
Default

Congrats on the running car!!!!!!

Attached Thumbnails
93' Miata stolen and flipped build thread-partycannon.jpg
revlimiter is offline   Reply With Quote
Old 04-27-2014, 12:27 AM   #2287
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

How far off are the afr readings?
jimmyneutron is offline   Reply With Quote
Old 04-27-2014, 01:01 AM   #2288
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

AFR read 14-15 but it has to be off since warm-up enrichment was active. TS output was 10.
Jeffbucc is offline   Reply With Quote
Old 04-27-2014, 02:35 AM   #2289
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 199
Total Cats: -5
Default

I meant how far off is the gauge to the ts readings but I'm sure you will sort it.
jimmyneutron is offline   Reply With Quote
Old 04-27-2014, 02:00 PM   #2290
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

So upon watching the engine idle I'm seeing white smoke coming from the headers area. I'm hoping it is just some oil I may of spilled that got onto them, but I'm worried that it may also be turbo related as well.

Kinda nervous to let it idle for a while to see if it burns off or not. Idle is currently holding steady at 1800 so I need to make some adjustments to that. Is that due to Warm-up Enrichment though?

Also timing seems to be around 20-22 degrees...is that high? Man I have a lot of reading to do on tunerstudio.
Jeffbucc is offline   Reply With Quote
Old 04-27-2014, 02:12 PM   #2291
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

The WUE indicator that is green in your above image is indicating that WUE is, in fact, active. Once that shuts off, WUE is off.

There are a bunch of settings that will jack with your idle: WarmUp Enrichment (WUE,) AfterStart Enrichment (ASE) both Percentage & Taper, PWM Idle Crank Duty (sets IAC valve to fixed position based on coolant temp) etc,etc. I have no idea if your MS or TS is set to ignore or compensate for some of these things when autotuning, so be careful and make sure you understand what all these things are doing and when they are off/on. Its a fine balance of settings and it'll take a while to dial in.

You got this man

Related: I'm slightly disturbed that you haven't found a "reliable" oil pressure gauge yet

Last edited by EO2K; 04-27-2014 at 03:01 PM. Reason: TS, not TSE lol
EO2K is offline   Reply With Quote
Old 04-27-2014, 02:19 PM   #2292
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Quote:
Originally Posted by Jeffbucc View Post
So upon watching the engine idle I'm seeing white smoke coming from the headers area. I'm hoping it is just some oil I may of spilled that got onto them, but I'm worried that it may also be turbo related as well.

Kinda nervous to let it idle for a while to see if it burns off or not. Idle is currently holding steady at 1800 so I need to make some adjustments to that. Is that due to Warm-up Enrichment though?

Also timing seems to be around 20-22 degrees...is that high? Man I have a lot of reading to do on tunerstudio.
After reading your build thread, it's easy to forget that you are inexperienced in this kind of thing (i mean this in a good way ) Pretty much anytime you pull a motor and re-install it there will be burnoff on the initial start. There are oils on your skin, cleaning solutions you used around that area, other buildups as well. Just make sure the turbo oil feed line isnt leaking. To do this, i usually start the car and let it build oil pressure and run for 15-20 seconds, and then watch the oil feed area to make sure there is no leaking/seeping.

As for the idle settings, everything eo2k said.. but don't forget the mechanical adjustment too on the throttle body!
Fireindc is offline   Reply With Quote
Old 04-27-2014, 02:33 PM   #2293
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Fireindc View Post
After reading your build thread, it's easy to forget that you are inexperienced in this kind of thing (i mean this in a good way ) Pretty much anytime you pull a motor and re-install it there will be burnoff on the initial start. There are oils on your skin, cleaning solutions you used around that area, other buildups as well. Just make sure the turbo oil feed line isnt leaking. To do this, i usually start the car and let it build oil pressure and run for 15-20 seconds, and then watch the oil feed area to make sure there is no leaking/seeping.

As for the idle settings, everything eo2k said.. but don't forget the mechanical adjustment too on the throttle body!
It is sad that I can build a car like this but on the tuning aspect I basically am starting from scratch. I feel like I just learned algebra and all of a sudden calculus is being thrown at me!

Annoyed that the shitty napa gauge was showing pressure but I still can't get the OEM gauge to respond.

Probably going to bite the bullet and buy an AEM oil pressure gauge and just get it over with instead of slamming my head against a brick wall anymore.
Jeffbucc is offline   Reply With Quote
Old 04-27-2014, 05:26 PM   #2294
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

OK, AEM oil pressure analog gauge ordered, and just for peace of mind a -10an braided stainless turbo return line was ordered too. My oil return is pinched in a spot and for peace of mind I bought an 18" line from ATPturbo for a good price.

Should have ordered an AEM gauge in the first place...
Jeffbucc is offline   Reply With Quote
Old 04-27-2014, 10:41 PM   #2295
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

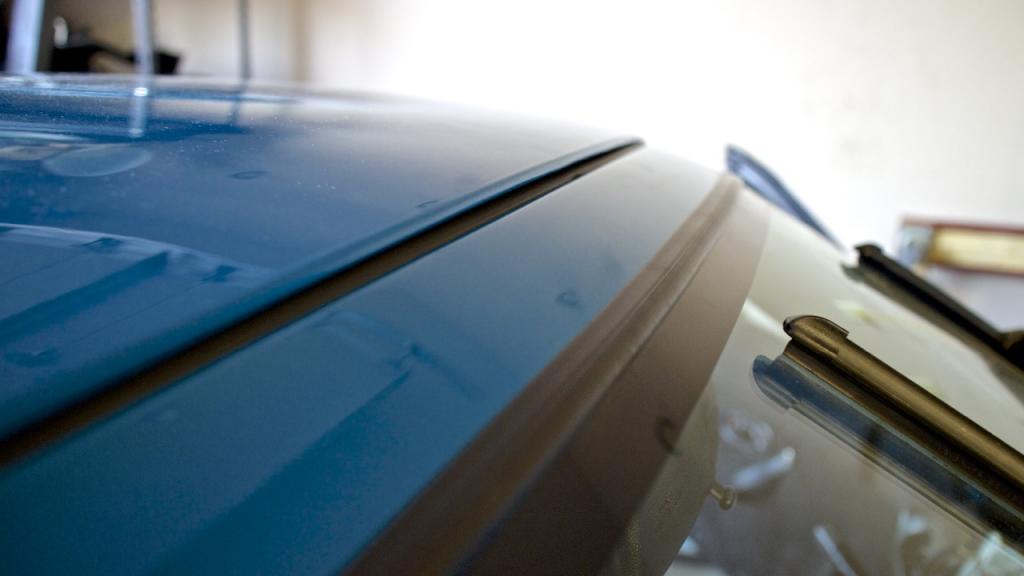

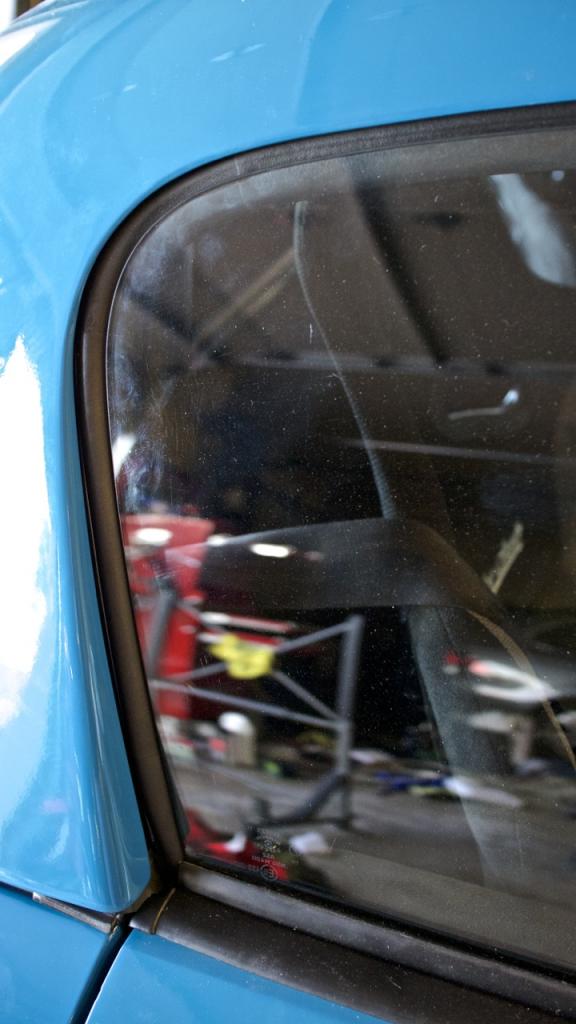

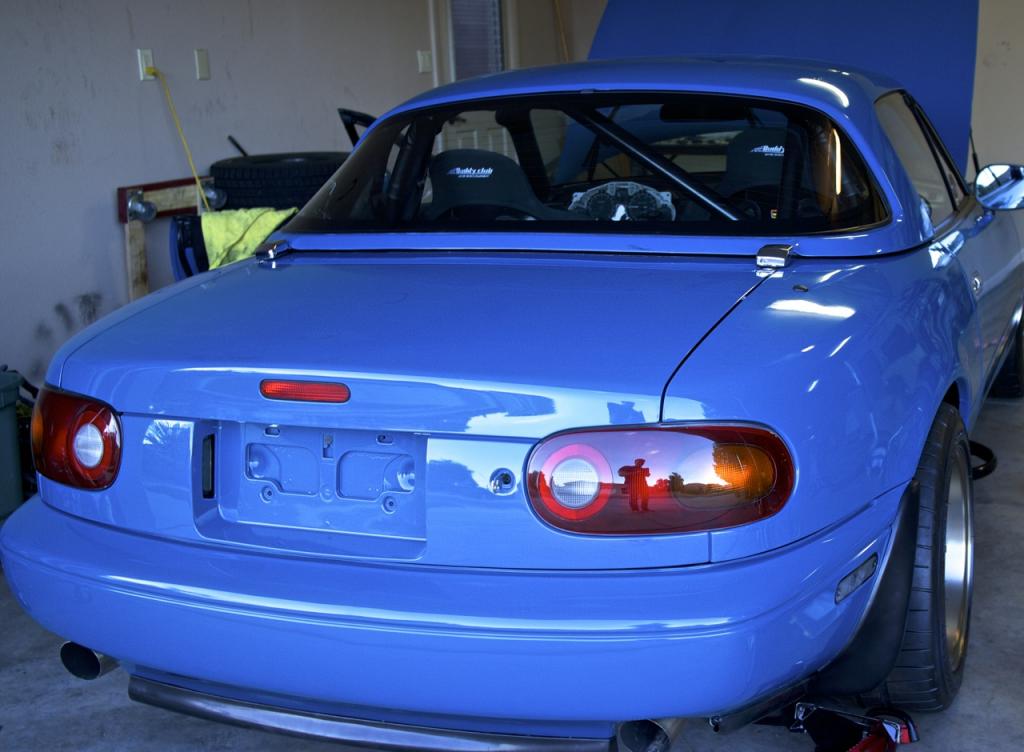

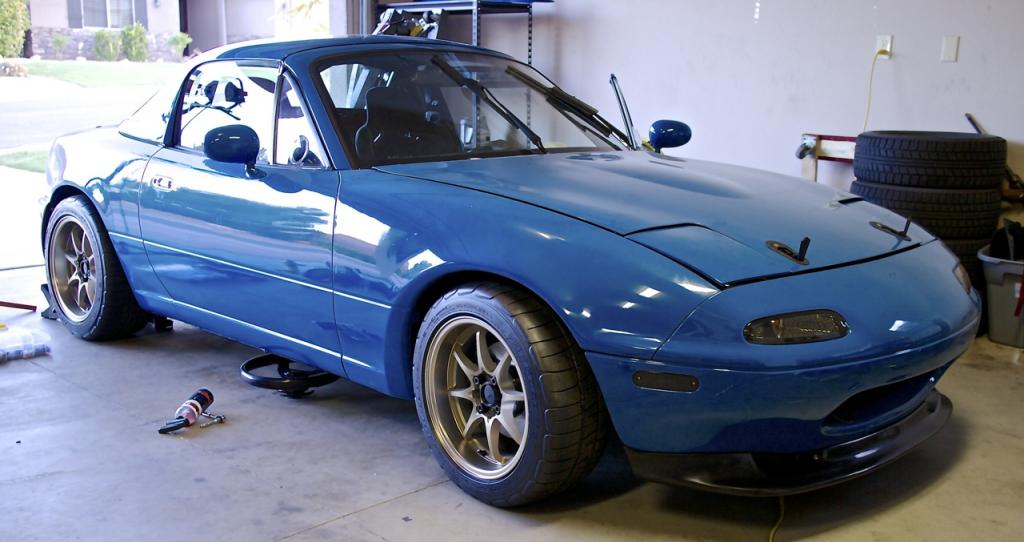

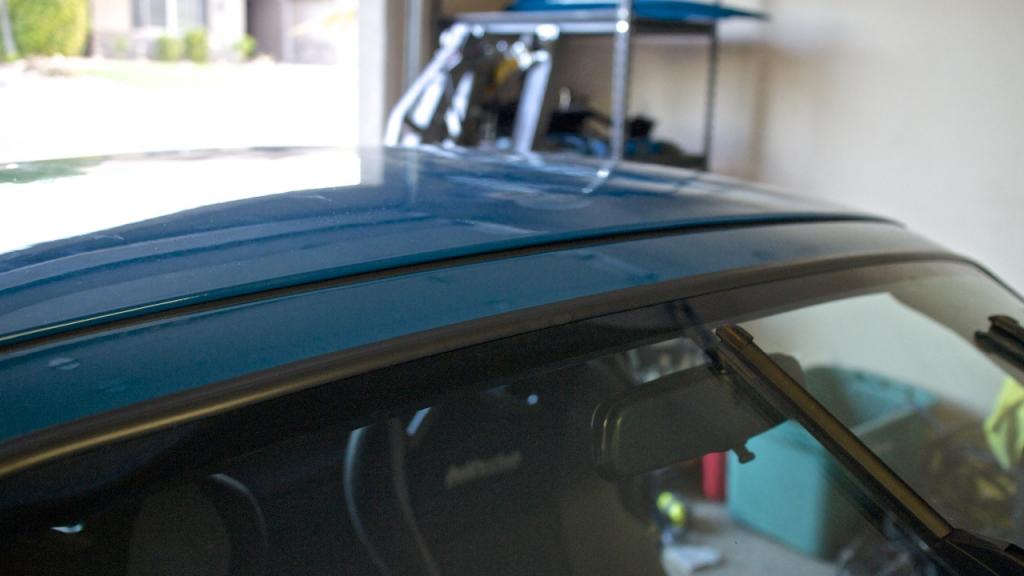

Got the hard top back on. I've got it fairly close to perfect but I think it is either sitting forward to far or I need to stuff a foam rod into the rubber to prop it up some more.

I used several ratcheting straps to pull it down and forward before I tightened the bolts. Also, hard tops are really really awkward to put on by yourself.

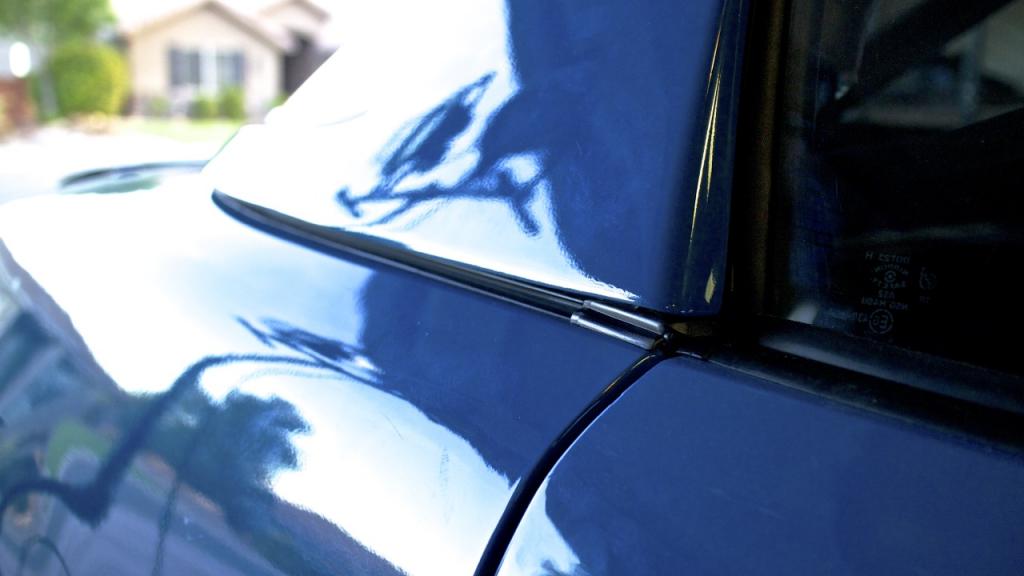

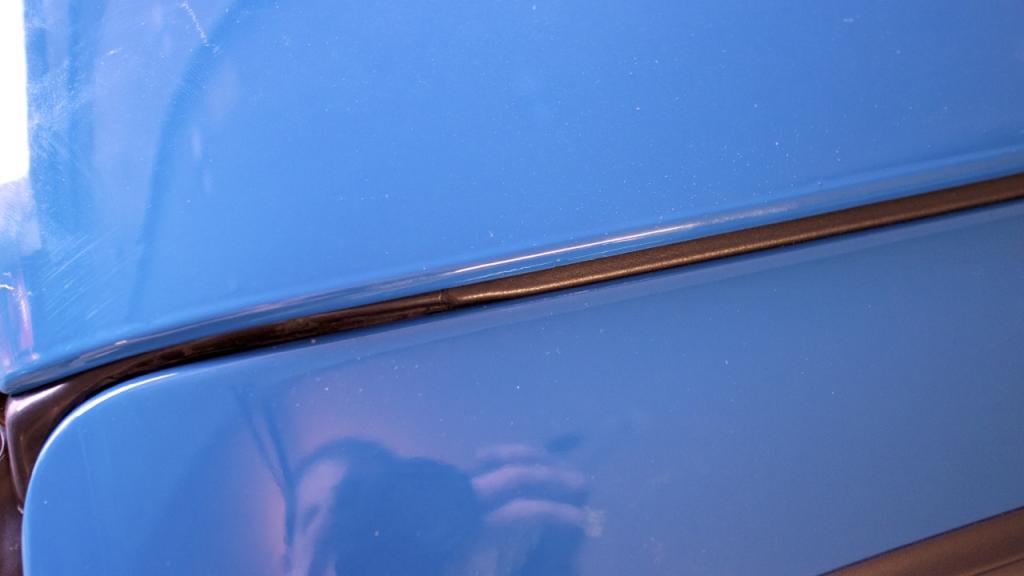

Looks like there is a gap but it is in full contact with the rubber



Need to fix this.





Attached Thumbnails
93' Miata stolen and flipped build thread-img_2720.jpg   93' Miata stolen and flipped build thread-img_2721.jpg   93' Miata stolen and flipped build thread-img_2722.jpg   93' Miata stolen and flipped build thread-img_2723.jpg   93' Miata stolen and flipped build thread-img_2724.jpg

93' Miata stolen and flipped build thread-img_2725.jpg   93' Miata stolen and flipped build thread-img_2727.jpg

Last edited by Jeffbucc; 04-27-2014 at 10:59 PM.
Jeffbucc is offline   Reply With Quote
Old 04-28-2014, 12:23 AM   #2296
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Your car is so perfect it almost bums me out.

Edit, also in my car I'm running oem front latches and hard mount brackets for the sides. I really only went with the side brackets due to rollbar interference with the stock latches. Also, i made my own brackets out of aluminum stock. It was super easy and worked awesome.
Fireindc is offline   Reply With Quote
Old 04-28-2014, 12:57 AM   #2297
Junior Member

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Quote:
Originally Posted by Jeffbucc View Post
Need to fix this.

I think everyone's is like this
Yezzir is offline   Reply With Quote
Old 04-28-2014, 03:20 AM   #2298
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default



Damn, soo clean, that is a prop collector for sure again...
Zaphod is offline   Reply With Quote
Old 04-28-2014, 09:10 AM   #2299
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Quote:
Originally Posted by Jeffbucc View Post
AFR read 14-15 but it has to be off since warm-up enrichment was active. TS output was 10.
What controller are you using again? Aem? Innovate?
Harv is offline   Reply With Quote
Old 04-28-2014, 10:40 AM   #2300
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

Nice build dude.

Extend those exhaust tips a tad or your going to be cleaning your bumper after every drive. even with a good tune and a high flow cat, you will be spewing a lot of soot with a "race" turbo tune.
shlammed is offline   Reply With Quote
