Old 08-29-2013, 01:16 PM   #21
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by curly View Post
Try Goodwinracing for some deep dish raceable and light wheels, like my Konig wideopens or the flatouts. They're cheap, but I hear they were sued by Ray's and Enkei and might not be available for much longer. Granted you have other purchase priorities right now, but if you sell the meshes on CR you might even come out on top.

I'd also suggest selling the FM intercooler and finding one without all the kinks, bends, and couplers in the piping. Either look at making a simpler design yourself, or look into buying their new one piece silicone hoses.

Good build so far though, you're basically copying my build, except with a 1.8. Should be good!
Thanks for the tips. My roommate actually has the Wideopens on his Miata. They are nice looking wheels. He would probably trade wheels with me down the road if I decided to go with a lightweight wheel.

I went with the FMII intercooler for now for the sake of having a kit that I could drop into the car (more or less) for a cheap price. I got a steal for the kit actually - I basically just paid for the FM core and got the piping for free. Once I save up some more money after I get the car running, I'm definitely going to look at having better piping fabbed together, or go with the FM silicone pipes for less points of failure and more direct air flow.

Thanks for the compliments!
Leach0789 is offline   Reply With Quote
Old 08-30-2013, 12:52 PM   #22
Newb

Join Date: Jun 2012
Posts: 25
Total Cats: 1
Default

Nice build. I'm boost my 94 Montego as well. Subscribed.
Jae_Rex is offline   Reply With Quote
Old 08-31-2013, 06:06 PM   #23
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,205
Total Cats: 40
Default

If you check out my build thread (https://www.miataturbo.net/build-thr...attempt-66942/) I used the same intercooler and ran the piping over the top of the radiator. Depending on the size of your radiators expansion tank, you might be able to avoid the S bend before the throttle body. A friend of mine uses the same intercooler on his track car and he's pushing over 350whp on a GT3071.
Midtenn is offline   Reply With Quote
Old 09-02-2013, 10:34 PM   #24
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by Jae_Rex View Post
Nice build. I'm boost my 94 Montego as well. Subscribed.
Thanks!

Quote:
Originally Posted by Midtenn View Post
If you check out my build thread (https://www.miataturbo.net/build-thr...attempt-66942/) I used the same intercooler and ran the piping over the top of the radiator. Depending on the size of your radiators expansion tank, you might be able to avoid the S bend before the throttle body. A friend of mine uses the same intercooler on his track car and he's pushing over 350whp on a GT3071.
That looks really awesome, I'm definitely going to consider this option. I do want to keep the FMII core - it's good stuff!

Had a busy weekend moving the girlfriend into a new apartment. Got a spare half hour tonight to do the injectors.

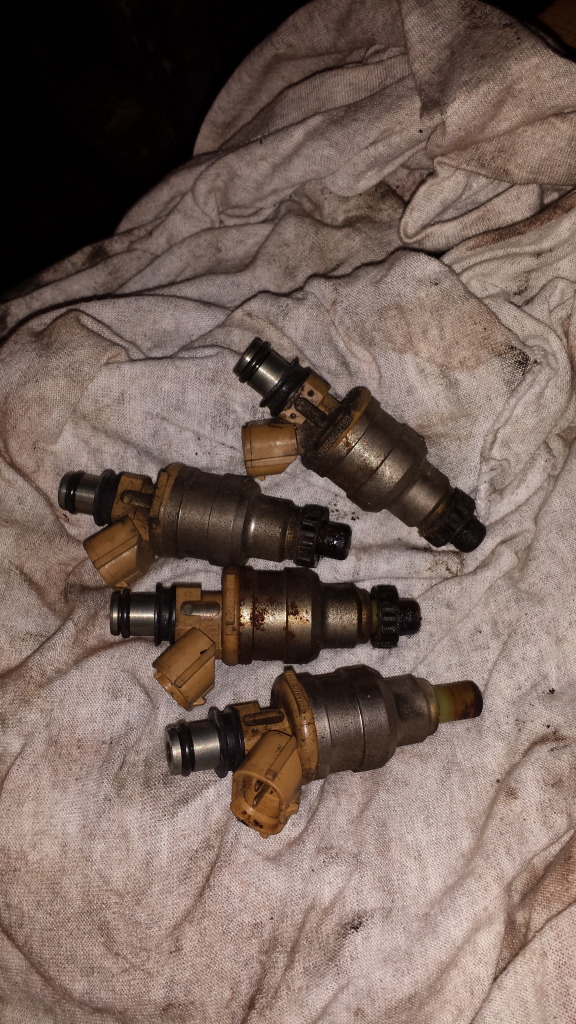

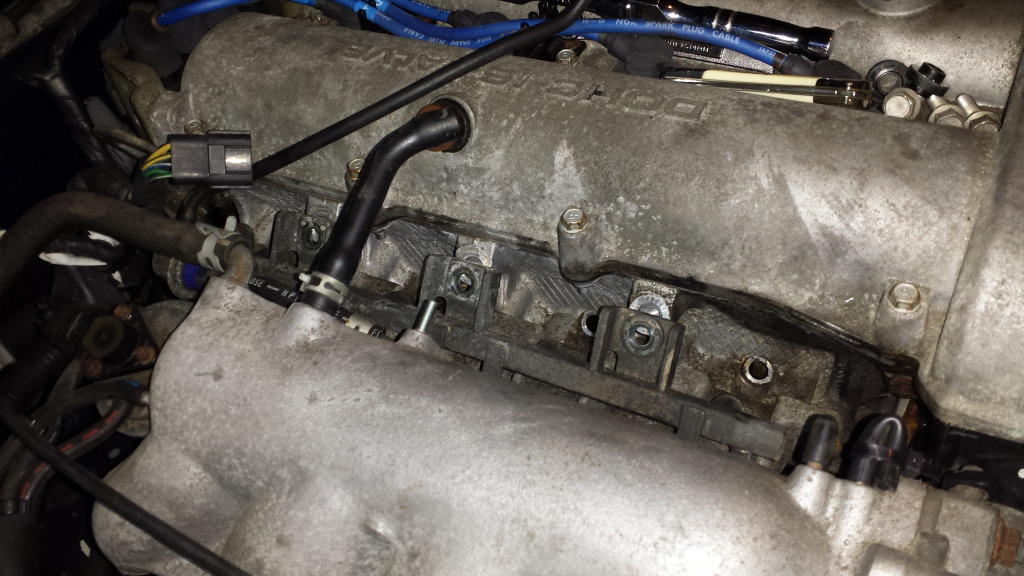

Old injectors out

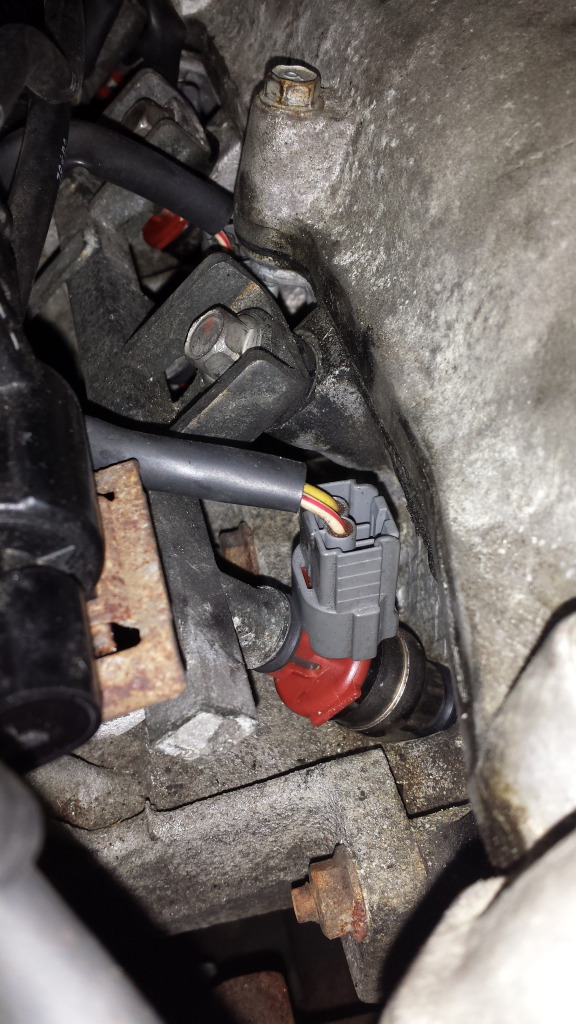

New injectors in!

Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130902_200815_zps04e02413.jpg   97 Montego sr20 t25 Turbo Build-20130902_200830_zpscbd1a585.jpg   97 Montego sr20 t25 Turbo Build-20130902_202221_zpsc25a469f.jpg
Leach0789 is offline   Reply With Quote
Old 09-05-2013, 11:22 PM   #25
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Had a solid few hours to work on the car after work today.

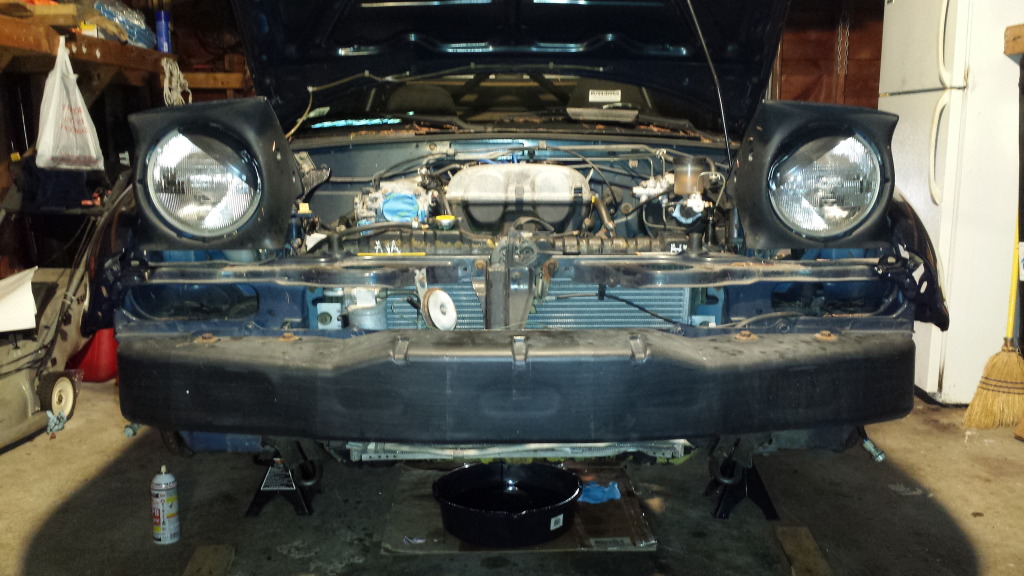

Got the fender lines out and bumper off in preparation for the FMIC install. At first glance, it looks like I'm going to end up removing my air conditioning to fit everything. I'm also thinking about deleting my power steering. Clean up that engine bay all nice like

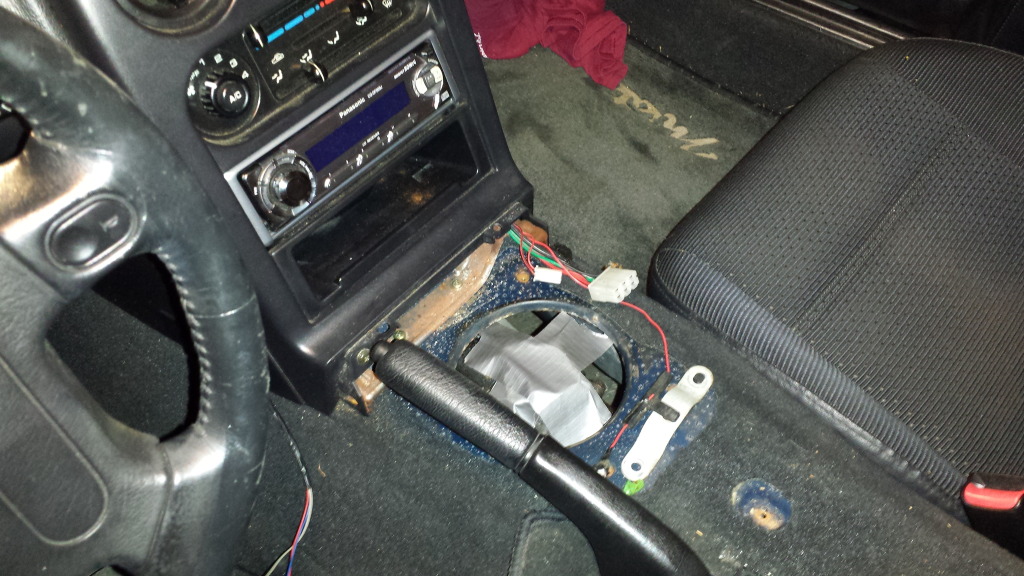

Center console and shifter out

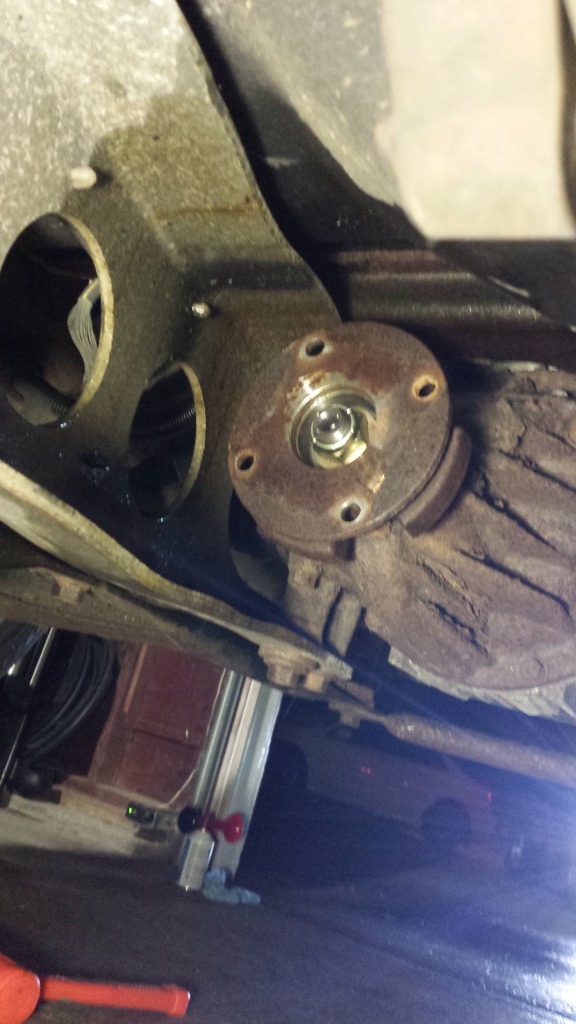

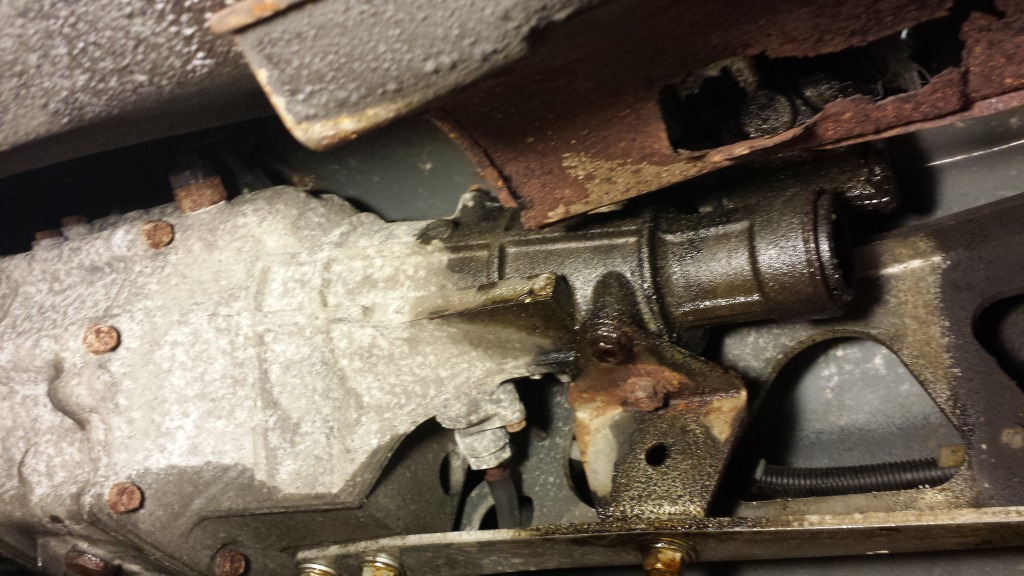

Tranny oil drained, and driveshaft removed. Don't mind my excessive use of PB blaster and rusted heat shields. Welcome to New England!

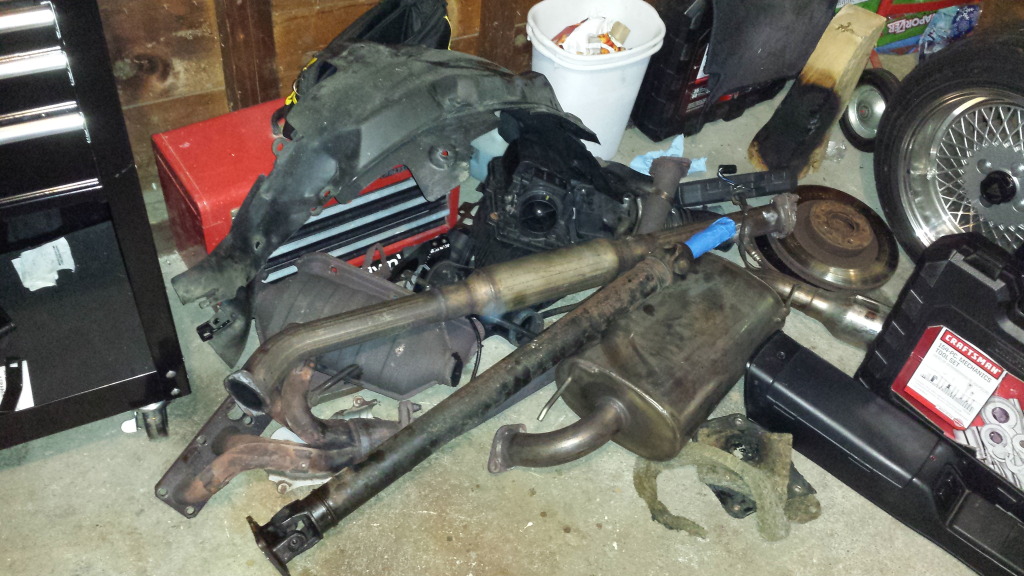

And the forever expanding pile-o-parts sans bumper



Hopefully will be separating the transmission bellhousing tomorrow for the clutch install.
Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130905_215504_zpsa1215a6e.jpg   97 Montego sr20 t25 Turbo Build-20130905_215358_zps22bf4782.jpg   97 Montego sr20 t25 Turbo Build-20130905_215247_zpsc0ff06d3.jpg   97 Montego sr20 t25 Turbo Build-20130905_215254_zps2e273c05.jpg   97 Montego sr20 t25 Turbo Build-20130905_215717_zpse52d454e.jpg

Leach0789 is offline   Reply With Quote
Old 09-10-2013, 09:53 AM   #26
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Unfortunately, I was travelling this weekend, so didn't make any progress. But last night I was able to remove all of the transmission bellhousing bolts! Some were a pain, but it actually wasn't as bad as I was expecting. At one point I think I had a breaker bar attached to a 10" extension, attached to a universal joint, attached to a 1/2" to 3/8" adapter, attached to a 12mm.

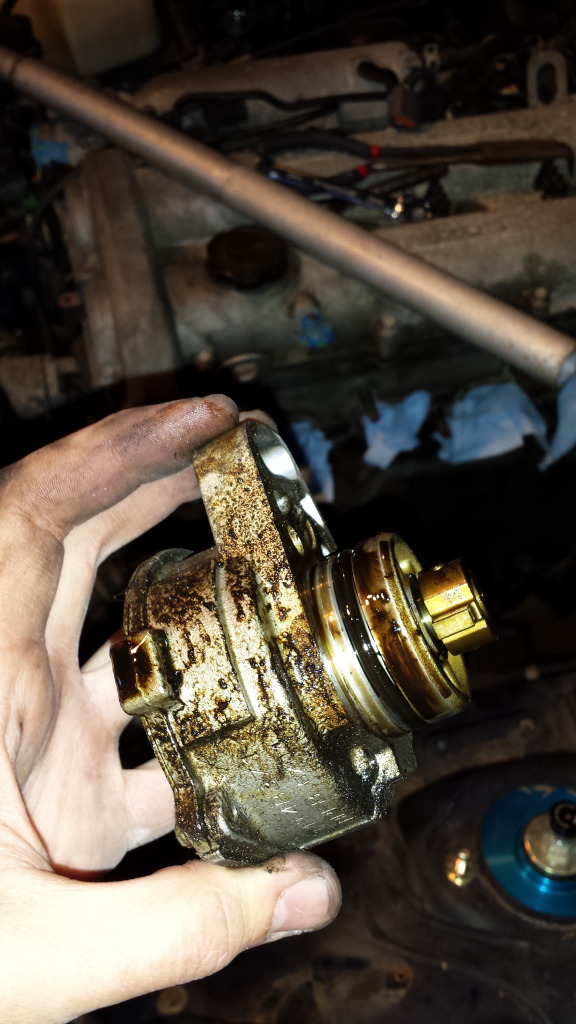

I removed my CAS, heater core hose, and coil pack to get to the top 2 bolts. I'm very glad I did this. I think my CAS was leaking a little bit (sarcasm, see the picture below). The engine side of the heater core hose was also about to pop.



Should be dropping the tranny tonight. The speedometer cable is very corroded to the tranny case. Going to try to get it off with some vice grips.
Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130909_181821_zps2c970963.jpg
Leach0789 is offline   Reply With Quote
Old 09-11-2013, 09:49 AM   #27
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Finally got the transmission out last night. Honestly, the hardest part was the 4 electrical connections on top on the tranny. Had to use one of those dental mirrors to see what was going on up there.

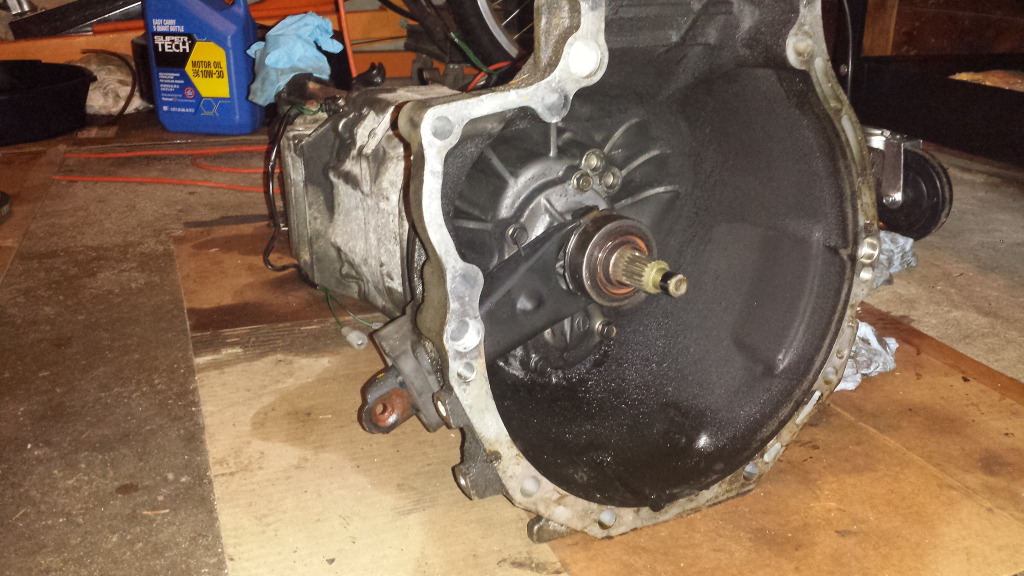

She's out! The fluid in the bottom of the bellhousing is coolant that dripped down when I took off the heater core hose yesterday.

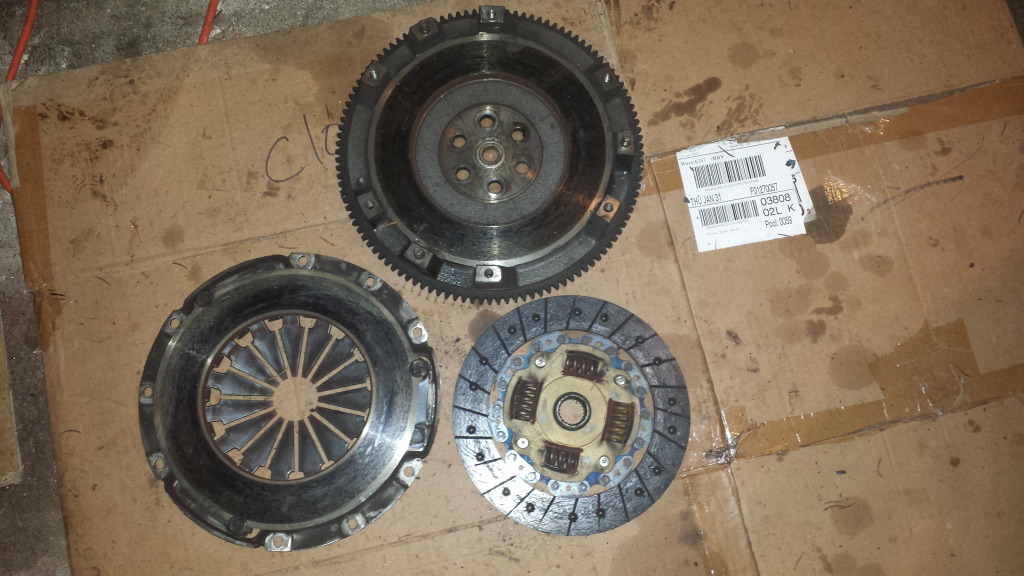

My clutch was slipping a bit during autocross, so I was very surprised to see a DK/Exedy clutch in there when I pulled it out. It must be glazed over.

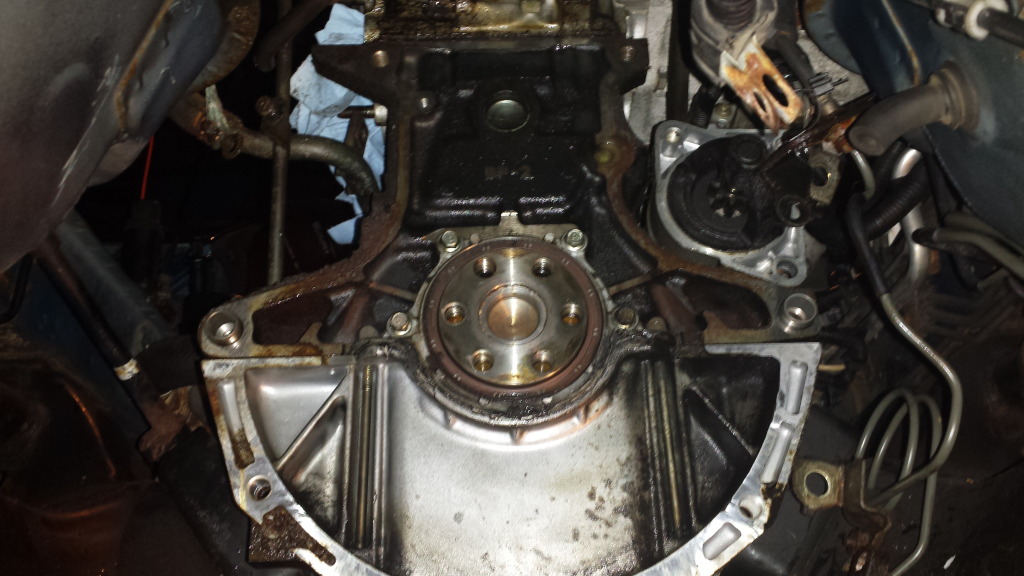

The rear main seal is actually in good shape. I bought some engine degreaser to take care of the nasty-ness left behind from the leaky CAS.



My front fenders were very rusted at the bottom. I pulled them off and was pleasantly surprised to see there were no holes through the rockers underneath, just surface rust. The car is going in for a lot of body work once I get this build done.

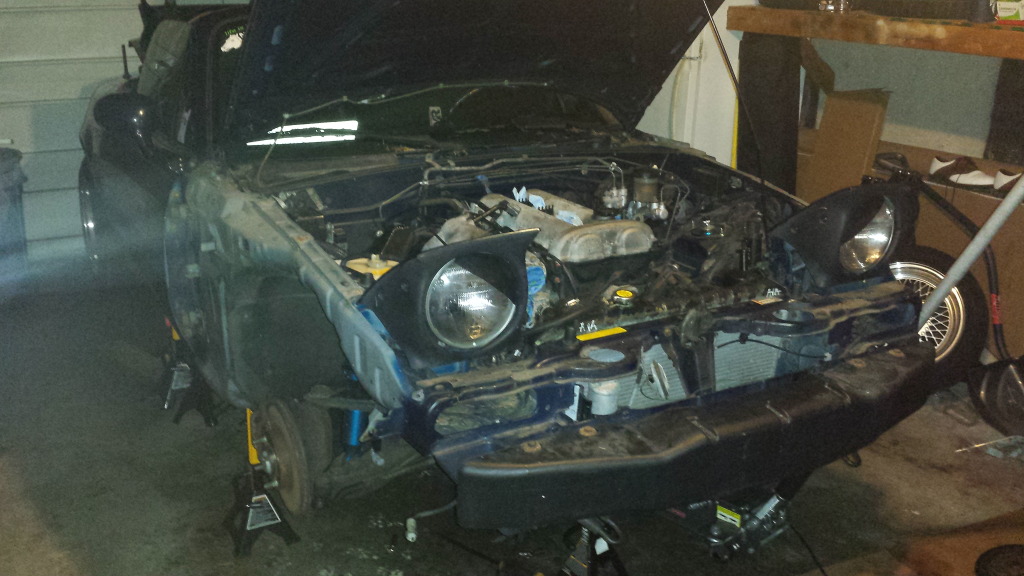

Here she sits, so angry >:(

Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130910_214529_zps8cf9b19d.jpg   97 Montego sr20 t25 Turbo Build-20130910_214441_zpsd1f3e626.jpg   97 Montego sr20 t25 Turbo Build-20130910_214633_zpsa5b1775c.jpg   97 Montego sr20 t25 Turbo Build-20130910_214859_zps4865c3b5.jpg
Leach0789 is offline   Reply With Quote
Old 09-11-2013, 10:17 AM   #28
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Cool build, makes me so happy not to live where you live. So much rust and oxidization on that thing. Crazy...
RyanRaduechel is offline   Reply With Quote
Old 09-11-2013, 10:36 AM   #29
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by RyanRaduechel View Post
Cool build, makes me so happy not to live where you live. So much rust and oxidization on that thing. Crazy...
Thanks. It's a love-hate relationship living here. I love the weather here, I'm both a water sports guy and a skier. But I hate what it does to our cars. Although, my WRX is sparkly clean underneath!!
Leach0789 is offline   Reply With Quote
Old 09-14-2013, 10:16 AM   #30
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

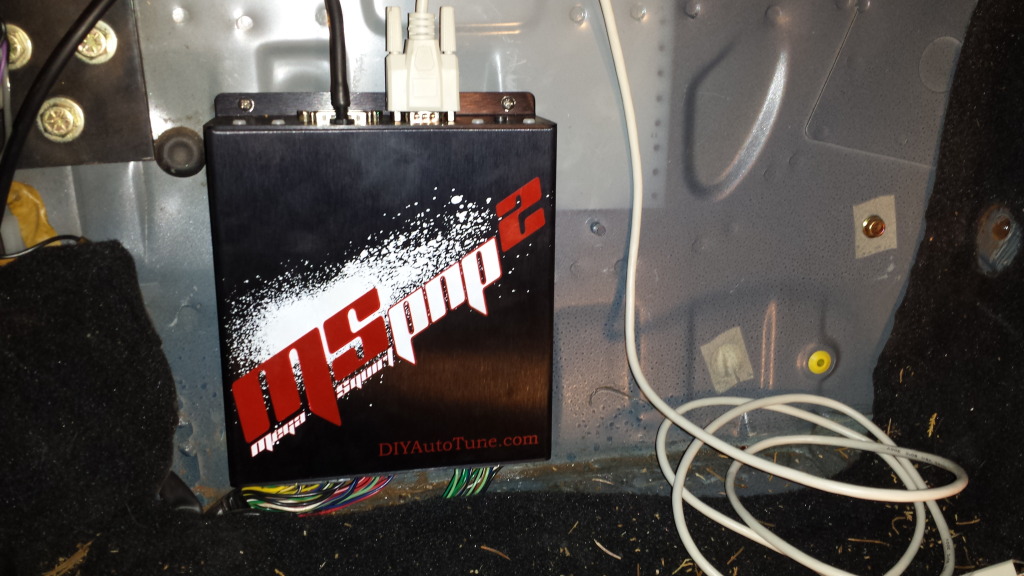

Whoop whoop!!

Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130913_202310_zps0d8a7946.jpg
Leach0789 is offline   Reply With Quote
Old 09-14-2013, 04:17 PM   #31
Ds1
Junior Member
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Hey hey I like that - Is that mounted in your trunk?

Any advice on the install? I'm doing my MS3X this week.
Ds1 is offline   Reply With Quote
Old 09-14-2013, 06:10 PM   #32
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,894
Total Cats: 487
Default

That's behind the passenger seat I believe, the stock location for 94+ ecus AFAIK.
curly is offline   Reply With Quote
Old 09-15-2013, 12:21 PM   #33
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by Ds1 View Post
Hey hey I like that - Is that mounted in your trunk?

Any advice on the install? I'm doing my MS3X this week.
Quote:
Originally Posted by curly View Post
That's behind the passenger seat I believe, the stock location for 94+ ecus AFAIK.
Yup, it's behind the passenger seat, stock location.

The install honestly only took about a half hour or so. Take out the passenger seat, it makes it easier to drill. Use a flathead to get the ECU harnesses out of the old ECU. Try to find a buddy to help you pass the MAP line through the firewall, it'll make things much easier. I had roughly a foot or so of extra line too.
Leach0789 is offline   Reply With Quote
Old 09-21-2013, 11:52 PM   #34
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

Following this closely as I also have a MSPNP and a SR20DET T25 I plan on turbo'n the car with.
<- 94 miata with 99 engine though.

Build looks good, looking forward to more pics of progress.
Togeneral99 is offline   Reply With Quote
Old 09-23-2013, 01:46 PM   #35
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by Togeneral99 View Post
Following this closely as I also have a MSPNP and a SR20DET T25 I plan on turbo'n the car with.
<- 94 miata with 99 engine though.

Build looks good, looking forward to more pics of progress.
Nice! Let me know when you start your build.

Progress has kind of been on pause since GTA V came out..

However, I dropped off my flywheel to be resurfaced at a local machine shop, and put in some orders at Rosenthal and Begi including new shifter boots, gear oil, o rings, gaskets, and turbo fittings and parts.

All of those parts should be in this week, and then I can get moving again. I received my oil and coolant lines from Abe at Artech, and they look great!
Leach0789 is offline   Reply With Quote
Old 09-23-2013, 01:49 PM   #36
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Quote:
Originally Posted by Togeneral99 View Post
Following this closely as I also have a MSPNP and a SR20DET T25 I plan on turbo'n the car with.
<- 94 miata with 99 engine though.

Build looks good, looking forward to more pics of progress.
You should check out my build then! It's a 90 miata with a 99 motor, mspnp, and sr20 t25.

Looking good OP, **** video games! You need boost, and you are so close.
Fireindc is offline   Reply With Quote
Old 09-23-2013, 02:26 PM   #37
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by Fireindc View Post
You should check out my build then! It's a 90 miata with a 99 motor, mspnp, and sr20 t25.

Looking good OP, **** video games! You need boost, and you are so close.
Just had a quick look, looks great. I'll have to set aside some time to read the whole thread later.

And thanks! My weekends have been super busy which isn't helping my build time. I really need to hunker down after work for the next few weeks and bang it out. I've got about 2 months until the autocross that I was targeting.
Leach0789 is offline   Reply With Quote
Old 09-23-2013, 06:44 PM   #38
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

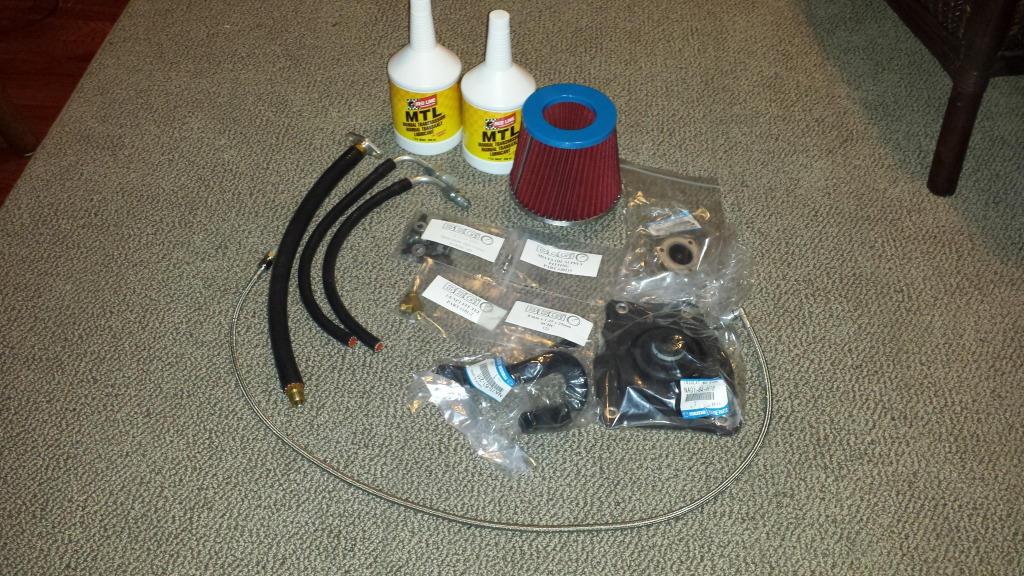

Goodies!





Attempted to clock the turbo after work.... Going to need a lot more PB and heat than I anticipated. Its soaking now.
Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20130923_183609_zpsc090286b.jpg   97 Montego sr20 t25 Turbo Build-20130923_183810_zps2bf0c437.jpg
Leach0789 is offline   Reply With Quote
Old 09-23-2013, 09:15 PM   #39
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

Compressor or exhaust housing?
Looking at mine the compressor would be a pain with the snap ring but the exhaust is bolted on and in my experience they almost always could use a rap with a rubber mallet to encourage them to break free
Togeneral99 is offline   Reply With Quote
Old 09-24-2013, 08:59 AM   #40
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 273
Total Cats: 9
Default

Quote:
Originally Posted by Togeneral99 View Post
Compressor or exhaust housing?
Looking at mine the compressor would be a pain with the snap ring but the exhaust is bolted on and in my experience they almost always could use a rap with a rubber mallet to encourage them to break free
I tried to undo the 4 bolts on the exhaust housing side. Wouldn't budge. I'm going to soak them again overnight tonight, and give it another go tomorrow. I may need to bolt the turbo to a workbench to get the leverage that I need.

I also removed the wastegate and tried removing the downpipe studs to drop it some new ones. I got 3 off. One didn't budge, but is in good shape anyways, but the 5th is stripped, so I can't get any nuts on it. Vice grips were slipping. May need to get creative with that one.
Leach0789 is offline   Reply With Quote
