97 Montego sr20 t25 Turbo Build - Page 7 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 03-31-2014, 11:32 AM   #121
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by Ds1 View Post
How are you piping your intake hoses to your IACV, if at all? (on the cold side of the intercooler). Well done on all this!
It's piped back into a bung in the IC piping.
Leach0789 is offline   Reply With Quote
Old 04-04-2014, 01:12 PM   #122
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

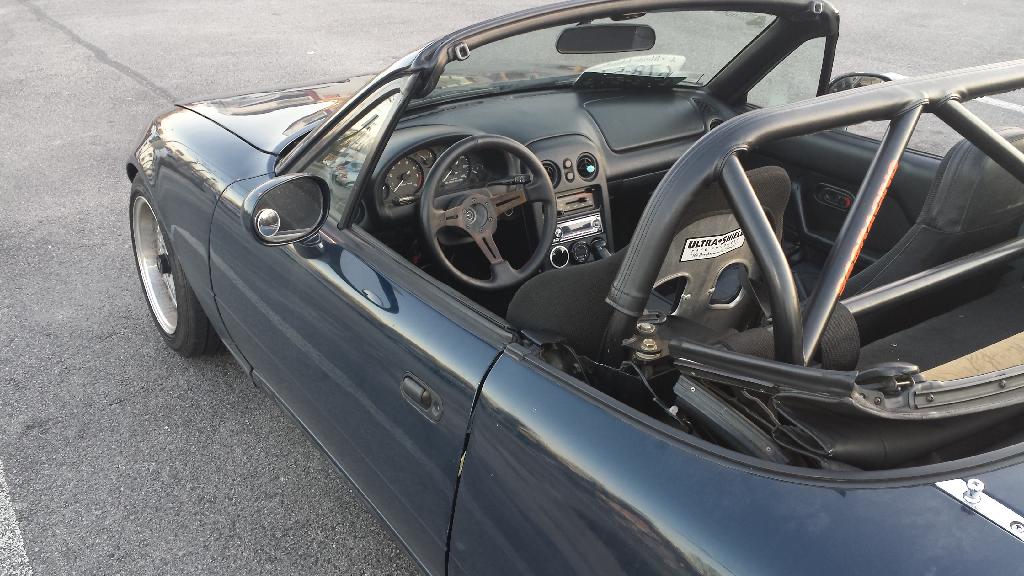

Temporary new wheel install. Much more room for my legs. Also, giant wiener.



Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20140402_190125_zpsgcgceyy5.jpg   97 Montego sr20 t25 Turbo Build-20140328_203039_zpsvqj7cihs.jpg
Leach0789 is offline   Reply With Quote
Old 04-09-2014, 11:36 AM   #123
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

I have developed a crank pulley wobble :( I'll be digging into it tonight to see the damage.
Leach0789 is offline   Reply With Quote
Old 04-09-2014, 09:06 PM   #124
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,416
Total Cats: 41
Default

I backtracked the entire thread to find the single mention of the Ultrashield. How do you like it? Any long trips in it?
Chilicharger665 is offline   Reply With Quote
Old 04-10-2014, 01:13 PM   #125
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by Chilicharger665 View Post
I backtracked the entire thread to find the single mention of the Ultrashield. How do you like it? Any long trips in it?
It's okay. It's a fairly cheap seat that keeps me in place for auto-x events. I put a thin layer of memory foam under the cover, it helps a bit. I've driven about 2 hours straight on it at the most, and I felt fine. If you're a tall guy like me (6'2'') it provides much more leg and head room and a great view of the gauges.
Leach0789 is offline   Reply With Quote
Old 04-10-2014, 02:35 PM   #126
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

So.. how is the crank pulley? Hopefully you caught it soon enough to fix it
Fireindc is offline   Reply With Quote
Old 04-10-2014, 02:36 PM   #127
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by Fireindc View Post
So.. how is the crank pulley? Hopefully you caught it soon enough to fix it
The woodruff key broke in two! I'm pretty sure I caught it quick enough. Working on finding parts right now.

Here's my thread over at miata.net: Woodruff Key Sheared in Half. Crank Nose Damage. - MX-5 Miata Forum
Leach0789 is offline   Reply With Quote
Old 04-10-2014, 02:42 PM   #128
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Nice! I just eyeballed that thread, and the only thing I might add is to use a GOOD quality (read: oem) front main seal, and get the front mail seal installer tool from FM. While it is a bit pricey, it makes sure the front main is installed perfectly. I couldn't imagine having to do a front main seal on a "loctite" fixed car.

Also this is from experience, i went with an ebay front main that came in one of my seal kits, never again. I had to do front main/cam seals like 200 miles after putting it together /facepalm. This is part of why i went ahead and bought that tool, lol. Next font main I do there will be no worries.
Fireindc is offline   Reply With Quote
Old 04-10-2014, 02:43 PM   #129
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by Fireindc View Post
Nice! I just eyeballed that thread, and the only thing I might add is to use a GOOD quality (read: oem) front main seal, and get the front mail seal installer tool from FM. While it is a bit pricey, it makes sure the front main is installed perfectly. I couldn't imagine having to do a front main seal on a "loctite" fixed car.

Also this is from experience, i went with an ebay front main that came in one of my seal kits, never again. I had to do front main/cam seals like 200 miles after putting it together /facepalm. This is part of why i went ahead and bought that tool, lol. Next font main I do there will be no worries.
Yeah, I'll be purchasing an OEM seal, and my friend has the FM tool that I can borrow.
Leach0789 is offline   Reply With Quote
Old 04-10-2014, 02:45 PM   #130
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Quote:
Originally Posted by Leach0789 View Post
Yeah, I'll be purchasing an OEM seal, and my friend has the FM tool that I can borrow.


Also, might want to consider going with the gates blue timing belt since you won't be able to easily change the tbelt in the future, and that one has been said to be the most durable and least likely to break under high HP situations.

I got mine for $50 iirc, so not bad. Check out some of our vendors

Edit: now that I think about it, you can probably change the timing belt pretty easily still with the fix. The front main seal however..
Fireindc is offline   Reply With Quote
Old 04-10-2014, 02:51 PM   #131
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by Fireindc View Post


Also, might want to consider going with the gates blue timing belt since you won't be able to easily change the tbelt in the future, and that one has been said to be the most durable and least likely to break under high HP situations.

I got mine for $50 iirc, so not bad. Check out some of our vendors

Edit: now that I think about it, you can probably change the timing belt pretty easily still with the fix. The front main seal however..
Yep, timing belt was done 8k ago so I'm not going to bother. The loctite won't effect changing the belt. The seal I am doing for sure.
Leach0789 is offline   Reply With Quote
Old 04-10-2014, 03:12 PM   #132
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

i am for this
psyber_0ptix is offline   Reply With Quote
Old 04-10-2014, 03:17 PM   #133
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by psyber_0ptix View Post
i am for this
Leach0789 is offline   Reply With Quote
Old 04-11-2014, 09:23 AM   #134
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,709
Total Cats: 1,078
Default

How tight was your crank bolt? This happened on a friends 99 recently and now we are replacing the crank. His problem was that he did not tighten the crank bolt to spec, so when I went to loosen it, it took hardly and torque.
shuiend is offline   Reply With Quote
Old 04-11-2014, 10:44 AM   #135
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by shuiend View Post
How tight was your crank bolt? This happened on a friends 99 recently and now we are replacing the crank. His problem was that he did not tighten the crank bolt to spec, so when I went to loosen it, it took hardly and torque.
It's hard to tell if the crank bolt was the cause. It took a 1/2" ratchet and a pipe as a breaker bar to back the bolt out until I could loosen it with a ratcheting wrench. But I didn't have to 'crack' the bolt, so it may have been a little loose. I had a friend who was a Porsche (and general) mechanic do my timing belt 8k miles ago. I'd be pretty upset if he didn't torque it right, but its a possibility
Leach0789 is offline   Reply With Quote
Old 04-13-2014, 08:38 PM   #136
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

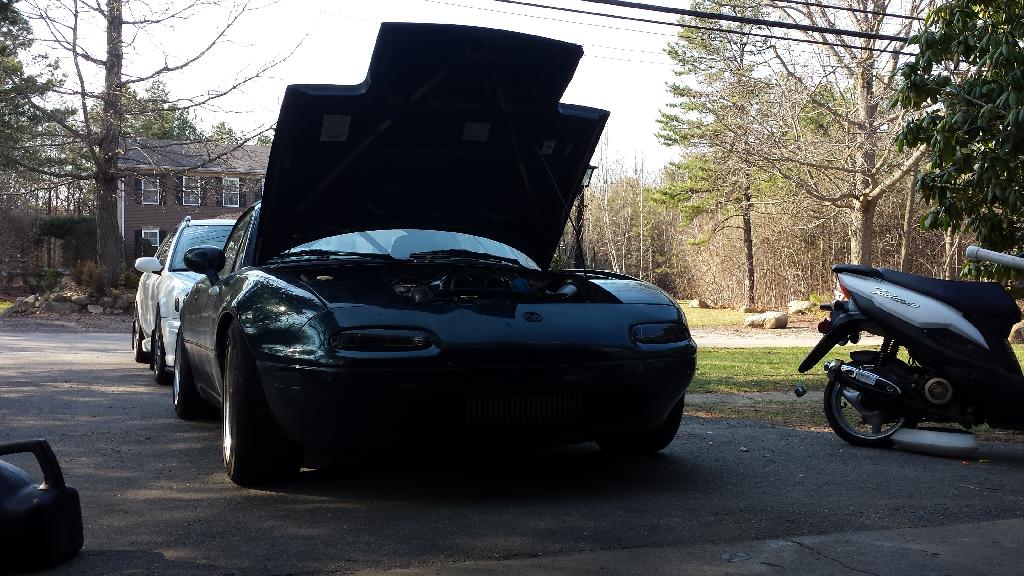

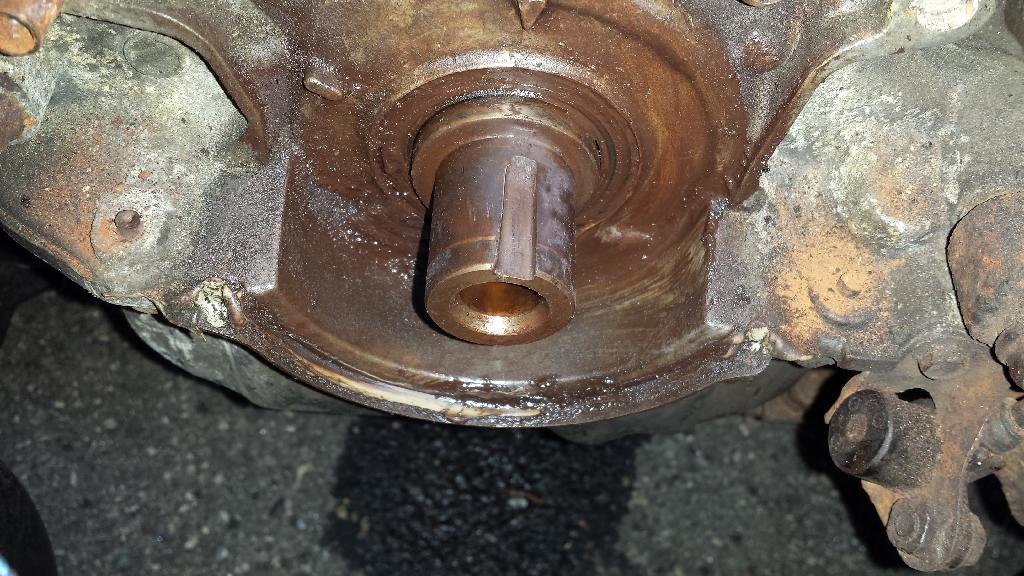

Fortunately, the damage to the keyway isn't as bad as I anticipated. I've ordered the new parts and should have it running by next weekend.



Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20140413_165521_zpsugfhmdni.jpg   97 Montego sr20 t25 Turbo Build-20140413_165506_zpsumo8u4r9.jpg
Leach0789 is offline   Reply With Quote
Old 04-21-2014, 09:36 AM   #137
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

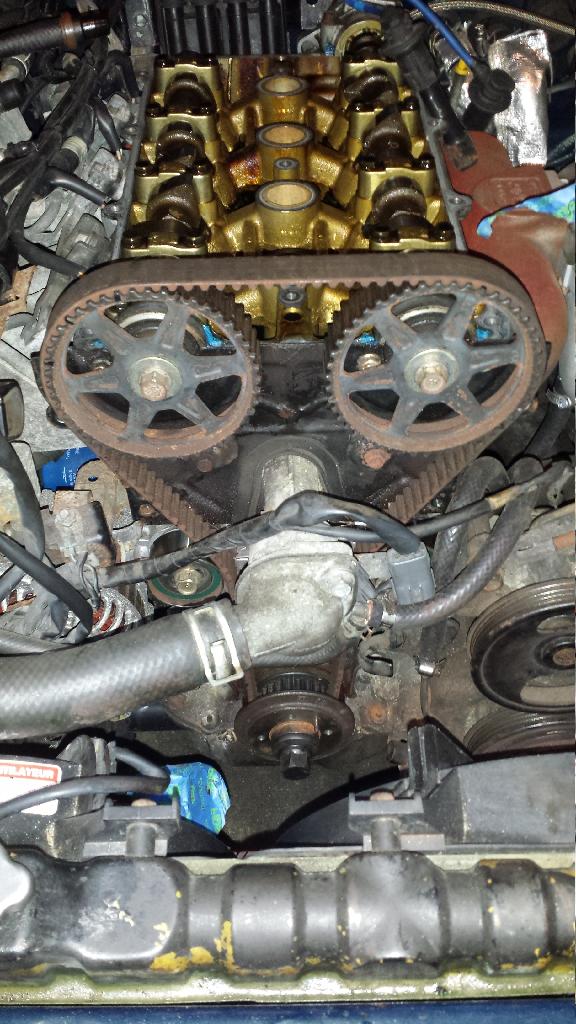

All patched up! The car is running 100 times better than it was before the loctite fix. Everything is smoother. The car used to shake badly above 70 mph. I thought it was the wheels, but apparently it was coming from the motor :O Super smooth now. The car is currently with my tuner for the final round of tuning and the addition of a manual boost controller. It may be seeing some dyno time today or tomorrow First autocross on Sunday!

Attached Thumbnails
97 Montego sr20 t25 Turbo Build-20140416_194258_zpsnmjmq469.jpg
Leach0789 is offline   Reply With Quote
Old 04-21-2014, 09:40 AM   #138
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

psyber_0ptix is offline   Reply With Quote
Old 04-21-2014, 09:41 AM   #139
Junior Member
Thread Starter

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

And a big thank you to this guy ^ for his help!
Leach0789 is offline   Reply With Quote
Old 04-21-2014, 09:44 AM   #140
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,615
Total Cats: 305
Default

This is laughable, coming from a guy who allowed me to pull my motor twice and completely wreck his garage and burn up time.

I still owe you, dude...
psyber_0ptix is offline   Reply With Quote
