Old 07-11-2008, 12:25 AM   #61
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by mighty mouse View Post
hate hate hate! Tires were on the rims and I got a smokin deal. I'm going to run them until it's time for an upgrade- No sense in replacing something brand new



I have flares.
1) dismount tires

2) sell tires

3) buy 255 plus size tires

4) have loads of grip!
cardriverx is offline   Reply With Quote
Old 07-11-2008, 01:24 AM   #62
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

^ +1


It will look stupid otherwise. Such a nice build, why not keep it top notch?
Fireindc is offline   Reply With Quote
Old 07-11-2008, 01:35 AM   #63
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

I have to agree, the stretch tires kinda kill it for me.. But thats just me, to each his own.
ApexOnYou is offline   Reply With Quote
Old 07-11-2008, 01:45 AM   #64
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

i can't wait to see this thing done, its gonna be sick, btw I'm very jealous of the CF trunk lid, i want one so bad but i can't justify 700 on it lol
disturbedfan121 is offline   Reply With Quote
Old 07-11-2008, 09:46 AM   #65
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by cardriverx View Post
1) dismount tires

2) sell tires

3) buy 255 plus size tires

4) have loads of grip!
or I can just burn them off. I'm not changing them right now. Eventually yes, but I just want to drive the car. The tires are on, they are staying for the time being. I bought this car early June of last year and have yet to drive it. Swapping tires is just going to slow me down even more. If you want to swap them for me, by all means, go right ahead
mighty mouse is offline   Reply With Quote
Old 07-14-2008, 12:10 AM   #66
Junior Member
iTrader: (5)

Join Date: Feb 2008
Posts: 77
Total Cats: 0
Default

sweet rims =)
eljefe305 is offline   Reply With Quote
Old 07-19-2008, 08:59 PM   #67
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I finally have an update! Got a lot done the past few weekends, even though I haven't had as much time to work on the car as I would have liked.

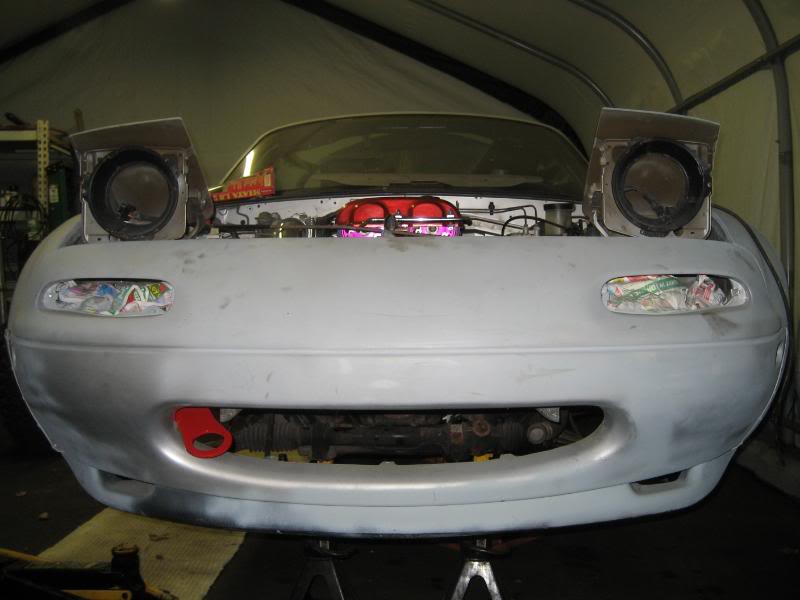

Installed my new front tow hook so when it's back on all 4s we have something to pull from so we can get it back on the trailer
Name:  204.jpg
Views: 42
Size:  42.5 KB

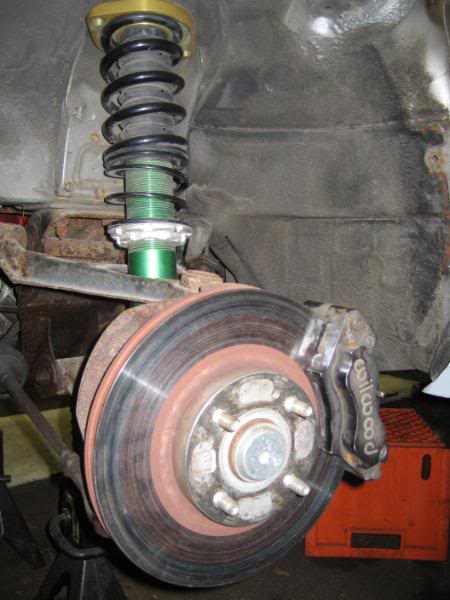

Willwood big brake kit- 11" rotors, Flyin' Miata stainless lines front/rear (not shown in the pic), Porterfield R4S pads front/rear. I didn't take a pic of the rears, as they aren't on at this time...
Name:  205.jpg
Views: 42
Size:  40.0 KB

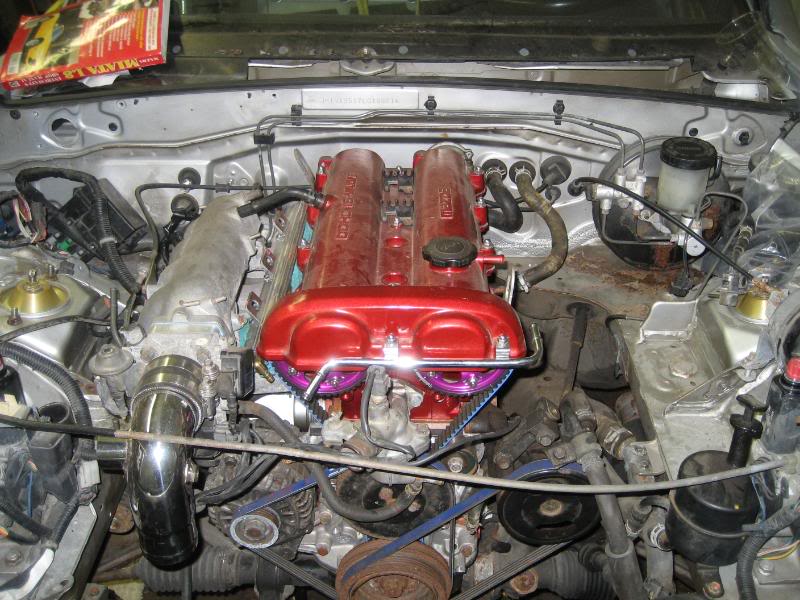

another shot of the motor, it's slowly coming together, although I really haven't spent much time up here...
Name:  215.jpg
Views: 43
Size:  97.3 KB

On to the rear end!

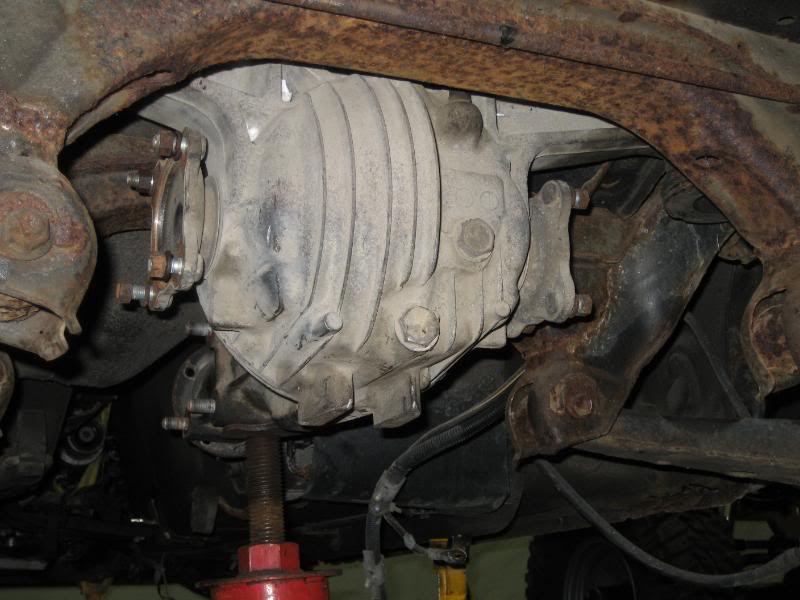

test fitting of the TII diff. I installed Mazdaspeed diff mounts, but didn't take a pic of them (we all know what diff mounts look like )
Name:  207.jpg
Views: 41
Size:  61.7 KB

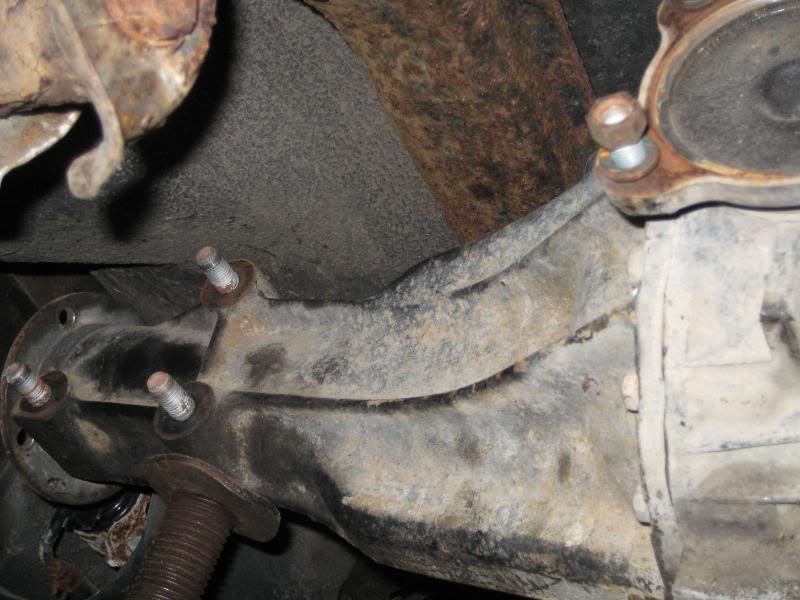

clearances are tight
Name:  208.jpg
Views: 40
Size:  65.4 KB

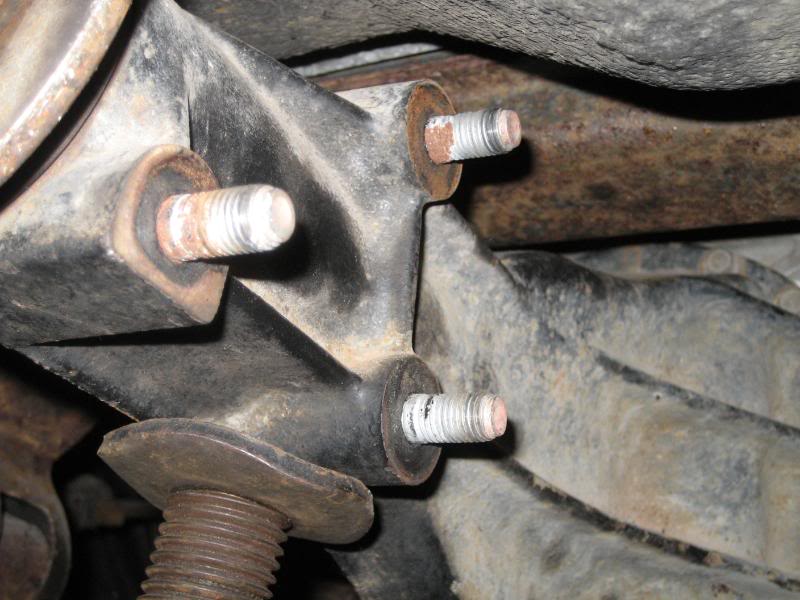

diff more or less level
Name:  209.jpg
Views: 39
Size:  67.9 KB

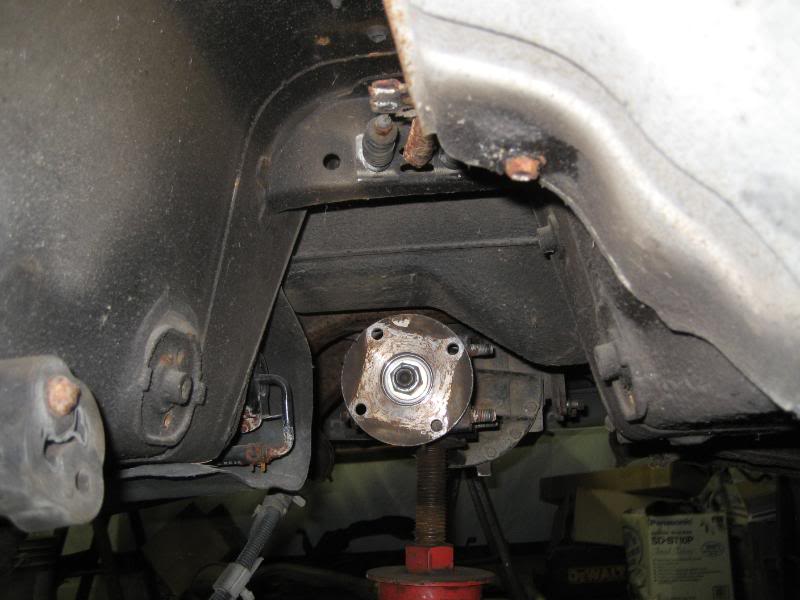

shot from under the tranny looking back
Name:  210.jpg
Views: 39
Size:  52.4 KB

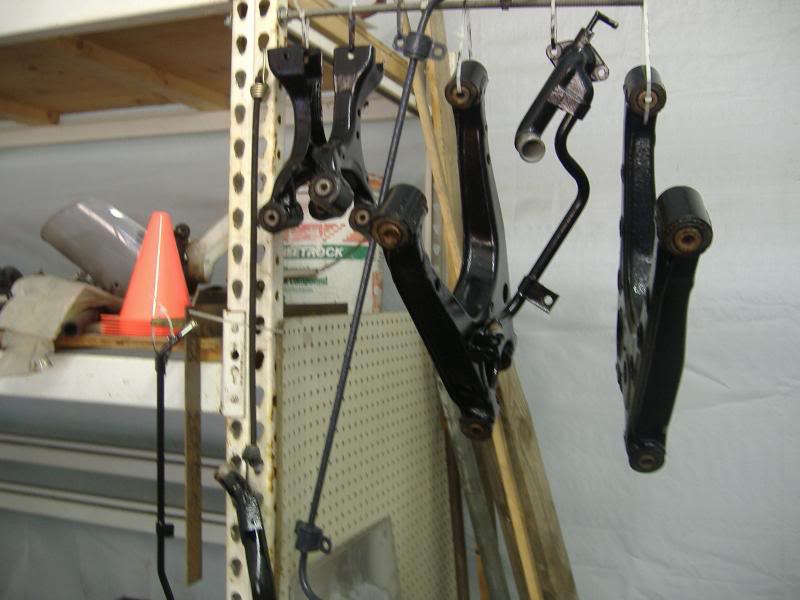

From here, I took the entire rear end out of the car, wire-brushed every piece of it, primed it with rustoleum rusty metal primer, and then hit all the control arms and the sub frame with rustoleum gloss black.

Finished product drying
Name:  218.jpg
Views: 39
Size:  53.3 KB

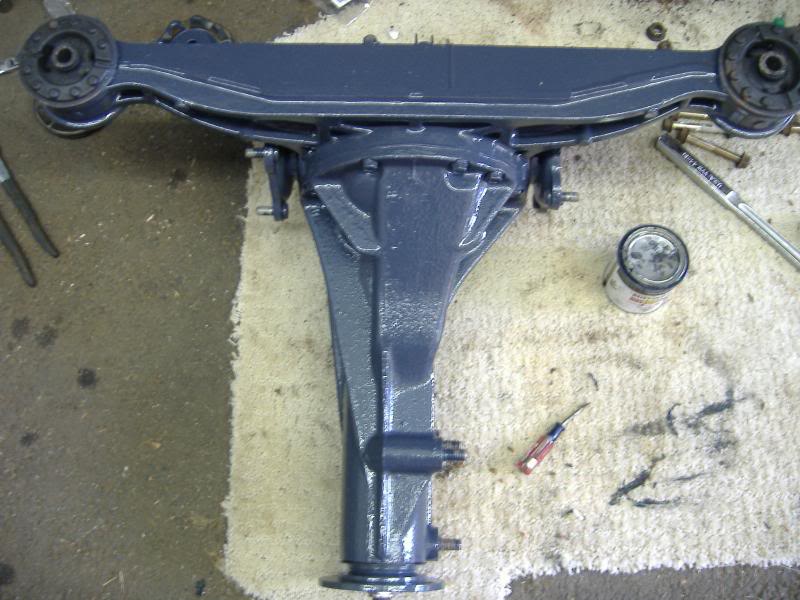

I made a mixture of black and gray to get this nice dark gray color, and I painted the axles, diff, diff mounts, and the rear sway bar and end links gray- finished product came out perfect.

diff
Name:  216.jpg
Views: 40
Size:  74.7 KB

control arms, rear swap bar, the hard coolant lines, and the hard line coming off the brake booster
Name:  218.jpg
Views: 39
Size:  53.3 KB
Attached Images
File Type: jpg 218.jpg (53.3 KB, 4 views)
mighty mouse is offline   Reply With Quote
Old 07-19-2008, 09:01 PM   #68
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

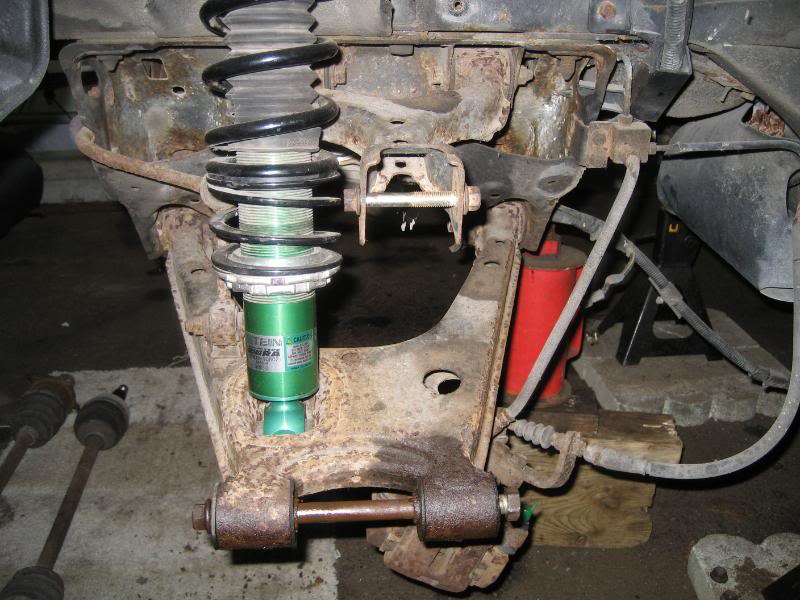

Here's a shot of the old control arms before paint- they needed it!
Name:  214.jpg
Views: 40
Size:  83.0 KB

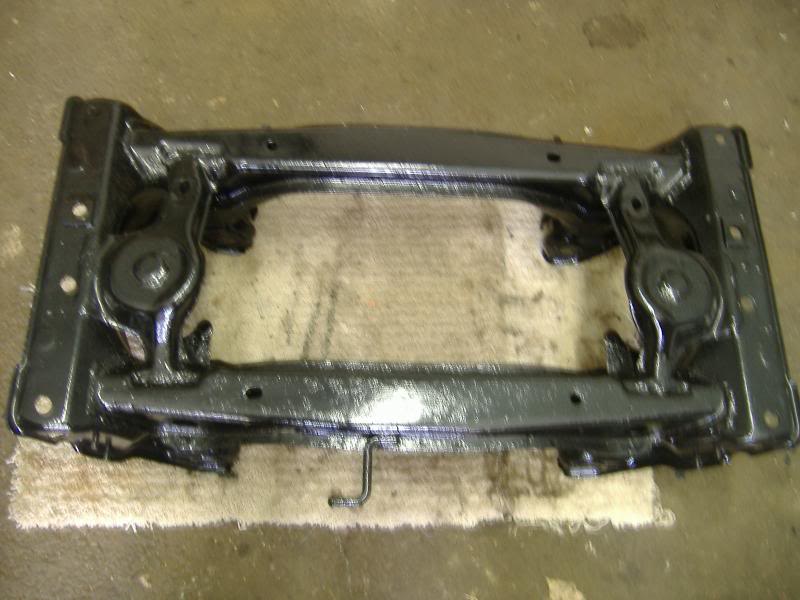

shot of the subframe:
Name:  219.jpg
Views: 39
Size:  57.5 KB

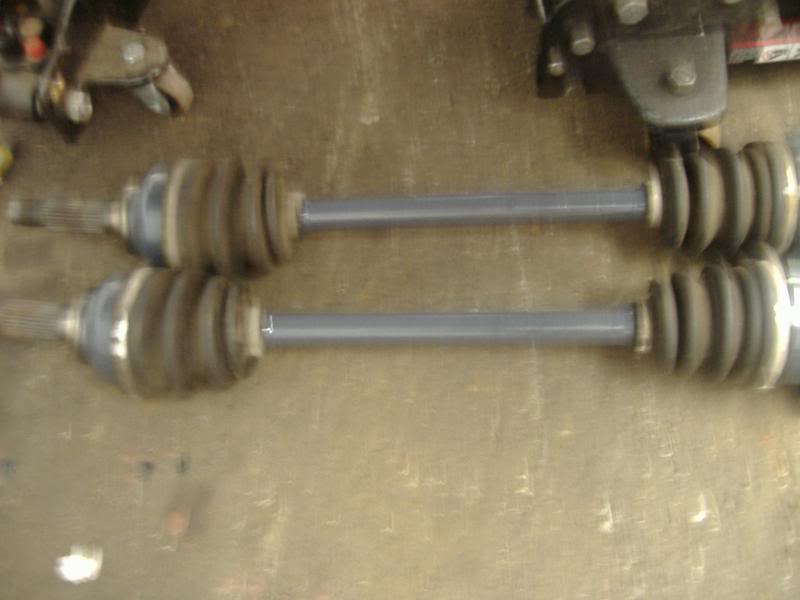

rear RX7 axles
Name:  220.jpg
Views: 39
Size:  34.7 KB

I found a guy over on roadster drift (forum name is Dhaark for those interested- great guy) who was offering his services for custom miata/RX7 hubs, so I took him up on his offer. What he did was machine down RX7 hubs to fit onto a miata spindle, which allows me to use stock RX7 axles.

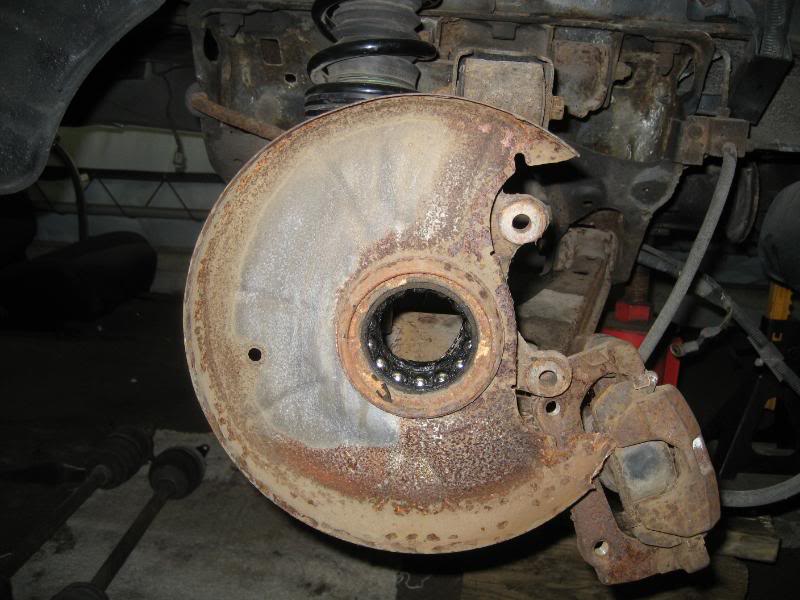

Here's the old crappy, rusty, wimpy miata hubs
Name:  206.jpg
Views: 41
Size:  68.7 KB

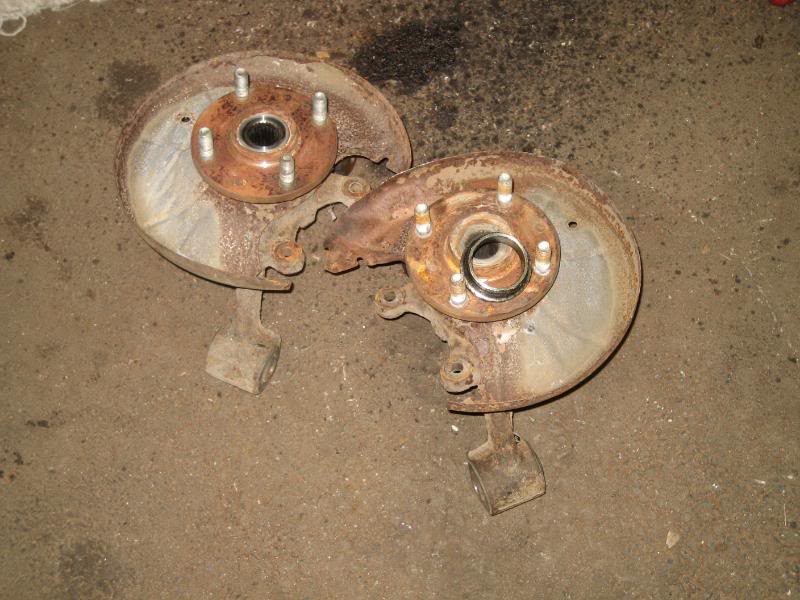

and another off the car:
Name:  213.jpg
Views: 39
Size:  77.7 KB

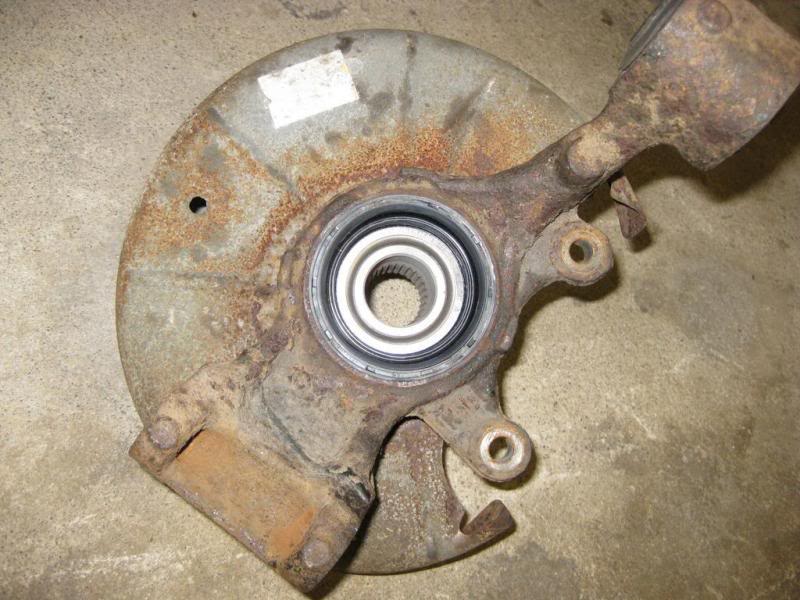

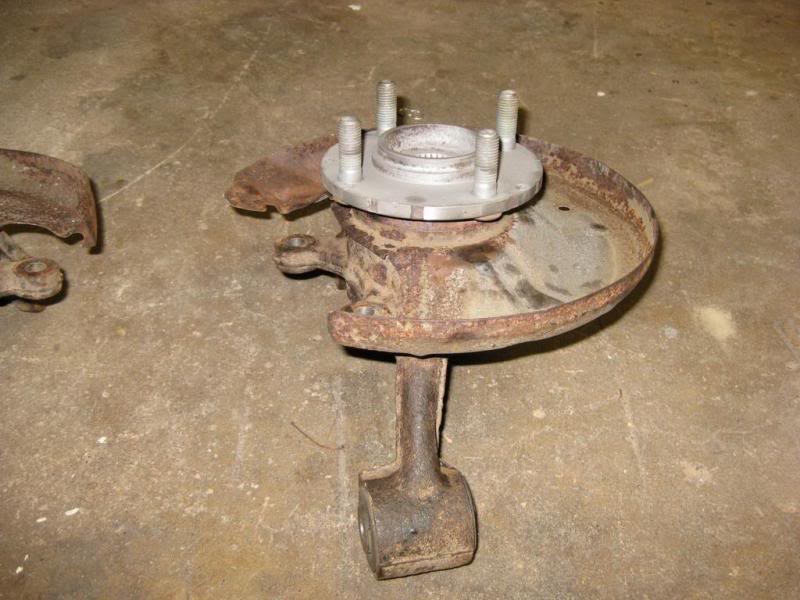

new hubs as I received them:
Name:  233.jpg
Views: 39
Size:  79.3 KB

Name:  234.jpg
Views: 41
Size:  66.3 KB

Name:  233.jpg
Views: 39
Size:  79.3 KB

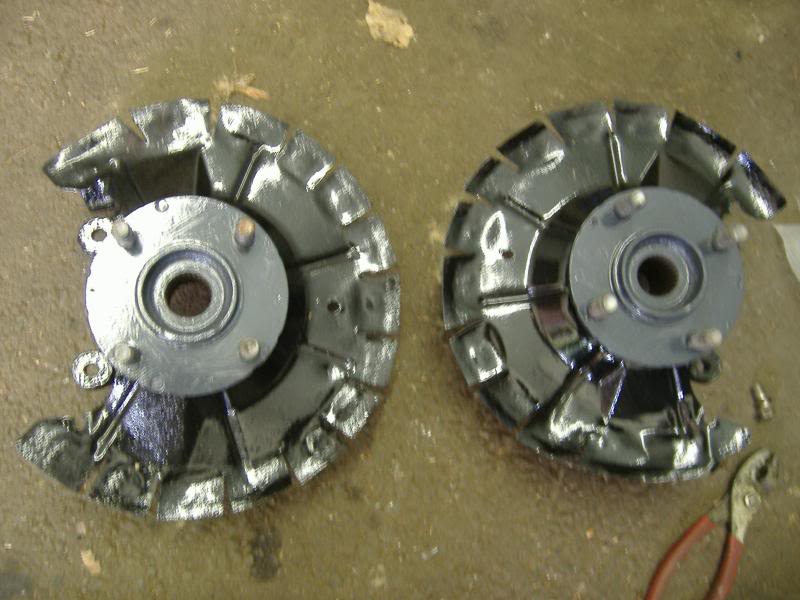

well now I have these awesome hubs, but they look like crap, so I wirebrushed them and painted them with the same black/grey paint scheme. I also cut slots in the curved portion of the dust shield and bent it all out flat so it would clear the 11" rotors out back:

finished product ready for install
Name:  217.jpg
Views: 41
Size:  64.0 KB

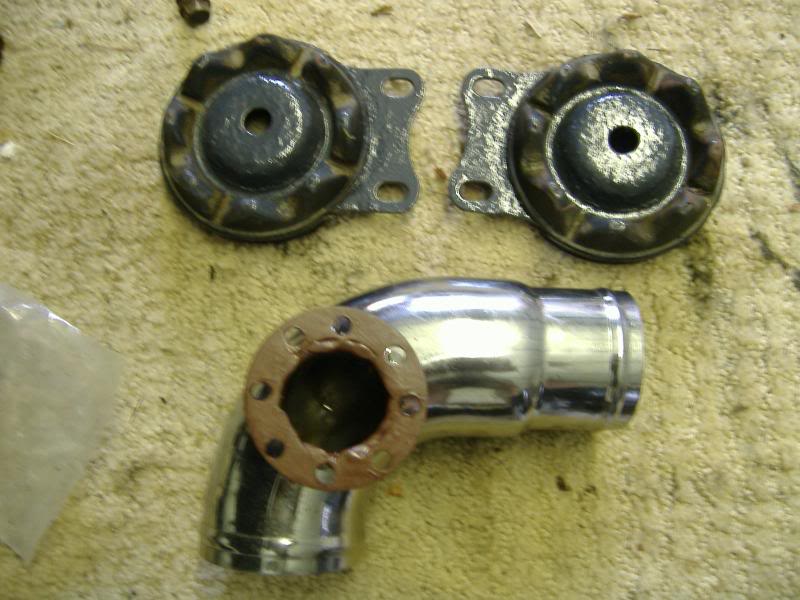

Here are the diff mounts all painted up and my Flyin miata intake elbow, with an adapter I made out of some scrap 3/16" steel welded to it. This will serve as a mounting point for my apexi bov. I drilled a bunch of holes in it as I want the option on mounting it, plus I think it looks neat, and it saves oh about 2 ounces

Name:  232.jpg
Views: 40
Size:  69.6 KB
Attached Images
File Type: jpg 233.jpg (79.3 KB, 6 views)
mighty mouse is offline   Reply With Quote
Old 07-19-2008, 09:02 PM   #69
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I cut up my rear bumper and the rear bumper support so i can run a left exit exhaust. I followed the contour of the original exhaust cutout and transfered it to the opposite side.

sorry for the crappy pics

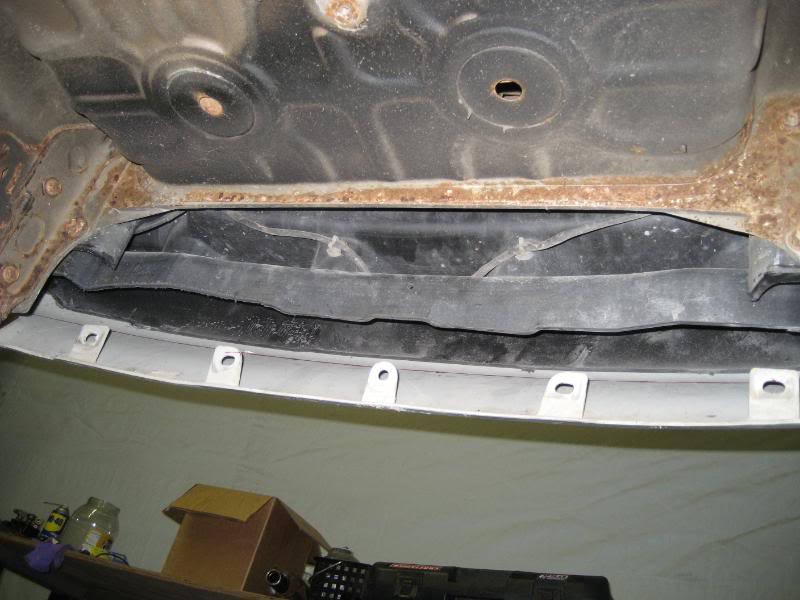

rear bumper support
Name:  212.jpg
Views: 40
Size:  59.2 KB

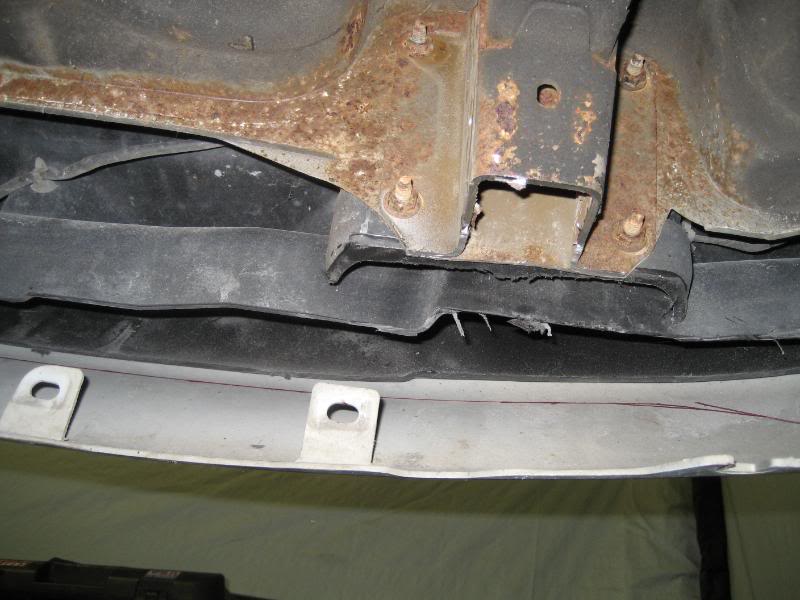

I also lopped off the tow point on the left (driver's) side so that it doesn't interfere with the exhaust at all.
Name:  211.jpg
Views: 40
Size:  61.4 KB

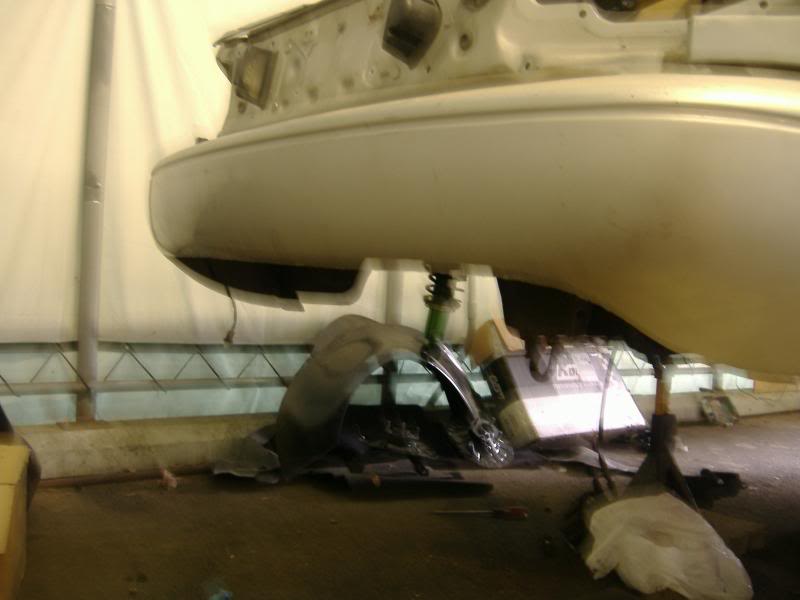

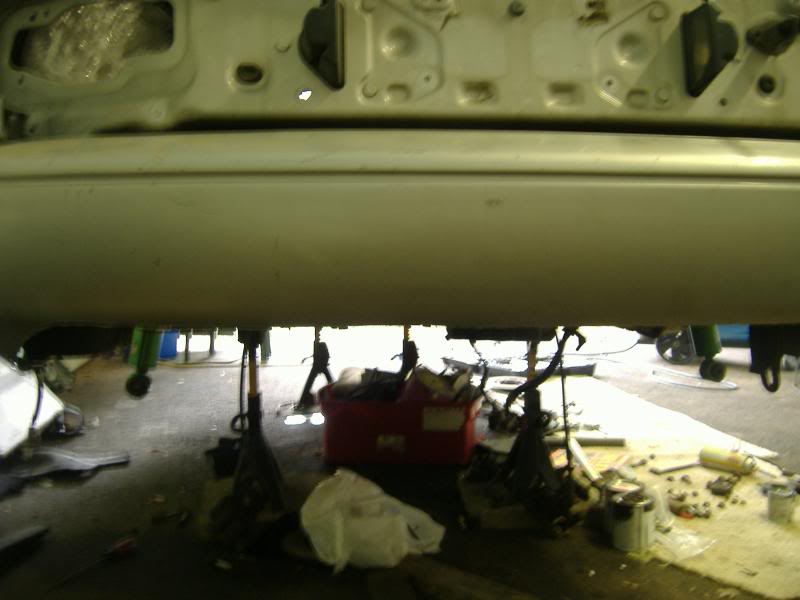

bumper
Name:  226.jpg
Views: 40
Size:  36.9 KB

Name:  227.jpg
Views: 40
Size:  41.8 KB

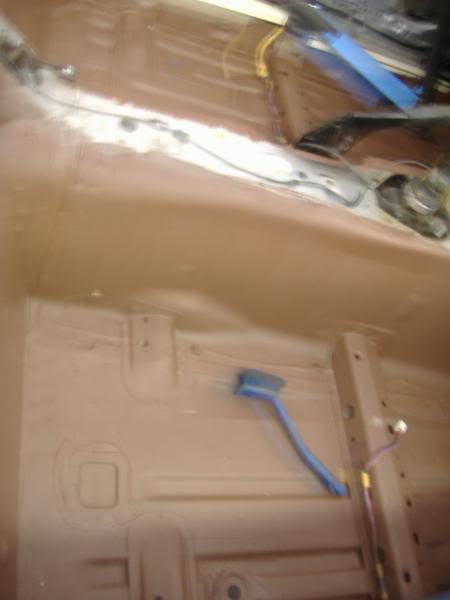

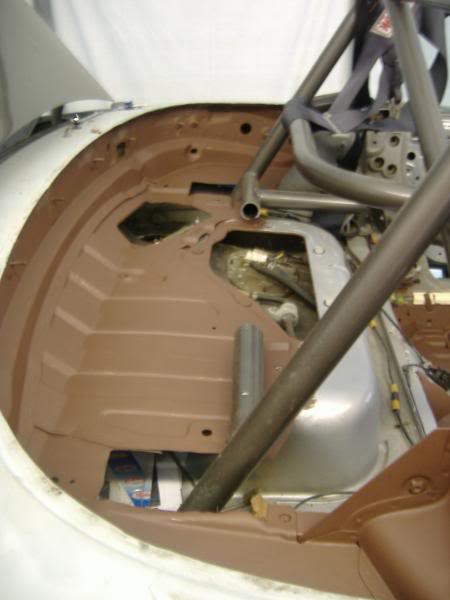

I also painted the interior with primer and will be hitting it with a coat or 2 of the same black at some point.

Name:  221.jpg
Views: 40
Size:  18.8 KB

Name:  224.jpg
Views: 40
Size:  26.7 KB

I took out the access panels in the rear deck, and the center console mount and primed and painted them, but never took a pic. Oops.

Sorry for jumping around, but now on to the meat and potatoes of getting the rear end into the miata- making the bracket.

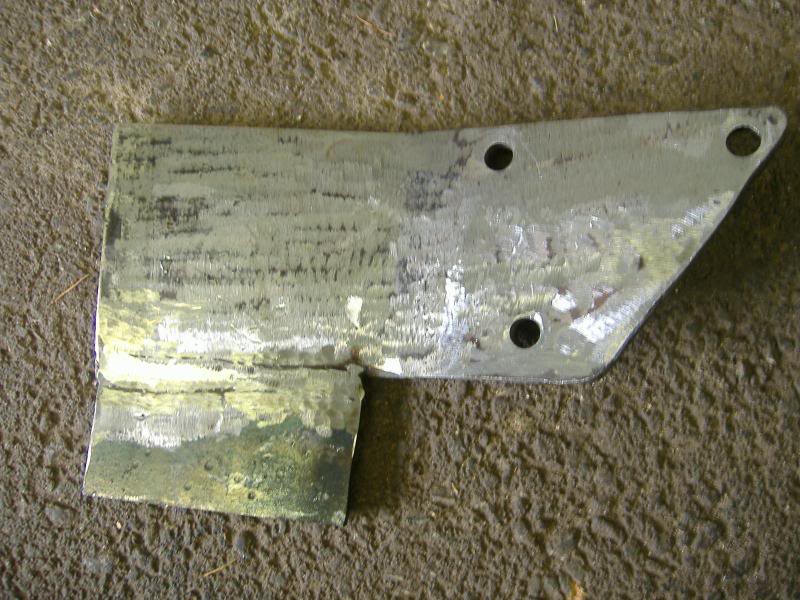

We used a piece of 5/16" steel and bent it to follow the contour of the diff, and then butt-welded another piece of 5/16" to the bottom portion of it and drilled out the 3 holes

Name:  222.jpg
Views: 38
Size:  91.3 KB

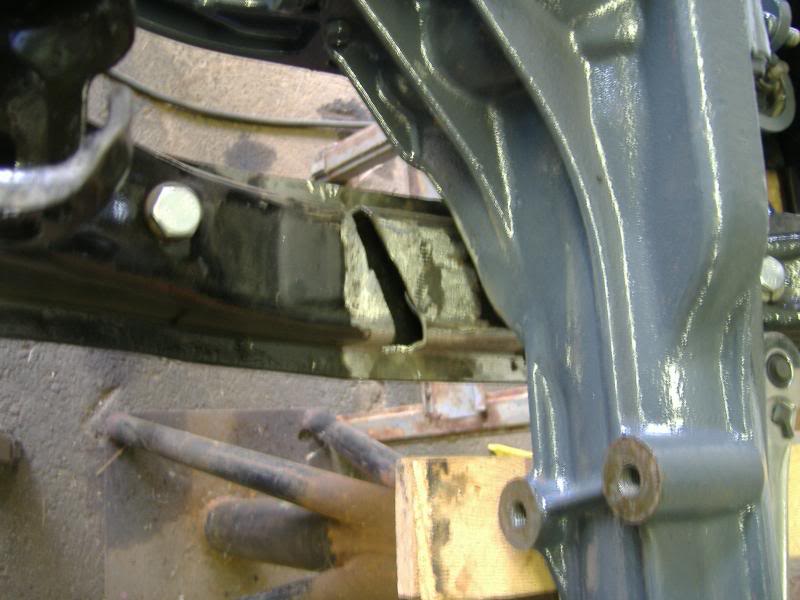

next, I cut out a section of the subframe so that the bracket can sit flush with the top of the subframe, which allowed us to weld the bracket on 3 sides

pic of the cut I made:
Name:  223.jpg
Views: 40
Size:  56.6 KB

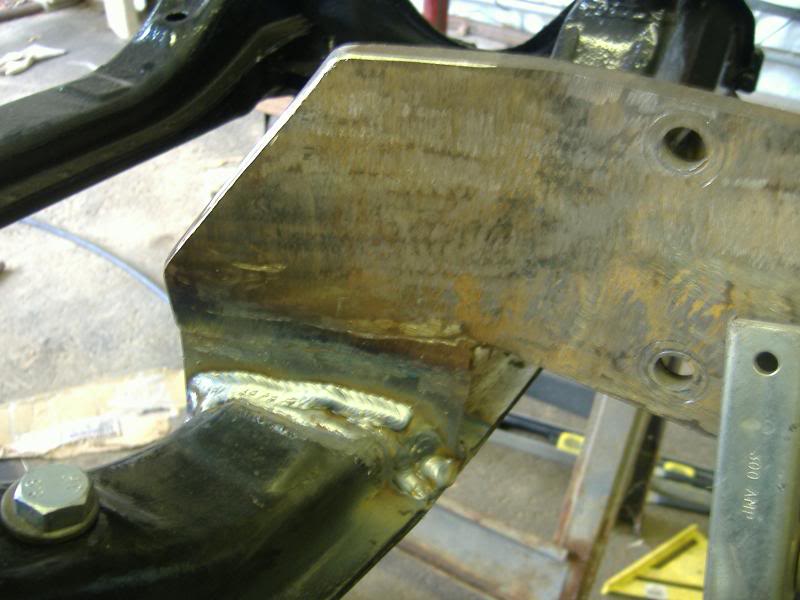

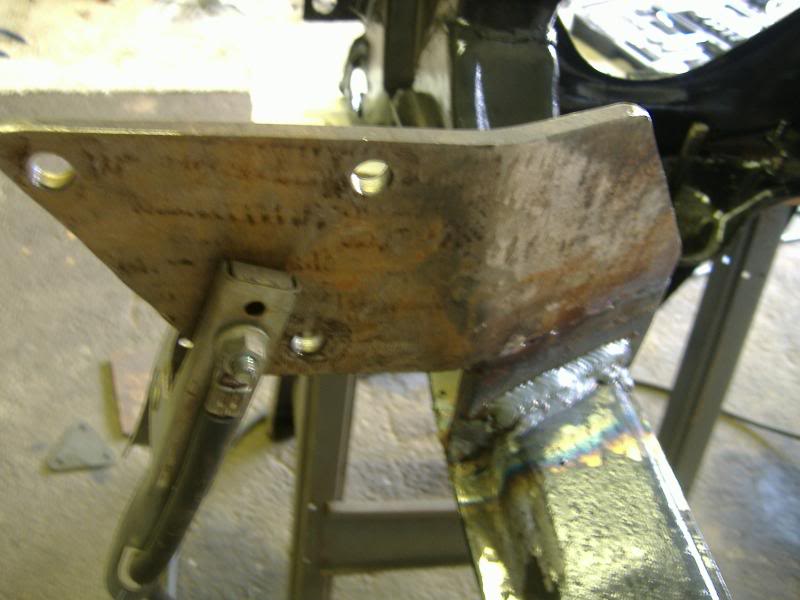

here's a shot of the bracket all burned in, waiting for paint. I also cut off the backside edge of the bracket to match the same angle on the front. Not only does it look much better, but it saves some weight. 5/16" sure is heavy, but I'm not taking any chances.
Name:  228.jpg
Views: 40
Size:  54.7 KB

Name:  229.jpg
Views: 40
Size:  50.0 KB
mighty mouse is offline   Reply With Quote
Old 07-19-2008, 09:03 PM   #70
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Name:  230.jpg
Views: 42
Size:  48.3 KB

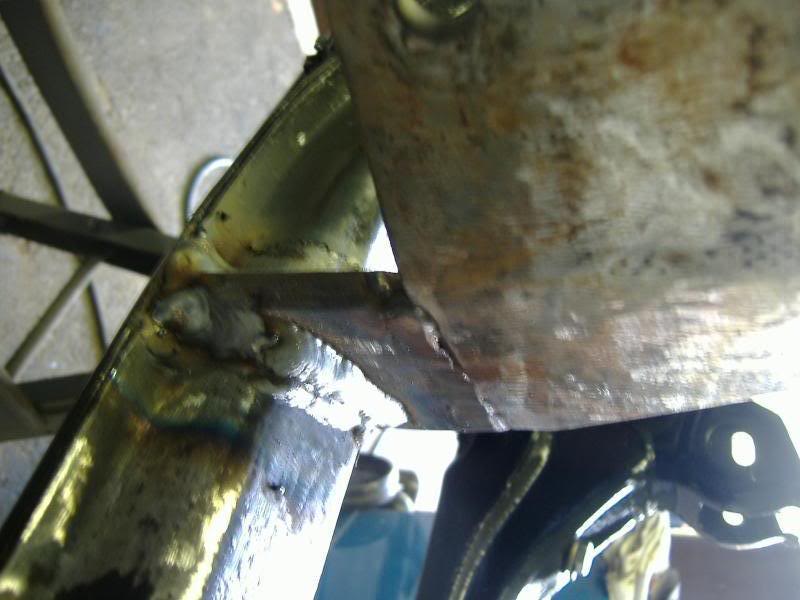

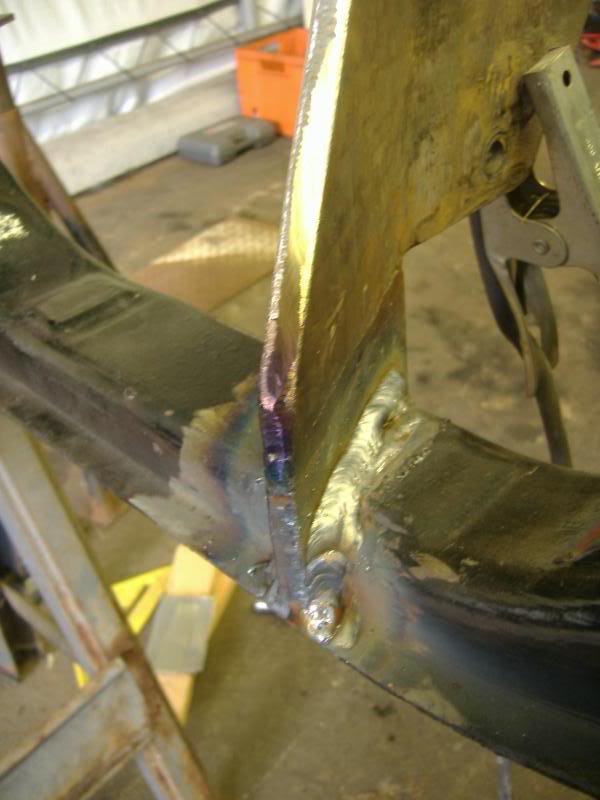

One thing is for sure: This bracket certainly isn't going to break!
Name:  231.jpg
Views: 39
Size:  45.8 KB

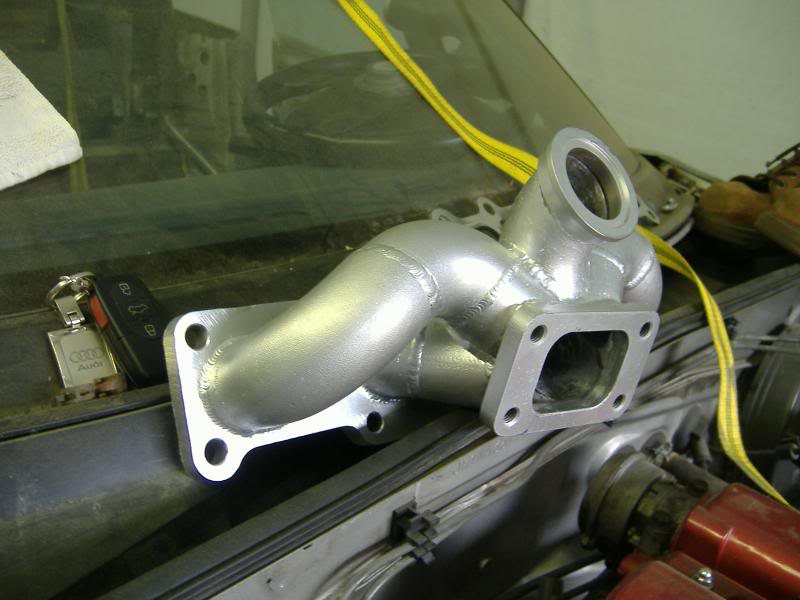

Got this in the mail 2 weeks ago too. It's an ETD Racing shorty tubular manifold with a Tial 44mm wastegate.
Name:  225.jpg
Views: 39
Size:  52.1 KB

Pretty soon I'll get around to getting the motor stuff all buttoned up. That's it for now, I'm beat.
mighty mouse is offline   Reply With Quote
Old 07-19-2008, 09:48 PM   #71
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

damn nigguh.
hustler is offline   Reply With Quote
Old 07-20-2008, 11:56 PM   #72
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

tires or not, thats awesome. Nice welding job!

Do you see any problem with solid mounting the front of the diff? I was just thinking with rubber bushings on the back, the back will move around and maybe crack the solid front mount.
cardriverx is offline   Reply With Quote
Old 07-21-2008, 12:01 AM   #73
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by mighty mouse View Post

Got this in the mail 2 weeks ago too. It's an ETD Racing shorty tubular manifold with a Tial 44mm wastegate.
Nice Manifold
M-Tuned is offline   Reply With Quote
Old 07-21-2008, 10:33 AM   #74
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by cardriverx View Post
tires or not, thats awesome. Nice welding job!

Do you see any problem with solid mounting the front of the diff? I was just thinking with rubber bushings on the back, the back will move around and maybe crack the solid front mount.
I thought about that for a while, but all the other swaps I have seen did it this way except for 1 guy who used the stock mount. I'm going to try it and see. If it doesn't work out well, I can always bore out the holes and put in some rubber/poly bushings, but I think it will work out just fine. I have the mazdaspeed diff mounts in there, which are stiffer than stock, so we shall see.
mighty mouse is offline   Reply With Quote
Old 07-21-2008, 10:38 AM   #75
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by [email protected] View Post
Nice Manifold
Not going to lie, I'm still not impressed with the manifold. I called ETD to complain about it as soon as it arrived as the collector has pretty significant gaps between all the joints, the edges inside are very rough, there are metal "slivers" hanging off a couple of the joints, and the coating is already flaking off on the inside. They emailed me back and told me it was fine the way it was (I sent them pics), but it does not look like a "finished" piece to me, esp. considering how perfect the outside of it looks and the price it cost.
mighty mouse is offline   Reply With Quote
Old 07-22-2008, 10:28 AM   #76
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

nice work MM... will you reveal the build cost?
m2cupcar is online now   Reply With Quote
Old 07-22-2008, 11:05 AM   #77
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
nice work MM... will you reveal the build cost?
I'll give a ballpark figure when it's all done. Let's just say I won't be selling it anytime soon
mighty mouse is offline   Reply With Quote
Old 07-23-2008, 12:12 PM   #78
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

I definitely think it would be beneficial to anybody considering something like this. And it would probably reveal the difference between what you might think it costs and what it really costs. But for a hardcore build like this, it would definitely be interesting. My guess is in the end you will have the deal of century for what you're going to get in performance and durability when you compare the costs to others.
m2cupcar is online now   Reply With Quote
Old 07-24-2008, 10:49 AM   #79
Guest
iTrader: (1)

Join Date: Apr 2005
Posts: 29
Total Cats: 0
Default

Very nice work MM.
-Tim
sr20ser is offline   Reply With Quote
Old 07-24-2008, 10:55 AM   #80
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
I definitely think it would be beneficial to anybody considering something like this. And it would probably reveal the difference between what you might think it costs and what it really costs. But for a hardcore build like this, it would definitely be interesting. My guess is in the end you will have the deal of century for what you're going to get in performance and durability when you compare the costs to others.
Oh I don't doubt it. I'm taking my time and making sure not to cut corners and doing as much as I can by myself to keep costs down. It certainly is not cheap by any means, but then again, if I were to buy all this stuff outright and shell out for someone to put it all together it would easily double my build cost. I've been steadily working on the car since last June. My goal is to have it driving and tuned by the end of the summer. I already have a long list of things to do this winter- painting the engine bay and a wire tuck seem to stand out the most.
mighty mouse is offline   Reply With Quote
