Old 03-02-2010, 06:59 PM   #221
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by shlammed View Post
Seriously? i would have anticipated it to leak boost in the upper rpms. So it completely closes when its not being used?
Like i said some people say it does some people say it doesnt. If you want to play it safe route it to your intercooler piping, less headaches later on.
stranges12712 is offline   Reply With Quote
Old 03-02-2010, 08:26 PM   #222
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by stranges12712 View Post
IAC valve aka Idle Air Control valve, some people say with megasquirt you can run a filter on it instead of routing it to the intake piping but i play the safe way and just routed it to the intake piping.
Is this unique to the 1.6? I didn't see that pipe on my 1.8.
Faeflora is offline   Reply With Quote
Old 03-02-2010, 11:09 PM   #223
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by stranges12712 View Post
Like i said some people say it does some people say it doesnt. If you want to play it safe route it to your intercooler piping, less headaches later on.
Yeah I will most likely be routing it back in, I have a feeling I'm going to have a lot of other bugs to work out
mighty mouse is offline   Reply With Quote
Old 03-03-2010, 12:27 AM   #224
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
Is this unique to the 1.6? I didn't see that pipe on my 1.8.
Ah i have no idea, never seen a 1.8L in person, mines a 1.6 neighbours is a 1.6 and neighbours best friend is a 1.6 lol and im the only dam person in this city that has a turbo miata...next closest is probably one of the guys from toronto.
stranges12712 is offline   Reply With Quote
Old 03-08-2010, 03:01 PM   #225
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

slight update- miata is off to the exhaust shop tomorrow for 8am, I'm going to load it up tonight. Should have it back in the garage thursday if all goes well
mighty mouse is offline   Reply With Quote
Old 03-08-2010, 03:03 PM   #226
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

So what's the latest ETA for completion?
KPLAFIN is offline   Reply With Quote
Old 03-09-2010, 12:06 PM   #227
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Once it's back from exhaust I should have everything I need to get it running. I still have to figure out my clutch issue, it's not building enough pressure it seems (the pedal has very little resistance), throw the rest of the parts at it I've been stockpiling, and hope for the best. I'm trying to get it running for the good weather
mighty mouse is offline   Reply With Quote
Old 03-11-2010, 04:46 PM   #228
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Just got off the phone with the exhaust shop, the downpipe is complete, he'll be moving on to the rest of the exhaust tomorrow.
mighty mouse is offline   Reply With Quote
Old 03-11-2010, 08:12 PM   #229
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by mighty mouse View Post
Just got off the phone with the exhaust shop, the downpipe is complete, he'll be moving on to the rest of the exhaust tomorrow.
You should be the exhaust shop
Cspence is offline   Reply With Quote
Old 03-11-2010, 09:07 PM   #230
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by Cspence View Post
You should be the exhaust shop
ha! I have no way to mandrel bend pipe, nor do I want to weld a million different pieces together. Better to let the professionals take care of this one.
mighty mouse is offline   Reply With Quote
Old 03-12-2010, 07:05 AM   #231
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Quote:
Originally Posted by stranges12712 View Post
Ah i have no idea, never seen a 1.8L in person, mines a 1.6 neighbours is a 1.6 and neighbours best friend is a 1.6 lol and im the only dam person in this city that has a turbo miata...next closest is probably one of the guys from toronto.
My 99 has it; I've put a one-way valve and a filter on it.
timk is offline   Reply With Quote
Old 03-15-2010, 03:26 PM   #232
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Exhaust is now complete ! I'm having him do my intercooler piping as well. I should be picking the car up at the end of the week.
mighty mouse is offline   Reply With Quote
Old 03-16-2010, 11:27 PM   #233
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Scooping the car up tomorrow, can't wait!
mighty mouse is offline   Reply With Quote
Old 03-17-2010, 09:36 PM   #234
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I broke my camera, so I'll have to use crappy iphone pics :(.

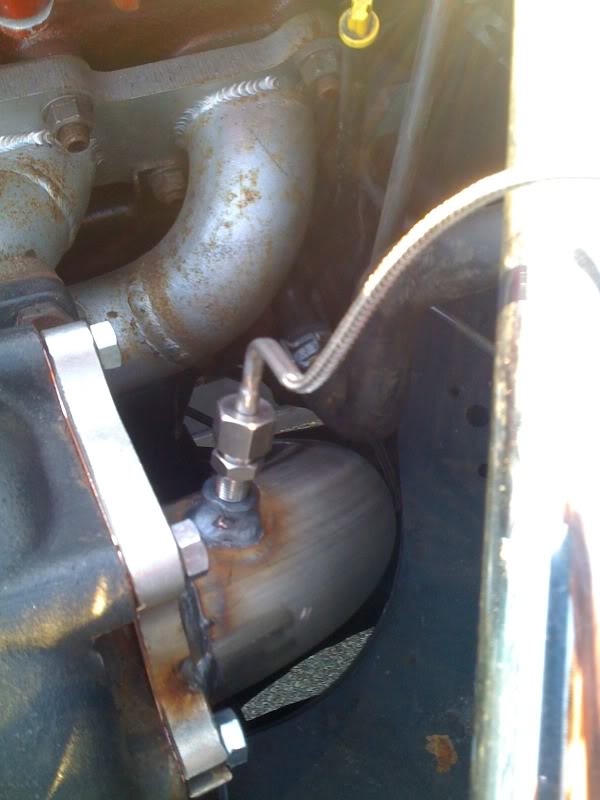

Turbo to downpipe flange ETD racing recommended putting the EGT probe here on the downpipe vs on the manifold itself as they've had problems with them cracking in the past. The temperature difference between the 2 locations should be negligible:
Name:  8011f8b2.jpg
Views: 8
Size:  52.3 KB

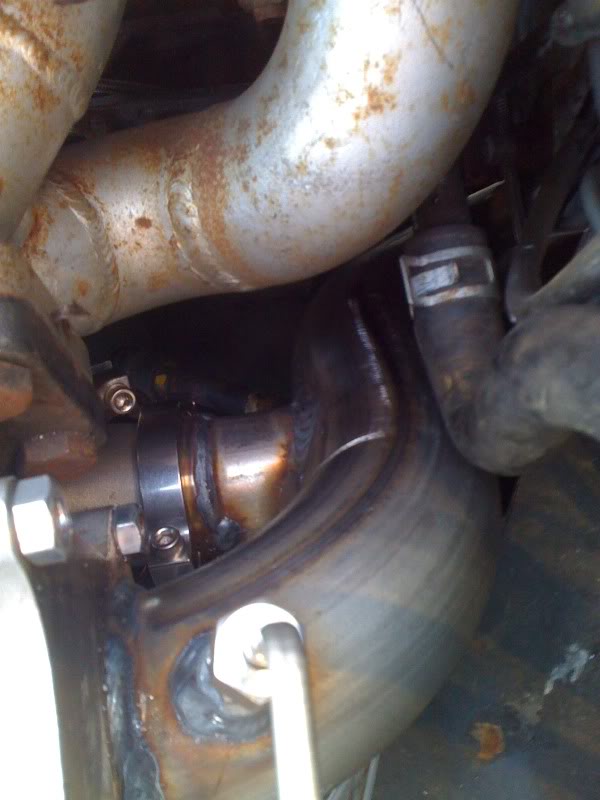

routed the wastegate dumptube back into the exhaust:
Name:  0c9ce147.jpg
Views: 8
Size:  49.7 KB

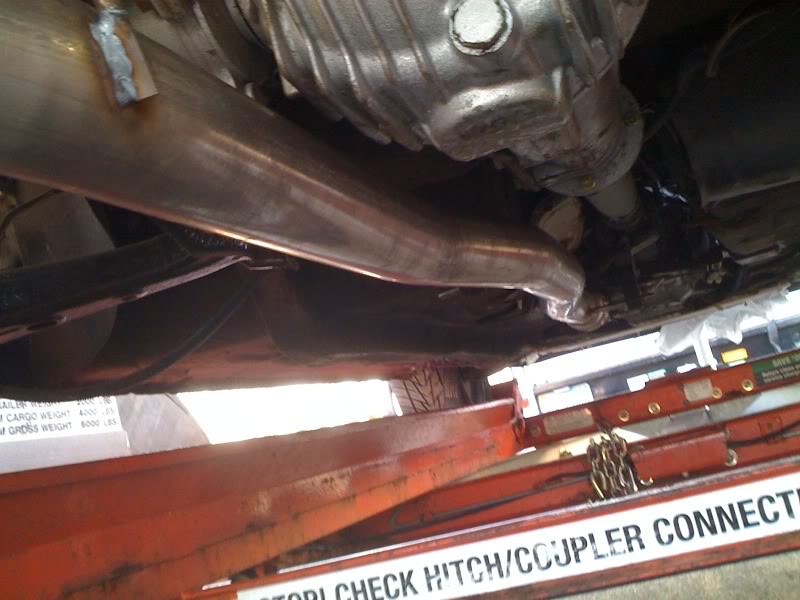

I would have liked a shallower "entry" but space was very limited. The downpipe is 2.5" (couldn't get 3" to clear the TII bellhousing), then it expands to 3" all the way back, all 409 stainless steel. There are very minimal bends, and it's tucked up fairly high for ground clearance. This thing is going to sound mean!
Name:  5ac15fc5.jpg
Views: 8
Size:  68.2 KB

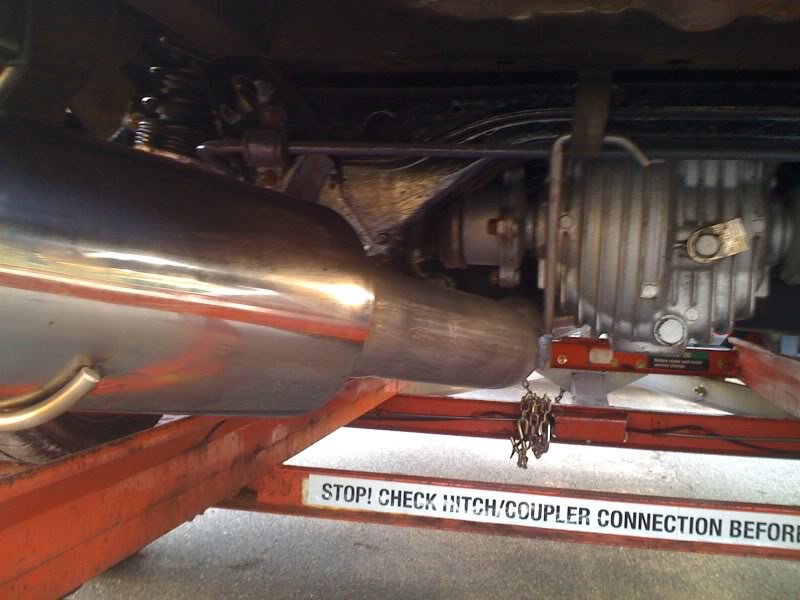

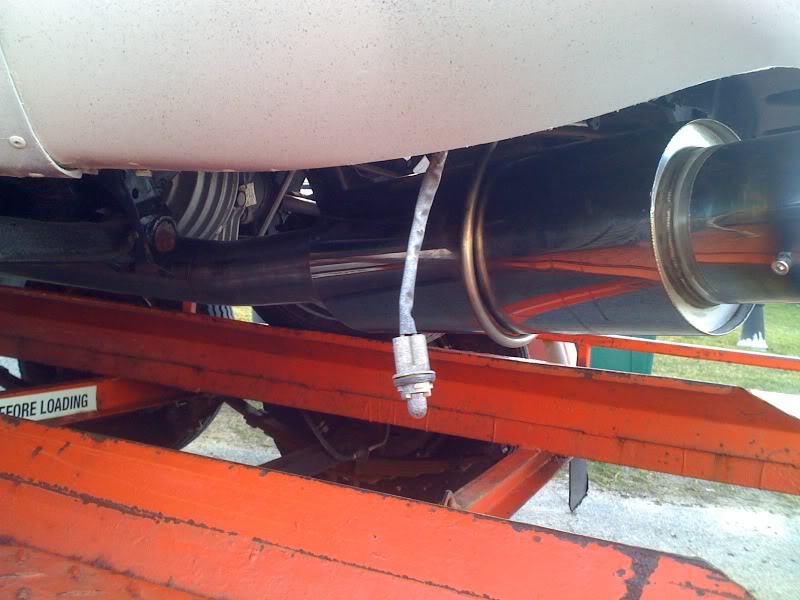

Slight bend at the rear for a left exit:
Name:  5f952123.jpg
Views: 8
Size:  69.6 KB

Name:  d45bb488.jpg
Views: 8
Size:  69.6 KB
mighty mouse is offline   Reply With Quote
Old 03-17-2010, 09:37 PM   #235
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

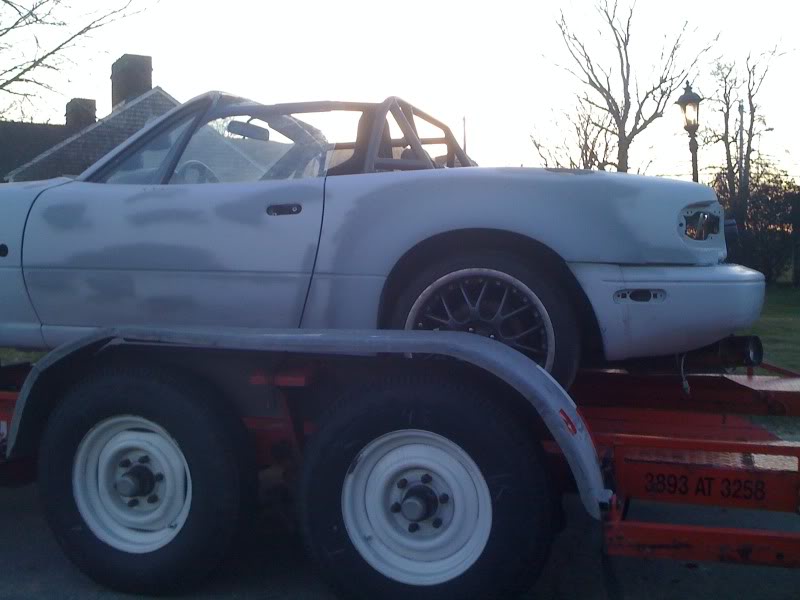

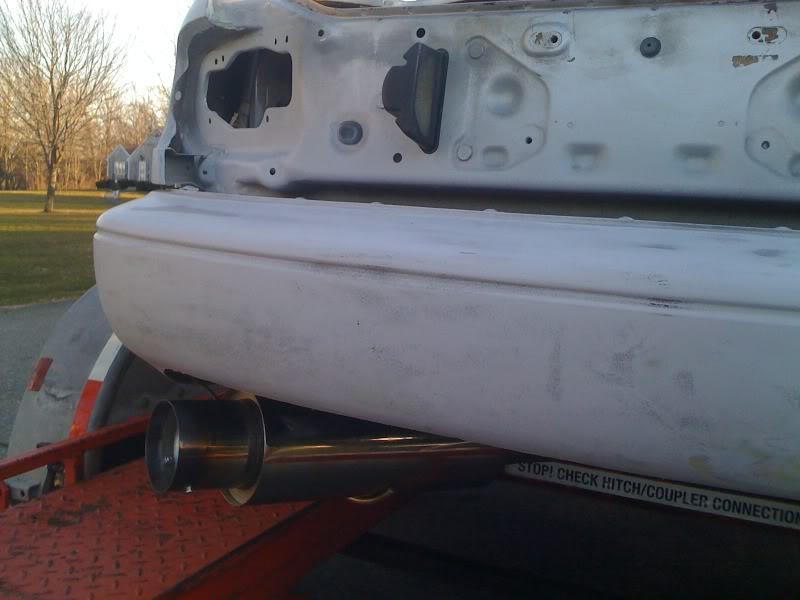

couple more of the exhaust with it still on the trailer:
Name:  18f352d6.jpg
Views: 8
Size:  51.0 KB

Name:  4e76682e.jpg
Views: 8
Size:  55.1 KB

I also had him make my intercooler pipes out of 2.5" mild steel. I'm going to go back and fab up the BOV flange (didn't like how my last one turned out) as well as the IAT bung and the IAC tube.

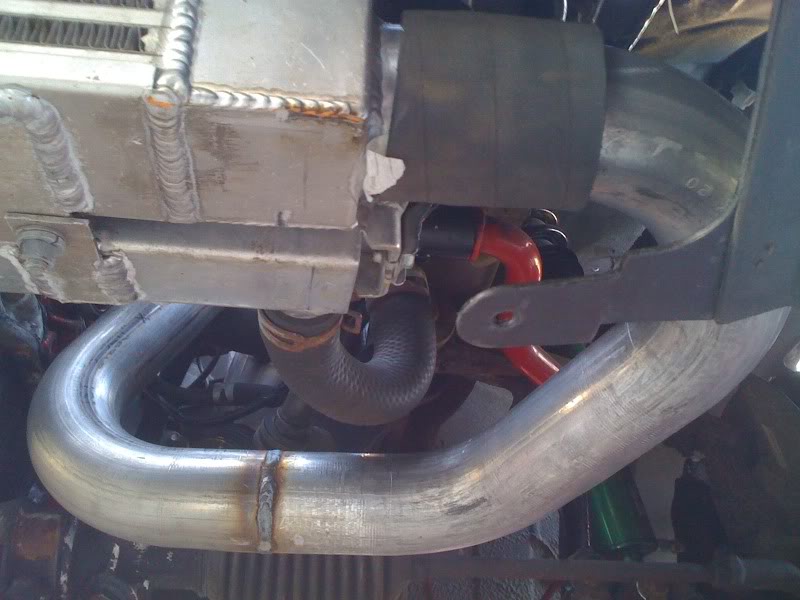

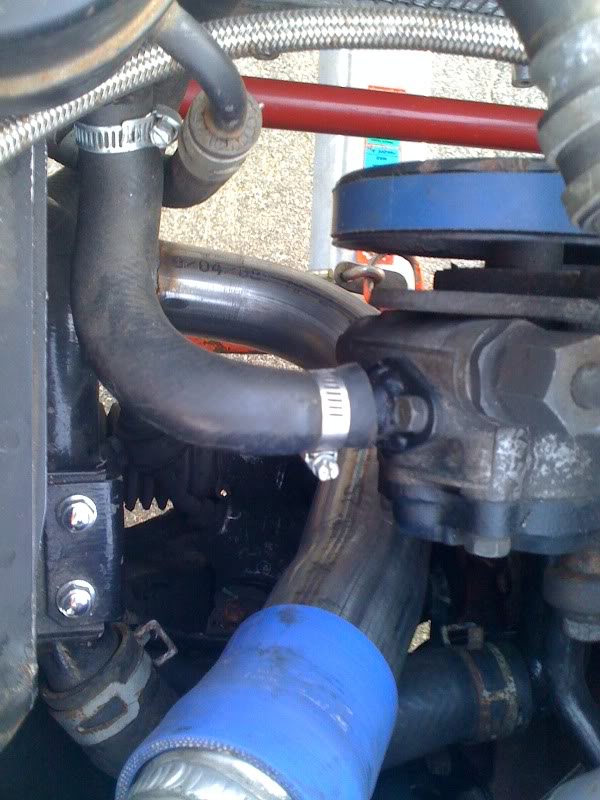

Hotside:
Name:  697d57de.jpg
Views: 8
Size:  80.3 KB

Name:  dbede522.jpg
Views: 8
Size:  62.3 KB

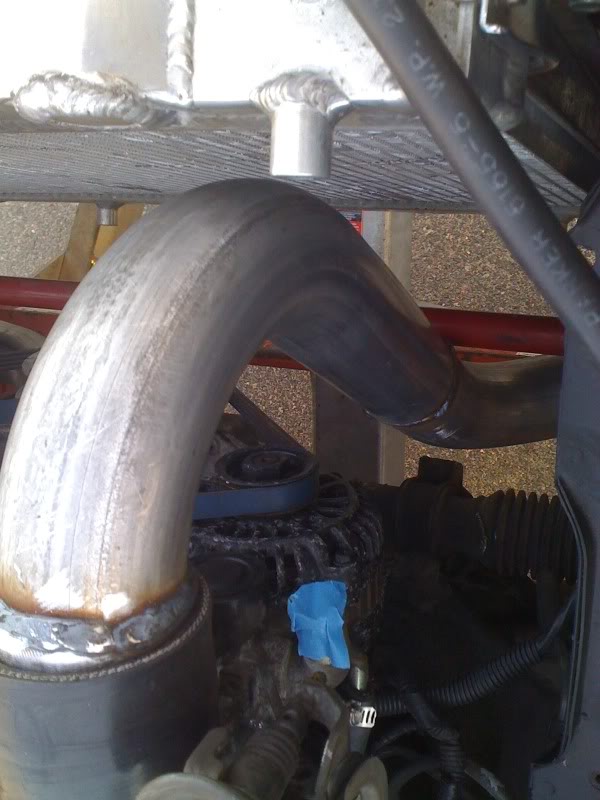

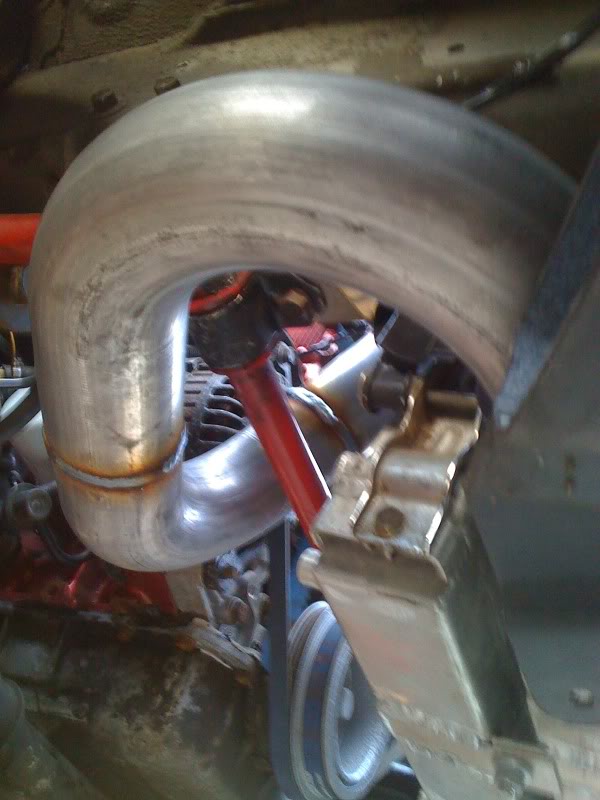

Coldside:
Name:  f22472ee.jpg
Views: 8
Size:  58.1 KB

Name:  57a88ebd.jpg
Views: 8
Size:  65.4 KB
mighty mouse is offline   Reply With Quote
Old 03-17-2010, 09:37 PM   #236
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

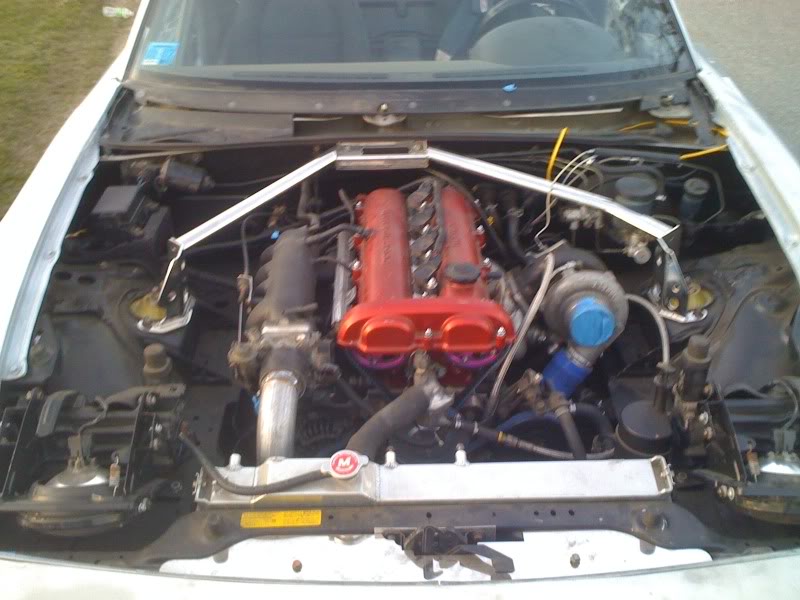

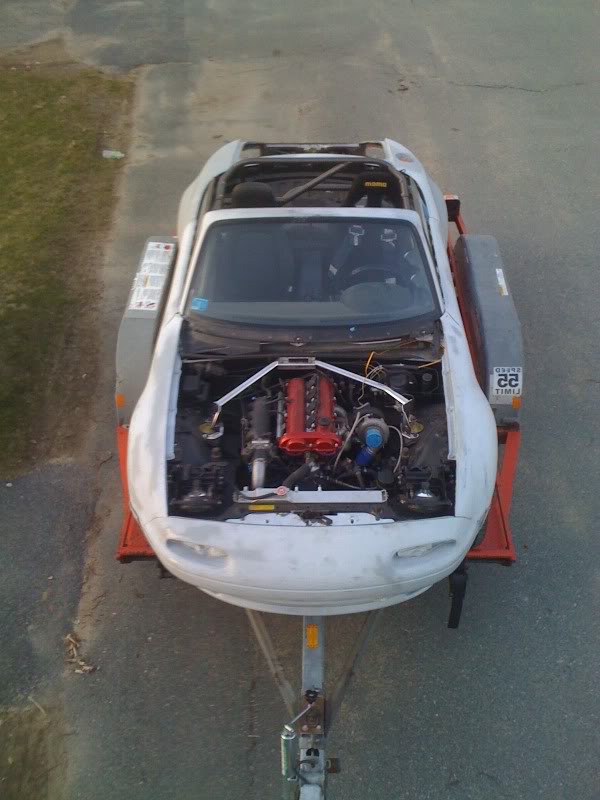

2 more of the engine bay: I stood on top of the truck to take the first shot.
Name:  b0edc4df.jpg
Views: 8
Size:  66.2 KB

Name:  5e2851de.jpg
Views: 9
Size:  74.7 KB

It's coming down to the final stretch!
mighty mouse is offline   Reply With Quote
Old 03-17-2010, 09:52 PM   #237
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

No room for a radiator fan on the right side eh? Or is that a optical illusion?

Also, I don't know what the delta_T across a turbine is, but I doubt it fit my definition of negligible. But better that then a cracked mani I guess.
TurboTim is offline   Reply With Quote
Old 03-17-2010, 10:56 PM   #238
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Doesnt look like there will be enough space for a second (stock) fan. Some spal low pro fans will probably be fine.

Iphone pictures aren't very bad at all, 3GS? my 3Gs pix are not very good at all.
thesnowboarder is offline   Reply With Quote
Old 03-18-2010, 09:49 AM   #239
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

There's room for a fan if the IC pipe is going behind the sway. Curious to see the bellhousing clearance - or lack of you mention for the down the pipe. I've never heard that being an issue with other TII installs.
m2cupcar is offline   Reply With Quote
Old 03-18-2010, 02:55 PM   #240
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by TurboTim View Post
No room for a radiator fan on the right side eh? Or is that a optical illusion?

Also, I don't know what the delta_T across a turbine is, but I doubt it fit my definition of negligible. But better that then a cracked mani I guess.
There's enough room for a fan. I have a thin 12" spal one already, just haven't got around to building a shroud/mounting system for it. If I need more cooling believe it or not there is room on the pass side for a smaller fan. I'm hoping this will do OK, but there's only 1 way to find out. As for the probe, I thought the same thing, but they said this is what they've been doing on their racecars for years. Again, only 1 way to find out I guess.


Quote:
Originally Posted by m2cupcar View Post
There's room for a fan if the IC pipe is going behind the sway. Curious to see the bellhousing clearance - or lack of you mention for the down the pipe. I've never heard that being an issue with other TII installs.
When I get the car up I'll take some better pictures of the clearance. The clearance issue for 3" downpipe vs 2.5" also arises from the ETD manifold- it left the turbo and wastegate in an awkward position. The smaller pipe allowed for a more direct path. It expands to 3" right after the bellhousing; the 2.5" section is very short.
mighty mouse is offline   Reply With Quote
