Old 09-03-2008, 11:19 PM   #121
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Name:  326.jpg
Views: 22
Size:  55.8 KB

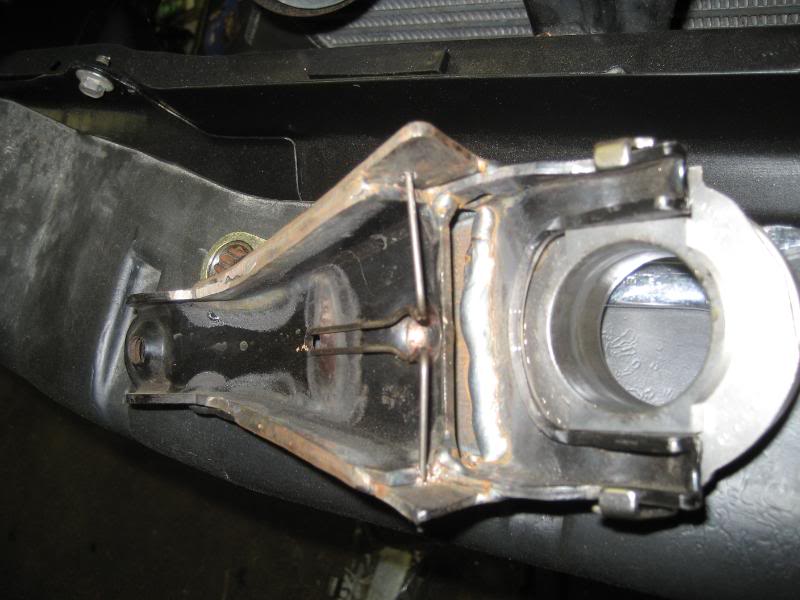

I still have to elongate the 2 holes for the retention spring, clean up the welds a bit more, and of course paint it, but you get the idea. I thought about this for a long time, and I think this is going to work out great- It certainly will be strong enough that's for sure. This weekend I'm going to start really putting things back together now. Right now the last bit of fab work is going to be the exhaust, which i need everything basically back in the car so I know how much room I have to play with. I'm hoping to stuff a 3" turbo-back in there somehow.
mighty mouse is offline   Reply With Quote
Old 09-04-2008, 12:23 AM   #122
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Clutch fork looks good. If it doesn't work you can send it to me collect freight.
m2cupcar is offline   Reply With Quote
Old 09-04-2008, 12:30 AM   #123
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

MightyMouse, I hate to call you out, but have you sent my fuel pump yet? Its been well over a month( I paid you for it on 07-14-2008 ), and I've reminded you several times.
Fireindc is offline   Reply With Quote
Old 09-04-2008, 12:38 AM   #124
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Clutch fork should work. I'd do it that way if I had to do it again!
M-Tuned is offline   Reply With Quote
Old 09-04-2008, 10:46 AM   #125
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by Fireindc View Post
MightyMouse, I hate to call you out, but have you sent my fuel pump yet? Its been well over a month( I paid you for it on 07-14-2008 ), and I've reminded you several times.
Not a problem at all, I'll send you the tracking number in a PM later tonight (I'm at work and I left it at home)
mighty mouse is offline   Reply With Quote
Old 09-04-2008, 11:02 AM   #126
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
Clutch fork looks good. If it doesn't work you can send it to me collect freight.

Quote:
Originally Posted by [email protected] View Post
Clutch fork should work. I'd do it that way if I had to do it again!
Nice! That makes me feel better that you two guys who have been down this road before approve of my work. Thank you! I still am going to smooth the weld where the TOB sits as it's just lightly touching right now so it doesn't sit flat. The clutch fork metal is very hard. I started cutting with the sawzall, but after 10 minutes I had barely scratched it. Thanks m2cupcar once again for your pictures in my other thread- they helped quite a bit in the brainstorming process.

Here's a question off on a side tangent. For my oil return line, I have some -10an fittings and a length of steel braided hose with a plastic "hose" inside instead of rubber "hose". Would this be alright to use, or should I get one with rubber inside? I got the hose free so if I have to buy one it's not a big deal.
mighty mouse is offline   Reply With Quote
Old 09-04-2008, 12:05 PM   #127
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

If you're not sure that hose is "oil safe" then don't use it. Too much invested don't ya think?
m2cupcar is offline   Reply With Quote
Old 09-04-2008, 02:50 PM   #128
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
If you're not sure that hose is "oil safe" then don't use it. Too much invested don't ya think?
It's oil safe, it's just not very flexible, and I can see a slight kink in the plastic....I just answered my own question didn't I...
mighty mouse is offline   Reply With Quote
Old 09-17-2008, 12:29 PM   #129
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

I started a mild wire tuck. I'm not 100% impressed with how it came out, but it'll stay for now. Eventually I'm going to go back and hide everything (hard lines included).

Here's the passenger side:
Name:  328.jpg
Views: 17
Size:  39.2 KB

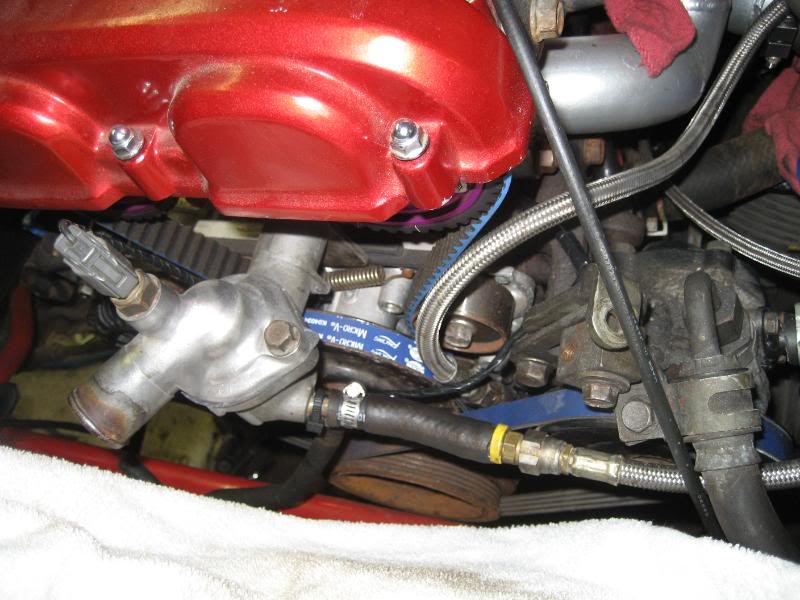

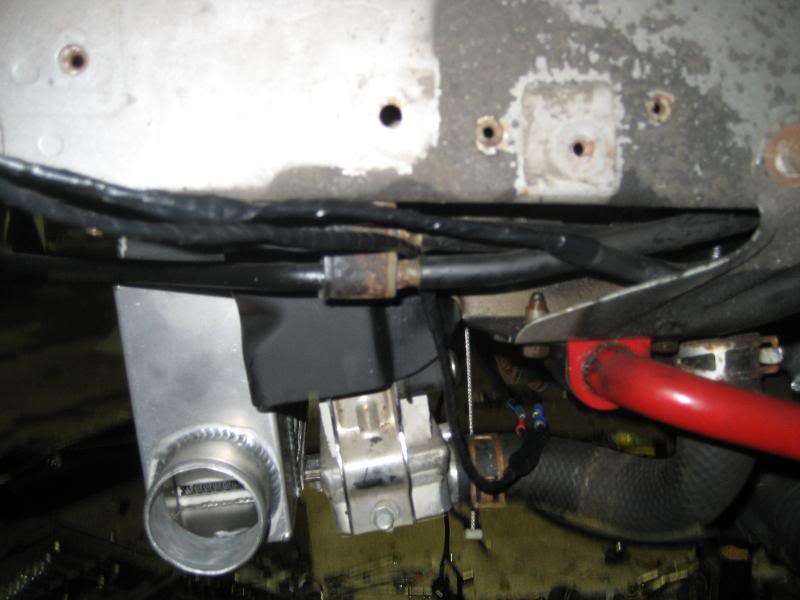

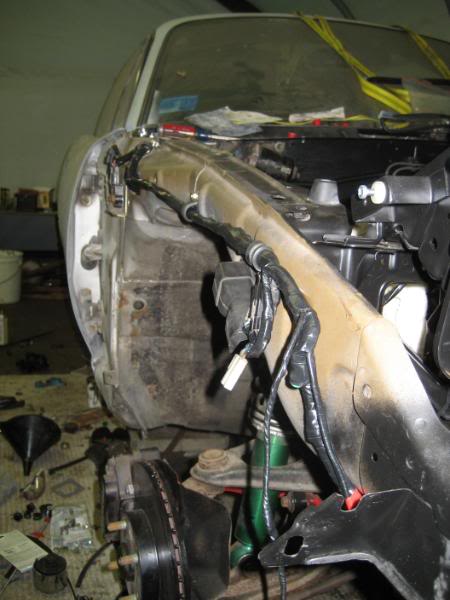

I'm going to run the fan, power steering pump, and t-stat temp sensor wires through here. This is the initial fit.
Name:  333.jpg
Views: 18
Size:  44.3 KB

Name:  334.jpg
Views: 17
Size:  72.1 KB

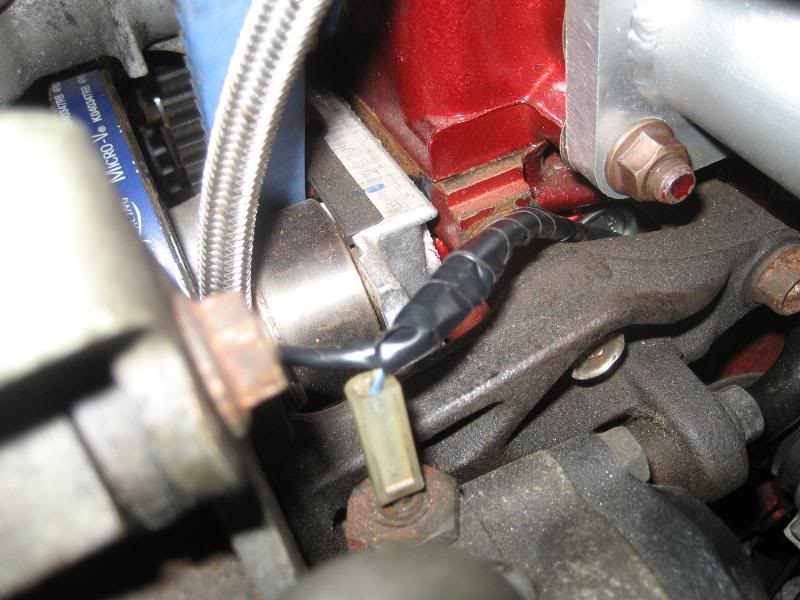

they'll go down here between the block and ps bracket, and follow the lower rad hose
Name:  335.jpg
Views: 17
Size:  69.0 KB

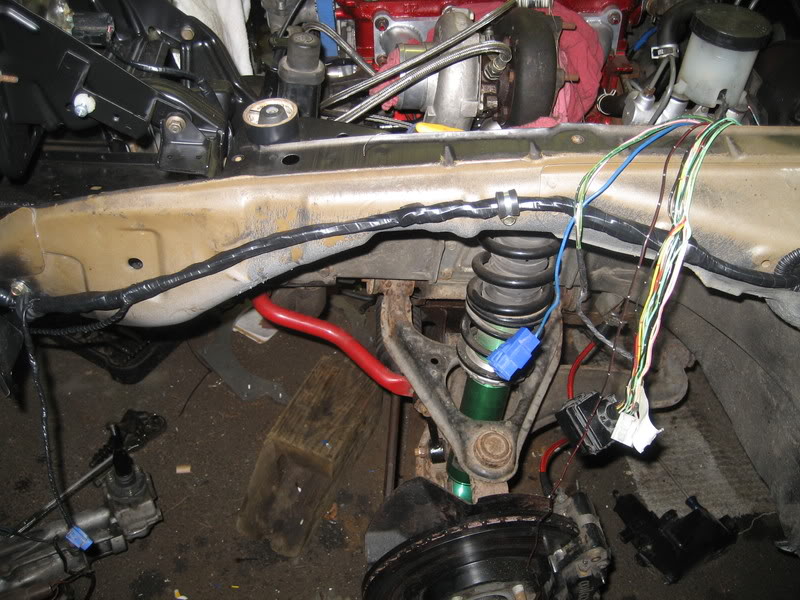

driver's side
Name:  332.jpg
Views: 15
Size:  111.1 KB

I forgot to take more pics of the wiring, I finished up at 3:30 am so I was a little tired.

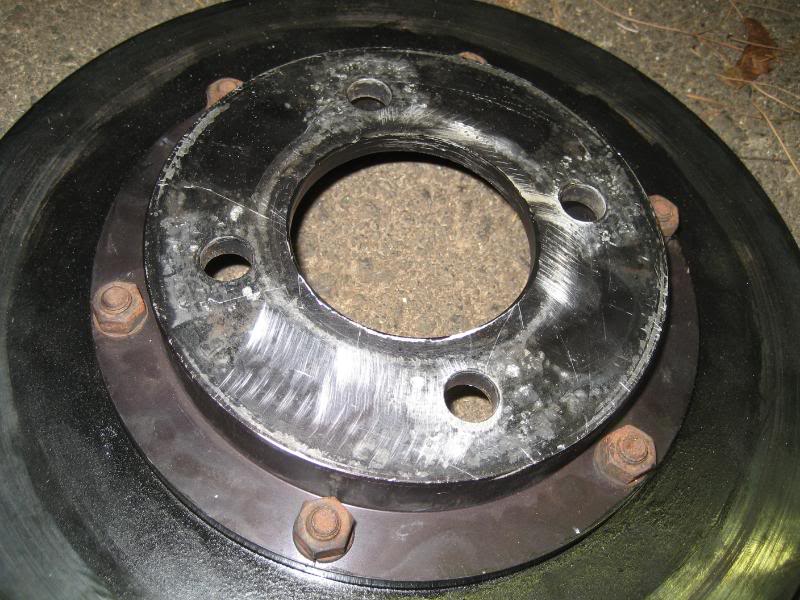

Got the rear rotors back from the machine shop
Name:  327.jpg
Views: 15
Size:  91.0 KB

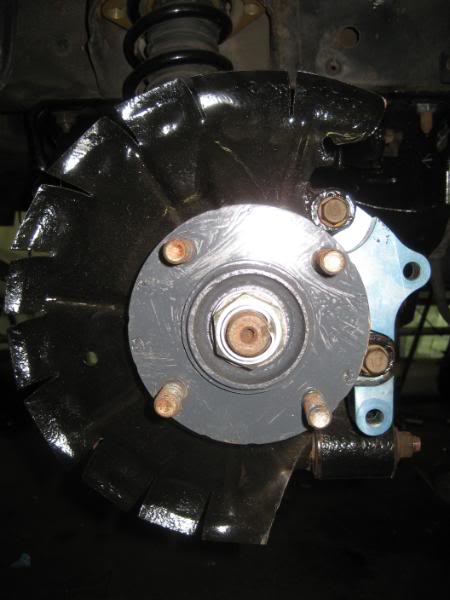

I had to make a cut to the dust shield for the calipers to fit with the new brackets.
Name:  336.jpg
Views: 15
Size:  31.9 KB

Then I installed my calipers. (old ones were a little iffy so I just got new ones. Better safe than sorry.

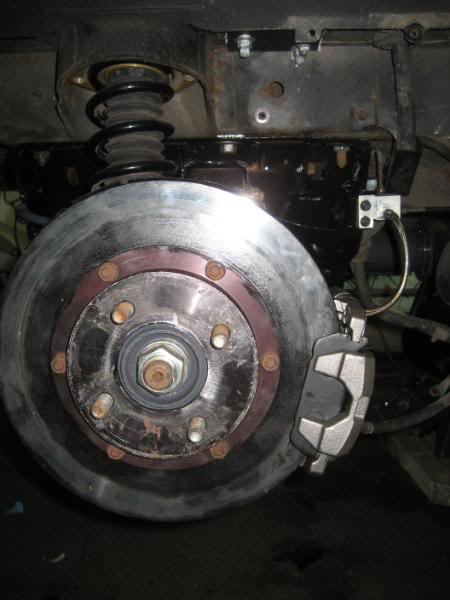

pass side
Name:  337.jpg
Views: 17
Size:  32.9 KB

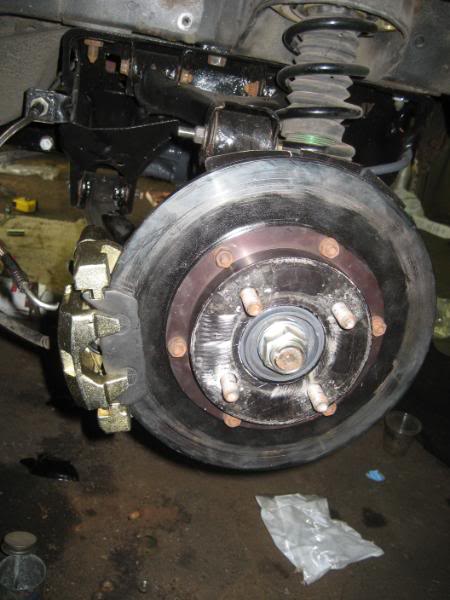

and the bling bling driver's side (no idea why this one is gold)
Name:  338.jpg
Views: 17
Size:  41.9 KB

I'm using porterfield r4s pads all around.

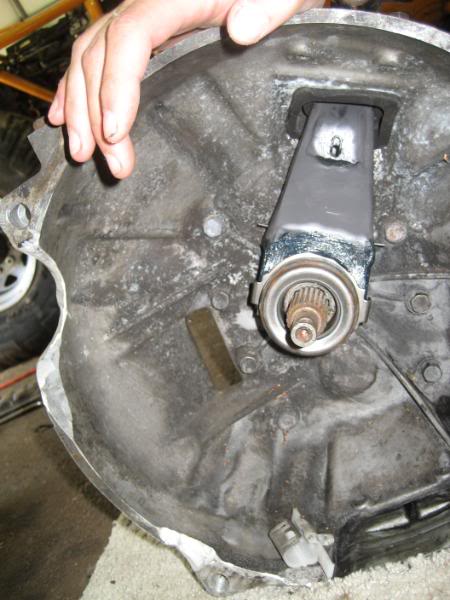

Next, I installed the new clutch fork. and slave cylinder
Name:  341.jpg
Views: 16
Size:  45.7 KB

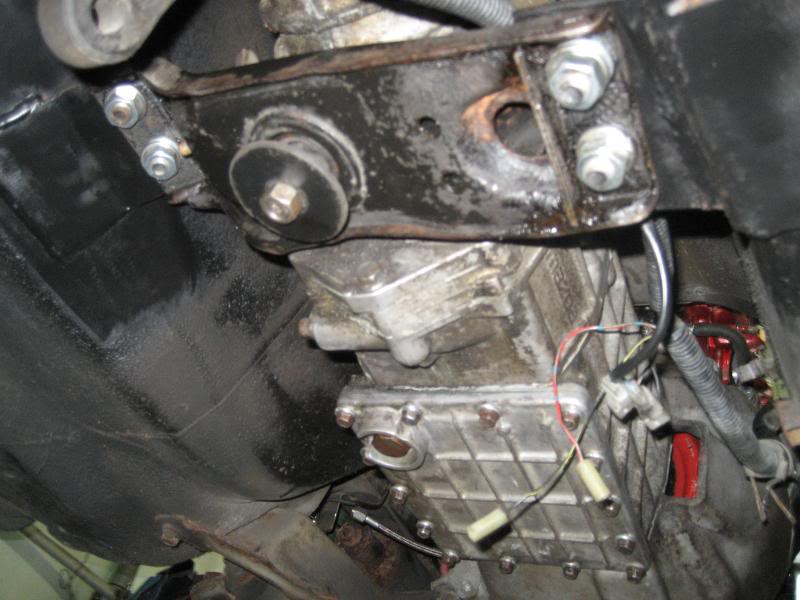

Then I fought with the tranny and finally got it in and bolted down.
Name:  342.jpg
Views: 15
Size:  62.8 KB
mighty mouse is offline   Reply With Quote
Old 09-17-2008, 12:30 PM   #130
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

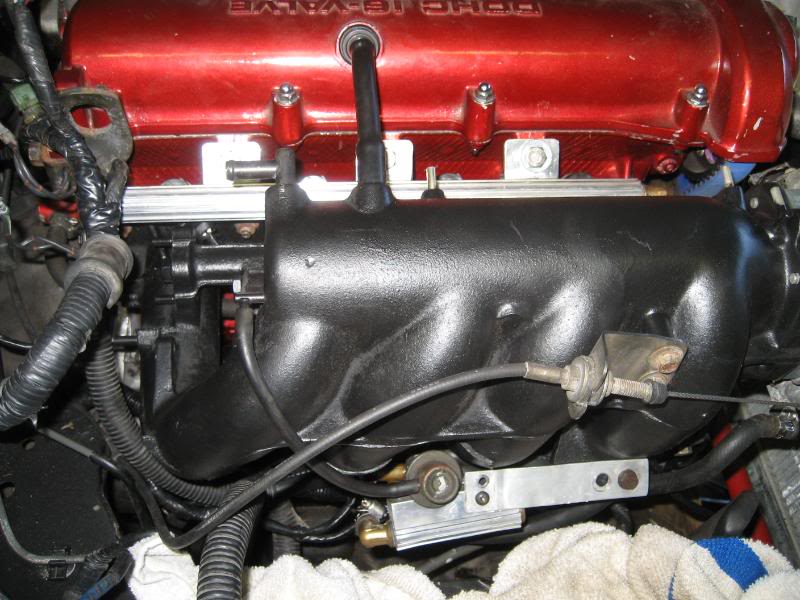

then I installed the fuel injectors, dual feed fuel rail, fuel lines, injector wiring harness, and intake manifold. I'm not 100% sure where I'm going to mount the section of fuel rail holding the fpr yet

Name:  345.jpg
Views: 16
Size:  81.3 KB

More to come this weekend.
mighty mouse is offline   Reply With Quote
Old 09-17-2008, 03:36 PM   #131
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Did you consider putting any kind of bushing material between the diff housing and your mounting plate that's mounted to the subframe? I'd think it would be advantageous to reducing any driveline noise/vibration tranferring to the chassis since the mounting plate is the connection between the diff and the subframe (which is bolted directly to the chassis).
m2cupcar is offline   Reply With Quote
Old 09-17-2008, 04:59 PM   #132
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
Did you consider putting any kind of bushing material between the diff housing and your mounting plate that's mounted to the subframe? I'd think it would be advantageous to reducing any driveline noise/vibration tranferring to the chassis since the mounting plate is the connection between the diff and the subframe (which is bolted directly to the chassis).

I did think about it, but no I didn't put anything in. I'm going to try it out and if it needs to be changed, I can enlarge the holes and put in some bushings or whatever. That's something that can be done after it's running though.
mighty mouse is offline   Reply With Quote
Old 01-14-2009, 12:00 PM   #133
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Nothing new to report on the car just yet, but I thought I'd give an update anyways. I got 2nd and 3rd degree burns on my right hand on New Year's Eve from a big firework exploding accidentially in my hand (long story, no I didn't light it, and no I don't feel like typing it all out ) so I can't do the things I would like to be able to. Ive been taking it easy for a while to let it heal, but I just went last night and picked up the bumpers and fenders and a couple other misc. pieces that I'm going to prep and paint. I'm going nuts from not doing anything productive anymore. I figure I should be able to do this with only 1 hand (i'm left handed so at least I have that going for me). I am planning on starting tongiht after work, so hopefully I will have more to report.
mighty mouse is offline   Reply With Quote
Old 01-14-2009, 12:46 PM   #134
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Injury photos always tell a story much better than words anyway.
m2cupcar is offline   Reply With Quote
Old 01-14-2009, 11:39 PM   #135
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by m2cupcar View Post
Injury photos always tell a story much better than words anyway.
Yeah, yeah, yeah
mighty mouse is offline   Reply With Quote
Old 02-02-2009, 08:09 PM   #136
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Very small update:

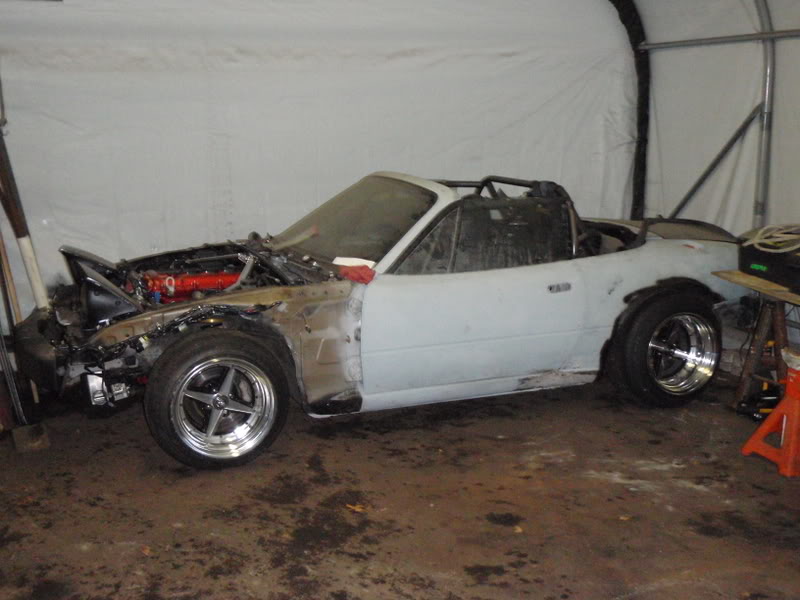

The car is back on the ground, after being on jack stands for over a year! It will be going right back up on them once I am finished with the lift/axles for my jeep though #-o . I had to move it to make room for my jeep in the garage. I did take a few pics though. This will most likely end up being the ride height. It's a little hard to see without fenders, bumpers, etc., but damn does it look good! Please hold all of the "your tires are too small" comments. Yes I know they are too small and they will be replaced, but not for the time being. When my bank account stops getting beaten I'll replace them.

Name:  346.jpg
Views: 16
Size:  61.7 KB

I fell in love with it all over again seeing it for the first time on the ground with the wheels on it.

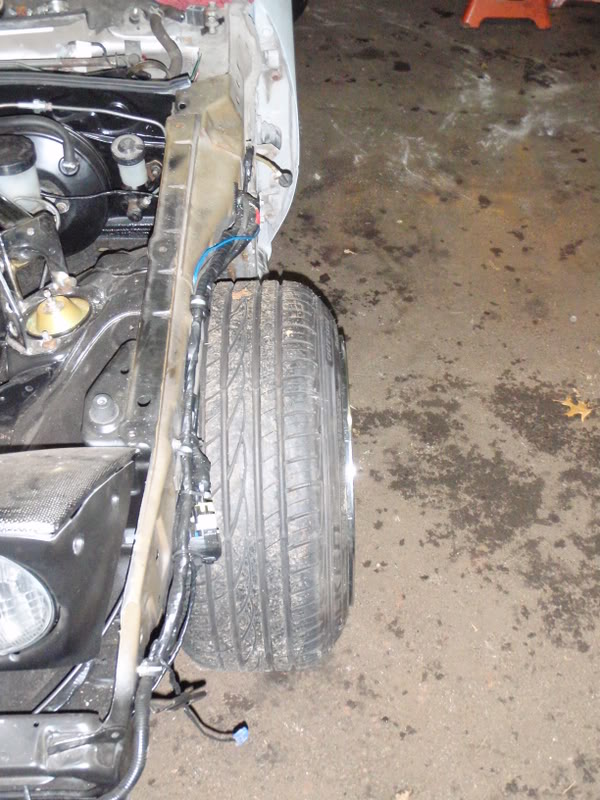

Here's a shot showing how wide the rims are

Name:  347.jpg
Views: 18
Size:  103.3 KB
mighty mouse is offline   Reply With Quote
Old 02-02-2009, 08:32 PM   #137
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

wow man looks great. I feel your pain, my car is just about to come off the jacks after nearly 6 months of work.

The wire tuck looks really clean. Would you care to explain how you did it a little more?
viperormiata is offline   Reply With Quote
Old 02-02-2009, 08:47 PM   #138
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

I've always been tempted to do at least a mild wire tuck on the miata as well. This is one of my inspirations to do it
18psi is offline   Reply With Quote
Old 02-02-2009, 09:42 PM   #139
Senior Member
Thread Starter
iTrader: (9)

Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20
Default

Quote:
Originally Posted by viperormiata View Post
wow man looks great. I feel your pain, my car is just about to come off the jacks after nearly 6 months of work.

The wire tuck looks really clean. Would you care to explain how you did it a little more?
What do you want to know? I didn't tuck the main harness for the engine/fuse box, just haven't got around to it. I might just leave them there for now and concentrate on getting the car running once I'm done working on my jeep.
mighty mouse is offline   Reply With Quote
Old 02-03-2009, 01:07 AM   #140
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I just read this whole thread. Amazing build, I can't wait to see the end result!

High hp Miata with Fender Flares (Love fender flares), done without cutting corners is something I would like to do someday.
skidude is offline   Reply With Quote
