Um...I think that was Abe's decision. I told him I had zero issues with clearance since I don't have power steering or air conditioning, but if I recall correctly charge pipe routing, turbo size (later on, sr20 fits everywhere), and ease of access is so much easier with side mounts.

I also had some issues with my oil drain, it's surprisingly tight, even for a side mount. I know the bottom mount v-band guys have a hellish time with their oil drain. Stuff to keep in mind.

If I did it again, I'd stick with side mount, but go for a more flowing manifold.

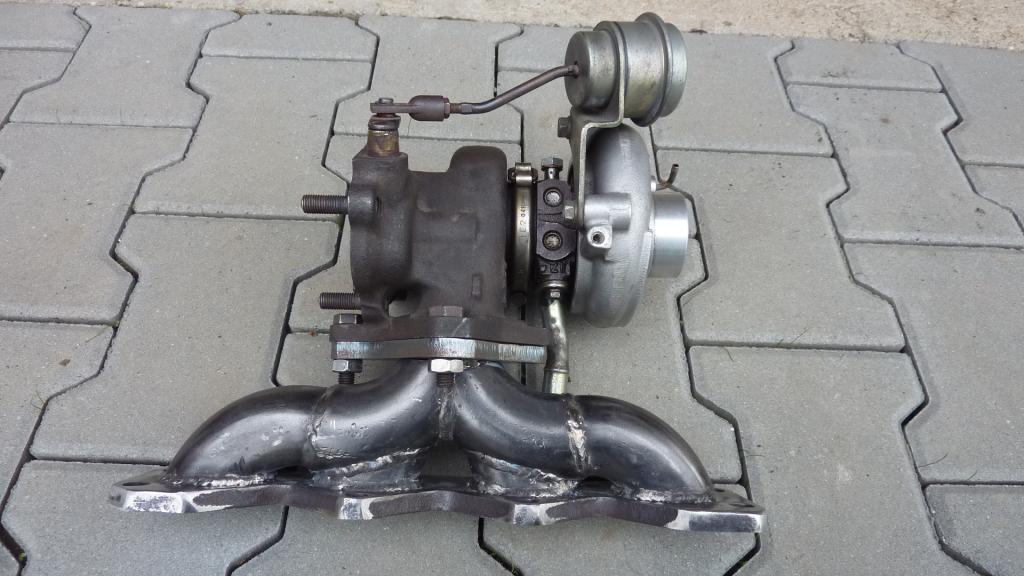

Something like this:



On another note, if you google "miata side mount turbo manifold", my thread is the first result! Woot.
curly is offline   Reply With Quote
Old 09-27-2013, 04:27 PM   #202
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 322
Total Cats: 53
Default

That makes sense. Even without PS and AC it does look tight down there, both looking at my car and at pictures of setups similar to yours. I'll have to work it out with Abe when the time comes.

Thank you.
adamiata is offline   Reply With Quote
Old 09-27-2013, 04:54 PM   #203
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

Expect to modify your water pump inlet/lower rad hose and heater hardline to accommodate a bottom mount. I didn't plan on encountering those issues when I did my bottom mount.
rigidbigelsworth is offline   Reply With Quote
Old 09-27-2013, 05:55 PM   #204
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 322
Total Cats: 53
Default

I gathered that you can flip the water pump inlet 180 degrees and cut/weld a bend into it. The heater hose routing seems trickier if you don't want to add a whole lot of hose to the engine bay.
adamiata is offline   Reply With Quote
Old 10-01-2013, 11:51 AM   #205
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

I modified the heater hardline to still run under the exhaust manifold, but then I attached a silicone hose to it and connected it to a Tee in the lower rad hose. not the most efficient way but I was in a hurry to get it together. Eventually I will just get a hose barb elbow welded on to the mixing manifold to pop the silicone line onto.
rigidbigelsworth is offline   Reply With Quote
Old 10-01-2013, 12:27 PM   #206
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Originally I drilled and tapped the stock O-ring location for a large (forget the size) NPT-hose barb piece, and had a rubber line going from the heater core to there. I've since capped that, and now have a hose going all the way from the heater core to a "T" in the lower radiator line. It's actually very clean, and once I installed a 90* off the heater core, it got it the hell away from the turbo manifold. There's multiple ways of doing it, it's just whatever works best for you.

And the way I see it, having 1" of rubber hose versus 20' is all the same, it's when you start introducing multiple unions and clamps that you start running into problems with leaks and such.
curly is offline   Reply With Quote
Old 10-01-2013, 01:53 PM   #207
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by curly View Post
But I'm now running on NB sport Bilsteins, my same 450/300 spring setup, Ebay sleeves, NB hats front and rear, with stock bushings and FCM bump stops.

Also these are upside down with no set screws, and at the lowest position. I'm happy with the height, but they're definitely not for the "slammed" crowd. I'll have to work on this. It's definitely a nice DD/raceable height, but there's no doubt that on a billiard smooth track I'd be beneficial to run slightly lower. Actually, they're mounted exactly as shown in the picture, as low as possible, even mounted with the numbers upside down.
What length springs are you running and what length would be optimal to have the ride height you would like?

I have ebay coil sleeves and am wondering about springs and rates for my gutted '92.

Matt
shlammed is offline   Reply With Quote
Old 10-01-2013, 05:59 PM   #208
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Rates are 450 and 300. Both are 7"

We have an identical setup in Lazarus (search here or CR for build thread), however it has FM top hats and 6" springs, 550/400 I think? He also has 4" long threaded collars. That was the key, I bought 7" for some reason, and have had nothing but trouble. Buy the smaller 4" collars and 6" springs. We run incredibly light, I think around 1800lbs at this point, with 6" springs and at the bottom of the adjustment.

With a heavier car and a slightly more streetable ride height, I think you'd be right around the middle of the adjustment range which is perfect.

Good:
92 95 96 00 Honda Civic CRX Silver Adjustable coilover Springs lowering Sleeves | eBay

The ebay springs are generally assumed to be decently matched 550# springs, so I would purchase a 6" rear springs to match and find a 4" collar, 6-7" ebay set that works and run those.

Note: those links I posted were for sleeve length, not diameter, make sure they fit your shock before buying!

Last edited by curly; 07-22-2017 at 10:08 AM.
curly is offline   Reply With Quote
Old 01-21-2014, 01:06 PM   #209
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Back from the dead! Haven't done much to the car since the suspension. But my ebay ceramic clutch has been getting more and more annoying, my transmission is whining way too much for my liking, and the throwout bearing sounds like it has rocks inside it any time it gets hot.

So my 949 clutch gets here today. In the mean time, I've been fixing leaks.

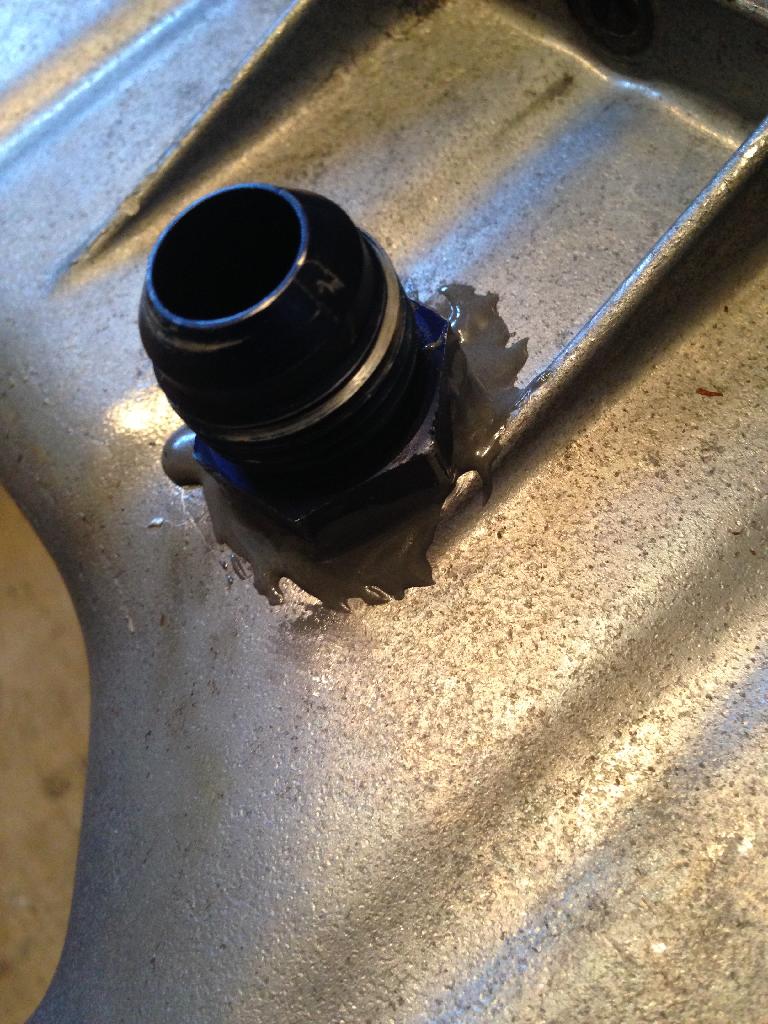

First, I JB welded my oil drain fitting. Hopefully this sucker won't go anywhere.

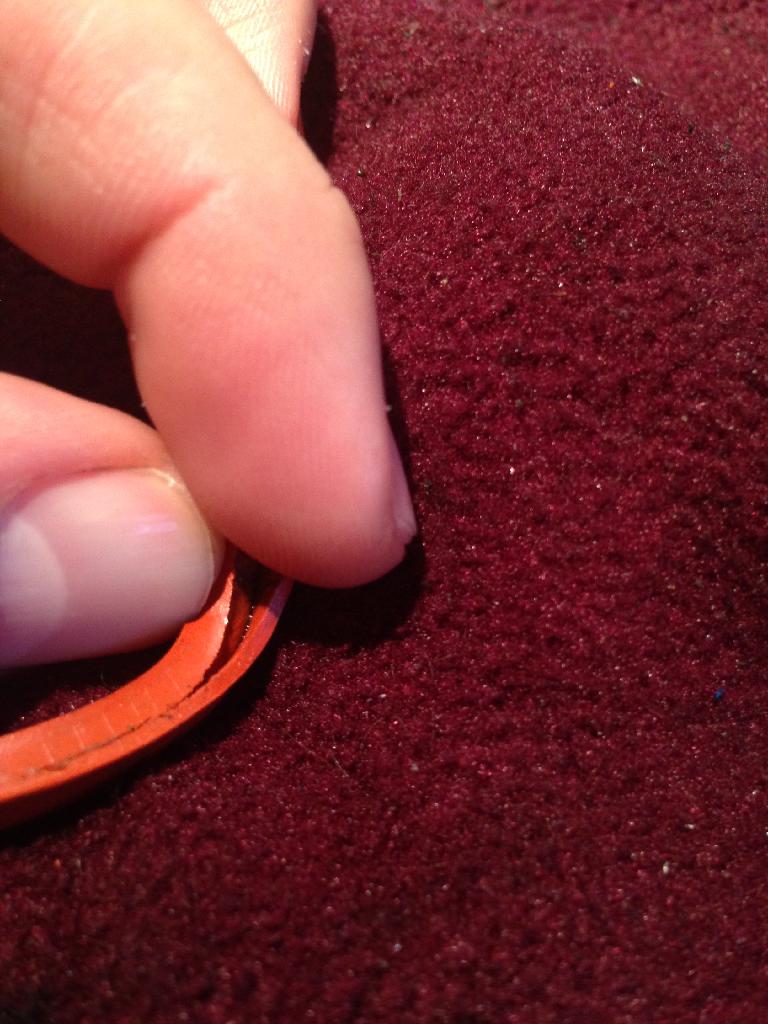

Then I replaced my sandwich plate o-ring, which was clearly the wrong size.

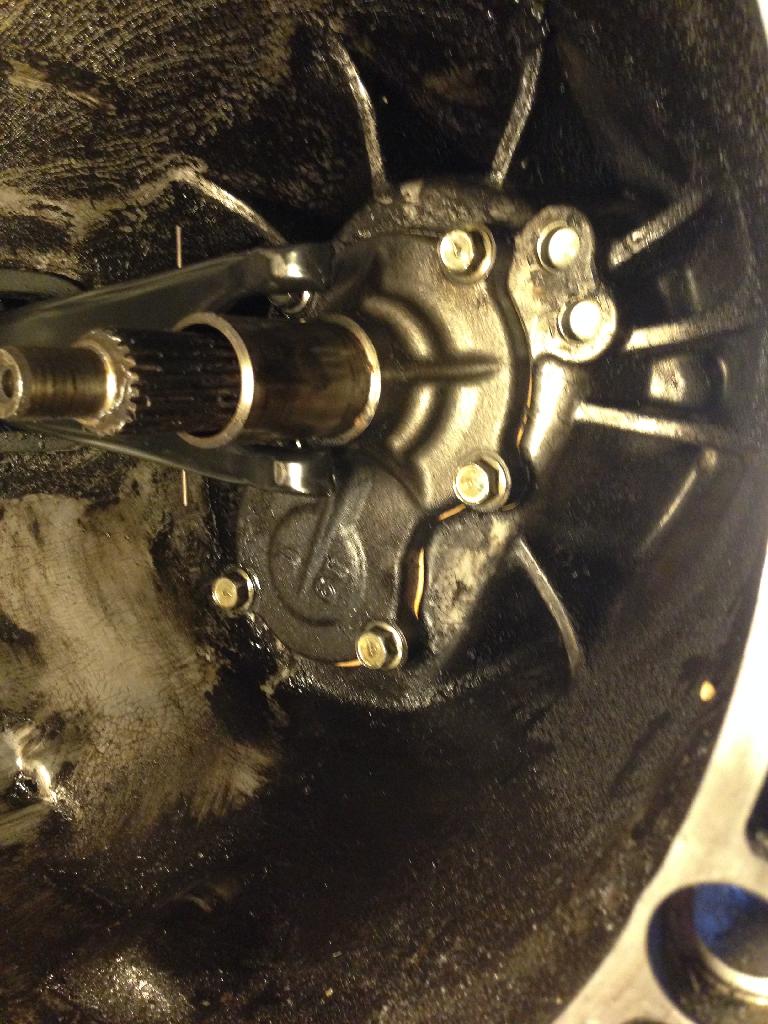

A new-to-me transmission received a new input seal, and my barely used output seal was transferred over.

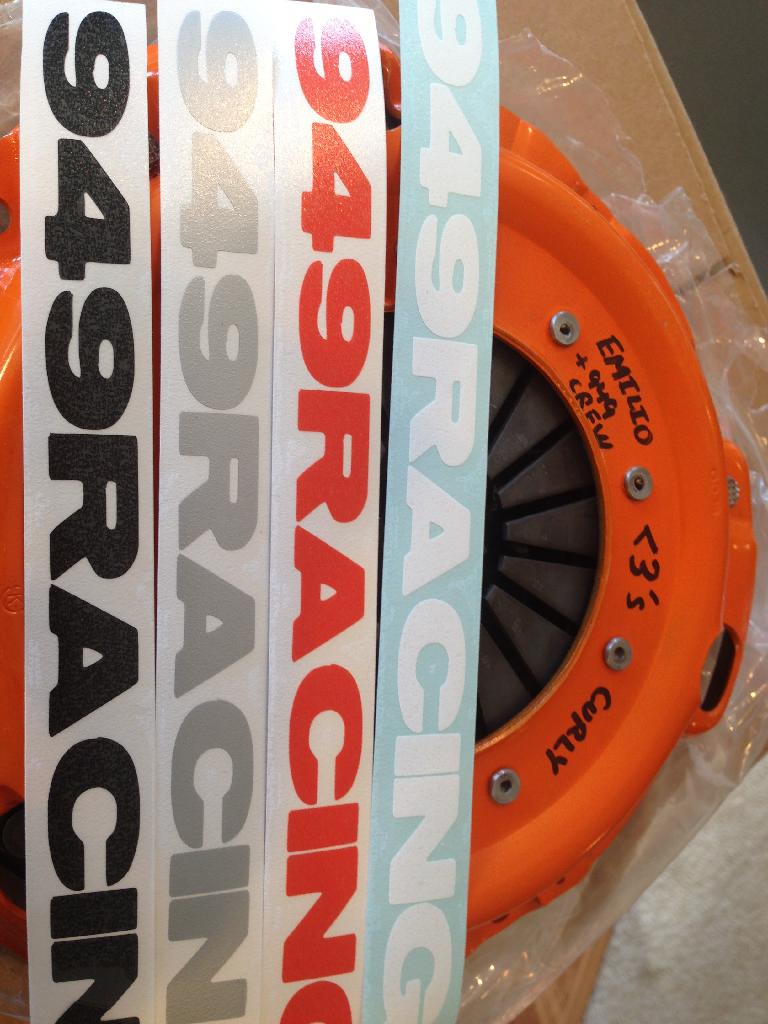

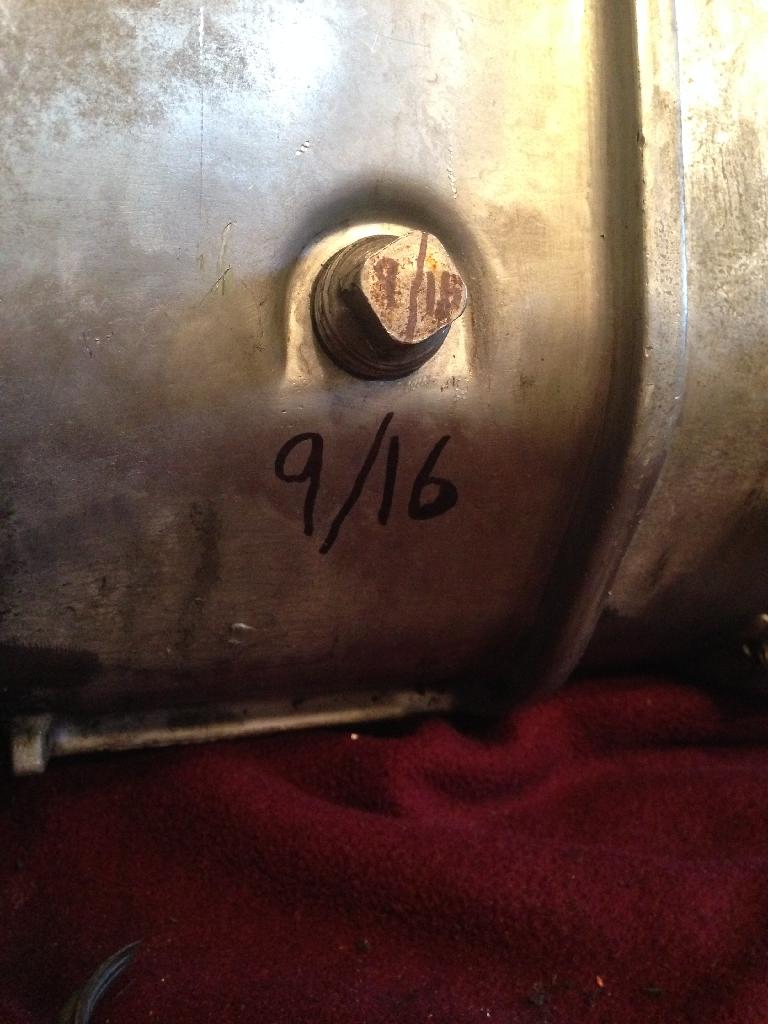

And a couple labels to make my life easier in the future.



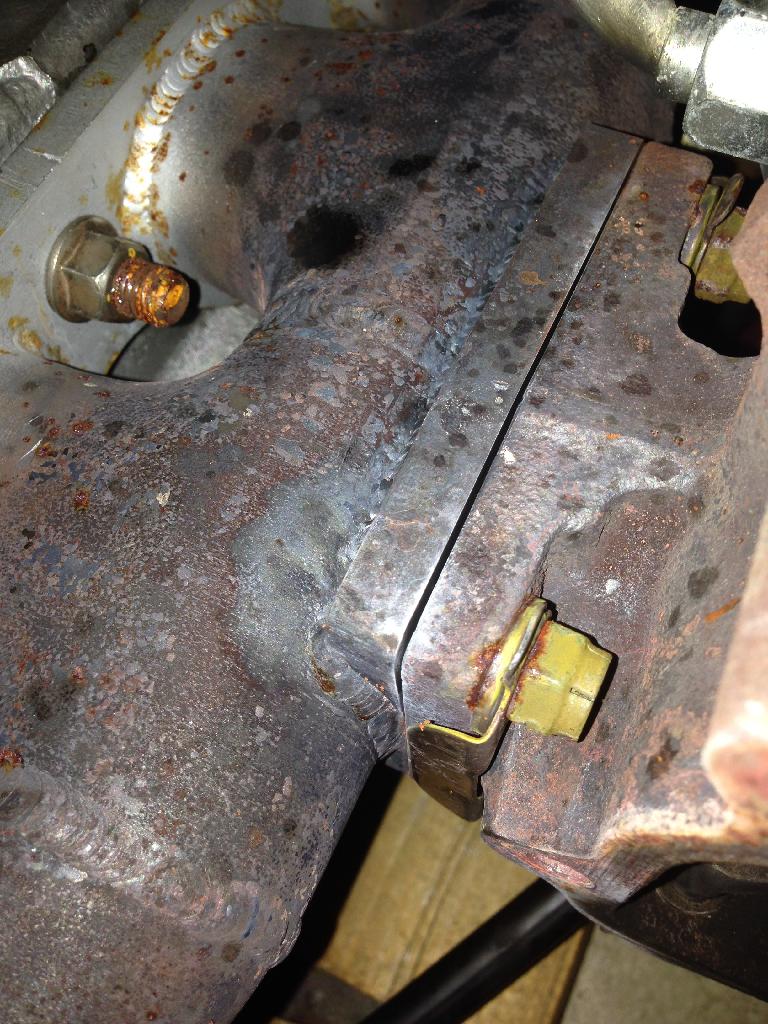

Next I need to figure out WTF to do with this leak.

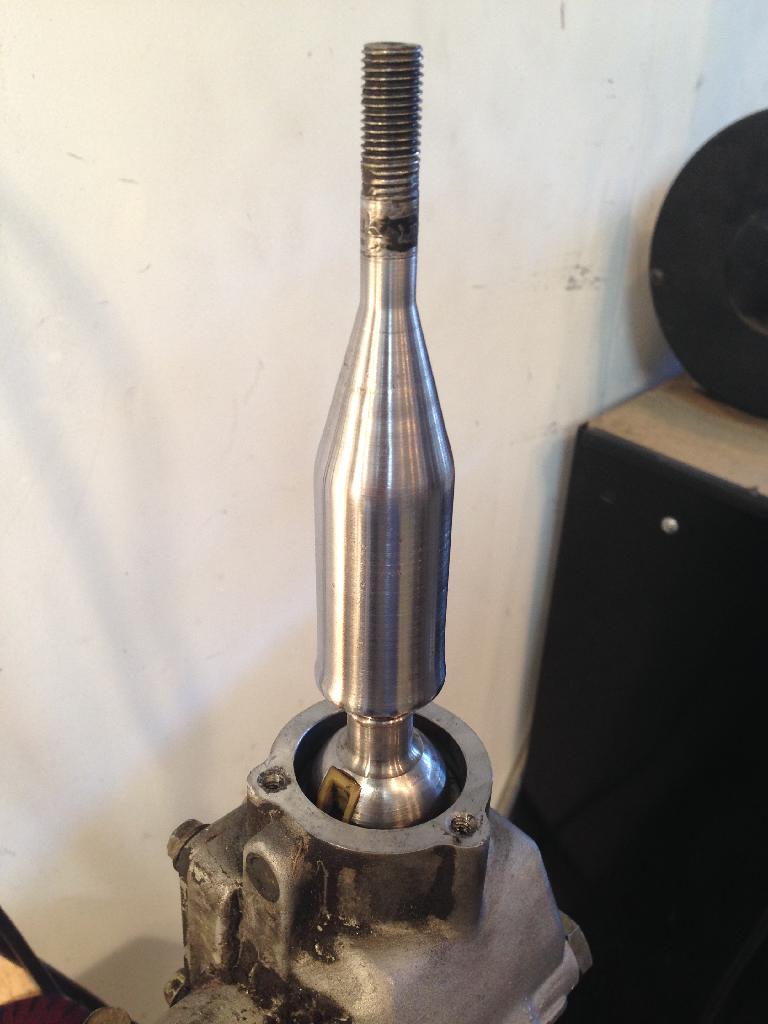

This was just for fun, I've wanted to get rid of my ebay short shifter that's just a little too much shifting effort, but my stock shifter was long gone. This came with the new/used transmission, but needed a little beautifying in my drill press.

Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-70ed46ac-6071-4659-b3e1-e017d762e677_zpsrch6uyni.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-98b749fb-234c-4293-a2eb-e5409df37ec3_zpsqmtpnxh8.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-f096db29-6e63-4c4f-a5bf-ee1366b1d14a_zpsmtigukow.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-bf15ecb6-c505-4ed1-80b8-904162a20957_zpswwqwamew.jpg   Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-dcd53acf-1060-4ad7-a281-c3b70e03da1a_zpss5ixmjqp.jpg

Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-648f7176-8f2a-4314-8a81-b0af032a98f3_zpsdbiay9jh.jpg
curly is offline   Reply With Quote
Old 01-21-2014, 03:13 PM   #210
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yup, emilio and crew are awesome.

Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-1898404b-9c95-4ff0-89f3-19468d653827_zpspwgf9yn7.jpg
curly is offline   Reply With Quote
Old 01-21-2014, 03:13 PM   #211
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

About damn time that shifter disappeared, that thing was such a pain in conjunction with your awful clutch. 1.6 clutch right?
greddygalant is offline   Reply With Quote
Old 01-21-2014, 03:27 PM   #212
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yes, all still on my 1.6 flywheel. I was hoping I could keep it (949 was out of stock for a while), since I had the weight ring removed back when I was a machinist. So it's currently 15.4lbs on the bathroom scale, which is about a 4-5lb loss compared to stock, all for $300 less than an FM/949 lightened flywheel.
curly is offline   Reply With Quote
Old 01-21-2014, 03:47 PM   #213
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

looking at the photo of your leak between your manifold and turbo, is the stud backing out or is the flange warped?
greddygalant is offline   Reply With Quote
Old 01-21-2014, 04:18 PM   #214
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Maybe time for Stage 8 locking hardware? If you get it make sure you install it correctly. I bought my FM manifold with a 2560 attached to it used and either FM or the dude I bought it from didnt put them on right and sure enough the nuts backed off a little and I had a 3k rattle.
ScottyP3821 is offline   Reply With Quote
Old 01-21-2014, 04:38 PM   #215
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Looks like flange warp, time for some grindin'?

I like the little SR20 locks though, those are neat.
EO2K is offline   Reply With Quote
Old 01-21-2014, 04:49 PM   #216
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Sure looks like flange warp to me. Shucks.
turbofan is offline   Reply With Quote
Old 01-21-2014, 05:01 PM   #217
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Just took it off, no time to check it yet. But the hardware was all tightish. I would of snugged it up, but I figure while the engine is out I should pull the turbo and really check the flanges. I had the head flange sanded for like $15 a while ago, it was really warped, so I wouldn't be surprised if this one was too. Dunno what to do about that...
curly is offline   Reply With Quote
Old 01-21-2014, 05:53 PM   #218
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

There doesnt seem to be a lot of material there judging by the pictures. A guy on another forum belt sanded his flat with a big *** belt sander.
ScottyP3821 is offline   Reply With Quote
Old 01-22-2014, 12:12 AM   #219
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

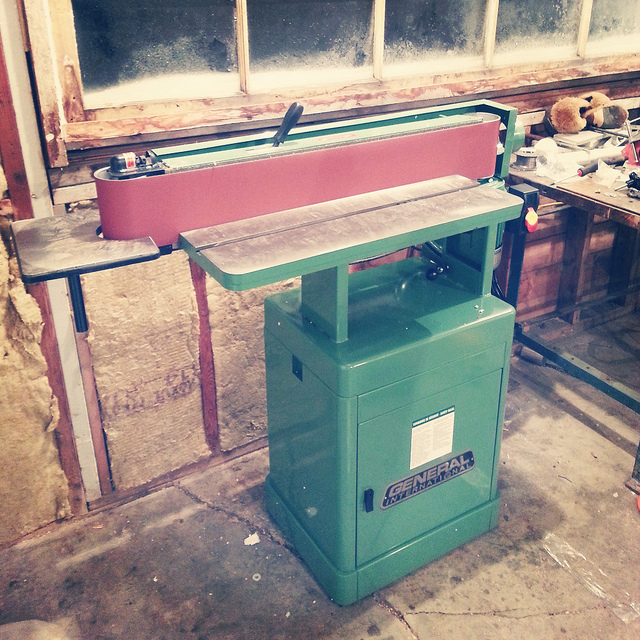

That's what I do when Im done manifolds. even if it looks flat and bolts up fine, it can use a light decking.

Find someone with a belt sander. If they have a metal belt, its about 15 seconds of "work".
Attached Thumbnails
Curly's boring mt.net circle of life completion (Turbo->N/A conversion)-11533320604_dbe933657f_z.jpg
shlammed is offline   Reply With Quote
Old 01-22-2014, 01:14 AM   #220
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

2x on the belt. Few scrubs will clean it up nicely. Odds are with that amount of materials a pro shop will charge more than how much it would be to buy a simple belt grinder.
triple88a is offline   Reply With Quote
