le pictures. clickez les images pour 3000x2000

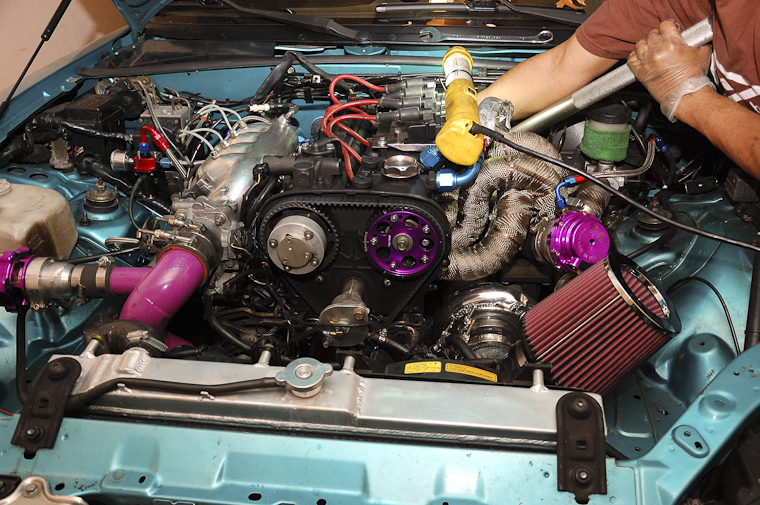

removing upper trans bolt

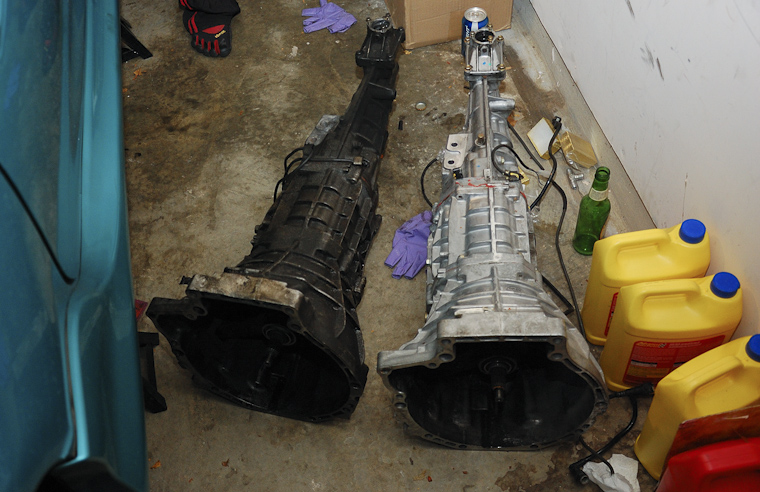

old trans vs "new" mazdaspeed trans

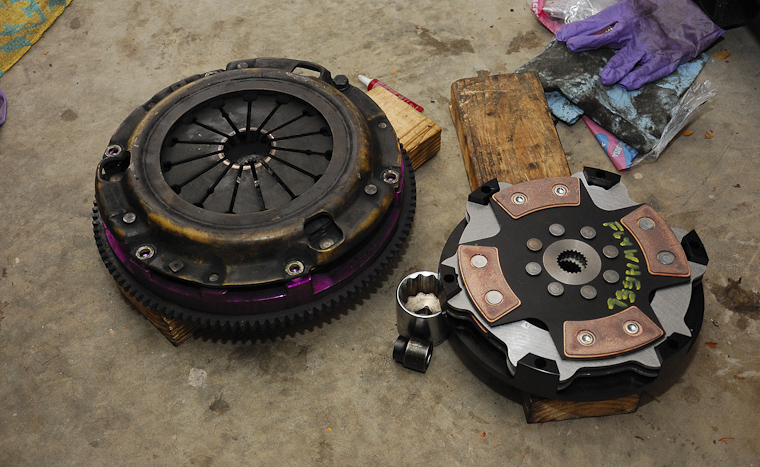

ACT clutch vs 949 dual clutch (minus the flywheel)

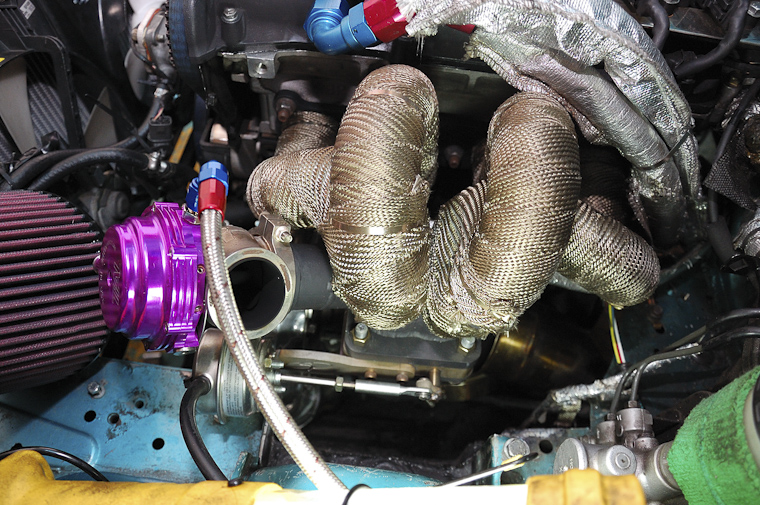

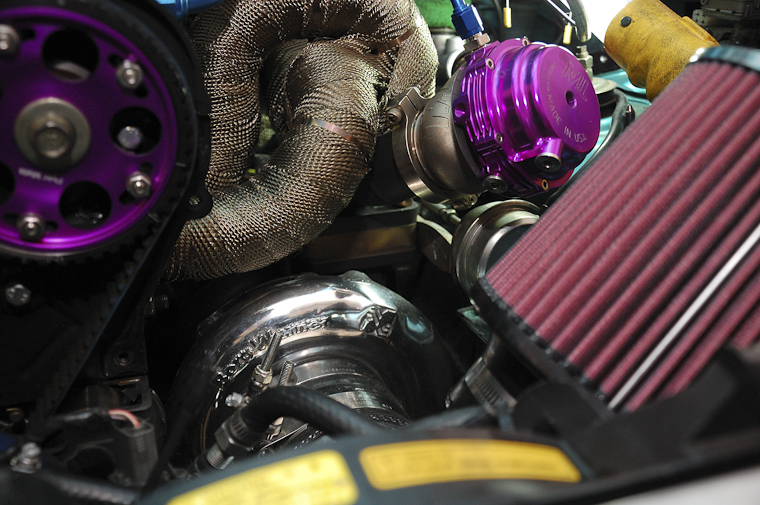

plate between turbo and manifold flange - quick spool valve


octopus thing

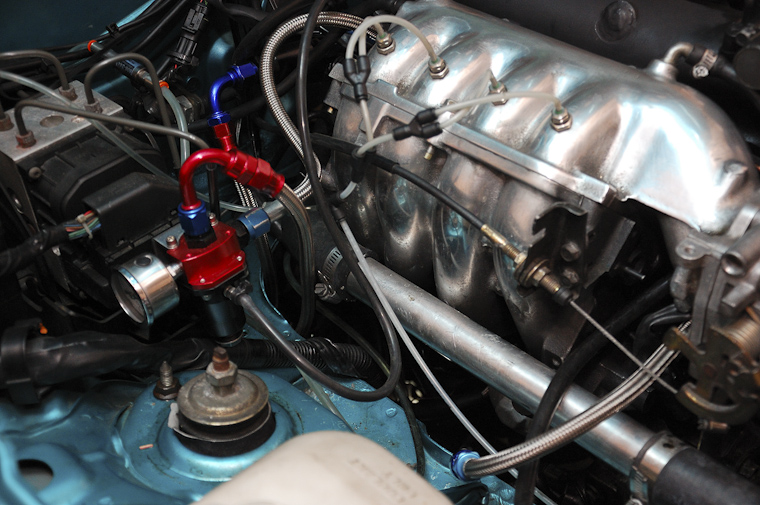

fuel setup



Damn, who would have thought a legitimate camera makes the build look legit.





Too bad a legit camera cant make your sense of composition legit.



Sooo you take out one 6 speed to install another 6 speed? Anything wrong with the first 6 speed? Or do you believe the mazdaspeed part has some extra voodoo?



The Mazdaspeed gearsets are shot peened.



Commrade, what camera/lens/lighting are you using?



NIKON D40

18.0-105.0 mm f/3.5-5.6


that's a sharp lens.

SB600? I know this already dont I?



yeah SB600 is winnar.

Sense of composition, I has none :(



I went sb400 cause I'm cheap. My pictures show this. Not enough POWAH.



good lord what nice pictures.

OK tranny not go in cus dual clutch plate splines not lined up. I fucked up my clutch tool. Where to get another. NAPA? Rosenthal?



I have about five from previous clutch jobs. No one around has one? Better yet, scrap the input shaft from an old transmission like a boss.



An old transmission input shaft would be best. It's about 3" from tip of the input shaft to where the second clutch plate teeth sit on the shaft so slop in my busted clutch tool = fail. Metal would = win



I'm sure I have my clutch tool in my tool box yet. If you wanna borrow it, I can mail it to ya.



I have one in Rockville if you need it. Just bring it back in usable condition.



Thank you very much for the offer guys! I shredded the plastic on the first one trying to get it in so a loan would not be a good idea. I just picked up two tools from Finish Line performance so I should be good to go.

Also, I spoke with a shop who has installed several twin disc clutches and yes, proper alignment of the clutch teeth and the pilot bearing hole is critical.



how does one manage to kill a clutch alignment tool?

sawzall?



I wondered this also. I mean, insert tool in disc splines, put tip in the pilot bearing, install pressure plate, remove tool.
so yeah...
How does one manage to kill a clutch alignment tool????????????????????????



If the teeth on the clutch plates are misaligned and you jam the tool in, the plastic tool will strip. When it strips, you get slop and that 3" distance means misalignment of the teeth and the pilot bearing hole. Fun



Man, be gentle with your car. Once the pressure plate on the clutch is torqued down, it will take whatever the clutch is rated to move it. In your case, 600ft/lbs. Did you really think that a plastic clutch tool would win vs. 600ft/lbs clutch? You HAVE to loosen the pressure plate......
