Old 04-26-2015, 06:24 AM   #1961
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 461
Total Cats: 35
Default

Quote:
Originally Posted by 18psi View Post
WAIT, seriously?

So just wire in the EBC to the 2 OEM BCS wires and that's it?
:
And lokiel, that looks great, thanks for the visual. Are you using PNP-Pro too?
Yup, just the 2 wires, doesn't even matter if you hook them up backwards.

I'm using the new Adaptronic stand-alone Select ECU - now that they have an alternator input, Idle tuning is SO much easier than with the earlier piggyback versions.

- visuals are good :P
Lokiel is offline   Reply With Quote
Old 04-26-2015, 03:01 PM   #1962
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Well that certainly didn't take long. Who did you **** off on a Sunday morning?
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-banana.jpg
EO2K is offline   Reply With Quote
Old 04-26-2015, 04:42 PM   #1963
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

No one. Y8s is a pathetic douche canoe.
I don't know if trolling or serious or what.
18psi is offline   Reply With Quote
Old 04-26-2015, 04:45 PM   #1964
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,436
Default

Someone had a bit too much to drink on Saturday night.
aidandj is offline   Reply With Quote
Old 04-26-2015, 04:47 PM   #1965
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

Yep, I'm guessing he dipped into his liquor too hard. It's all good.
18psi is offline   Reply With Quote
Old 04-26-2015, 04:51 PM   #1966
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

On a less idiotic note,

My car starts perfectly now. No more long cranking. I have no idea how or why, the only thing that changed was the injectors.

I'll post up settings after I try it with e85 in case I spoke too soon. The last couple startups were PERFECT. Just like OEM
18psi is offline   Reply With Quote
Old 04-26-2015, 04:52 PM   #1967
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 924
Default

Dibs on ID725s when you part out.
EO2K is offline   Reply With Quote
Old 04-26-2015, 05:06 PM   #1968
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,436
Default

I want the engine when it stops starting. Oregon has a good history of making them work.
aidandj is offline   Reply With Quote
Old 04-26-2015, 05:12 PM   #1969
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,590
Total Cats: 252
Default

Post a couple of start-up logs at different temps, with the settings.
DNMakinson is offline   Reply With Quote
Old 04-26-2015, 05:24 PM   #1970
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

Will do. Just tried it right now, car was dead cold, (though it's like 75* outside) and it took 2 seconds, just like OEM.

I don't expect this motor to "stop working" any time soon aidan, and if it does for some reason, CA also has a good history of making them work
18psi is offline   Reply With Quote
Old 04-26-2015, 11:07 PM   #1971
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 591
Total Cats: 28
Default

Quote:
Originally Posted by 18psi View Post
Will do. Just tried it right now, car was dead cold, (though it's like 75* outside) and it took 2 seconds, just like OEM
My '94 with an MS2e did the exactly same thing... with the canned tune.

Then, somehow along the way, I switched something. And now it does that whole "three second" start that I was warned was common with a MS installed.

Eventually I'll reload the canned tune and update the minimal bits as required to see what's going on... 'cause I should have left well enough alone.

But didn't.
SchmoozerJoe is offline   Reply With Quote
Old 04-27-2015, 01:02 AM   #1972
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

Quote:
Originally Posted by EO2K View Post
Dibs on ID725s when you part out.
Hes not gonna part it out, hes just gonna sell it all
triple88a is offline   Reply With Quote
Old 04-27-2015, 09:59 AM   #1973
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

Verified this morning, perfect startup. I was so happy I couldn't stop grinning on my way to work.
Got so excited I forgot to take a log lol. Will do later.
18psi is offline   Reply With Quote
Old 04-27-2015, 03:39 PM   #1974
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

I would love a copy of your tune. My start up is still not great. I would like to go through one setting at a time and see what exactly is making the difference for you.
williams805 is offline   Reply With Quote
Old 04-29-2015, 12:33 AM   #1975
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

Quote:
Originally Posted by williams805 View Post
I would love a copy of your tune. My start up is still not great. I would like to go through one setting at a time and see what exactly is making the difference for you.
Let me finish it up and then we can compare notes. In the meantime, I figured out the difference between "longer to crank before start" and "perfect" yesterday, perhaps this will help you: it was my VE map. Specifically the >1000rpm and >100kpa region. This is very important to have dialed in, and will affect the way the car starts EVEN IF your prime/crank/ase/wue is dialed in correctly.

I always knew this was the case, but didn't realize it was that important. Leaned out that region yesterday and the car went back to taking slightly longer to start. Undid that part and it went back to OEM startup



On another note, on today's menu is......


....CORN JUICE

The results? Magnificent of course

Seriously..........I never cease to be pleasantly surprised by this stuff. VD to compare to before: same road, same everything, timing UNTOUCHED, only boost raised about 1 psi and VE map slightly tweaked up top cause it was leaning out a little bit.
EDIT********************
The plots were both wrong, I forgot to change the final drive in VD to 4.1 since it defaults to 3.9 on the Miata 6 speed.

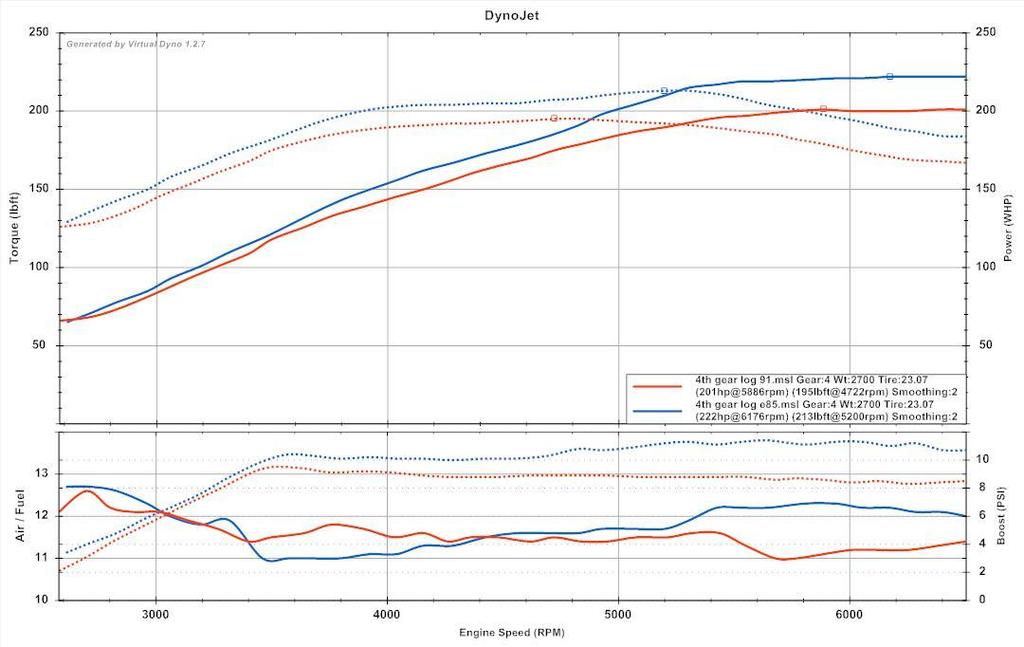

Here are the fixed dyno plots:


Now I know this is VD, so who knows how close it is to a real dynojet (although supposed to be close), but all I gotta say is: car RIPS, and I really want to get it on a dyno and re-visit the track soon. If the 201 resulted in a [email protected], then I think [email protected] might be possible with 222

That is all

PS: this is literally the 1st tank of mixed e85 probably more like e70 and I just kinda roughed in the fuel map, fine tuning later. Did I say how much I like this stuff?
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-vlad%2520msm%252091oct%2520vs%2520e85%2520dyno%2520plots.jpg

Last edited by 18psi; 04-29-2015 at 09:33 AM.
18psi is offline   Reply With Quote
Old 04-29-2015, 04:38 PM   #1976
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Is your E85 down there actually E85? I mean the best in WA is about 80-81!
bcrx7 is offline   Reply With Quote
Old 04-29-2015, 04:45 PM   #1977
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,751
Total Cats: 2,491
Default

That's a good question. I have no idea hahaha
I've heard numerous times that it was e85 year round and actually really good quality, but have yet to test some myself. I've run it for years and never had 1 single issue.

I guess that's on the to do list for sometime
18psi is offline   Reply With Quote
Old 04-29-2015, 05:38 PM   #1978
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 337
Default

Quote:
Originally Posted by 18psi View Post
That's a good question. I have no idea hahaha
I've heard numerous times that it was e85 year round and actually really good quality, but have yet to test some myself. I've run it for years and never had 1 single issue.

I guess that's on the to do list for sometime
I read somewhere that in order to not pay alcoholic beverage taxes, when they sell ethanol it has to have been mixed with something to make it undrinkable. Since it's being sold for fuel purpose, they mix in a few percent of gasoline, making it E96 or something. "E85" is then made by using 85% of the diluted ethanol and 15% of straight gas, so it winds up being 81-ish percent ethanol.

--Ian
codrus is offline   Reply With Quote
Old 04-29-2015, 06:10 PM   #1979
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
Let me finish it up and then we can compare notes. In the meantime, I figured out the difference between "longer to crank before start" and "perfect" yesterday, perhaps this will help you: it was my VE map. Specifically the >1000rpm and >100kpa region. This is very important to have dialed in, and will affect the way the car starts EVEN IF your prime/crank/ase/wue is dialed in correctly.

I always knew this was the case, but didn't realize it was that important. Leaned out that region yesterday and the car went back to taking slightly longer to start. Undid that part and it went back to OEM
Thanks, yes this will help I'm sure. I've messed with some of those cells but not to 100kpa. Will try going all the way up there and see how it works.
williams805 is offline   Reply With Quote
Old 04-29-2015, 11:09 PM   #1980
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 444
Total Cats: 44
Default

Does the pro handle an ethanol sensor?
czubaka is online now   Reply With Quote
