Old 03-21-2015, 09:15 PM   #1901
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 673
Total Cats: 11
Default

Quote:
Originally Posted by 18psi View Post
Very interesting. So this is one of those "Digital media receiver" things?
That's what I was talking about yesterday Vlad. I have basically the same JVC as in the pic williams posted.
paNX2K&SE-R is offline   Reply With Quote
Old 03-21-2015, 11:15 PM   #1902
Junior Member
iTrader: (2)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 361
Total Cats: 20
Default

Ok here is what I used to ditch my head unit.

Millennia MIL-BTREC bluetooth adapter
PAC LC1 volume control

I wired the BT adapter up to the Scosche adapter harness you already have and mounted it inside the dash to keep the range nice and short. Red wire takes switched 12v from the harness and a remote turn on lead for the amp. Black to ground.

I ran a short set of USB cables under the center console and mounted the remote gain **** in the center console. A longer set of USBs went all the way back to the amp that I had mounted in the trunk well of my NA.

Speaker wires were run up under the dash and spliced into the same Scosche harness. The Bose set up might be different, maybe it has a 2nd speaker harness separate from the deck harness? Since mine is an M Edition it had something weird like that IIRC.

Sound quality was great and I could throw my phone in the cupholder and adjust the volume from there. The only issue I ran into was occasionally sync issues with my iPhone where I would have to manually connect the bluetooth.

If I had to do it again I the only thing I would change is using a 4 channel amp and in an active set up using the crossovers to control the tweets and mids separately.


OneTwo is offline   Reply With Quote
Old 03-22-2015, 10:47 PM   #1903
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

Thanks for the input, now I've got more options

On another note:
rough-wired in the AEM today and took the car around the block a few times. even on the base map that I did really crude adjustments to basically make sure it doesn't blow up, and around 10psi, the car feels so much better-er-er-er

Tomorrow I will take the time to actually wire in everything and start PROPERLY tuning this thing.

Keeping it on stock injectors and pump gas for now, just to see what a properly tuned 200whp feels like and perhaps feel out the real limits of the 265 injectors hehe
18psi is offline   Reply With Quote
Old 03-23-2015, 08:34 AM   #1904
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,007
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
and perhaps feel out the real limits of the 265 injectors hehe
Why not just call Stephanie and ask her?

No reason to reinvent the wheel...
Efini~FC3S is offline   Reply With Quote
Old 03-23-2015, 12:47 PM   #1905
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default



I had det cans connected to the muffler the whole time I was driving, and a go-pro on the rear bumper, to watch for detonation.
18psi is offline   Reply With Quote
Old 03-23-2015, 05:22 PM   #1906
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 591
Total Cats: 28
Default

I'm telling ya... that GoPro can't catch the imperceivable signs that a proper tuner can at your rear bumper.

It's all in how the exhaust pulses FEEL man. ALLTHEFEELS are required.
SchmoozerJoe is offline   Reply With Quote
Old 03-23-2015, 09:11 PM   #1907
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

Quote:
Originally Posted by Efini~FC3S View Post
Why not just call Stephanie and ask her?

No reason to reinvent the wheel...
triple88a is offline   Reply With Quote
Old 03-24-2015, 01:11 AM   #1908
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

So today I dropped in FM MSM specific 2.5" exhaust - instant 2psi increase over stock without touching the boost controller. I was impressed.

Started tuning the car, it's getting to be properly fun now

Still struggling with the AIT2 calibration, really hoping DIYautotune will help out in the other thread.
18psi is offline   Reply With Quote
Old 03-24-2015, 09:14 AM   #1909
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

Quote:
Originally Posted by 18psi View Post
Keeping it on stock injectors and pump gas for now, just to see what a properly tuned 200whp feels like and perhaps feel out the real limits of the 265 injectors hehe
....Welp, that didn't last long:

at 12psi, with decent temps this morning, it was JUST starting to feel really good. at the same time, I could not keep AFR's below 12.2-12.4 past 5500 in 4th/5th. Kept upping the fuel cells and nothing happened.

I was veal tuning so didn't get a log, but I'm sure injectors are tapped out. Backed the MBC down a bunch for now.

I guess ID725's are going in this weekend
Time to start working on the injector harness

Last edited by 18psi; 03-24-2015 at 09:37 AM.
18psi is offline   Reply With Quote
Old 03-24-2015, 01:40 PM   #1910
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,007
Total Cats: 0
Default

Where's the virtual dyno of one of those runs with the stock injectors starting to max out?
Efini~FC3S is offline   Reply With Quote
Old 03-24-2015, 01:48 PM   #1911
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

the 245s on my 99 maxed out at 6psi. At 6k it was 11.5 and then went to 12.25 by 7k rpm.
triple88a is offline   Reply With Quote
Old 03-25-2015, 12:52 AM   #1912
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

Ok, first the good part, and then the hilarious part

The good part: backed it down to 9.5psi and now I can at least control the fuel at full boost til redline lol. I'm running it just a little fat (ca 91oct, need I say more?), but timing up top is not too conservative, I figured since it's dropping boost I'll prop it up a bit with timing. It hits a peak of 9.5psi at around 4 and then tapers down to about 8.4psi at redline

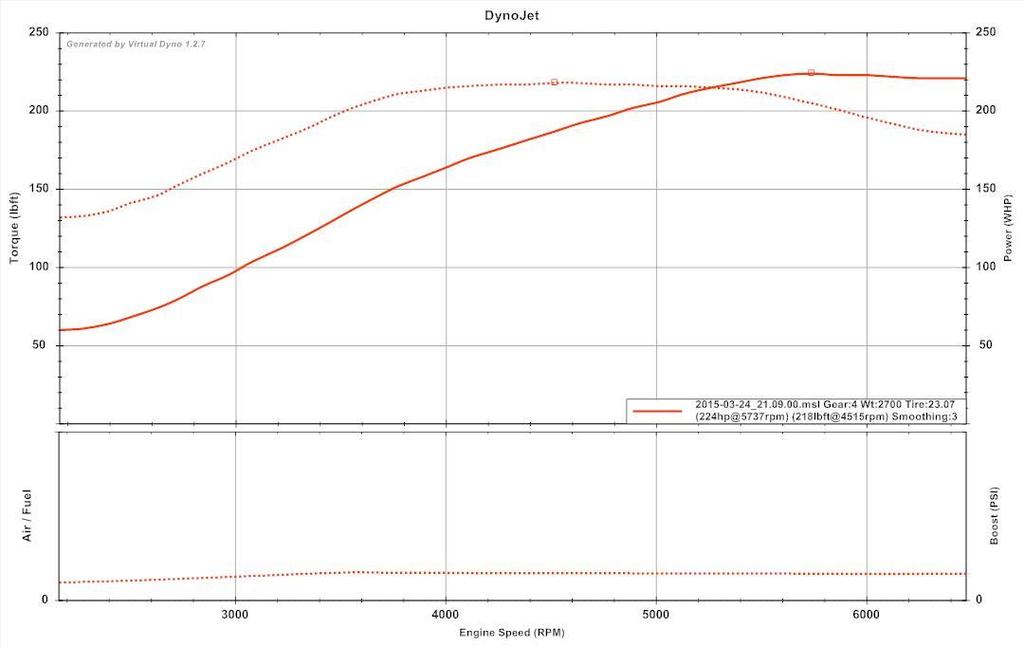

Here is the result:


Same exact road I dyno'd the 01 on, running MS3x + e85 + 3" exhaust, when it put down 122/117.

So pretty happy with it overall, the tune is still rough, but the car overall drives great and once I figured out the wideband mumbo jumbo and the proper AIT2 calibration things have more or less went smooth.


Now the hilarious part:

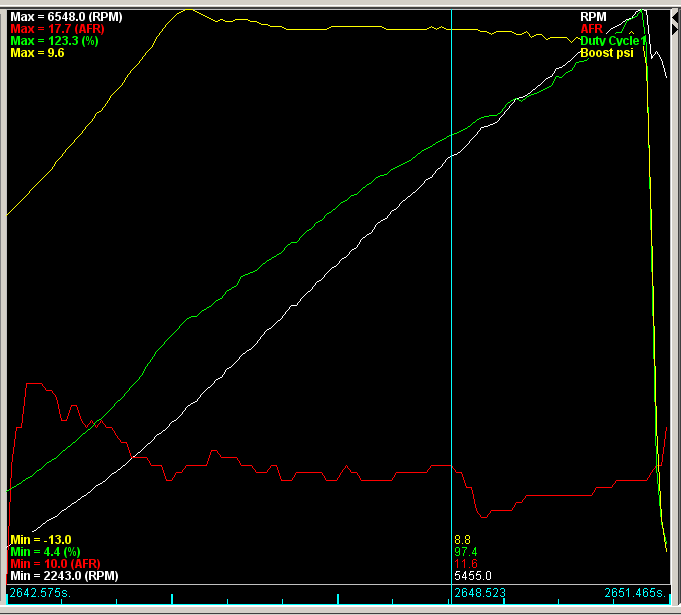

DAT INJECTOR DUTY CYCLE DOE


I shudder to think how high it must have pegged the other day when I was testing 12psi and it kept leaning out no matter what. Musta been in the 150-160% range haha
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-msm%25204th%2520gear%252091oct%25209.5psi.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-injectors%2520over%25209000.png
18psi is offline   Reply With Quote
Old 03-25-2015, 01:46 PM   #1913
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,814
Total Cats: 265
Default

Quote:
Originally Posted by 18psi View Post
DAT INJECTOR DUTY CYCLE DOE

I shudder to think how high it must have pegged the other day when I was testing 12psi and it kept leaning out no matter what. Musta been in the 150-160% range haha


Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-33di5ms.jpg
Girz0r is offline   Reply With Quote
Old 03-26-2015, 09:31 AM   #1914
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

welp, the car is an absolute pleasure to drive now, really happy and really hoping it stays as smooth and awesome as it was on my drive home yesterday and drive to work this morning.

2 things I still gotta iron out: startup and AE

1) Startup is not bad or rough, but definitely takes at least twice as long to fire up as stock. I even tried "batch fire mode on startup" and while that helped, it still isn't OEM-Like.
2) AE is just slightly too aggressive. When I stab the throttle hard, it tends to dip quite a bit, and sometimes I feel like it pulls fuel a little quick when cruising at low throttle and letting off.

I'm gonna start on the injector harness soon, but honestly enjoying the car so much as is that I'm not terribly motivated to do that asap.

So yeah, for once I'm actually just enjoying what I have instead of non stop building
18psi is offline   Reply With Quote
Old 03-26-2015, 12:13 PM   #1915
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Quote:
Originally Posted by 18psi View Post
So yeah, for once I'm actually just enjoying what I have instead of non stop building
Cool man. I hope to be in this position soon as well.
Fireindc is offline   Reply With Quote
Old 03-26-2015, 12:30 PM   #1916
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,574
Total Cats: 926
Default

Glorious, ain't it?
EO2K is offline   Reply With Quote
Old 03-26-2015, 12:34 PM   #1917
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

Thanks Gents
18psi is offline   Reply With Quote
Old 03-26-2015, 12:40 PM   #1918
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,792
Total Cats: 336
Default

Quote:
Originally Posted by Fireindc View Post
Cool man. I hope to be in this position soon as well.
I hope to as well -- ideally BEFORE my 4/17 track day. Argh!

--Ian
codrus is offline   Reply With Quote
Old 03-26-2015, 01:21 PM   #1919
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 505
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
welp, the car is an absolute pleasure to drive now, really happy and really hoping it stays as smooth and awesome as it was on my drive home yesterday and drive to work this morning.

2 things I still gotta iron out: startup and AE

1) Startup is not bad or rough, but definitely takes at least twice as long to fire up as stock. I even tried "batch fire mode on startup" and while that helped, it still isn't OEM-Like.
2) AE is just slightly too aggressive. When I stab the throttle hard, it tends to dip quite a bit, and sometimes I feel like it pulls fuel a little quick when cruising at low throttle and letting off.

I'm gonna start on the injector harness soon, but honestly enjoying the car so much as is that I'm not terribly motivated to do that asap.

So yeah, for once I'm actually just enjoying what I have instead of non stop building
I've been playing with my startup as well. I'll let you know if I find something that works. So far it's easy to make it worse. Sometimes a tab better but not very consistant. I think it's going to end up with the perfect combo of several settings which will take a while to find.
williams805 is offline   Reply With Quote
Old 03-26-2015, 01:29 PM   #1920
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

So far I've tried lower timing, and higher timing in that region of the spark map, nothing.
Enabling the "batch injection during startup" did seem to help a little.

The tricky part is that too lean/too rich essentially produce the same symptoms, so its a nightmare to hit "the spot"
18psi is offline   Reply With Quote
