Installing Shanghai-S kit tomorrow..help?

Build Threads Building a motor? Post the progress here.

Installing Shanghai-S kit tomorrow..help?

Old 08-25-2012, 10:50 PM
  #141
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by shuiend View Post
How did you burp your coolant? I am betting you have air trapped in your system. You then need to order one of these. Use it to burp your coolant and the over heating problem will go away. Also putting the undertray back on will help with cooling.
I'll drain my radiator and put new coolant.
AdoboMiata is offline
Old 08-25-2012, 11:26 PM
  #142
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,198
Total Cats: 1,260
Default

Originally Posted by AdoboMiata View Post
I'll drain my radiator and put new coolant.
You don't have to drain and refill. Jack up the front of your car as high as you can. Remove the radiator cap and then start the car. Let the engine warm up until the fan turns on and off. Refill the radaitor as coolant level goes down. Repeat letting the fans turn on and off two more times. During this time also watch temp gauge and make sure it is staying about 11-12oclock.
shuiend is offline
Old 08-26-2012, 01:31 AM
  #143
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by shuiend View Post
You don't have to drain and refill. Jack up the front of your car as high as you can. Remove the radiator cap and then start the car. Let the engine warm up until the fan turns on and off. Refill the radaitor as coolant level goes down. Repeat letting the fans turn on and off two more times. During this time also watch temp gauge and make sure it is staying about 11-12oclock.
will parking facing uphill work?
AdoboMiata is offline
Old 08-26-2012, 02:54 AM
  #144
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

I bought a radiator cap from o'rileys and replaced the old one. The temperature stayed at "12:00" but would lean closer to hot after a somewhat long drive. I didn't remove the bubbles yet, I'll do that once the car cools down.
AdoboMiata is offline
Old 09-04-2012, 12:57 AM
  #145
Newb

Join Date: Aug 2012
Posts: 15
Total Cats: 0
Default

how did you pull over and check the coolant level and not get your face burned off? did you just SLOWLY release pressure or what?

EDIT: nevermind i get it now
aznpersuasion89 is offline
Old 09-05-2012, 06:55 PM
  #146
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by aznpersuasion89 View Post
how did you pull over and check the coolant level and not get your face burned off? did you just SLOWLY release pressure or what?

EDIT: nevermind i get it now
alrighht
AdoboMiata is offline
Old 11-20-2012, 01:29 AM
  #147
Newb

Join Date: Jan 2011
Location: Indiana, PA
Posts: 10
Total Cats: 0
Default

i can't believe the lack of flaming on this thread.

any updates on the car?
jdem is offline
Old 11-20-2012, 11:49 PM
  #148
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by jdem View Post
i can't believe the lack of flaming on this thread.

any updates on the car?

Yeah,

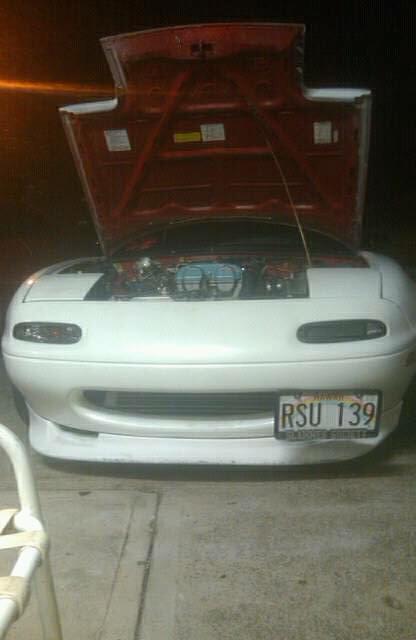

Attached Thumbnails Installing Shanghai-S kit tomorrow..help?-374457_523875674289211_1502100247_n.jpg
AdoboMiata is offline
Old 11-20-2012, 11:51 PM
  #149
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

The problem I have now is getting the mspnp to run properly and to fix my coolant temp issue. I need to play with my VE table and AFR table so it doesn't lean out. I believe it's heatsoaking due to leaning out.
AdoboMiata is offline
Old 11-20-2012, 11:54 PM
  #150
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,083
Total Cats: 3,115
Default

Originally Posted by AdoboMiata View Post
T
I believe it's heatsoaking due to leaning out.
you are

beyond retarded
18psi is offline
Old 11-21-2012, 12:02 AM
  #151
Junior Member
iTrader: (2)

Join Date: May 2011
Location: AL
Posts: 232
Total Cats: 10
Default

How are you not done with this car yet?
mellowout is offline
Old 11-21-2012, 02:34 PM
  #152
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by mellowout View Post
How are you not done with this car yet?
Taking my time to learn more things about the mspnp

Originally Posted by 18psi View Post
you are

beyond retarded

.. I changed the rad, thermostat, upper and lower hoses, and bled the system. My coolant-air density settings are off.. I didn't bother to tweak on that yet.
AdoboMiata is offline
Old 11-21-2012, 02:46 PM
  #153
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,313
Total Cats: 783
Default

...shouldnt take 3 months to install a turbo kit and get the car running on a stand alone. Average time it takes 2 days to install a turbo kit, maybe 3 with an intercooler and a week to tune it with the first day getting most of the map tuned and the rest dealing with cold start and idle stuff.
triple88a is offline
Old 11-21-2012, 03:13 PM
  #154
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by triple88a View Post
...shouldnt take 3 months to install a turbo kit and get the car running on a stand alone. Average time it takes 2 days to install a turbo kit, maybe 3 with an intercooler and a week to tune it with the first day getting most of the map tuned and the rest dealing with cold start and idle stuff.
took 3 days to install the kit with intercooler and didn't bother to tune it yet. Car sat for a while ever since the "heatsoaking" problem. I ordered some rx7 460cc injectors. I'll try to do another datalog today and post it up on here.
AdoboMiata is offline
Old 11-21-2012, 03:47 PM
  #155
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,313
Total Cats: 783
Default

The car isnt going to fix it self sitting there mate.
triple88a is offline
Old 11-21-2012, 03:48 PM
  #156
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Will I be able to tune with the Begi FPR??
AdoboMiata is offline
Old 11-21-2012, 03:49 PM
  #157
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,313
Total Cats: 783
Default

You have the ms.. tune that pull the junk fpr.

Disconnect the waste gate and tune on the stock injectors up to 100ish kpa. Stock injectors will give you plenty of fuel.
triple88a is offline
Old 11-21-2012, 03:52 PM
  #158
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by triple88a View Post
You have the ms.. tune that pull the junk fpr.

Disconnect the waste gate and tune on the stock injectors up to 100ish kpa. Stock injectors will give you plenty of fuel.
I forgot to mention, I am still using the MAF.
AdoboMiata is offline
Old 11-21-2012, 03:53 PM
  #159
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,313
Total Cats: 783
Default

And stock ecu... when you install the ms the maf will come off
triple88a is offline
Old 11-21-2012, 04:05 PM
  #160
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Originally Posted by triple88a View Post
And stock ecu... when you install the ms the maf will come off
This requires the IAT sensor. right?
AdoboMiata is offline
