Old 08-10-2012, 11:04 AM   #41
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
not unless it hits your new DP.
I am almost positive that it will hit the begi downpipe.
shuiend is offline   Reply With Quote
Old 08-10-2012, 01:38 PM   #42
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by Braineack View Post
not unless it hits your new DP.
crap.. alright..
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 02:12 PM   #43
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Its like I'm in the twilight zone... this thread is all full of rainbows, kittens and butterflies! <3
Tekel is offline   Reply With Quote
Old 08-10-2012, 02:29 PM   #44
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

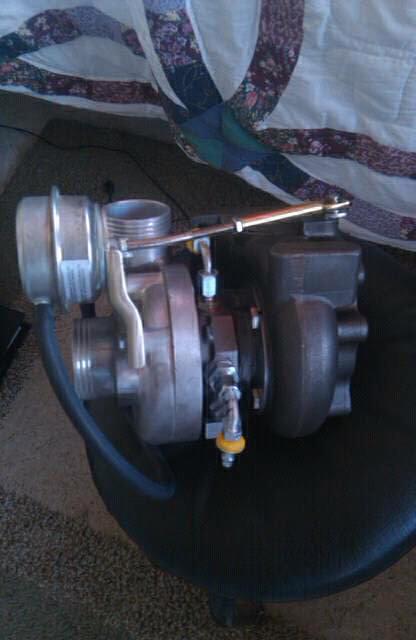

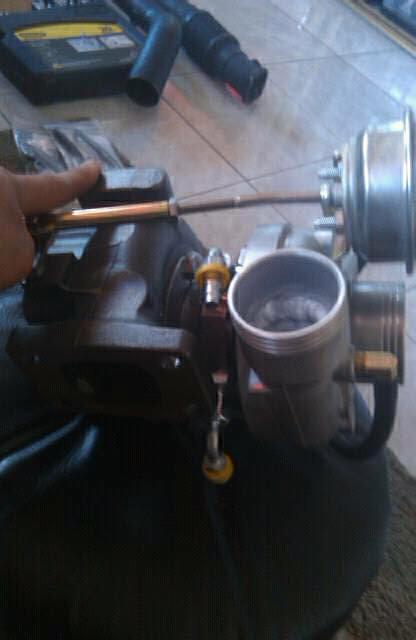

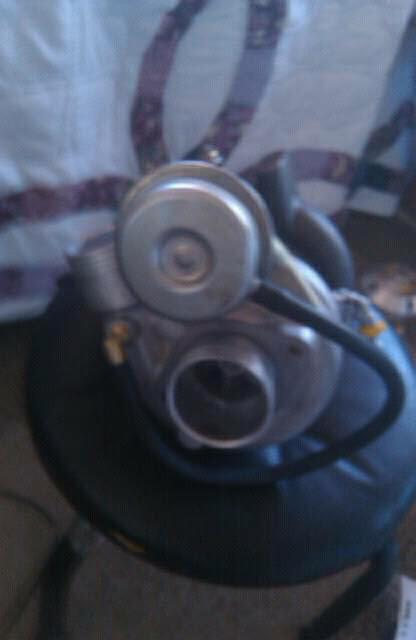

So which side would be my water in/out and oil in?
Btw, I don't have any braided lines; only the oil out.

Right side:



Front View:



Left View:

Attached Thumbnails
Installing Shanghai-S kit tomorrow..help?-387051_482525891757523_194662471_n.jpg   Installing Shanghai-S kit tomorrow..help?-119_482526088424170_820374224_n.jpg   Installing Shanghai-S kit tomorrow..help?-603544_482525565090889_1787781918_n.jpg
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 02:39 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

You need this: RTFM.
Braineack is offline   Reply With Quote
Old 08-10-2012, 02:49 PM   #46
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by Braineack View Post
You need this: RTFM.
rtfm..


read the f. manual.
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 03:01 PM   #47
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by AdoboMiata View Post
So which side would be my water in/out and oil in?
Btw, I don't have any braided lines; only the oil out.

Right side:



Front View:



Left View:

When looking at the CHRA which is the center section of the turbo. The large hole that is not threaded is the oil drain hole. It probably fits a -8an line on it. The fitting on the other side from the large hole is the oil in. The water in and out are on the other 2 sides. It does not matter which one you use for in and out.
shuiend is offline   Reply With Quote
Old 08-10-2012, 03:15 PM   #48
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Get yourself some real penetrating oil. WD-40 is for women. Men use Kroil or PB Blaster.
rleete is offline   Reply With Quote
Old 08-10-2012, 04:22 PM   #49
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Top is oil feed, bottom is drain. Sides are antifreeze, doesn't matter in/out on that one.

A little advice on installing the downpipe to the turbo-Once the studs are on the turbo, slide the dp over the studs but don't seat it against the turbo until you get all the washers/nuts started. There is no way to install the inner bottom-most nut unless you do it this way.

BTW, I can see this thread reaching about 20 pages before the car runs again. New Fael?
flounder is offline   Reply With Quote
Old 08-10-2012, 06:46 PM   #50
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

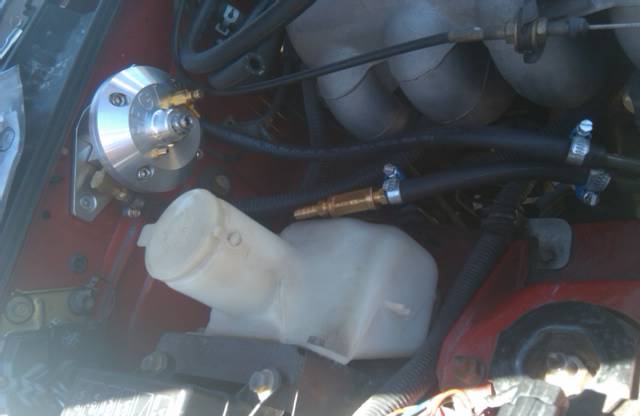

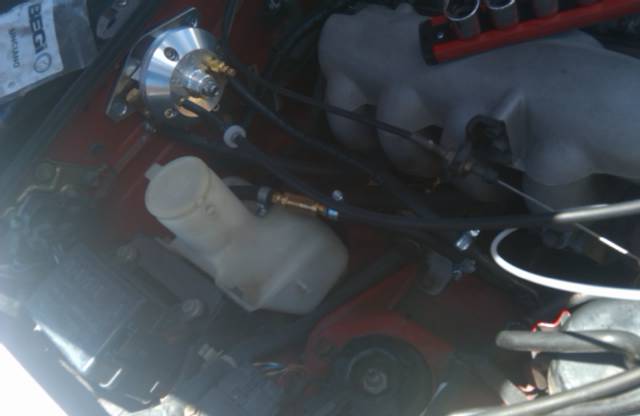

Is this correct? I left the tiny port on the right open. There's no vacuum line for it.

update:



The in line is on the left and the out is on the right.
Attached Thumbnails
Installing Shanghai-S kit tomorrow..help?-21nfya9.jpg
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 06:48 PM   #51
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

??
Attached Thumbnails
Installing Shanghai-S kit tomorrow..help?-wwcjyx.jpg
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 08:23 PM   #52
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Well, what do the directions say? They should tell you which is which.

As for that empty hose barb, I think it's supposed to have a small length of vacuum hose attached to a check valve, although things might of changed since I had one.
curly is offline   Reply With Quote
Old 08-10-2012, 09:57 PM   #53
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by curly View Post
Well, what do the directions say? They should tell you which is which.

As for that empty hose barb, I think it's supposed to have a small length of vacuum hose attached to a check valve, although things might of changed since I had one.
Only came with 1 vacuum hose..
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 10:26 PM   #54
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Why install the FP riser when you're going with MS?
triple88a is offline   Reply With Quote
Old 08-10-2012, 11:17 PM   #55
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by triple88a View Post
Why install the FP riser when you're going with MS?
Never knew it mattered..
AdoboMiata is offline   Reply With Quote
Old 08-10-2012, 11:21 PM   #56
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Yeah man. You could have excluded that from your kit and saved some cash.

Gotta read, man.
viperormiata is offline   Reply With Quote
Old 08-10-2012, 11:44 PM   #57
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by viperormiata View Post
Yeah man. You could have excluded that from your kit and saved some cash.

Gotta read, man.
It came with the kit already :[. no extra charge..
AdoboMiata is offline   Reply With Quote
Old 08-11-2012, 02:22 AM   #58
NB/VVT Connoisseur
iTrader: (24)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

Wrong. You can customize the Begi kits to your own needs. If it's not listed on the site you can call them and they will change it for you. After 100 posts you should know that a rising rate regulator is not needed with standalone engine management. Even if it was free you shouldn't be using it.
viperormiata is offline   Reply With Quote
Old 08-11-2012, 03:23 AM   #59
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

-___- okay
AdoboMiata is offline   Reply With Quote
Old 08-11-2012, 06:31 AM   #60
Junior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

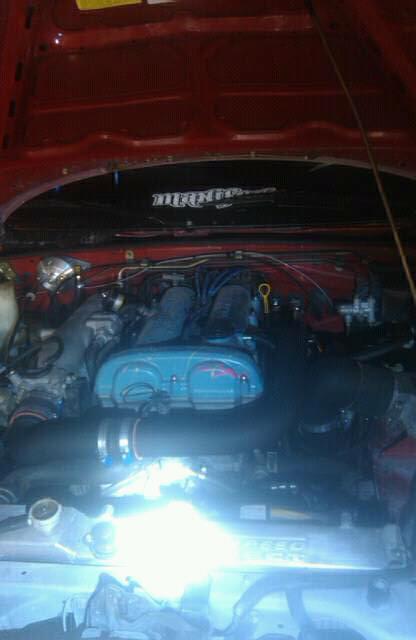

Got it on:


Problems so far:
*O2 sensor is on but not snugged. It kept slipping off of the o2 bung on the down pipe,
*Need to add coolant
*Need to add oil
*Air filter & AFM bracket couldn't fit. The AFM is too FAT.

Update:
*IAT sensor w/ pigtail came in
*Will install mspnp next week so I could delete the FPR and AFM
Attached Thumbnails
Installing Shanghai-S kit tomorrow..help?-557327_482750211735091_2065324420_n.jpg
AdoboMiata is offline   Reply With Quote
