Old 12-08-2015, 08:28 PM   #2541
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

Yes it's home made. I used a porta-band and a hand drill to make it. The socket piece I made years ago for my regular store-bought valve spring compressor that works when the cylinder head is off the car. If you had a dremel and patience*, you could make one with that and a hand drill.

*lots of patience....
patsmx5 is online now   Reply With Quote
Old 12-10-2015, 03:25 AM   #2542
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 662
Total Cats: 111
Default

Quote:
Originally Posted by EO2K View Post
Oh god, what did I do now?
/shrug, I was bored on the train and there was nothing new in your thread. Plus look at all the good discussion that came from it!

I could totally make that tool, how much do you think people would pay for them? Or maybe we make a nice one and have it as a loaner kinda like the pan tap?
gesso is offline   Reply With Quote
Old 12-10-2015, 01:52 PM   #2543
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,480
Total Cats: 289
Default

My head needs valve springs, so I would have a use for that tool.

--Ian
codrus is offline   Reply With Quote
Old 12-11-2015, 12:22 PM   #2544
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Quote:
Originally Posted by gesso View Post
/shrug, I was bored on the train and there was nothing new in your thread. Plus look at all the good discussion that came from it!

I could totally make that tool, how much do you think people would pay for them? Or maybe we make a nice one and have it as a loaner kinda like the pan tap?
I like all of these ideas. You even have a spare head in your garage that we can test it on! (if I don't steal it)

Quote:
Originally Posted by codrus View Post
My head needs valve springs, so I would have a use for that tool.

--Ian
Between Gesso and myself I think we stoleborrowed most of your fancy tools already. The least we could do is hook you up.
EO2K is offline   Reply With Quote
Old 12-11-2015, 02:18 PM   #2545
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

If you build one anything like the one I made, I can reccomend a few design changes to make it easier to use and work better.

Make it taller than I did. Gives you more room to work without the tool being in your way.

Build a piece that connects the two outer hooks together at a second point. That prevents them from ever being able to slide off the cylinder head. My setup, you had to get the tool tensioned against the valve before those little hooks would stay exactly in place.

If you use a nut/bolt assembly to turn to actuate the tool as I did, weld the nut to the upper frame so you don't have to use a wrench to stop it from turning.

Other than those faults it worked well. Even with the problems mentioned above, it only added to the frustration of getting it going, once it was installed and on the spring it was easy, just turn and watch it do its thing. And I have heavy double valve springs, so it was worst case on loading for the tool.
patsmx5 is online now   Reply With Quote
Old 12-11-2015, 05:14 PM   #2546
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,437
Total Cats: 417
Default

Based on the recommendation of Hornetball, I bought one of those valve service kits. Amazon linky:
Amazon.com: Valve Service Kit: Automotive Amazon.com: Valve Service Kit: Automotive

Works great. Valve stem pliers are a huge improvement over needle nose. The hardest part was cranking the motor to force the rope up against the valves to hold them in place.
rleete is online now   Reply With Quote
Old 12-11-2015, 06:26 PM   #2547
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Is that the one you have to bang on with a hammer? Because that scares the **** out of me
EO2K is offline   Reply With Quote
Old 12-11-2015, 06:57 PM   #2548
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,437
Total Cats: 417
Default

Well, you can. But unless you're a girly man, you really don't need to. Just grab it and push down. You can hear the retainers click into the magnet, and then you let off.

Putting them back on was a little tricky, but you get the hang of it after the first few. Gotta have an egg carton handy to keep the small pieces in, because they're real easy to lose if you drop them.
rleete is online now   Reply With Quote
Old 12-11-2015, 07:05 PM   #2549
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,437
Total Cats: 417
Default

Watch this video:
It is for the snap-on tool, but they are nearly identical except for price. I used the rope trick, where you stuff a length (about 2') of soft rope (clothesline) into the cylinder through the spark plug hole when the piston is at bottom dead center. Then you crank the engine by hand until the rope is compressed up against the valves, thereby holding them in place.
rleete is online now   Reply With Quote
Old 12-11-2015, 08:24 PM   #2550
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Yep! I've been using the rope trick for years. I even used it to lock the crank when I torqued the nut on the harmonic balancer

Cool video, but I'm wondering if it'll be that easy with the head still on the block, and block still in the car, and also fighting 74lbs seat pressure of the Supertech doubles.

I also just saw this:

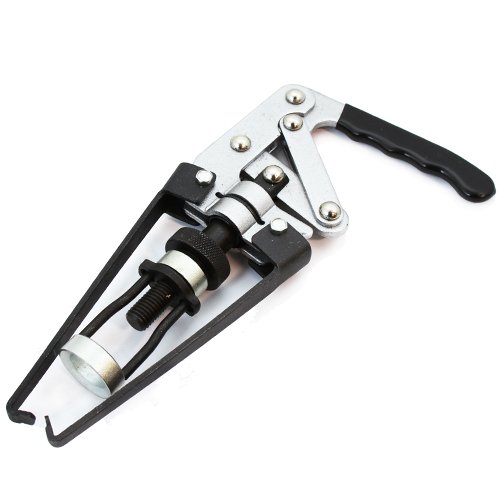

Amazon.com: XtremepowerUS Valve Spring Compressor Keeper Seal on Engine Remove Install Tool: Automotive Amazon.com: XtremepowerUS Valve Spring Compressor Keeper Seal on Engine Remove Install Tool: Automotive



It looks like it functions in a similar manner to Pat's homebrew tool. At $16.55 it might be worth ordering one and giving it a shot. It's prime so I can return it if it sucks and order the KD Tools one you posted.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-41r0hsguxgl.jpg
EO2K is offline   Reply With Quote
Old 12-11-2015, 08:30 PM   #2551
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,480
Total Cats: 289
Default

Quote:
Originally Posted by EO2K View Post


It looks like it functions in a similar manner to Pat's homebrew tool. At $16.55 it might be worth ordering one and giving it a shot. It's prime so I can return it if it sucks and order the KD Tools one you posted.
Are you sure you're not shopping in the hardcore sex toy department again?

--Ian
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-41r0hsguxgl.jpg
codrus is offline   Reply With Quote
Old 12-11-2015, 09:22 PM   #2552
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

Quote:
Originally Posted by codrus View Post
Are you sure you're not shopping in the hardcore sex toy department again?

--Ian
I lol'd. On mobile or I'd prop
aidandj is offline   Reply With Quote
Old 12-12-2015, 12:17 AM   #2553
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

They're back!?
Bout ****** time.
Monk is offline   Reply With Quote
Old 12-12-2015, 12:20 AM   #2554
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

How did I get so many props. And how do I have 9k posts. I need a life.
aidandj is offline   Reply With Quote
Old 12-12-2015, 12:23 AM   #2555
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

MT.net is life.






(For the deeply disturbed)
Monk is offline   Reply With Quote
Old 12-12-2015, 12:37 AM   #2556
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,437
Total Cats: 2,256
Default

how did I.....nvm
18psi is offline   Reply With Quote
Old 12-12-2015, 02:06 AM   #2557
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 667
Total Cats: 51
Default

Quote:
Originally Posted by EO2K View Post
Yep! I've been using the rope trick for years. I even used it to lock the crank when I torqued the nut on the harmonic balancer

Cool video, but I'm wondering if it'll be that easy with the head still on the block, and block still in the car, and also fighting 74lbs seat pressure of the Supertech doubles.

I also just saw this: Amazon.com: XtremepowerUS Valve Spring Compressor Keeper Seal on Engine Remove Install Tool: Automotive


It looks like it functions in a similar manner to Pat's homebrew tool. At $16.55 it might be worth ordering one and giving it a shot. It's prime so I can return it if it sucks and order the KD Tools one you posted.
Let me know how that works out. I'm in the market for a cheapish compressor that fits our heads - or maybe i'll just build one.
Onyxyth is offline   Reply With Quote
Old 12-12-2015, 01:32 PM   #2558
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Well, **** me sideways. The week ended with me receiving a 25% raise, a substantial Christmas bonus, and after 14 months of unemployment my wife got not only one but two job offers.

I'd say its been a good week.

Quote:
Originally Posted by Onyxyth View Post
Let me know how that works out. I'm in the market for a cheapish compressor that fits our heads - or maybe i'll just build one.
Can do, I ordered it last night but it might take me a few weeks before I get around to playing with it. Lots of holiday commitments on the horizon.
EO2K is offline   Reply With Quote
Old 12-12-2015, 01:34 PM   #2559
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

Quote:
Originally Posted by EO2K View Post
25% raise
aidandj is offline   Reply With Quote
Old 12-12-2015, 01:59 PM   #2560
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,438
Total Cats: 470
Default

Congrats Gordon, well deserved sir.

turbofan is offline   Reply With Quote
