Old 10-15-2014, 06:07 PM   #541
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,238
Total Cats: 740
Default

Quote:
Originally Posted by EO2K View Post



IMO they are ******* awesome BECAUSERACECAR motor mounts. IMO they are not ******* awesome daily driver mounts. I would not hesitate to put them in SwankForce1, but I'm pretty sure your goals for the MSM are vastly different? For the love of flying spaghetti monster, get a ride in a car that has a set before you commit. You say you hate the MazdaComps and I absolutely love them. Its all personal preference. Most of the guys commenting here have heard my car rattle so they know whats up.

BTW: anyone who thinks MazdaComps are "too much" is too old and needs to go back to M.net.
Swank Force One rolls custom 98A mounts that may as well be billet aluminum. You can hear the inside of the car rattling from 10 feet away from the car over the noise of the terrible exhaust note queefing away merrily.

The MSM and the current 95 both have/had Mazdacomps and i found them to be sloppy as **** and completely infuriating.

I'm sure a lot of it is personal preference, but they just feel stock to me, not a compliment.

Maybe i'm masochistic? I don't know, but i rage so hard at the driveline movement in the 95 i'm probably just going to do the 70D AWRs and some delrin diff mounts because at this point, i'd rather be miserable from vibrations in my car that's already loud as **** than feel the driveline wobble from Maine to California one more time.
concealer404 is online now   Reply With Quote
Old 10-15-2014, 06:15 PM   #542
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

Quote:
Originally Posted by FAB View Post
I think the biggest problem with the AWR mounts (the one's we sell a ton of) is that there is not enough bushing material being used, leaving the 70D mounts feeling much more solid than if you took a traditional mount and made it out of 70D material.

That being said, they are well engineered and frankly there is no magical solution to this problem. It's purely the result of a vehicle engineered to produce no more than 200whp with only two small engine mounts in a comparatively light and insubstantial PPF configuration - if you need 400whp and no vibration you've picked the wrong platform for you budget super-car. Luckily I think most of us on this forum understand that there is a trade off and given the return on investment we all find it reasonable.
+1 to everything that guy just said.

Quote:
Originally Posted by concealer404 View Post
Swank Force One rolls custom 98A mounts that may as well be billet aluminum. You can hear the inside of the car rattling from 10 feet away from the car over the noise of the terrible exhaust note queefing away merrily.

The MSM and the current 95 both have/had Mazdacomps and i found them to be sloppy as **** and completely infuriating.

I'm sure a lot of it is personal preference, but they just feel stock to me, not a compliment.

Maybe i'm masochistic? I don't know, but i rage so hard at the driveline movement in the 95 i'm probably just going to do the 70D AWRs and some delrin diff mounts because at this point, i'd rather be miserable from vibrations in my car that's already loud as **** than feel the driveline wobble from Maine to California one more time.
So PM me and we'll find out how tight you want that those ropes cinched down
Attached Images

EO2K is offline   Reply With Quote
Old 10-15-2014, 06:21 PM   #543
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Quote:
Originally Posted by concealer404 View Post
I don't know, but i rage so hard at the driveline movement in the 95 i'm probably just going to do the 70D AWRs and some delrin diff mounts because at this point, i'd rather be miserable from vibrations in my car that's already loud as **** than feel the driveline wobble from Maine to California one more time.
If it means anything I'd stick with poly bushings in the diff too. It's never a good idea to mix duro throughout mounts in any car. It makes it a lot harder on the PPF brace when there is no play at the diff and the 70D AWR mounts are allowing SOME movement of the engine. This is why we offer them as an add-on and more than 50% of the customers who order take advantage of this - LINK
FAB is offline   Reply With Quote
Old 10-15-2014, 06:27 PM   #544
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

What is the durometer on the ES polly diff mounts anyway?
EO2K is offline   Reply With Quote
Old 10-15-2014, 06:52 PM   #545
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Quote:
Originally Posted by EO2K View Post
What is the durometer on the ES polly diff mounts anyway?
I believe 95D, but remember we're working with much more material than the engine mounts here - so that 95D is likely a very close match to the results from the 70D bushings found in the AWR mounts.
FAB is offline   Reply With Quote
Old 10-16-2014, 07:58 AM   #546
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

I guess I'm immune, I've been rocking these mounts for over 2 years now and I barely notice them any more (at least when I had a running car )
rwyatt365 is offline   Reply With Quote
Old 10-16-2014, 12:49 PM   #547
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,882
Total Cats: 521
Default

HOT TIP: car only ****** when running.
turbofan is online now   Reply With Quote
Old 10-17-2014, 10:27 AM   #548
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 13
Default

Good idea on the relocation of the fuel clamps, I also could not believe FM would do it they way they have it in the instructions. I am swapping in the 949 sport clutch this weekend and will be modifying my mounts to be like yours. I was going to weld a mounting tab in place, but drilling and tapping seems muche easier.
Rallas is offline   Reply With Quote
Old 10-17-2014, 03:30 PM   #549
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Another option is to use the frame rail bolts and bolt the bracket flat to the floor. I did it this way on the red car and it has survived numerous "offs." Lol. You do need to bend the lines just a bit for this though.
hornetball is offline   Reply With Quote
Old 10-17-2014, 06:31 PM   #550
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

Quote:
Originally Posted by relte View Post
I was going to weld a mounting tab in place, but drilling and tapping seems muche easier.
I considered welding but Gesso was pretty much out of gas so I figured this would work. There is about 1/4" of space under the frame rail that was perfect clearance for the bolt shank. Like I said in the post, I'm usually pretty impressed with the stuff from FM but this I did not like. That reminds me... next time I get under the car I need to put some loctite the bolts.

Quote:
Originally Posted by hornetball View Post
Another option is to use the frame rail bolts and bolt the bracket flat to the floor. I did it this way on the red car and it has survived numerous "offs." Lol. You do need to bend the lines just a bit for this though.
I considered that, but I didn't have a tubing bender and I didn't feel like man handling the lines. This looks like it should be fine, its certainly no worse than OEM.
EO2K is offline   Reply With Quote
Old 10-19-2014, 09:16 AM   #551
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

Quote:
Originally Posted by FAB View Post
I'll chime in here - I swapped personal my car to the Mazda Comp mounts and within one very short summer I pulled them out in two pieces. I think the biggest problem with the AWR mounts (the one's we sell a ton of) is that there is not enough bushing material being used, leaving the 70D mounts feeling much more solid than if you took a traditional mount and made it out of 70D material.
Has anyone tried slipping in a standard (non-poly) bushing into the AWR brackets? Or would this just not end well?
curly is offline   Reply With Quote
Old 10-21-2014, 01:35 PM   #552
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

Quote:
Originally Posted by curly View Post
Has anyone tried slipping in a standard (non-poly) bushing into the AWR brackets? Or would this just not end well?
I'm not aware of anyone who has tried it. I'd give it a shot if we could find one that would fit without drama.
EO2K is offline   Reply With Quote
Old 10-21-2014, 01:35 PM   #553
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

Speaking of bushings... does anyone make a poly bushing for the NB steering rack? I'm wondering if I should swap the bushings when we depower the rack. Miataroadster has delrin, but that sounds excessive.
EO2K is offline   Reply With Quote
Old 10-21-2014, 01:44 PM   #554
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by EO2K View Post
Speaking of bushings... does anyone make a poly bushing for the NB steering rack? I'm wondering if I should swap the bushings when we depower the rack. Miataroadster has delrin, but that sounds excessive.
I honestly didn't know there was a difference in bushings between the two. Sad since the poly bushing in my rack rock.
Jeffbucc is offline   Reply With Quote
Old 10-21-2014, 01:46 PM   #555
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

Quote:
Originally Posted by curly View Post
Has anyone tried slipping in a standard (non-poly) bushing into the AWR brackets? Or would this just not end well?
I think you might run into a problem with this or AWR would have done it already. I think softer material might be fine if the bushing itself had thicker walls but being that it's so thin I could see this being problematic. I have a pretty good relationship with Energy Suspension and they are always up for some custom applications but again, I have my doubts about reliability.
FAB is offline   Reply With Quote
Old 10-21-2014, 06:48 PM   #556
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,882
Total Cats: 521
Default

Maybe something between 70 durometer and rubber?

Maybe we need to leave our panties behind and deal with some vibration?
turbofan is online now   Reply With Quote
Old 11-01-2014, 02:37 PM   #557
Newb

Join Date: Sep 2014
Location: Tualatin
Posts: 33
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
Another option is to use the frame rail bolts and bolt the bracket flat to the floor.
I did this too, I had to massage the lines, but not actually bend them, and remove/reinstall one of the other brackets up near the firewall. Initially I had followed the instructions but didn't like the flying dutchman style of mounting.

On the subject of engine mounts, has anyone used one of the damper kits that attach between the shock tower and the engine hoist bracket in conjunction with either the AWR or the Mazdacomp ?

There are some JDM suppliers that sell a kit for a ridiculous sum (~$200+ ) but you can find knockoffs on the bay of fleas for about $40.

--Miq

P.S. subscribed here G, your build is headed in the same direction and the parts I'm collecting....
bigllama is offline   Reply With Quote
Old 11-01-2014, 02:49 PM   #558
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,882
Total Cats: 521
Default

Yo Miq, you're in Tualatin Oregon? We have a pretty strong Miata group up here.
turbofan is online now   Reply With Quote
Old 11-09-2014, 08:25 PM   #559
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 931
Default

So some **** happened this weekend:

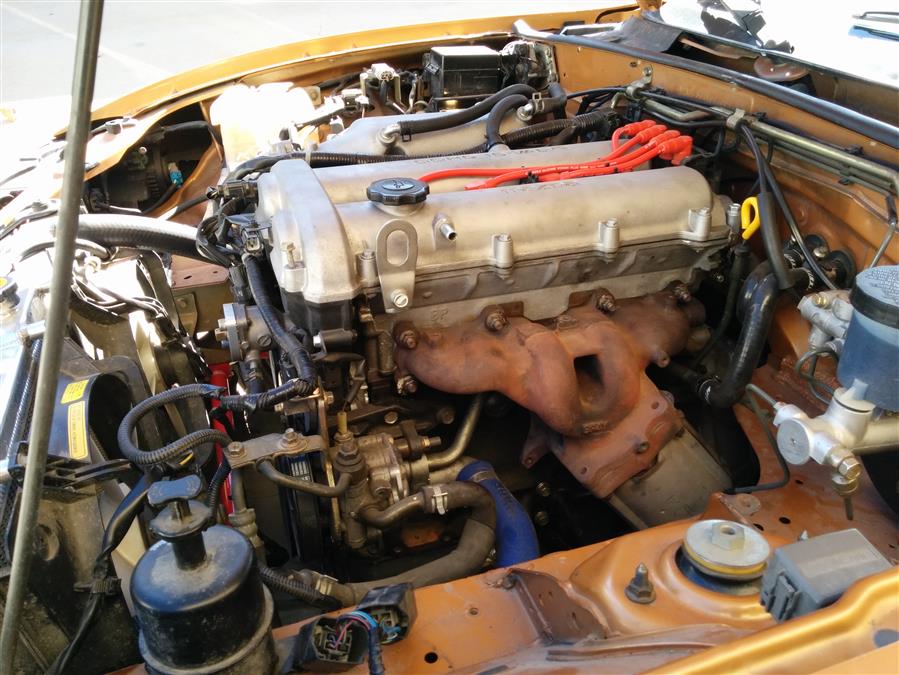

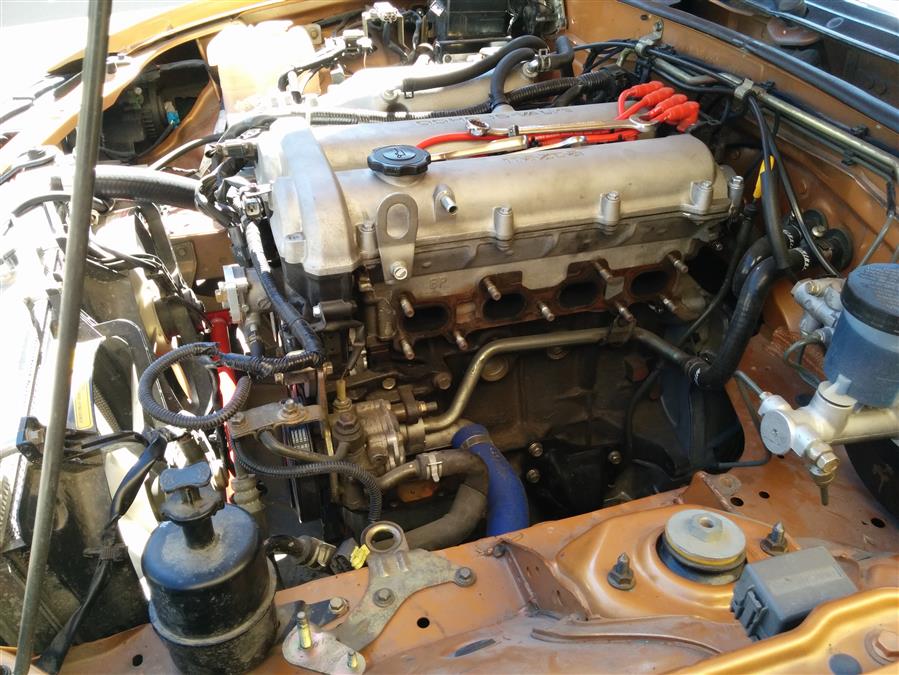

Blank slate

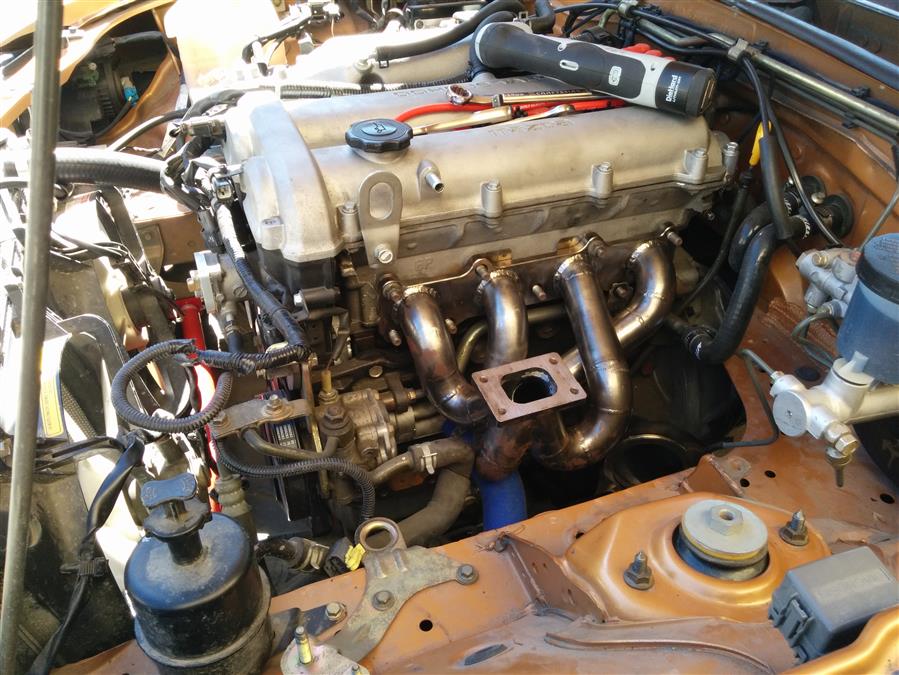

Tuuuuuubes!

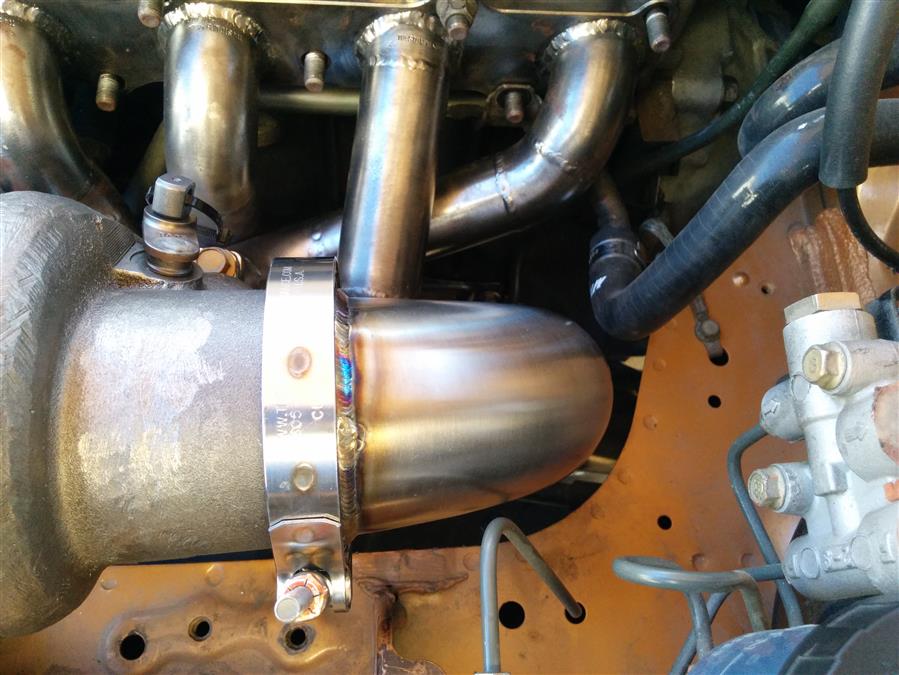

Yeah, that's a problem. Good thing Gesso has a tig.


This is also an issue

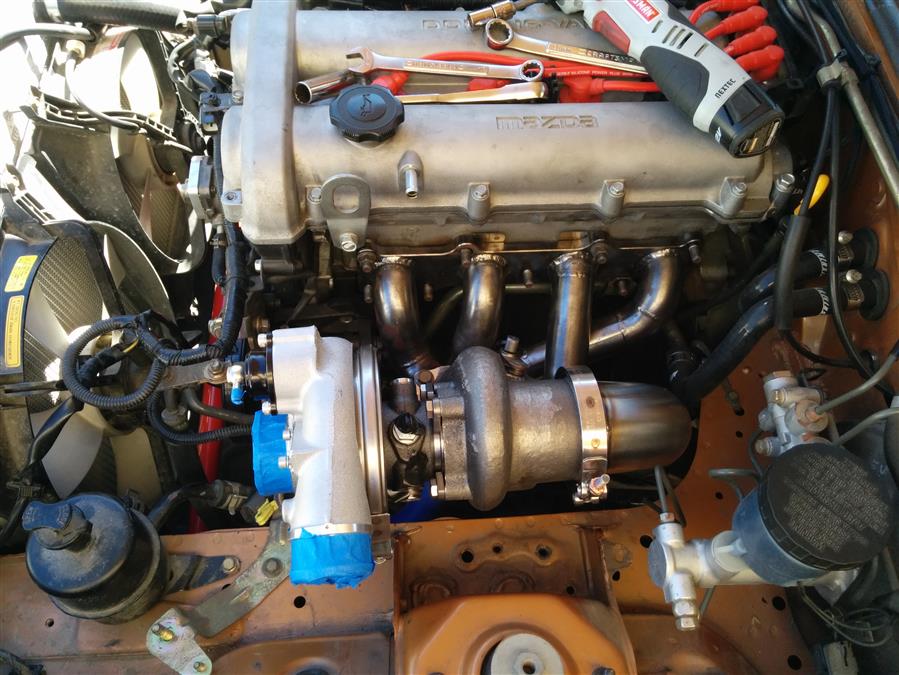

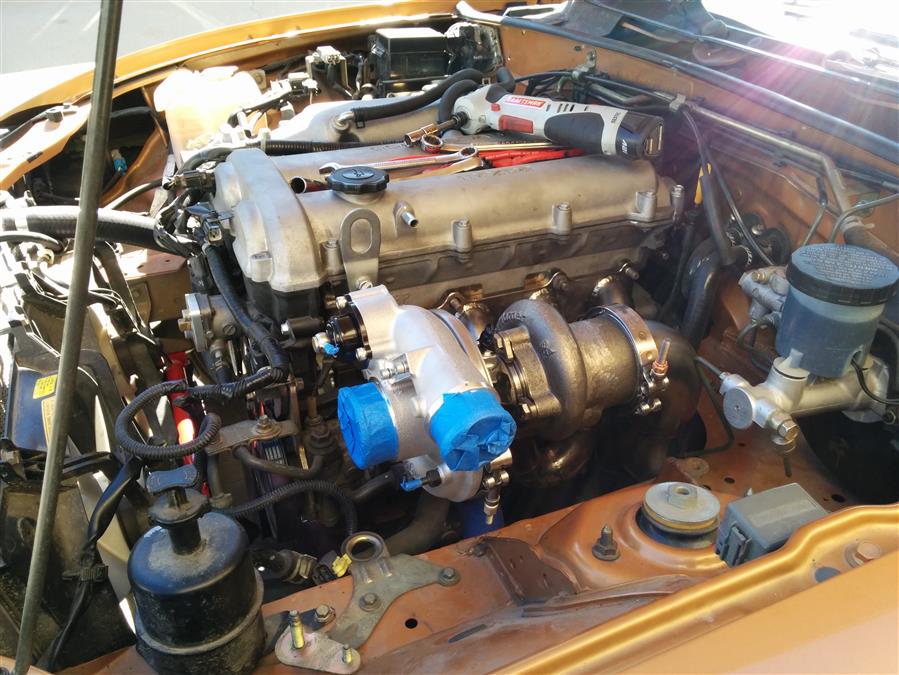

I'll just add this here...

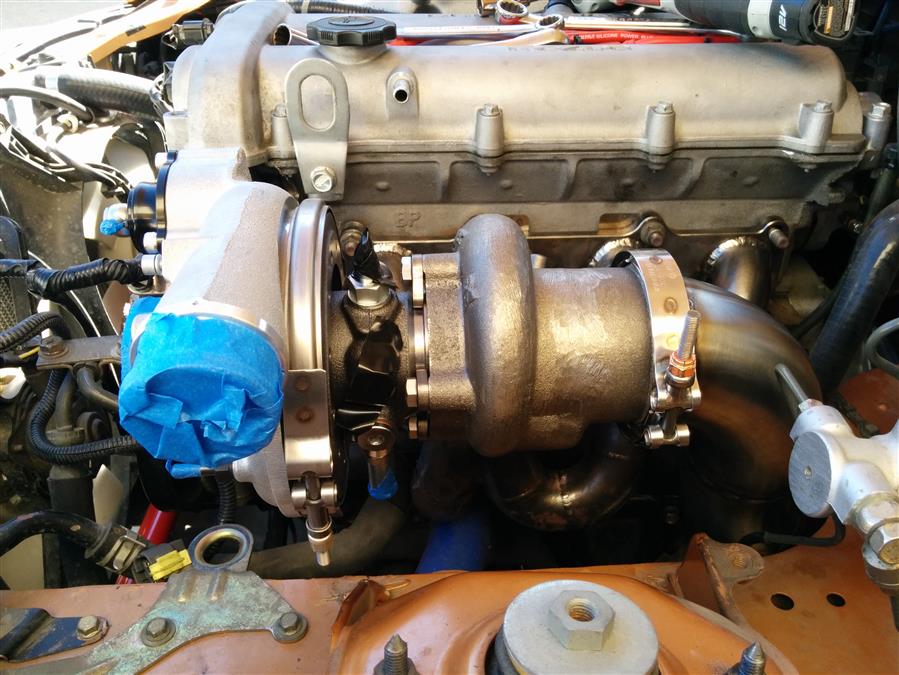

Its not big, but its looooooong.


Ok, maybe it is that big.

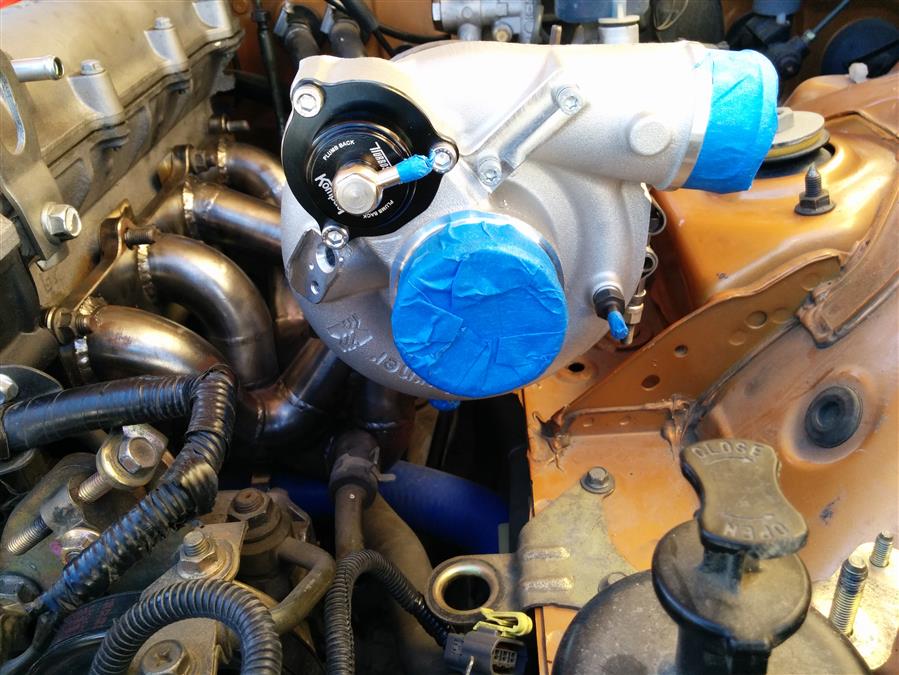

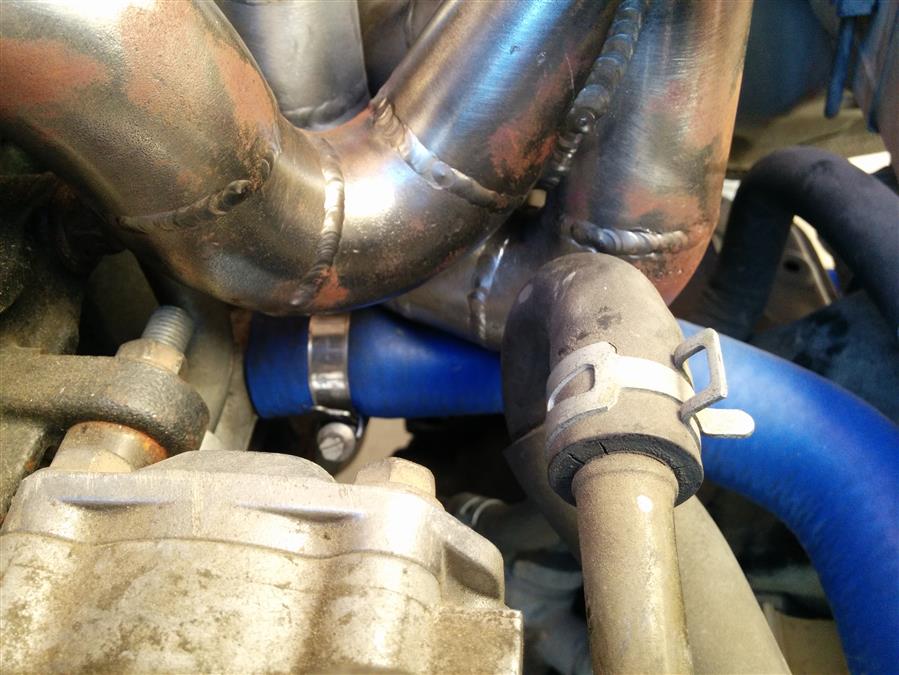

Brake line and heater hose clearance need to be addressed.


Its like some sort of UFO hovering in space...

I have an FM airbox, hushkit and turbo heatshield and ain't none of it gonna work with this beast. I need to seriously examine my thermal control stratagem going forward. I feel like maybe the DP needs to go visit the boys and girls at Swain along with the manifold. I'm absolutely going to need to build a heatshield for the brake parts.

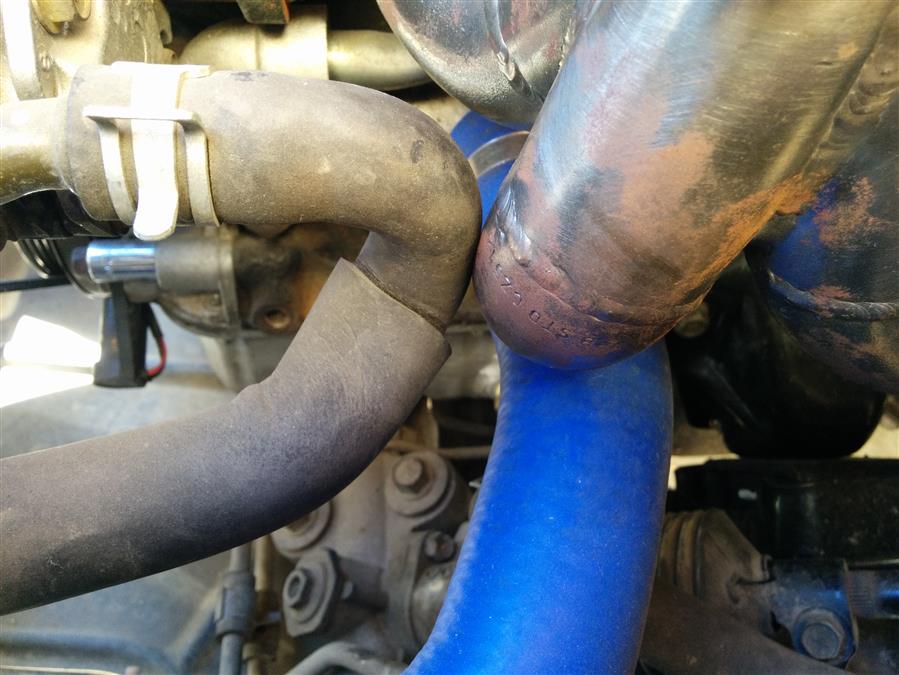

I'm honestly disappointed about the direct contact with the heater hose and the power steering line. As you can see I've already removed my AC and I'm giving serious though to removing the PS as well. This makes me sad, because if I had just done that from the start, I could have had something low-mount like Soviet or Ryan_G

But hey! At least I know where I sit and what needs to be done moving forward.



Then this happened.


And I died a little more inside.

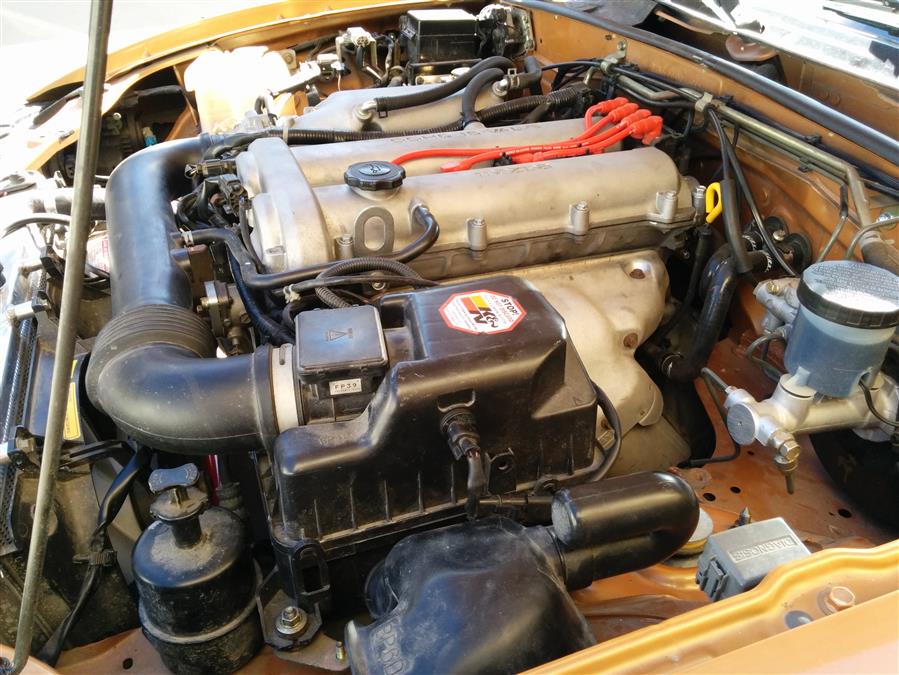

The engine and exhaust is now absolutely bone stock again. No, cancel that, it still has the Racing Beat Power Pulse single on it. Other than that, bone stock. I even pulled the squaretop and re-installed the stock intake manifold. I haven't had that exhaust manifold on the car since I bought it 6 years ago. The first thing I did was swap it with a NB2 unit and I've not driven on that thing since. Well let me tell you something.... the stock ECU uses WAY WAY WAY less timing down low compared to the MS3 and boy howdy can you feel it. The car is WAY down on power from what I'm used to. Stomping on the throttle does next to nothing. There is no pull whatsoever, no feeling of acceleration. In order to get any power out of this thing in its stock form, you really have to rev the **** off of it. With the 6 speed, 8lb flywheel and 4.1 its very easy to do, but its completely ineffective. Every time you get on the throttle its like yelling at a retarded child: you look like an ******* and it accomplishes nothing. I think I may actually put the stock muffler back on the car (if I can find it) simply so I don't draw as much attention to myself.

I went for a long drive to see if I threw a CEL and lo, nothing appears broken. The car STANK from all the copper anti-seize burning off because I used it on ALLTHEEXHAUSTTHINGS. My wife actually asked me at one point "Is it supposed to be on fire like that?"

I guess I can't complain too much. It was a lot of work, but its only a temporary situation.

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-3d9.png
EO2K is offline   Reply With Quote
Old 11-09-2014, 11:34 PM   #560
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Nice man, doin work. What a long sexy turbo you have.
Fireindc is offline   Reply With Quote
