Old 07-04-2015, 11:08 PM   #1541
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,591
Total Cats: 252
Default

DNMakinson is offline   Reply With Quote
Old 07-04-2015, 11:20 PM   #1542
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,492
Default

Quote:
Originally Posted by EO2K View Post

Now I'm wondering why it was off in the first place.
because base maps are made with as little variables as possible. That's why you see the silly huge hump in the AE settings, and it's completely tps based or map based but usually not both. That's why the maps are pretty rich. That's why ego is usually turned off. ETC ETC ETC.

Once you properly tune your car in every setting, almost none of the base map will remain. I tend to chuckle at people saying "I popped the base map in, did a little autotune, and voila, car runs perfect". While it may run, I'd hesitate to even call it mediocre.

but you know how OCD I am so take this with a grain of salt too
18psi is offline   Reply With Quote
Old 07-04-2015, 11:22 PM   #1543
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Come tune my car, I don't have the patience for the little things.
aidandj is offline   Reply With Quote
Old 07-04-2015, 11:54 PM   #1544
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

Quote:
Originally Posted by DNMakinson View Post
Yep, I was searching for lean tip-in AE/EAE stuff and came upon that thread, that's why I started digging through my tune

Quote:
Originally Posted by 18psi View Post
because base maps are made with as little variables as possible. That's why you see the silly huge hump in the AE settings, and it's completely tps based or map based but usually not both. That's why the maps are pretty rich. That's why ego is usually turned off. ETC ETC ETC.

Once you properly tune your car in every setting, almost none of the base map will remain. I tend to chuckle at people saying "I popped the base map in, did a little autotune, and voila, car runs perfect". While it may run, I'd hesitate to even call it mediocre.

but you know how OCD I am so take this with a grain of salt too
I wish I was closer, I'd love to waste a couple hours of your time picking your brain some afternoon with the current configuration. Le sigh.

As of right now I feel like its kinda sorta a waste to put a super developed tune on the ECU for the stock motor, but it is worth it just to work through the settings and learn. I need this "close enough" so that when I put the built motor in the car I can get it started and broken-in in a quasi controlled manner. As soon as the built motor gets broken in and the turbo gets installed, I'm going to heat cycle the turbo parts by driving it to Sacramento.

I'm not even kidding when I say I'm going to have 18psi tune it. We've discussed this several times in the past, I just need to get my **** in gear and get the motor finished and installed so I can set a date. I'm thinking a little road tuning to make sure things are solid and then spend a couple hours at a dyno and see what ALLOFIT looks like with a 6258 w/CNC head and CA91.

I need to stay the course and move forward. Its getting closer and closer to completion and I'm getting really excited.
EO2K is offline   Reply With Quote
Old 07-08-2015, 09:27 AM   #1545
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

I finally had to unsub the TSE turbo kit thread, the pics of the housings are making me rage with jealousy.

We might get the oil pan done this weekend, and I'll probably get the seals and timing set on the engine as well.

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-9fij5.gif
EO2K is offline   Reply With Quote
Old 07-10-2015, 03:16 PM   #1546
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

I bought a roll of this stuff: --3M? High Temperature Aluminum Foil Tape 433

2" wide and good to 600F. If this **** does not stick to my radiator I'm going to loose my ******* mind. Rather than spend $234/60 yards I spent < $30/5 yards for a partial roll. Checkit:
TapeCase 433 2in X 5yd Shiny Silver Aluminum Foil Tape (1 Roll): Adhesive Tapes: Amazon.com: Industrial & Scientific TapeCase 433 2in X 5yd Shiny Silver Aluminum Foil Tape (1 Roll): Adhesive Tapes: Amazon.com: Industrial & Scientific
I've bought 3 different types of aluminum tape in the past and the stuff always peels off the radiator tank and ends up looking like raggedy *** aluminum foil. This is why I keep asking you people what specific products you use for this stuff. I keep getting answers like "derp, aluminum tape!" yeah *******, its not that easy.

I shall report back with results.
EO2K is offline   Reply With Quote
Old 07-10-2015, 03:56 PM   #1547
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 722
Total Cats: 47
Default

Please do. I haven't found ANYTHING that will stick long-term.
rwyatt365 is offline   Reply With Quote
Old 07-11-2015, 12:36 PM   #1548
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

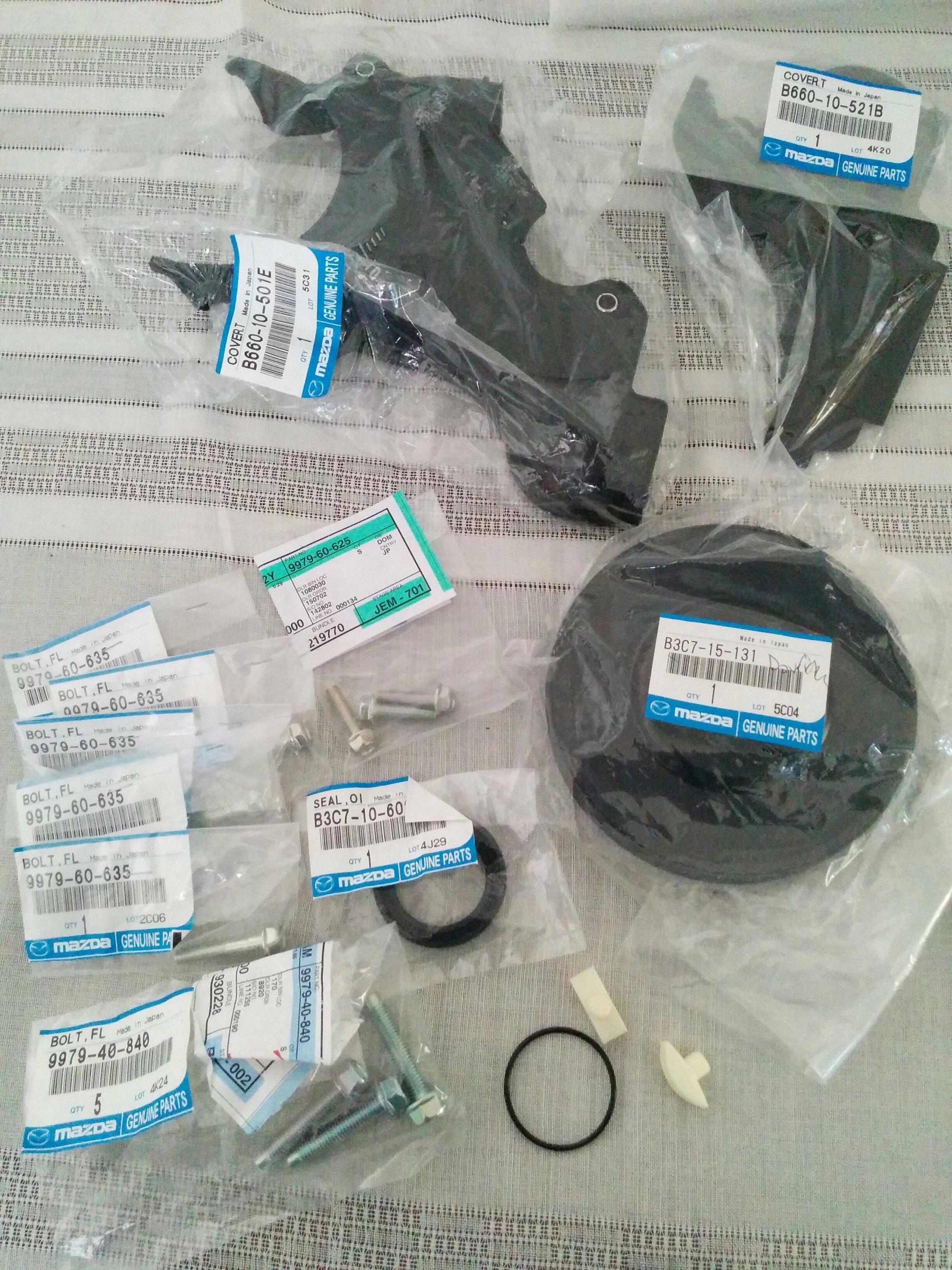

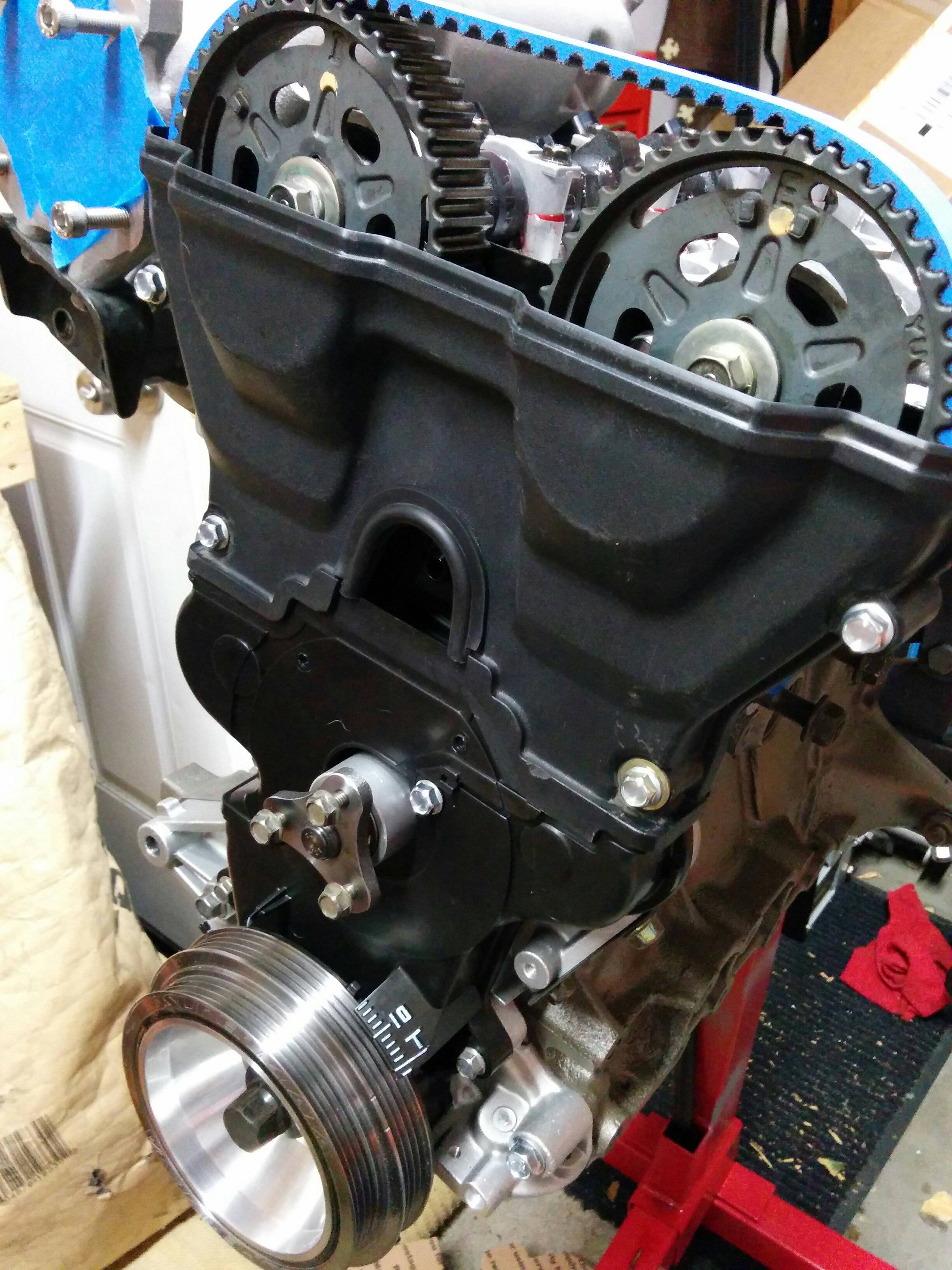

Tasty new timing set covers and bolts. Mmmmm....

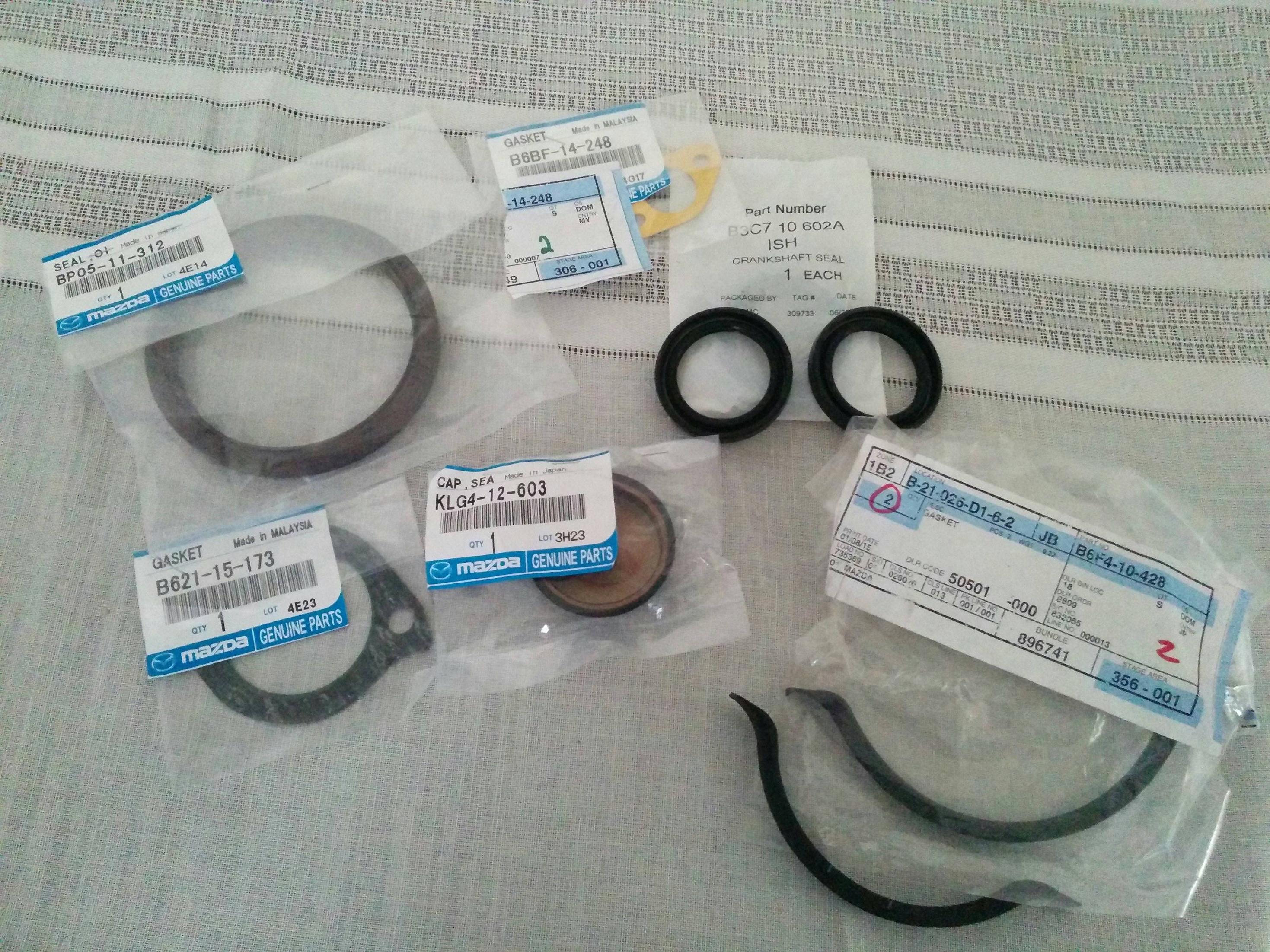

Yes, I now have 2x crank seals. I should have just bought a gasket kit rather than trying to hunt down all this shiza separately. Oh well.

I now have everything I need to get the engine buttoned up. Yay! Well, almost everything. Hopefully I can grab the pan and stuff from Gesso on Sunday and borrow the FM seal installer tools from Codrus. Inlaws are in town for the next 4 days so I'm guessing engine will be sealed up by about Weds next week. With some luck the engine will be ready to be installed by the weekend of the 18th.

I can break it in N/A for the week of the 20th and maybe get the turbo installed on the weekend of the 25th. If anything goes wrong, drop dead for the turbo install will be Aug 1st. If the turbo does NOT go in on the 1st, I'm screwed until probably Aug 22nd. I'm out of town for the first 2 weeks of August on back to back conference and then a training so I'm not going to be home to do anything. :(

Man, screwing up my ankle really set me back. I wanted all this done earlier in the summer because I knew July and August were going to be a mess. I'm just have to stay on task and get **** done.

Once the turbo is in and I've got my **** squared away, only then will I contact someone and set a date for dyno tuning.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-vkdgmrf.jpg   Nothing to see here, just project Sisyphus, move along-yapsuoi.jpg
EO2K is offline   Reply With Quote
Old 07-11-2015, 03:58 PM   #1549
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 685
Total Cats: 130
Default

You can always leave it my place and I can install things. Though I can't promise that I won't install your parts in the Exocet...
gesso is offline   Reply With Quote
Old 07-11-2015, 04:12 PM   #1550
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

That would be ridiculous though I'm not sure the exhaust would fit. Not like that would stop you
EO2K is offline   Reply With Quote
Old 07-15-2015, 05:46 PM   #1551
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

Last Sunday was productive in Gesso's garage!

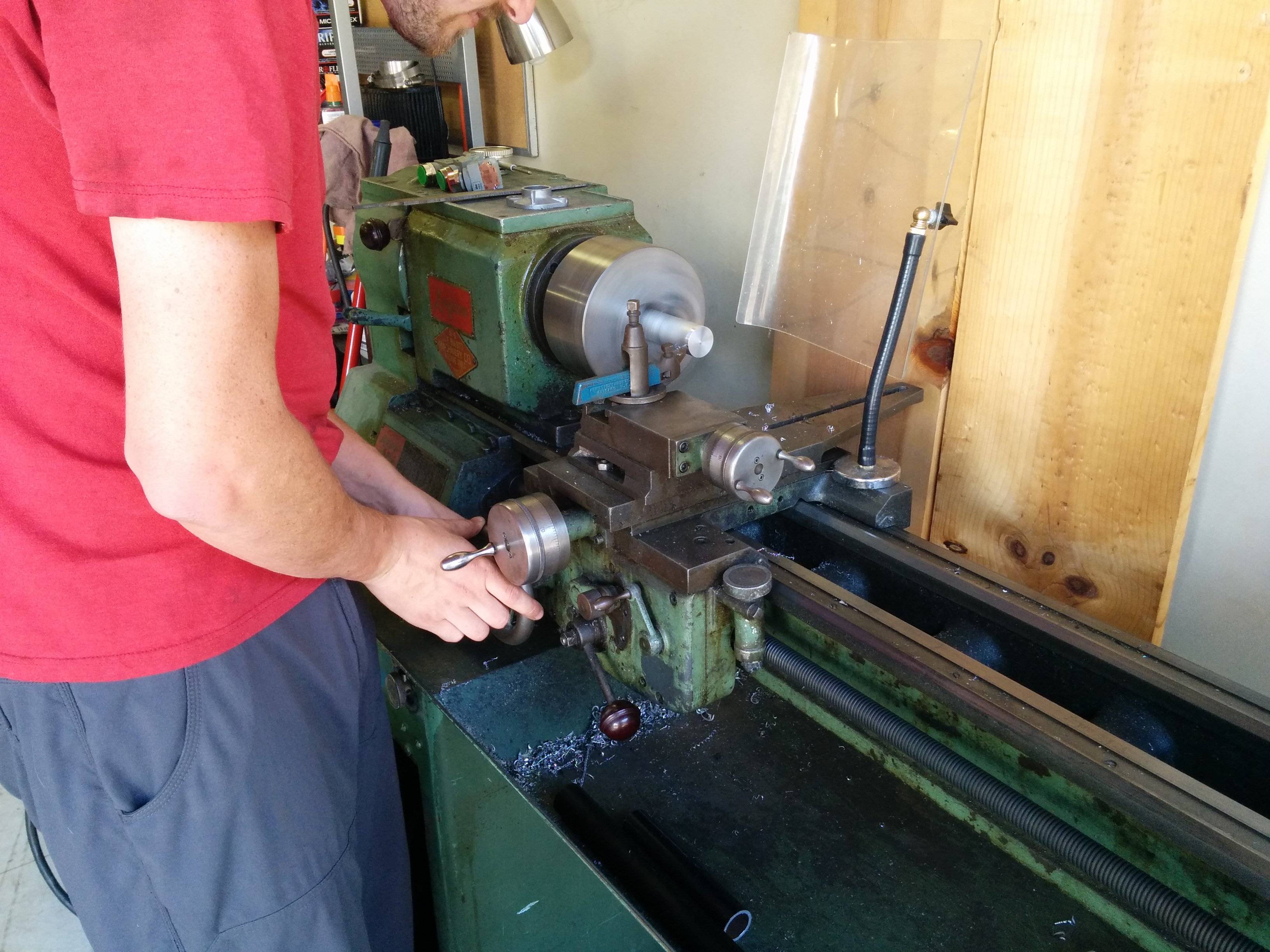

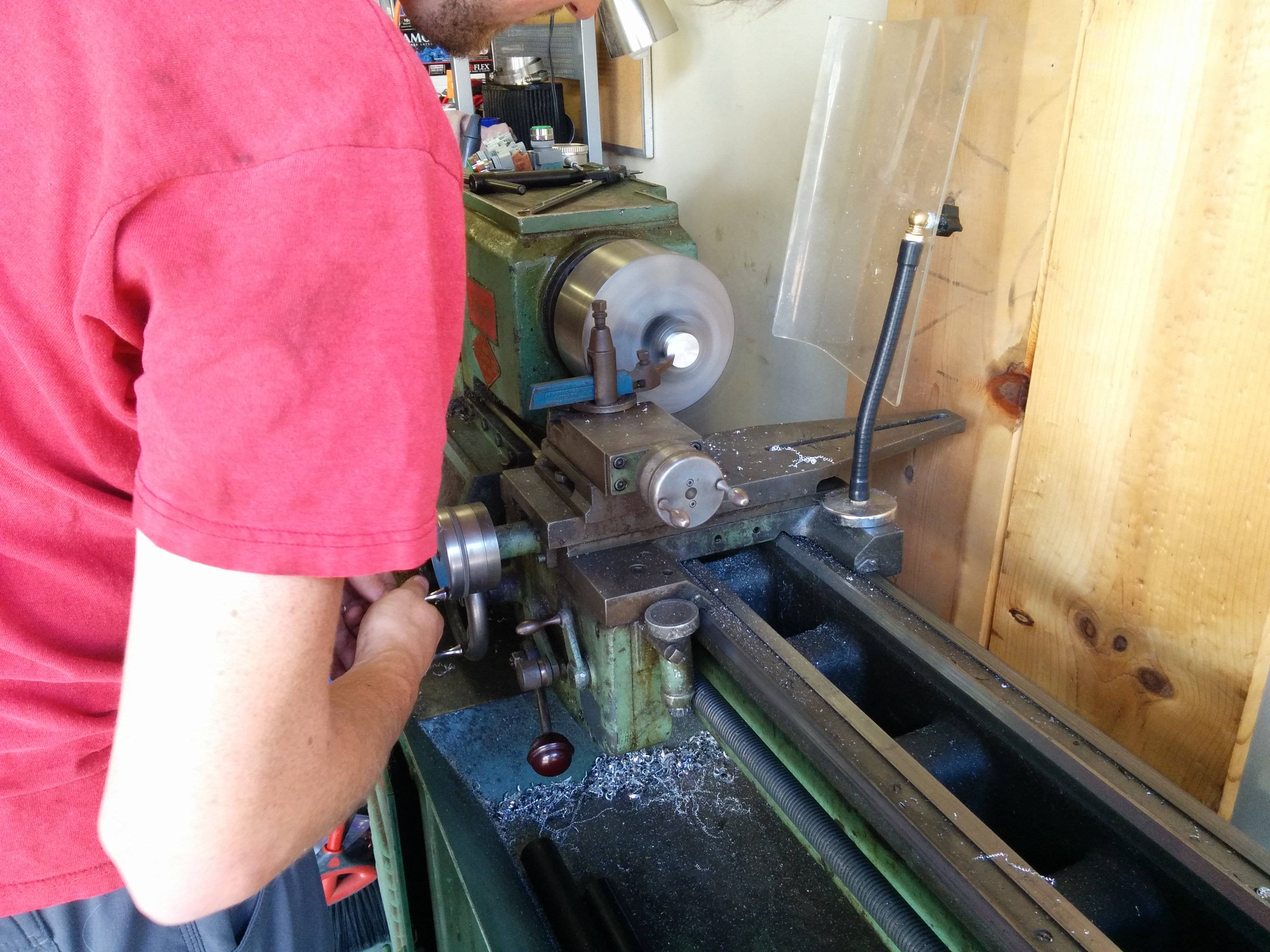

Gesso and the magical spinny machine

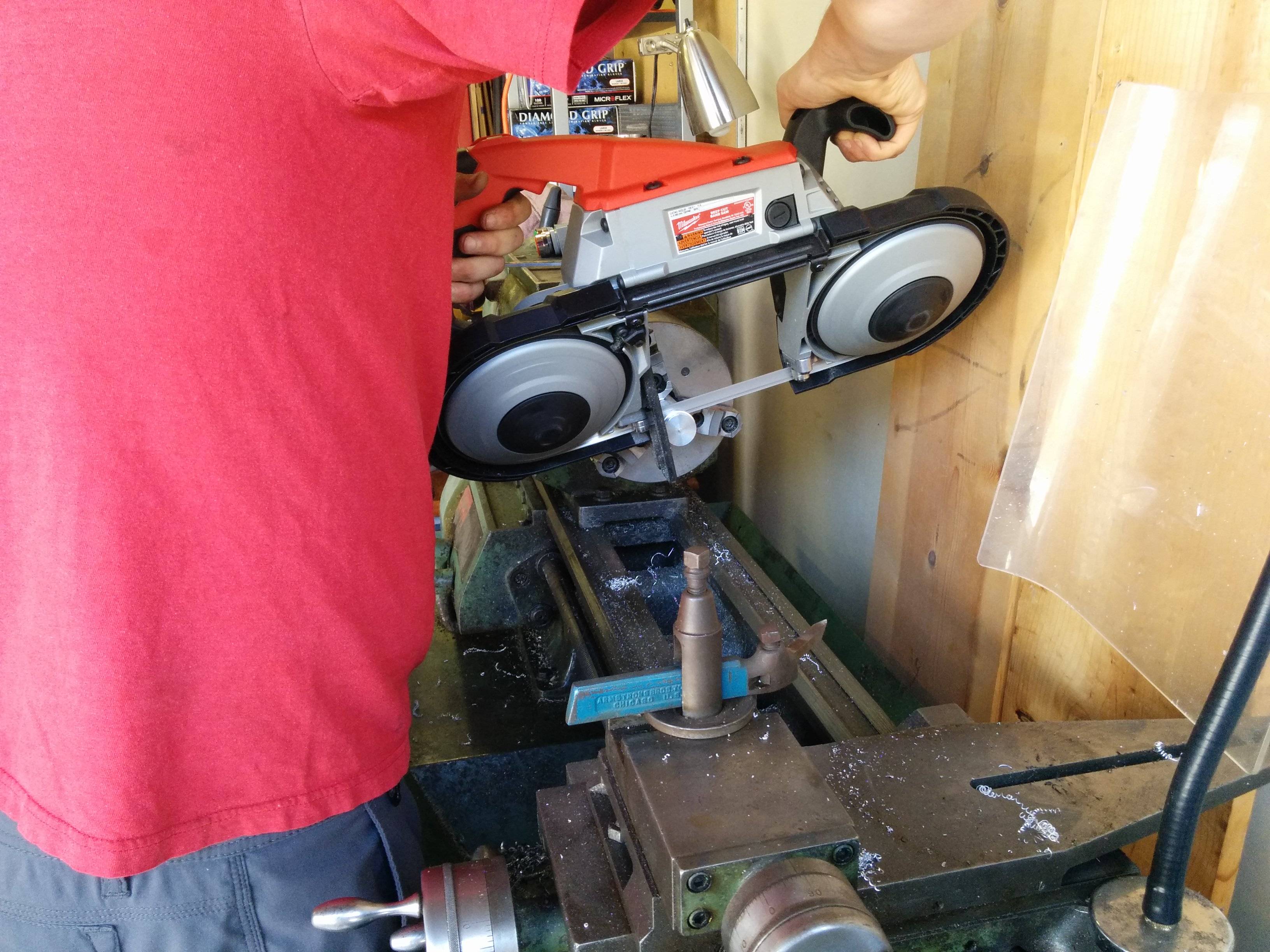

Part it off


Clean up the marks left by the part off tool

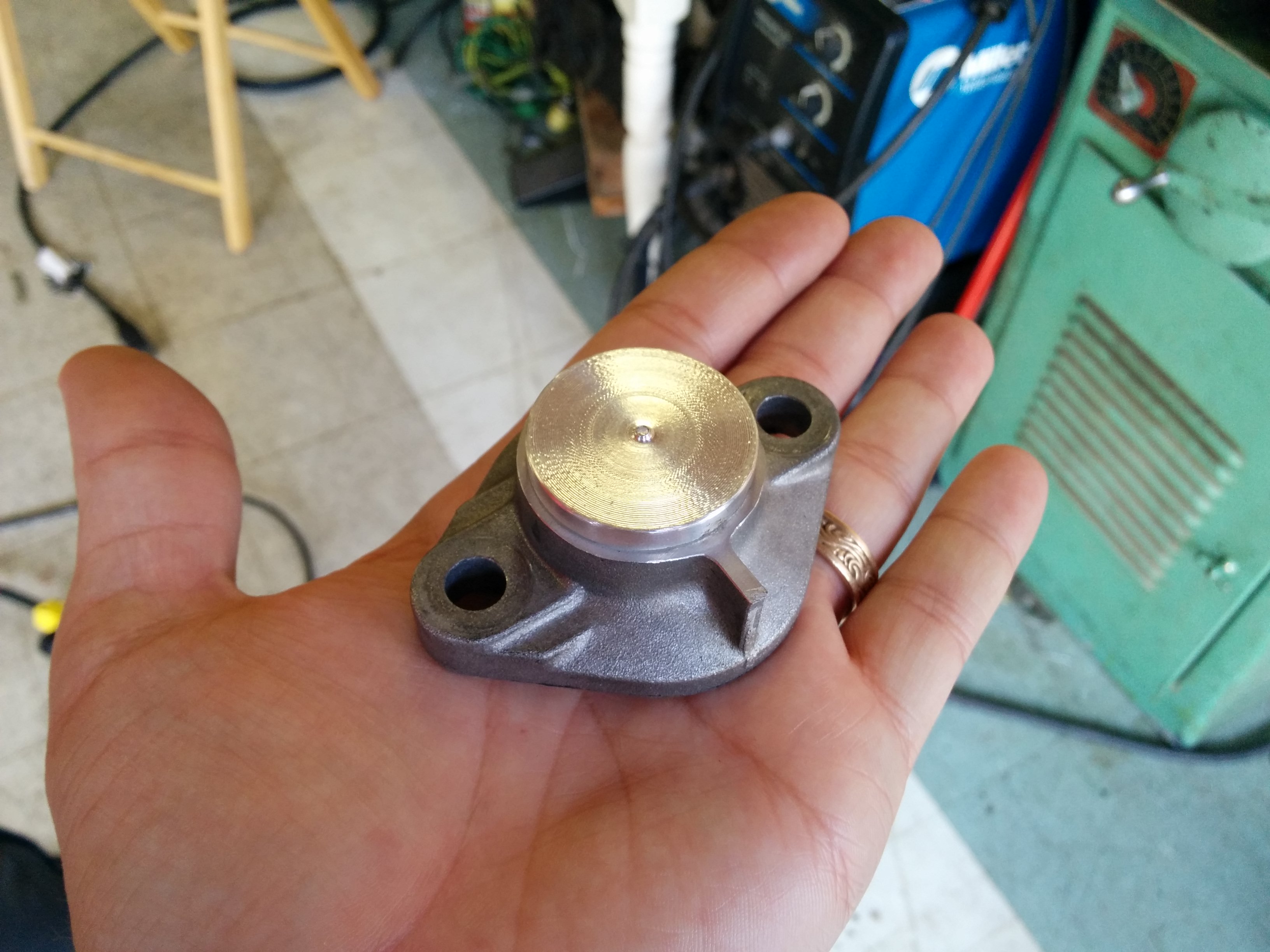

It fits! No hammer required!

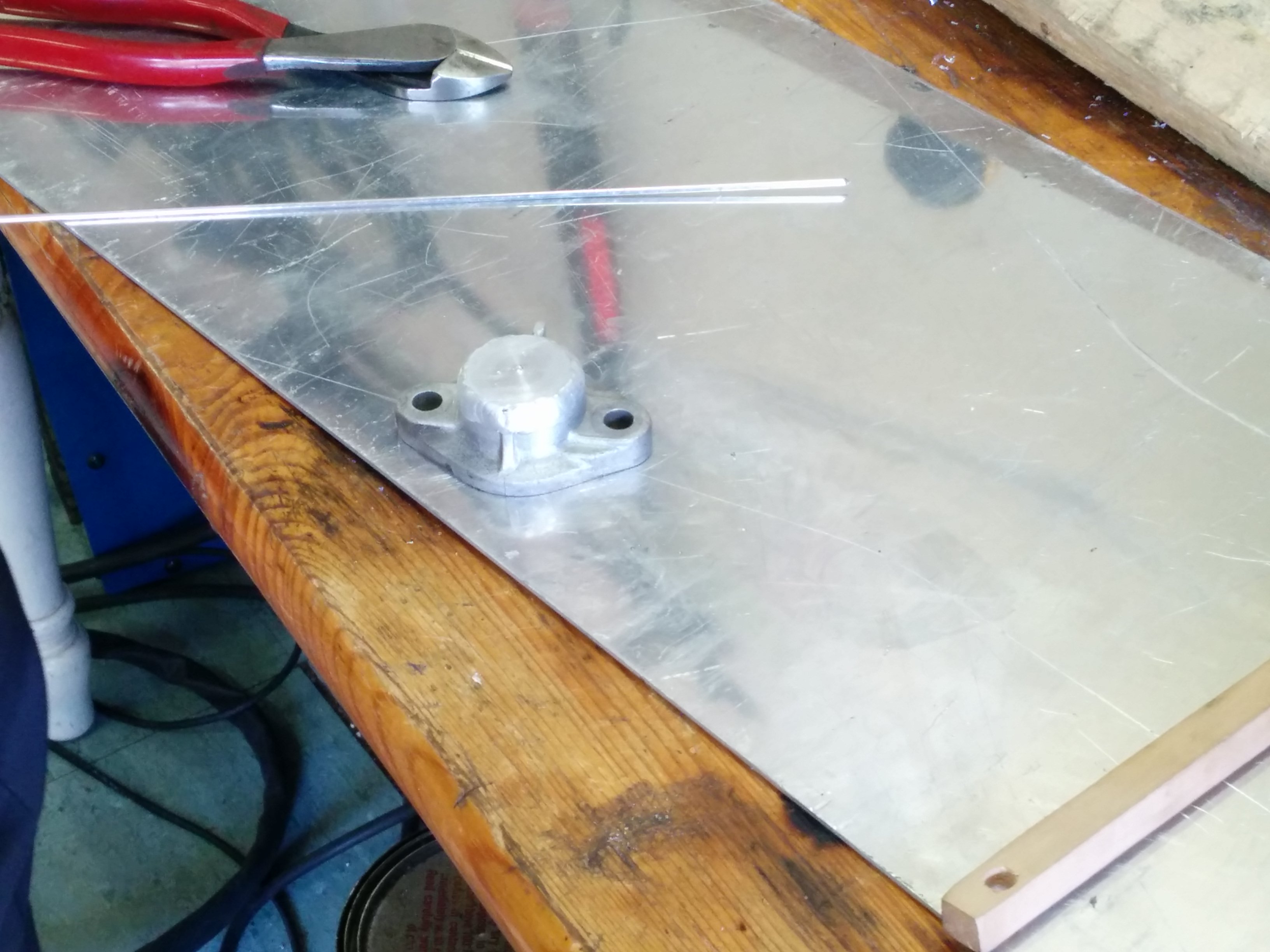

Burn some aluminum to some other aluminum

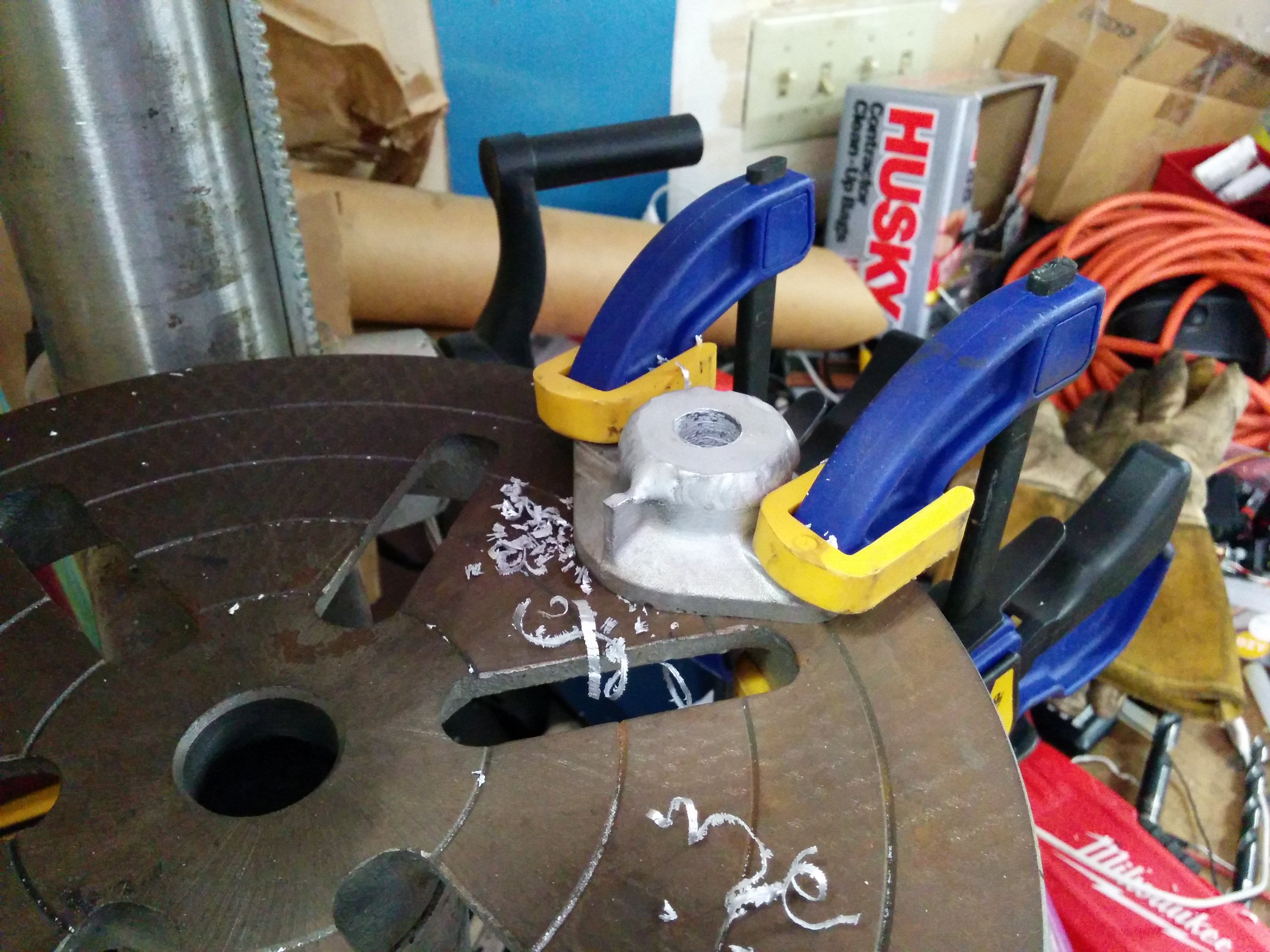

Add a hole

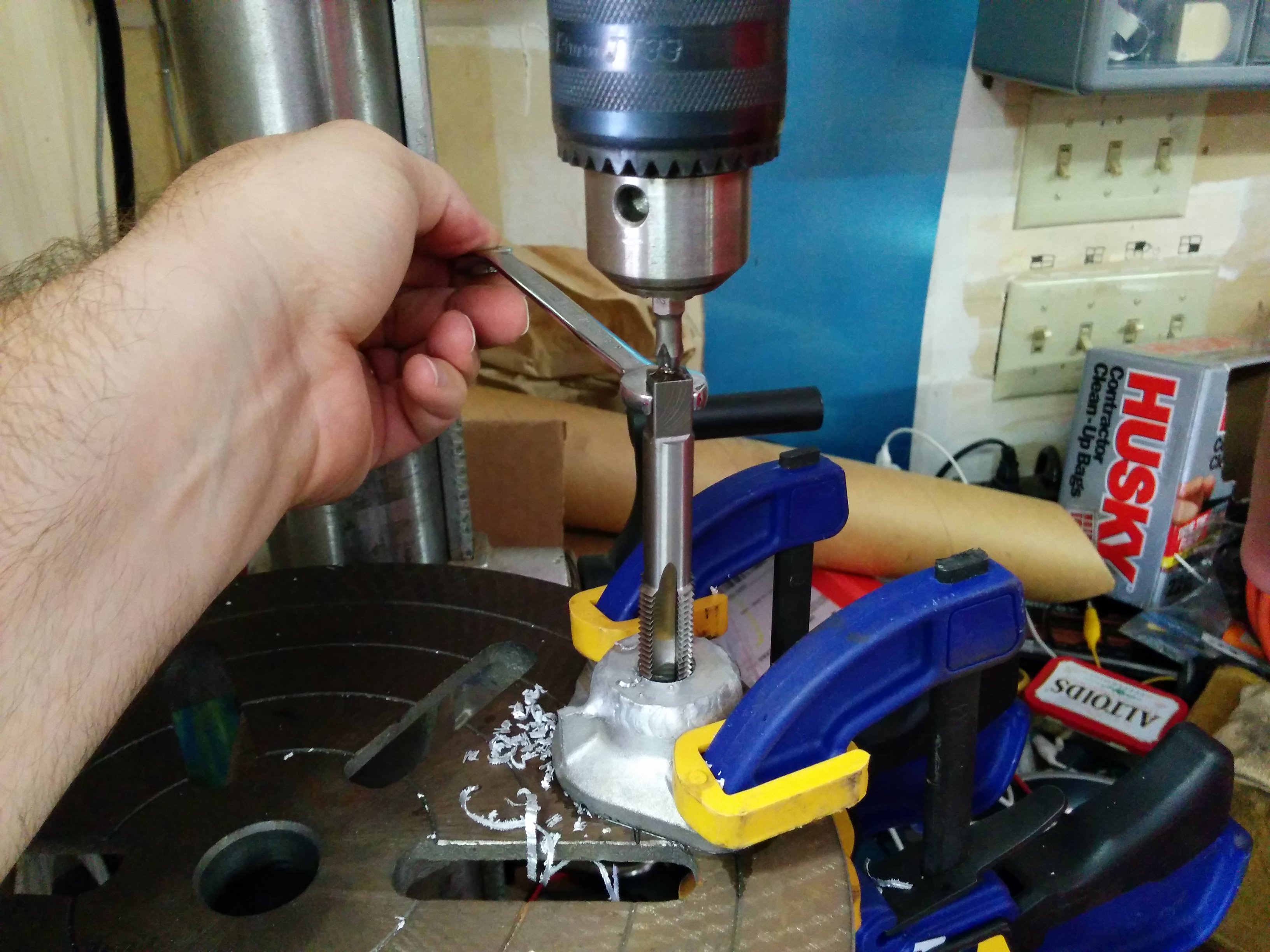

Then figure out how to use a tap when it does not fit in your tap handle.

Now I have a water neck plug tapped for turbo coolant feed. Yay! I have more pics of more things I'll try to remember to post tonight.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-cndpmze.jpg   Nothing to see here, just project Sisyphus, move along-cgtk66j.jpg   Nothing to see here, just project Sisyphus, move along-7lhkfpy.jpg   Nothing to see here, just project Sisyphus, move along-2pj75og.jpg   Nothing to see here, just project Sisyphus, move along-bdu2blr.jpg

Nothing to see here, just project Sisyphus, move along-oibphgj.jpg   Nothing to see here, just project Sisyphus, move along-l2udkiq.jpg
EO2K is offline   Reply With Quote
Old 07-15-2015, 08:11 PM   #1552
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,793
Total Cats: 337
Default

gesso needs a mill!

The equivalent part on my car, TK and I made at techshop, on the Tormach.

--Ian
codrus is online now   Reply With Quote
Old 07-15-2015, 09:20 PM   #1553
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,635
Total Cats: 529
Default

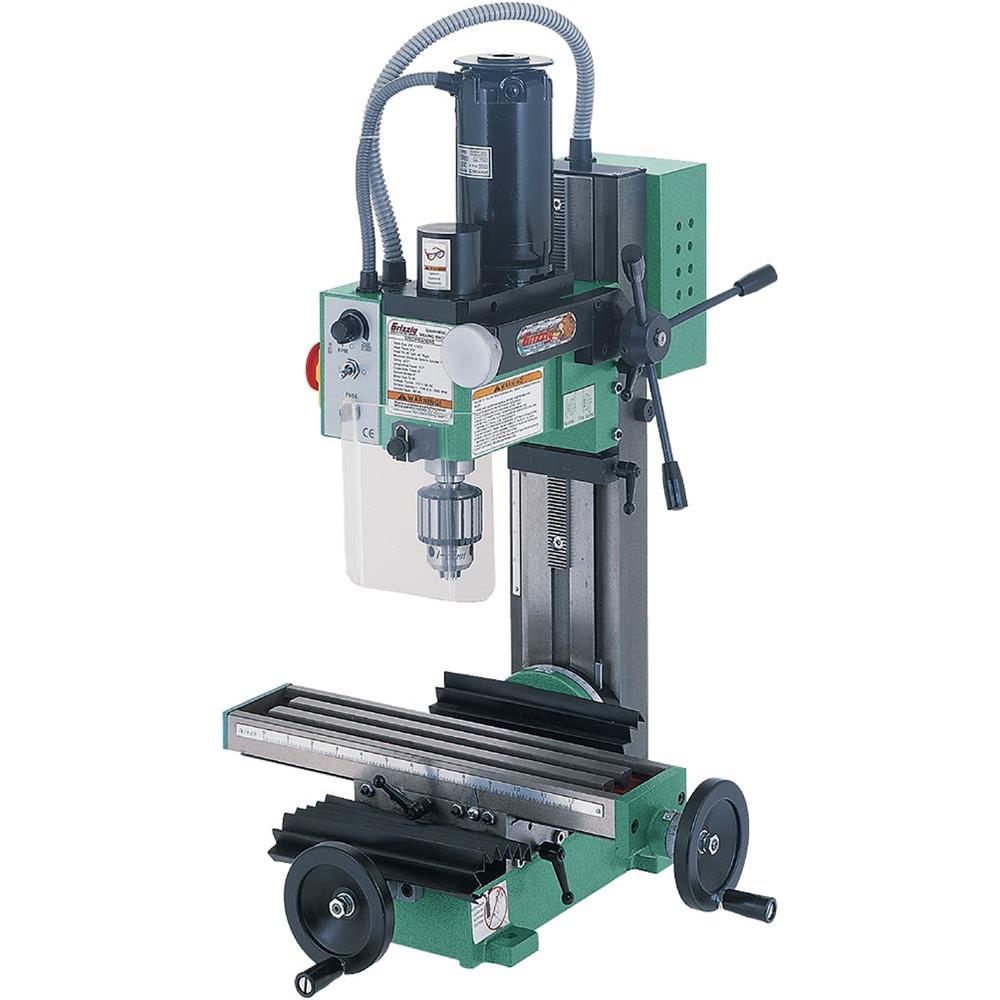

Mine. Not very big, but most of the stuff I make is pretty small. Add in a rotary table and a vise, and you can make a lot of parts.

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-mill.jpg
rleete is offline   Reply With Quote
Old 07-17-2015, 10:47 AM   #1554
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

Crap, I forgot to post these the other day.

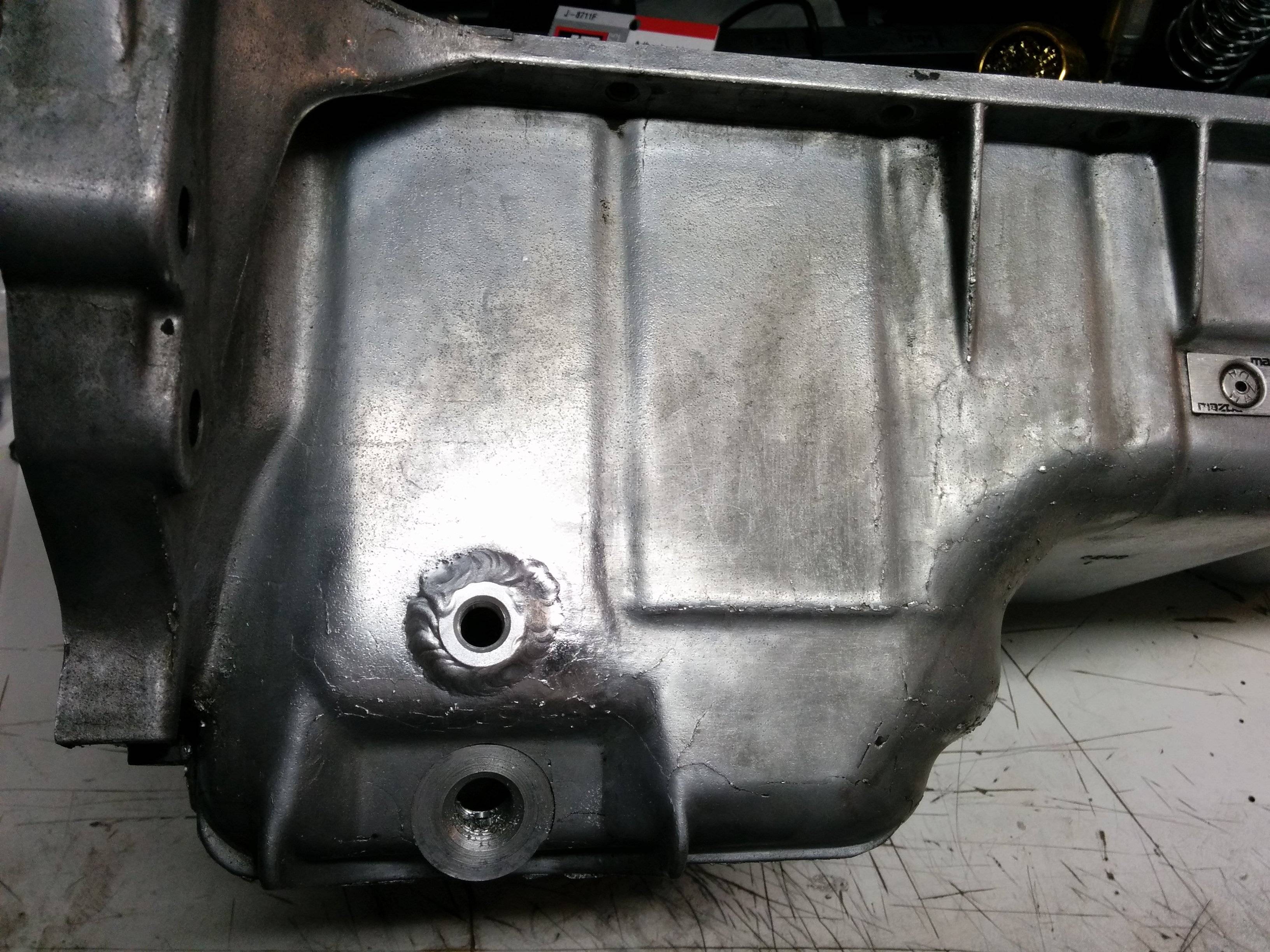

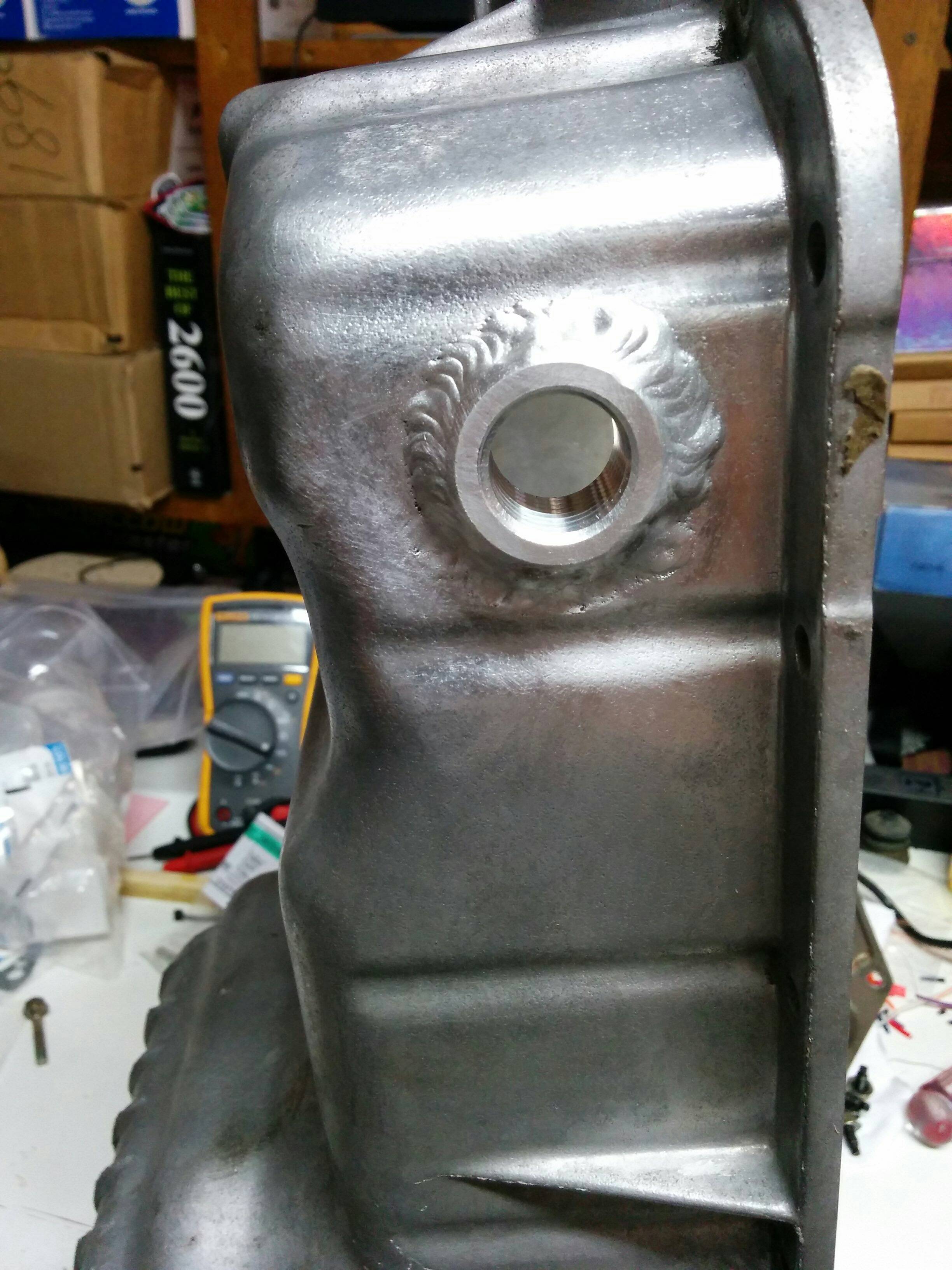

Alternate location for oil temp sender, 1/8"NPT. Yes I see the chips, I have not yet cleaned out the pan at this point.

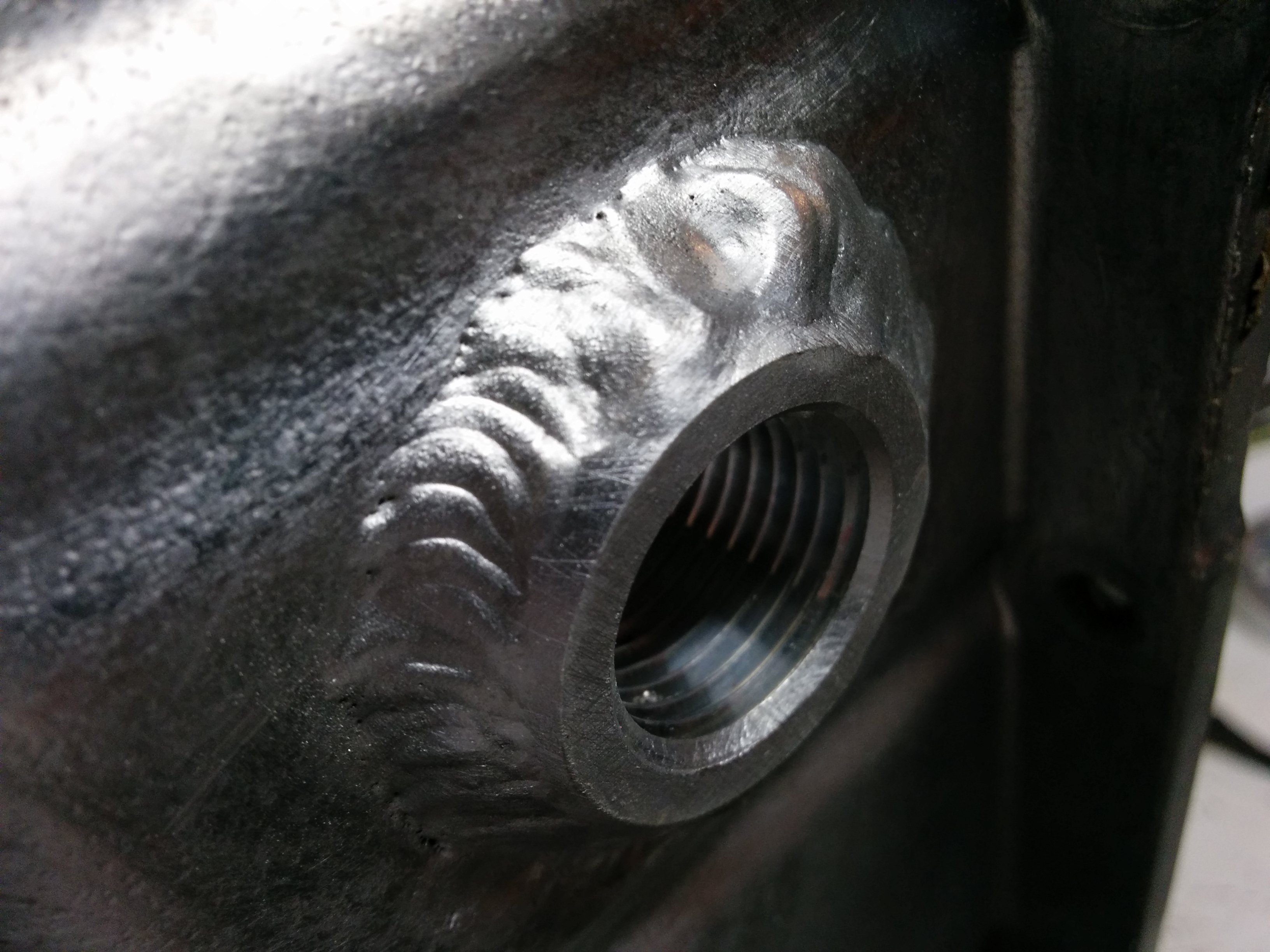

Revised turbo oil drain location. Will it clear the AC bracket? No clue, this engine will never see AC so I'm not worried about it.


I don't think you understand exactly how good Gesso is with a TIG. I believe the phrase is "damn good"

Once again, big THANKS to Gesso for burning aluminum last Sunday.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-upuoxau.jpg   Nothing to see here, just project Sisyphus, move along-pjk0ihj.jpg   Nothing to see here, just project Sisyphus, move along-tnnh2sa.jpg
EO2K is offline   Reply With Quote
Old 07-17-2015, 10:51 AM   #1555
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Pure sex. Once my welder shows up I'm going to start burning aluminum every day.
aidandj is offline   Reply With Quote
Old 07-17-2015, 10:58 AM   #1556
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,492
Default

Great job.

Welding a pan is one of the most annoying and frustrating things ever. The stuff just doesn't like to be welded after years of oil contamination. Geoff did a very clean job.
18psi is offline   Reply With Quote
Old 07-17-2015, 11:02 AM   #1557
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 799
Total Cats: 58
Default

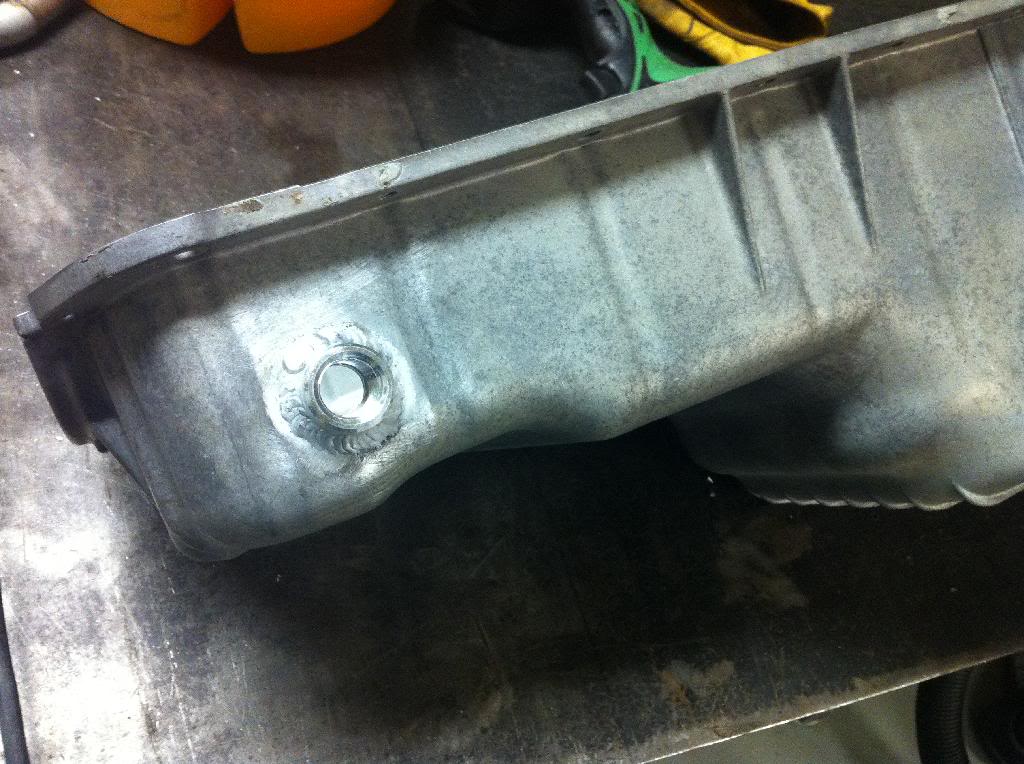

I had to machine the AC compressor bracket to clear the oil return on this pan, looks like you may have to do the same on yours.


I have the same oil temp bung location and it works well and is out of the way.
Looking nice
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-cba271da-1b19-4a5b-9d55-4ab975ac936b.jpg
HHammerly is offline   Reply With Quote
Old 07-17-2015, 11:06 AM   #1558
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

He really does do amazing work. Eventually we'll build some charge pipes as well, but I've got a bit before we get to that point.

The last time we did a pan the contamination was really bad, this time it was a lot better. I think it has a lot to do with the porosity with the casting. Also, as soon as he touched the torch to the coolant neck it immediately started smoking and smelled like burned antifreeze. (FYI that's a terrible smell) He still got fabulous results and the neck is perfect.

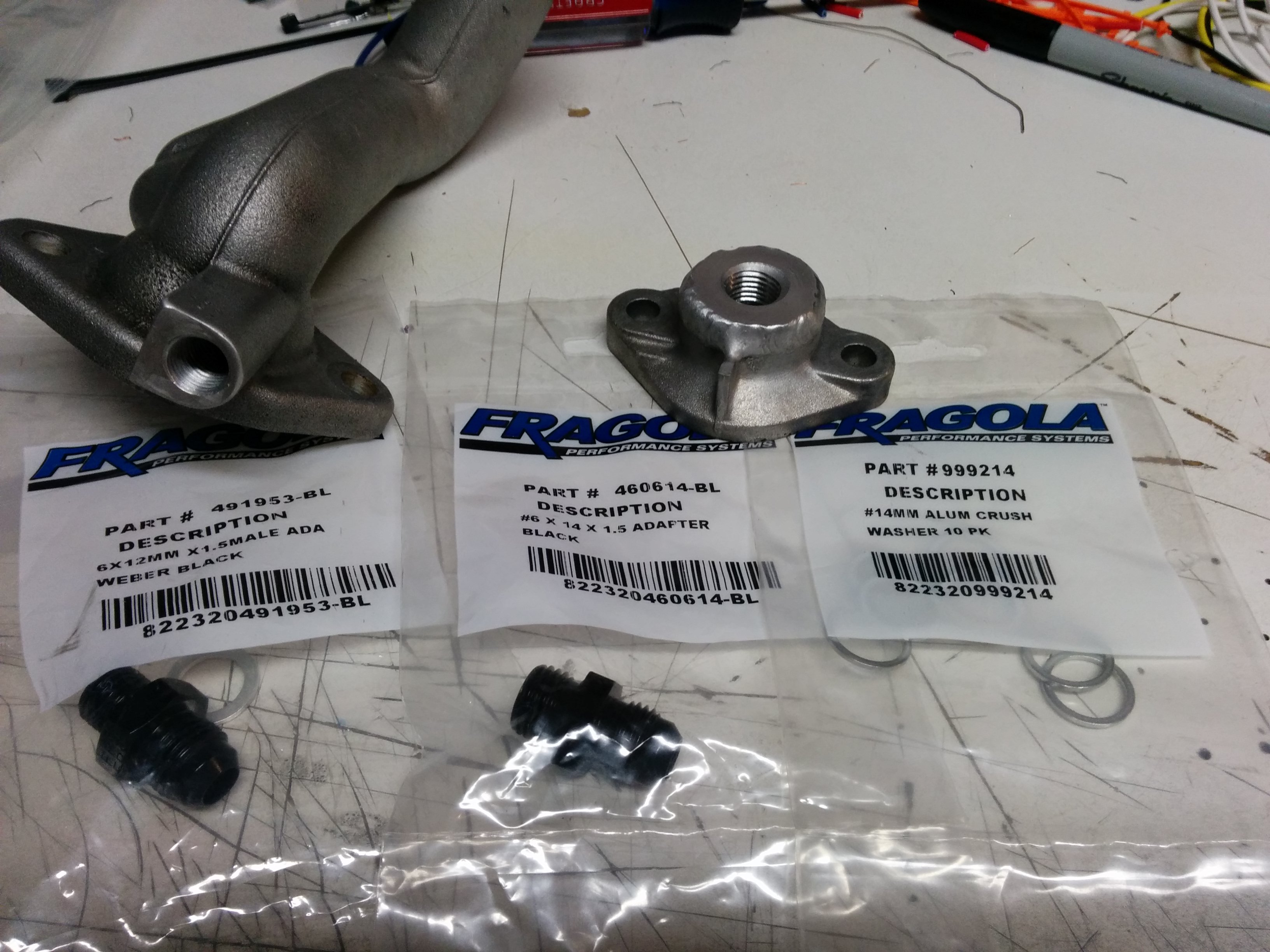

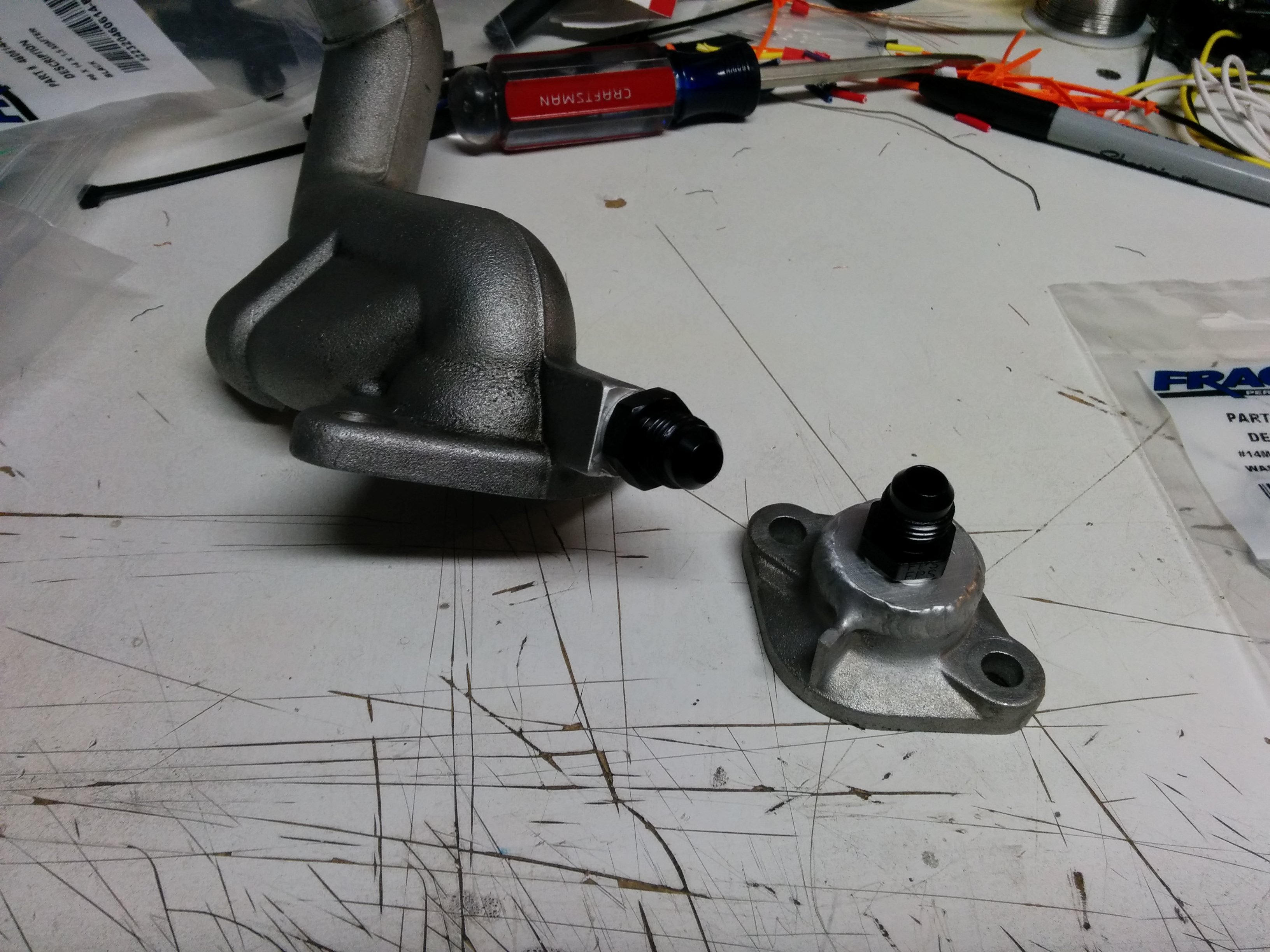

Fragola -6 AN fittings that seal with crush washers. I friggin' HATE NPT and I'll avoid it whenever possible. Even with the washers I still put sealant on the threads. Hopefully no leaks here!


Here they are assembled. The water neck part has veeeeery little crush washer engagement as we went a liiiiittle aggressive on the thread lead in chamfer. Again, sealed up with thread sealant anyway so hopefully it'll be OK.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-oxrn5jv.jpg   Nothing to see here, just project Sisyphus, move along-kwc2rel.jpg
EO2K is offline   Reply With Quote
Old 07-17-2015, 12:05 PM   #1559
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,585
Total Cats: 927
Default

Did someone say progress?

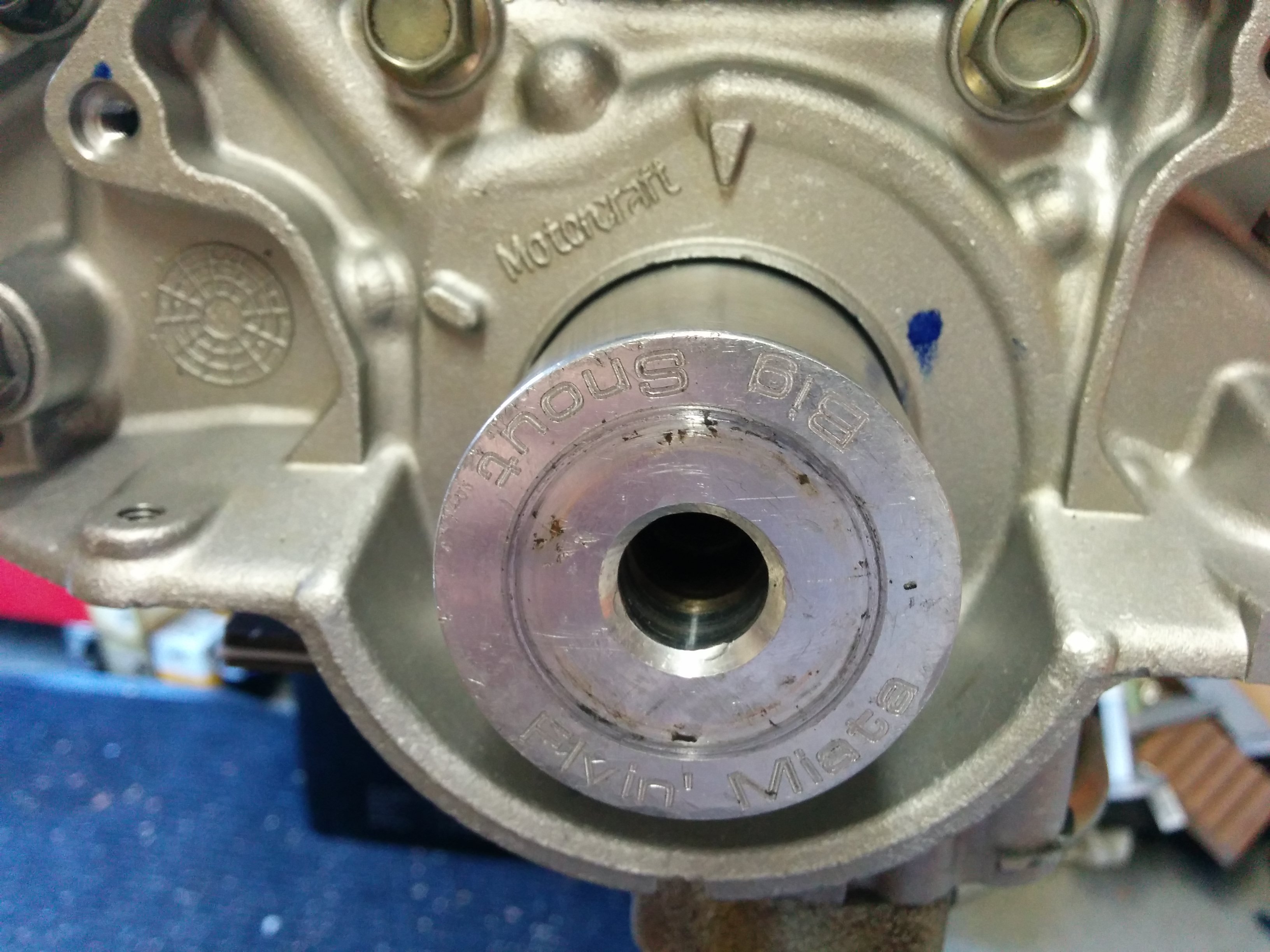

Installed the front crank seal using Ian's seal installer tools. w00t!

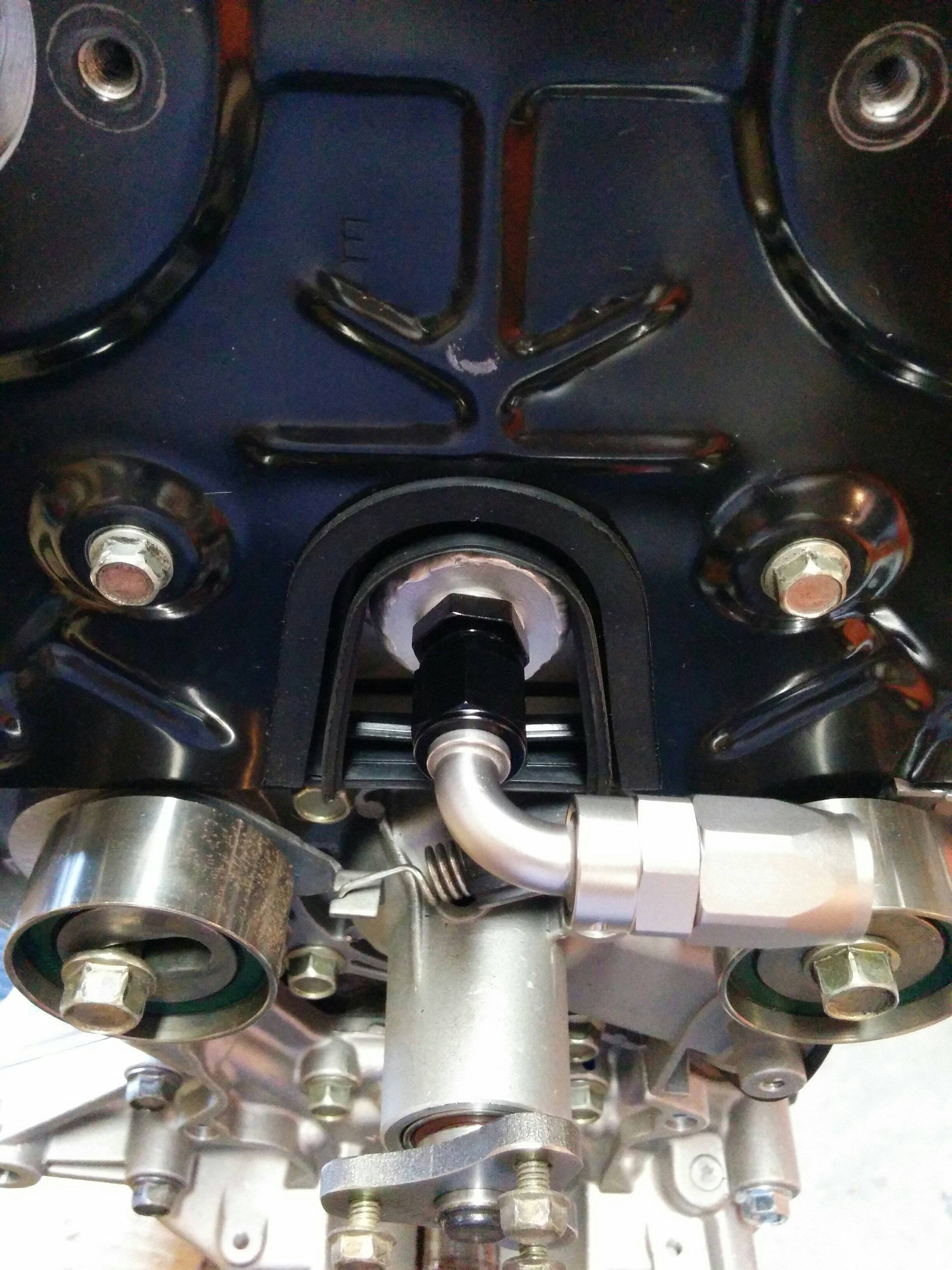

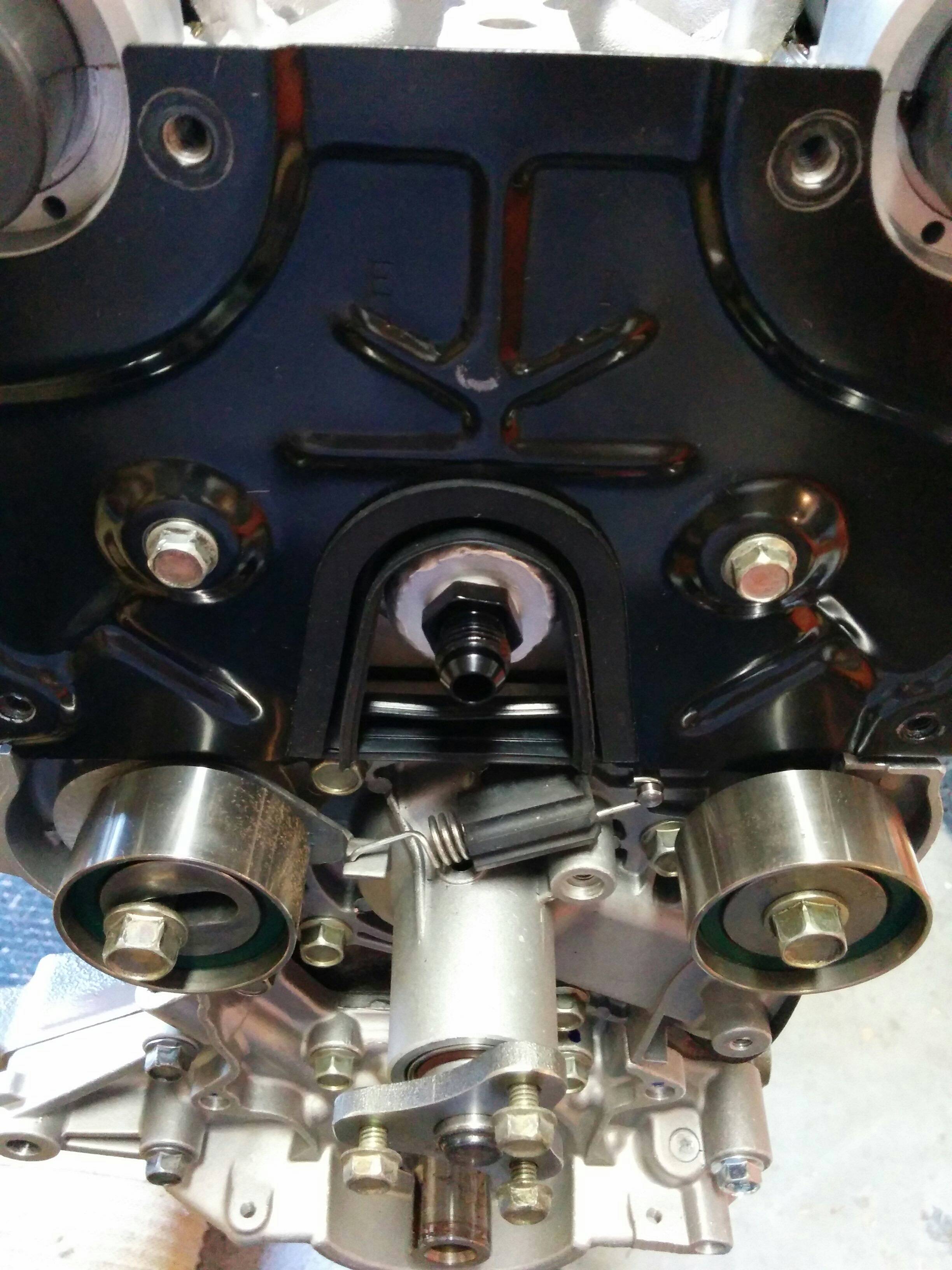

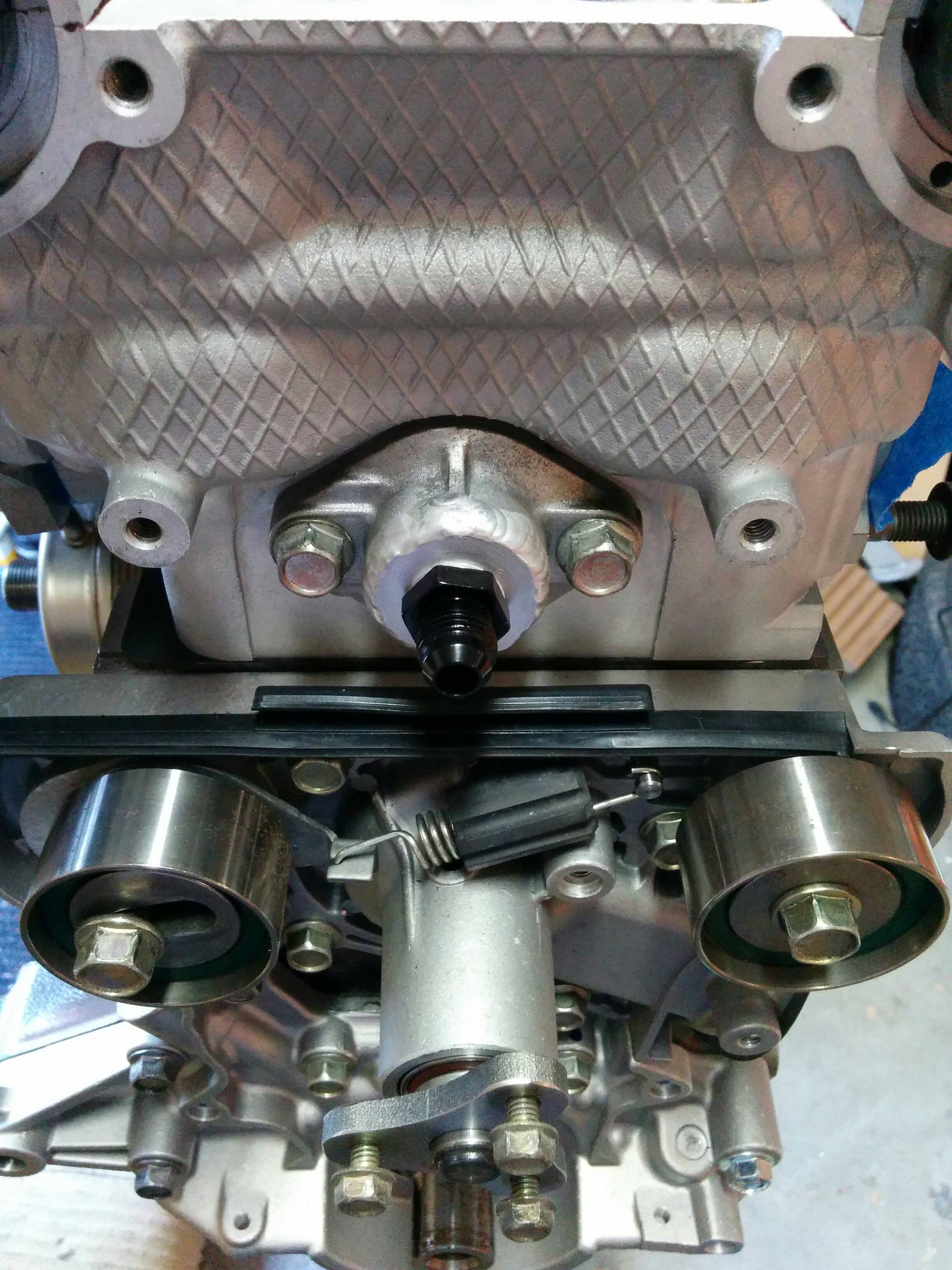

Little water neck thing installed

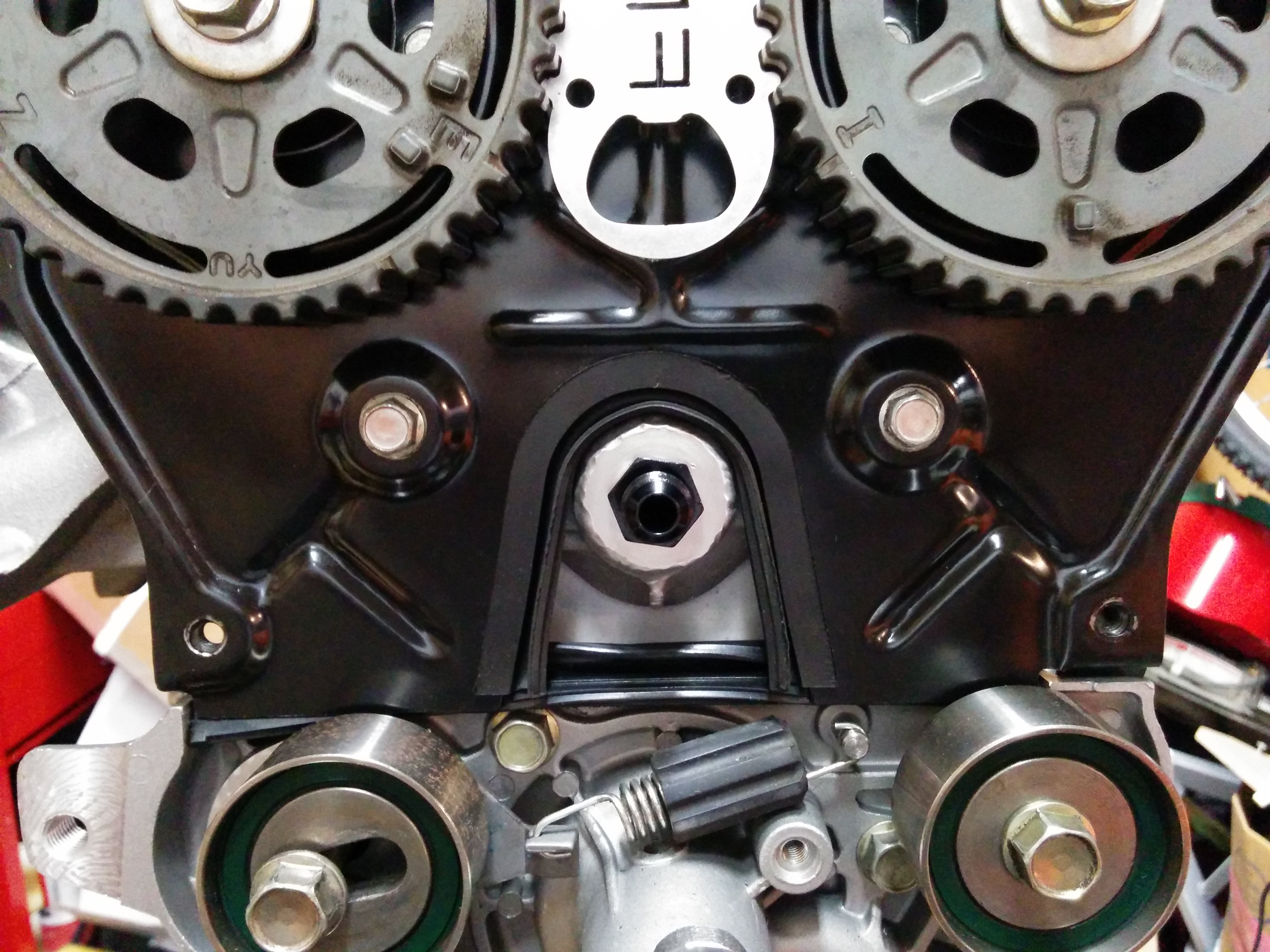

Backing plate clearance looks good

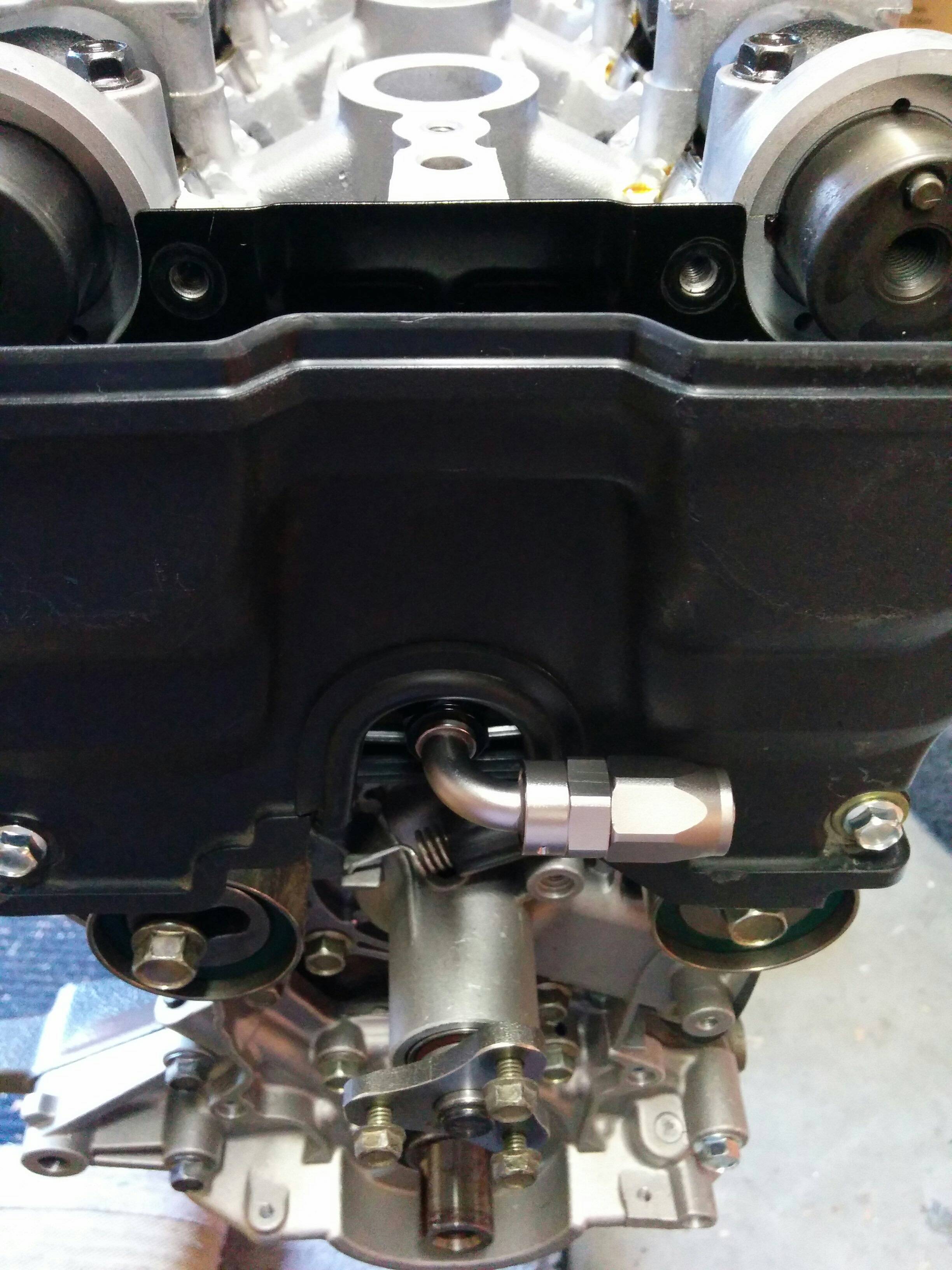

Man I hope this fits...


It fits! No contact with the timing cover

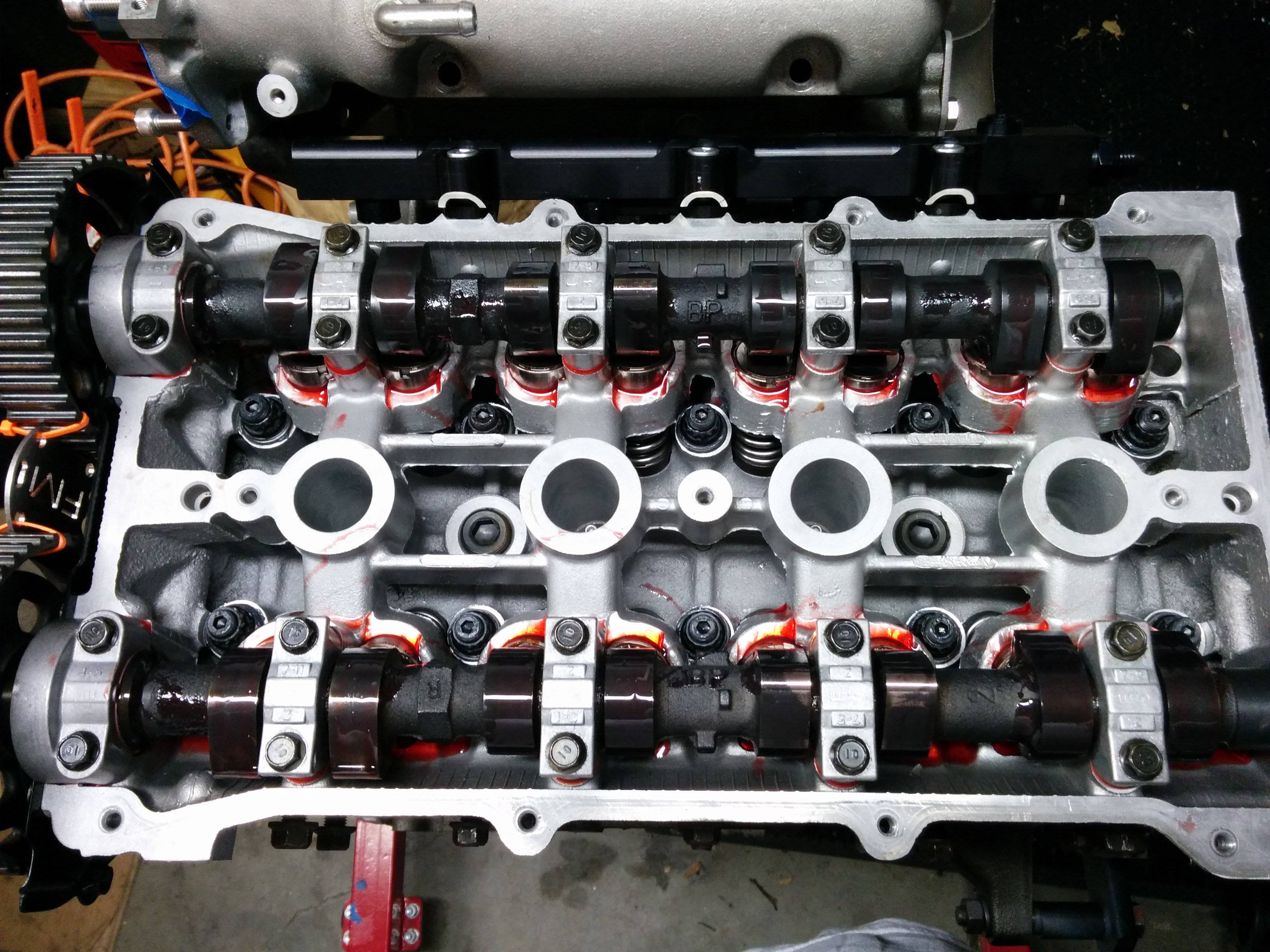

I noticed some weird black **** on my lifter shims so I decided to pull the cams and wipe everything down. Then things started to go down hill...

The black stuff is apparently some sort of coating on the cams but I didn't realize this until I had pulled both cams out of the head. This is OK because it allowed me to notice that all the lifter bores were dry. So one by one I pulled the lifters, wiped them and the bores down with Amsoil Engine Assembly Lube and reinstalled them. I then wiped down and lubed the cam journals and went to reinstall the cams. The intake cam went perfectly. The exhaust cam, not so much. I got it in place and realized I forgot to lube journal #1 so I lifted out the cam and it pulled one of the shims off cylinder E1 and E2. These promptly fell down into the head ON TOP OF ONE ANOTHER.

FUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUCK!

I couldn't find my feeler gauges so I said fuckit and pressed on. I'm about 80% sure I got them back in the right spot but I need to check them before moving forward. I then re-positioned the cam, installed the caps and torqued them using the pattern and spec in the FSM. It's so nice to have good documentation


I made sure to lube ALLTHETHIGNS! on reassembly.


Pulled out the torque wrench and the loctite and got the backing plate installed along with the cam gears. E & I baby!


19 teeth like a bauce. The SuperMiata Harmonic Damper is just chilling until I can borrow the install tool from Emilio. Believe it or not, I actually pulled out the in-lbs torque wrench and torqued the timing cover bolts. Its a brave new world citizens.

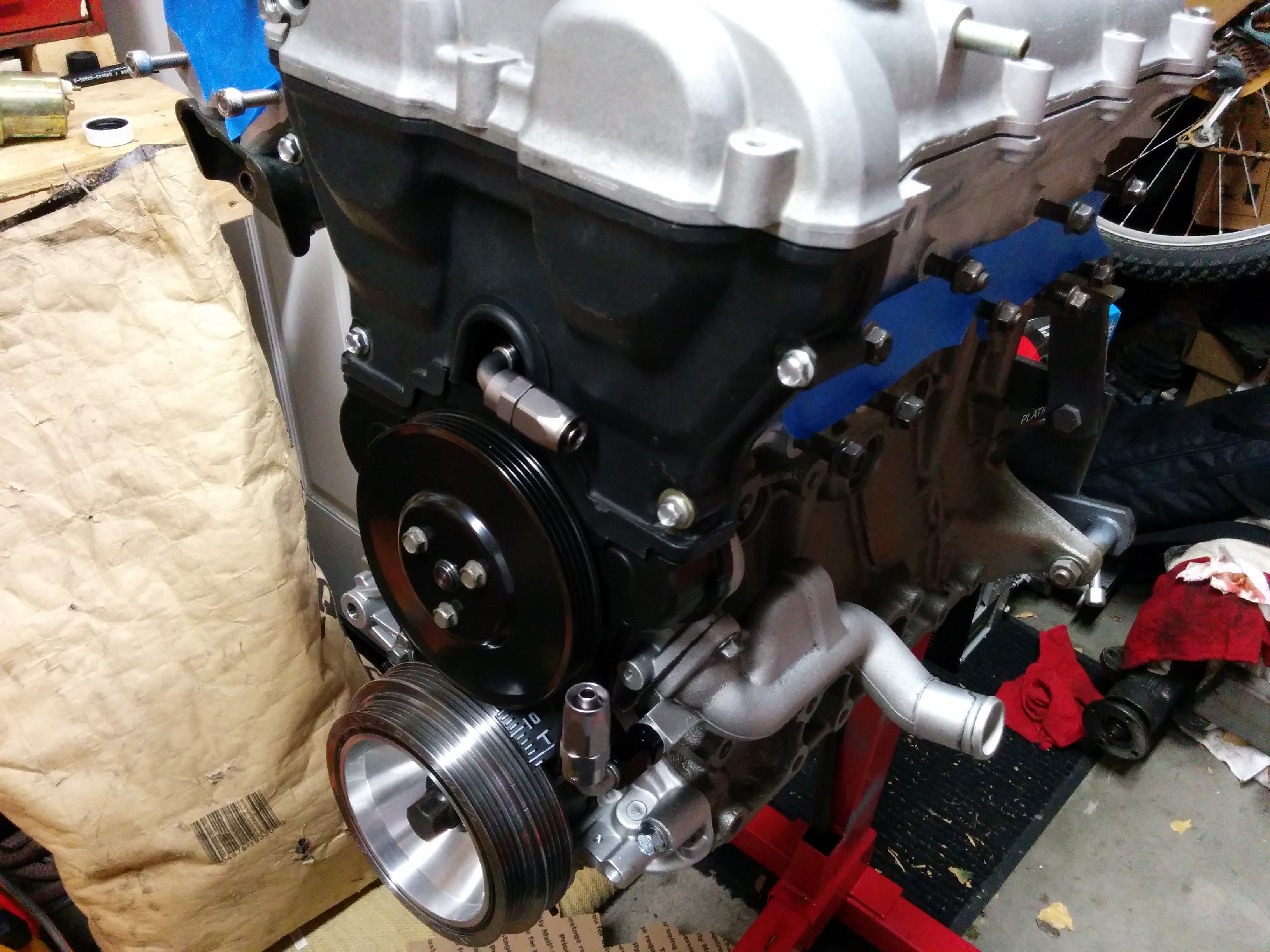

Go to sleep engine, its time for bed.

Tasks for today:
  • Order another set of feeler gauges
  • Order some -6AN caps
  • Order damper install tool from 949
  • Order valve cover gasket
  • Try to order another temp sender for my VEI gauges.

Priority tasks for tonight:
  • finish cleaning oil pan
  • install windage tray
  • install oil pickup
  • install oil pan

Secondary tasks for tonight:
  • install turbo on block
  • finalize and build turbo oil drain
  • finalize and build turbo coolant lines
  • figure out how I want to get oil into the turbo

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-avm9iff.jpg   Nothing to see here, just project Sisyphus, move along-c4nn1pm.jpg   Nothing to see here, just project Sisyphus, move along-jn4vsxr.jpg   Nothing to see here, just project Sisyphus, move along-jxdugn2.jpg   Nothing to see here, just project Sisyphus, move along-kqsmerl.jpg

Nothing to see here, just project Sisyphus, move along-pfkci0f.jpg   Nothing to see here, just project Sisyphus, move along-mfgybmw.jpg   Nothing to see here, just project Sisyphus, move along-dvzzbxc.jpg   Nothing to see here, just project Sisyphus, move along-lfcl3mv.jpg
EO2K is offline   Reply With Quote
Old 07-17-2015, 12:16 PM   #1560
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,492
Default

hahahahaha I love the OCD'ness. Gota mild ocd-chub just reading that post.

Where's the +10 button
18psi is offline   Reply With Quote
