Nothing to see here, just project Sisyphus, move along

Reply Subscribe

Thread Tools

Search this Thread

Nov 16, 2015 | 01:03 PM

#2421

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Quote:

Originally Posted by aidandj

I'm using ABS all around because I'm doing an ABS swap. If you got it just right you could use ABS up front and VSS for the rear.

I need daddy monk to find me an ABS donor car

Quote:

Originally Posted by aidandj

Boost by gear is easy, and only requires VSS.

Well I certainly have that. What exactly does it use for gear detection and how well does it work? Do you currently have it set up?

Nov 16, 2015 | 01:09 PM

#2422

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Joined: Apr 2014

Posts: 18,643

Total Cats: 1,870

From: Beaverton, USA

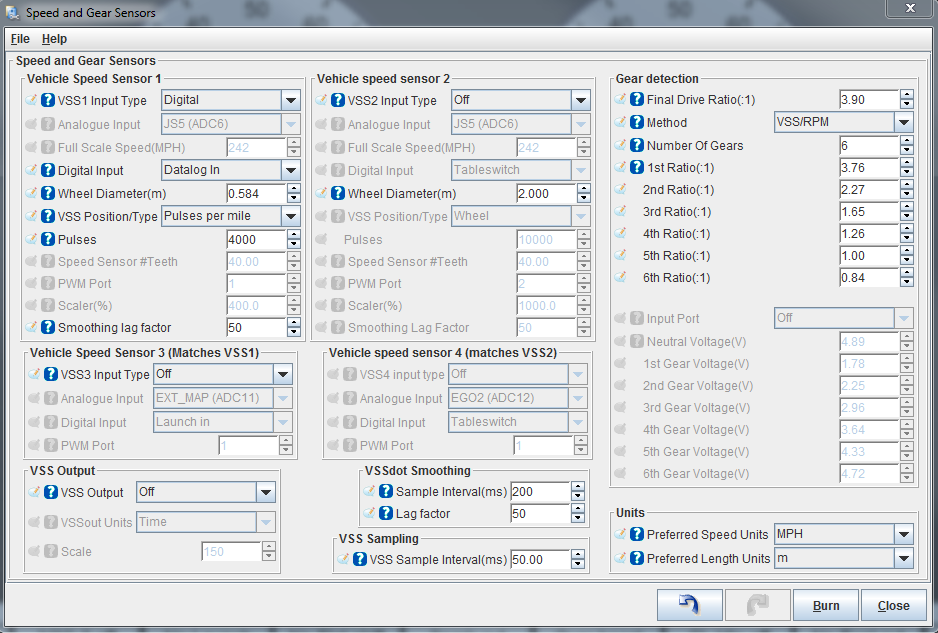

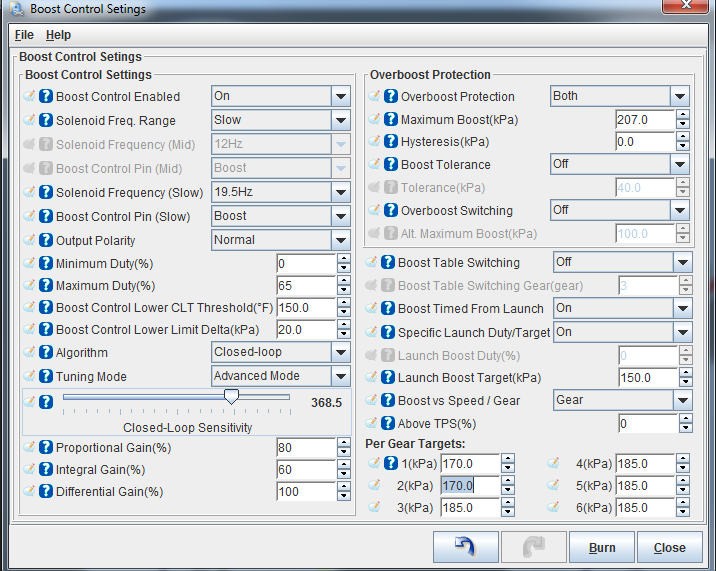

It uses VSS and it works perfectly. I run like 8psi in second, and barely lose traction up top. Then full boost in 3rd and up because peasant torque.
I just realized I might need to adjust my pulse per mile because different rear end ratio. Hmmm.

Attached Thumbnails

Nothing to see here, just project Sisyphus, move along-vhc65zu.png

Nothing to see here, just project Sisyphus, move along-lykcgv3.png

Nov 16, 2015 | 01:11 PM

#2423

codrus

Elite Member

Joined: Mar 2007

Posts: 5,298

Total Cats: 884

From: Santa Clara, CA

Quote:

Originally Posted by EO2K

I do not, but I should. Boost by gear and traction control always been part of the plan.

I'm still trying to figure out if I need a rear ABS upright or if I can just use the VSS for traction control. Go make this work so I can copy you.

The RaceLogic wants sensors on all four wheels. It works nicely.

--Ian

Nov 16, 2015 | 01:13 PM

#2424

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Unfortunately I don't make RaceLogic money :P

Nov 16, 2015 | 01:23 PM

#2425

18psi

VladiTuned

iTrader: (76)

Joined: Apr 2008

Posts: 35,821

Total Cats: 3,482

as soon as you update to firmware that properly controls CL boost, boost by gear should work fine

Nov 16, 2015 | 01:26 PM

#2426

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Quote:

Originally Posted by 18psi

as soon as you update to firmware that properly controls CL boost, boost by gear should work fine

Yeah, that's what I'm afraid of. I think one of my biggest failures thus far was not getting the car running on 1.4.0 before bringing it to you. Now I'm scared to death to try to update the firmware.

Nov 16, 2015 | 01:27 PM

#2427

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Joined: Apr 2014

Posts: 18,643

Total Cats: 1,870

From: Beaverton, USA

Its easy

Nov 16, 2015 | 01:28 PM

#2428

codrus

Elite Member

Joined: Mar 2007

Posts: 5,298

Total Cats: 884

From: Santa Clara, CA

Quote:

Originally Posted by EO2K

Unfortunately I don't make RaceLogic money :P

Nobody does any more -- they've discontinued it. No idea why.

--Ian

Nov 16, 2015 | 01:38 PM

#2429

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Quote:

Originally Posted by aidandj

Its easy

Maybe for you. The last time I tried to go from 1.3.x to 1.4.0 it completely fux0rd my tune and the car wouldn't start. I spent DAYS trying to fix it and eventually gave up and went back to 1.3.x

Nov 16, 2015 | 01:39 PM

#2430

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Joined: Apr 2014

Posts: 18,643

Total Cats: 1,870

From: Beaverton, USA

Upgrade to 1.4 Copy list of errors.

Edit the MSQ manually for each error.

Profit

Nov 16, 2015 | 01:41 PM

#2431

codrus

Elite Member

Joined: Mar 2007

Posts: 5,298

Total Cats: 884

From: Santa Clara, CA

FWIW, my upgrade from 1.3.4 to 1.4.0 went smoothly with no issues. Needed to retune the initial value (now bias) table, but that was it.

--Ian

Nov 16, 2015 | 01:44 PM

#2432

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Fine, I'll do it on Saturday and you all can watch me suffer and whine for help all weekend.

Nov 16, 2015 | 02:38 PM

#2433

18psi

VladiTuned

iTrader: (76)

Joined: Apr 2008

Posts: 35,821

Total Cats: 3,482

I'll make sure to disconnect my phone

jkjk

Nov 16, 2015 | 02:39 PM

#2434

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Joined: Apr 2014

Posts: 18,643

Total Cats: 1,870

From: Beaverton, USA

I'll be out of town

Nov 16, 2015 | 03:41 PM

#2435

Monk

Elite Member

iTrader: (3)

Joined: Apr 2014

Posts: 2,885

Total Cats: 617

From: Huntington, Indiana

Quote:

Originally Posted by EO2K

I need daddy monk to find me an ABS donor car

You need an upright?
I took the entire rear subframe, and I don't need ABS.

Aidan; I haven't forgotten you little buddy. You'll get all your parts soon.

Nov 16, 2015 | 04:04 PM

#2436

EO2K

Thread Starter

Elite Member

iTrader: (37)

Joined: Apr 2010

Posts: 10,477

Total Cats: 1,924

From: Very NorCal

Possibruu... Aidan says I don't need it though. Wouldn't I need the pair? And the axles?

Curse Ed and his actually swapping over the ABS

Nov 16, 2015 | 04:20 PM

#2437

aidandj

SADFab Destructive Testing Engineer

iTrader: (5)

Joined: Apr 2014

Posts: 18,643

Total Cats: 1,870

From: Beaverton, USA

Its worth trying with just VSS.

You only need one for VSS 2 for ABS

Nov 16, 2015 | 04:24 PM

#2438

Monk

Elite Member

iTrader: (3)

Joined: Apr 2014

Posts: 2,885

Total Cats: 617

From: Huntington, Indiana

You only need the upright for the sensor mounts.
The only difference in the axles is the ring, which just presses on. I don't think the axles are different otherwise.
Lemme take some pics.
