Nothing to see here, just project Sisyphus, move along - Page 30 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 11-19-2014, 05:10 PM   #581
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Just called Moroso, they said BAR/CARB told them they didn't need one for the product because its not VTA. Ol man smog shop says I have to remove it. These guys are scared to death that I work for the state and I'll going to bust them. Jesus christ.
EO2K is offline   Reply With Quote
Old 11-19-2014, 05:13 PM   #582
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

They just told me I couldn't use the stock one because "it does not look stock" (it does have a check valve in it leftover from the Rotrex.) I chopped a piece off the line from Moroso and they said its not "emissions rated hose" so I had to SHOW THEM it straight up say "Goodyear Emissions/Fuel" printed right on the hose. Frustration level is rising.

Last edited by EO2K; 11-19-2014 at 05:30 PM.
EO2K is offline   Reply With Quote
Old 11-19-2014, 05:24 PM   #583
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Just tried to fail me on visual again because of aftermarket gauges...
EO2K is offline   Reply With Quote
Old 11-19-2014, 05:39 PM   #584
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,790
Total Cats: 336
Default

Quote:
Originally Posted by EO2K View Post
Just tried to fail me on visual again because of aftermarket gauges...
Find another shop, this guy has it out for you.

--Ian
codrus is offline   Reply With Quote
Old 11-19-2014, 05:50 PM   #585
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

I had to walk them through how the gauges were hooked up, they were worried I had hacked a bunch of **** into the factory harness to get the gauges to read correctly. To his credit, the guy at the shop said he was impressed with my wiring job and apologized for questioning me on it.

I eventually passed so I don't care. Time to move on with my life.
EO2K is offline   Reply With Quote
Old 11-19-2014, 06:26 PM   #586
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Quote:
Originally Posted by codrus View Post
Find another shop, this guy has it out for you.

--Ian
Ehh, I'm not so sure about that. I honestly feel bad for these guys because the state has made them this paranoid. The old chinese guy I used to take my cars to went insane so I stopped going there as well, and for the exact same reason.

What makes better is that I went to this same shop with these same guys 2 years ago, they even pulled me up in their system. My Dad takes his vehicles there and I take my wifes Escape there as well so its not like I'm not a known entity. Its just so bizarre.
EO2K is offline   Reply With Quote
Old 11-19-2014, 06:34 PM   #587
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

CA or OR? Can't remember your location (other than distant past, which, clearly, is not your location or you wouldn't even be doing smog).
hornetball is offline   Reply With Quote
Old 11-19-2014, 06:37 PM   #588
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

The one with the bigger left coast.
EO2K is offline   Reply With Quote
Old 11-19-2014, 06:39 PM   #589
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

nazifornia
18psi is offline   Reply With Quote
Old 11-19-2014, 06:40 PM   #590
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

50 years ago, Nazifornia was paradise. WTF happened?
hornetball is offline   Reply With Quote
Old 11-19-2014, 06:53 PM   #591
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Hippies
EO2K is offline   Reply With Quote
Old 11-19-2014, 09:33 PM   #592
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 683
Total Cats: 130
Default

I've got your spare mixing manifold at my place now. Thoughts on what you want done with it?
gesso is offline   Reply With Quote
Old 11-19-2014, 11:21 PM   #593
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Winning! Big thanks to you and Ian I figure we can chop it off and rotate it about 30 downward to make it clear. Of course I'll need to wait until the manifold gets back from Swain, but I expect that to be around a week or so. I still want to take you up on the garage space thing, if its not occupied by a Forester of course.
EO2K is offline   Reply With Quote
Old 12-19-2014, 07:23 PM   #594
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

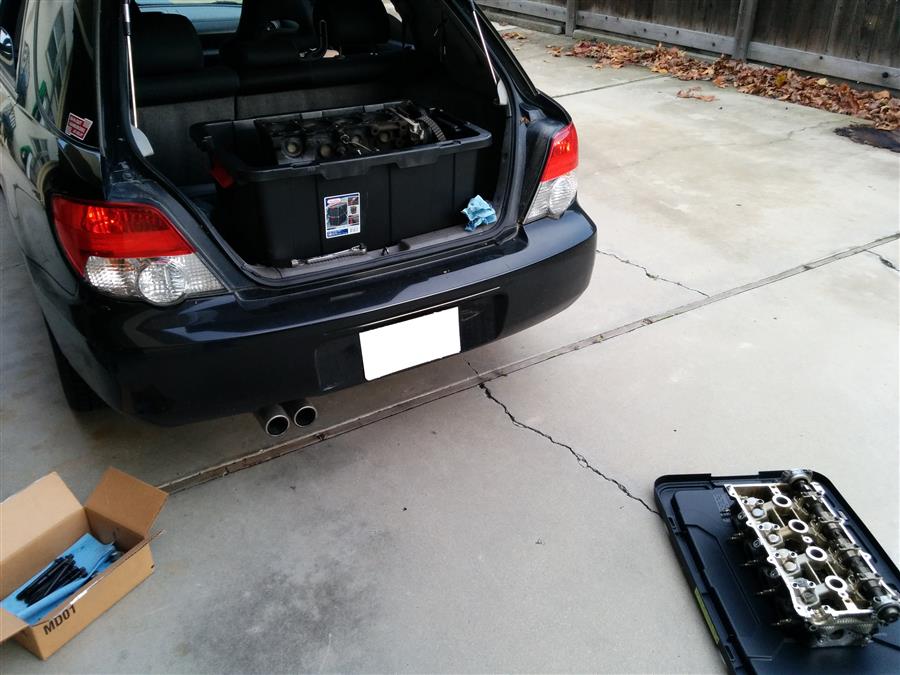

Subaru gets better gas mileage without a BP in the back



I had to remove the head so I could lift the shortblock out of the car. Damn iron block weighs a ton!
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-phone-stuff-071.jpg
EO2K is offline   Reply With Quote
Old 12-19-2014, 07:24 PM   #595
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

dat subawu doe
18psi is offline   Reply With Quote
Old 12-19-2014, 08:38 PM   #596
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 18psi View Post
dat subawu doe
This. I don't plan on owning a Subaru anytime soon, but every time I see a clean bug-eye WRX wagon I want one.

My dad taught me to drive in a 2002 WRX wagon when we lived in Kansas. Much fun was had on perfect(absolutely perfect) farming dirt roads. Sadly my sister killed it during the winter on some ice.
Jeffbucc is offline   Reply With Quote
Old 12-19-2014, 09:56 PM   #597
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Quote:
Originally Posted by 18psi View Post
dat subawu doe
Awwww yisssss
Quote:
Originally Posted by Jeffbucc View Post
This. I don't plan on owning a Subaru anytime soon, but every time I see a clean bug-eye WRX wagon I want one.

My dad taught me to drive in a 2002 WRX wagon when we lived in Kansas. Much fun was had on perfect(absolutely perfect) farming dirt roads. Sadly my sister killed it during the winter on some ice.
Mine is an 04 so I think they call it a "blob eye" but I believe the underpinnings are all pretty much the same? Close enough though. I don't know if you made it as far down as Salinas when you were in town, but all that crazy ag land out here? I work out and around that stuff from time to time. I'm not sure if I posted it, but I have pics of the 6UL/225RS3 combo on my car absolutely packed with mud from a field. The Miata is not exactly the optimal car for the conditions

The Subaru on the other hand is glorious. When its time for new tires I'll probably look for something a little narrower and a little more "all season" than the BFG Comp2s that are on there now. And yes, I fell in love with it the first time I drove it. I had test driven probably 5-6 other WRXs before getting to this one and they were almost all either significantly molested or abused in some way that made me disinterested. This one had been modded in the past but returned to stock, and tuned by the Hand of Vlad. It was overall cleaner than the majority I'd seen and while I thought I knew what to expect, the tune made it pull quite a bit harder than any of the other ones I'd driven. The test drive was so short I think I wierded him out when I said I'd take it

Funny story, I was actually dead set on a TDI VW but couldn't find one when someone suggested the WRX. I regret nothing!
EO2K is offline   Reply With Quote
Old 12-19-2014, 11:06 PM   #598
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,741
Total Cats: 2,481
Default

It was a pleasure tuning it
Even more a pleasure knowing it was going to someone that was actually going to not "stance" it or something equally retarded.
18psi is offline   Reply With Quote
Old 12-20-2014, 12:13 AM   #599
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

Progress? Update? Whatever.
  • Head is ordered. I should see it some time next month. Yay!
  • Manifold is with Swain. It's been longer than expected, but I'm not going to worry about it until after the holidays.
  • Shortblock is now in my garage.
  • Acquiring engine stand tomorrow.
  • Disassemble ALLTHEEGNINES!

If all goes to plan, I should have things disassembled enough to get the block, crank and big *** pile o' parts to the machine shop next week. If ther are not ridiculously busy I should have a forged shortblock ready to go before the head gets back.

I had initially considered assembling this myself, but I think I'm going to pay someone to do the critical assembly for me. I don't have the cash to do this all again should I completely fubar something, so I'm happy to pay someone for their expertise. From my reading, crank and rod bearings should be fine with the factory spec but I need to figure out what to ask for with regards to end gaps on the Wiseco XX rings and PtW on the Supertechs.

Rings:

Quote:
Originally Posted by emilio700 View Post
Both the low tension ST and near OEM tension Wiseco XX rings are manufactured by NPR in Japan. The piston material has virtually no effect on ring settings for a given ring. Use the Wiseco recommendations for the XX rings included in our piston kits.

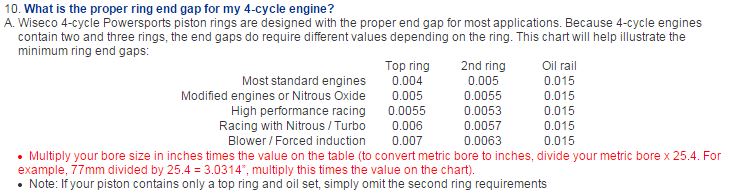

In Emilio we trust, thus, Wiseco says the following:


Frequently Asked Questions - Wiseco Piston Inc.

So with my 83.5mm bore, Wiseco's numbers come out to...

83.5 / 25.4 x 0.005 = 0.0164 top ring
83.5 / 25.4 x 0.0055 = 0.0180 second ring
83.5 / 25.4 x 0.015 = 0.0493 oil ring

So that's pretty cut-n-dried. I would assume slightly larger is better than slightly smaller but its not something I'm going to be overly concerned with.

Piston to Wall clearance:

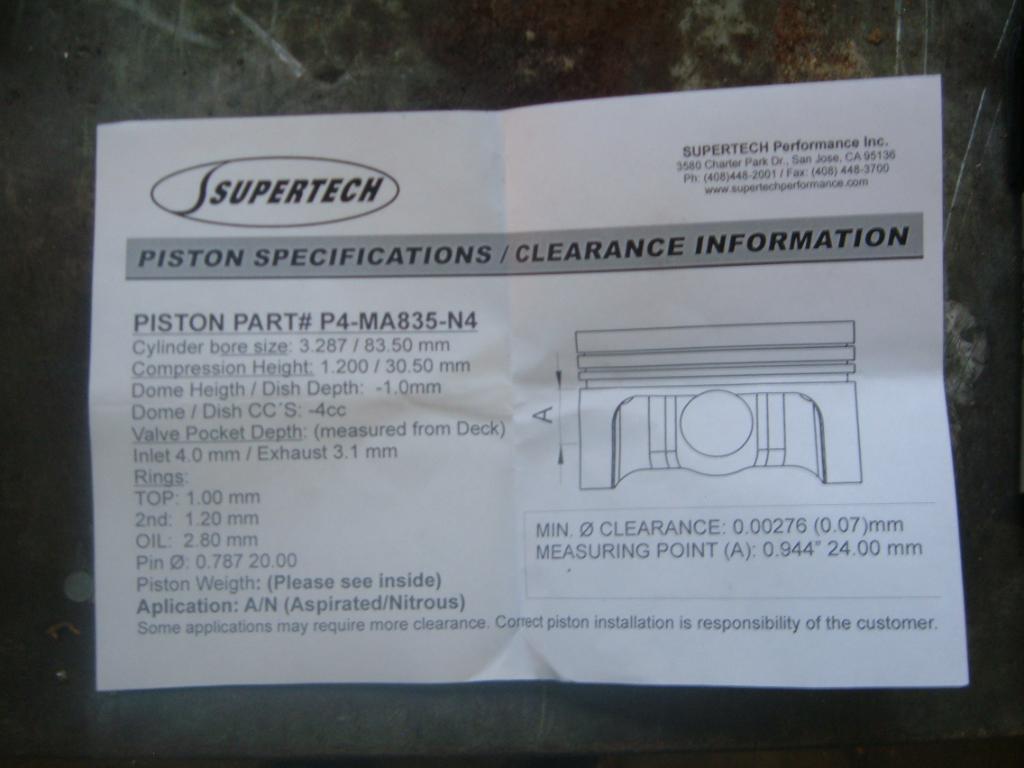

Right there on the paperwork from Supertech, Min. ‎ Clearance: 0.00276

So that's MINIMUM clearance. I need to figure out exactly how much clearance I should be shooting for here. I'll continue reading and PMing people to see what I can find, but this is the one that is going to keep me up at night
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-wisecoring.jpg
EO2K is offline   Reply With Quote
Old 12-20-2014, 02:10 AM   #600
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,573
Total Cats: 924
Default

I'm going to leave this here: https://www.miataturbo.net/engine-pe...earance-51070/

Fuckery notwithstanding, there might be some good information in that thread. Both Sav and Hustler are quoted at "right around .004" and "I'm running .004" respectively. The thread is also 4 years old now. Quite honestly that sounds big. Like, Soviet's cold Wiseco slapfest big. I'm not building a dedicated racecar motor (believe it or not) and I feel like I'm going to have a lot more cold start cycles than a full blown racecar would. Le sigh. Must keep reading and make informed decision...
EO2K is offline   Reply With Quote
