Old 07-22-2014, 06:37 PM   #221
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

Quote:
Originally Posted by EO2K View Post
Ohhhhhh man!

Is ARTech doing the manifold? I sometimes wish I had gone this route. AC is already out so I'm only a hop-skip-jump away from killing off my PS.
It is the work of Abe. The best part is this will still work with AC. Poss will be deleted and I will run with just a belt and no pulley.
Ryan_G is offline   Reply With Quote
Old 08-07-2014, 12:40 PM   #222
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

I need to solicit advice from others that are removed from the situation, have a level head, and are more knowledgeable than I. Like all good builds I have run into a problem. When Abe was ready to finish my manifold and begin working on the downpipe he fully unboxed my turbo and realized that it is not an IWG setup but a EWG setup instead. This creates all kinds of issues. I started looking back to when I ordered the turbo from Bryan to make sure I specified the right turbo but the initial communications were via forum pm's because the 7163 was not on his website yet. I had deleted these PMs. However, I did find the initial invoice. To my dismay it said EWG on it and I completely missed it when I made the payment. This was my **** up. So by this point too much time has passed to just return the turbo to BW and Bryan has only sold one of this particular type of turbo making it a "unique item" per se and he doesn't want to just restock it in his inventory. I am essentially left with two options.

1. Bryan has agreed to take the turbo back and list it as a discounted open box item and apply that amount to my new IWG turbo. I feel like this process is going to be time consuming and an overall hassle. I am waiting on Bryan to get back to me on the $$ specifics of this option.

2. I can keep the EWG version I have and alter my order with Abe which will cost me $200 for the manifold modifications and dump tube. I will then need to get a good EWG which will run me at least another $200 if not more. This option will be less of a hassle and much faster.

So I pose the question to you gays, what would you do and why? I plan for this build to progress to absolute monster levels of power necessitating a new transmission and all sorts of other supporting modifications so keep that in mind. Is the EWG a better option? I know BW IWG are suppose to be baller so I am not convinced.
Ryan_G is offline   Reply With Quote
Old 08-07-2014, 12:46 PM   #223
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

You already have the EWG turbo and its in abe's hands mid manifold manufacture. As long as the fact that the it was built to be an IWG manifold already isnt going to compromise the EWG setup (like if the manifold would have been setup different if he knew it was going to be ewg from the start) I would just go that way.
Leafy is offline   Reply With Quote
Old 08-07-2014, 01:15 PM   #224
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Am I to assume an EWG turbo is less money than a IWG? How much so?

Make sure you calculate that into the equation before making your decision.
miata2fast is offline   Reply With Quote
Old 08-07-2014, 01:19 PM   #225
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

Quote:
Originally Posted by miata2fast View Post
Am I to assume an EWG turbo is less money than a IWG? How much so?

Make sure you calculate that into the equation before making your decision.
This is what I am waiting to hear from Bryan on.
Ryan_G is offline   Reply With Quote
Old 08-07-2014, 01:24 PM   #226
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,256
Total Cats: 1,481
Default

All baller setups have EWG for a reason. To my understanding they offer more precise control and can handle greater volume. I read somewhere that there is less disruption of the turbine inlet flow as it necks down to the impeller. And it is a value added component, meaning it will always be worth something.

But you might not want to ask me because I'm not afraid to spend your money.
sixshooter is offline   Reply With Quote
Old 08-07-2014, 02:31 PM   #227
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

The collection of parts will obviously cost more, but if the turbo itself is cheaper, you can get going sooner, and is a better setup anyways; I say go with it and never look back.
miata2fast is offline   Reply With Quote
Old 08-07-2014, 03:18 PM   #228
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

I am leaning toward going the EWG route for ease and it will likely not be much more expensive after reselling the current turbo and buying a new one. I am completely ignorant when it comes to picking the right EWG because it was never in my plan to utilize one. I know Tial is the go to brand but what size am I looking for and is there anything weird about the EFR line of turbos that I need to know as far as EWG's are concerned?
Ryan_G is offline   Reply With Quote
Old 08-07-2014, 06:36 PM   #229
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Sorry to hear about your issues Ryan. I'd look at this as an opportunity to explore a new, possibly better EFR avenue. It will be a headache to put the fabrication on hold with Abe while you source a new turbo, then attempt to pick it up where you left off.

You are also right about the losses likely being nil after resale and whatnot. If you are really expecting to push limits with this thing run with this unless research shows there are glaring BW EWG issues, which I doubt. Yes the IWG has been good to our members because it's designed properly but I'd be surprised to hear that it is actually better than a well sorted EWG.
petrolmed is offline   Reply With Quote
Old 08-07-2014, 06:50 PM   #230
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,256
Total Cats: 1,481
Default

You should maybe talk to our buddy Gary. He may have an extra EWG of good quality and/or be able to speak to the pros and cons of different ones.
sixshooter is offline   Reply With Quote
Old 08-07-2014, 07:04 PM   #231
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

tial 38mm - you don't really need anything else.
I agree with the posts above.
Bummer about the situation, hope it works out
18psi is offline   Reply With Quote
Old 09-25-2014, 10:55 PM   #232
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

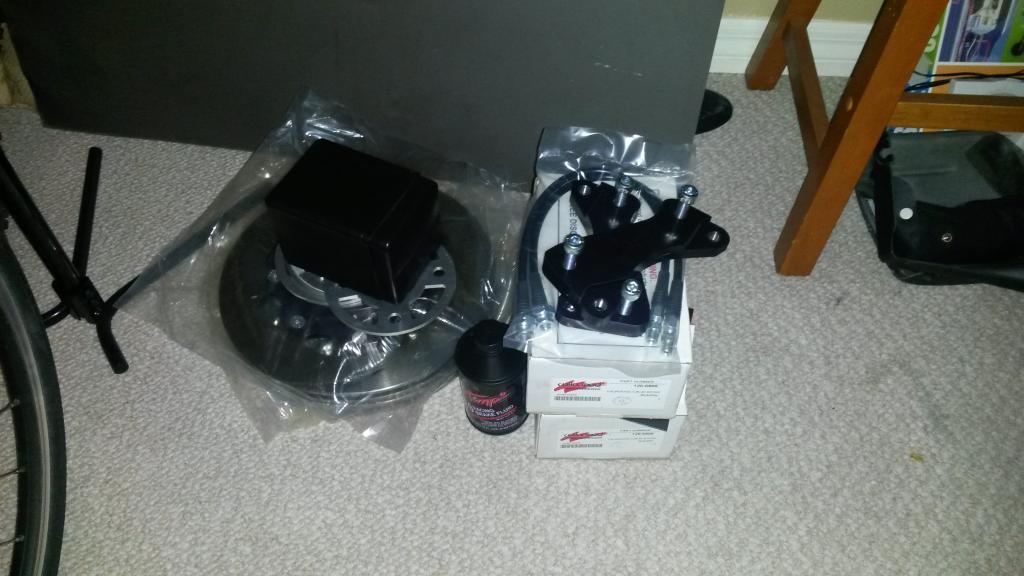

Pretty parts!



V8 Roadsters 11.75" BBK that will be going on this weekend before Sebring. There may also be something very exciting in the works but I can't divulge anything at the moment until there is something more concrete. I should know more in the next week.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20140925_223708_zps7b95e1ea.jpg
Ryan_G is offline   Reply With Quote
Old 09-26-2014, 12:42 AM   #233
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Tease
EO2K is offline   Reply With Quote
Old 10-08-2014, 12:00 PM   #234
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

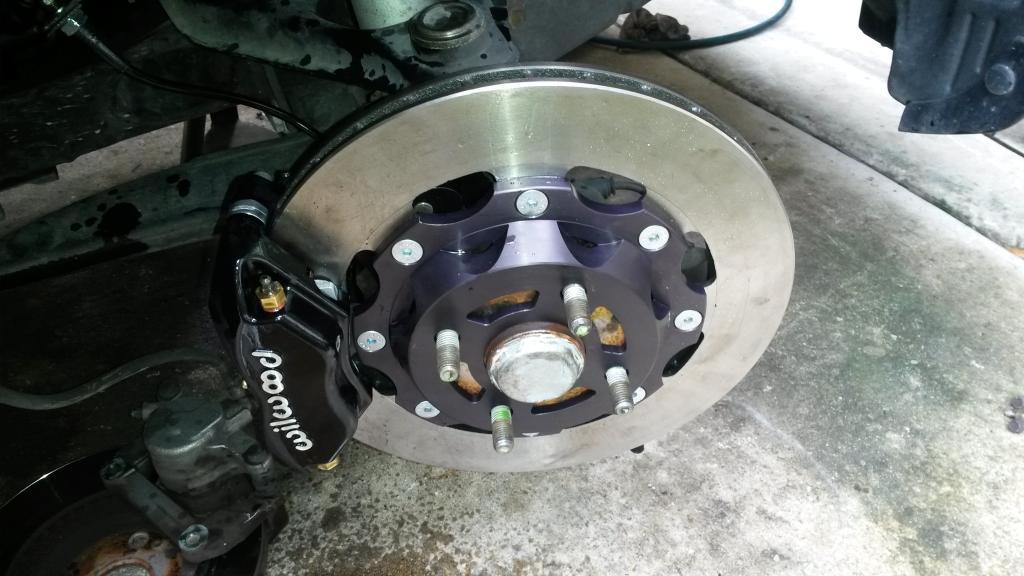

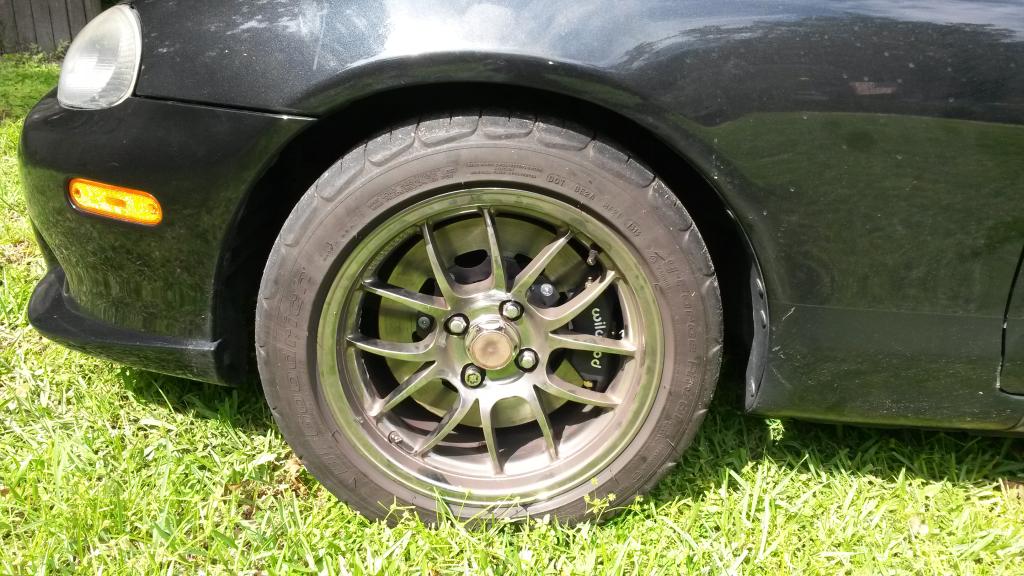

I installed the V8R BBK the weekend before last while prepping for Sebring.



This kit is absolutely amazing. It uses the same rotors as and calipers that the TSE kit uses but it has a custom caliper mount that Shandelle designed himself made of cnc cut aluminum. It fits under my gen 1 15x8 6UL with no spacers.



The install was cake and the brakes worked flawlessly all weekend at Sebring. I went with the Cobalt xr4 pads up front as they were a step up from the HP+ (which were fading) that I was previously running but were not so aggressive as to completely overpower my rivals when braking. I really picked up a lot of speed this weekend. There were 2 really wet sessions on saturday that were a fun lesson in car control. Sunday was absolutely gorgeous. It was cool with no clouds in the sky because a front came through which made for perfect track conditions. At the end of the weekend I got my check ride from HPDE 2 to HPDE 3.

Sixshooter convinced me to sign up for Daytona because NASA is doing the entire weekend for fairly cheap. So that will be on Nov 1-2. Should be a blast. I would like to get the radiator ducting complete and install the hood louvers I just received yesterday from ThePass before daytona if I can make the time.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20140927_142358_zpsuwvpsnz7.jpg   Ryan's build thread - Clean and Mean-20140927_152335_zpsushekrxa.jpg
Ryan_G is offline   Reply With Quote
Old 10-08-2014, 04:21 PM   #235
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,256
Total Cats: 1,481
Default

Quote:
Originally Posted by Ryan_G View Post
Sixshooter convinced me to sign up for Daytona because NASA is doing the entire weekend for fairly cheap. So that will be on Nov 1-2.
I'm an enabler.
sixshooter is offline   Reply With Quote
Old 10-08-2014, 09:20 PM   #236
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,807
Total Cats: 423
Default

Quote:
Originally Posted by Ryan_G View Post
I would like to get the radiator ducting complete and install the hood louvers I just received yesterday from ThePass before daytona if I can make the time.
Looking forward to seeing your install and results!

That V8R kit looks very nice. I spent some time talking with Shandelle at Laguna Seca, I like the stuff he's doing.

-Ryan
ThePass is offline   Reply With Quote
Old 10-10-2014, 12:30 PM   #237
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

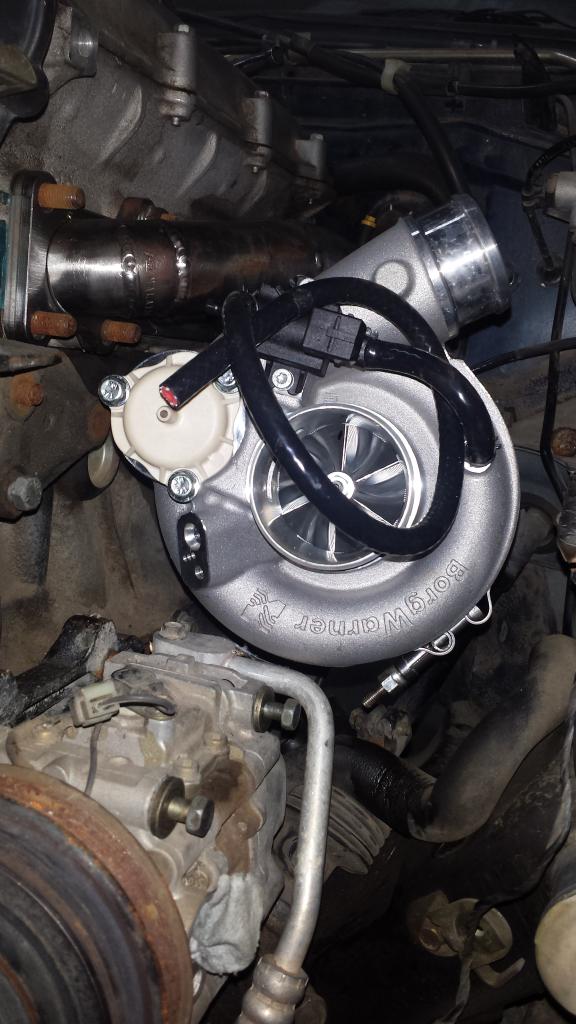

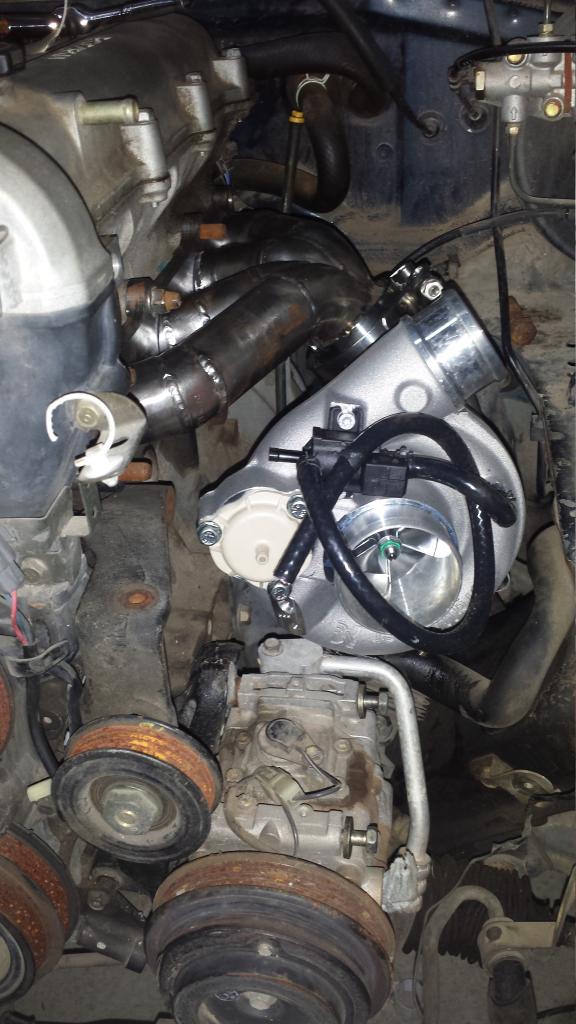

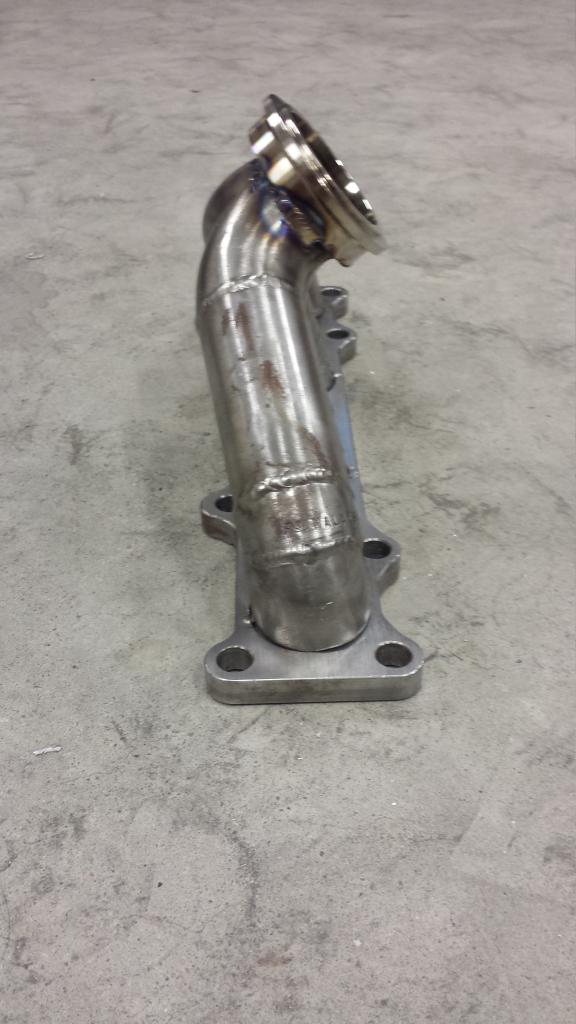

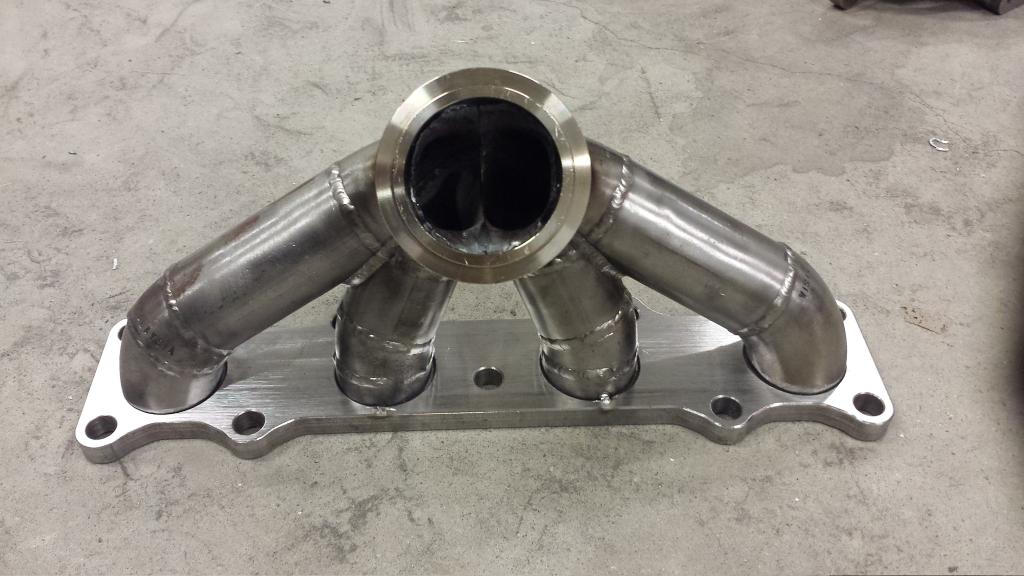

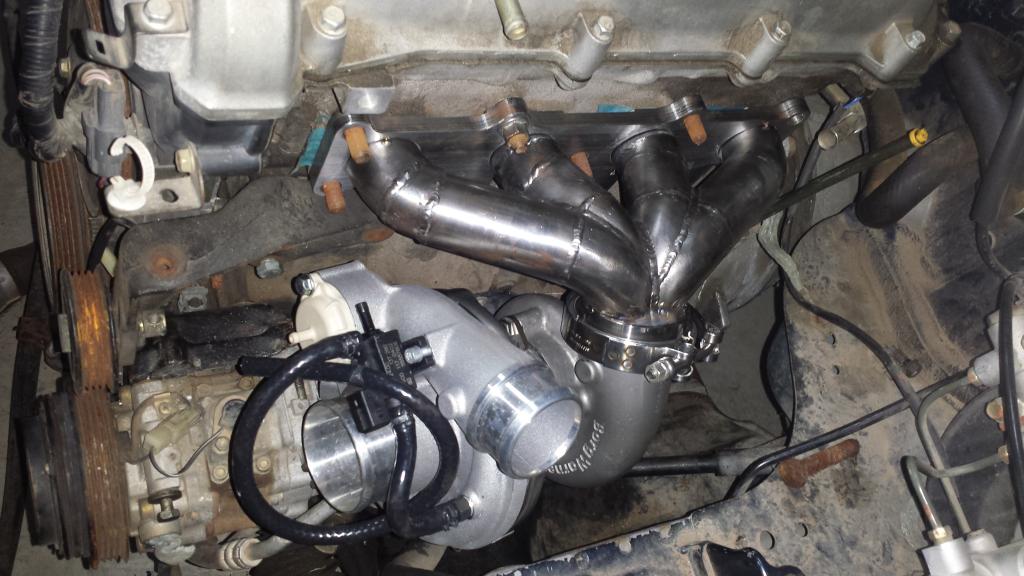

Pictures from Abe!









Attached Thumbnails
Ryan's build thread - Clean and Mean-20141009_232349_zpsjbcrhxli.jpg   Ryan's build thread - Clean and Mean-20141009_232329_zpsaj2xdwcn.jpg   Ryan's build thread - Clean and Mean-20141009_230539_zpskhstfamf.jpg   Ryan's build thread - Clean and Mean-20141009_230551_zps24sibe8f.jpg   Ryan's build thread - Clean and Mean-20141009_230602_zps5soghguz.jpg

Ryan_G is offline   Reply With Quote
Old 10-10-2014, 12:39 PM   #238
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Your build is coming together nicely Ryan. I definitely need to get down there for a track day when I get back next year!
FrankB is offline   Reply With Quote
Old 10-10-2014, 12:43 PM   #239
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

That man is magical. I kinda wish I had done something like this rather than the snakeytubes, but its all awesome regardless
EO2K is offline   Reply With Quote
Old 10-10-2014, 01:10 PM   #240
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,007
Total Cats: 0
Default

I would recommend at least XR3s for the fronts on rivals, if not XR2s.

XR4s are a rear brake compound...

I ran XR2s on the front of my turbo Miata on Hankook RS2s way back in the day and it was pretty good. Rivals are significantly stickier than old RS2s so they should handle the brake torque of XR2s just fine.

Of course I was running on stock 1.8 brakes, not huge BBK, so YMMV...

Last edited by Efini~FC3S; 10-10-2014 at 01:10 PM. Reason: Stipud phone
Efini~FC3S is offline   Reply With Quote
