Originally Posted by 18psi
might as well go for gold: "1.6 n/a"
haha yeah. WHen I'm feeling silly every now and then I consider removing the oldass creaky BBK, going back to the 1.6 brakes and rocking the daiseys and trolling the local ricers.

But then I realize I have no idea where the local 'ricers' hang out, what they drive, why I care.

I've only had one 'race' in the time I've owned my car, and that was a week or so after installing the base GReddy kit/bipes. It was a Z3x? Lumina or cavalier, some GM shitbox, with 4 people in it, and I was able to hang. Nice.

Actually I had another highway race after installing my Starion I/C. Was able to hang with a ricebox fartcan civic si. Boooyahhhhhhh
Old Aug 7, 2013 | 03:13 PM
  #1602
flier129's Avatar
Elite Member
iTrader: (7)

Joined: Jan 2008
Posts: 2,750
Total Cats: 320
From: Statesville, NC
Default

My car has basically the same route of intake...... it actually makes a difference vs the standard intake box behind the driver's head-light.

Get yourself a square-top and a RB header then you'll be GTG!
Old Aug 7, 2013 | 03:37 PM
  #1603
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

Originally Posted by flier129
My car has basically the same route of intake...... it actually makes a difference vs the standard intake box behind the driver's head-light.

Get yourself a square-top and a RB header then you'll be GTG!
The car is not staying NA. I also have the sticker that FRT_Fun posted sitting on my desk at home. I threw in a spare VVT motor that I have to be able to drive the car while built engine is at the machine shop. Once built motor is done again, I will be swapping that in and going back to BOOOOOST!!!
Old Oct 3, 2013 | 01:18 PM
  #1604
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

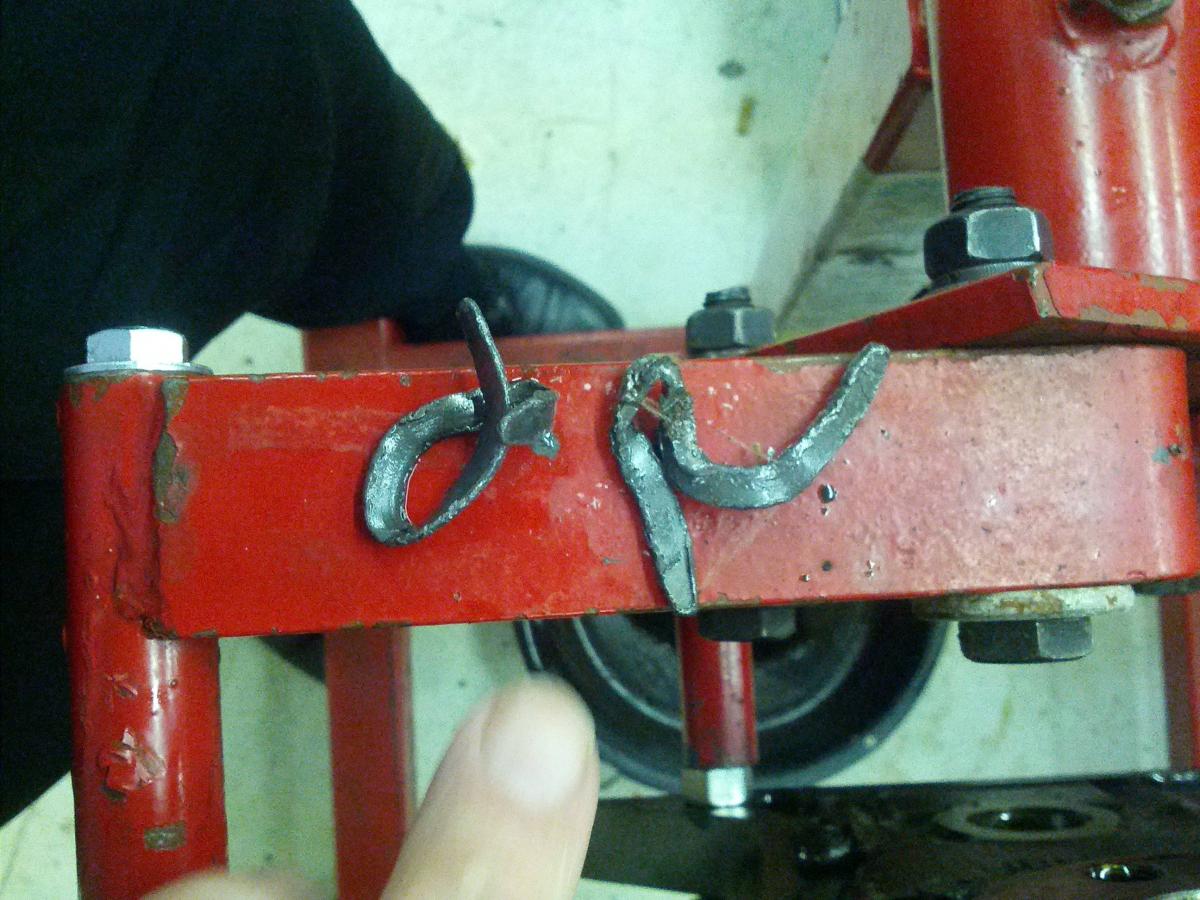

Yep thrust bearing was fucked up in the built motor. We think it heated up while trying to crank with no oil and spun the bearing out. We only pulled off one main cap and the crank looked fine. The rest of the motor will now be pulled apart and we will see what is still usable, and what is unusable. We are hoping that it is just a slight hone on the block, new rings, and new bearings. I will get pics next week hopefully of it all apart.
Attached Thumbnails Shuiend blows motor #5; Naturally Aspirated Glory Incoming-zuusnex.jpg
Old Oct 3, 2013 | 01:19 PM
  #1605
soviet's Avatar
Elite Member
iTrader: (10)

Joined: Jan 2010
Posts: 3,493
Total Cats: 269
From: VA
Default

lel at first I thought you were showing off your welding skills.
> dat pretzel bearing
Old Oct 18, 2013 | 05:00 PM
  #1606
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

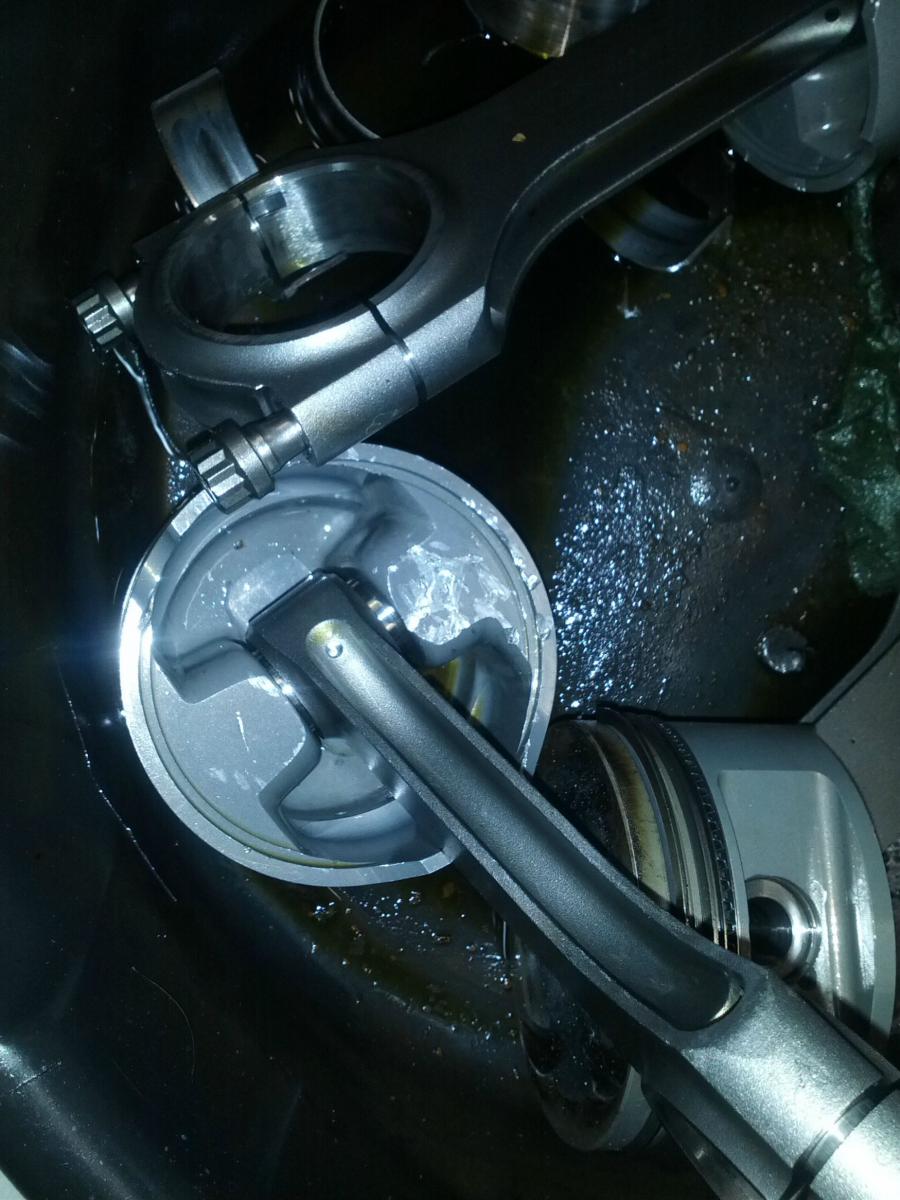

Thrust bearing hit the bottom of the piston. Also I need a new crank. Glad I have 2 of those sitting in my garage.
Attached Thumbnails Shuiend blows motor #5; Naturally Aspirated Glory Incoming-anbjp2m.jpg
Old Oct 18, 2013 | 05:27 PM
  #1607
18psi's Avatar
VladiTuned
iTrader: (76)

Joined: Apr 2008
Posts: 35,821
Total Cats: 3,482
Default

boy that escalated quickly
Old Oct 18, 2013 | 05:30 PM
  #1608
Fireindc's Avatar
Elite Member
iTrader: (13)

Joined: Dec 2006
Posts: 7,705
Total Cats: 904
From: Taos, New mexico
Default

Well ****. Sorry to see this.
Old Oct 18, 2013 | 05:54 PM
  #1609
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

Meh. It is life. I am a bit more preoccupied at the moment with something a bit bigger.


Attached Thumbnails Shuiend blows motor #5; Naturally Aspirated Glory Incoming-hd4p2os.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-el5navo.jpg
Old Oct 18, 2013 | 05:59 PM
  #1610
thenuge26's Avatar
Elite Member
iTrader: (2)

Joined: Aug 2012
Posts: 3,267
Total Cats: 239
From: Indianapolis
Default

Daaaaaaaaaaaaaaaaaaaaayum.


So what's the best guess for the fault? Bad assembly by the shop? Your fault for the oil problems at first? Shop's fault for the oil problems? Nobody's fault, just bad luck with the oil pump?
Old Oct 18, 2013 | 06:38 PM
  #1611
hustler's Avatar
Tour de Franzia
iTrader: (6)

Joined: Jun 2006
Posts: 29,085
Total Cats: 375
From: Republic of Dallas
Default

Nice to see you rebounding. Welcome NA glory into your life.
Old Oct 18, 2013 | 08:15 PM
  #1612
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

Originally Posted by hustler
Nice to see you rebounding. Welcome NA glory into your life.
I also saw a yard sale sign down the street this afternoon on my way home. They had some mighty fine bikes outside. I might try to score one for $20 so I can become a bike guy.

Last edited by shuiend; Oct 18, 2013 at 08:42 PM.
Old Oct 18, 2013 | 08:40 PM
  #1613
FRT_Fun's Avatar
I'm a terrible person
iTrader: (19)

Joined: Apr 2009
Posts: 7,174
Total Cats: 180
From: Arizona
Default

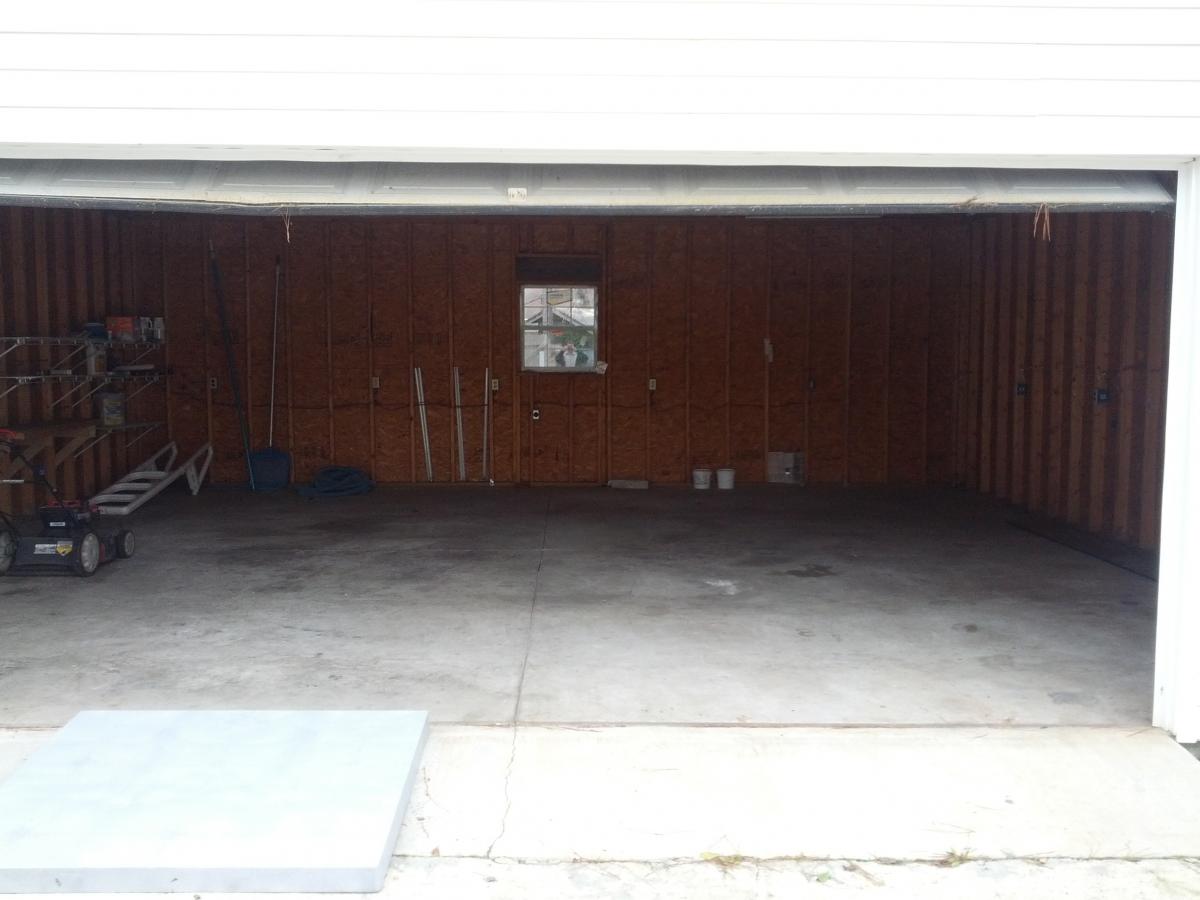

Damn and damn. That garage is looking mighty fine. Engine not so much, but life happens.
Old Aug 12, 2014 | 12:17 PM
  #1614
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

Built motor is finally done and back in my garage. The problem is I have no free time at the moment so I won't be able to put it in the car until sometime in September at the soonest. I really ******* miss boost.
Name:  p5MdhOY.jpg
Views: 99
Size:  532.5 KB
Old Aug 12, 2014 | 12:24 PM
  #1615
18psi's Avatar
VladiTuned
iTrader: (76)

Joined: Apr 2008
Posts: 35,821
Total Cats: 3,482
Default

O SNAP!

can't wait
Old Aug 12, 2014 | 07:20 PM
  #1616
GeneSplicer's Avatar
Elite Member
iTrader: (14)

Joined: Sep 2009
Posts: 2,101
Total Cats: 180
From: Birmingham, AL
Default

Originally Posted by shuiend
I really ******* miss boost.
You and me both...
Old Aug 23, 2014 | 12:31 AM
  #1617
cordycord's Avatar
Elite Member
iTrader: (2)

Joined: Dec 2011
Posts: 3,400
Total Cats: 560
From: SoCal
Default Half measures

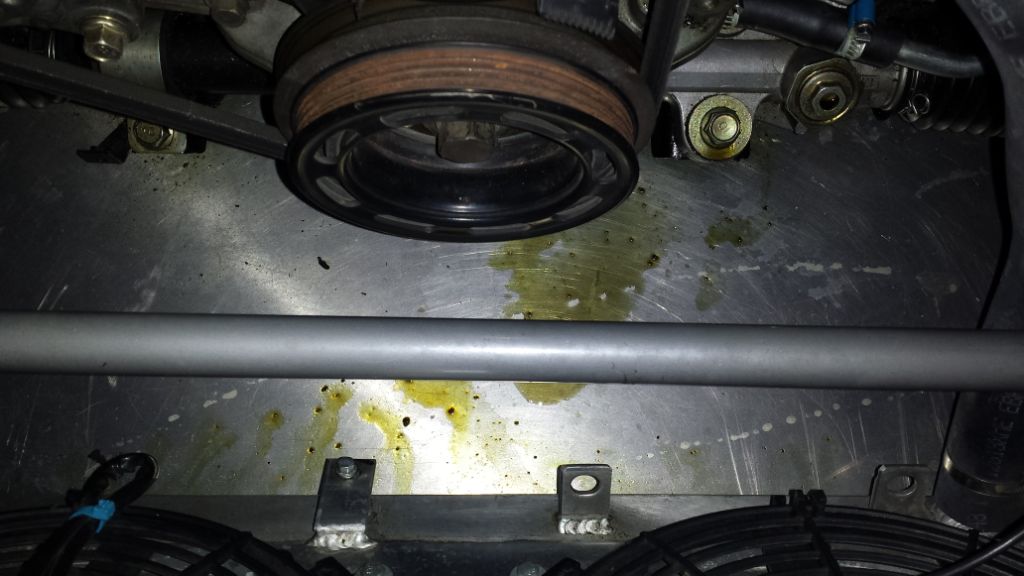

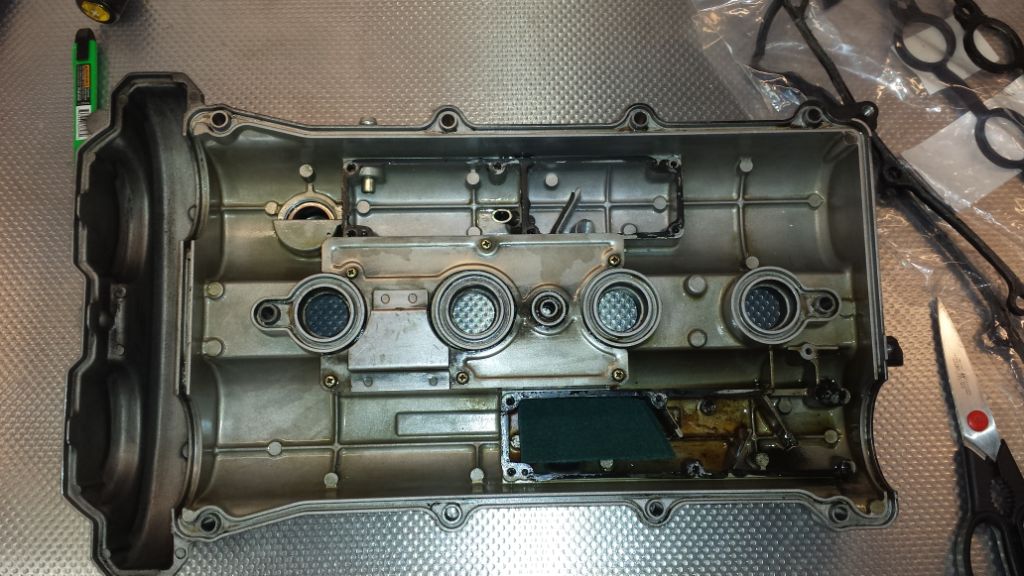

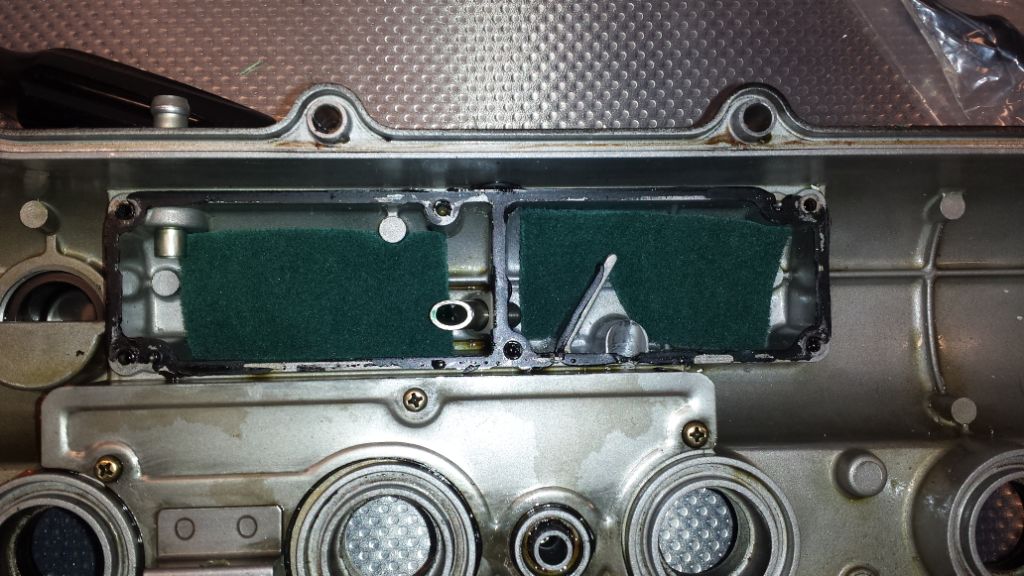

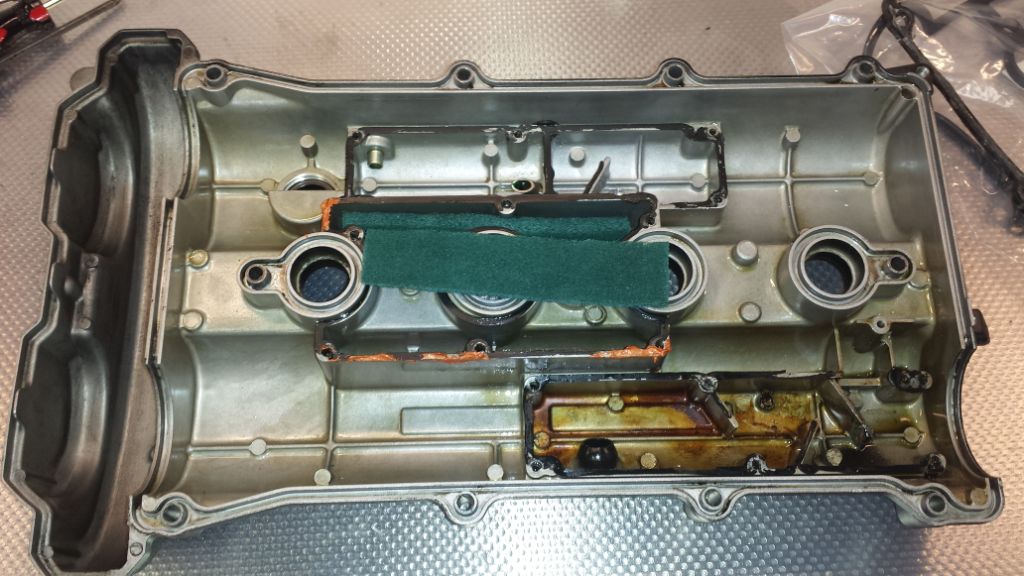

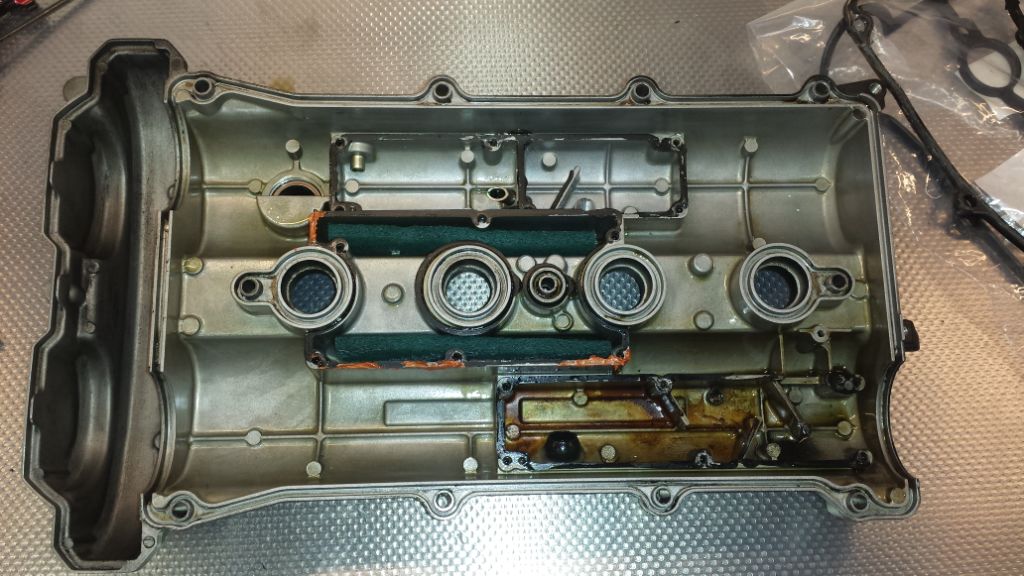

Okay, so since I've gone trubo the engine has run rich (black smoke rich) and after our first outing at Streets of Willow there's been loads of oil spatter. It seemed to be coming from the valve cover--or oil return. After a re-seal of the valve colver with some gasket sealer, same problem even when the engine didn't see over 5k.

Half-measures--I've got an oil catch can, but before putting it on I wanted to try the valve cover vent route. It's half of Shiuend's solution as I only cut out half of the plates. I also used a new Scotch-Brite Green pad as I didn't have any stainless steel wool or copper wool on hand. The Scotch-Brite acted the same as a steel wool pad under a flame, so I figured it would be fine under engine temperatures.

We'll see if it works on the way to Cars n' Coffee tomorrow. If not, an oil catch will be added per Shieund's descriptive diagram.

So in summary:

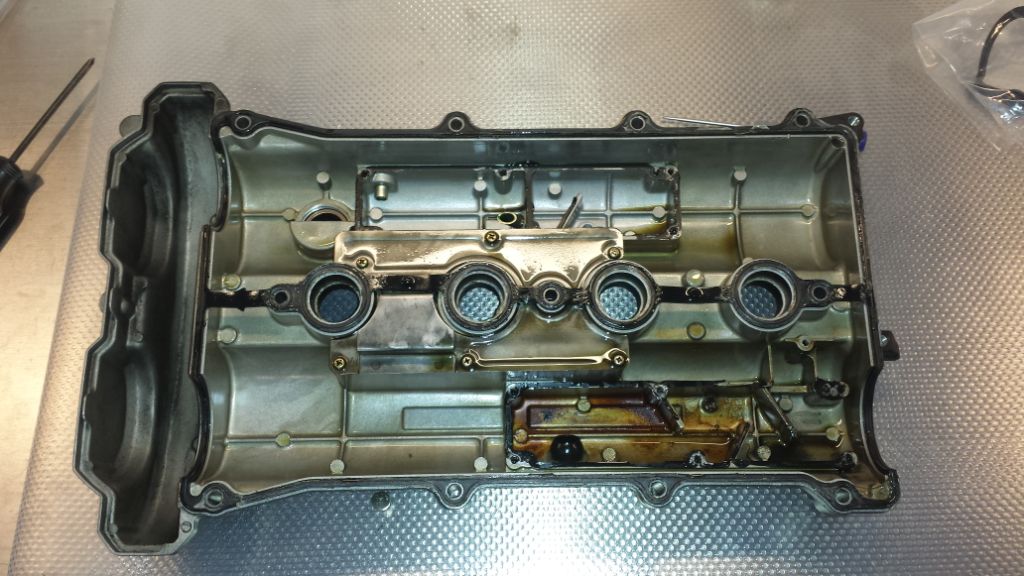

--removed the vent plates in the valve cover

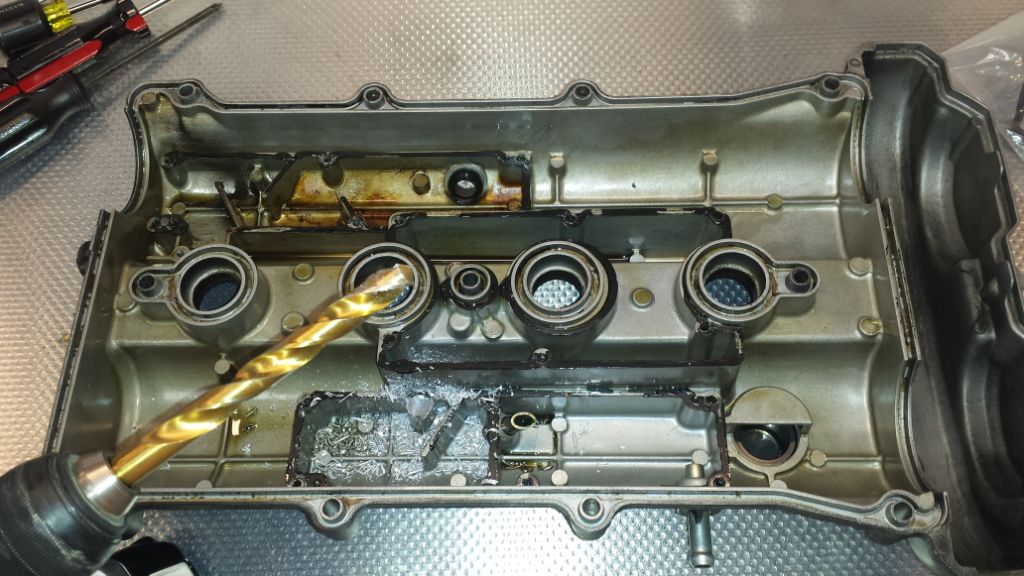

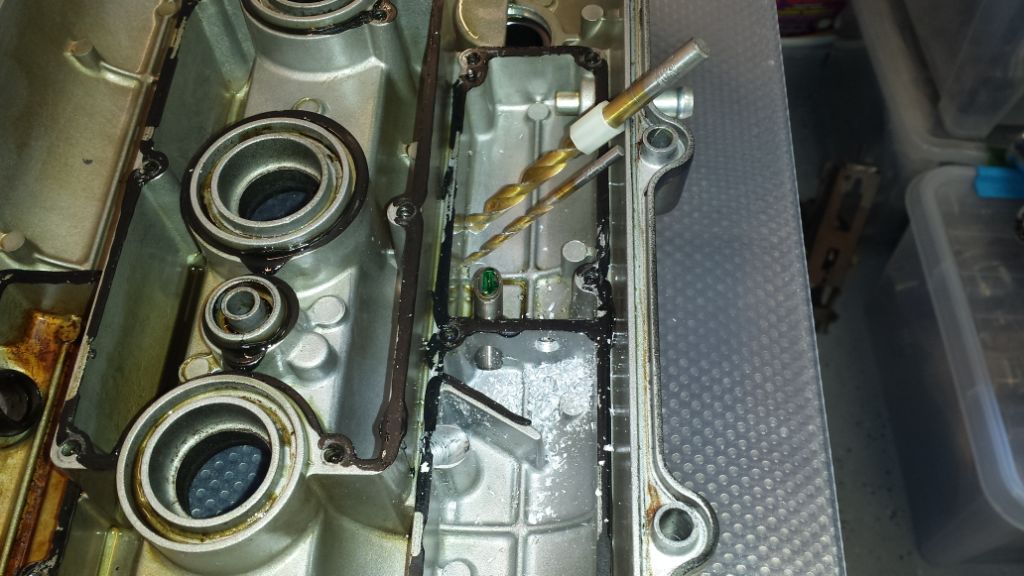

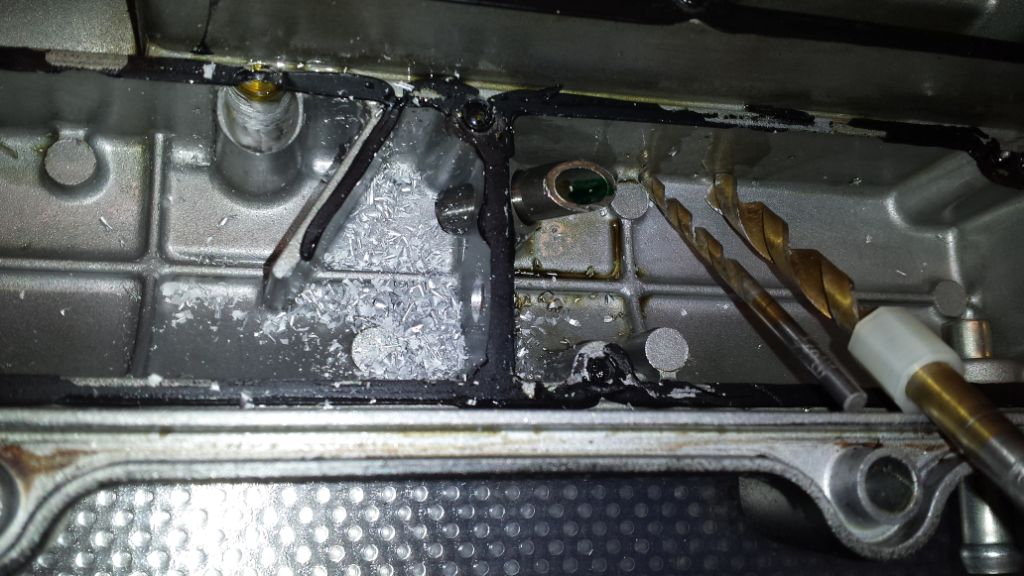

--drilled out the vent hole between the center and outside vent
--added a vent hole on the driver side

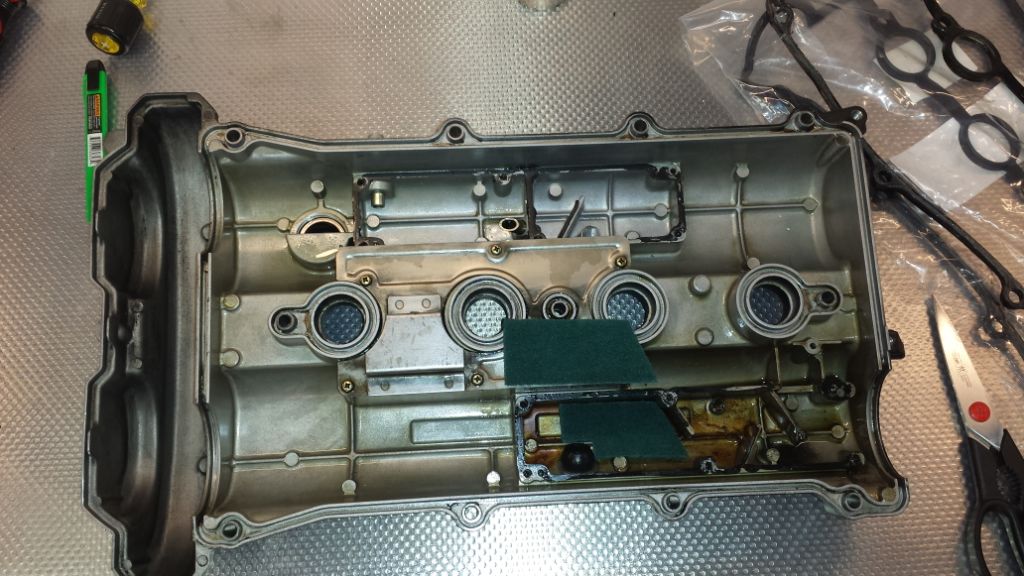

--added Scotch-Brite to condense oil vapor
--cut down the vent plate on the passenger side

We'll see if it works tomorrow...
Attached Thumbnails Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140821_161246.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_150340.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_151957.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_152958.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_153011.jpg

Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_154643.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_154706.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_155650.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_155703.jpg   Shuiend blows motor #5; Naturally Aspirated Glory Incoming-20140822_160845.jpg

Old Aug 25, 2014 | 09:37 PM
  #1618
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

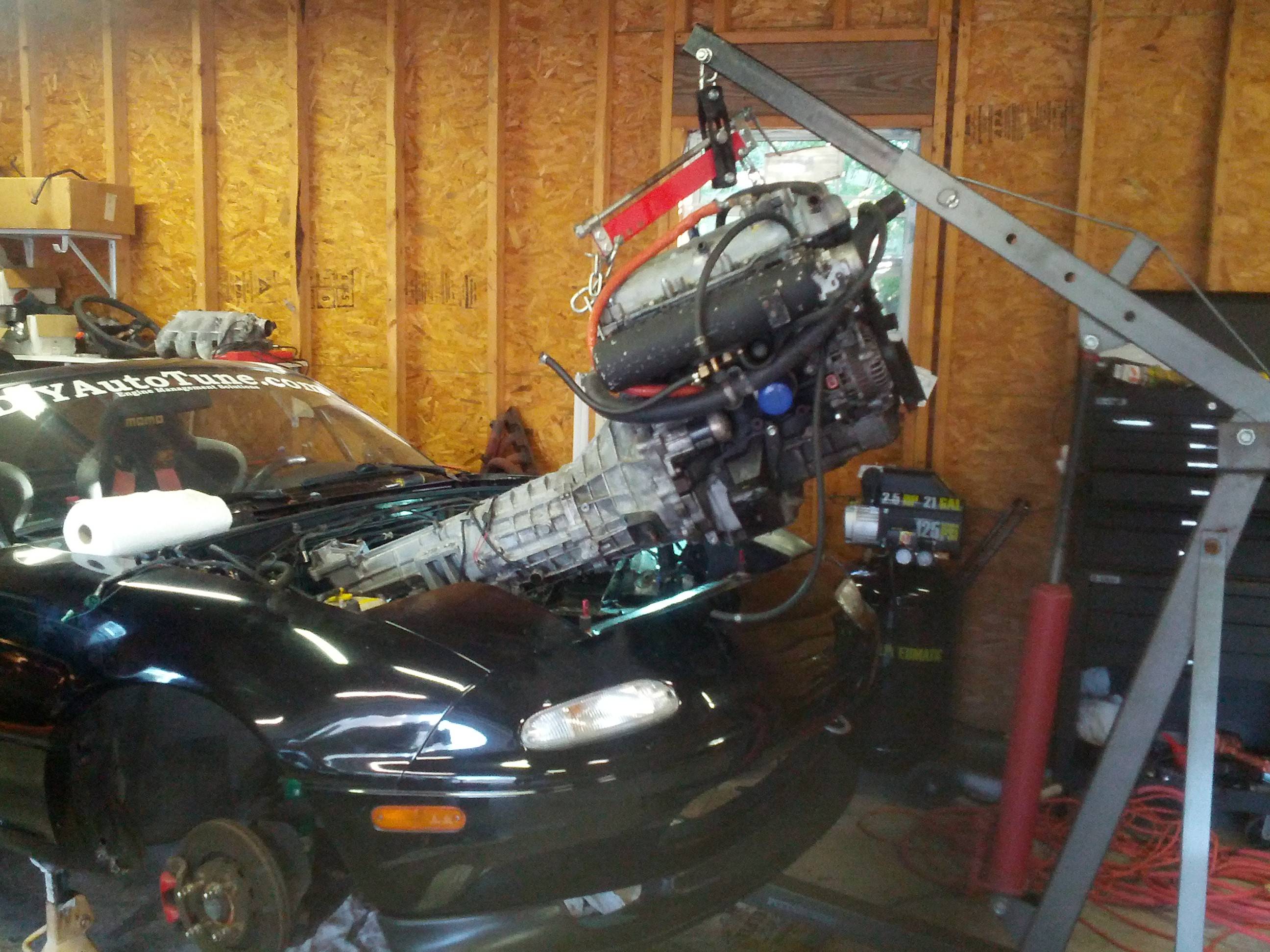

So I skipped work today due to an extremely long last 2 weeks. I was exhaust and slept till about 1pm. After getting up a friend sent me a message saying he needed to have me weld up a hole on his exhaust. Since I figured I would eventually be in the garage, I might as well go get to work on pulling my motor. It took me about 2 hours to get everything disconnected from the engine and transmission working at a leisurely pace. I had to take a break to go get a pan to drain my coolant. It took me about 30 minutes to drain coolant, disconnect coolant hoses, and pull radiator. Another 45 minutes after that the engine was out of the car.
Name:  5k06ITh.jpg
Views: 94
Size:  543.8 KB
Old Aug 25, 2014 | 11:16 PM
  #1619
curly's Avatar
Cpt. Slow
iTrader: (25)

Joined: Oct 2005
Posts: 15,197
Total Cats: 1,398
From: Oregon City, OR
Default

That extension cord is BEGGING for a $.99 hook in one of those studs.
Old Aug 26, 2014 | 07:53 AM
  #1620
shuiend's Avatar
Thread Starter
mkturbo.com
iTrader: (24)

Joined: May 2006
Posts: 15,235
Total Cats: 1,700
From: Charleston SC
Default

Originally Posted by curly
That extension cord is BEGGING for a $.99 hook in one of those studs.
Usually the extension cord is hanging up on the wall. I had it down because it was powering a light, and my impact gun. Hopefully hours are decent this week and and I can start getting stuff swapped over to my built motor and get it in.
