Old 06-17-2014, 01:23 PM   #41
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Chiburbian View Post
Maybe mods split this out? I feel like I want to ask more questions but I will only be cluttering up the BEGI thread.


It's my thread, do what you want. Post cats, dicks, spew obscenities everywhere, i don't care in the slightest.
concealer404 is offline   Reply With Quote
Old 06-17-2014, 02:01 PM   #42
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by TurboTim View Post
335/325 out of a GT2560R @ 19 psi? you're smoking crack. That's like 70 more ftlbs than the max i've seen.

******* cool as hell though.
Your comments make me LOL. I was wondering why my nitrous bottle was empty. It's a BP-Z3 is installed in a Lotus7 replica. Packaging is much better, exhaust is MUCH better. Motor is well prepped, not stock.

Quote:
Originally Posted by concealer404 View Post
Right. My 2554 holds up top better than that. And better than the 2560 on that chart.

Those torque numbers don't gel either. Smells like FM's dyno.


Ben, are you sure those numbers aren't like.... those turbos on an F2T?
How do the torque numbers "not gel"? You know that horsepower is derived from torque and RPM, right?

There's no level of impropriety in the plots; I don't sell turbos or have an agenda. If you feel like an EFR is a good choice for you, go for it. In this test, the EFR lost power, both on the actual and butt dynos. The car's owner is registered on this forum and he'll post up if he feels like it.
Ben is offline   Reply With Quote
Old 06-17-2014, 02:07 PM   #43
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Theres just no way, no matter how good your exhaust is, that you can make a 32lb/min turbo make 325whp on a heart breaker dyno, especially not with a BP. And that you can fail to beat that with a much more efficient 53lb/min turbo is just mind boggling.
Leafy is offline   Reply With Quote
Old 06-17-2014, 02:12 PM   #44
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Ben View Post
Your comments make me LOL. I was wondering why my nitrous bottle was empty. It's a BP-Z3 is installed in a Lotus7 replica. Packaging is much better, exhaust is MUCH better. Motor is well prepped, not stock.

How do the torque numbers "not gel"? You know that horsepower is derived from torque and RPM, right?

There's no level of impropriety in the plots; I don't sell turbos or have an agenda. If you feel like an EFR is a good choice for you, go for it. In this test, the EFR lost power, both on the actual and butt dynos. The car's owner is registered on this forum and he'll post up if he feels like it.


I know how horsepower is derived, i'm just saying that the torque number you got out of the 2560 is pretty much unpossibru, and it's weird that it falls so hard. I can't understanding losing almost 100wtq from peak to redline on a built BP with any EFR.

I actually remember you posting a similar 2560 making 325whp in a Locost/Lotus/Caterham thing awhile back... this the same car?
concealer404 is offline   Reply With Quote
Old 06-17-2014, 02:45 PM   #45
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Ben View Post
Packaging is much better, exhaust is MUCH better.
Can you get permission to post pics of the manifold and exhaust? I want to see what better and MUCH better looks like.

I bailed on a GT2560R in favor of an EFR6258 specifically because of the limitations we've traditionally seen out of the 2560. The information you've posted does not match what we've seen out of either turbo, so please do not take our skepticism as personal attack. We are just trying to understand.

How much power did Paul make on his 2560 & AbsurdFlow setup? AFAIK that's as good as it got with a 2560.
EO2K is offline   Reply With Quote
Old 06-17-2014, 02:50 PM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

+1 to all of what G said
18psi is offline   Reply With Quote
Old 06-17-2014, 03:56 PM   #47
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,483
Total Cats: 248
Default

Paul's best was somewhere around [email protected] on a dynojet with 93 octane, MS2. '99 engine, BEGI cast intake mani. but 304rwhp at 14psi at the same day, so it was at it's limit. I think torques were around 260's.

E85 + MS3? I don't know. I trust Ben but that's nuts.
TurboTim is offline   Reply With Quote
Old 06-17-2014, 03:58 PM   #48
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

If legit, i want to drive that car. I bet it's horrifying.
concealer404 is offline   Reply With Quote
Old 06-17-2014, 04:22 PM   #49
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default



Red line is Soviet's car on gas IIRC. 84mm bottom end, stock BP4W head, EFR6758, [email protected] Just sayin'
Savington is offline   Reply With Quote
Old 06-17-2014, 04:28 PM   #50
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,576
Total Cats: 154
Default

I thought 400whp was at something closer to 26-27psi (maybe even 29psi) for soviet on pump gas.
Ryan_G is offline   Reply With Quote
Old 06-17-2014, 04:30 PM   #51
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

No, that was the max power ALLOFIT run.


Look at the top of the picture, gives details on the red line run.
concealer404 is offline   Reply With Quote
Old 06-17-2014, 04:36 PM   #52
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

It is HRK's locost that Ben is talking about and this is the build thread for the locost7. Here is the original dyno thread from last year where the 2560 dyno was first shown.

Last edited by shuiend; 06-17-2014 at 04:57 PM.
shuiend is offline   Reply With Quote
Old 06-17-2014, 05:17 PM   #53
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Wait, this manifold or something else?

Quote:
Originally Posted by hrk View Post
1.5 MM overbore actually, block filler used in water jackets up to waterpump to add stiffness .
Wiseco pistons with 8.8 compression ratio after decking and adjusting the squish and compression ratio.

turbo info on my for sale ad:

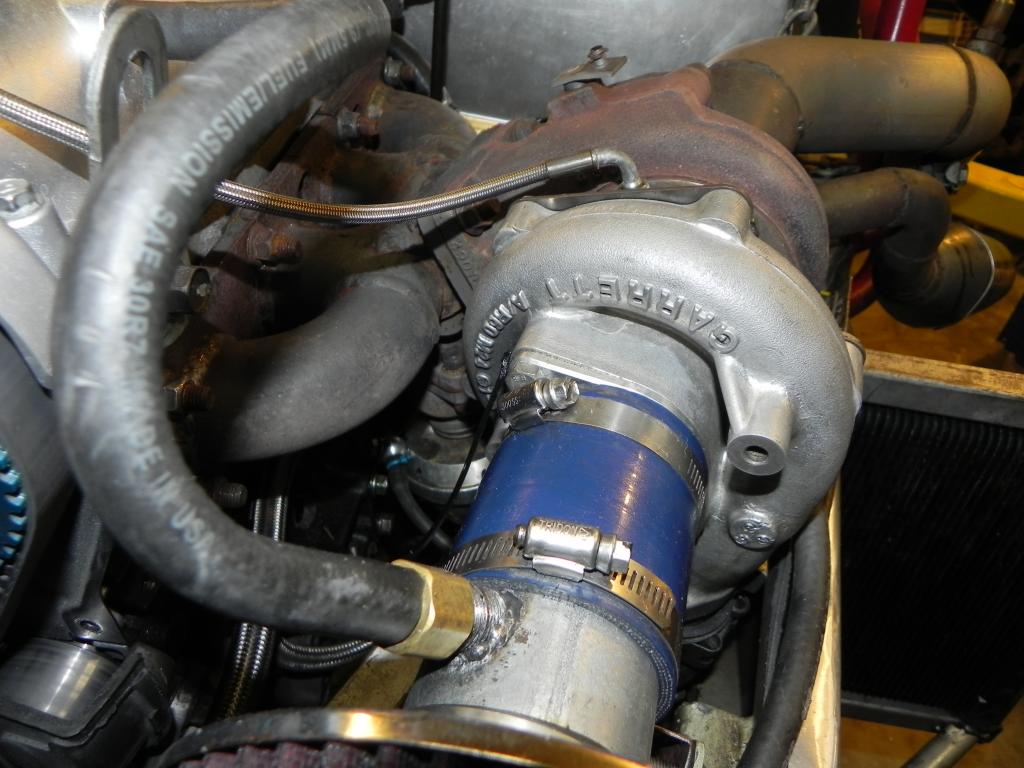

The compressor has GARRET A/R 60 M24 1-1 on the casting.
The bearing housing has
HJ 01 06J
14411-69F00
466541-1
Turbine housing has Garret 2
turbine inlet flange is 72 mm x 45 mm with holes for 10 mm studs. T25.

https://www.miataturbo.net/miata-par...ops-etc-69843/

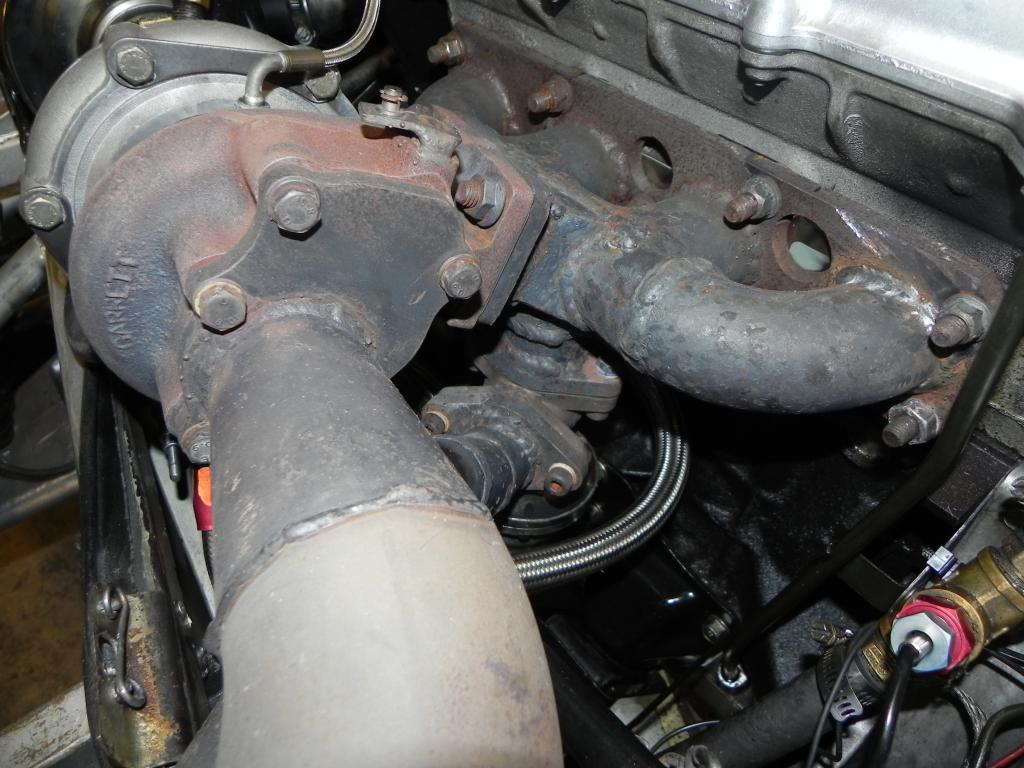

Same log manifold made from weld-els used in this setup.


EO2K is offline   Reply With Quote
Old 06-17-2014, 05:44 PM   #54
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Savington View Post

Red line is Soviet's car on gas IIRC. 84mm bottom end, stock BP4W head, EFR6758, [email protected] Just sayin'
6758 may be a better choice, but IMO the 6258 leaves something to be desired.
Ben is offline   Reply With Quote
Old 06-17-2014, 06:00 PM   #55
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

I think the big question is, what makes your experience so different? Normally a 10 PSI 2560 setup makes about 220 whp. But a similar setup at 10 psi on the 6258 bends rods.

Why?
turbofan is offline   Reply With Quote
Old 06-17-2014, 06:07 PM   #56
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

I'm also wondering why a 6258 on a "better" built motor would spool shittier than a 6758 on a somewhat half-assed motor (no offense to Soviet.)
concealer404 is offline   Reply With Quote
Old 06-17-2014, 06:15 PM   #57
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

because math

oh wait
18psi is offline   Reply With Quote
Old 06-17-2014, 07:24 PM   #58
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by concealer404 View Post
I'm also wondering why a 6258 on a "better" built motor would spool shittier than a 6758 on a somewhat half-assed motor (no offense to Soviet.)
Our dynapack doesn't seem to let little motors spool up as well as actual driving does.

Quote:
Originally Posted by turbofan View Post
I think the big question is, what makes your experience so different? Normally a 10 PSI 2560 setup makes about 220 whp. But a similar setup at 10 psi on the 6258 bends rods.

Why?
What 6258 setup bends rods? Who else has done a comparison, same car, same dyno, same motor?

I have complete faith in the dyno results because I was there. Everybody expected the BW EFR to blow away the Garrett. Everybody was surprised when it didn't.
Ben is offline   Reply With Quote
Old 06-17-2014, 07:26 PM   #59
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Pretty much everyone on this site who has put any EFR on a stock motor has ended up with bent rods, regardless of boost level.
concealer404 is offline   Reply With Quote
Old 06-17-2014, 07:34 PM   #60
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Ben View Post
Our dynapack doesn't seem to let little motors spool up as well as actual driving does.
you can fix that you know. dynapac gives you to power to hold the car for a second or two before starting the pull and it allows you to control the length of the pull. When I dyno'ed at a spec miata shop on a dynapac they only had it setup for SMs and I really didnt want to make a 25 second long 4th gear pull, with 7 a second hold at the start of the pull. So I think I dropped it to 3 seconds and a 15 second long pull because those were the numbers I pulled out of my *** on the spot.
Leafy is offline   Reply With Quote
