Old 08-12-2016, 03:56 PM   #21
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

I think the gusset is a great idea. However, I cant TIG worth a ****. And that might void my warranty. IF it ever cracks, gleasemanufacturing will fix it. And he would probably add a gusset as well.
As far as im concerned, this is a gleaseman manifold. Fab9 provided the worst customer service that I have ever received.
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 10:34 AM   #22
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

turbo on and clocked

aerocatch latches and GV lip installed


wrapped screamer pipe and dp. this is the completed engine bay


dyno sheet coming next week
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 10:38 AM   #23
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

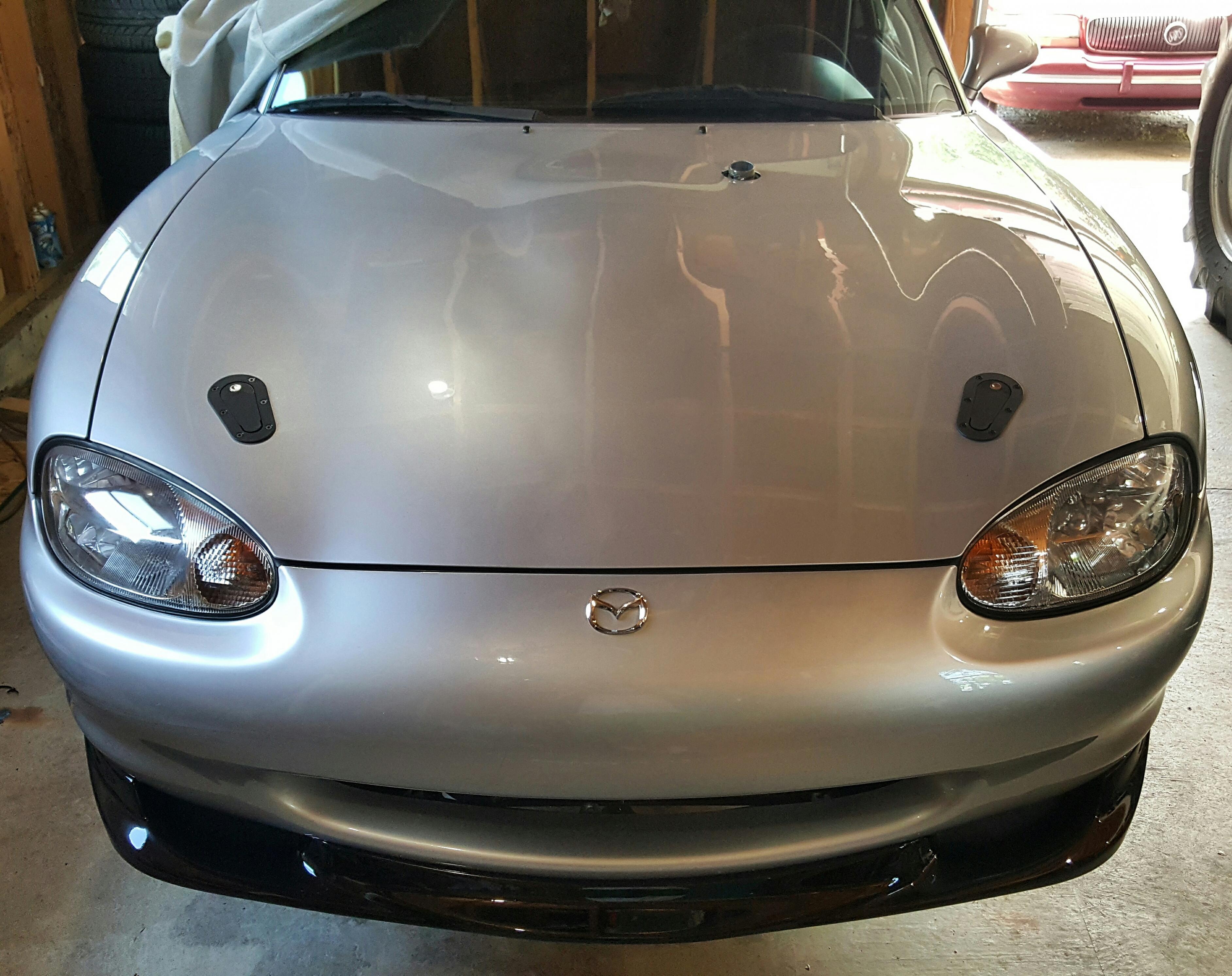

This is how the hood looks from the outside. Screamer pipe isnt too noticeable...until WOT



Attached Thumbnails
gt2560r external wastegate. HOW TO WASTE MONEY FOR SPOOL-img_20160717_141827.jpg
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 10:45 AM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

I like it
18psi is offline   Reply With Quote
Old 08-19-2016, 10:55 AM   #25
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

thanks! It will be hitting a dyno (mustang) next week. Hopefully the operator knows what hes doing. Im at 13psi and FMs base ignition map. Any idea what it will make?
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 10:59 AM   #26
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

built engine? pump gas?
18psi is offline   Reply With Quote
Old 08-19-2016, 11:10 AM   #27
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

Quote:
Originally Posted by 18psi View Post
built engine? pump gas?
Stock 43k mile 1999 engine. 93 octane
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 11:15 AM   #28
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

220-250
18psi is offline   Reply With Quote
Old 08-19-2016, 11:57 AM   #29
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,696
Total Cats: 240
Default

Props awarded , this is coming along nicely
Girz0r is online now   Reply With Quote
Old 08-19-2016, 12:19 PM   #30
Junior Member

Join Date: Sep 2013
Location: Israel
Posts: 301
Total Cats: -31
Default

Great job Reed!
Looking forward to dyno.
yossi126 is offline   Reply With Quote
Old 08-19-2016, 12:28 PM   #31
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

Quote:
Originally Posted by 18psi View Post
220-250
even on a mustang dyno and this wimpy ignition table?


LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 12:31 PM   #32
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

with that table on a mustang, probably more like 170-190
18psi is offline   Reply With Quote
Old 08-19-2016, 12:58 PM   #33
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

Quote:
Originally Posted by 18psi View Post
with that table on a mustang, probably more like 170-190
I know I can use waaay more timing. I just don't know where to increase it and where to not. And jeremy at FM is on vacation. Should I just add say 4 degrees in every cell above 100kpa?
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 12:59 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

Depends, how soon do you want to vent the block?
18psi is offline   Reply With Quote
Old 08-19-2016, 01:28 PM   #35
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

Not yet. Mid November wouldn't bum me out that much though. Maybe ill ask jeremy for a more aggressive spark map and ill see if the hydra detects any knock. For the amount of money i have into this, I am going to feel really silly if i dont see over 200 on a mustang dyno
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 01:39 PM   #36
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 538
Total Cats: 47
Default

I take it you don't live in CA

How much does the pipe tip move at WOT in a low gear?
afm is offline   Reply With Quote
Old 08-19-2016, 02:12 PM   #37
40 roll
Thread Starter

LownSlow616's Avatar

Join Date: May 2015
Location: Grand Rapids, MI
Posts: 270
Total Cats: -42
Default

Quote:
Originally Posted by afm View Post
I take it you don't live in CA

How much does the pipe tip move at WOT in a low gear?
I live in west MI. 93 octane

not much. the engine mounts are stock too. It moves the most on start up. the hole is 2 1/8" and the pipe is 1.5" so it has plenty of room
LownSlow616 is offline   Reply With Quote
Old 08-19-2016, 02:14 PM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,271
Default

there's a joke in there somewhere
18psi is offline   Reply With Quote
Old 08-19-2016, 02:16 PM   #39
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 282
Total Cats: -25
Default

Needs one of these!


huesmann is offline   Reply With Quote
Old 08-20-2016, 10:58 AM   #40
Junior Member

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

I predict about 220HP at 13PSI on this timing map. my setup made 211HP 201TQ on a very similar timing map at 11-12PSI.

a little off topic. I love how uncluttered your engine bay is, how did you get rid of all the clutter on the left hand side of the engine, there are a million vacum hoses and sensors there on my 99 and nothing on yours?
borka is offline   Reply With Quote
