Old 06-21-2012, 11:34 AM   #41
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Techsalvager View Post
Do you happen to have acceleration G data from 2nd gear only? say the same 1500 to 7000 revs?
No I do not have acceleration data. That dyno was from 2008. It was on a bone stock 1.8 motor with a Begi S1 setup with a 2554 off a SR20. I also had a 3 inch exhaust. I think with MS3X and 15psi my chart would have been even better.

Honestly with what you want, you need to just buy a FFS and be done with it. There is no way you are going to get 200ft/lbs of torque at 2k rpms in miata.
shuiend is offline   Reply With Quote
Old 06-21-2012, 11:40 AM   #42
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by mgeoffriau View Post
Torque from 2k-4k. Buy my car.

very nice what company sales the ubercharger if its still sold?
Techsalvager is offline   Reply With Quote
Old 06-21-2012, 12:00 PM   #43
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

FM and no it's not.

As above if you're that desperate for low down torque you need a PD supercharger setup.

But then you'll whine about not enough top end.
richyvrlimited is offline   Reply With Quote
Old 06-21-2012, 12:15 PM   #44
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by Techsalvager View Post
very nice what company sales the ubercharger if its still sold?
mgeoffriau LLC. I accept cash.
mgeoffriau is offline   Reply With Quote
Old 06-21-2012, 12:26 PM   #45
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by shuiend View Post
Honestly with what you want, you need to just buy a FFS and be done with it. There is no way you are going to get 200ft/lbs of torque at 2k rpms in miata.
I"m interested more in turbos than superchargers.
Techsalvager is offline   Reply With Quote
Old 06-21-2012, 12:37 PM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

get a 1.8 vvt
throw on mini pooper twin scroll snail

this will cost a lot. but should meet your goal



you know the car won't be fast though right? it will fall on its face up top, and spin the lower gears way too easily. have you ever driven a chipped vw 1.8t? it will be exactly like that. which feels great daily driving. but sucks if you "actually" want to go fast, cause by the time you stop spinning you're out of power to get going.
18psi is offline   Reply With Quote
Old 06-21-2012, 12:39 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by 18psi View Post
get a 1.8 vvt
throw on mini pooper twin scroll snail

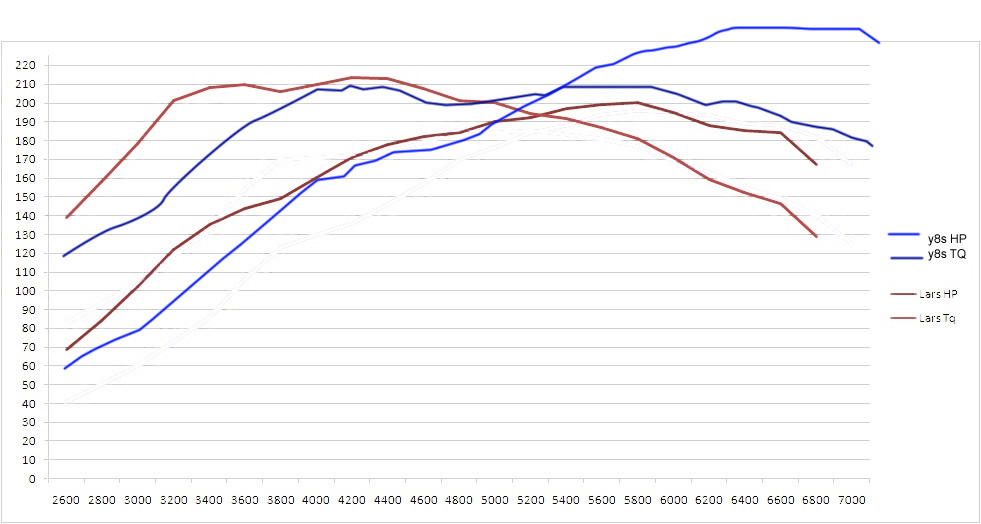

VVT with a 2876 vs a 94 block with a T25:





with that said, y8s car doesn't need anymore low-end, he can easily break the tires loose. his car is competent and has plenty of grunt, he makes 150rwtq by around 3000rpm; you don't really need more lower.

while on the other hand, lar's car was a blast to drive, until about 4K where it lost all excitment. but I'd prefer the uber torque low-end thing if it was a DD.

I'm honestly really happy with the $150 chinacharger, it's so chepa and bolts right in, im unsure why you are so opposed. I mean it's worth a try at that cost and if it doesn't work out, then you're not left with any better option with your current manifold/dp combo.
Attached Thumbnails
I'm an idiot help me?!-lars_vs_y8s1.jpg
Braineack is offline   Reply With Quote
Old 06-21-2012, 12:46 PM   #48
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
VVT with a 2876 vs a 94 block with a T25:





with that said, y8s car doesn't need anymore low-end, he can easily break the tires loose. his car is competent and has plenty of grunt, he makes 150rwtq by around 3000rpm; you don't really need more lower.
do you have acceleration G's in 1st \ 2nd \ 3rd gears for y8's car?
WOT from 2k to 7k

because the turbo is a load device and it won't put down the same output in lower gears compared to higher gears.
Techsalvager is offline   Reply With Quote
Old 06-21-2012, 12:52 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

no. i just drive my car and enjoy it.
Braineack is offline   Reply With Quote
Old 06-21-2012, 12:53 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I bet y8s would be way faster.
Lars' car would lurch ahead for a second then get its doors blown off.

I have personally tested this on my super laggy (or so you'd say) 3076 setup vs a t25 miata locally. It was no competition. He'd sneak away a car length til my setup wound up and then get his doors blown off

I do agree with the "daily driver" aspect you guys are talking about tho: if he cought me in high gear below 3k and I didn't downshift it would take a LONG time for me to catch up.

And his car was way more enjoyable to "drive quick in traffic"
18psi is offline   Reply With Quote
Old 06-21-2012, 12:55 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by 18psi View Post
I bet y8s would be way faster.
Lars' car would lurch ahead for a second then get its doors blown off.

this. y8s would have blow his car away in straight line accerlation through the gears.

i gladly traded off the top-end only of my t3 super 60 for the awesome mid-range performance of this chinacharger. It's really great all around and peopl who drive it/in it give nothign but postive feedback....even Min has said the same.

It doesn't have the low end of a lot of the 1.8L motors iv'e tuned (2560 on absurd flow) but it's nice to be able to get heavy on the throttle around corners and have full boost out of them and realyl keeping the momentum going. otherwise, with anymore low-end you really need to take care with throttle input.
Braineack is offline   Reply With Quote
Old 06-21-2012, 01:08 PM   #52
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I rather deal with on throttle respsonive turbo unit then have to deal with no power to all power after waiting a bit.
Techsalvager is offline   Reply With Quote
Old 06-21-2012, 01:15 PM   #53
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

You say this, but have you driven said car?

I know some things sounds great in theory, but le suck in application.

Right now you have neither, so unless you've driven other cars, you have absolutely nothing to base your opinion off.
18psi is offline   Reply With Quote
Old 06-21-2012, 01:26 PM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by Techsalvager View Post
I rather deal with on throttle respsonive turbo unit then have to deal with no power to all power after waiting a bit.
I guess im lucky to be able to have driven a plethura of setups. The low torque setups are fun, but tricky. I quite enjoy my spool/output, athought I would'nt complain if I could bring it back another 200-400rpms to the left. but that would require a t25 and a new manifold and downpipe and oil fittings, so there's no way.
Braineack is offline   Reply With Quote
Old 06-21-2012, 03:05 PM   #55
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Shoulda had a v8 .
triple88a is offline   Reply With Quote
Old 06-21-2012, 05:17 PM   #56
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

I really think his goals are set too high. You guys are right, without lots more money spent, I dont see it being feasible. Dude you have to remember the "N" in the BMW engines stands for something like "new generation" and have had a ridiculous amount of coin spent in engineering them. They have VVT, a turbo, and sometimes valvetronic (variable lift).

I'm definitely interested in this thread myself, as my plans are keeping mine a DD as well. I'd love a 2560R, twin scroll, etc. but I'm trying to keep the power down, as well as the power curve
Orion ZyGarian is offline   Reply With Quote
Old 06-21-2012, 10:09 PM   #57
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

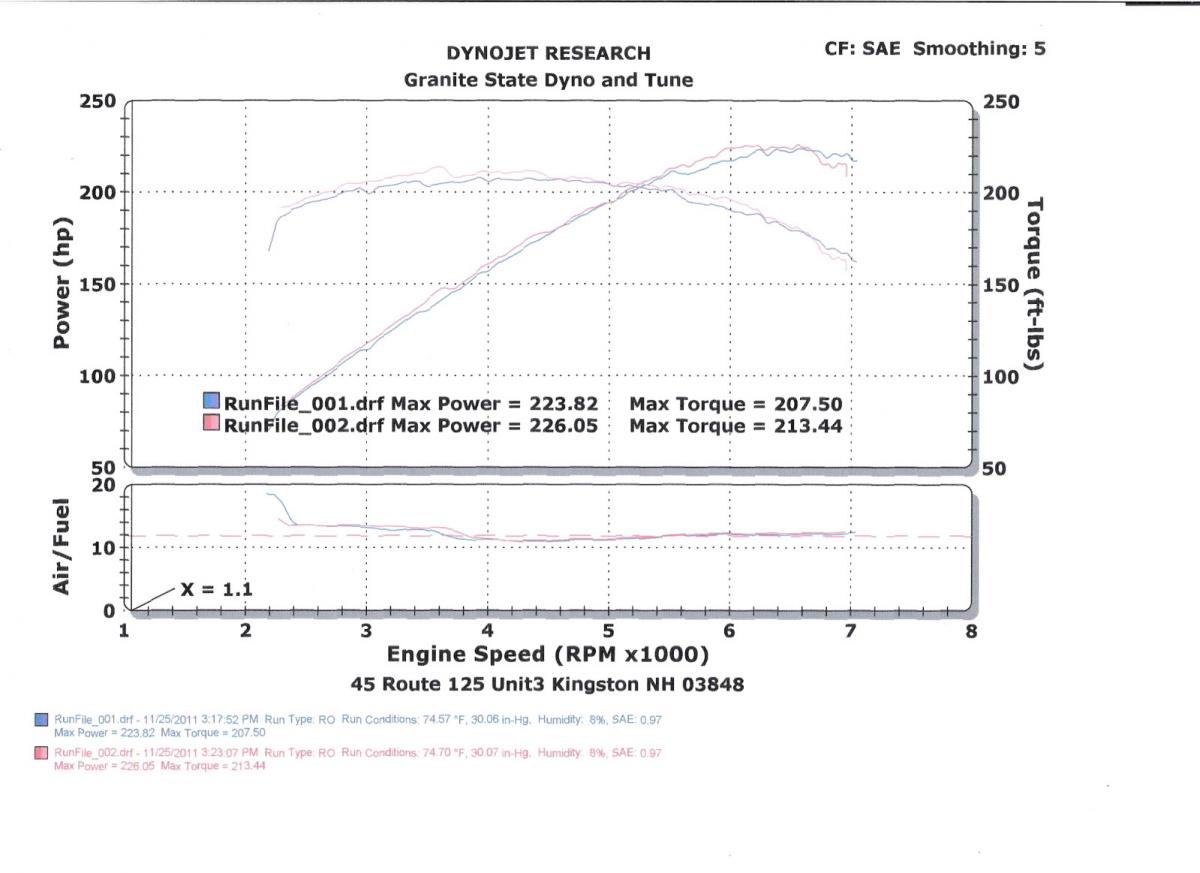

You're crazy. If you want to even get close you need a way better manifold. Then maybe something like an aerocharger. Here's another dyno graph for giggles.

Attached Thumbnails
I'm an idiot help me?!-scan0001.jpg
Leafy is offline   Reply With Quote
Old 06-21-2012, 10:34 PM   #58
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Whatever happened to those things anyways? Are they still around?
Orion ZyGarian is offline   Reply With Quote
Old 06-21-2012, 10:39 PM   #59
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Aerochargers are still around. If they made one that didnt have self contained oiling and had a BW compressor (or at least let you swap to a better compressor) I would be seriously considering one instead of the 6258.
Leafy is offline   Reply With Quote
Old 06-21-2012, 11:10 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

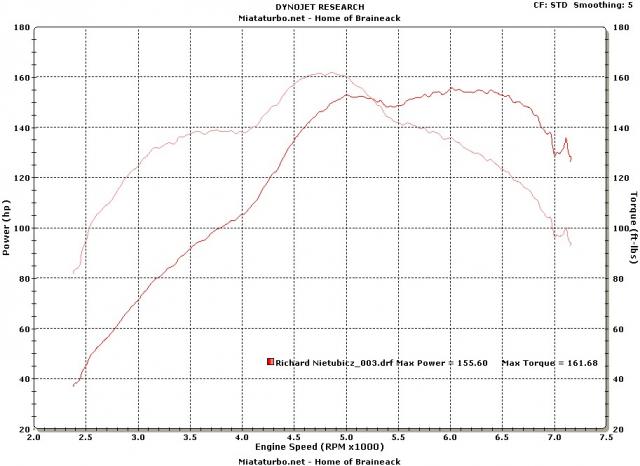

1.6L aerocharger dyno.



try again. BP sucks dicks.
Attached Thumbnails
I'm an idiot help me?!-richard.jpg
Braineack is offline   Reply With Quote
