DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-23-2012, 06:53 AM   #101
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by triple88a View Post
Wheel spin for all 3.
Not enough points on the log to show you ---- also spool is affected by such a fast run, same with inertial losses.
Not enough points on the log to show you ---- so u can modify your fuel/ignition map.
Yeah so tune for gear you need to be in, 2nd and possibility 3rd for autocross
and check it on the road.
There is gonna be a difference in how much extra timing you can throw in at lower gears.
Techsalvager is offline   Reply With Quote
Old 06-23-2012, 10:30 AM   #102
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Sure there will, but you will be in higher load cells in the higher gears so you can tune for it in the higher gears too. The effect you're talking about it what makes tuning with alpha-n difficult (assuming not a boosted car, I've tuned alpha-n and boost, ---- THAT ----).
Leafy is online now   Reply With Quote
Old 06-23-2012, 01:44 PM   #103
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by Techsalvager View Post
Yeah so tune for gear you need to be in...
There is gonna be a difference in how much extra timing you can throw in at lower gears.
You fundamentally don't understand how tuning a car works. It is not possible to have different tunes for different gears. The most you can do is change the boost setting based on what gear you are in. The fuel and timing map remain the same whether you are in 4th or 2nd. It's based on load and RPM with a few scale factor thrown in for temperature and a couple other things. If you have someone that knows what they are doing on a loading dyno (like a mustang) you can tune the entire fuel and timing map sitting right there on the dyno. You seriously need to change your goals. 200 ft*lbs of torque below 2000 rpm is totally useless. Show us a datalog of you driving and how much time you actually spend in that rpm band when you are trying to do anything other than DD.
baron340 is offline   Reply With Quote
Old 06-23-2012, 02:34 PM   #104
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Attached Thumbnails

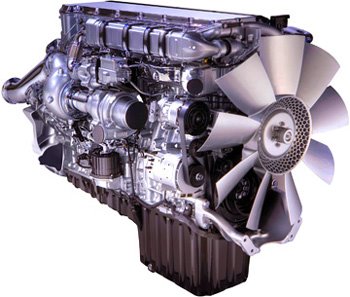

I'm an idiot help me?!-detroit-diesel-dd15-heavy-duty-engine.jpg
chicksdigmiatas is offline   Reply With Quote
Old 06-23-2012, 04:25 PM   #105
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by sturovo View Post
http://forum.miata.net/vb/showthread.php?t=216061


Justin, your build thread inspired me to turbo charge my car more than the "do it this way or you will die" threads

The TD04-13t has good low end grunt and might be worth considering?
You and the OP are both missing a very important fact about this idea. A 1.8, 2.0, 2.2, 2.5 liter subaru engine, a 1.6 honda engine, 1.8 honda engine, 1.8/2.0 BMW/VW/AUDI/WTFBBQ is NOT the same thing as a 1.6/1.8B/BP mazda engine. Why is it, would you speculate, Honda can make a 1.6L N/A that makes over 200hp yet built to the hilt 13:1 CR IRTBOMGWTFTHROTTLERESPONSE!!!!!!!!!!11111111111one oneone BP makes like 150hp??????

Mazda's B series cylinder heads flow like DOG ----...

Just because engines share displacement doesn't really mean diddly ----. Would you like a perfect example of that? Modern day smallblock chevy engines make more power per cubic inch than 400+ Cubic inch Big blocks of the 60s.

1969 COPO 9561/L72 427 cu in (7.0 L) V8 425 hp (317 kW) @ 5600 rpm, 460 lbft (624 Nm) @ 4000 rpm
Chevrolet Performance 383ci/425HP ZZ383 Crate Engine 6.2L V8 425 @ 5400 rpm, 449 lbft @ 4500 rpm
Chevrolet Performance LS3 376ci/515HP Engine 6.1L V8 515hp, 575lbft.

See the differences? Old production engine, more modern production engine, most modern production engine. Displacement goes down, power goes up.
elesjuan is offline   Reply With Quote
Old 06-23-2012, 04:36 PM   #106
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

i stopped posting in this thread before it was trendy.
Braineack is offline   Reply With Quote
Old 06-23-2012, 04:42 PM   #107
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Techsalvager View Post
There is gonna be a difference in how much extra timing you can throw in at lower gears.
I give up dude. You're acting like you almost dont want to believe it.
triple88a is offline   Reply With Quote
Old 06-24-2012, 08:18 PM   #108
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by triple88a View Post
I give up dude. You're acting like you almost dont want to believe it.
Don't want to believe what?



Quote:
You fundamentally don't understand how tuning a car works. It is not possible to have different tunes for different gears. The most you can do is change the boost setting based on what gear you are in. The fuel and timing map remain the same whether you are in 4th or 2nd. It's based on load and RPM with a few scale factor thrown in for temperature and a couple other things. If you have someone that knows what they are doing on a loading dyno (like a mustang) you can tune the entire fuel and timing map sitting right there on the dyno. You seriously need to change your goals. 200 ft*lbs of torque below 2000 rpm is totally useless. Show us a datalog of you driving and how much time you actually spend in that rpm band when you are trying to do anything other than DD.
that depends on ecu.
Techsalvager is offline   Reply With Quote
Old 06-25-2012, 12:40 PM   #109
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Leafy View Post
Sure there will, but you will be in higher load cells in the higher gears so you can tune for it in the higher gears too. The effect you're talking about it what makes tuning with alpha-n difficult (assuming not a boosted car, I've tuned alpha-n and boost, ---- THAT ----).
you can be in the same load cells in higher gears as well
5000 rpms, 180kpa for instance though all gears
but have more timing in the same area but at lower gears.
This is why I like maf based systems.
Techsalvager is offline   Reply With Quote
Old 06-25-2012, 12:48 PM   #110
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by Techsalvager View Post
This is why I like maf based systems.
even with the **** poor engine output at 22psi?
Braineack is offline   Reply With Quote
Old 06-25-2012, 12:54 PM   #111
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I wouldn't even consider using the stock maf in a turbo application. I would be straight onto a GM 75mm truck maf with or without the screen depending on placement. I too like maf based systems, though they are less responsive to transients than speed density. Spark knock is related to airflow (assuming head design, temperatures, ect stay constant) and not manifold pressure, it does make sense to control spark based on airflow rather than map.
Leafy is online now   Reply With Quote
Old 06-25-2012, 06:56 PM   #112
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
even with the **** poor engine output at 22psi?
Your funny, no in general I like maf over speed density
Techsalvager is offline   Reply With Quote
Old 06-26-2012, 06:51 AM   #113
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Dedicated trolling? Or...?
Orion ZyGarian is offline   Reply With Quote
Old 06-26-2012, 11:28 AM   #114
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Orion ZyGarian View Post
Dedicated trolling? Or...?
No, I provided my experience and data from tuning various cars and my car on the dyno and on the road.
Techsalvager is offline   Reply With Quote
Old 06-26-2012, 11:31 AM   #115
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

the force is strong with this one
18psi is offline   Reply With Quote
Old 06-26-2012, 12:11 PM   #116
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

But why would you prefer a tuning method that always makes less power and cant compensate for boost leaks?
Orion ZyGarian is offline   Reply With Quote
Old 06-26-2012, 02:53 PM   #117
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

It wont always make less power, it will if you have the wrong sized or poorly designed maf. On a car with a good maf, with a maf based tuning solution the only real reasons to switch to speed density is if you flow enough air to max out a 3" maf with no screen, you have a packaging constraint that prevents you from properly placing the maf. We don't have a good maf, and switching to one would take too much work.
Leafy is online now   Reply With Quote
Old 06-26-2012, 03:46 PM   #118
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I use a nissan N60 maf.
Techsalvager is offline   Reply With Quote
Old 06-26-2012, 08:12 PM   #119
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

Quote:
Originally Posted by Leafy View Post
It wont always make less power, it will if you have the wrong sized or poorly designed maf. On a car with a good maf, with a maf based tuning solution the only real reasons to switch to speed density is if you flow enough air to max out a 3" maf with no screen, you have a packaging constraint that prevents you from properly placing the maf. We don't have a good maf, and switching to one would take too much work.
I had a good GM 3" MAF on my Supra, but my friend with a dyno insists you can get even 20 HP by going MAP instead. Originally planned on using the MAF for tuning in vacuum and MAP for boost, but he changed my mind. Granted, we come from a world where 300whp is just a bare bones starting number, youre likely right when it comes to Miatas.
Orion ZyGarian is offline   Reply With Quote
Old 06-26-2012, 08:18 PM   #120
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Yeah that 3" maf should be good up till the 800-1000 hp range before it starts to be an issue and 3.5" and bigger mafs are just silly since they have no resolution at idle air flows.
Leafy is online now   Reply With Quote
