Default Pictures of my rod for Hustler

Cause he inspired me to do this.

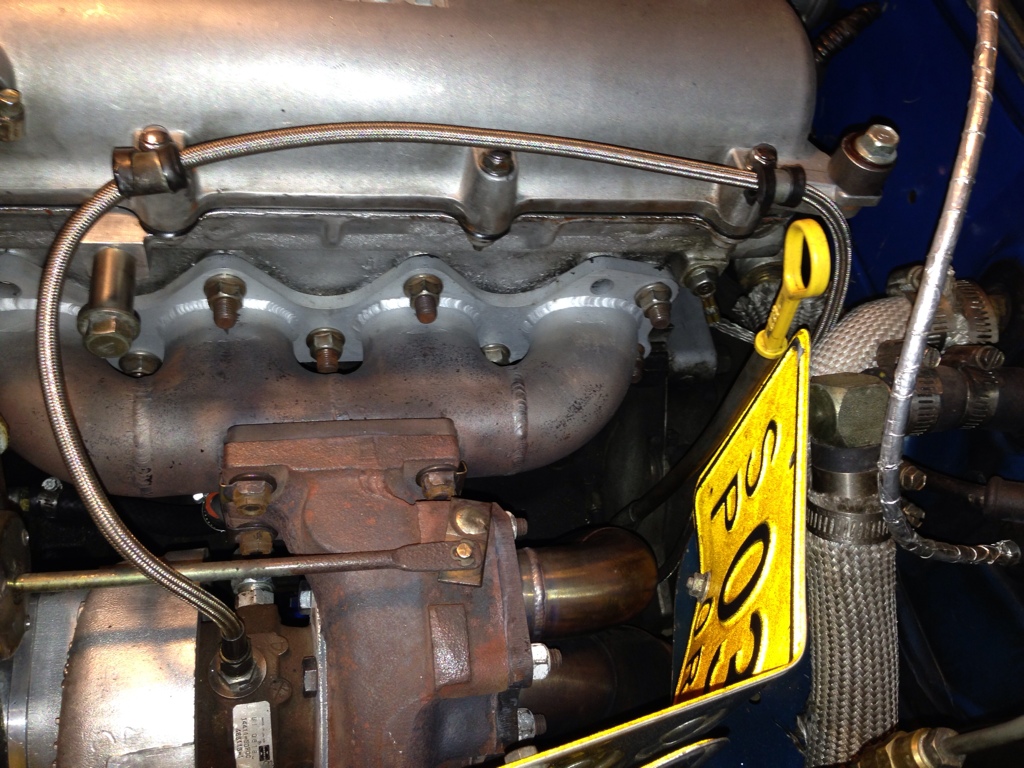

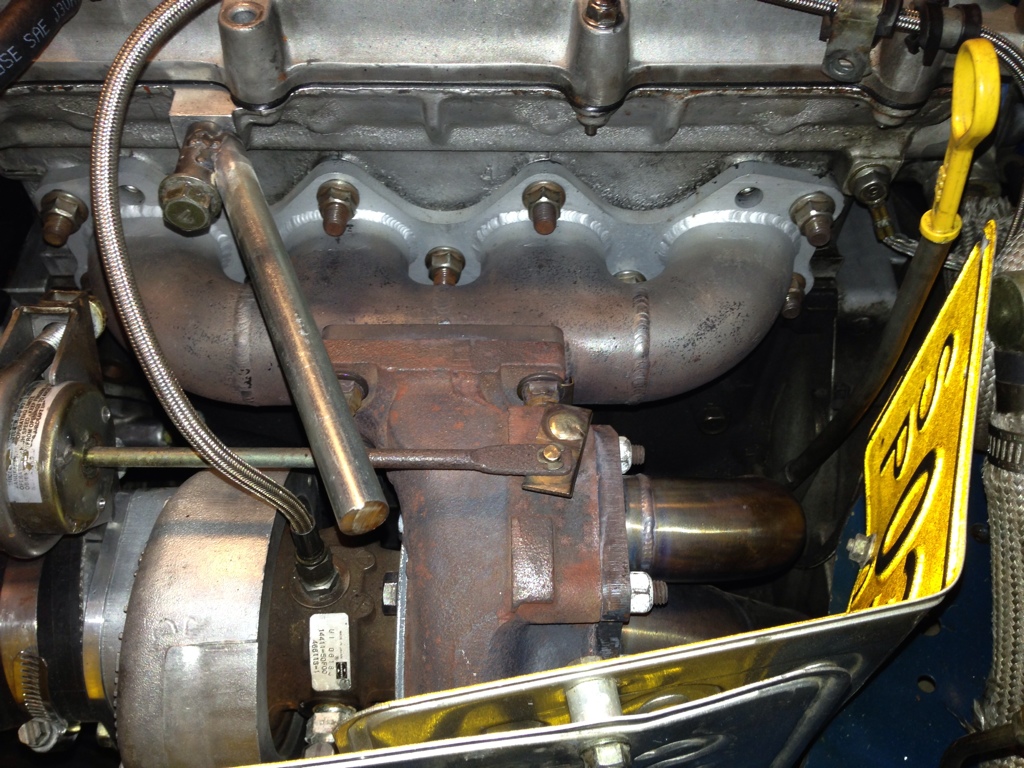

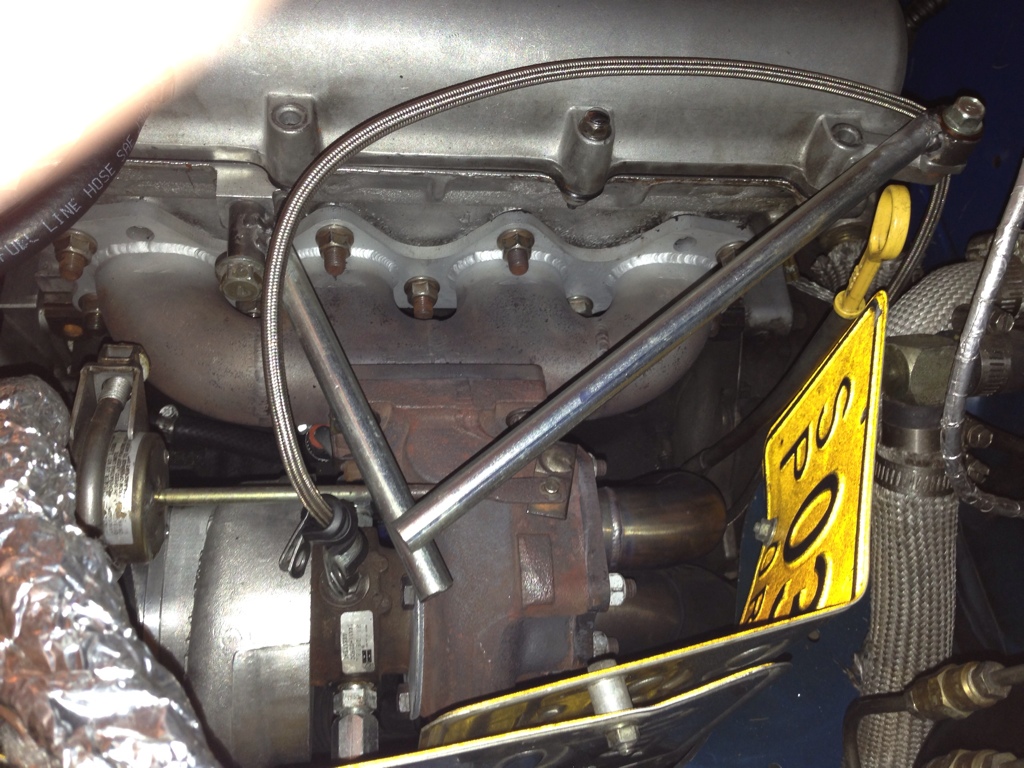

As usual my welder/welding skills let me down the most, however I believe them to be strong enough. I might finish them up a bit more later. I stopped here cause I need to look at turnbuckles at Home Depot and find out how I wanna cut/weld the two ends together to meet up with the turnbuckle hardware. Hopefully I'll have it finished up tomorrow.
Attached Thumbnails
Pictures of my rod for Hustler-e7b60d21-e92c-4091-a9f4-407d0aaeb3de-8280-000003be939551bd_zpsfcf2afc3.jpg   Pictures of my rod for Hustler-4c6e78f1-6cd9-4a56-9935-99b3b79a4f27-8280-000003be95dd983b_zpse1d4ab04.jpg   Pictures of my rod for Hustler-948cc78d-1521-4a25-b2ce-20075807d6c7-8280-000003be980808d2_zpsb828cb96.jpg
curly is offline   Reply With Quote
Old 02-19-2013, 01:00 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Awesome, I need a welder of sorts.
hustler is offline   Reply With Quote
Old 02-19-2013, 12:07 PM   #3
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

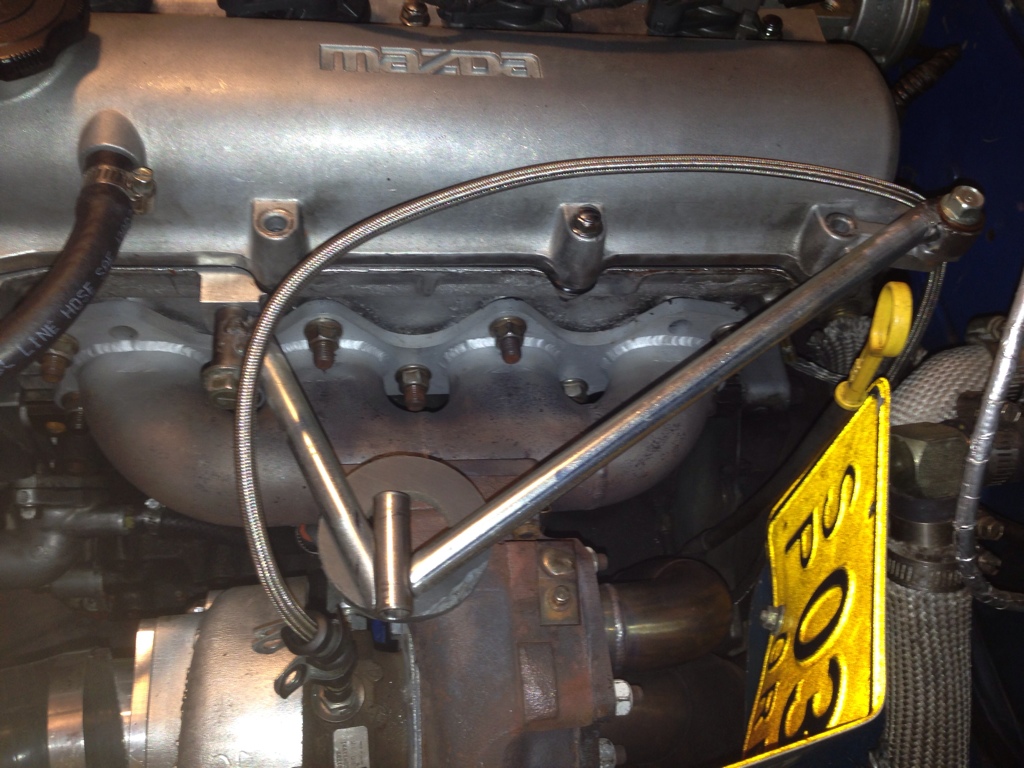

"Finished" version. Still need to do the final welding. Unfortunately that means welding in the engine bay and I'm a little scared of that. I have a drop cloth that should work. It's heavy duty canvas, hopefully it won't catch fire. I'm just going to tack it, then finish weld off the car.

Attached Thumbnails
Pictures of my rod for Hustler-df86a650-7a1b-453d-84c1-8680ab557244-8882-000003fadb7f8450_zps2ee28970.jpg
curly is offline   Reply With Quote
Old 02-19-2013, 12:11 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

can you post a side profile shot if/when possible? looking down at it doesn't really show much
18psi is offline   Reply With Quote
Old 02-19-2013, 12:20 PM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

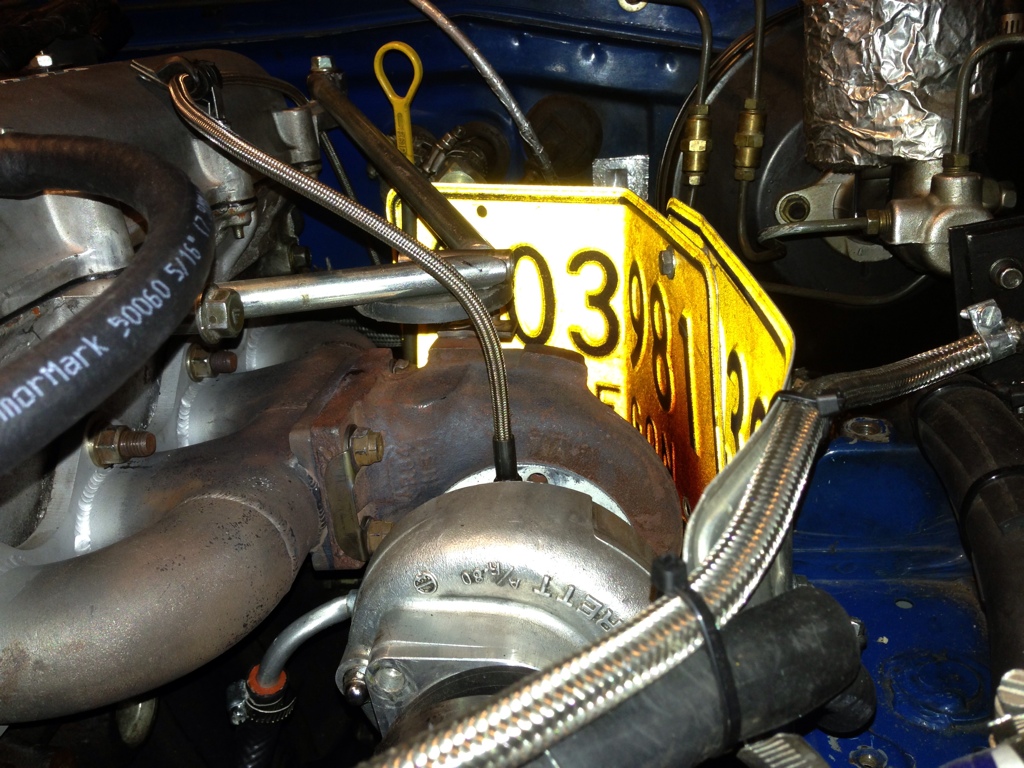

Like so? Sorry for the heat shield reflection. You can just barely see the bolt I'll be using, just to the right of the oil line.

Attached Thumbnails
Pictures of my rod for Hustler-49e8f986-26a3-42b9-9ec0-ae4c9eec1c24-8882-000003fbe0f8b671_zps00fbe633.jpg
curly is offline   Reply With Quote
Old 02-19-2013, 12:23 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

do you have no prop valve, or is it in cabin?
Braineack is offline   Reply With Quote
Old 02-19-2013, 12:26 PM   #7
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

It's in the cabin, by the shifter.
curly is offline   Reply With Quote
Old 02-19-2013, 01:31 PM   #8
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Finished up the welding. I got lucky, **** almost burned down.

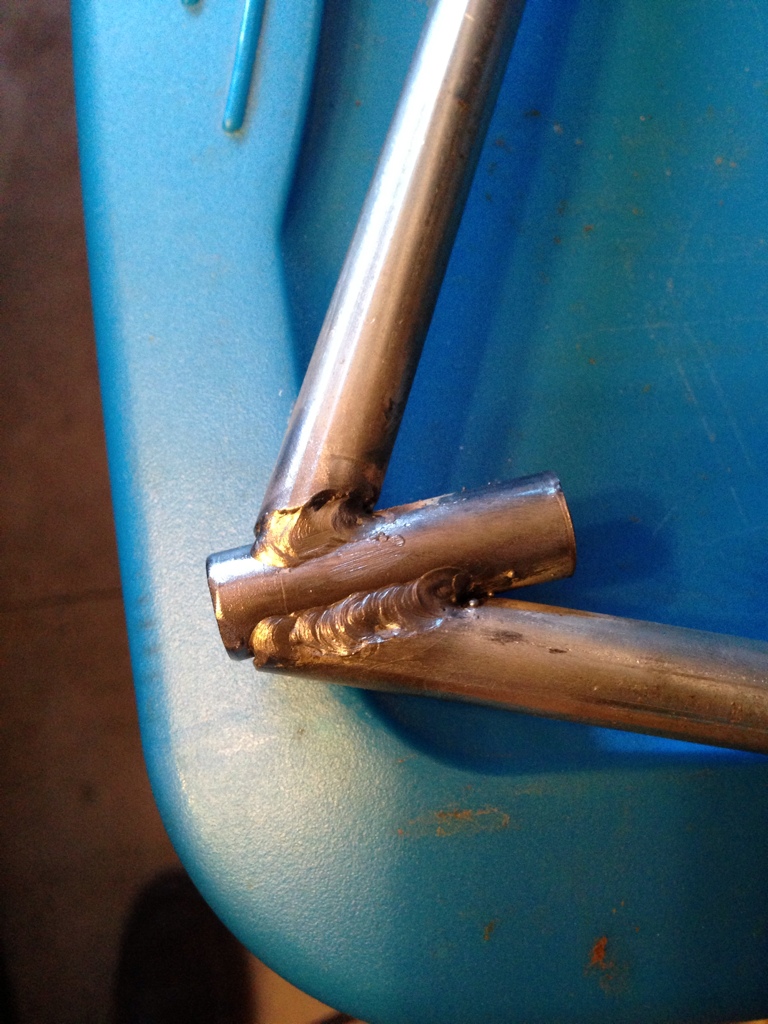

Rarely am I proud of my welding, but I was of this one. Of course this is on the bottom and no one will see it :(

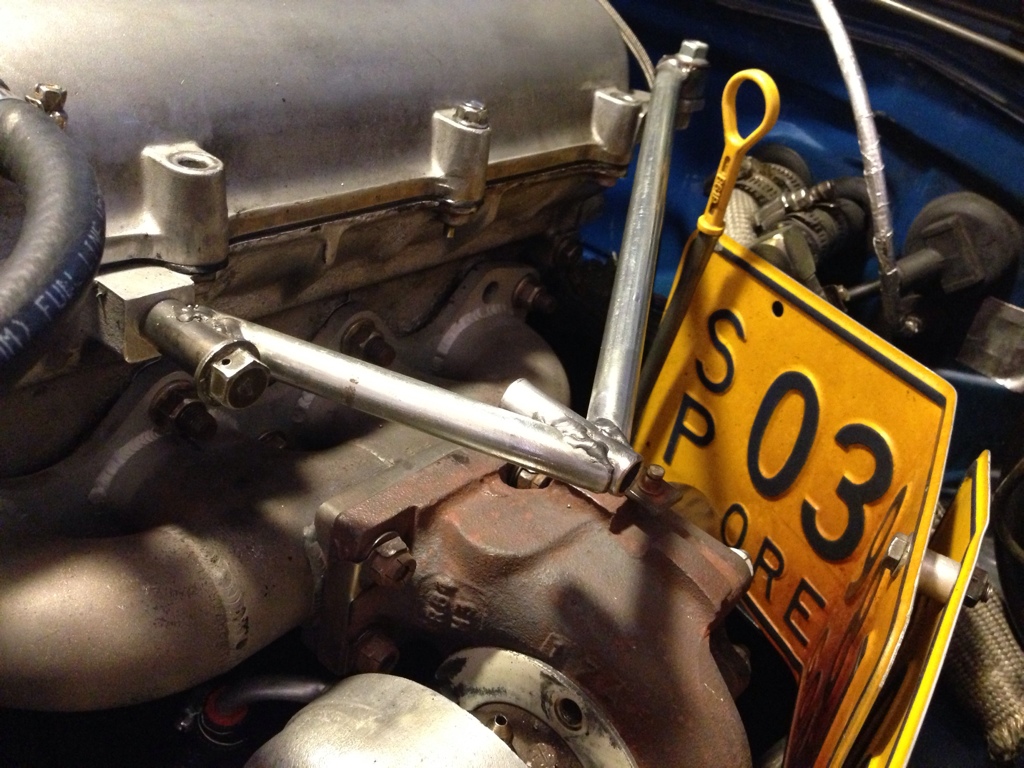

Finished product, for real this time. I'm off to the hardware store to get the turn buckle.

Attached Thumbnails
Pictures of my rod for Hustler-65cc4c39-9a17-4b17-8b40-f109a987726e-8882-0000040b40774ed9_zpsb7b76a7b.jpg   Pictures of my rod for Hustler-18ba99de-ba19-4a3b-8f9b-ab058faac280-8882-0000040b42a42714_zps4667111e.jpg   Pictures of my rod for Hustler-184e1079-077d-4e3f-9ec3-26d710f66fa5-8882-0000040b44ae5751_zps4991d740.jpg
curly is offline   Reply With Quote
Old 02-19-2013, 01:32 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

cool beans. was it starting to stress/crack or is this a precaution thing?
18psi is offline   Reply With Quote
Old 02-19-2013, 01:43 PM   #10
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Looks good.

So that's two pieces of bar stock and one piece of tube, all stainless? Stainless turn buckle?

Any reason the two mount points are not on the same plane?
Miater is offline   Reply With Quote
Old 02-19-2013, 02:22 PM   #11
Junior Member
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

So how sad is it that i totally thought you were talking about the license plate heat shield until i read the comments.
shanem is offline   Reply With Quote
Old 02-19-2013, 02:57 PM   #12
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Me too. Ah, well.
AbeFM is offline   Reply With Quote
Old 02-19-2013, 03:23 PM   #13
Newb

Join Date: May 2012
Location: Ontario, Canada
Posts: 10
Total Cats: 0
Default

I dig the heat shield. I must admit I looked over the pictures and I have yet to figure out what it exactly accomplishes by designing it like that. Care to explain a little more?

Thanks,
JamesS is offline   Reply With Quote
Old 02-19-2013, 03:27 PM   #14
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Trying to prevent manifold cracks/stud issues by providing alternate support for the weight of the turbo/downpipe/etc.
hornetball is offline   Reply With Quote
Old 02-19-2013, 03:29 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

almost forgot: opened this thread expecting nudes
18psi is offline   Reply With Quote
Old 02-19-2013, 03:32 PM   #16
Newb

Join Date: May 2012
Location: Ontario, Canada
Posts: 10
Total Cats: 0
Default

It appears not to be attached to anything to support the turbo. Is there another part still required to be installed or something I am not understanding?

Your welds look pretty good! Thanks for your time.
JamesS is offline   Reply With Quote
Old 02-19-2013, 03:41 PM   #17
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by JamesS View Post
It appears not to be attached to anything to support the turbo. Is there another part still required to be installed or something I am not understanding?
Quote:
Originally Posted by curly View Post
I'm off to the hardware store to get the turn buckle.
!
hornetball is offline   Reply With Quote
Old 02-19-2013, 03:53 PM   #18
Newb

Join Date: May 2012
Location: Ontario, Canada
Posts: 10
Total Cats: 0
Default

Sorry guys! My mistake, I saw the words "finished product" and thought it was done. Look forward to seeing the results.
JamesS is offline   Reply With Quote
Old 02-19-2013, 03:55 PM   #19
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

I see all sorts of fail here.

Like was hinted already. You need more to that brace to make it anywhere near stiff enough to do anything. If you can push down on that corner where you plan to bolt your turnbuckle with your body weight and you can feel it move (it will as-is unless you're a fairy), then it won't work.

Orrrr if you twang it with a hammer and it goes TWWAANNNGGGBHHHMMMMMMMMM it wont' work. It needs to be THUD.

Orrrr if would you stand under your engine if you use the turn buckle hole as a engine lift point?

3 points make me happy. Make it like Lars'.

SOrry if I sound harsh. Welds look good, I'm all for DIY. Do log manifolds crack?

Huster's didn't crack cause of weight hanging off the cylinder head. I was supposed to ship it back to him today but it's his birthday so he'll have to wait til tomorrow.
TurboTim is offline   Reply With Quote
Old 02-19-2013, 03:58 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

needs to be triangulated so its an actual crane, instead of hanging off the bolts bending them in the process

right?
