Old 02-19-2013, 04:08 PM   #21
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

kinda sorta.
TurboTim is offline   Reply With Quote
Old 02-19-2013, 04:18 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

last night i had a dream that i bought that 2560 you were selling a long time ago. in the box it looked like a GT55, but it was a 2560 when i picked it up.
Braineack is online now   Reply With Quote
Old 02-19-2013, 04:25 PM   #23
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by JamesS View Post
It appears not to be attached to anything to support the turbo. Is there another part still required to be installed or something I am not understanding?

Your welds look pretty good! Thanks for your time.
Its actually for keeping the head from doing the twist. No joke.



Quote:
Originally Posted by 18psi View Post
needs to be triangulated so its an actual crane, instead of hanging off the bolts bending them in the process

right?
Quote:
Originally Posted by TurboTim View Post
kinda sorta.

I can lean pretty hard on it actually. It's not really for the manifold at all, it's more for the studs. I'm doing this and a DIY version of FM's DP brace.

I could do a 3rd strut to one of the valve cover bolts. Would that be preferable?

The two current points aren't in the same plane cause there wasn't a bolt in the back to use. It's a freestyle crane.

Honestly, if this doesn't do much of anything I'm ok with it, I've spent all of $0 and in the process stumbled upon settings for my welder that work amazingly.
Attached Thumbnails
Pictures of my rod for Hustler-twist.jpg
curly is offline   Reply With Quote
Old 02-19-2013, 04:27 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You must triangulate for it to work. Someone, alert the engineer crew!!!
hustler is offline   Reply With Quote
Old 02-19-2013, 04:32 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Quote:
Originally Posted by hustler View Post
You must triangulate for it to work. Someone, alert the engineer crew!!!















Attached Thumbnails
Pictures of my rod for Hustler-siren.gif
Braineack is online now   Reply With Quote
Old 02-20-2013, 11:41 PM   #26
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

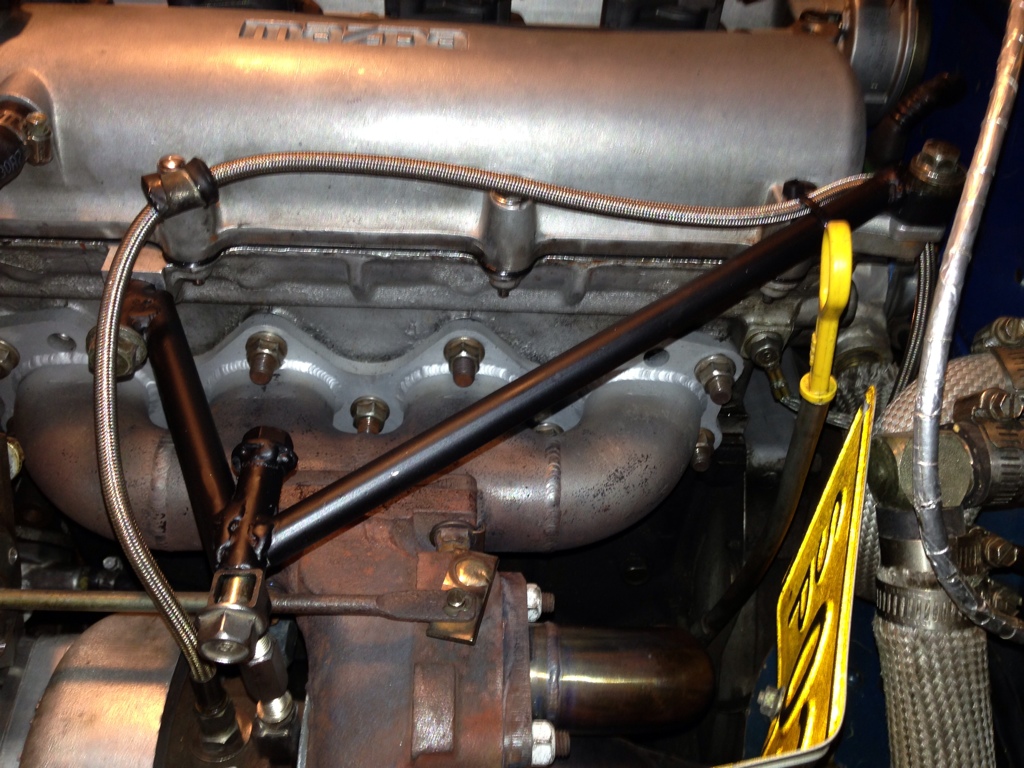

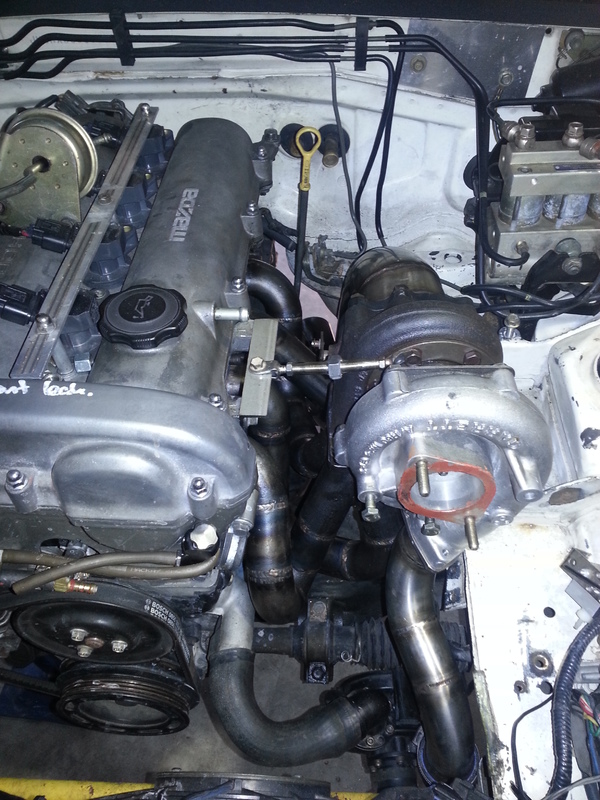

Finished product:

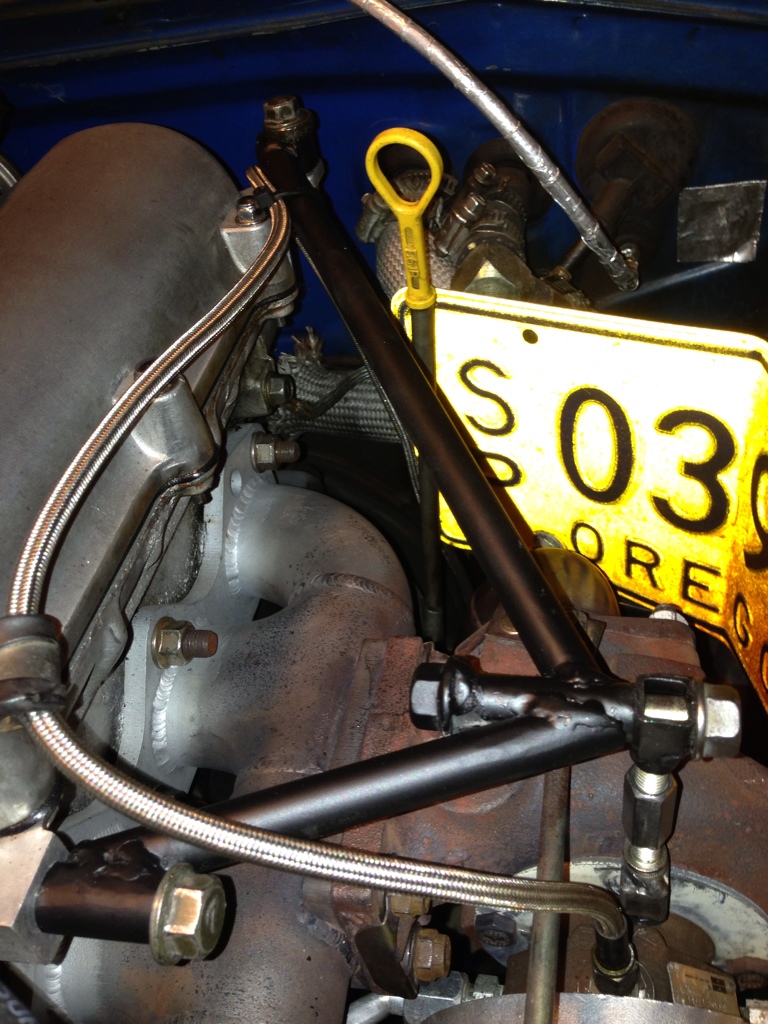

Changed the 1/4-20 bolt to a M8 bolt with a welded nut, and added my attachment. I don't really like the way it attaches. It's current relying on tension to stay tight, and it's doing that, but I may soon add either left/right handed threads for easier adjustment, or some locks nuts.

For all the triangulate people, I hear ya, and I may soon do that, maybe to one of the manifold studs? But for now, I assure you, it's strong. Without it bolted to the turbo, I could bounce on it more than I could comfortably bounce on a fender without it bending.
Attached Thumbnails
Pictures of my rod for Hustler-bc42f471-79a5-4ca3-be72-b71eebee060a-11774-00000570a2c42191_zpsaf562ee2.jpg   Pictures of my rod for Hustler-ffcb3aac-7510-4437-a8ab-196e8aef727b-11774-00000570a0afe792_zps85744a73.jpg
curly is offline   Reply With Quote
Old 02-20-2013, 11:46 PM   #27
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It's not about strength, it's about resonance and making it less of a tuning fork.
hustler is offline   Reply With Quote
Old 02-20-2013, 11:52 PM   #28
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

How old is this thread this is the first I have seen it.

Yeah Tim is right, run a 3rd rod down to the lowest manifold stud you can get to.

This is how I did mine but I have a longtube manifold and the brace is loaded differently.

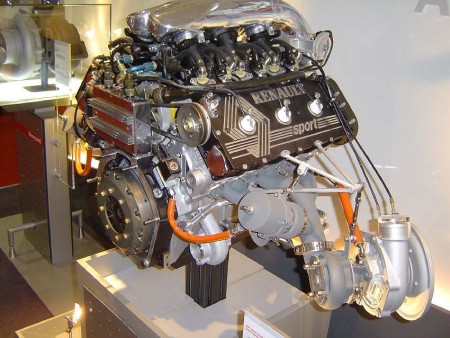

See how this one has it triangulated vertically not just horizontally.



Do this and then win.



Dann
Attached Thumbnails
Pictures of my rod for Hustler-renault-f1-turbo.jpg

Last edited by nitrodann; 02-21-2013 at 12:05 AM.
nitrodann is offline   Reply With Quote
Old 02-21-2013, 12:02 AM   #29
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by hustler View Post
It's not about strength, it's about resonance and making it less of a tuning fork.
Gotcha. I'll add a third member down to one of the manifold studs.

Quote:
Originally Posted by nitrodann View Post
How old is this thread this is the first I have seen it.
Started fab'ing about half an hour before the first post. I've got about a 1-1.5 hours into it. Mostly cleaning up after my flux core MIG.
curly is offline   Reply With Quote
Old 02-21-2013, 12:08 AM   #30
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Cool.

I probably ninja'd you with those pics sorry.

Dann
nitrodann is offline   Reply With Quote
Old 02-21-2013, 08:28 AM   #31
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

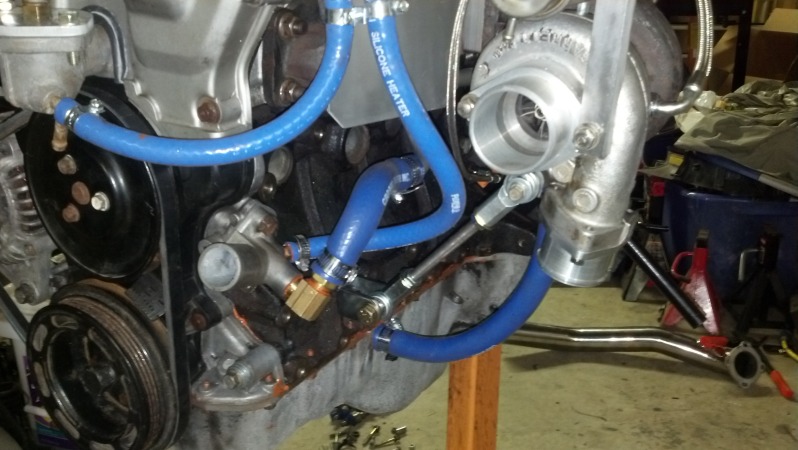

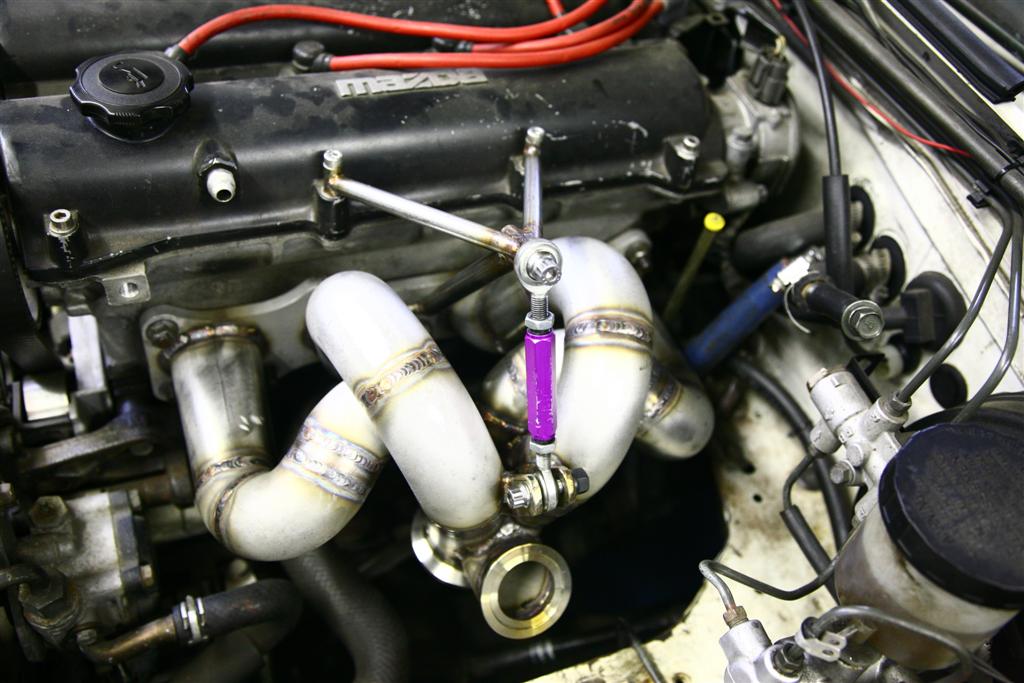

Attached Thumbnails
Pictures of my rod for Hustler-lars32.jpg
TurboTim is offline   Reply With Quote
Old 02-21-2013, 08:45 AM   #32
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default



easier if supported from the bottom?
sturovo is offline   Reply With Quote
Old 02-21-2013, 09:25 AM   #33
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

OEM turbo BP's (others as well) support with a little L bracket from the bottom, bolting into into bosses in the block and turbo. They also keep the turbo tighter to the block with a downward outlet manifold.
inferno94 is offline   Reply With Quote
Old 02-21-2013, 10:30 AM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

hmm, bottom brace actually looks like an even better idea
18psi is offline   Reply With Quote
Old 02-21-2013, 11:12 AM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TurboTim View Post
My Irishman.
hustler is offline   Reply With Quote
Old 02-21-2013, 11:21 AM   #36
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Nitro, the one on your setup looks like it might do more harm than good. Its good to let the manifold move and if you try to lock it down in the wrong directions you end up actually putting more stress into it than if you just let it move around a bit as it heat cycles.
Leafy is offline   Reply With Quote
Old 02-21-2013, 11:54 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

When I brace my manifolds, I like to prevent them from expanding so they crack from that added stress of my engineering instead of from natural causes.

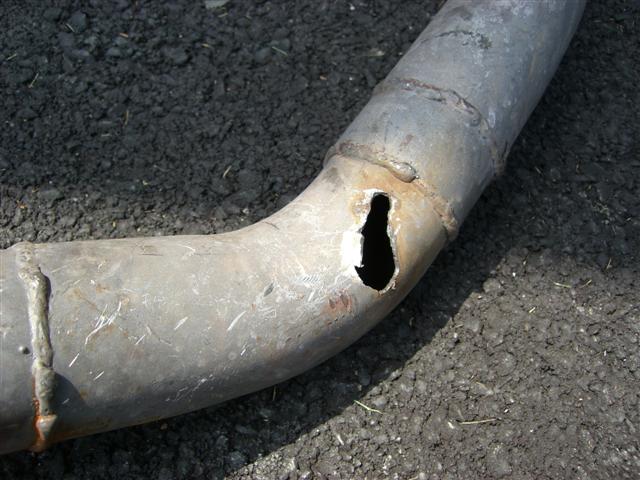

Kinda like how I like to brace my downpipes:

Attached Thumbnails
Pictures of my rod for Hustler-brokeassdp.jpg
Braineack is online now   Reply With Quote
Old 02-21-2013, 01:15 PM   #38
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

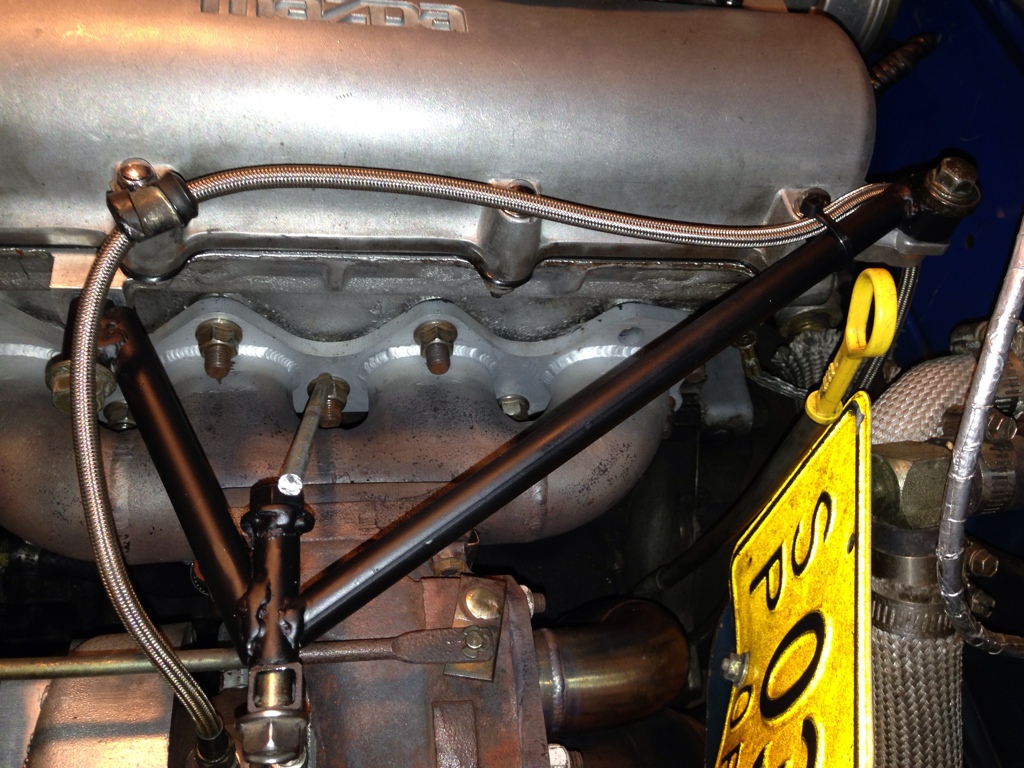

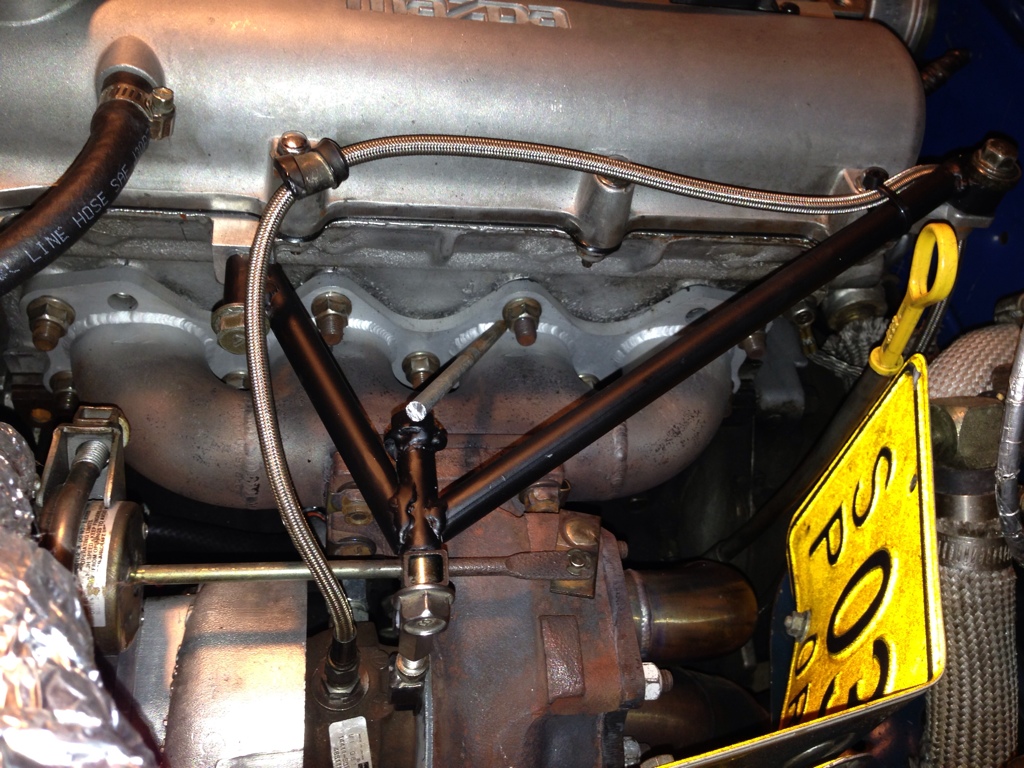

Hmm, I like the simplicity and symmetry of Tim's picture. The more I look at mine, the more it's asymmetry bugs me. Adding the third member like Dann suggested would bug me even more. I took these shots yesterday:




I may redesign and start over. I found some great settings on my welder half way through anyways.
Attached Thumbnails
Pictures of my rod for Hustler-24da0ca5-7a81-48dd-8f47-0d8fccd345eb-12402-000005b9851116a7_zpse1dbd9b5.jpg   Pictures of my rod for Hustler-a6ac73a1-ecd9-4655-9d96-7280da3025cb-12402-000005b982aa3ca3_zpsc540b20e.jpg
curly is offline   Reply With Quote
Old 02-21-2013, 01:20 PM   #39
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Why not triangulate using the 2 middle bolts or something, so its not loopy?
Also the 3rd "leg" is a very good idea and would make your crane actually work, as discussed.
18psi is offline   Reply With Quote
Old 02-21-2013, 01:22 PM   #40
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

How about nixing the turn buckle all together and actually making it with a cable. Since this should only ever be loaded in tension you can use the cable as the 3rd member You'll just have to give its own support that sticks up randomly and close to the hood. Then if for some reason your manifold shape naturally moved upwards on heating it could.

Note this requires a cable with good high temp heat properties like 321 stainless or 316Ti, I'd worry about carbon steel failing from corrosion in a very short time since it has a high surface area to volume ratio and is going to be somewhere hot.
