that last shot confuses me.
Braineack is offline   Reply With Quote
Old 02-21-2013, 04:33 PM   #62
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

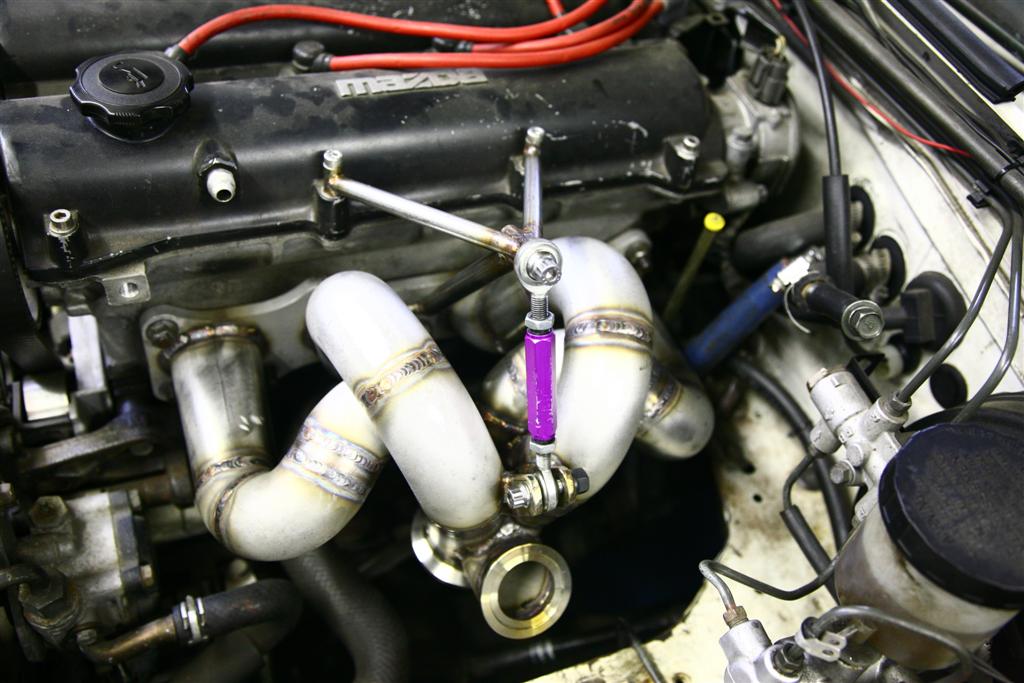

I left the old one on during fab'ing. And that's fab with a b, not a p.
curly is offline   Reply With Quote
Old 02-21-2013, 07:06 PM   #63
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Quote:
Originally Posted by Leafy View Post
Nitro, the one on your setup looks like it might do more harm than good. Its good to let the manifold move and if you try to lock it down in the wrong directions you end up actually putting more stress into it than if you just let it move around a bit as it heat cycles.
You may or may not be right, whats nice about it being a turnbuckle is that while its on the dyno I can and will turn the turnbuckle and find out just how far the manifold moves, if its more than a few millimetres I will do a very strong turnbuckle from under the turbo to the engine mount.

Dann
nitrodann is online now   Reply With Quote
Old 02-21-2013, 07:13 PM   #64
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by nitrodann View Post
You may or may not be right, whats nice about it being a turnbuckle is that while its on the dyno I can and will turn the turnbuckle and find out just how far the manifold moves, if its more than a few millimetres I will do a very strong turnbuckle from under the turbo to the engine mount.

Dann
It's not about holding the turbo, it's about vibration.
hustler is offline   Reply With Quote
Old 02-21-2013, 07:30 PM   #65
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Im not sure how that affects what I just said.

Dann
nitrodann is online now   Reply With Quote
Old 02-21-2013, 09:40 PM   #66
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Josh, do you have an actual issue that you're trying to fix?
hornetball is offline   Reply With Quote
Old 02-21-2013, 09:47 PM   #67
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

He is a miata enthusiast of course he does

Dann
nitrodann is online now   Reply With Quote
Old 02-21-2013, 10:07 PM   #68
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

A big problem I see with those mounts is that they rely on the actual bolt not bending...the tiny little head bolts. Uck.

Quote:
Originally Posted by TurboTim View Post
triple88a is offline   Reply With Quote
Old 02-21-2013, 10:12 PM   #69
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

If the welds dont bend the bolts cannot. They are loaded in single shear only if the welds bend.

Dann
nitrodann is online now   Reply With Quote
Old 02-21-2013, 10:18 PM   #70
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

If the welds dont bend the bolts cannot? What? Bolts are made to be loaded by tension.. not by a twisting motion

The way the link is connected the only force put on that mount is vertical at the end.. in other words by trying to bend the bolts.
triple88a is offline   Reply With Quote
Old 02-21-2013, 10:23 PM   #71
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Deleted post cos it was wrong and I didnt want to confuse people.

Dann

Last edited by nitrodann; 02-21-2013 at 10:51 PM.
nitrodann is online now   Reply With Quote
Old 02-21-2013, 10:26 PM   #72
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

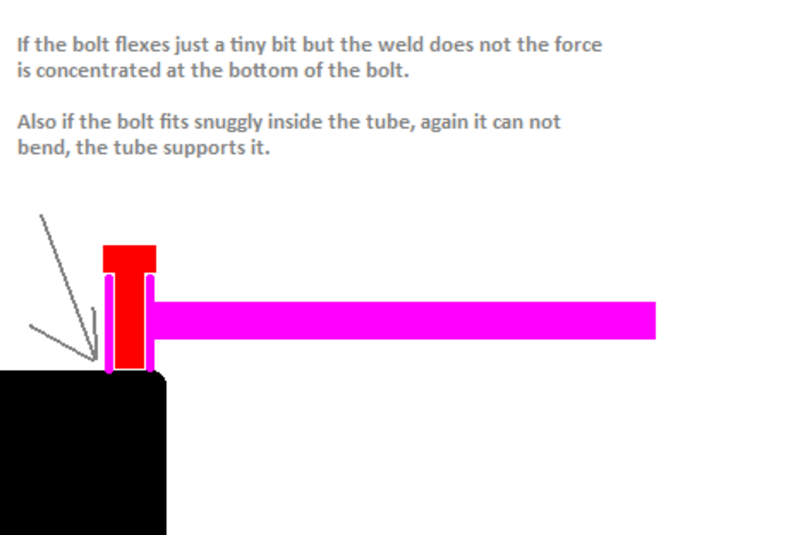

Dann
Attached Thumbnails
Pictures of my rod for Hustler-untitled.png

Last edited by nitrodann; 02-21-2013 at 11:06 PM.
nitrodann is online now   Reply With Quote
Old 02-21-2013, 10:42 PM   #73
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

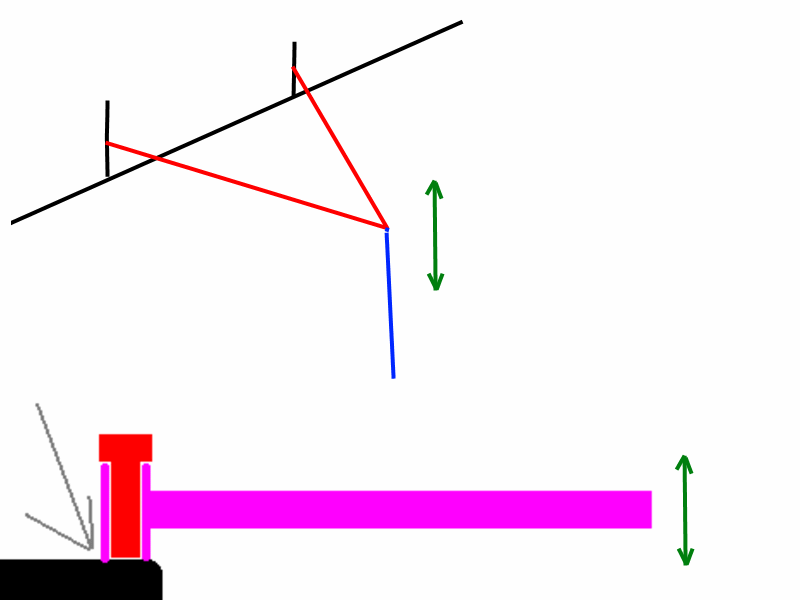

The green would be the force applied to the bracket.

Sure the bracket supports it self however remember you're talking about an M6 bolt there and a 10" long bar to put force on it. The 1/16-1/8" wall around it increases the tension until the opposite corners hit the bolt and at that point you're putting every bit of bending force on the bolt.

Say u're putting upwards force on it. The opposite corners that will contact the bolt will be the one where your arrow is pointing and the top on the right where the bolt head is at.

You can easily snap a m6 bolt just by over torquing it.. imagine how easy it is to snap it with a 10" bar .

To make things worse, theres a gasket those bolts hold. Every bit of upwards or downwards motion increases and loosens the force on that gasket.
Attached Thumbnails
Pictures of my rod for Hustler-bolt.gif
triple88a is offline   Reply With Quote
Old 02-21-2013, 10:50 PM   #74
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

It will be pulling outwards not down when it has the 3rd rod on it.

Dann

Last edited by nitrodann; 02-21-2013 at 11:06 PM.
nitrodann is online now   Reply With Quote
Old 02-21-2013, 11:01 PM   #75
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

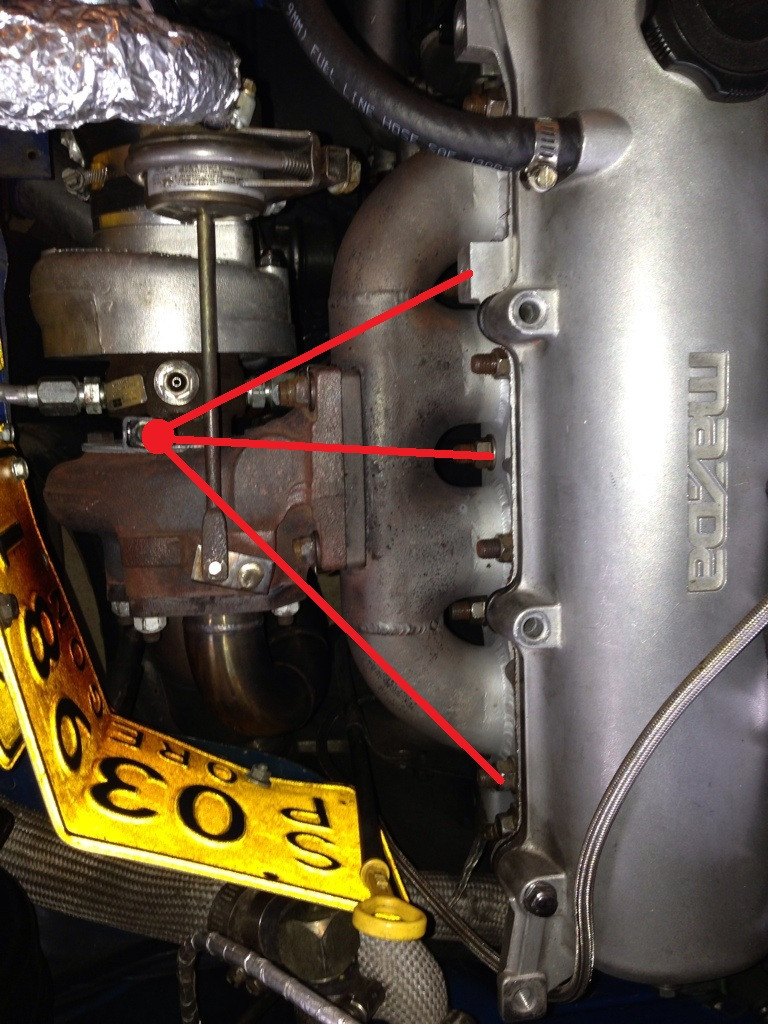

Also not a fan of the using the valve cover bolts. What about
Attached Thumbnails
Pictures of my rod for Hustler-jwgqghw.jpg
TorqueZombie is offline   Reply With Quote
Old 02-21-2013, 11:04 PM   #76
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

Actually, if he uses a 3rd rod to triangulate it I was right.

Which Is what I was thinking before I read your post.

******* idiot I am.

Dann
nitrodann is online now   Reply With Quote
Old 02-21-2013, 11:48 PM   #77
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

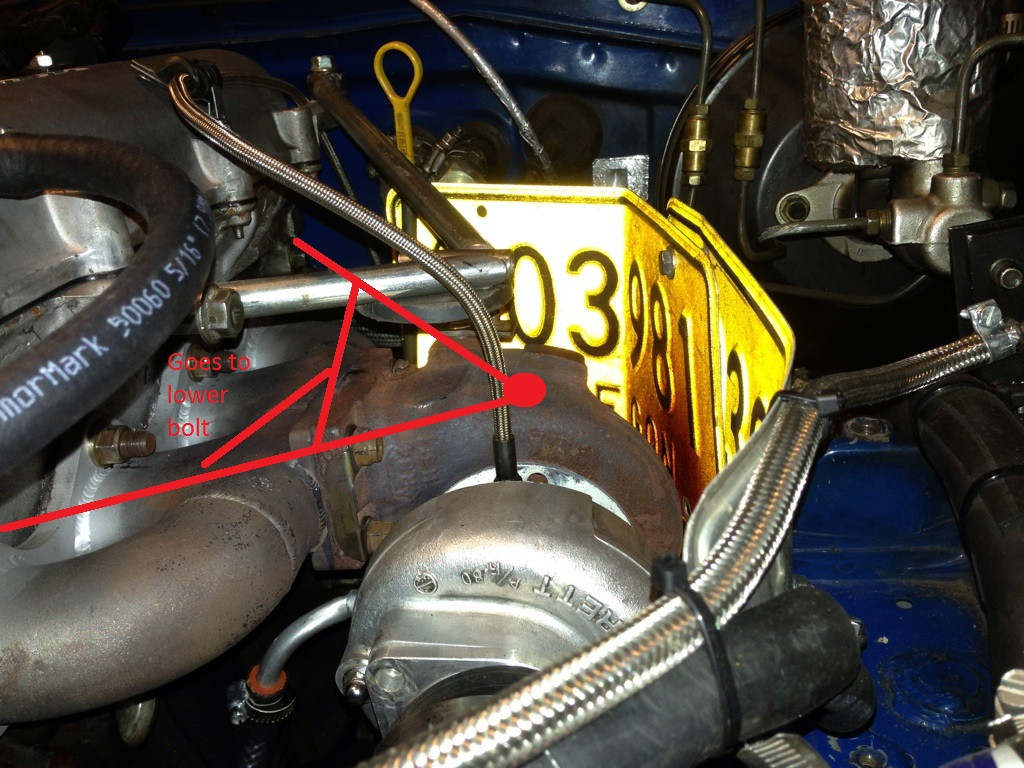

How about


2 to go to turbo and 1 as a diagonal upward brace to a cross bar. Should give some upward strength and decrease vibration with three points of contact to big motor parts and some Mass of its own.
Attached Thumbnails
Pictures of my rod for Hustler-rw7w6uw.jpg
TorqueZombie is offline   Reply With Quote
Old 02-22-2013, 12:47 AM   #78
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Cant we flip this over and make something from the ac compressor mounts? Its not like they're being used for anything on a proper car anyways.
Leafy is offline   Reply With Quote
Old 02-22-2013, 01:00 AM   #79
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Attach one large one to the motor mount on the bottom.
triple88a is offline   Reply With Quote
Old 02-22-2013, 01:47 AM   #80
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Lots to think about. I also thought of a much better way to fabricate the 2nd design, so I'll be making a 3rd prototype going to the VC bolts, 1/4" rod, 3rd member, etc. Gimmie some time though, I'm about to start a week of work and quizes in class.

Keep in mind they're only 5" long, not 10. We're really talking about tiny motions, I'm not too worried about it.
curly is offline   Reply With Quote
