Old 02-21-2013, 01:24 PM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

why not just run two rods, one on each of the top nuts, straight ot the cross-bars... ezpz.
Braineack is offline   Reply With Quote
Old 02-21-2013, 01:26 PM   #42
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Scott, I never know if you're being helpful. I think when you post MS paint pics you're actually being helpful.
curly is offline   Reply With Quote
Old 02-21-2013, 01:34 PM   #43
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
How about nixing the turn buckle all together and actually making it with a cable. Since this should only ever be loaded in tension you can use the cable as the 3rd member You'll just have to give its own support that sticks up randomly and close to the hood. Then if for some reason your manifold shape naturally moved upwards on heating it could.

Note this requires a cable with good high temp heat properties like 321 stainless or 316Ti, I'd worry about carbon steel failing from corrosion in a very short time since it has a high surface area to volume ratio and is going to be somewhere hot.
A cable doesn't stop vibration.
hustler is offline   Reply With Quote
Old 02-21-2013, 01:38 PM   #44
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

True, but if you pre-load it with enough tension you can stop the net force reversal from the vibration and reduce/eliminate the fatigue wear.
Leafy is offline   Reply With Quote
Old 02-21-2013, 01:38 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by curly View Post
Scott, I never know if you're being helpful. I think when you post MS paint pics you're actually being helpful.

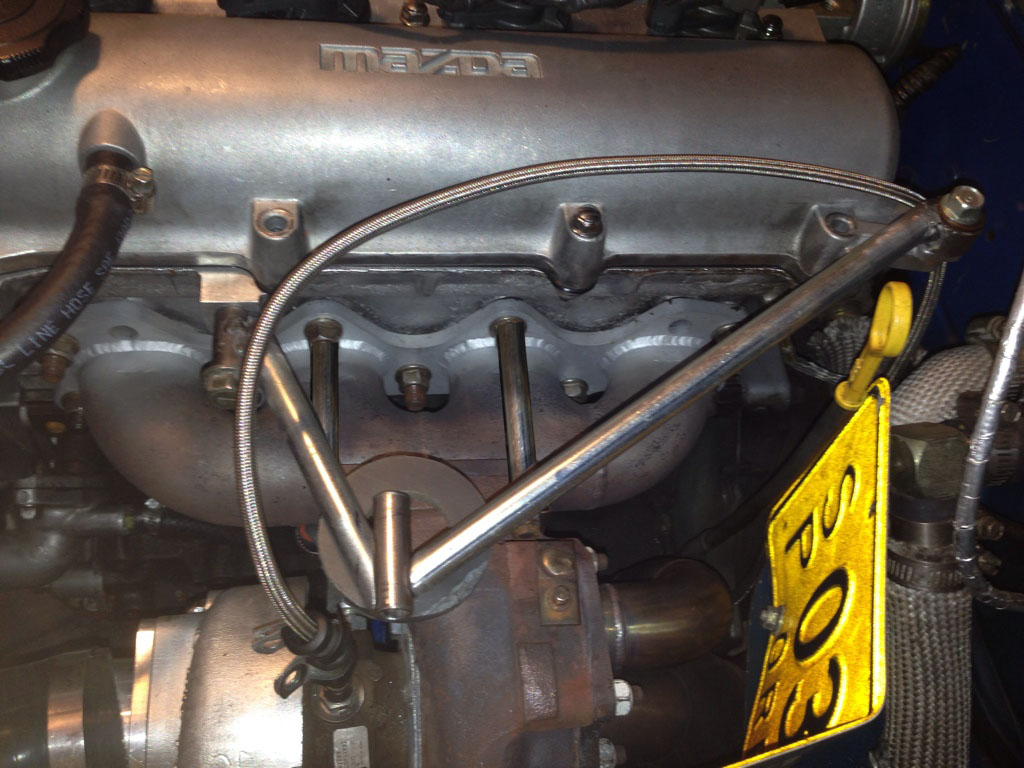

okay then:

Attached Thumbnails
Pictures of my rod for Hustler-brace.jpg
Braineack is offline   Reply With Quote
Old 02-21-2013, 01:39 PM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

leafy.....
18psi is offline   Reply With Quote
Old 02-21-2013, 02:05 PM   #47
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

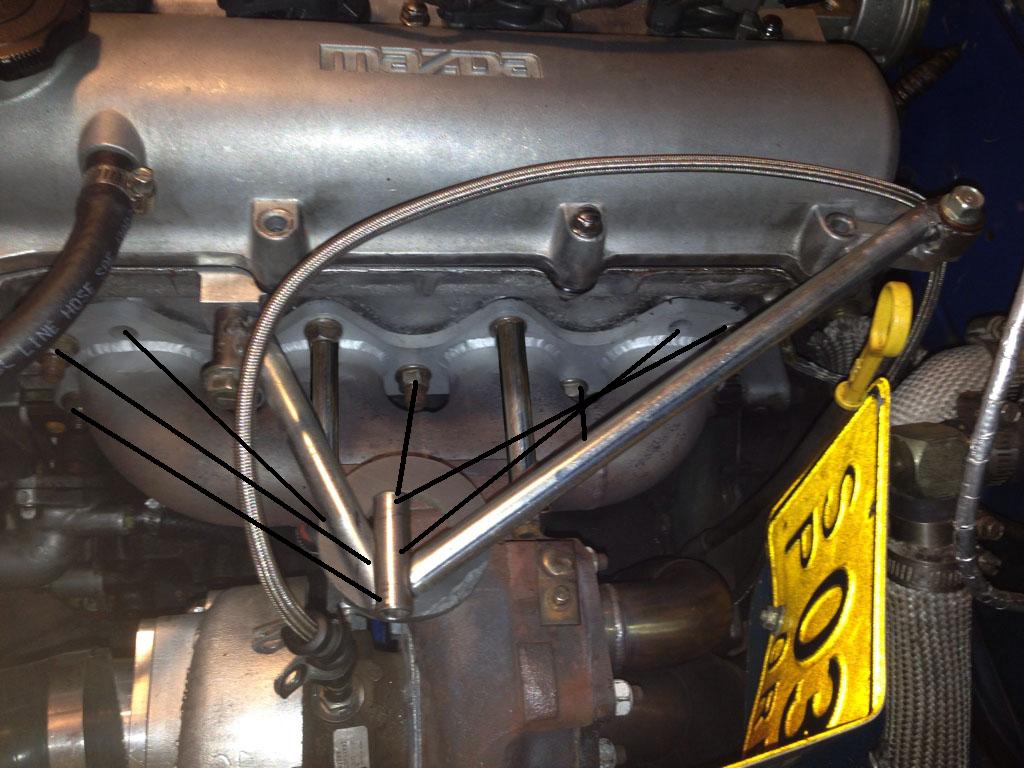

Yes?
Attached Thumbnails
Pictures of my rod for Hustler-untitled_zps75890d57.jpg
curly is offline   Reply With Quote
Old 02-21-2013, 02:11 PM   #48
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Real question:

Make the triangle symmetrical like Tim's picture, or center it over the part of the turbine housing I'm bolting it to (like the current setup)?
curly is offline   Reply With Quote
Old 02-21-2013, 02:13 PM   #49
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Add some bracing to the downpipe too!
SKMetalworks is offline   Reply With Quote
Old 02-21-2013, 02:17 PM   #50
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I'm making a Bbundy/FM DP brace, I've got the clamp, I'm thinking about widening it to fit a strip of metal so I don't bend my DP like Bbundy, and I'll either fab or buy FM's bracket. It's a complicated bend/shape in a shitty location, so it might be worth the $25.
curly is offline   Reply With Quote
Old 02-21-2013, 02:19 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by curly View Post


Yes?

no, *******.


you could do it symmetrical with a standoff at the turbo side to get the turnbuckle in the correct position. do you need a PS/MS Paint?


but the access to that middle stud is going to be rediculous with your manifold, where Lars's has easier access without the "collector" being in the way.
Braineack is offline   Reply With Quote
Old 02-21-2013, 02:38 PM   #52
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

so why's a poor-flowing log manifold need to be protected against destroying itself? a crack would only make it flow betterrrrr

/troll
y8s is offline   Reply With Quote
Old 02-21-2013, 02:41 PM   #53
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Go drive your mini van.

Quote:
Originally Posted by Braineack View Post
do you need a PS/MS Paint?
Always
curly is offline   Reply With Quote
Old 02-21-2013, 02:44 PM   #54
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i need a straight on shot from above of your turbo without the brace.
Braineack is offline   Reply With Quote
Old 02-21-2013, 03:33 PM   #55
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
so why's a poor-flowing log manifold need to be protected against destroying itself? a crack would only make it flow betterrrrr

/troll
lol @ baby troll post.
hustler is offline   Reply With Quote
Old 02-21-2013, 03:36 PM   #56
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Braineack View Post
i need a straight on shot from above
Savington is offline   Reply With Quote
Old 02-21-2013, 03:49 PM   #57
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

as opposed to the straight on shot from behind he got last night
18psi is offline   Reply With Quote
Old 02-21-2013, 03:57 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

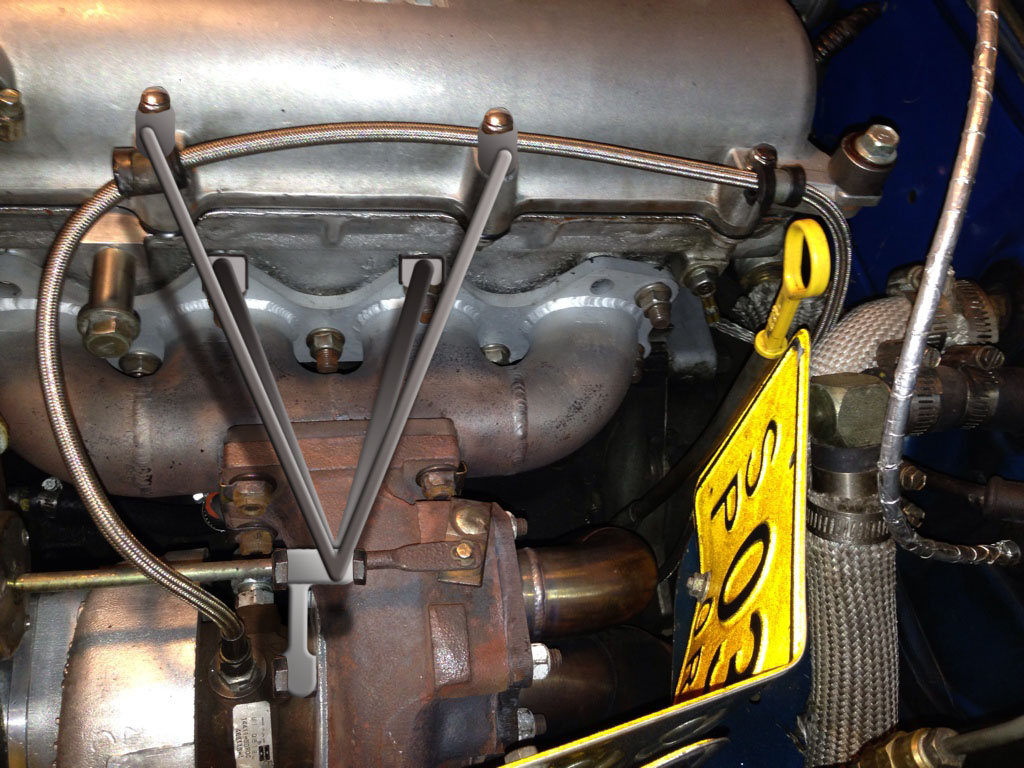

okay, here, more symmetry:

Attached Thumbnails
Pictures of my rod for Hustler-brace_2.jpg
Braineack is offline   Reply With Quote
Old 02-21-2013, 03:58 PM   #59
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

That looks good
18psi is offline   Reply With Quote
Old 02-21-2013, 04:09 PM   #60
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Gotcha gotcha.

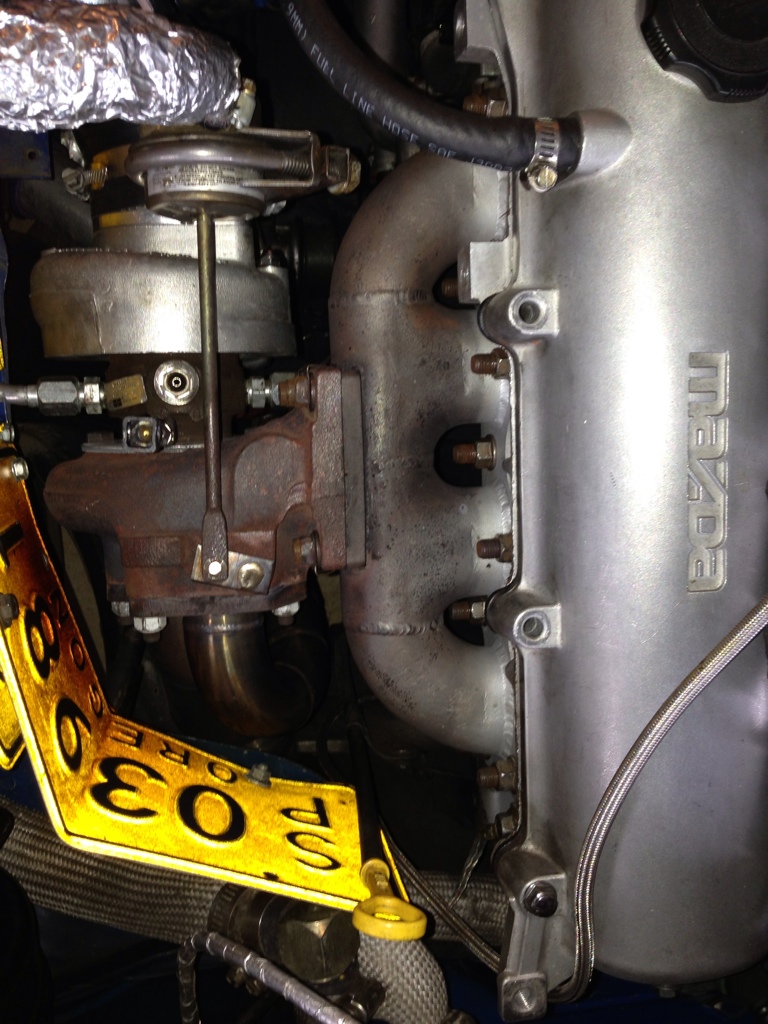

Here's your straight on shot, although it looks like you don't need it.

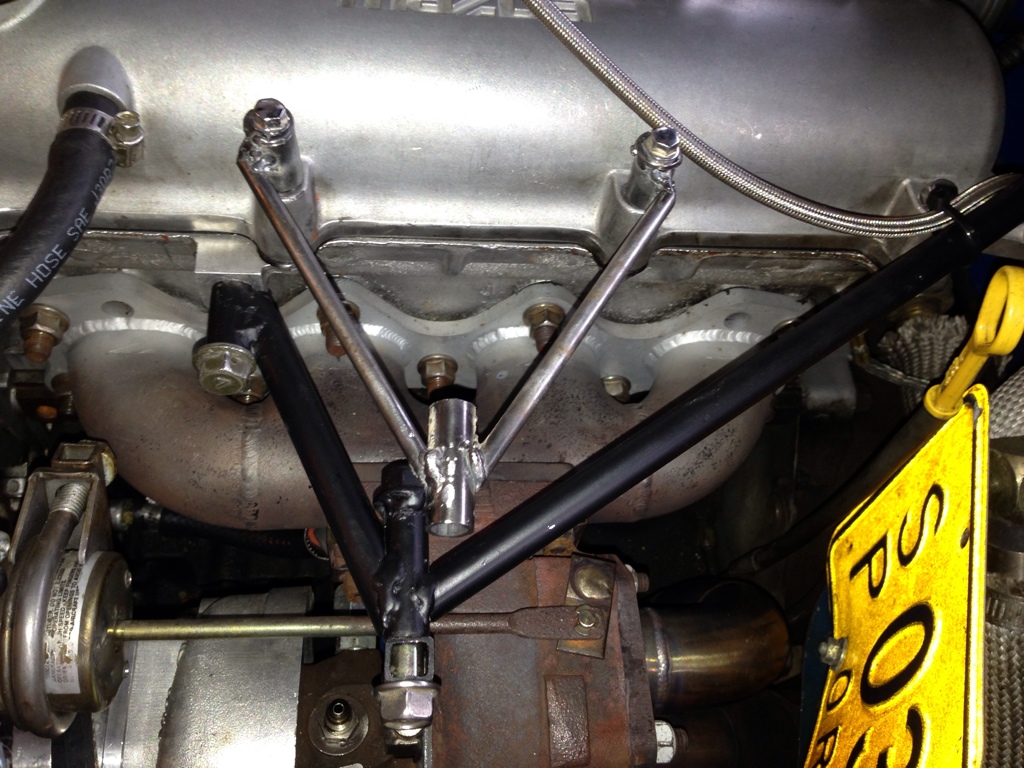

And round 2:

I may have done a few miscalculations and rushed the prototype into production. Sue me, I'm enthusiastic. ~JH

I'm not real happy with the welds or strength of this one, although the thin rod is more to my liking, along with the symmetry. This one was definitely quicker to make, but harder to get straight. You can see I couldn't get all the over lap I woulda liked on the rear post. And I am planning for a 3rd member, just hasn't been fab'd yet.
Attached Thumbnails
Pictures of my rod for Hustler-7282e259-1f14-42fe-93ab-2252e82d22d1-12582-000005e6a75139f7_zps536e0b90.jpg   Pictures of my rod for Hustler-45bd2e19-15c3-46ce-9f6a-a1ee0d3bf05a-12582-000005e6a523454f_zpsb3324d69.jpg
curly is offline   Reply With Quote
