Old 08-02-2010, 08:14 PM   #101
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,356
Total Cats: 1,322
Default

Timmy, if the valve seals I just ordered fix my blowby problems the manifold timetable may get moved up quite a bit.

Jason, I think the fatal flaw comes in the pressure itself. We are measuring boost pressure in the plenum, but not at the ports. Make the manifold less restrictive (throat angles, plenum design and about a bajillion other things) and the average pressure at the back of the intake valve will come closer and closer to the plenum pressure.

Mass flow rate should increase from one of three things: RPM, the size of the turbo (volume), and the pressure ratio. IM restriction won't show up in smaller turbos, low RPMs or at low boost pressures because the mass flow rate is low. As the mass flow rate continues to increase, the intake manifold will become a greater and greater restrictor because the pressure drop across the manifold grows in relation to air density AND velocity.

This is why we see most of the benefits of aftermarket IMs at high RPM and high power levels (high mass flow rates) - not only is the mass flow rate increasing, but in order to increase that mass flow rate and maintain the same area (and pressure, aka with a larger turbo) you must ALSO increase the velocity of the air, which will produce an exponentially increasing pressure restriction as the mass flow rate requirement goes up with RPM.

This doesn't explain why I picked up 3psi and no torque, though, because there's no increased velocity requirement with the increased pressure. :( I will try and scrounge up the timing map.

pressure drop = mvk/2a

where
m = mass flow rate
v = velocity
k = loss coefficient (lol, if you want a life-long project calculate this for an intake manifold)
a= area

The TIP stuff is very interesting. What kind of gauge are you using to take those measurements, Jason?
Savington is online now   Reply With Quote
Old 08-02-2010, 08:32 PM   #102
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by bbundy View Post
According to the specs it is a WRC focus and the turbo is a TR30R or a custom IHI unit. Iím guessing that is an IHI unit. Note also it has to suck through a restrictor. This is very bad for turbo reliability because the pressure ratio is increased dramatically for a given boost ratio.

Bob
It's a TR30R.

PR is sky high as you say. The turbo has a low-flow, high PR compressor stage since the flow literally flatlines once the restrictor chokes midway thru the rev range.

Exh manifolds -- transient response is a tradeoff of exh man volume and pulse recovery. Pulse energy decays as a function of exh man volume.

When boost recovery / transient response / boost threshold is as important as high power (street/roadcourse use; a lot of throttle- and rpm-transients), you want short primaries for low volume. You also want equal pressure drop among primaries (note that this is not necessarily the same thing as equal length). This last bit also means you don't want a bunch of super tight radius elbows comprising all of your primaries...

If you're building a land speed record car, go for a tuned primary length (i.e. long runner sexytime) header. Here, pulse recovery is less critical than optimizing peak power.
JKav is offline   Reply With Quote
Old 08-02-2010, 08:45 PM   #103
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

Quote:
Originally Posted by Savington View Post
Make the manifold less restrictive (throat angles, plenum design and about a bajillion other things) and the average pressure at the back of the intake valve will come closer and closer to the plenum pressure.
It is possible that a big chunk of the intake manifold's limitation is from poor flow distribution from cyl to cyl rather than outright pressure drop in the manifold. With the rudimentary engine controls used on many turbo Miatas, they're knock-limited by the leanest cylinder. A falling tide lowers all boats...

Individual cyl trims to balance out the a/f and optimize ign timing across all four holes help band-aid this limitation.
JKav is offline   Reply With Quote
Old 08-02-2010, 10:34 PM   #104
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Is there anyone out there making more than ~300tq through a stock '99 intake manifold?
Yes, I have done this with both the 99 manifold and with an 01+ manifold. The 99 is actually on the car right now for testing. I will be doing some high boost pulls at a dyno day towards the end of the month to see what happens.
JayL is offline   Reply With Quote
Old 08-02-2010, 11:40 PM   #105
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by hingstonwm View Post
the law of diminishing returns
is not a property of the physical world. I've done enough physics to have seen the equation come up, and it didn't.
SolarYellow510 is offline   Reply With Quote
Old 08-03-2010, 01:57 AM   #106
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by JKav View Post
It's a TR30R.

PR is sky high as you say. The turbo has a low-flow, high PR compressor stage since the flow literally flatlines once the restrictor chokes midway thru the rev range.

Exh manifolds -- transient response is a tradeoff of exh man volume and pulse recovery. Pulse energy decays as a function of exh man volume.

When boost recovery / transient response / boost threshold is as important as high power (street/roadcourse use; a lot of throttle- and rpm-transients), you want short primaries for low volume. You also want equal pressure drop among primaries (note that this is not necessarily the same thing as equal length). This last bit also means you don't want a bunch of super tight radius elbows comprising all of your primaries...

If you're building a land speed record car, go for a tuned primary length (i.e. long runner sexytime) header. Here, pulse recovery is less critical than optimizing peak power.
One thing to note is I am using 1-1/4 schedule 40 pipe. It has a 1.375Ē ID almost every manifold I have seen similar built for a Miata has bigger pipes than mine. I wanted to match the size of the ports to keep velocity high rather than slowing it down then speeding it up again to squeeze through the turbo.

Bob
bbundy is offline   Reply With Quote
Old 08-03-2010, 02:44 AM   #107
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

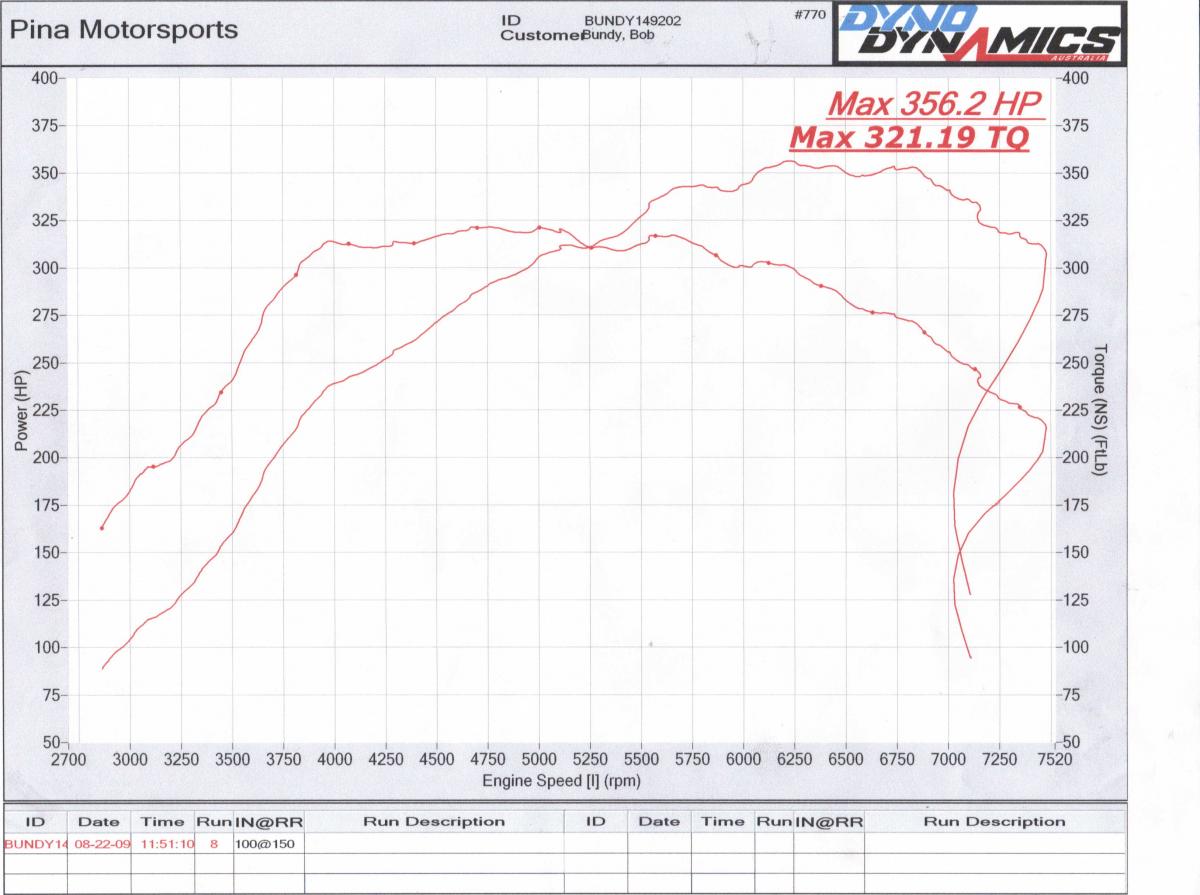

Here is my dyno run. Run was done at 17psi.

2.0L stroker
99 ported head oversized valves
94 intake manifold gutted of EGR with mild port with a 99 flange welded on.
Equal length fairly long small diameter turbo manifold
3” exhaust turbo exit flange back.

Note: crosses 300ft-lb at 3800 rpm and stays above 300ft-lbs till 6250 rpm pretty fat usable torque range for this much power.

FWIW on the Flyin Miata dyno at altitude corrected the torque plateau was shifted a little more than 500 rpm to the right and the numbers were 397hp 373 ft lbs. I didn’t believe the numbers were that high.

Bob
Attached Thumbnails
turbo manifold design-powersmall.jpg
bbundy is offline   Reply With Quote
Old 08-03-2010, 02:58 AM   #108
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

One thing I've seen is the collector seems to make a big difference. I've seen only the collector changed with astounding results. Unfortunately, the packaging in the Miata doesn't give us a ton of choices. Ramshorn has more than other options. I'm curious to see the Tim/Sav results. Wanting to keep weight down, the favorable results obtained by others, and a desire to have the whole system fly under the radar, or at least under some OE-looking heat shield, points me toward Absurdflow style. I've tried to think of some smarter way to do the merge into the turbine housing and can't.

The inside perimeter of a 1.5-in Sch. 10 weld-el is only 4mm more than the inside perimeter of a port that's matched to the outline of the OE gasket.

Okay, add 1.50-in vs. 1.25-in weld els to the comparison matrix...
SolarYellow510 is offline   Reply With Quote
Old 08-03-2010, 02:59 AM   #109
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,356
Total Cats: 1,322
Default

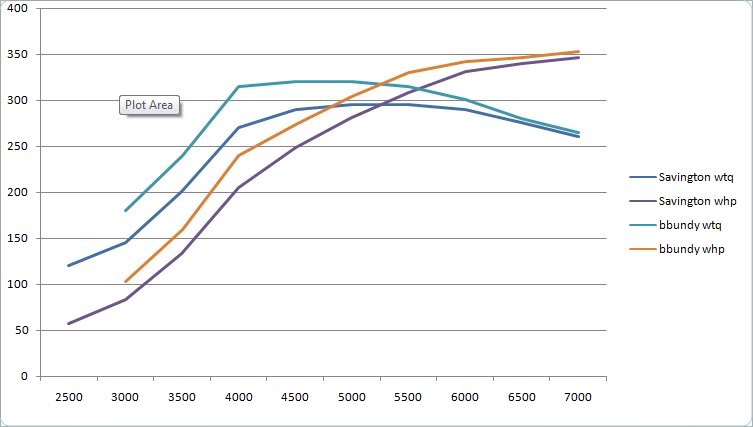

It's very interesting that both of our charts basically plummet after 6200rpm, Bob. You can see the Honda IM gains in the 5000-6000 range, where I lose ~5tq and you lose ~20tq. You can also see where the stock IM might gain a little bit on the Honda IM, from like 4000-4500. Beyond 6k, though, we both tank, even though our setups are so different. So what do we both have in common that's causing the massive torque drop past 6k? Are you still on stock camshafts?

Name:  bbundyvssavE85.jpg
Views: 51
Size:  34.5 KB
Savington is online now   Reply With Quote
Old 08-03-2010, 03:40 AM   #110
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by SolarYellow510 View Post

Okay, add 1.50-in vs. 1.25-in weld els to the comparison matrix...
I'm very curious about this myself. He also uses a flange that is machined from oval to round ports where as everyone else here is using a standard oval port flange with the primaries smooshed from round to oval.

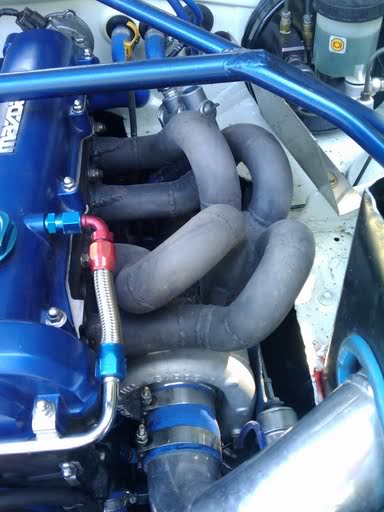

Here is a pic I snagged about a year ago. After seeing 1.5" pipe for so long, the 1.25" pipe looks really small but I definitely see how its more appropriately sized for the job. I dont know why I never noticed the different diameter in manifold plumbing until tonight.

Name:  Bobsmani.jpg
Views: 52
Size:  34.3 KB
wayne_curr is offline   Reply With Quote
Old 08-03-2010, 03:59 AM   #111
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Savington View Post
It's very interesting that both of our charts basically plummet after 6200rpm, Bob. You can see the Honda IM gains in the 5000-6000 range, where I lose ~5tq and you lose ~20tq. You can also see where the stock IM might gain a little bit on the Honda IM, from like 4000-4500. Beyond 6k, though, we both tank, even though our setups are so different. So what do we both have in common that's causing the massive torque drop past 6k? Are you still on stock camshafts?

I think the plummet is from the stock camshafts maybe some port geometry. Interesting that Honda motors don't die like that but I have seen 400hp honda motors make 100 ft-lbs less torque.

Bob
bbundy is offline   Reply With Quote
Old 08-03-2010, 04:37 AM   #112
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by SolarYellow510 View Post
One thing I've seen is the collector seems to make a big difference. I've seen only the collector changed with astounding results. Unfortunately, the packaging in the Miata doesn't give us a ton of choices. Ramshorn has more than other options. I'm curious to see the Tim/Sav results. Wanting to keep weight down, the favorable results obtained by others, and a desire to have the whole system fly under the radar, or at least under some OE-looking heat shield, points me toward Absurdflow style. I've tried to think of some smarter way to do the merge into the turbine housing and can't.

The inside perimeter of a 1.5-in Sch. 10 weld-el is only 4mm more than the inside perimeter of a port that's matched to the outline of the OE gasket.

Okay, add 1.50-in vs. 1.25-in weld els to the comparison matrix...

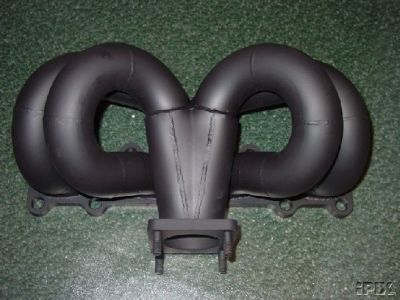

I am beginning to think the merge collector may make a significant difference as well I have a 323 GTR powered car with this rams horn manifold on it. the merge collector itself seems to have a larger volume where mine is smoothly merged with smoothly reducing cross section into the turbo. But It has a stock GTR VJ-23 on it and I had it apart side by side with my GT3071R and the GTR turbo defiantly has a bigger exhaust wheel so Iím not sure it spools as well just because of the turbo. This is a stock turbo that Mazda put on a BP motor.

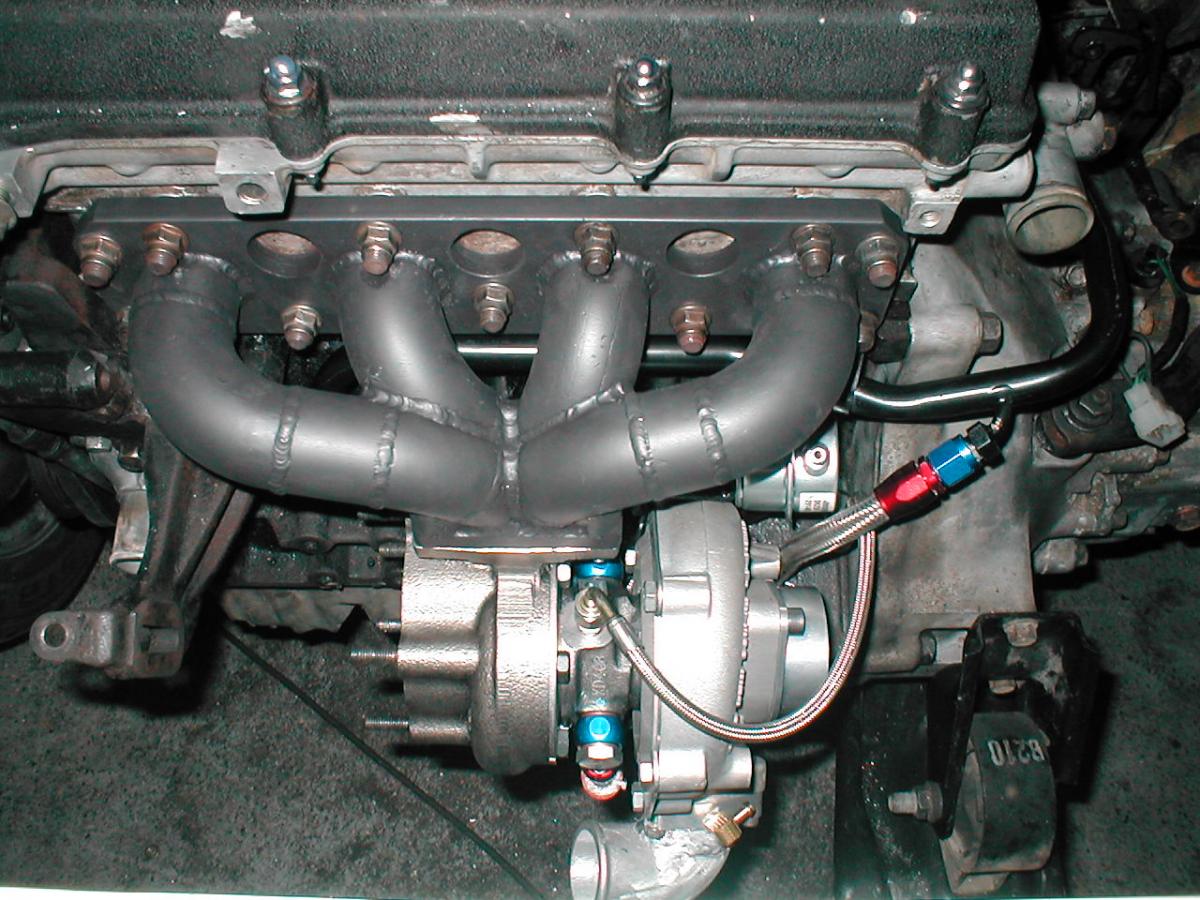

The second picture is a shorty manifold I built for a B6t. I was also surprised it didnít seem to spool as well as I expected.

Bob
Attached Thumbnails
turbo manifold design-larsen_manifold.jpg   turbo manifold design-p1010017.jpg
bbundy is offline   Reply With Quote
Old 08-03-2010, 10:03 AM   #113
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by bbundy View Post
I think the plummet is from the stock camshafts maybe some port geometry. Interesting that Honda motors don't die like that but I have seen 400hp honda motors make 100 ft-lbs less torque.

Bob

I was about to say why hasn't anyone mentioned cams yet.
Braineack is offline   Reply With Quote
Old 08-03-2010, 01:49 PM   #114
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Braineack View Post
I was about to say why hasn't anyone mentioned cams yet.
Just looking at it it seems to me the choke point left in the intake system is now at and around the valves.

Bob
bbundy is offline   Reply With Quote
Old 08-03-2010, 02:38 PM   #115
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,356
Total Cats: 1,322
Default

Quote:
Originally Posted by bbundy View Post
Just looking at it it seems to me the choke point left in the intake system is now at and around the valves.

Bob
I said cams because you have oversized valves and portwork and I have neither of those things.
Savington is online now   Reply With Quote
Old 08-03-2010, 05:33 PM   #116
straightlinespecialties

Join Date: Jan 2009
Posts: 27
Total Cats: 0
Default

A manifold w/ a true merge collector will outperform one w/o in both spool and power theres no question about that. We've done some back to back testing in the evo market that back both statements above.

Im running a 1.25" runner manifold as well. The debate between 1.25" and 1.5" varies drastically, on the Hondas the 1.25 chokes up pretty bad on the evo is under 10whp and 200rpm spool. We've designed setups for other custoemrs specifically in the road race industry that has gained heavy mid ramnge and are making 700+whp and 600+ trq.
PSI2HI is offline   Reply With Quote
Old 08-03-2010, 11:05 PM   #117
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by PSI2HI View Post
Im running a 1.25" runner manifold as well. The debate between 1.25" and 1.5" varies drastically, on the Hondas the 1.25 chokes up pretty bad on the evo is under 10whp and 200rpm spool. We've designed setups for other custoemrs specifically in the road race industry that has gained heavy mid ramnge and are making 700+whp and 600+ trq.
Not to be a dick, but... I'm pretty sure there would be good information in here if there was some additional punctuation so I was sure what meaning was intended. This isn't whack-a-noob, I really mean it. Is this what you meant?

Quote:
Originally Posted by PSI2HI View Post
Im running a 1.25" runner manifold as well. The debate between 1.25" and 1.5" varies drastically. On the Hondas, the 1.25 chokes up pretty bad. On the Evo, the loss is less than 10whp at the top end and spool is 200 rpm sooner. <With what turbo?> We've designed setups for other customers specifically in the road race industry that have gained heavy mid range and are making 700+whp and 600+ trq. <Gained by going from 1.25 to 1.5, or by going from 1.5 to 1.25?>
SolarYellow510 is offline   Reply With Quote
Old 08-04-2010, 11:25 AM   #118
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

yeah, what he said.
TurboTim is offline   Reply With Quote
Old 08-04-2010, 01:00 PM   #119
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by SolarYellow510 View Post
Not to be a dick, but... I'm pretty sure there would be good information in here if there was some additional punctuation so I was sure what meaning was intended. This isn't whack-a-noob, I really mean it. Is this what you meant?
Thank you,

I suck at written English and spelling myself even though it is the only language I know. But I would really like to know if some of these guys have really useful input rather than trying to figure out what they are saying and having trouble doing it due to poor writing.

Bob
bbundy is offline   Reply With Quote
Old 08-04-2010, 01:11 PM   #120
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by bbundy View Post
Just looking at it it seems to me the choke point left in the intake system is now at and around the valves.

Bob
Do you have flowbench measurements?
JasonC SBB is offline   Reply With Quote
