Default what kind of fpr is this?

its a greddy unit, was given to me. looks like an adjustable... but could be a rr. not 100% sure, googled the **** out of it, to no avail... anyone have any insight?
Attached Thumbnails

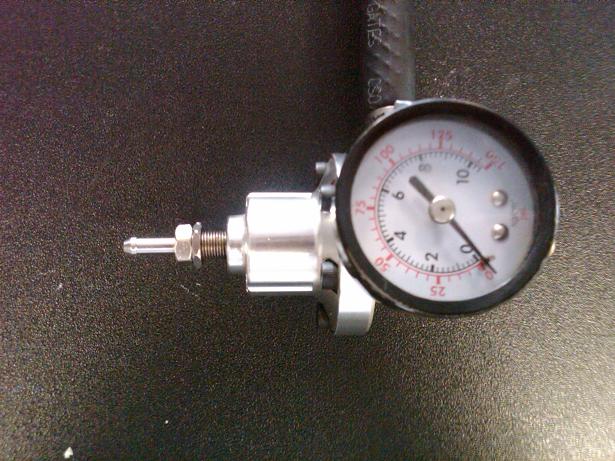

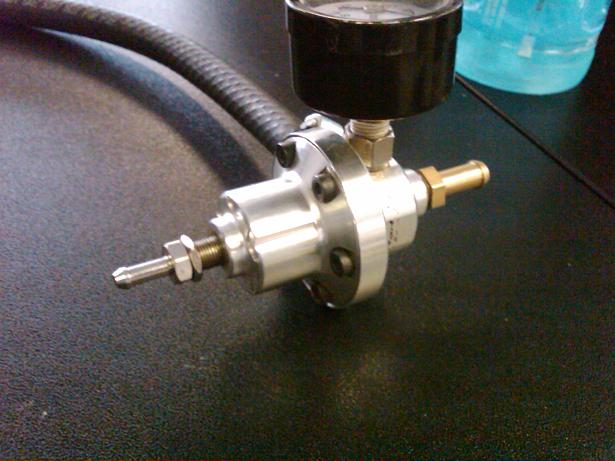

what kind of fpr is this?-img00029-20090427-1434.jpg   what kind of fpr is this?-img00030-20090427-1434.jpg
sinhumane is offline   Reply With Quote
Old 04-27-2009, 05:49 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

A 1:1 most likely.
Saml01 is offline   Reply With Quote
Old 04-27-2009, 05:52 PM   #3
Newb
Thread Starter

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

IE: a rising rate fpr?


when tightening the top screw in fitting, it sounds like its compressing a spring... thats what throws me off... i suppose i'll dissect it and find out...
sinhumane is offline   Reply With Quote
Old 04-27-2009, 05:58 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,846
Total Cats: 1,787
Default

the same one i have:

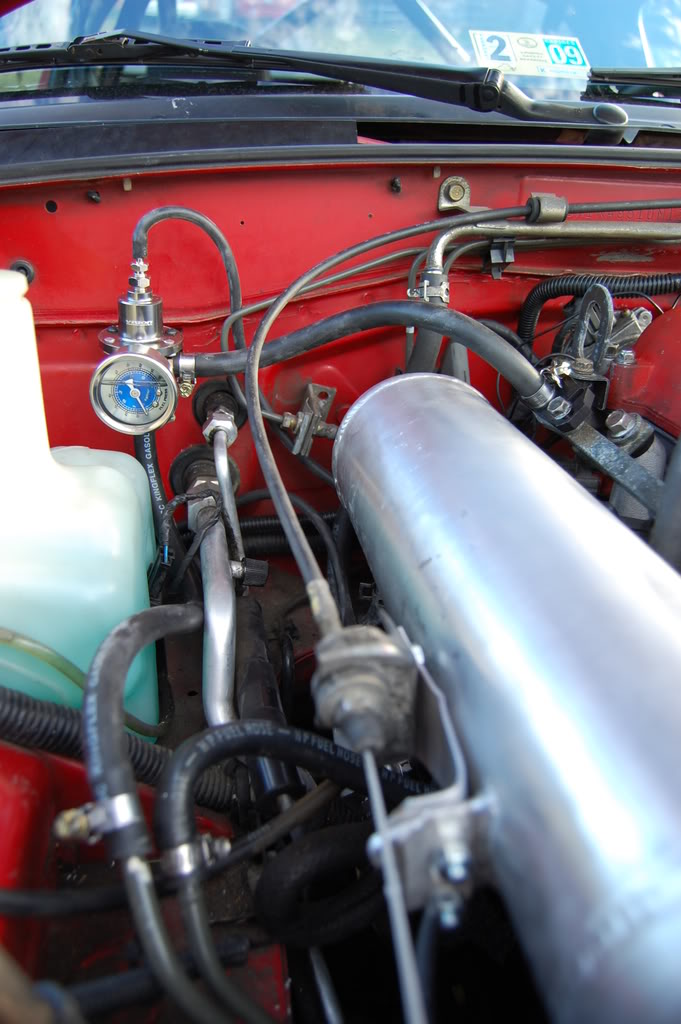

Name:  IntakeManifold004.jpg
Views: 0
Size:  102.4 KB


1:1, designed to replace the oem. If you have a greddy with stock injectors, you dont want to use that...

read my FAQ.
Braineack is offline   Reply With Quote
Old 04-27-2009, 06:16 PM   #5
Newb
Thread Starter

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

its not going to be a greddy turbo setup. i'm working on a custom build from the manifold up, utilizing a scrapped wrx td04l turbo... planned on using a pair on my thunderbird, but found a much more suitable one for it, and decided i wanted to turbo the miata.. after a little research, i discovered it was a decent match..

the setup will be as follows, just to get it rolling:

tdo4 turbo at stock wastegate setting, about 6-7 psi, with 30 lb/hr injectors and a fpr, static timing at 6* cooled with an egay intercooler, all through a 3" madrel bent exhaust with a dynomax bullet and a borla can. target is 150hp.

i'll then up the ante with 16-18 psi, megasquirt standalone 42 lb/hr injectors and 190lph hp fuel pump (see, i DID read your faq... a couple times ) adding a 1.8 clutch and flywheel, and either a late model rear end or a ford 8.8" target is 250 hp.

i do know where i'm going... if i'll ever get off my *** and finish the manifold i started.

oh... and my target price for all of this complete is 500 bucks.

then i'll finish up the rebuild on my supercoupe motor to be ready to drop in with a big honkin turbo.... target is 500-600 hp...... from a v6.
