Old 05-04-2016, 03:59 PM   #81
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by aidandj View Post
Do a live stream of D-Day.

Are you going to sacramento raceway?

If so Vlad needs to be in the video
Lol, that would be quite a trip. I'll be shooting some kind of video that day for sure. I'm heading to Auto Club Speedway in Fontana.
1993z32 is offline   Reply With Quote
Old 05-06-2016, 12:44 PM   #82
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

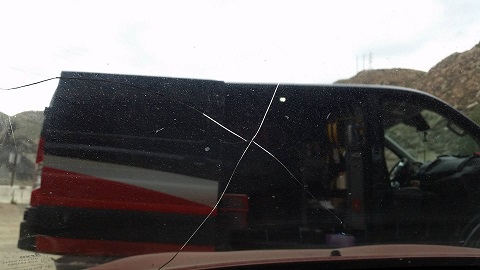

Figured this wouldn't pass tech:

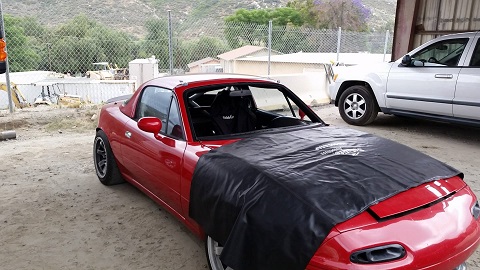

So I had good old Safelite come out and fix me up:

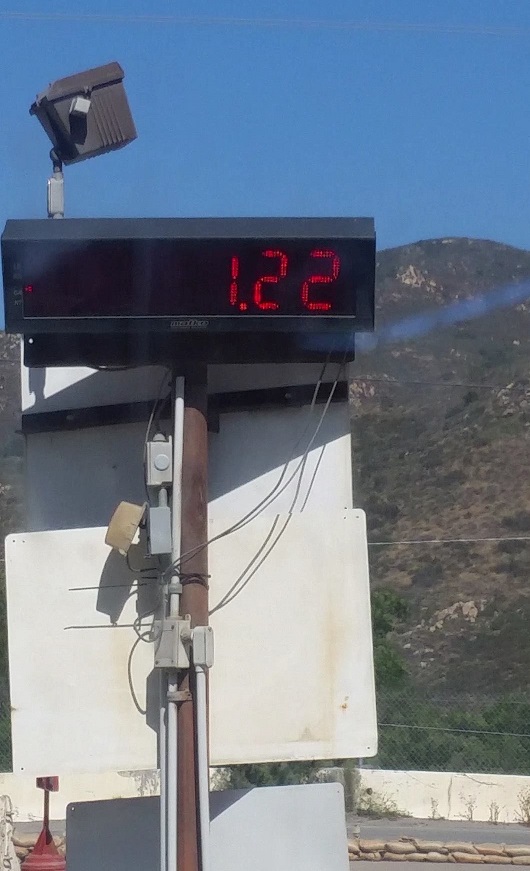

The weigh-in with driver and 5/8 of a tank:

And my favorite part, my new jacket came in!


So to be clear, despite my signature (I just love challenges) I don't think the car will do a 12.5 as it sits with it's stiff AX setup, it's more the trap I'm shooting for. According to the Wallace Racing Calculator, my claimed 276.45allofits & 2420cats should equate to a 112.58mph litter box speed, so that's what I'm gunning for. Should I run a 108 like 18psi's prediction, maybe I'll send him an actual live cat in the mail along with a signed contract stating I will never bring up or rely on bench racing ever again on the mt.net forum. Either way it'll be a good time
Attached Thumbnails
GT2554R Record??? leads to a run of the mill EFR build-432bkm4.jpg   GT2554R Record??? leads to a run of the mill EFR build-e5ksyth.jpg   GT2554R Record??? leads to a run of the mill EFR build-lx0zemz.jpg   GT2554R Record??? leads to a run of the mill EFR build-impunq5.jpg
1993z32 is offline   Reply With Quote
Old 05-06-2016, 12:47 PM   #83
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,694
Total Cats: 239
Default

Do eeeet
Girz0r is offline   Reply With Quote
Old 05-06-2016, 12:48 PM   #84
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,535
Total Cats: 1,565
Default

lololol.
Braineack is offline   Reply With Quote
Old 05-06-2016, 01:08 PM   #85
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,907
Total Cats: 1,077
Default

If you have any pics of that compressor wheel compared to the original wheel, I'd love to see them.
Savington is offline   Reply With Quote
Old 05-06-2016, 01:25 PM   #86
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,694
Total Cats: 239
Default

Quote:
Originally Posted by Savington View Post
If you have any pics of that compressor wheel compared to the original wheel, I'd love to see them.

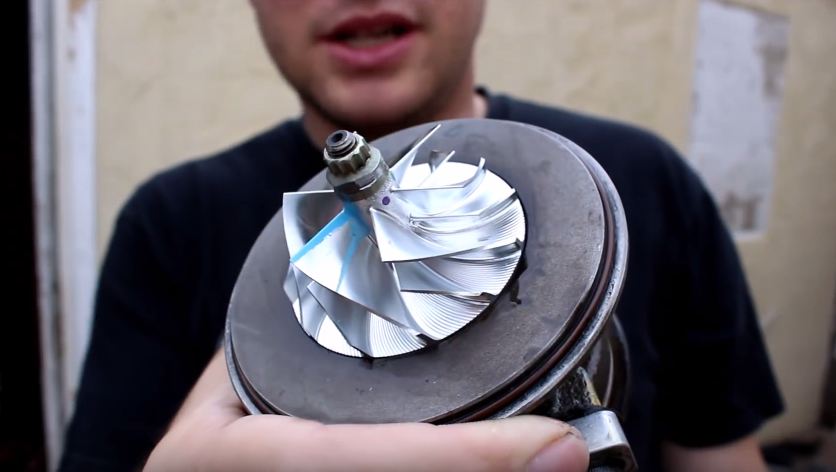

I believe it's this one, I don't have audio at work...

jdsperformanceturbos.com


Attached Thumbnails
GT2554R Record??? leads to a run of the mill EFR build-19dc363.jpg
Girz0r is offline   Reply With Quote
Old 05-06-2016, 01:31 PM   #87
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by Savington View Post
If you have any pics of that compressor wheel compared to the original wheel, I'd love to see them.

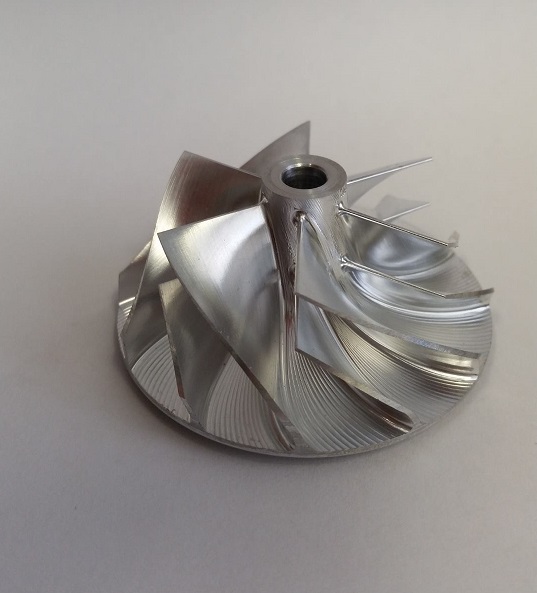

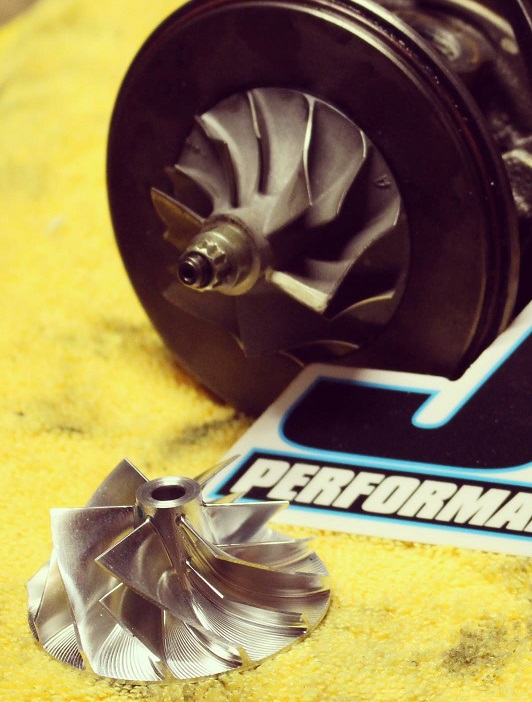

Girz0r beat me to it, but here's what I have on tap:

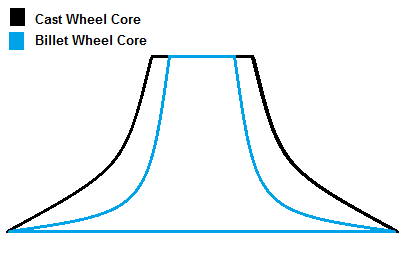

The drawing, is basically if you took all the blades off of the wheels, and put the billet one in front of the cast, that's what it would look like. I found that to be the most interesting difference between the two wheels. I figured there would be more of a difference in performance, but I'm assuming with the exducer being the same size on both wheels, and technically being the same trim, there can only be so much gain regardless of the shape of the blade/core. The thing sounds freaking cool though, I will give it that. (Was also cool to see a notable gain in transient response).

Edit: Around 5:40 in the video I take some measurements.
Attached Thumbnails
GT2554R Record??? leads to a run of the mill EFR build-woxi2ba.jpg   GT2554R Record??? leads to a run of the mill EFR build-hkjdqi0.jpg   GT2554R Record??? leads to a run of the mill EFR build-ypgjpuc.png
1993z32 is offline   Reply With Quote
Old 05-06-2016, 01:37 PM   #88
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,535
Total Cats: 1,565
Default

Break the Miata > Broke and Boosted
Braineack is offline   Reply With Quote
Old 05-06-2016, 01:39 PM   #89
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
Break the Miata > Broke and Boosted
Will be attempting to break the Miata again towards the end of May/early June. Someday I shall conquer all the worlds with it. K maybe not but it's fun trying.
1993z32 is offline   Reply With Quote
Old 05-06-2016, 02:24 PM   #90
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

I keep forgetting that your 2554 isnt really a 2554.
But i still predict 108 trap and will be teally amazed if you hit 112+
18psi is offline   Reply With Quote
Old 05-06-2016, 02:38 PM   #91
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
I keep forgetting that your 2554 isnt really a 2554.
But i still predict 108 trap and will be teally amazed if you hit 112+

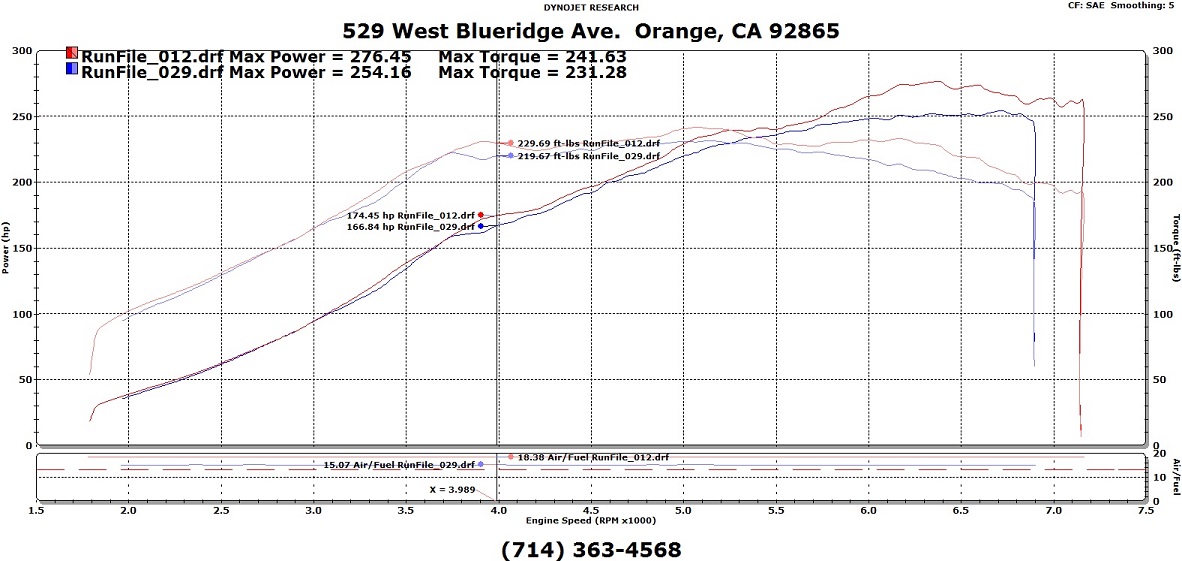

I don't really see any huge deal with the wheel honestly, it made 254whp @ 13.5psi with the cast wheel, and 276whp @ 15.5psi with the billet wheel. Unfortunately I don't know what would have happened if I ran the cast wheel at the higher boost, but I don't see this wheel as revolutionary.



The slight difference in torque from 3200-5500 might just be 1/2psi here and there rather than the wheel, no? The only difference up top is boost taper vs. no boost taper. Not saying a cast wheel could do the exact same thing, but I'm just not sold that it transforms the turbo into a new beast.

Edit: I have datalogs from both pulls, I can overlay the boost curves if interested.
Attached Thumbnails
GT2554R Record??? leads to a run of the mill EFR build-n3krzdn.jpg
1993z32 is offline   Reply With Quote
Old 05-06-2016, 02:54 PM   #92
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

Did the car get leaner at all in the same cells of the map?
18psi is offline   Reply With Quote
Old 05-06-2016, 03:20 PM   #93
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,535
Total Cats: 1,565
Default

I think it's cool and I'd do that upgrade. How much was the wheel?
Braineack is offline   Reply With Quote
Old 05-06-2016, 03:26 PM   #94
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

1 tapers the other doesn't. that already makes a 20+ bump up top as we can see
18psi is offline   Reply With Quote
Old 05-06-2016, 03:51 PM   #95
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
Did the car get leaner at all in the same cells of the map?
I'd have to really scrutinize the logs to look into that, as far as those specific pulls, AFR was very very similar because those were the final pulls after the tuning was finished. (11.6-11.8?)

Quote:
Originally Posted by Braineack View Post
I think it's cool and I'd do that upgrade. How much was the wheel?
I believe they're $120, I had mine balanced as well. I'm really wondering what they would do for a larger turbo.
1993z32 is offline   Reply With Quote
Old 05-06-2016, 04:27 PM   #96
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

you either compare pre-tuning to see if it leaned out, or post tuning to see how much you added to same cells of VE table to maintain afr.
it has to be same cells. otherwise it's a wash

the fact that it held more boost up top already says it's flowing more
18psi is offline   Reply With Quote
Old 05-06-2016, 04:44 PM   #97
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
the fact that it held more boost up top already says it's flowing more
I should have been more clear, but what I was saying is that I never tried to do the boost taper with the cast wheel, so I have no idea what the results would have been.
1993z32 is offline   Reply With Quote
Old 05-12-2016, 03:25 PM   #98
Newb

Join Date: Jun 2014
Location: Norway
Posts: 44
Total Cats: 0
Default

Good luck!
Can't wait to see the outcome of this.
helly is offline   Reply With Quote
Old 05-13-2016, 07:36 PM   #99
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default



Hope y'all are ready, I know I am. No matter what happens it should be popcorn worthy.
Attached Thumbnails
GT2554R Record??? leads to a run of the mill EFR build-l4sdj3c.png
1993z32 is offline   Reply With Quote
Old 05-13-2016, 07:49 PM   #100
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,694
Total Cats: 239
Default

FFS, ENGAGED
Girz0r is offline   Reply With Quote
