Default GT2554R Record??? leads to a run of the mill EFR build

Hey again everyone, back again with another dyno. So from the very beginning of my build all I wanted was the fattest torque curve possible on a stock motor, so naturally I started with a 1.6 (Just kidding don't Alt+F4 yet). I actually never intended on boosting this car but then I did so... here I am. As much as I loved my Begi churbo, the 135wtq @ 3500 wasn't fun anymore. So I went to a GT2554R. Then E85, LS coils, full 2.5" catless turbo-back, etc. Made 254/231 and 205wtq @ 3500. Then I threw a billet compressor wheel at it because I wanted more, and after the motor had already held up for 30,000+ miles of daily driving and autocross/drag events every 1-2 months, I figured it was healthy. Back on the same dyno in the same 90 degree temps, a little more boost and timing later, and the car is more alive than ever. I will have a full review/analysis/weights/measures video of the billet wheel vs. the stock wheel on my YouTube channel in a few days. Okokok, here it is:



Stuff that matters:
"GTX"2554R 13psi, taper to 15.5psi from 5000-7000 (on purpose)
Begi Cast Manifold
E85
LS2 Truck Coils
7lb Flywheel
MS2PnP
2.5" IC + Piping
Five-0 750cc Injectors (Run Sequentially)
Five-0 340lph Pump
2.5" Catless Turbo Back, DynoMax Race Bullet
5-Speed (4th gear pull)
3.9 Torsen
210K Mile 1.6L, Stock from the valve cover to the oil pan internally
ATI Super Damper
Tuning insight & oversight from the local turbo Miata master Toby @ Advanced Engine Dynamix

Things that make me love this car:
150wtq @ 2750
200wtq @ 3400
200wtq @ 6900
Everything in between.
Attached Thumbnails

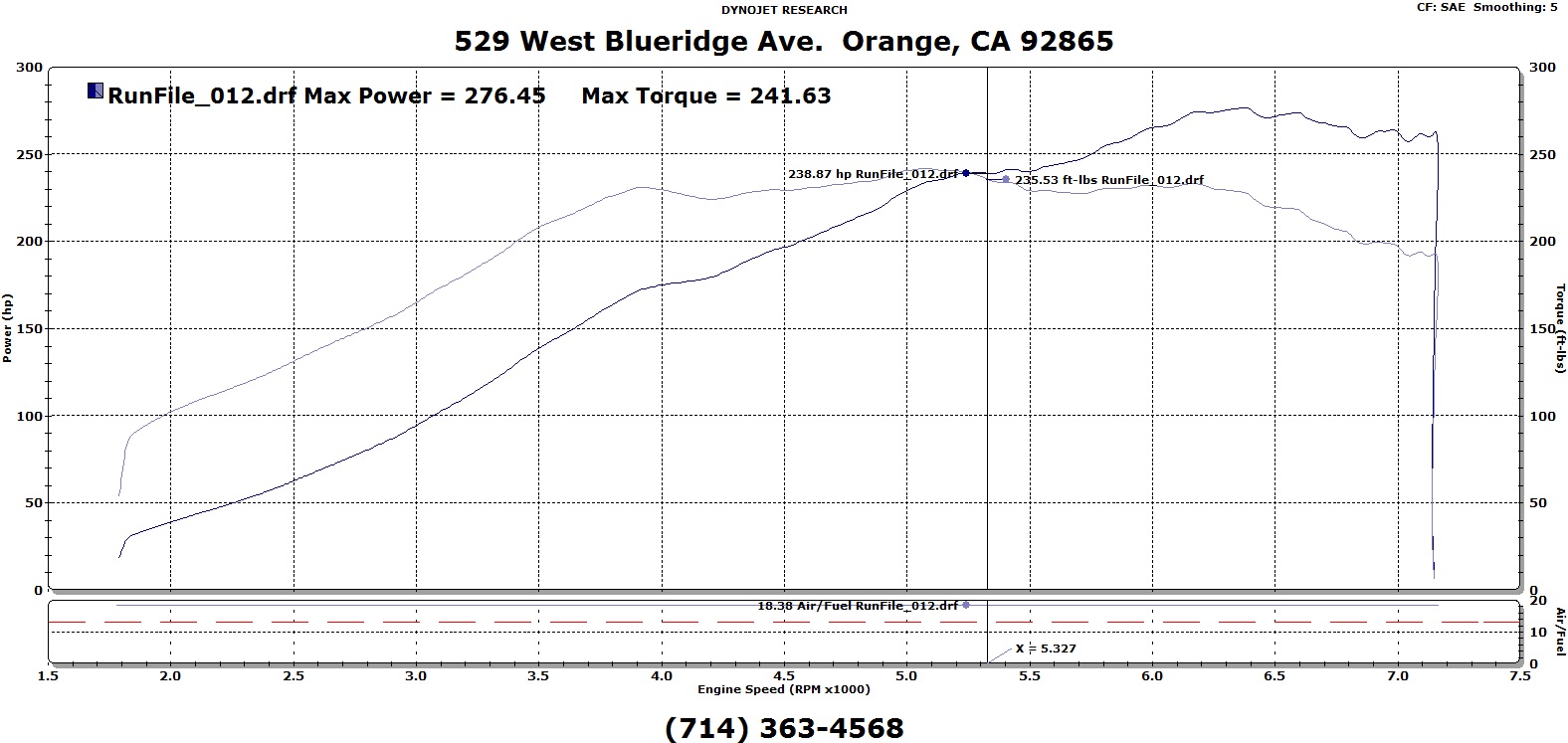

GT2554R Record??? leads to a run of the mill EFR build-94e5ofb.jpg

Last edited by 1993z32; 02-23-2016 at 10:30 AM.
1993z32 is offline   Reply With Quote
Old 02-23-2016, 10:19 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

Pretty cool, never seen a 2554 upgraded like that. solid setup overall, but you're definitely not touching a 1.8 torque curve
what are the measurements of the cast wheel vs gtx wheel?
creep by default isn't "on purpose" you probably mean taper.

and please post up your trap speeds from the 1/4 mile so we can tell you if that 276 is legit.
either way though congrats on a solid setup
18psi is offline   Reply With Quote
Old 02-23-2016, 10:20 AM   #3
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,535
Total Cats: 1,565
Default

My 1.6L $150 T3 had a better tq curve*. and i didnt have all the extra silly fueling mods to support 500hp with a 250rwhp turbo.


thanks for playing.



you lose.







but seriously, all that silly fueling, and good parts, and youre still running a 2.5" exhaust...








*it was actually pretty similar, still just about as good as a 1.8L spooling a GT2871R

Last edited by Braineack; 02-23-2016 at 10:34 AM.
Braineack is offline   Reply With Quote
Old 02-23-2016, 10:21 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,696
Total Cats: 240
Default

You should post here moar often.

Plot looks awsome, I bet it's a very fun vehicle.

What kind of exhaust manifold are you using?
Girz0r is offline   Reply With Quote
Old 02-23-2016, 10:25 AM   #5
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,371
Total Cats: 80
Default

Nice numbers. I wonder what a 3" exhaust upgrade would do for you.
cyotani is offline   Reply With Quote
Old 02-23-2016, 10:37 AM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,651
Total Cats: 106
Default

276/241 seems pretty crazy on a stock 1.6 with 2554, congrats.
pdexta is offline   Reply With Quote
Old 02-23-2016, 10:42 AM   #7
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
My 1.6L $150 T3 had a better tq curve. and i didnt have all the extra silly fueling mods to support 500hp with a 250rwhp turbo.

thanks for playing.

you lose.
Would like to compare dyno's if you still have yours available, just out of curiosity.

Quote:
Originally Posted by Girz0r View Post
What kind of exhaust manifold are you using?
Begi Cast

Quote:
Originally Posted by 18psi View Post
Pretty cool, never seen a 2554 upgraded like that. solid setup overall, but you're definitely not touching a 1.8 torque curve
what are the measurements of the cast wheel vs gtx wheel?
creep by default isn't "on purpose" you probably mean taper.

and please post up your trap speeds from the 1/4 mile so we can tell you if that 276 is legit.
either way though congrats on a solid setup
Sorry, fixed the terminology, haha. The core of the wheel is much more slim so the blades measure longer. (13.2mm "primary" blades, 11.2mm (secondary" blades vs 14.8mm "primary" and "secondary" on the billet.) The billet wheel is also 34g compared to 44g so I'm sure that helps with response. I mostly made the 1.8 comment to bring in all the 1.8-heads to prove me wrong, and I couldn't find a dyno on here of a stock 1.8 that looked any better than mine. No doubt they have more potential. I haven't run it yet since I only did this Saturday, but I ran 87.54mph in the 1/8 when I was at 254whp, I want to run her again soon and will post up.

Quote:
Originally Posted by cyotani View Post
Nice numbers. I wonder what a 3" exhaust upgrade would do for you.
Me too. Not that I want to make a drop more than 240wtq, but maybe a little extra up top? I still think this turbo is so close to being out of air that it wouldn't help much, but who knows, maybe I'll find out. My 2.5" exhaust is straight back from the downpipe all the way out, no silly double 90 degree bends like factory.
1993z32 is offline   Reply With Quote
Old 02-23-2016, 10:47 AM   #8
Elite Member

Join Date: Jul 2005
Posts: 6,392
Total Cats: 77
Default

240 torqz at 13 psi on a 1.6 = 80 ft-lbs/atmo/L

I call bullz. Dyno calibration is off.
JasonC SBB is offline   Reply With Quote
Old 02-23-2016, 10:50 AM   #9
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by JasonC SBB View Post
240 torqz at 13 psi on a 1.6 = 80 ft-lbs/atmo/L

I call bullz. Dyno calibration is off.
It made the 240 @ 14-15psi and corn timing, still not believable? Serious question
1993z32 is offline   Reply With Quote
Old 02-23-2016, 10:53 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

Quote:
Originally Posted by 1993z32 View Post
Would like to compare dyno's if you still have yours available, just out of curiosity.



Begi Cast



Sorry, fixed the terminology, haha. The core of the wheel is much more slim so the blades measure longer. (13.2mm "primary" blades, 11.2mm (secondary" blades vs 14.8mm "primary" and "secondary" on the billet.) The billet wheel is also 34g compared to 44g so I'm sure that helps with response. I mostly made the 1.8 comment to bring in all the 1.8-heads to prove me wrong, and I couldn't find a dyno on here of a stock 1.8 that looked any better than mine. No doubt they have more potential. I haven't run it yet since I only did this Saturday, but I ran 87.54mph in the 1/8 when I was at 254whp, I want to run her again soon and will post up.



Me too. Not that I want to make a drop more than 240wtq, but maybe a little extra up top? I still think this turbo is so close to being out of air that it wouldn't help much, but who knows, maybe I'll find out. My 2.5" exhaust is straight back from the downpipe all the way out, no silly double 90 degree bends like factory.
there are a bunch of 2560's, ill dig up some 2554's later if I'm bored
but to start,

Quote:
Originally Posted by JasonC SBB View Post
240 torqz at 13 psi on a 1.6 = 80 ft-lbs/atmo/L

I call bullz. Dyno calibration is off.
Quote:
Originally Posted by 1993z32 View Post
It made the 240 @ 14-15psi and corn timing, still not believable? Serious question
1/4 trap speed will tell the story

You can only advance spark so much on a tiny turbo that supposedly chokes after 5500rpm
Attached Thumbnails

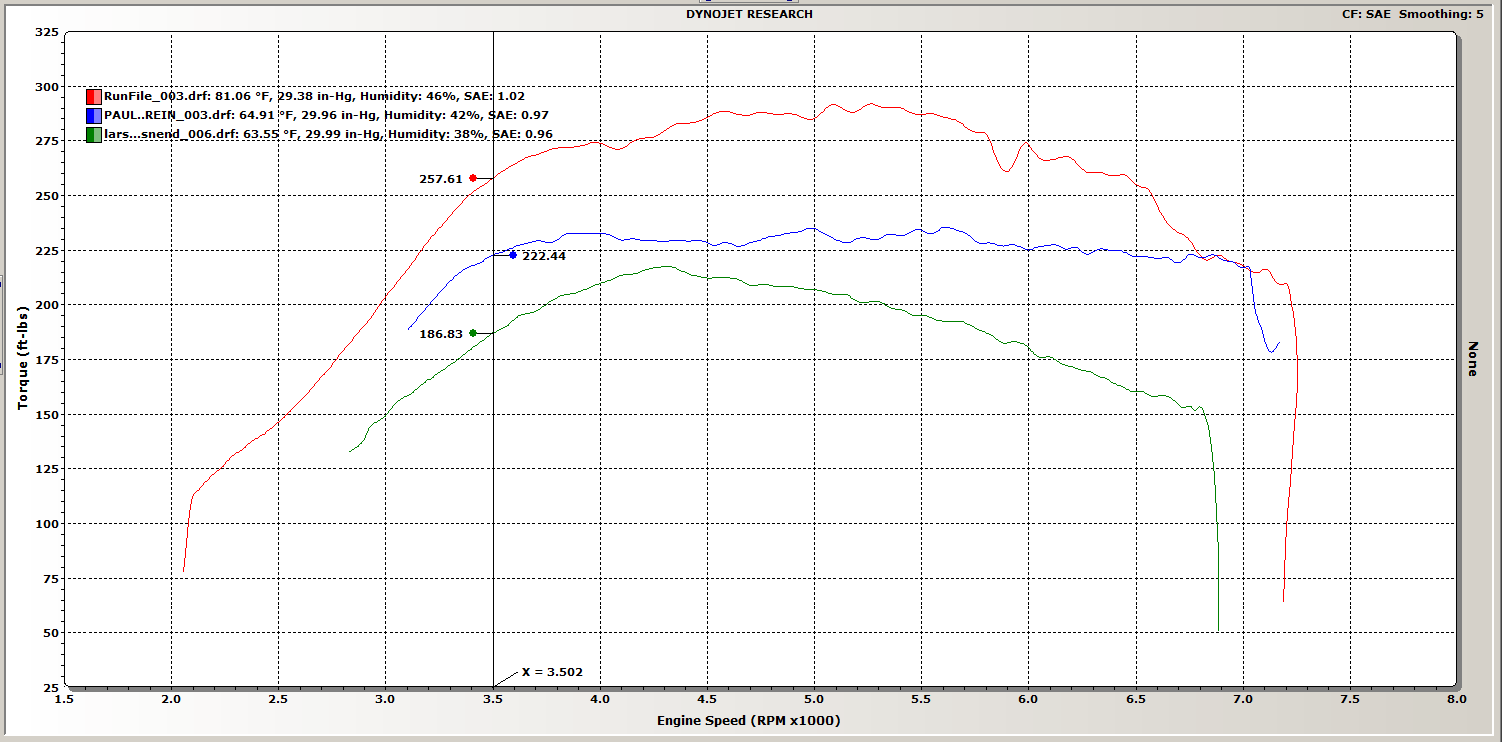

GT2554R Record??? leads to a run of the mill EFR build-torque_rape.png
18psi is offline   Reply With Quote
Old 02-23-2016, 10:57 AM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,075
Total Cats: 917
Default

Quote:
Originally Posted by 18psi View Post
there are a bunch of 2560's, ill dig up some 2554's later if I'm bored
but to start,




1/4 trap speed will tell the story
I just want to point out that my torque in that dyno was done on a MS1, a stock exhaust, MBC, and I have not clue what the boost level was. It was from the first time I ever had the car on a dyno with next to no tuning. So it definitely is not the best showing of what the turbo can do on a 1.8.
shuiend is offline   Reply With Quote
Old 02-23-2016, 10:57 AM   #12
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
there are a bunch of 2560's, ill dig up some 2554's later if I'm bored
but to start,




1/4 trap speed will tell the story

You can only advance spark so much on a tiny turbo that supposedly chokes after 5500rpm
Oooh I like the pretty blue one. Red... 280+wtq on a stock block?
1993z32 is offline   Reply With Quote
Old 02-23-2016, 10:57 AM   #13
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,696
Total Cats: 240
Default

Quote:
Originally Posted by 1993z32 View Post
BEGi Cast
I think a vband ARTech + EWG + 3" dp & full exhaust is in your future.

You'll know then for sure if your turbo is running out of puff

Here, have a dounut

Girz0r is offline   Reply With Quote
Old 02-23-2016, 10:59 AM   #14
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,075
Total Cats: 917
Default

Quote:
Originally Posted by 1993z32 View Post
Oooh I like the pretty blue one. Red... 280+wtq on a stock block?
Blue one might have been a 2560. The red one I believe was a stock motor. There have been a few people who have ran more then 250ft/lbs on stock motors, I think a lot of it is luck.
shuiend is offline   Reply With Quote
Old 02-23-2016, 11:02 AM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

Jason should chime in w/ his dyno plot since he ran a 2554 on his 99 iirc
cant find it now, but most 1.8's with 2554 make 200 at or before 3k
18psi is offline   Reply With Quote
Old 02-23-2016, 11:03 AM   #16
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by shuiend View Post
Blue one might have been a 2560. The red one I believe was a stock motor. There have been a few people who have ran more then 250ft/lbs on stock motors, I think a lot of it is luck.
It has to be, right? I mean I even think my motor running so good for so long is a little luck as well, considering people have lost motors at lower levels with supposed "good tunes." At any rate, that makes me feel better, haha.
1993z32 is offline   Reply With Quote
Old 02-23-2016, 11:13 AM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

the tuning is not the issue on most of these cars. it's not like we have ringland or weak poston problems. we have rod problems. this is from making too much torque, or cylinder pressure, depending on how you look at it.

the higher up you make your torque and the more mechanical empathy you have the longer it usually lasts.

there's a local making 350 on his Miata for a while. stock bp. it was a giant snail that made power/torque in the last 1500rpm of the powerband
18psi is offline   Reply With Quote
Old 02-23-2016, 11:20 AM   #18
TheCarPassionChannel
Thread Starter

1993z32's Avatar

Join Date: Mar 2013
Location: San Diego, Ca
Posts: 151
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
the tuning is not the issue on most of these cars. it's not like we have ringland or weak poston problems. we have rod problems. this is from making too much torque, or cylinder pressure, depending on how you look at it.

the higher up you make your torque and the more mechanical empathy you have the longer it usually lasts.

there's a local making 350 on his Miata for a while. stock bp. it was a giant snail that made power/torque in the last 1500rpm of the powerband
Which is exactly why I added the boost taper and some extra timing up top, I want to stay at 240wtq, but would love to make more horsepower up top as long as I can stay under that. I'm thinking of swapping to a 60R cold side to help accomplish it.
1993z32 is offline   Reply With Quote
Old 02-23-2016, 11:25 AM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,456
Total Cats: 2,272
Default

Quote:
Originally Posted by 1993z32 View Post
Which is exactly why I added the boost taper and some extra timing up top, I want to stay at 240wtq, but would love to make more horsepower up top as long as I can stay under that. I'm thinking of swapping to a 60R cold side to help accomplish it.
In my opinion you need to upsize the turbine/hotside/exhaust to keep gaining power the correct way. Upsizing the cold side cover will likely not gain anything at this point.
I'd start with exhaust
18psi is offline   Reply With Quote
Old 02-23-2016, 11:33 AM   #20
Elite Member

Join Date: Jul 2005
Posts: 6,392
Total Cats: 77
Default

Quote:
Originally Posted by 1993z32 View Post
It made the 240 @ 14-15psi and corn timing, still not believable? Serious question
15 psi -> 75 ft-lbs/atmo/L still too high. Highest numbers I've seen are closer to 70.
JasonC SBB is offline   Reply With Quote
