I googled the issue and IGS is only intended to contain nurbs/curves data and not polygons. I am trying something kind of hacky to work around that.
asmasm is offline   Reply With Quote
Old 06-26-2014, 04:03 PM   #102
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,918
Total Cats: 93
Default

basically getting that its impossubrue
Leafy is offline   Reply With Quote
Old 06-26-2014, 05:51 PM   #103
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,371
Total Cats: 80
Default

Quote:
Originally Posted by Leafy View Post
basically getting that its impossubrue
Nothing is impossubruueeee!

Got it to work. Easier said then done. I had to basically reverse engineer and recreate the geometry from the IGS surface model. I don't have access to photobucket to share the pics at the moment but I'll post them here later today.

Overall it looked good. 275 cfm at .2 psi pressure drop. No major areas of choking.
cyotani is online now   Reply With Quote
Old 06-26-2014, 06:05 PM   #104
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Awesome. That model I sent you is not exactly a clean shape so getting that result is definitely positive.
asmasm is offline   Reply With Quote
Old 06-26-2014, 09:37 PM   #105
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,371
Total Cats: 80
Default

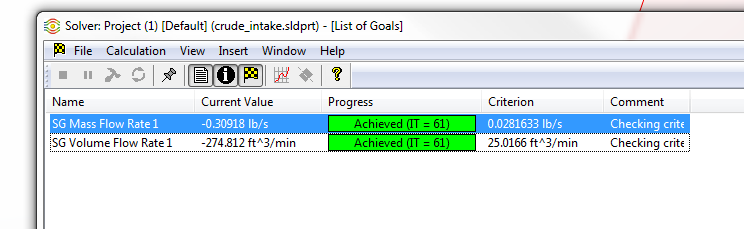

Here are the pics. Usually I figure out what the max CFM is for a given HP then set a pressure drop across the tube to achieve that flow. In this case 0.2 psi differential for 275 cfm. Then I look at the velocity and you want linear flow (no swirl) and no major velocity changes. Where it makes the 90 bend is the area you want to focus on but there's not much you can do there do to geometry constraints most likely. Typically I will iterate the design and run the CFD same mesh size and boundary conditions and compare to see how much CFM I gained, or lost, due to the changes.

Seeing how your velocity through the flattened section is pretty constant you maintained a decently constant cross sectional area.

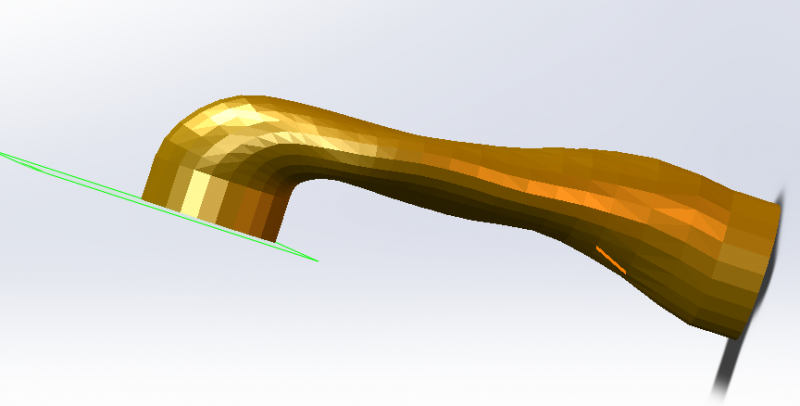

The Original

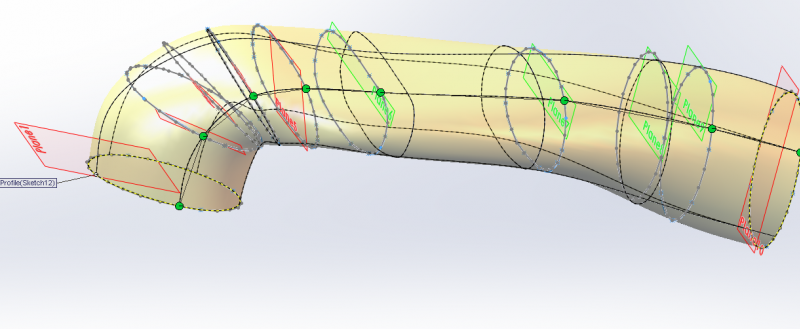

Sliced and lofted back to a solid body



The results:

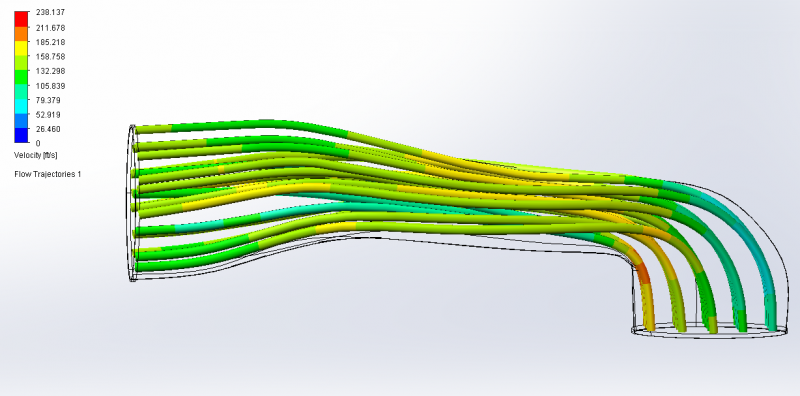

Velocity plot top view

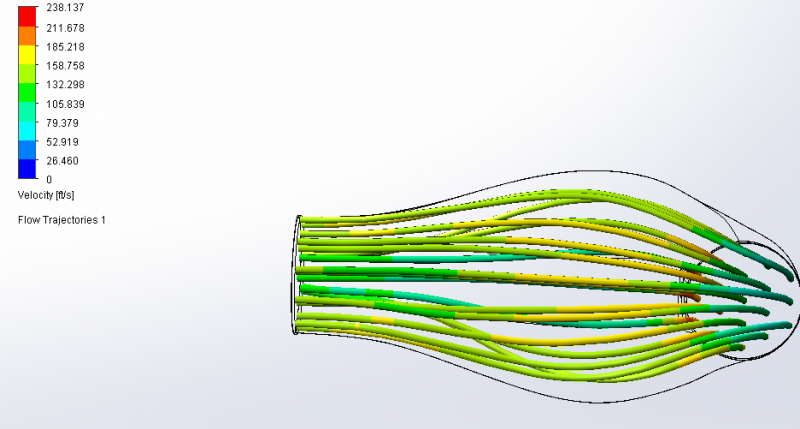

Velocity plot side view

Attached Thumbnails
3d printed intake for N/A NA miatas-capture1.png   3d printed intake for N/A NA miatas-capture2-1.png   3d printed intake for N/A NA miatas-capture3.png   3d printed intake for N/A NA miatas-capture7.png   3d printed intake for N/A NA miatas-capture6.png

cyotani is online now   Reply With Quote
Old 06-27-2014, 11:57 AM   #106
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Expensive Pegasus racing foil didn't do anything- not really surprising that stickers couldn't fix it.


Edit:

Actually maybe not. The thing still heat soaks bad when sitting still but my logs from driving today show an average 8 degrees above ambient at speed.
asmasm is offline   Reply With Quote
Old 06-28-2014, 08:16 AM   #107
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,518
Total Cats: 1,566
Default

Quote:
Originally Posted by asmasm View Post
Actually maybe not. The thing still heat soaks bad when sitting still but my logs from driving today show an average 8 degrees above ambient at speed.
this was a very common issue with MS users early on, we all started putting our AIT sensors just after the IC...I suggest you move yours just behind the filter.
Braineack is offline   Reply With Quote
Old 07-04-2014, 09:35 AM   #108
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

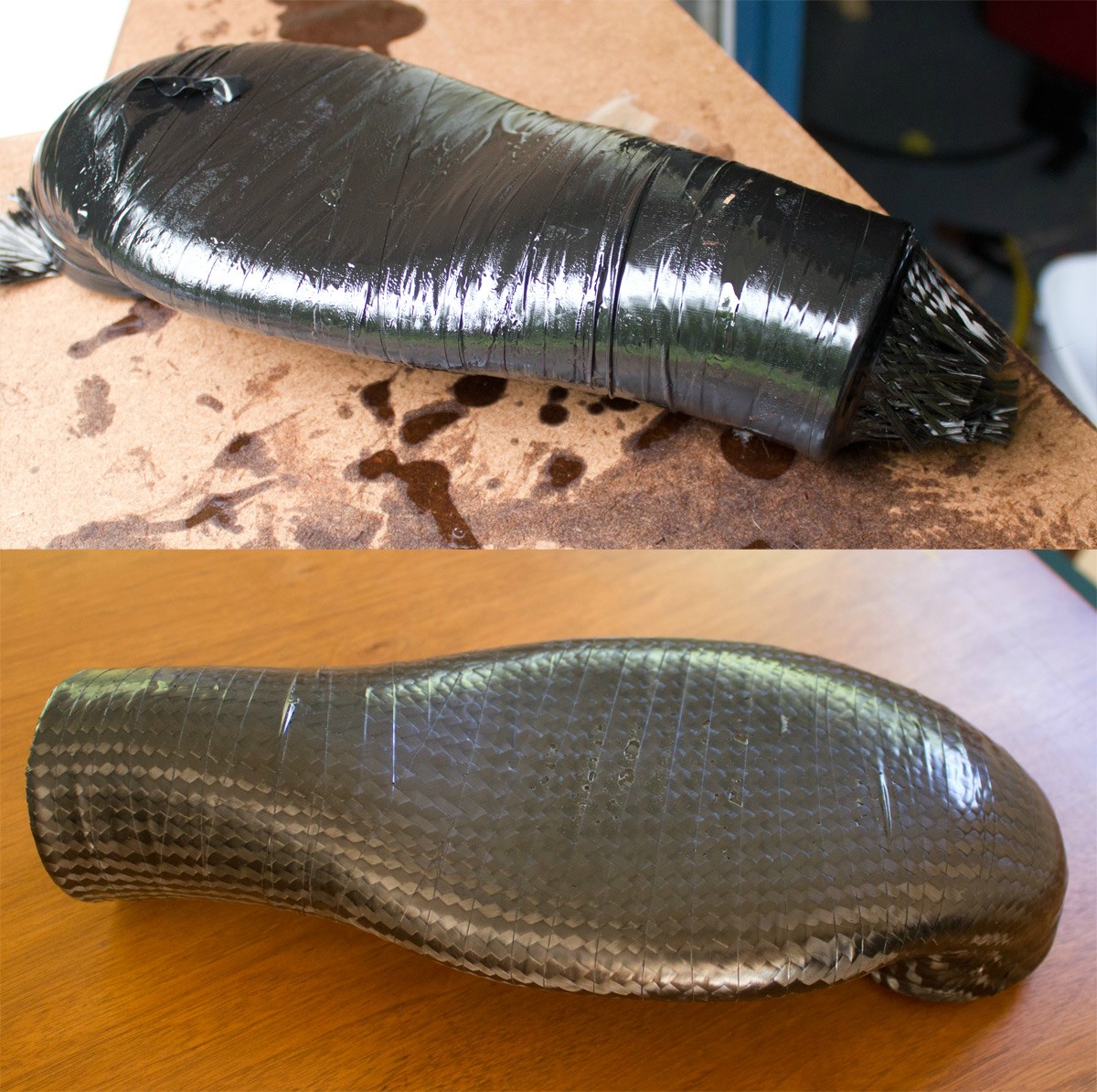

I did a test layup using one of the older prototypes. I don't have vacuum bagging equipment yet so I did a hacky compression wrap with electrical tape. Aside from excess resin puddling into streaks on the surface, it worked really well. I used a single layer of 15oz carbon biaxial sleeve and the part is super strong now- I was able to stand on it without breaking it.



I have a thinner walled ABS print on it's way so that the final exterior dimensions will be the same with the added carbon layer. Also, if I wanted this to look nice I could sand down the excess epoxy, fill in the couple of pin holes, and then polish it up. More than likely it is going to get foil wrapped so I won't bother.
Attached Thumbnails
3d printed intake for N/A NA miatas-0it9k2r.jpg
asmasm is offline   Reply With Quote
Old 07-04-2014, 05:05 PM   #109
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,627
Total Cats: 493
Default

this doesn't apply to me whatsoever, but great read non the less and fantastic work!
hi_im_sean is offline   Reply With Quote
Old 07-06-2014, 10:12 AM   #110
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

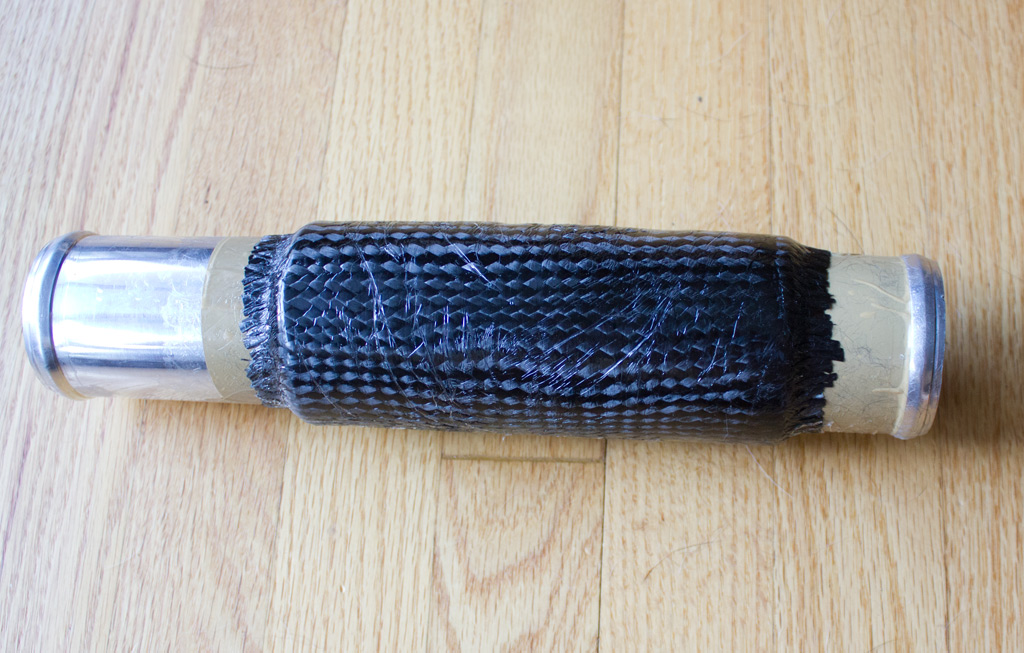

I came up with a reliable way to form seamless carbon tubes- I want to try something like this on the intake duct using poured silicone.
For this crossover I will drill a hole for the bung, use structural epoxy to fit it into place, and then layup another layer of carbon fiber overtop.





Attached Thumbnails
3d printed intake for N/A NA miatas-ymmyrv7.jpg
asmasm is offline   Reply With Quote
Old 07-10-2014, 01:59 PM   #111
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

I designed the air intake heat shield and I am going to have the tool 3d printed soon. My plan is to use kevlar and uni-directional carbon for the clamp ring and a normal carbon weave for the rest of the part. The piece is designed to slip fit over the outside of the filter and the hose clamp with fit overtop holding it all together. I will mount a go pro and drive the car at speed to make sure that the filter doesn't flex back and bang the radiator.




I also worked out a way to cheaply make small runs of the intake duct in carbon fiber without needing to sacrifice a $80 3d print each time. I am going to cast candle making wax into a plug, wet layup overtop, and then vacuum bag it all together.
asmasm is offline   Reply With Quote
Old 07-10-2014, 02:49 PM   #112
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,518
Total Cats: 1,566
Default

Quote:
Originally Posted by asmasm View Post
now jsut sell these in pairs and you've just taken control of the over-the-top IC pipes market.
Braineack is offline   Reply With Quote
Old 07-10-2014, 10:55 PM   #113
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,089
Total Cats: 573
Default

LoL one of the very few intakes that actually helps.
triple88a is offline   Reply With Quote
Old 07-13-2014, 02:04 PM   #114
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

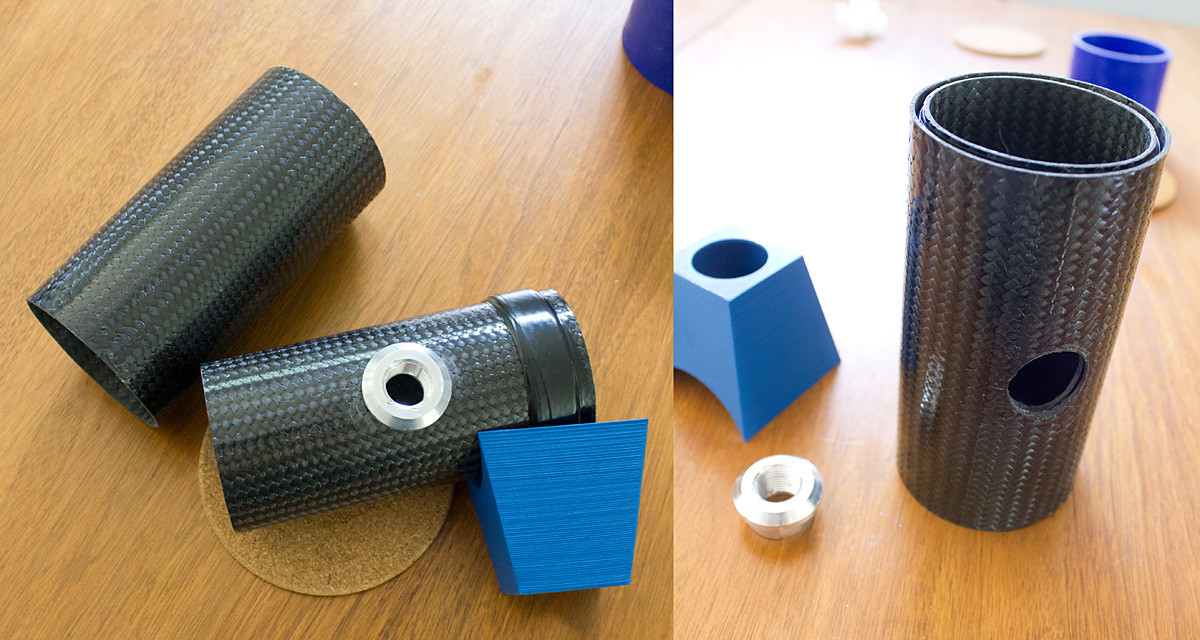

This is my attempt at a crossover tube to prevent sensor heat soak. There is a 1.75mm air gap between the tubes and I will lay up carbon onto the the 3d printed piece and use that to box the air around the sensor. If IAT sensors heat soak is caused by air already inside the intake this won't do much- If it is heat from the block or radiator making its way into the intake as the car sits this will help a lot. The top of the plastic section is big enough to fit a socket for changing the sensor out and will get sealed off with foil.

Attached Thumbnails
3d printed intake for N/A NA miatas-81zjkqx.jpg

Last edited by asmasm; 07-13-2014 at 07:25 PM.
asmasm is offline   Reply With Quote
Old 07-17-2014, 02:06 PM   #115
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

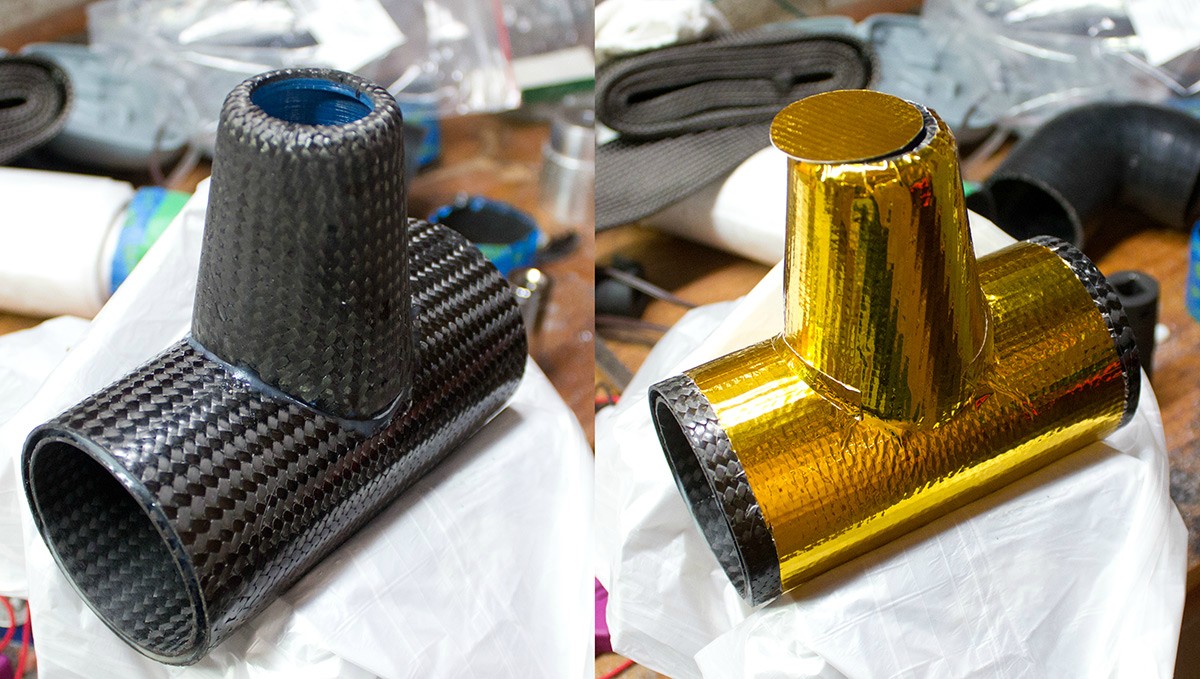

dual wall crossover is done:


The opening accommodates a 19mm socket for changing IAT sensors.
Attached Thumbnails
3d printed intake for N/A NA miatas-rrebcno.jpg
asmasm is offline   Reply With Quote
Old 07-17-2014, 02:18 PM   #116
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,518
Total Cats: 1,566
Default

curious to see the data on that.
Braineack is offline   Reply With Quote
Old 07-17-2014, 02:20 PM   #117
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

Yeah, me too. It was a lot of effort (but only about $40 in materials) and there is a good chance it won't do ****. I think on a more normal intake design where there is a longer crossover tube and you could extend this concept to be 15-20" it would work better.
asmasm is offline   Reply With Quote
Old 07-18-2014, 02:02 AM   #118
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,089
Total Cats: 573
Default

I have the feeling it will more so trap heat rather than block it. IMO a better thing to do is to run a fan that will pull ambient air pointed directly at the sensor that turns on every 5 minutes for couple minutes for like 2 hours after turning off the engine. A simple 60-80mm fan should be more than enough to get rid of sensor heat that wont drain the battery after running for 2 hours.
triple88a is offline   Reply With Quote
Old 07-18-2014, 04:02 AM   #119
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Awesome fabrication / mold work. Great job.

The carbon tubes in particular are brilliant, nice simple idea too, well done
richyvrlimited is offline   Reply With Quote
Old 07-18-2014, 02:15 PM   #120
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 737
Total Cats: 66
Default

I made a quick webpage for the intake so people wouldn't have to read this entire thread. I typed out all the content in dreamweaver so I am sure there are tons of errors I am yet to see. I also uploaded the final version of the model in stl format, the inner surface and an FBX file so people can make changes, and I included the 3d scan of the expanding foam pour.
Intake Page
asmasm is offline   Reply With Quote
