Old 03-26-2015, 04:11 PM   #121
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I also had issues with my pigtails not staying fully connected with the Mustang injectors. I ended up hard wiring them into the car and they have been fine since then.
shuiend is offline   Reply With Quote
Old 03-29-2015, 09:43 PM   #122
Newb

Join Date: May 2014
Location: New Orleans, St. Louis
Posts: 14
Total Cats: 1
Default

Is it safe to assume that these would cure my annoying NB1 return-less hot restart lean idle? I'm getting real sick of having to rev the engine and slip my clutch to pull out of the male strip club's parking lot.
VertBert is offline   Reply With Quote
Old 03-30-2015, 09:02 AM   #123
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I doubt these will cure your hor restart lean condition. I still have the same issue with these installed, just like I had with factory 1.8 injectors and RX7 injectors. The change in dead time when the injectors get hot still messes with them. I am looking at adding some kind of fuel rail temperature measurement so that the MS can richen the hot restart idle untill the injectors and fuel return back to normal operating temps.

You might want to do some research on the hot idle issue. Lots op people seem to still struggle with it.
Rallas is offline   Reply With Quote
Old 03-30-2015, 09:50 AM   #124
Newb

Join Date: May 2014
Location: New Orleans, St. Louis
Posts: 14
Total Cats: 1
Default

The majority of solutions involve huge amounts of WUE or ASE. 18psi seems to swear by ID1ks,and others seem to have just gone with converting to a return style system, which is probably what I'll end up doing.
VertBert is offline   Reply With Quote
Old 03-30-2015, 12:49 PM   #125
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Where is your IAT sensor mounted? You may be dealing with a heatsoaked IAT on restart rather than heatsoaked injectors/fuel system. Moving mine from next to the throttle body to next to the air filter helped dramatically with restarts. If you are boosted, an even better location is post intercooler under the bumper or nose, completely outside the engine compartment.
EO2K is offline   Reply With Quote
Old 03-30-2015, 04:06 PM   #126
Newb

Join Date: May 2014
Location: New Orleans, St. Louis
Posts: 14
Total Cats: 1
Default

My IAT hangs out in the air box (stock). I'll occasionally see it reach 90+ in 50 degree weather, so I know I need to do something about it, but I'm not sure it's the only issue.
VertBert is offline   Reply With Quote
Old 03-31-2015, 01:28 AM   #127
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by VertBert View Post
Is it safe to assume that these would cure my annoying NB1 return-less hot restart lean idle? I'm getting real sick of having to rev the engine and slip my clutch to pull out of the male strip club's parking lot.
You need to spend more time at the strip club so that the engine is cold when you leave.

--Ian
codrus is offline   Reply With Quote
Old 03-31-2015, 01:50 AM   #128
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

Quote:
Originally Posted by EO2K View Post
Where is your IAT sensor mounted? You may be dealing with a heatsoaked IAT on restart rather than heatsoaked injectors/fuel system. Moving mine from next to the throttle body to next to the air filter helped dramatically with restarts. If you are boosted, an even better location is post intercooler under the bumper or nose, completely outside the engine compartment.
This was never the issue, at least for me.
It was always hot fuel/injectors, never the AIT.
I've not experienced hot restart with ID1k's. They were fine.
I am currently experiencing hot restart on the OEM NB2 injectors. Its not too bad though, on the current car/setup, and I know it's not AIT related.
18psi is offline   Reply With Quote
Old 04-15-2015, 01:26 PM   #129
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

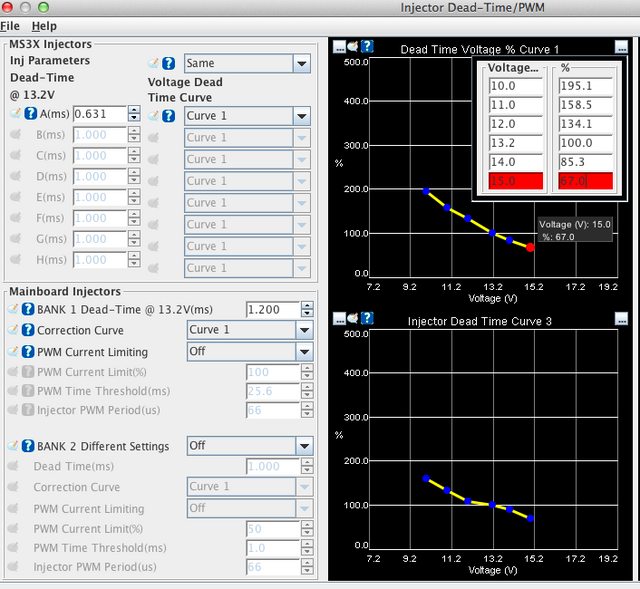

Dead time stuff:


aidandj is offline   Reply With Quote
Old 04-15-2015, 01:51 PM   #130
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 655
Total Cats: 71
Default

Flow rate stuff

Mean flow rate: 611cc/min
Standard deviation: 5.3cc/min
nigelt is offline   Reply With Quote
Old 04-15-2015, 11:26 PM   #131
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Props...good info
Efini~FC3S is offline   Reply With Quote
Old 04-15-2015, 11:48 PM   #132
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Awesome. Good info.
Onyxyth is offline   Reply With Quote
Old 04-16-2015, 04:25 AM   #133
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

*sigh* Time for a retune with these deadtimes. I hate you. But I love you.
Schuyler is offline   Reply With Quote
Old 04-16-2015, 03:37 PM   #134
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

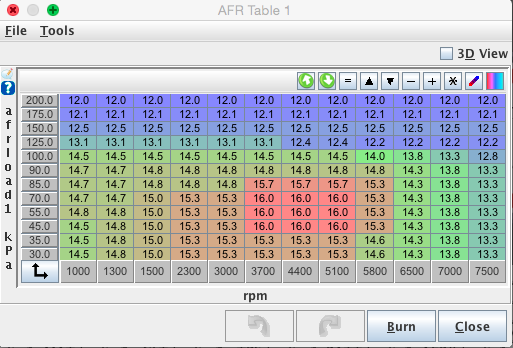

What is everyone running for an AFR target table?
aidandj is offline   Reply With Quote
Old 04-16-2015, 03:54 PM   #135
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

My wideband reads about .2AFR richer then TS shows, so I have my AFR table adjusted accordingly.
shuiend is offline   Reply With Quote
Old 04-16-2015, 04:11 PM   #136
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by shuiend View Post
My wideband reads about .2AFR richer then TS shows, so I have my AFR table adjusted accordingly.
So you trust the gauge over the TS reading?
aidandj is offline   Reply With Quote
Old 04-16-2015, 04:18 PM   #137
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by aidandj View Post
So you trust the gauge over the TS reading?
I trust both my AEM UEGO gauge and MXT-L gauge over what TS reads. I could spend more time getting my AFR table calibration perfect, but I am lazy.
shuiend is offline   Reply With Quote
Old 04-16-2015, 04:40 PM   #138
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 267
Default

Lars: Looks like Scotts old street tune. Quite lean (even with the 0.2 subtracted). Others will likely come in with 13.5 at 85 kPa and 12.5 at 100 kPa. From my research of previous MT AFR threads, I don't see consensus. I have run one that looks like Lars' and one (presently) that looks like the rich ones. Very little change in MPG or performance that I can tell based on NON-SCIENTIFIC "research".

Lars, why don't you just adjust the WB02 calibration in your MS and make them read the same?
DNMakinson is offline   Reply With Quote
Old 04-16-2015, 06:07 PM   #139
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by DNMakinson View Post
Lars: Looks like Scotts old street tune. Quite lean (even with the 0.2 subtracted). Others will likely come in with 13.5 at 85 kPa and 12.5 at 100 kPa. From my research of previous MT AFR threads, I don't see consensus. I have run one that looks like Lars' and one (presently) that looks like the rich ones. Very little change in MPG or performance that I can tell based on NON-SCIENTIFIC "research".

Lars, why don't you just adjust the WB02 calibration in your MS and make them read the same?
It is Scotts old street tune AFR map. I am running a MSQ he made on my 97. I should compare it to what I run on my 94. I have adjusted the WB02 calibration a bit, I got it reasonably close and sort of said **** it because I am lazy. I run 1 MS3x in 2 of my cars, it just gets swapped back and forth depending on which one I am driving. the 94 runs a MXT-L and the 97 runs a UEGO. So next time I do the swap I will probably work on getting the calibration a bit better.
shuiend is offline   Reply With Quote
Old 04-16-2015, 06:21 PM   #140
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,700
Total Cats: 267
Default

Here is the lean group: Lean Team

More of a mix, many liking rich: Both Sides Presented
DNMakinson is offline   Reply With Quote
