Old 06-17-2015, 03:18 PM   #161
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by huesmann View Post
I've seen some of those top hat extenders with retainer clips, some without. Are the clips optional on Miatae?
AFAIK they are just there to hold things together before you actually put them in the car. They aren't going anywhere once you tighten the fuel rail down.
Schuyler is offline   Reply With Quote
Old 06-17-2015, 03:24 PM   #162
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

Hmph. If you need a clip to keep the extenders and injectors together, how much of a seal are the O-rings really providing?
huesmann is offline   Reply With Quote
Old 06-17-2015, 03:34 PM   #163
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by huesmann View Post
BTW, it looks like these injectors have increased in price; the lowest I could find single injectors was $32.99/ea at CJ Pony Parts. Free shipping. I know you can find them a little cheaper in sets of 8, but if you don't want to deal with splitting a set, I couldn't find anything better.
I paid about $35 a piece for them on eBay last November.
shuiend is offline   Reply With Quote
Old 06-17-2015, 04:19 PM   #164
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 669
Total Cats: 71
Default

Quote:
Originally Posted by huesmann View Post
Since some of you blokes have had issues with the Denso-to-EV14 wired adapters
I haven't heard of any issues from the newer wired connectors. There are a few folks running them now with no issues - sonofthehill and choofoojoo for sure.

The ones people reported issues with have been turned into pigtails.
nigelt is online now   Reply With Quote
Old 06-17-2015, 05:06 PM   #165
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by shuiend View Post
I paid about $35 a piece for them on eBay last November.
I paid $147 shipped ($36.75 each) for mine in November.
Schuyler is offline   Reply With Quote
Old 09-07-2015, 05:19 PM   #166
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

I'm about to order new injectors
only now I see two different lengths (60mm,50mm)
what can I get the best
does the long fit as I modify the top
or I can better order the shorter and make some extenders

4 Bosch EV14 52lb 550cc Fuel Injectors Honda BMW VW Mazda Ford Toyota GM Dodge | eBay
4 Genuine Bosch EV14 52lb 550cc Fuel Injectors R52 R53 03 07 Mini Cooper s 1 6L | eBay
creon is offline   Reply With Quote
Old 09-07-2015, 07:06 PM   #167
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 669
Total Cats: 71
Default

Quote:
Originally Posted by creon View Post
I'm about to order new injectors
only now I see two different lengths (60mm,50mm)
what can I get the best
does the long fit as I modify the top
or I can better order the shorter and make some extenders

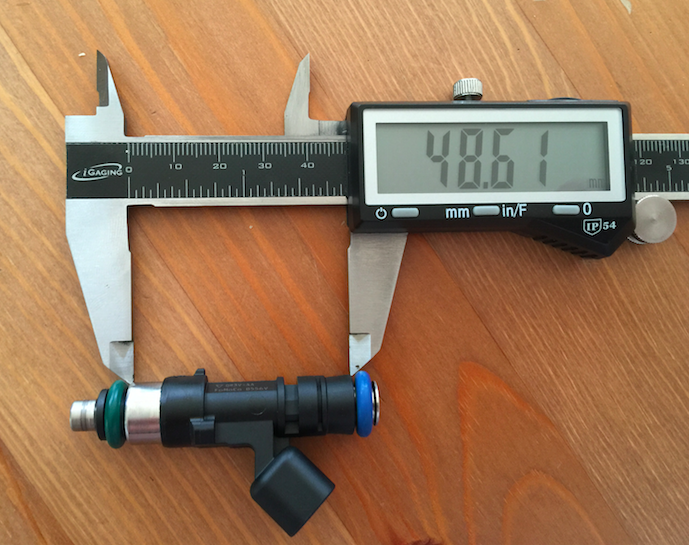

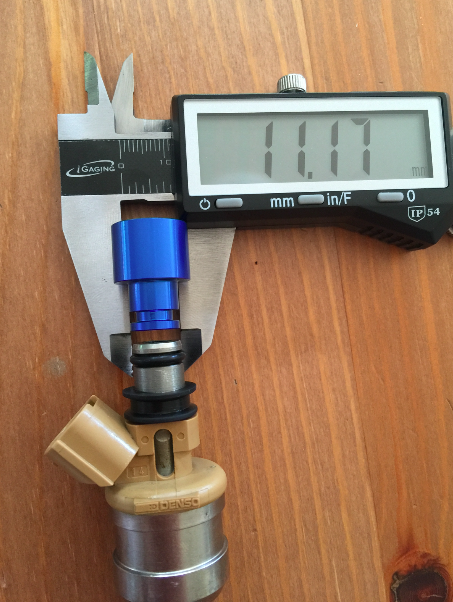

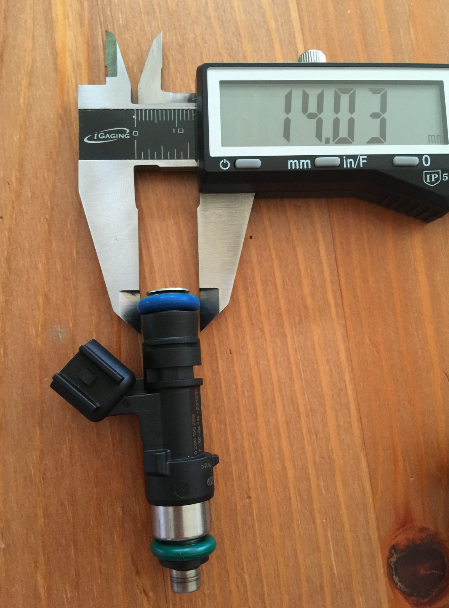

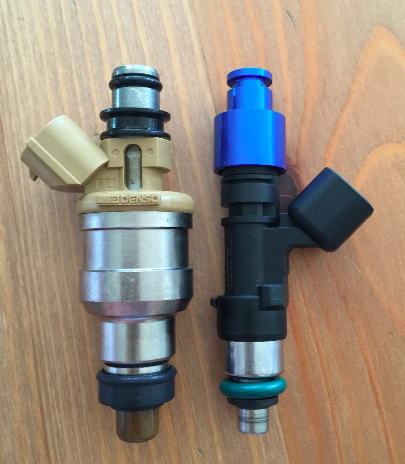

You are looking for an overall length of 60mm, however, you need the 48mm injectors unless you can find 60mm injectors with a 11mm top. I wouldn't recommend modifying the tops when extenders are readily available. You get the 48mm units and then use a 12mm extender that converts the 14mm top to 11mm. Here are some pictures to illustrate:













If you get those 48mm 550cc units, you can get a kit to make them PNP here: Flow Force Adapter Kit for 1990-2005 Mazda Miata ? Flow Force Injectors

Or you could always go for 610cc units that have been flow matched with a PNP kit: Flow Force 610cc Injectors with PNP Kit for Mazda Miata ? Flow Force Injectors

/shamelessplug
Attached Thumbnails
My quest of running Ford GT500 EV14s-80-image_202015_09_07_20at_202_57_38_20pm_6f9f62e5689f61bf49f61912b0a0d6be028cf74a.png   My quest of running Ford GT500 EV14s-80-image_202015_09_07_20at_202_58_17_20pm_36c168f09be204ebdbd6bbe68ac98db83edd38ee.png   My quest of running Ford GT500 EV14s-80-image_202015_09_07_20at_202_58_54_20pm_5e6e425f39a341de98d4d28dc8d24116282206cf.png   My quest of running Ford GT500 EV14s-80-image_202015_09_07_20at_203_00_08_20pm_3043e498c49cfb51abcd55bff41249c981300d1d.png
nigelt is online now   Reply With Quote
Old 09-08-2015, 02:49 AM   #168
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by nigelt View Post
/shamelessplug
does not matter :-)
your post helped me a lot

I can make new topheats let myself
or I can to fit the injectors (when it goes,https://www.miataturbo.net/engine-pe...2/#post1066233)
@ sturovo can you help me out?
I did think I read somewhere that it was possible
if it is possible I do prefer, because of a point of failure less

Last edited by creon; 09-08-2015 at 03:13 AM.
creon is offline   Reply With Quote
Old 09-14-2015, 04:42 PM   #169
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Has anyone gotten a decent ms2 map for these injectors? I have changed out my injectors too many times with the map I have, it runs and drives but just feels off all around, even idle and accel enrichment settings would be a great help. I just can't seem to get those close. I have a 1.6 turbo, with variable TPS.
duffbuster243 is offline   Reply With Quote
Old 09-21-2015, 04:02 PM   #170
Junior Member

Join Date: May 2005
Location: Tampa, FL
Posts: 150
Total Cats: -6
Default

I installed these last week onto my new built motor (still on the engine stand - haven't run it yet) and with the extender caps, everything fit pretty well, but will need a larger spacers to elevate the fuel rail 2-3 MM for the best fit. That being said, I bought them with pigtails that need to be wired to the existing injector harness (to replace the EV1 plugs).

What is the correct way to splice the 2 wires from the pigtail into the existing harness?
Hammerhead is offline   Reply With Quote
Old 09-21-2015, 05:15 PM   #171
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>No polarity. Cut and crimp.</p>
aidandj is offline   Reply With Quote
Old 09-21-2015, 05:59 PM   #172
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 669
Total Cats: 71
Default

Quote:
Originally Posted by Hammerhead View Post
I installed these last week onto my new built motor (still on the engine stand - haven't run it yet) and with the extender caps, everything fit pretty well, but will need a larger spacers to elevate the fuel rail 2-3 MM for the best fit.
I'm having some aluminum spacer washers made to make the fit even more perfect. IDs have the same issue, but these should be better than IDs
nigelt is online now   Reply With Quote
Old 09-23-2015, 09:13 AM   #173
Junior Member

Join Date: May 2005
Location: Tampa, FL
Posts: 150
Total Cats: -6
Default

Quote:
Originally Posted by aidandj View Post
<p>No polarity. Cut and crimp.</p>
Thank you!

Quote:
Originally Posted by nigelt View Post
I'm having some aluminum spacer washers made to make the fit even more perfect. IDs have the same issue, but these should be better than IDs
I planned to go to ACE Hardware to source washers to fit. Hopefully, that will be sufficient.
Hammerhead is offline   Reply With Quote
Old 10-18-2015, 11:27 PM   #174
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default Video


611cc ev14 Mustang injector.
PW 10ms
~42# fuel pressure
810 RPMs
BP Head

Last edited by shuiend; 10-19-2015 at 09:55 PM.
Miater is offline   Reply With Quote
Old 10-19-2015, 09:08 PM   #175
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 669
Total Cats: 71
Default




Womp womp.

Am I the only one who can't see the video?
Attached Thumbnails
My quest of running Ford GT500 EV14s-80-image_202015_10_19_20at_205_07_57_20pm_80b7790cea7e89c6f2616134ae8692b72114a156.png
nigelt is online now   Reply With Quote
Old 10-19-2015, 09:50 PM   #176
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by nigelt View Post



Womp womp.

Am I the only one who can't see the video?

Nope...
bahurd is offline   Reply With Quote
Old 10-20-2015, 12:01 AM   #177
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by bahurd View Post
Nope...
Works just fine for me
Schuyler is offline   Reply With Quote
Old 10-20-2015, 12:43 AM   #178
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Schuyler View Post
Works just fine for me
I fixed it.
shuiend is offline   Reply With Quote
Old 10-20-2015, 08:57 AM   #179
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

I've got a slow motion one I'll put up at lunch. You can see the two streams. It's a good thing.
Miater is offline   Reply With Quote
Old 10-20-2015, 09:37 AM   #180
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

I was always concerned that the angle of the dual spray pattern was not correct for the valve spacing of the BP head. The worry would be some portion of the spray just wetting walls.

Thanks for making this video and posting it.

I'm curious how the intake charge airflow changes things...
Efini~FC3S is offline   Reply With Quote
