Old 10-20-2015, 04:51 PM   #181
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default


This should be the slow motion version.

Last edited by shuiend; 10-20-2015 at 05:55 PM.
Miater is offline   Reply With Quote
Old 10-20-2015, 05:03 PM   #182
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,124
Total Cats: 144
Default

Quote:
Originally Posted by Miater View Post

This should be the slow motion version.



Not for me.

Last edited by shuiend; 10-20-2015 at 05:55 PM.
bahurd is offline   Reply With Quote
Old 10-20-2015, 05:06 PM   #183
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,842
Total Cats: 271
Default

Quote:
Originally Posted by Miater View Post

I still haven't figured out how to tag youtube videos.
Girz0r is offline   Reply With Quote
Old 10-20-2015, 05:07 PM   #184
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 655
Total Cats: 71
Default

I see what's happening here - Miater, you are putting the youtube shortlink into the frame. Here:

That is a beautiful thing. Do you mind if I use that video to demonstrate to the world the awesomeness of these injectors? That's pretty much an ideal spray pattern.

edit: turns out I also fail at youtube
nigelt is offline   Reply With Quote
Old 10-20-2015, 05:08 PM   #185
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

nigelts didn't work either.
aidandj is offline   Reply With Quote
Old 10-20-2015, 05:09 PM   #186
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by Efini~FC3S View Post
I was always concerned that the angle of the dual spray pattern was not correct for the valve spacing of the BP head. The worry would be some portion of the spray just wetting walls.

Thanks for making this video and posting it.

I'm curious how the intake charge airflow changes things...
Repeat video with engine running?
aidandj is offline   Reply With Quote
Old 10-20-2015, 10:44 PM   #187
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Every time I play the video it works for me. Then it doesn't later. I'm good at fail.

This is a spare motor on a stand next to my injector flow machine. I had to hold the fuel rail and injector with one hand and shoot with the other. This cylinder is almost TDC and filled up fast. I can get another clip without all the extra fluid in there. The injector plug is straight up. It seems to hit the back of the valve and not the port wall.

Yes you may use it.
Miater is offline   Reply With Quote
Old 10-21-2015, 01:41 PM   #188
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

If we still had props you would get a bunch from me right now! Thanks


What did the tip of your injectors look like? Which part number injector did you use?


I remember in some of the earlier discussions we were wondering if the Motorcraft CM5216 GT500 injectors had the dual cone or single large cone spray pattern. I meant to test mine before I put them on the car, but forgot to.

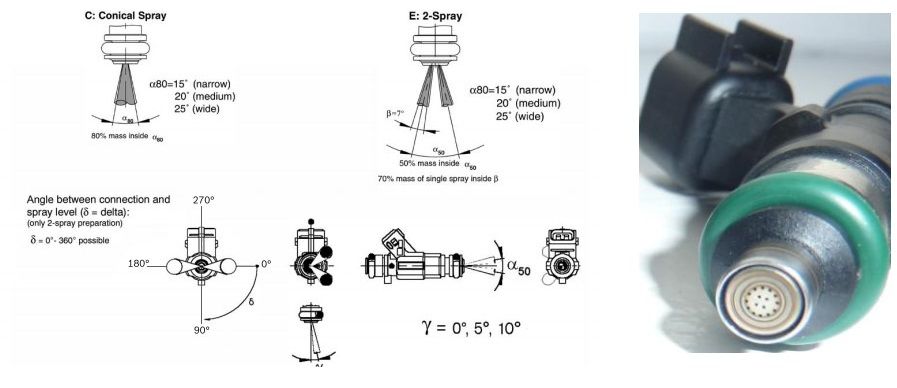

The tips/nozzles on my GT500 injectors look like the attached pic, which is not what I would expect for the nozzle to look like if it is producing a dual cone spray pattern. This video makes me want to take my injectors out and see what my spray pattern looks like. I don't think I can have all 4 of my injectors oriented with the connector facing straight up in order to align the dual cones with the back of the valves.


Attached Thumbnails
My quest of running Ford GT500 EV14s-80-injectors_10590013073c96adb033cb1603b86f11320415ca.jpg
Rallas is offline   Reply With Quote
