Old 11-13-2014, 12:09 PM   #81
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

300zxrb26dett on here used to sell the kits for a great price. As for getting that plastic grommet off the bottom of the injector, I cut through them vertically with some wire cutters and they cam right off.
duffbuster243 is offline   Reply With Quote
Old 11-13-2014, 03:29 PM   #82
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I am planning on attempting to cut the plastic grommet tonight on the injectors. I was just going to hit up auto zone or advance auto for the new rubber grommets that are needed.
shuiend is offline   Reply With Quote
Old 11-17-2014, 03:51 PM   #83
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Can anyone confirm the 12.5mm spacers are correct? The OP said 12mm.
Schuyler is offline   Reply With Quote
Old 11-18-2014, 03:17 AM   #84
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by Schuyler View Post
Can anyone confirm the 12.5mm spacers are correct? The OP said 12mm.
Eh, ordered them anyway. Will report back with pictures when they're all assembled. Still need to get denso->USCAR adapters.
Schuyler is offline   Reply With Quote
Old 11-22-2014, 04:25 PM   #85
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by shuiend View Post
How do I remove the black plastic grommet that is at the bottom of the injector?

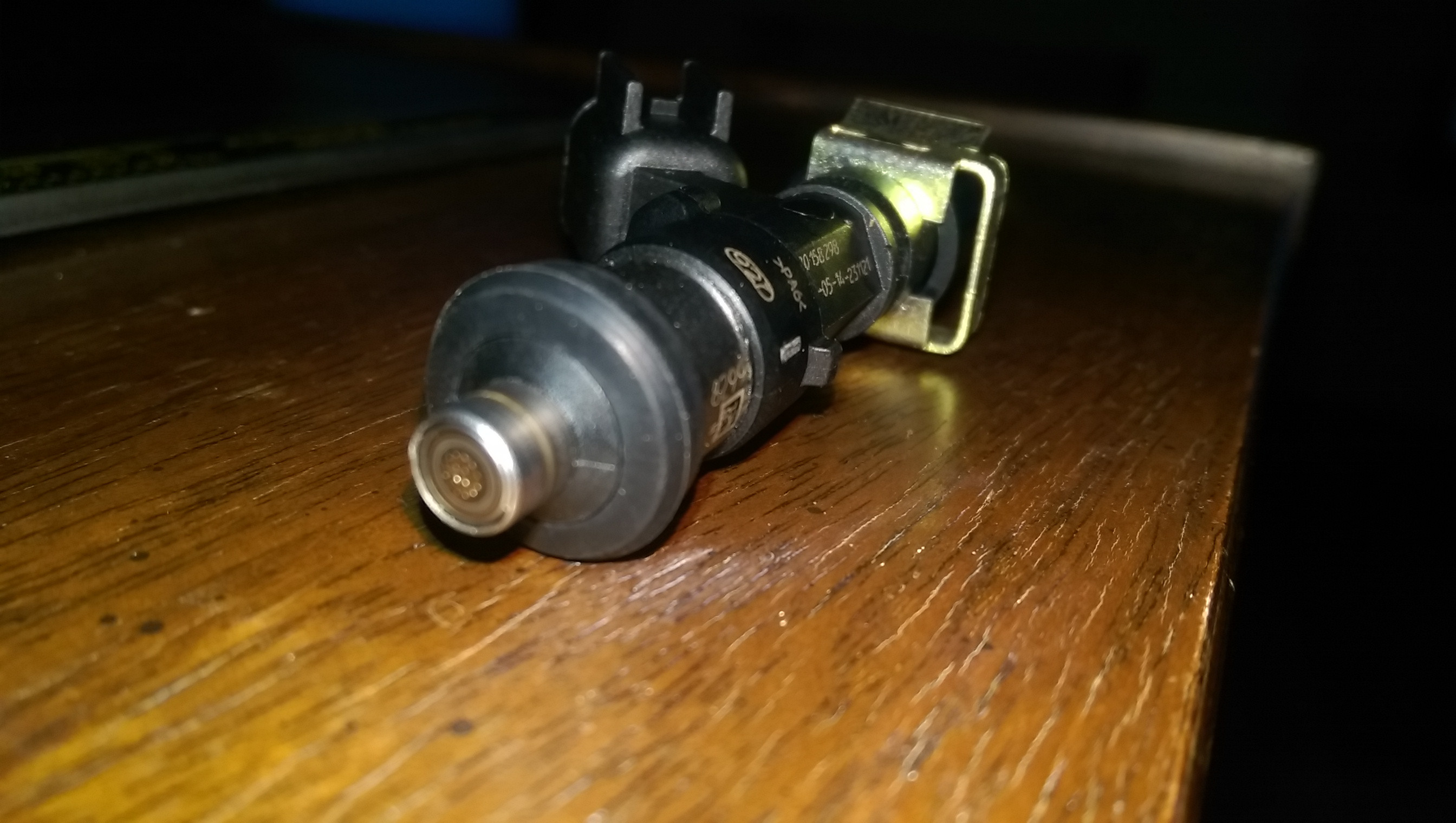

Does that piece need to come off? I feel like I've seen pictures of ev14s set up for a miata that still had them. I got the seal on fine with it there. Don't have a manifold handy to test fit on,so I suppose there's a chance it would bottom out and not allow it to seat properly.





Schuyler is offline   Reply With Quote
Old 11-22-2014, 04:40 PM   #86
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Quote:
Originally Posted by Schuyler View Post

Does that piece need to come off? I feel like I've seen pictures of ev14s set up for a miata that still had them. I got the seal on fine with it there. Don't have a manifold handy to test fit on,so I suppose there's a chance it would bottom out and not allow it to seat properly.
Definitely has to come off. The plastic grommet is larger than the injector hole, so it prevents the tip from slipping in far enough (lol) and making a seal.
Onyxyth is offline   Reply With Quote
Old 11-23-2014, 12:00 AM   #87
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I left the plastic piece on there and used the lower cushion as you show it in the pictures. It was a real tight fit, but a little wd40 on the cushion allowed it so slip into the injector bungs and seal really well. I have over 5000 miles on the setup so far and no issues. I like that you end up with a tight seal between the injectors and manifdold. The RX7 injectors with new lower cushions fit really loose and I always wondered if I was leaking out any boost when I ran them, I don't worry about that any more.

I tried to find a fat oring that would make the ev14 fit the miata manifold but didn't have any luck.

I looked at all the places I tried to get my injectors from in the spring when I paid $25 a pop. All the places charge at least $50 a piece now. Glad I got mine when I did. Rockauto has the Standard Motor Products injectrs for the 2013 GT500 for $30 a piece which is crazy since the real Motor craft parts were $22 before.
Rallas is offline   Reply With Quote
Old 11-23-2014, 12:49 AM   #88
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by relte View Post
I left the plastic piece on there and used the lower cushion as you show it in the pictures. It was a real tight fit, but a little wd40 on the cushion allowed it so slip into the injector bungs and seal really well. I have over 5000 miles on the setup so far and no issues. I like that you end up with a tight seal between the injectors and manifdold. The RX7 injectors with new lower cushions fit really loose and I always wondered if I was leaking out any boost when I ran them, I don't worry about that any more.

I tried to find a fat oring that would make the ev14 fit the miata manifold but didn't have any luck.

I looked at all the places I tried to get my injectors from in the spring when I paid $25 a pop. All the places charge at least $50 a piece now. Glad I got mine when I did. Rockauto has the Standard Motor Products injectrs for the 2013 GT500 for $30 a piece which is crazy since the real Motor craft parts were $22 before.
Interesting. Mine slid on there without really so much as a fuss....

Also, wtf you're in Lexington? How have I not noticed this yet....
Schuyler is offline   Reply With Quote
Old 11-23-2014, 09:53 AM   #89
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

Watching this space closely, as I'm not sure if my yellow tops are going to be my power limiting feature. Making this change seems to be relatively painless from a wallet point of view.
DNMakinson is offline   Reply With Quote
Old 11-25-2014, 04:20 AM   #90
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

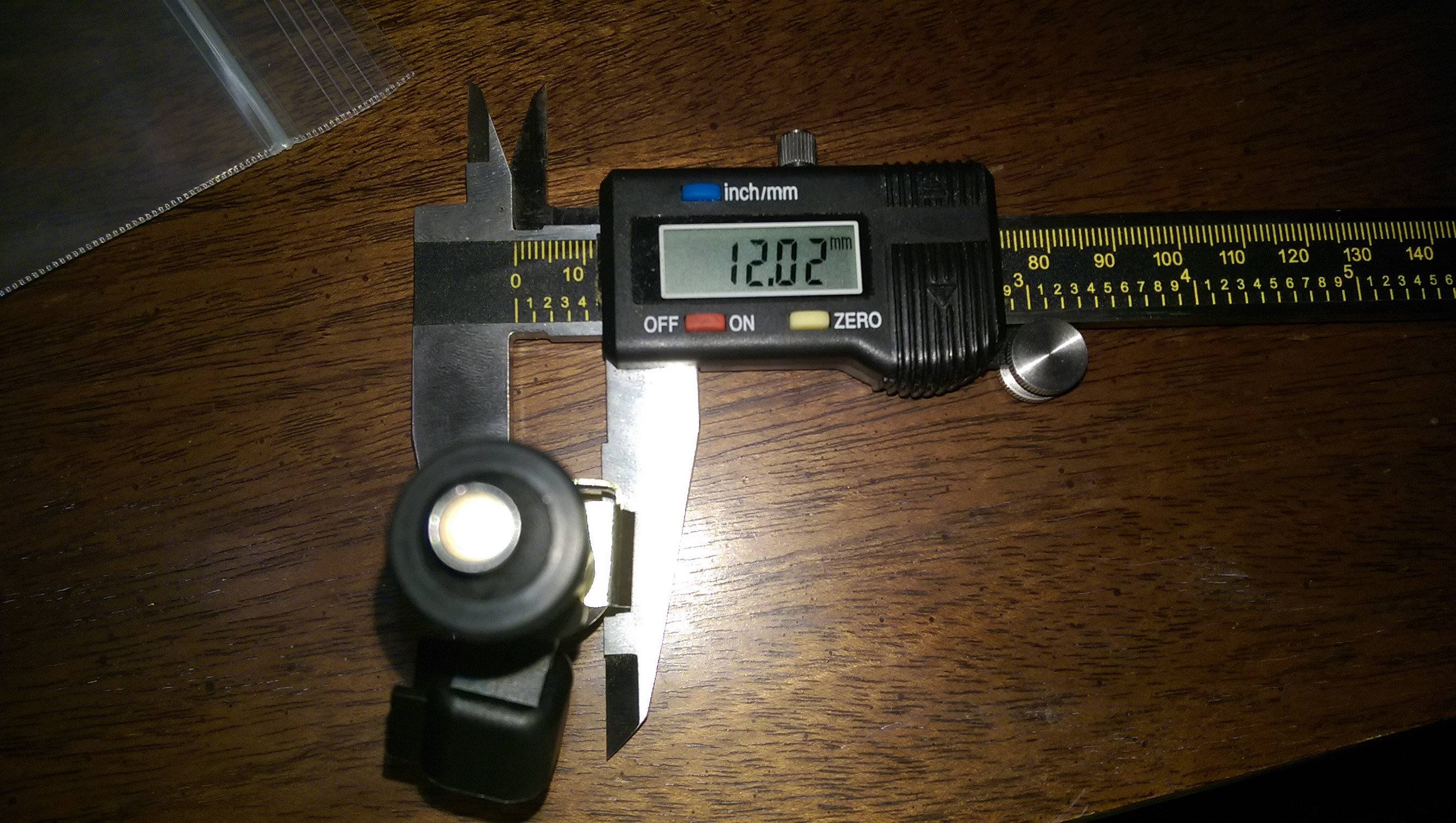

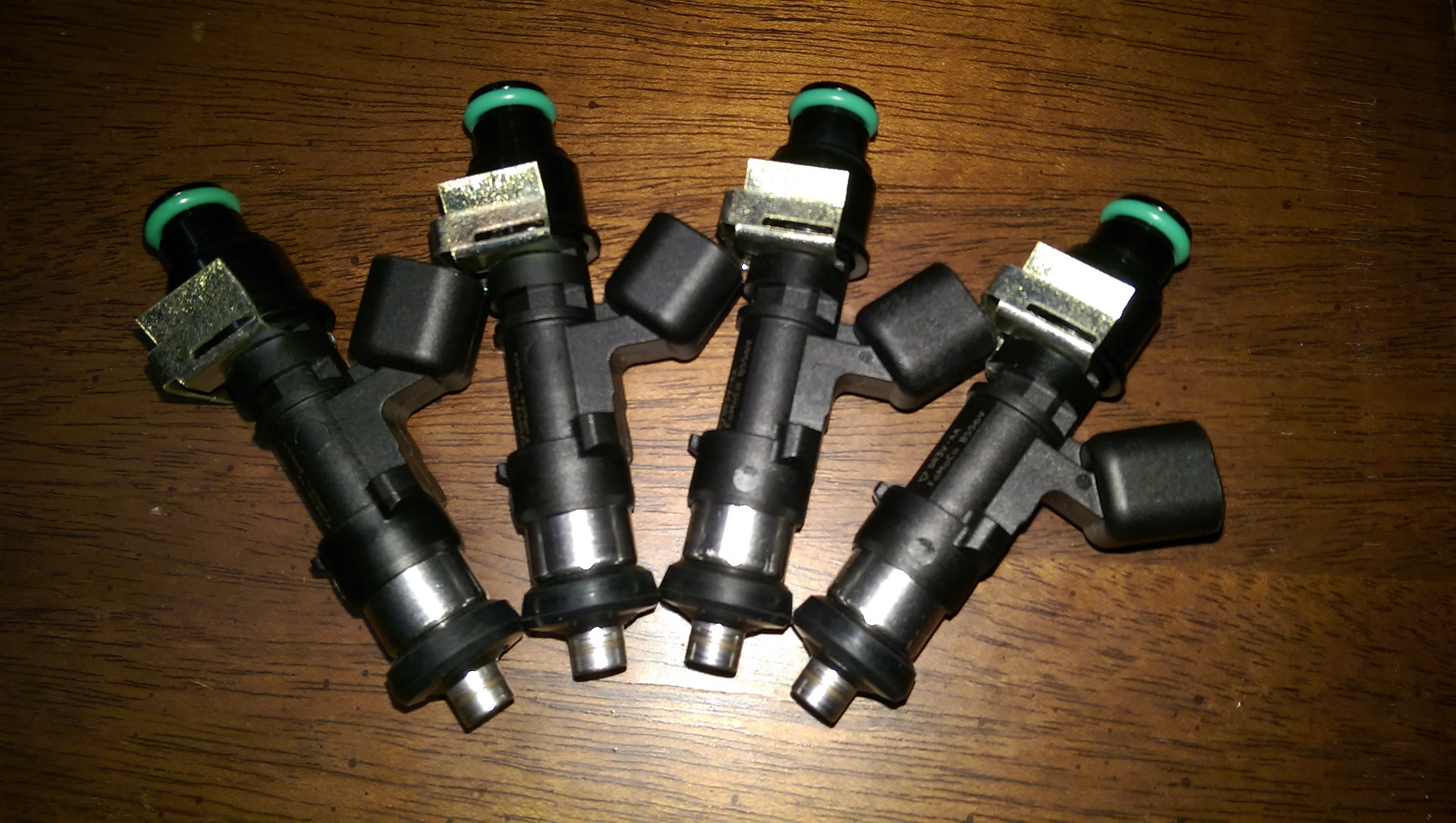

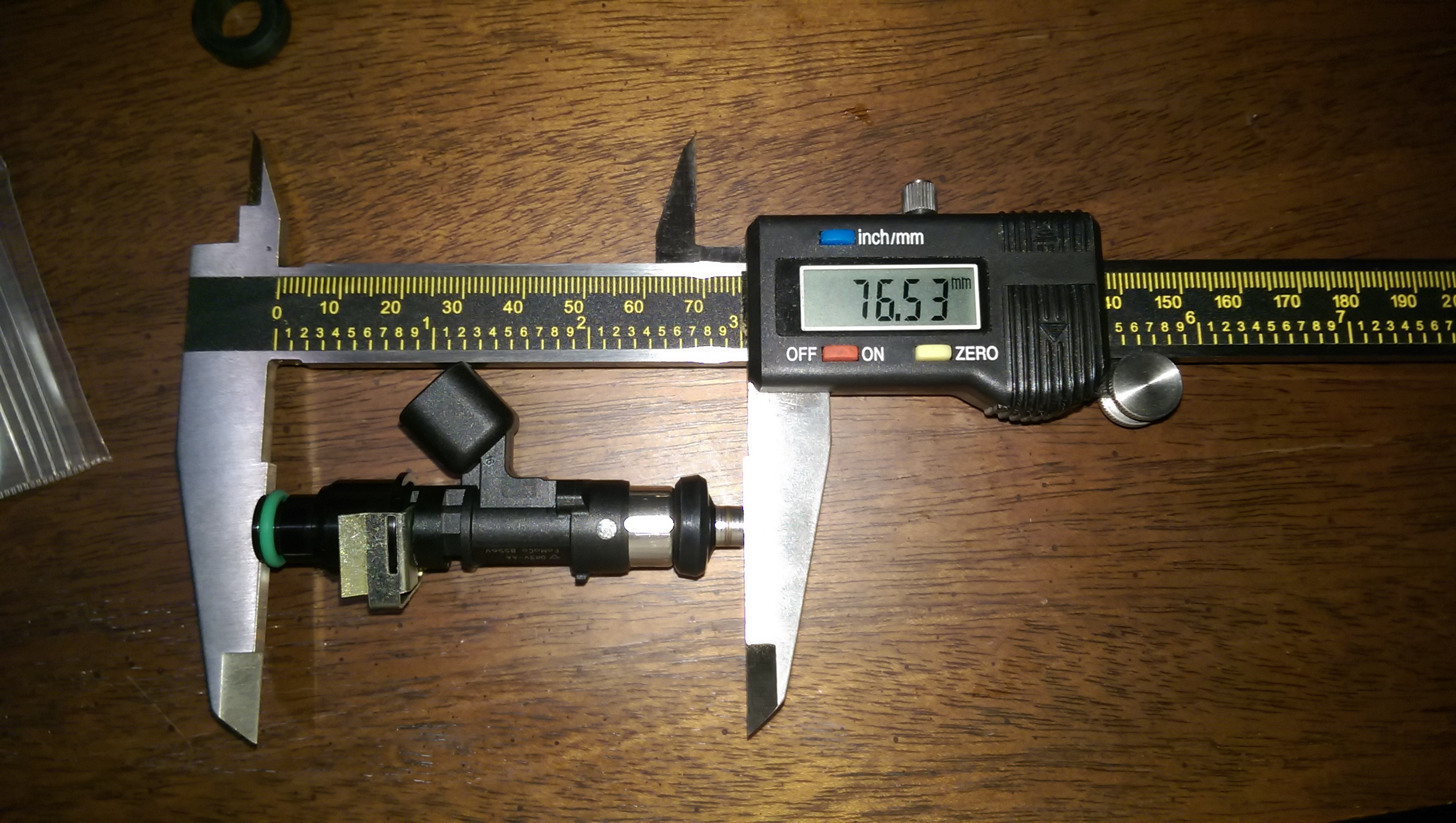

Well, my injectors are hopefully finished (though I haven't cut the plastic piece off yet. One yes, one no, so I figure I'll test fit and cut if needed). However, could someone confirm the overall length of the injector? The extensions I ordered were not the extensions I received, but the OD looks correct.

Pictures below.





Schuyler is offline   Reply With Quote
Old 12-05-2014, 03:52 AM   #91
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

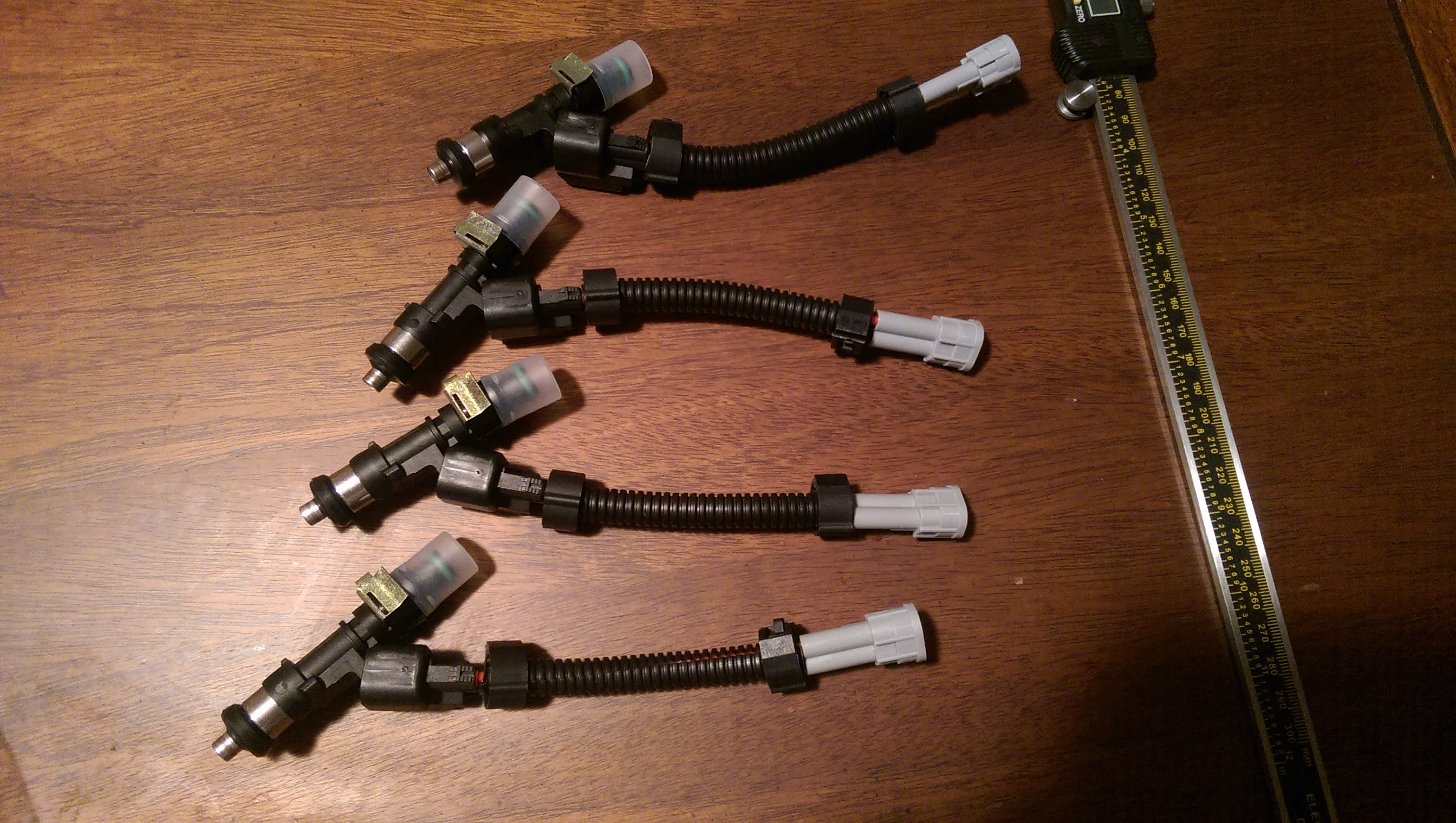

Should be good to go now.

Schuyler is offline   Reply With Quote
Old 12-07-2014, 02:25 AM   #92
Newb

Join Date: Sep 2010
Location: Brisbane Queensland
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Efini~FC3S View Post
Did you check for sets of 8? I seem to remember places selling sets of 8 for $220ish, maybe 250.


Ford Racing Fuel Injector - 52# - 8 Pack (Part No: M-9593-MU52)
tbro is offline   Reply With Quote
Old 12-07-2014, 03:11 AM   #93
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

So, is the verdict in? Has anyone actually installed these yet?
furrycurry33 is offline   Reply With Quote
Old 12-07-2014, 12:25 PM   #94
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Shiiiii this looks badass. Would go along nicely with the mk budget setup. In for long term results and diy writeup.
ScottyP3821 is offline   Reply With Quote
Old 12-07-2014, 12:49 PM   #95
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by ScottyP3821 View Post
Shiiiii this looks badass. Would go along nicely with the mk budget setup. In for long term results and diy writeup.
Wellllll my MKTurbo setup will be going on soon. So stay tuned
Schuyler is offline   Reply With Quote
Old 12-07-2014, 01:22 PM   #96
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,122
Total Cats: 144
Default

Quote:
Originally Posted by Schuyler View Post

Wellllll my MKTurbo setup will be going on soon. So stay tuned
Did you make the adapters or buy them? Nice looking.
bahurd is offline   Reply With Quote
Old 12-07-2014, 03:11 PM   #97
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by bahurd View Post
Did you make the adapters or buy them? Nice looking.
Purchased. $35

http://www.ebay.com/itm/251742632597
Schuyler is offline   Reply With Quote
Old 12-07-2014, 03:37 PM   #98
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,122
Total Cats: 144
Default

Thanks.
bahurd is offline   Reply With Quote
Old 12-16-2014, 02:49 AM   #99
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

This thread is disappointing..
furrycurry33 is offline   Reply With Quote
Old 12-17-2014, 04:55 PM   #100
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

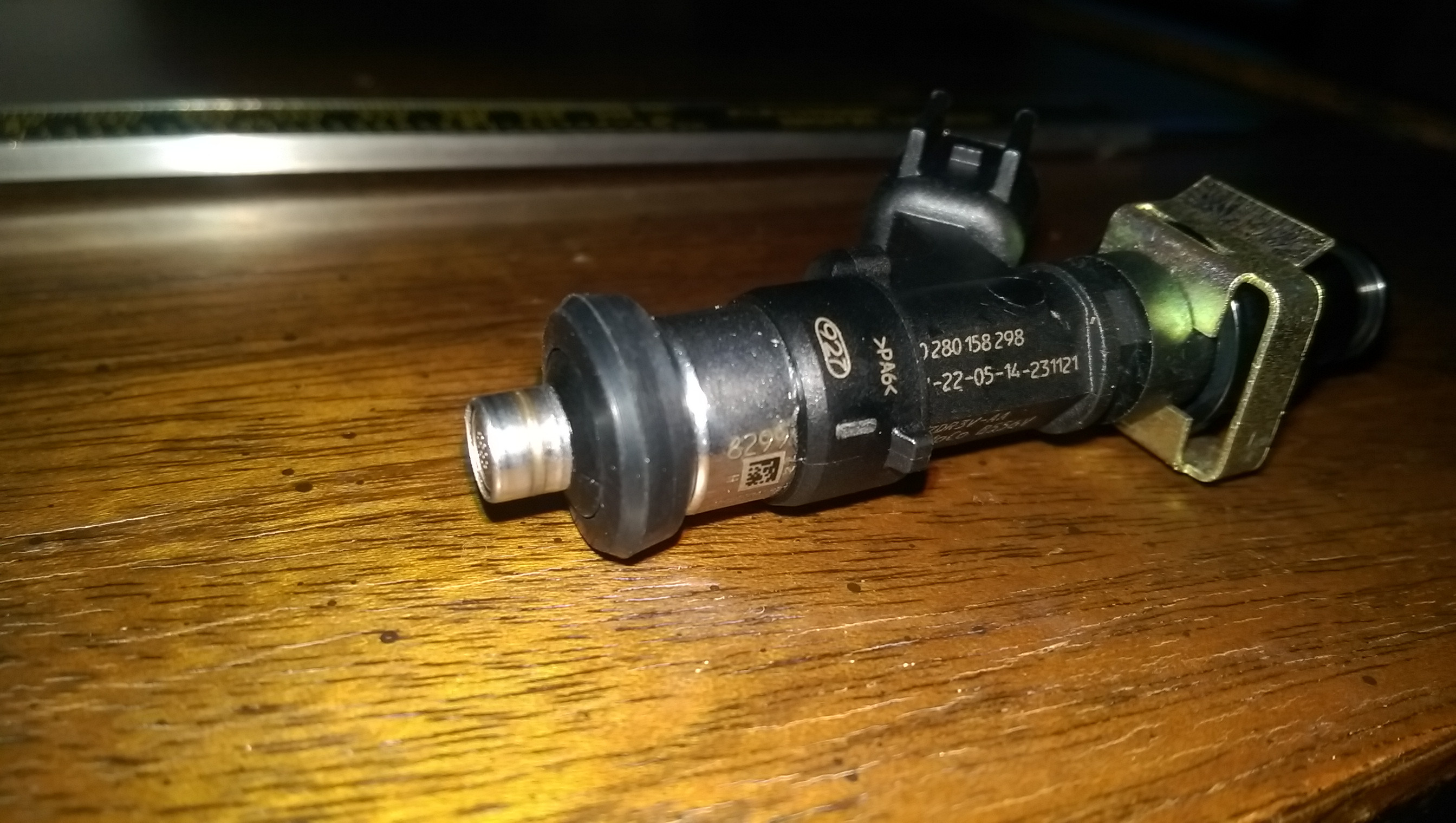

I had to cut the hard plastic ring off the tip of the injector. It was bottoming out and keeping them from going in far enough. There was plenty of pressure without it though, and i'm comfortable it will seal fine.
Schuyler is offline   Reply With Quote
