Old 10-14-2013, 10:30 PM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Shouldnt matter how much fuel you're spraying at the wall. The fuel will be condensing on the wall anyways (at low flow) or not being swept away before it even makes it to the wall (high flow).
Leafy is offline   Reply With Quote
Old 10-14-2013, 11:02 PM   #22
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I picked up a set of bosch ev14 injectors from a ford econoline van. They are super cheap on ebay (got my set for $40 for all 4)

The only thing with them is that they are the ev14L. They are a tad long for the Miata with a stock rail and intake manifold.


I am going to be building my own intake manifold so I can get mine to work, but it might be a case of adding a custom spacer and a longer bolt to these to get them to work in our cars. 99-05 might have an issue with the length though because the injector boss is casted in the head.
shlammed is offline   Reply With Quote
Old 10-14-2013, 11:24 PM   #23
Junior Member
Thread Starter

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

Quote:
Originally Posted by shlammed View Post
I picked up a set of bosch ev14 injectors from a ford econoline van. They are super cheap on ebay (got my set for $40 for all 4)

The only thing with them is that they are the ev14L. They are a tad long for the Miata with a stock rail and intake manifold.


I am going to be building my own intake manifold so I can get mine to work, but it might be a case of adding a custom spacer and a longer bolt to these to get them to work in our cars. 99-05 might have an issue with the length though because the injector boss is casted in the head.
Have you tried comparing/fitting them? To my understanding they are 12mm longer than the standard, which requires a 12mm spacer to run in the stock mani/rail. So my theory is that those should be the right length.
kero is offline   Reply With Quote
Old 10-15-2013, 10:38 AM   #24
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Quote:
Originally Posted by Leafy View Post
Shouldnt matter how much fuel you're spraying at the wall.
I'm guessing most OEM fuel delivery engineers would disagree with this statement.

I think I'd rather be spraying most of the fuel at the intake ports as opposed to just spraying it where ever.


Quote:
Originally Posted by shlammed
I picked up a set of bosch ev14 injectors from a ford econoline van. They are super cheap on ebay (got my set for $40 for all 4)
Another super cheap EV14 would be from the Pentastar V6. You could probably find these in a junk yard for near free. They are the short version, so I don't know how well they would fit, obviously some sort of spacer or adapter would be needed.

I think they are somewhere around 300cc so they would only really be an option for N/A guys, but it would be a good cheap option. Even relatively low hp N/A guys should see some benefit going from stock injectors to EV14. I know on other N/A cars we saw significant benefit using EV14s.

Last edited by Efini~FC3S; 10-15-2013 at 10:39 AM. Reason: code fael
Efini~FC3S is offline   Reply With Quote
Old 10-15-2013, 01:47 PM   #25
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Serious question: rather than trying to find all these hats and adapters for the injectors to change the length of the body, why not fire up the lathe and make different heights of spacers for the stock rail? A rail spacer seems like it would be far far easier to make and any jack off with a lathe and basic tools could probably make one. Hell, make them out of plastic like Mazda did and you could cut them on a wood lathe.

This of course assumes the injector pockets are already the correct dimensions in the rail and the head. I haven't looked that far into the drawings yet. Am I missing something here?
EO2K is offline   Reply With Quote
Old 10-15-2013, 01:49 PM   #26
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Efini~FC3S View Post
I'm guessing most OEM fuel delivery engineers would disagree with this statement.

I think I'd rather be spraying most of the fuel at the intake ports as opposed to just spraying it where ever.




Another super cheap EV14 would be from the Pentastar V6. You could probably find these in a junk yard for near free. They are the short version, so I don't know how well they would fit, obviously some sort of spacer or adapter would be needed.

I think they are somewhere around 300cc so they would only really be an option for N/A guys, but it would be a good cheap option. Even relatively low hp N/A guys should see some benefit going from stock injectors to EV14. I know on other N/A cars we saw significant benefit using EV14s.
I wonder if they would work with the stock ecu?
EO2K is offline   Reply With Quote
Old 10-15-2013, 02:47 PM   #27
Junior Member
Thread Starter

Join Date: Dec 2012
Posts: 105
Total Cats: 8
Default

Quote:
Originally Posted by EO2K View Post
Serious question: rather than trying to find all these hats and adapters for the injectors to change the length of the body, why not fire up the lathe and make different heights of spacers for the stock rail? A rail spacer seems like it would be far far easier to make and any jack off with a lathe and basic tools could probably make one. Hell, make them out of plastic like Mazda did and you could cut them on a wood lathe.

This of course assumes the injector pockets are already the correct dimensions in the rail and the head. I haven't looked that far into the drawings yet. Am I missing something here?
the rail doesn't need to be spaced, it needs to sit lower to the manifold as injectors are short. Even with stock spacers removed, still too high to seal. Need a custom rail, or at least mounts. The top hat spacers to me are a simple solution as it requires no fab
kero is offline   Reply With Quote
Old 10-15-2013, 03:07 PM   #28
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by kero View Post
the rail doesn't need to be spaced, it needs to sit lower to the manifold as injectors are short. Even with stock spacers removed, still too high to seal. Need a custom rail, or at least mounts. The top hat spacers to me are a simple solution as it requires no fab
Ahh, gotcha. I guess I was thinking about the EV14L. Still might be an option?

I almost want to go find a set of 250-300cc EV14's and see if the stock ECU freaks out or not. I'm all for trying and logging with my wideband if I can find the injectors for under $100. I wouldn't expect much of a power bump, but I could see better efficiency with better atomization.
EO2K is offline   Reply With Quote
Old 10-15-2013, 03:31 PM   #29
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Quote:
Originally Posted by kero View Post
I don't know how well they will work either, my theory is that if it comes OEM on a brand new sports car, it can't be THAT bad. It seemed to idle pretty good, I'm still not sure of the dead times they should be set to, but I also got to tune idle as I wasn't able to idle stoich with rx7 injectors, so i'm probably idling rich, as I said my wideband controller took a dump.

Speaking of which that is probably another thread I will be making on, the BPSX D1 controller, there was one thread about it, but it seemed to turn into an AEM circlejerk. I ordered one, I thought what the heck, I'll give it a try as not much info is available.
I made that thread on the Wideband, I'm interested in your results.
duffbuster243 is offline   Reply With Quote
Old 10-24-2013, 07:36 AM   #30
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by shlammed View Post
I picked up a set of bosch ev14 injectors from a ford econoline van. They are super cheap on ebay (got my set for $40 for all 4)

The only thing with them is that they are the ev14L. They are a tad long for the Miata with a stock rail and intake manifold.


I am going to be building my own intake manifold so I can get mine to work, but it might be a case of adding a custom spacer and a longer bolt to these to get them to work in our cars. 99-05 might have an issue with the length though because the injector boss is casted in the head.

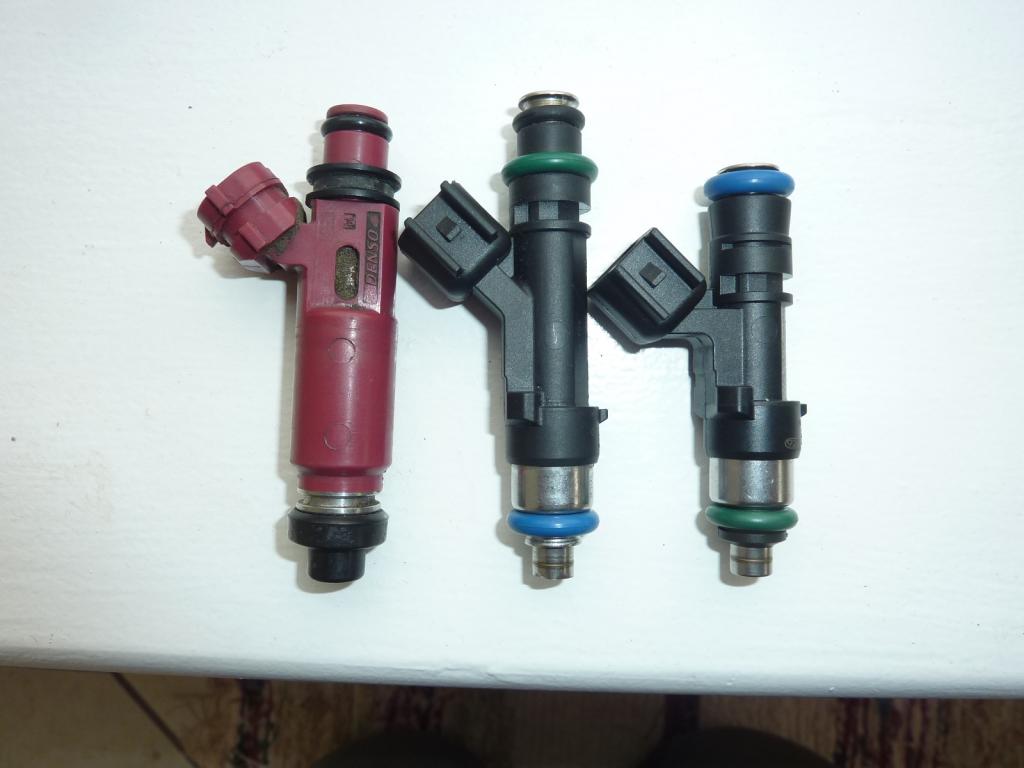

I guess the 60 mm ones can be made to fit if you machine the collar to 10mm diameter down to the retaining clip groove.



I reuse the blue and green o rings that come with the ford injectors and add a new rail seal O ring. (7 mm inside diameter x 2.25mm thick)
I haven't got around to flow resting and fitting the GT 500 injectors yet but i am hopeful that they could also be made to fit in a similar way without spacers.

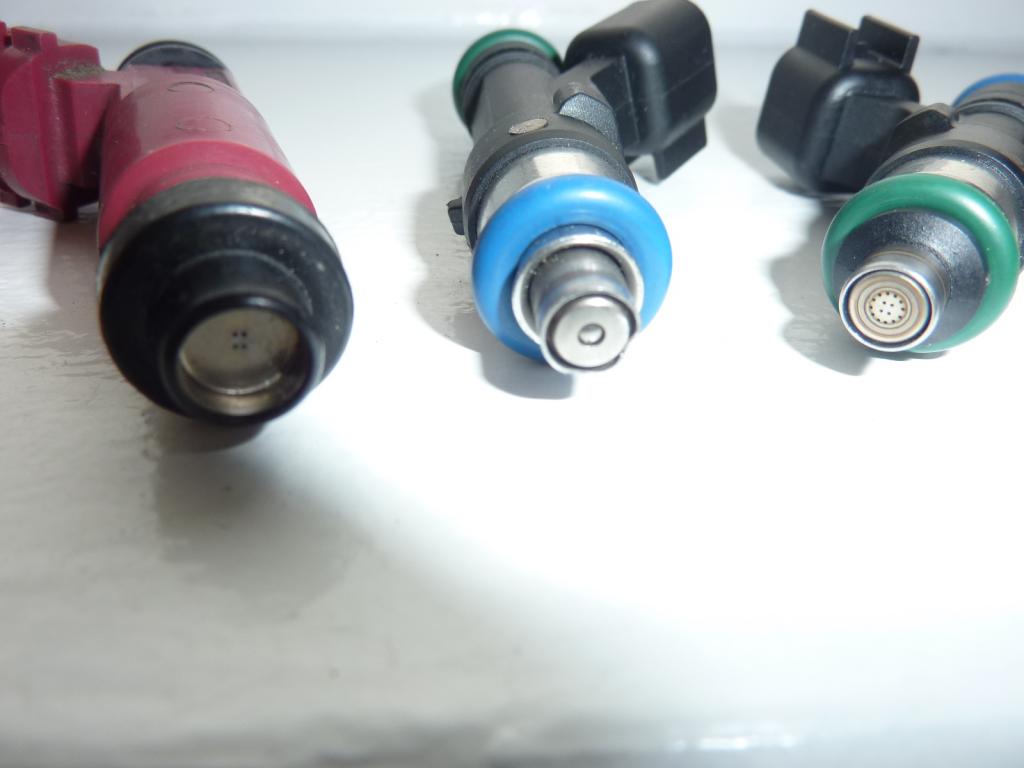

Those econoline injectors probably end up being 750 cc's if you remove the atomizing / vectoring cover plate.
Attached Thumbnails
My quest of running Ford GT500 EV14s-p1040416_zps1d56ab59.jpg   My quest of running Ford GT500 EV14s-p1040418_zps7d82c78d.jpg
sturovo is offline   Reply With Quote
Old 10-28-2013, 11:55 AM   #31
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by sturovo View Post
I guess the 60 mm ones can be made to fit if you machine the collar to 10mm diameter down to the retaining clip groove.
Im not sure that I follow what part you are speaking of.
shlammed is offline   Reply With Quote
Old 10-28-2013, 02:37 PM   #32
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

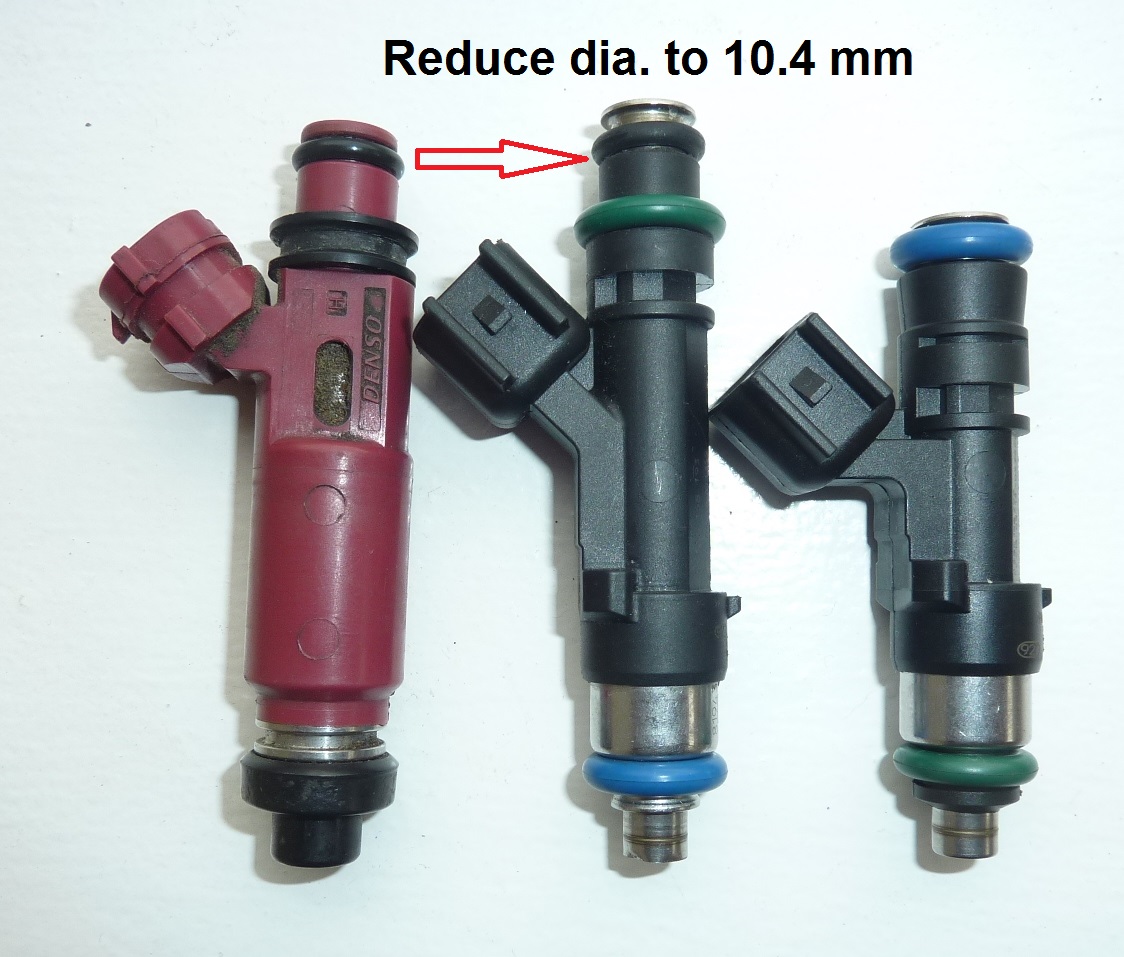

Matt this shows the diameter I am talking about. The rail side of that injector started out as 14mm like the stock ev14 one on the RHS.
I put it in a lathe and reduced the diameter to 10.4mm down to the depth of the retaining clip groove.
Attached Thumbnails
My quest of running Ford GT500 EV14s-p1040416-2-.jpg
sturovo is offline   Reply With Quote
Old 10-30-2013, 01:39 PM   #33
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Is there an EV14L in the 2-300cc range?
jacob300zx is offline   Reply With Quote
Old 10-30-2013, 01:44 PM   #34
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by jacob300zx View Post
Is there an EV14L in the 2-300cc range?
+1 ~ 250-300cc range
EO2K is offline   Reply With Quote
Old 10-30-2013, 02:13 PM   #35
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

No. Just no
18psi is offline   Reply With Quote
Old 10-30-2013, 02:23 PM   #36
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

EO2K is offline   Reply With Quote
Old 10-30-2013, 02:48 PM   #37
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

The NC has EV14s, I don't think they should be larger than 350cc.
Reverant is offline   Reply With Quote
Old 11-02-2013, 11:47 PM   #38
Junior Member

Join Date: Jul 2013
Location: SanDiego
Posts: 53
Total Cats: 5
Default

The 2008-2011 Ford Focus has 200cc ev14 injectors. not sure on the length.

Last edited by ThunderKunt; 11-07-2013 at 07:38 PM.
ThunderKunt is offline   Reply With Quote
Old 05-05-2014, 10:11 PM   #39
Newb
iTrader: (1)

Join Date: Sep 2011
Location: Cedar Rapids - IA
Posts: 32
Total Cats: 0
Default

kero - can you provide an update?

What dead times are you using?
cr_sti is offline   Reply With Quote
Old 05-06-2014, 01:41 PM   #40
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

What about the Focus ST?
JasonC SBB is offline   Reply With Quote
