Old 11-02-2012, 03:19 PM   #201
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,715
Total Cats: 1,085
Default

I picked up all sorts of cool welding things today. When I get home I will post pictures. Once I get a 220v outlet installed this weekend I should be ready to weld.

I also remember Hustler posting that link about the brake cleaner a while back. I will make sure none is used on items that will be welded together.
shuiend is online now   Reply With Quote
Old 11-02-2012, 03:30 PM   #202
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I prefer just straight acetone on a clean rag. It gets most oils and grease pretty well, and it's cheap. And this is already after it's been cleaned up with a wire wheel.
baron340 is offline   Reply With Quote
Old 11-02-2012, 03:33 PM   #203
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by baron340 View Post
Just go mix some ammonia and bleach, you'll get something close
Having spent quite some time in the ER after walking into a building where someone essentially did this, I recommend against this course of action. Treatment involves breathing A LOT of vapor through a respirator, something like 2-4 liters of solution that is combination of saline and something else while they constantly monitor you blood chemistry.

My ? F - Would not breathe again.

Quote:
Originally Posted by shuiend View Post
I picked up all sorts of cool welding things today. When I get home I will post pictures. Once I get a 220v outlet installed this weekend I should be ready to weld.

I also remember Hustler posting that link about the brake cleaner a while back. I will make sure none is used on items that will be welded together.
y u no has 220v dryer hookup?
EO2K is offline   Reply With Quote
Old 11-02-2012, 03:55 PM   #204
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

Quote:
Originally Posted by sturovo View Post
I would stick weld the whole thing if using schedule 40. I usually only use tig when the wall thickness is below 2 mm.
I TIG all my steampipe stuff, I find TIG much easier to get a nice weld with but I have more experience with it, also with TIG you work slower so you can watch with 100% certainty that you have full weld penetration. Which I imagine you can do with stick if you are pretty experienced with it.

Dann
nitrodann is offline   Reply With Quote
Old 11-03-2012, 04:26 PM   #205
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I need a tig welder.....
AkaZero is offline   Reply With Quote
Old 11-13-2012, 11:18 AM   #206
Newb

Join Date: Nov 2012
Posts: 7
Total Cats: 0
Default

I just read this entire thread. Im definitely going this route with mine! Unless someone upgrades to a professional setup and sells me their DIY system!!
Ryleighsdad is offline   Reply With Quote
Old 11-15-2012, 09:12 PM   #207
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Got a box today:



When I made my order, I sent them an email and asked if the had a "premium" option for the BP flange, and offered to pay for the upgrade. They said they didn't have the code, but they would work on it and get back to me. 30 days later I still didn't have flanges, so I sent them an email. They responded in minutes and admitted they had forgotten to do it, apologized, and then got it in the mail less than 48 hours later. What do you know? They gave me the "premium" upgrade for free THAT is how you do business!

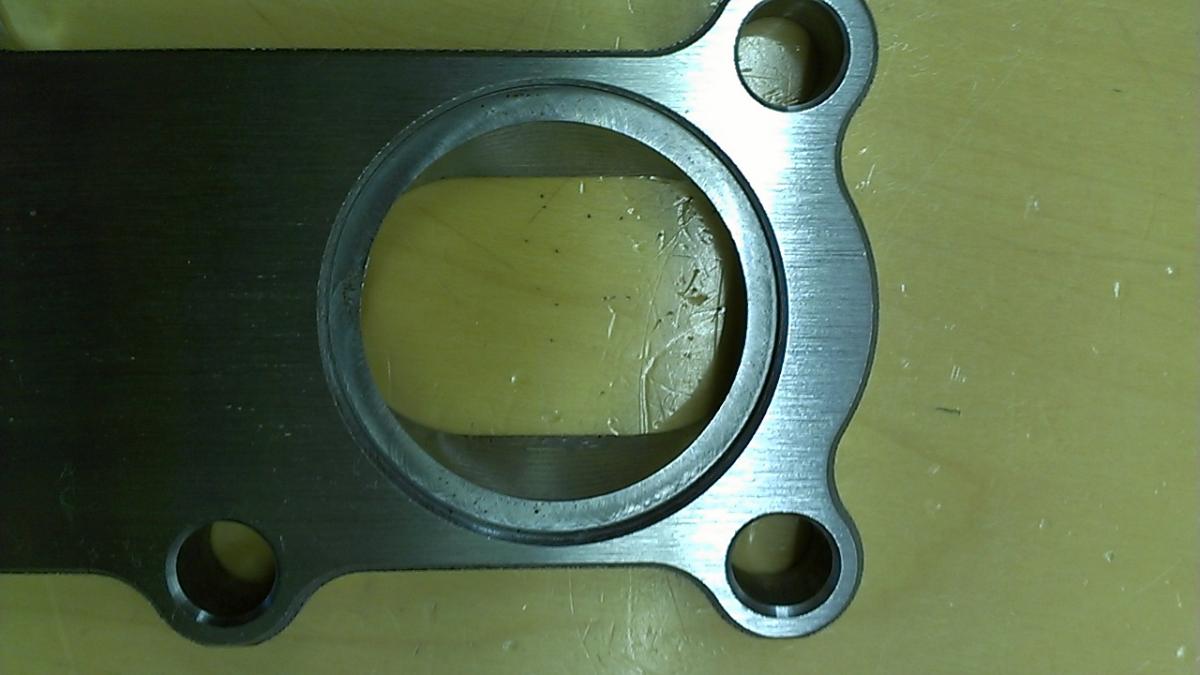

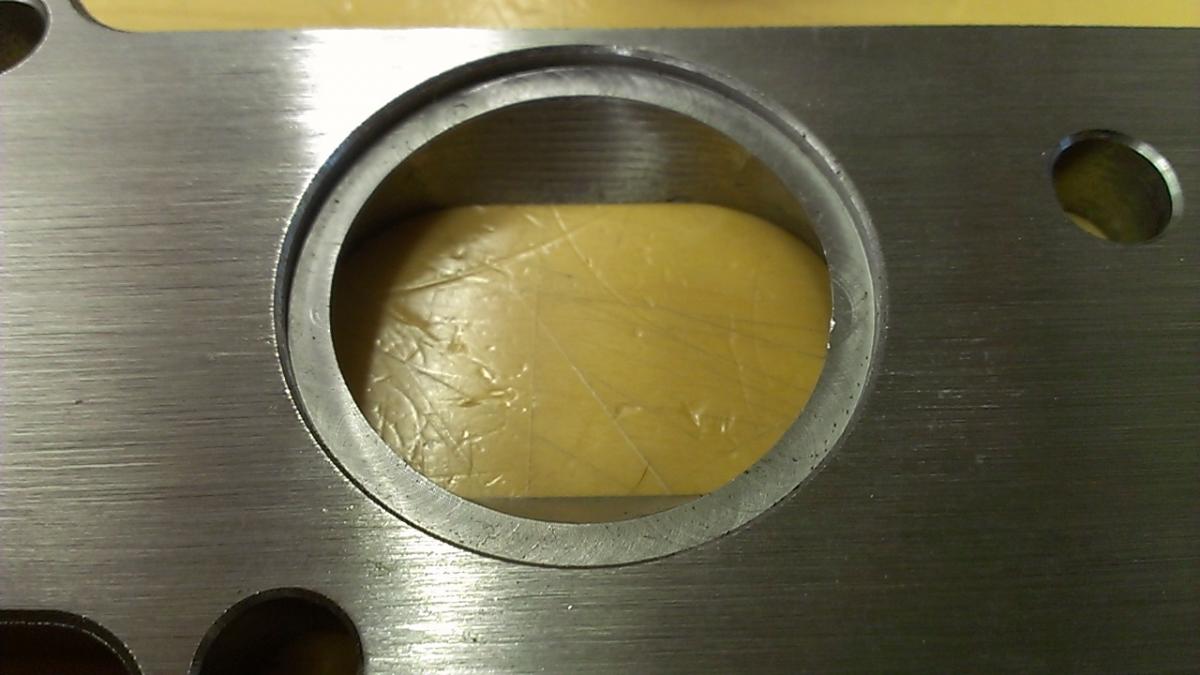

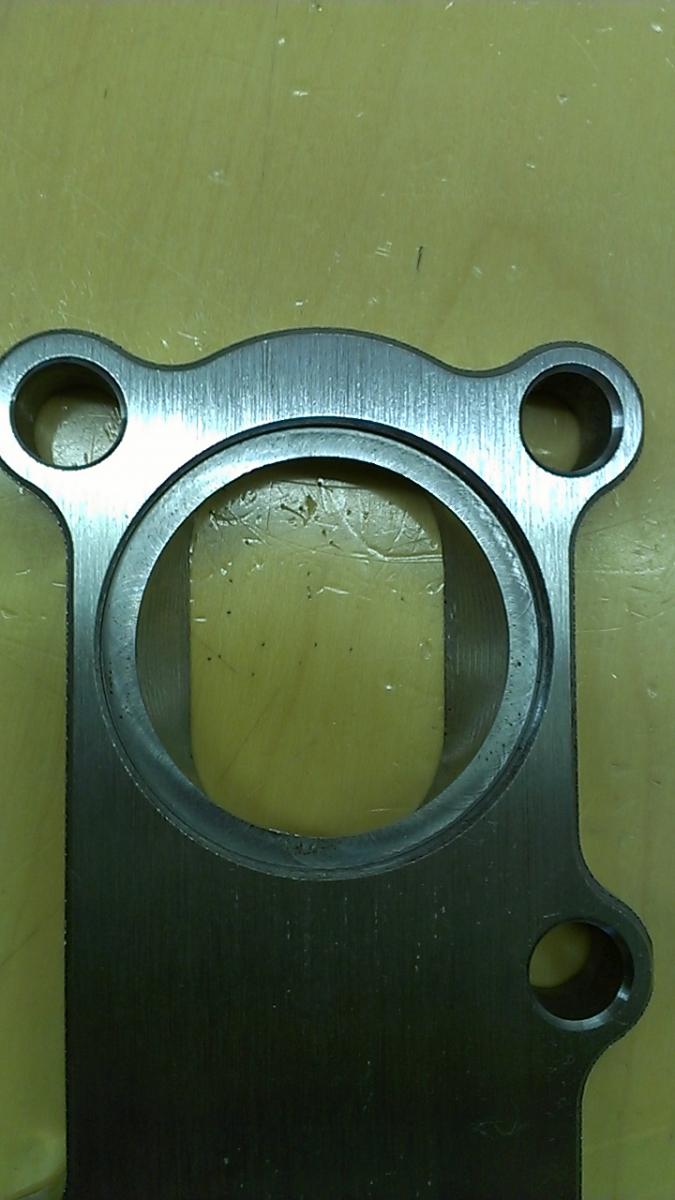

Manifold side with relief for 1.5" Sch 40 pipe:


straight on


little closer


slight angle

The transitions on these were really well done! I was a bit apprehensive at first, but I'm really happy with the work they did.

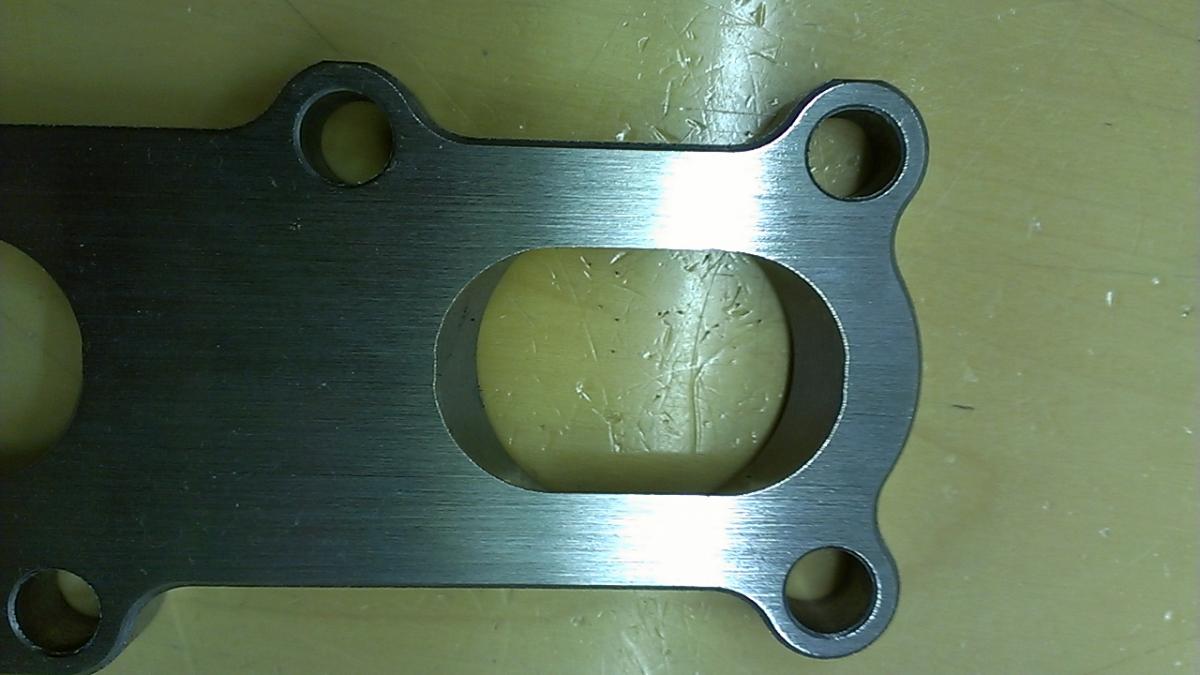

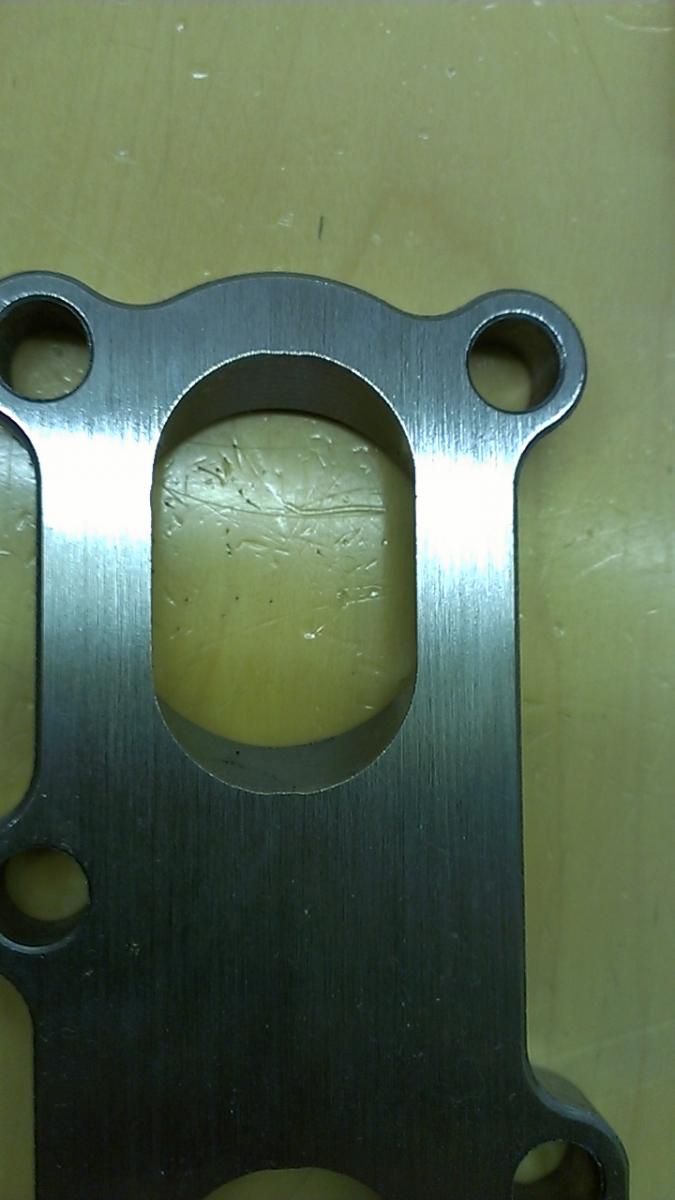

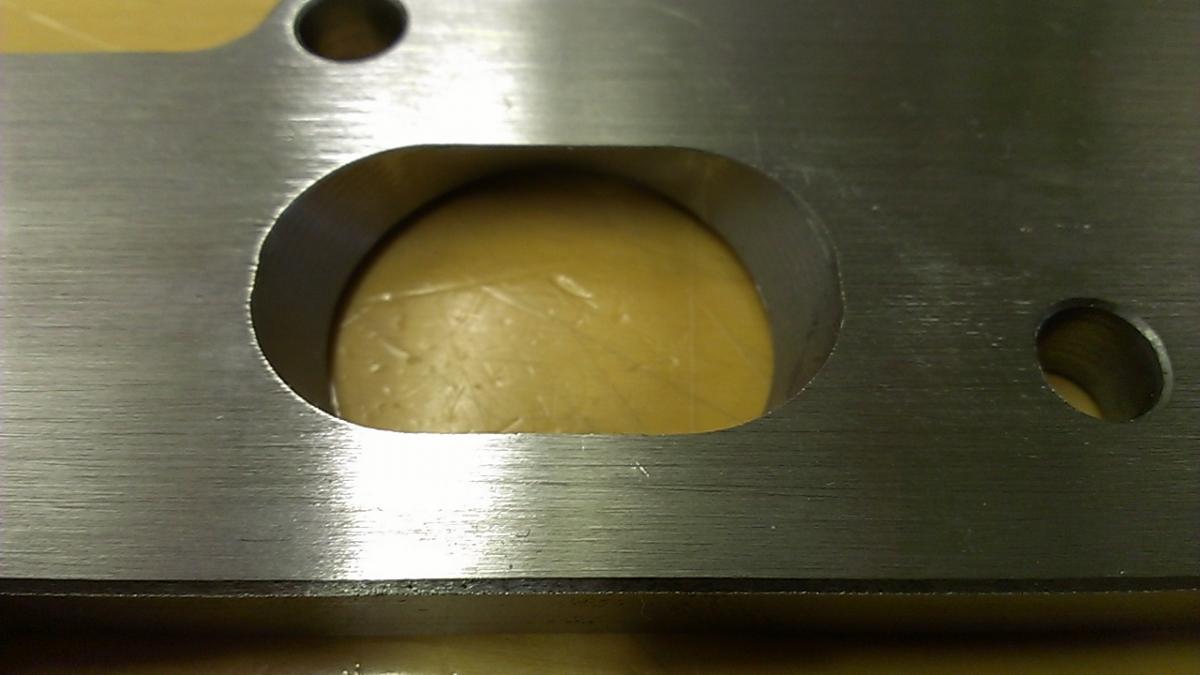

Head side exhaust port:


straight on


little closer


slight angle

Its mild and just a hair under 1/2" thick. I'll hit it with a caliper when I get home but I suspect they probably sanded it smooth. I want to get some pictures with an OEM exhaust manifold gasket tonight and see how close this is. Everything on these flanges is great, these guys really went the extra mile to break all the sharp edges on all the corners and radii. Everything has a nice 45 break on it. The port edges are razor sharp, but I expected that and suspect I'll have to abuse them with the die grinder after welding anyway.

Even with the delay, A+ would buy again

Mazda 18L Header Manifold Flange Standard - MAZDA18LHF - BMC Racing Products

I told them I'd be posting pics and impressions on one of the Miata sites tonight, so hopefully they will get the "premium" option listed shortly.

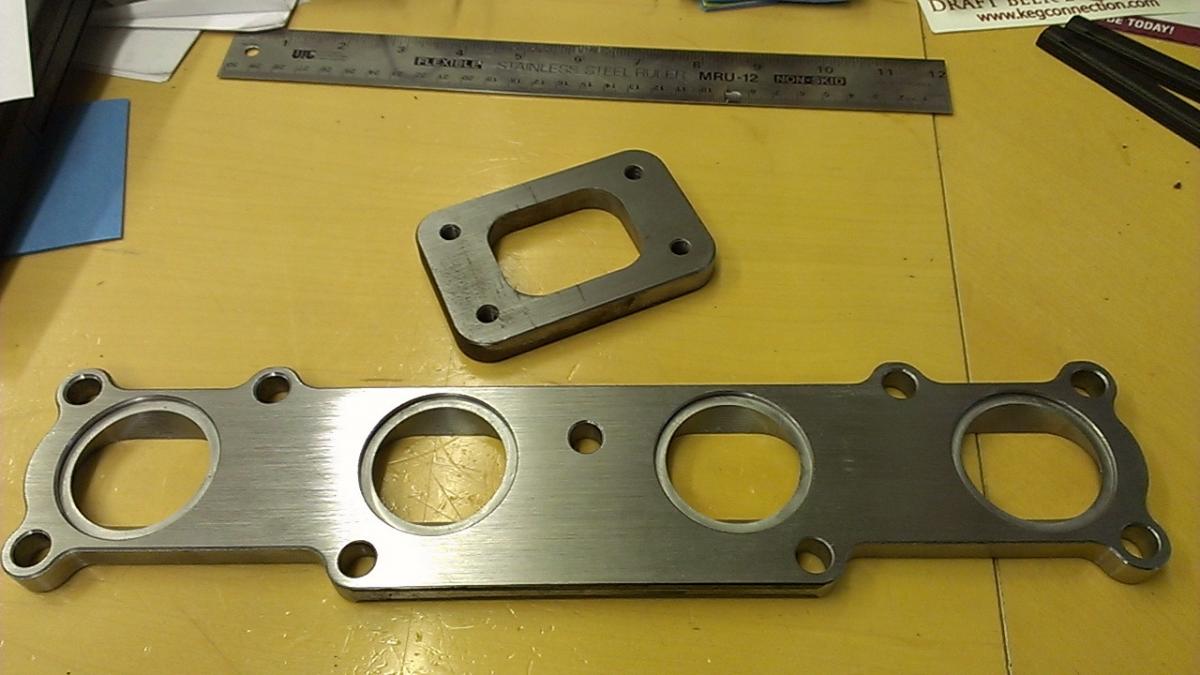

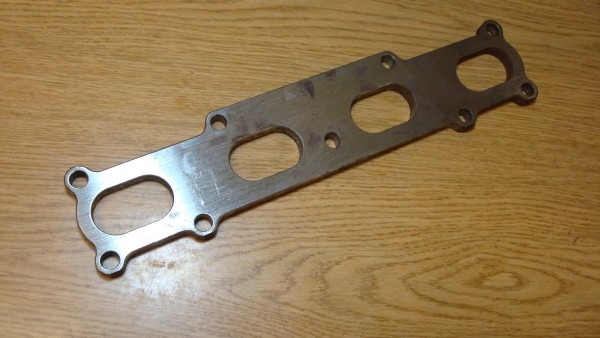

Just for reference, this is the "standard" flange listed on their website:


Attached Thumbnails
DIY manifold-0xaaq.jpg   DIY manifold-armxy.jpg   DIY manifold-ththp.jpg   DIY manifold-jzgts.jpg   DIY manifold-e1f7o.jpg

DIY manifold-n9vm5.jpg   DIY manifold-g4hyi.jpg
EO2K is offline   Reply With Quote
Old 11-15-2012, 09:17 PM   #208
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

wow, the premium is absolutely the way to go. its such a pain in the *** bending crazy strong els into ovals, and this thing completely eliminates that. and gives a nice groove for easier welding.

Very nice
18psi is offline   Reply With Quote
Old 11-15-2012, 10:27 PM   #209
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Only 80 bucks? **** thats only a little bit more than I was looking at to have someone water jet this piece of 1/2" Stainless sitting in my living room. And that'll help with the packaging problem I've been having in the lump of noodles cad model.
Leafy is offline   Reply With Quote
Old 11-15-2012, 11:20 PM   #210
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

That flange is awesome.
baron340 is offline   Reply With Quote
Old 11-16-2012, 01:12 PM   #211
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by baron340 View Post
That flange is awesome.
I agree!

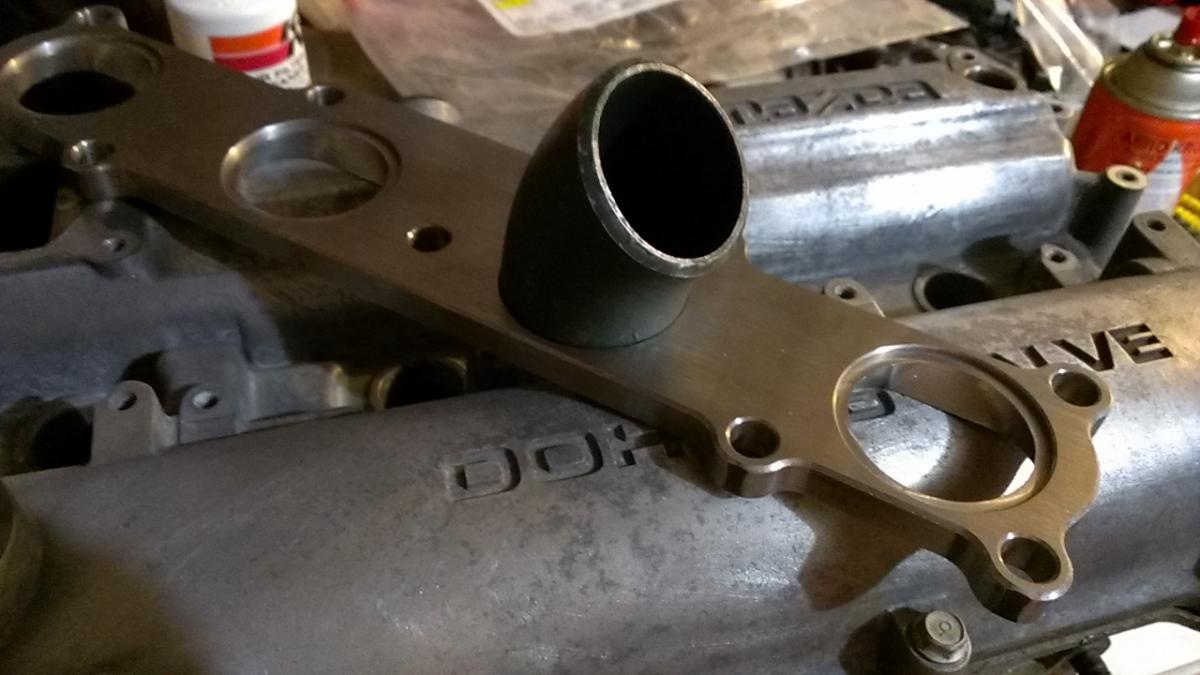

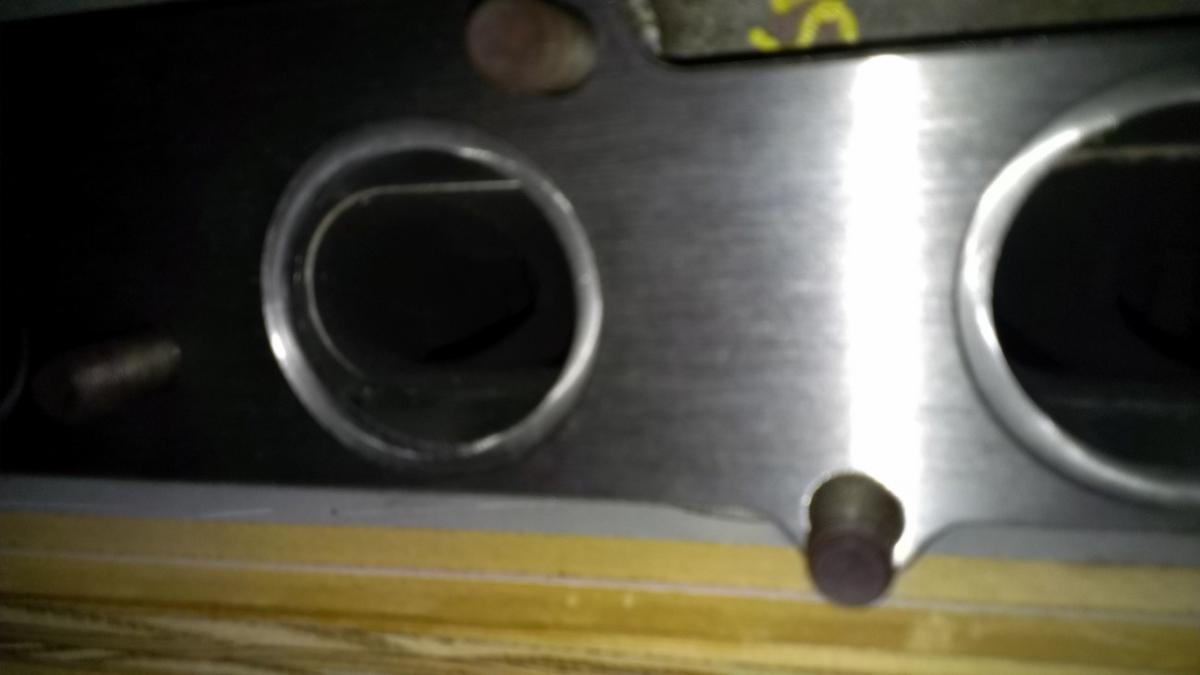

I apologize in advance for the horrendous pictures, but the lighting in my garage is miserable. I started by sticking the flange on the untouched BP6D head in my garage last night and everything lines up perfectly. Ports look good, all the holes are in the right places, absolutely no complaints. I did notice that the ports on the flange are slightly oversize compared to an OEM gasket.


The gasket is the silver ring in the above pic between the head and the flange. Its not nearly as bad as it looks in the horrible picture. I'll probably hit it with a sharpe, trim the gasket to match the flange, then match the ports in the head to the trimmed gasket.


The 1.5" Schedule 40 drops right into the pocket with no issues.

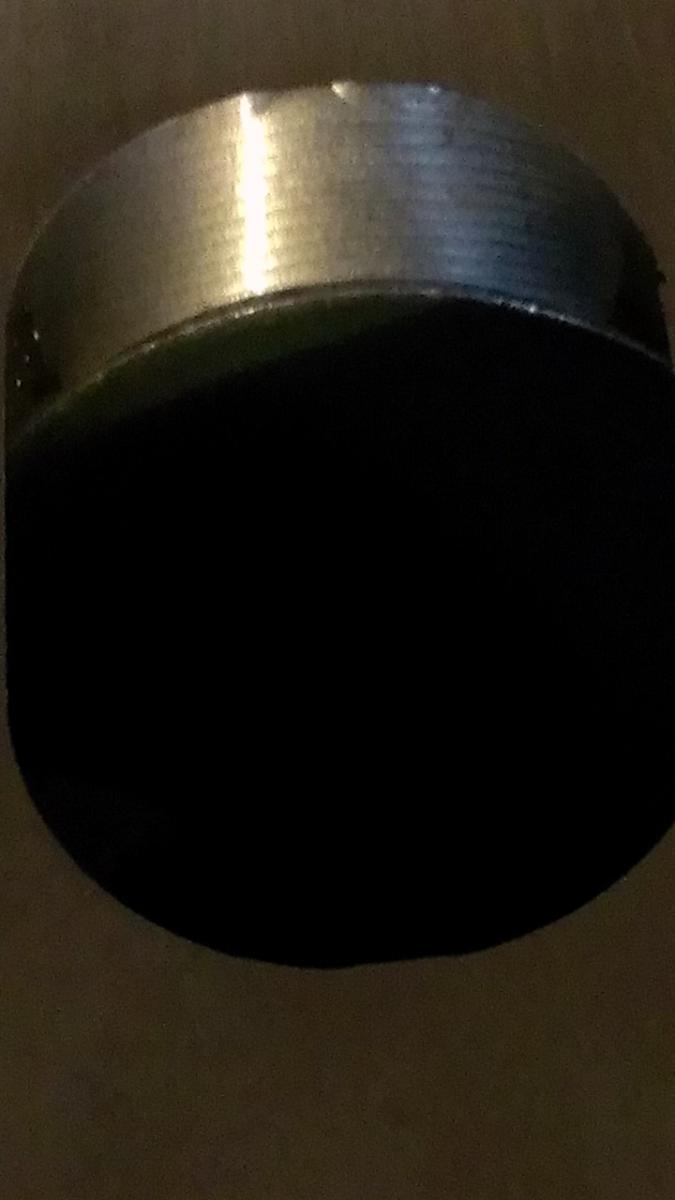

On the inside, the weld el is eversoslightly smaller than the hole, but again, should be no more than a couple minutes work with a die grinder to smooth it out after its welded up.

The opening in the T25 flange is a bit larger than the turbine inlet on my SR20 terbo but it shouldn't be hard to open the housing up to match. Moar spoolz, amirite? I haven't tried it on the GT2560R yet. Either way I failed and did not take a picture. I also failed to check the thread size. I'm HOPING it is M8, but I have no earthly idea.

Quote:
Originally Posted by Leafy View Post
Only 80 bucks? **** thats only a little bit more than I was looking at to have someone water jet this piece of 1/2" Stainless sitting in my living room. And that'll help with the packaging problem I've been having in the lump of noodles cad model.
After conversing with the guys from Boerner, it sounds like they are willing to do any of their flanges in mild or stainless by request. I would expect the pricing on the BP premium flange in mild to be around $55-60 based on their other products, and probably closer to $90-100 in 304SS but don't ******* quote me on that. Shoot Sam an email and he can get you hooked up. Now that they have the code for the ports, it should be as simple as an email and a paypal transaction. When I inquired about the lack of Garrett T25 5 bolt flanges on their site, they told me they can do it, they just don't have them listed on the website. They said they have A LOT of other flanges for both foreign and domestic applications but they only list the popular ones on the site. No idea how the BP one got on there
Attached Thumbnails
DIY manifold-imag0086.jpg   DIY manifold-imag0108.jpg   DIY manifold-imag0081.jpg
EO2K is offline   Reply With Quote
Old 11-16-2012, 01:44 PM   #212
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

Those are super nifty. And I can get them in mild.

I just need to find a good place to get mild weld els now.
AkaZero is offline   Reply With Quote
Old 11-16-2012, 01:50 PM   #213
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Quote:
Originally Posted by AkaZero View Post
Those are super nifty. And I can get them in mild.

I just need to find a good place to get mild weld els now.
Ace stainless sells mild as well as stainless.
Leafy is offline   Reply With Quote
Old 11-16-2012, 01:57 PM   #214
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by AkaZero View Post
Those are super nifty. And I can get them in mild.

I just need to find a good place to get mild weld els now.
Quote:
Originally Posted by Leafy View Post
Ace stainless sells mild as well as stainless.
So does McMaster-Carr: McMaster-Carr Weld El Pipe Fittings
EO2K is offline   Reply With Quote
Old 11-16-2012, 02:01 PM   #215
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

But ace stainless is like 4-8 dollars cheaper per fitting.
Leafy is offline   Reply With Quote
Old 11-16-2012, 02:11 PM   #216
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by AkaZero View Post
Those are super nifty. And I can get them in mild.

I just need to find a good place to get mild weld els now.
No you don't, you just buy them in stainless and use those like everyone else. Stainless welds so much nicer than mild steel.
baron340 is offline   Reply With Quote
Old 11-16-2012, 06:14 PM   #217
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I only have a mig welder at the moment, so I would like to stick with mild steel. I don't want to have to buy another gas and wire just for one project.

I totally want to buy stainless, it's cheaper, prettier, longer lasting. But... that will have to be if/when I get a tig welder.
AkaZero is offline   Reply With Quote
Old 11-17-2012, 12:39 AM   #218
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

You can weld stainless with co2 mix and just buy a new spool of wire.
baron340 is offline   Reply With Quote
Old 11-20-2012, 02:04 PM   #219
Junior Member

Join Date: Mar 2012
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by AkaZero View Post
Those are super nifty. And I can get them in mild.

I just need to find a good place to get mild weld els now.
Just call up your local commercial plumbing supply house. They are like $4 each for the 90's and $10 each for the T's.
fmcokc is offline   Reply With Quote
Old 12-12-2012, 06:56 PM   #220
Junior Member

Join Date: Jan 2012
Location: Miami
Posts: 210
Total Cats: 1
Default

Will be doing this for my Miata soon, this thread was a good read. Thanks to everyone who provided information.
MatosMiata is offline   Reply With Quote
