Default AbsurdFlow + GT2871R + TiAL pornography

Figured I should explain my new signature.

The development of my track **** has reached the point where I am using every single bit of the 220whp I have - which means I can use more. With chronic hardware issues plaguing myself and a bunch of others who track their cars, I started looking into alternatives... and the whole thing sort of ballooned out of control.

MANIFOLD/DP/WG:
Manifold and DP will be fabbed by TurboTim. With my horsepower and response goals, a tubular manifold was a no-brainer, and his **** is the best. 100% stainless steel, with a TiAL V-band outlet.

WG will be TiAL's new MVS wastegate, which is tiny and badass. Honey, Who Shrunk the V44, or something similar.

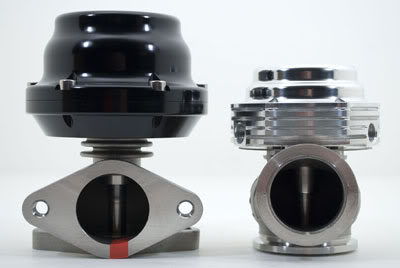

Name:  MVS.jpg
Views: 7
Size:  14.3 KB

The biggest advantage, aside from the lack of flanges, is the sheer size of this thing. It's friggin tiny, something like 3.5" tall from TiAL.

DP will be from Tim, SS with a straight exit under the car. EWG will be dumped next to it, so I can recirc them later and add a catback to run Laguna if I need to.

TURBO:
Choice here was obvious. I wanted the biggest turbo that still provided acceptable response. I've driven a 3076 on another car and didn't like it at all, so I went with a mid-range (52-trim) 2871R. Not exactly an off-the-wall setup, but the real centerpiece of the new setup will be the extensive use of V-bands.

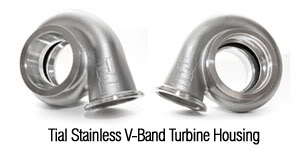

Name:  tial_vband.jpg
Views: 6
Size:  8.9 KB

Aside from the flange at the head, there are no flanges in this setup. None. No more studs to drill/replace, nothing to tighten.

Power goals are lofty. Out of the gate, I want to see what the torque capacity of a 6-puck ACT HD is. It's rated at 300ft.lbs or so. I will be tuning the car on 100 octane, and using a Devil's Own Basic setup on track to keep intake temps down. I won't tune on the WI, which negates the need for failsafes in the system - it's purely a safety margin. Once I slip the ACT HD, I will probably be doing a 949Racing twin-disc for both weight and capacity. On 100 octane at 22-23psi, I should be able to see power levels in the mid to high 300whp range, with torque near there. It may take an intake manifold as well to see those numbers, and I've started looking into that already.

I will post photos in this thread as the new setup comes together.
Savington is offline   Reply With Quote
Old 06-09-2009, 05:12 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

nice! did you see Newb's dyno plot I just posted? 1.6L at 8.8:1 with a 2861 at 16psi.
Braineack is offline   Reply With Quote
Old 06-09-2009, 05:20 PM   #3
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Sounds like a very sick setup. I know I love the way my Absurdflow works with my 2560. I was thinking of going to the 2871 but don't really need/want all that power. Good job dude.
ArtieParty is offline   Reply With Quote
Old 06-09-2009, 05:22 PM   #4
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Great project!
Cost estimate on parts involved?
Laur3ns is offline   Reply With Quote
Old 06-09-2009, 05:28 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Is it wrong that I'm sexually aroused by this?
Joe Perez is offline   Reply With Quote
Old 06-09-2009, 05:31 PM   #6
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Is it wrong that I'm sexually aroused by this?
Not at all, I know I am.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-09-2009, 05:33 PM   #7
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Spookyfish View Post
Great project!
Cost estimate on parts involved?


No, I don't want to know. Knowing will ruin the fun.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 06-09-2009, 05:37 PM   #8
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

^^ yeah it would ruin the fun but hot damn....that is a nice setup.
lsc224 is offline   Reply With Quote
Old 06-09-2009, 05:38 PM   #9
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Spookyfish View Post
Great project!
Cost estimate on parts involved?
Got it:
Quote:
Originally Posted by Savington View Post
Hustler, expect to drop no less than $3k on new hot parts.

Ask me how I know
Laur3ns is offline   Reply With Quote
Old 06-09-2009, 05:41 PM   #10
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Nice! Congrats on the new setup plans! FWIW, I absolutely love my 2871!
RotorNutFD3S is offline   Reply With Quote
Old 06-09-2009, 05:43 PM   #11
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

I'm tuned in....keep us updated!!
Cspence is offline   Reply With Quote
Old 06-09-2009, 05:50 PM   #12
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

Sav,
Wow. I look forward to seeing this come together.

Are you building this with a certain race series in mind or just track fun?

I foresee Hustler spending alot of money soon....

Chris
Miatamaniac92 is offline   Reply With Quote
Old 06-09-2009, 05:53 PM   #13
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

The car is being built with pure speed in mind, but I can put a dashboard and center console back in place and it would be legal for RTA's Modified class.
Savington is offline   Reply With Quote
Old 06-09-2009, 05:57 PM   #14
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

this is gonna be pretty.
tyson87 is offline   Reply With Quote
Old 06-09-2009, 06:46 PM   #15
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

And I was thinking you were gonna go V8. This looks like its gonna be **** on bull! I cant wait to see how it turns out
Vashthestampede is offline   Reply With Quote
Old 06-09-2009, 06:56 PM   #16
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

andrew, you can suck a bag of dicks.

this is pretty much the setup I'd be running if I were to re-do everything (well, except I'd run a full exhaust)

I think the 2871 is a highly underrated turbo for the miata. I would swap my coldside out today if it wasn't cost prohibitive.





i take back the dicks thing. that setup is going to be friggin AWESOME.


nws down here.
y8s is offline   Reply With Quote
Old 06-09-2009, 07:03 PM   #17
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

Quote:
Originally Posted by Spookyfish View Post
Cost estimate on parts involved?
if you have to ask, you can't afford it.



^not being sarcastic
disturbedfan121 is offline   Reply With Quote
Old 06-09-2009, 08:13 PM   #18
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I was wondering when you were going to reveal this Andrew, congrats again! Now you won't be in the pits every other lap reconnecting your ****. j/k
kotomile is offline   Reply With Quote
Old 06-09-2009, 09:39 PM   #19
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Sounds great! But what about bracing the turbo? IIRC Corky used some measurements of how the turbo was moving when hot vs cold to create the brace for his S4 manifold and how it should move, and there are still people complaining that the maniold cracked.
With the much tougher racetrack environment how are you going to prevent the tubular manifold cracking? Tracking the turbo movement and building the proper bracing yourself?


j_man is offline   Reply With Quote
Old 06-09-2009, 10:33 PM   #20
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Best of luck Sav, can't wait to see the finished product!!!
TonyV is offline   Reply With Quote
